FANDRIVE2
Main Image
Product Images
Product Images
Product Images
Product Images

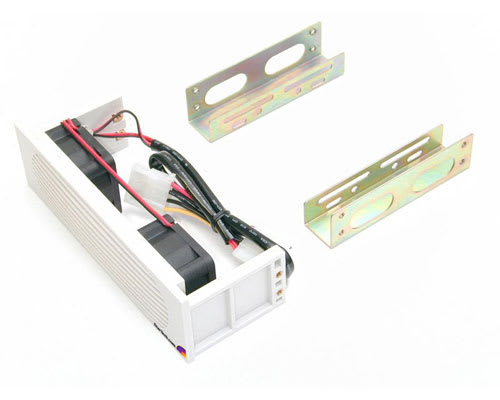

Product Name 5.25 Drive Bay Hard Drive Cooler - 2 Fan Product Number FANDRIVE2 UPC 065030785013 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX027X Product Title (Short) 3.5" HDD Bracket Kit for 5.25" Front Bay Product Title (Standard) StarTech.com 3.5in Hard Drive Bracket Kit for 5.25in Front Bay with Dual Fan Product Title (Long) 3.5in Hard Drive Bracket Kit for 5.25in Front Bay with Dual Fan Title Ingram (Part 1) 3.5" Drive Bracket Kit for 5.25" Title Ingram (Part 2) Front Hard Bay Bullet 1 Fits into a standard 5.25" drive bay Bullet 2 Extends hard drive life and reliability Bullet 3 Uses two high-efficiency, ultra-quiet cooling fans Bullet 4 Hardware mounting kit provided for 3.5" hard drives Bullet 5 Includes power splitter cable to draw power from your PC without reducing the total number of existing power connectors Marketing Copy The StarTech.com dual fan hard drive cooling kit provides maximum airflow for hot-running hard drives, preventing overheating failures and extending the life of the drive. The fan unit mounts in any free 5.25 inch half height drive bay, and the hard drive is mounted directly behind it using the supplied 3.5 inch to 5.25 inch adapter brackets. Fresh cool external air is drawn into the case through a removable, cleanable filter and blown directly over the hard drive by 2 quiet running fans. Perfect for extending the life of hot running 7200 RPM, 10,000, or 15,000 RPM IDE and SCSI hard drives in servers or workstations. Applications Provides extra cooling for your hard drive Related Products FANDRIVE Color Beige TAA Compliant No Air Flow Rate 4.17 CFM (each) General Specifications - Hard Drive Requirements:
- Bay : 5.25 inches
- Hard Drive Size : 3.5 inches
- Hard Drive Type : IDE & SCSI
- Weight :
- Lbs : 0.45
- Grams: 204
- Fan Type: Sleeve Bearing
- Construction:
- Fan : Plastic
- Enclosure : Plastic
- Number of Fans: 2
- Noise Level (dB): 36
- Filter Type: Mesh
- Mounting Kit: Included
- Life Expectancy: 15000 hrs
- Connector: LP4
- Fan Dimension:
- Inches : 1.57 x 1.57 x 0.78
- Millimeters : 40 x 40 x 20
- Enclosure Dimension:
- Inches : 5.91 x 1.58
- Millimeters : 15 0x 40
RPM 5000 +/- 10% Fan Bearing Type Ball Bearing Carton Depth (mm) 484 Carton Height (mm) 300 Carton Quantity 50 Carton Weight Gross (g) 13200 Included in Package - 1 - FAN
- 1 - BRACKET
- 1 - SET OF SCREWS
Package Depth (mm) 48 Package Height (mm) 177 Package Width (mm) 184 Package Weight (g) 240 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
