FANK8AM21U

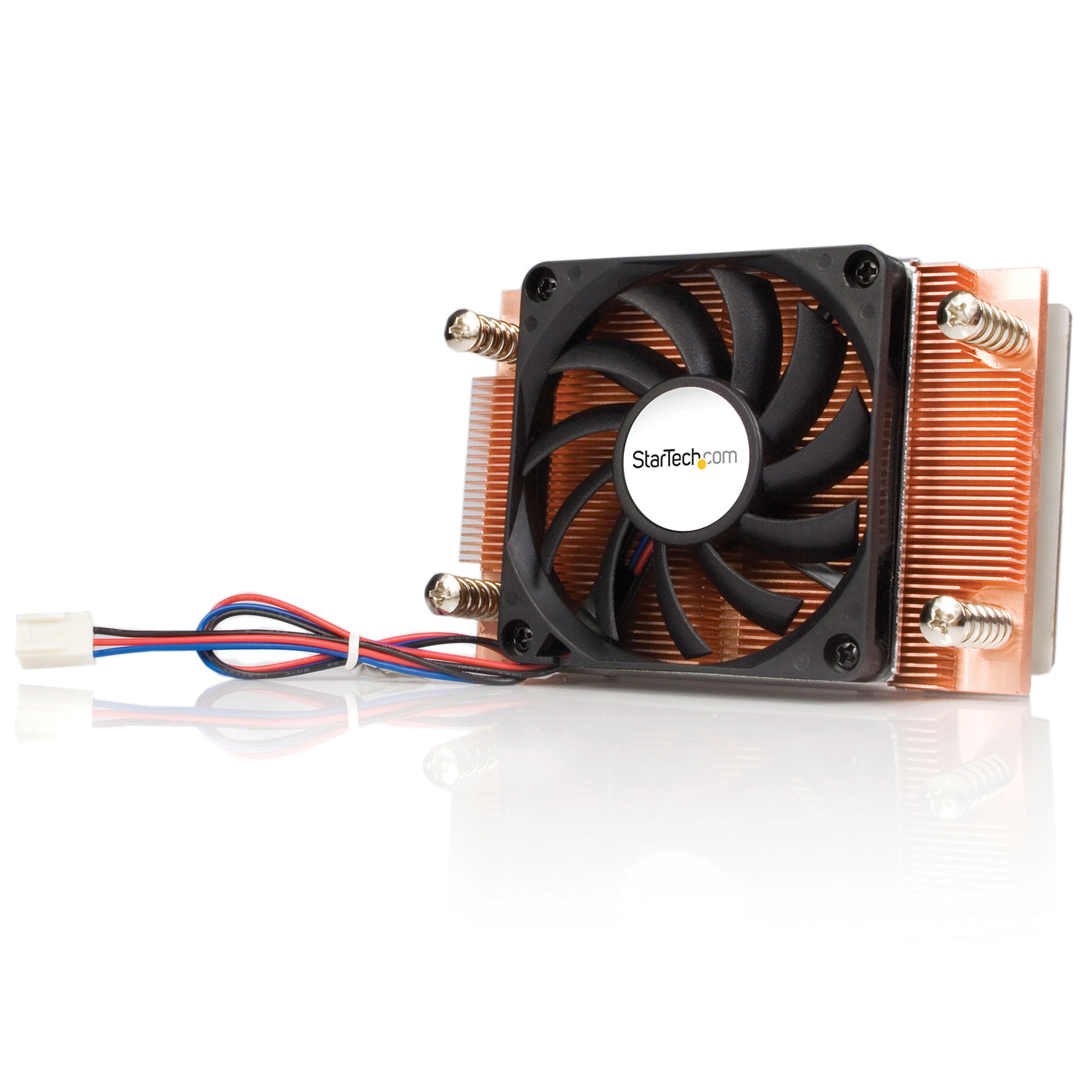

1U Low Profile Socket AM2 AMD Heatsink with Fan
Keeps an AMD Socket AM2 processor running cool
Main Image
BOM Image
Product Name 1U Low Profile Socket AM2 AMD Heatsink with Fan Product Number FANK8AM21U UPC 065030830546 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX027X Product Title (Short) 1U Low Profile TX3 AMD CPU Cooler Fan Product Title (Standard) StarTech.com 1U Low Profile Socket AM2 AMD Heatsink with Fan - CPU cooler fan - ( Socket 754, Socket 939, Socket AM2 ) - copper - black - 1U Product Title (Long) 1U Low Profile TX3 Dual Ball Bearing AMD CPU Cooler Fan with Heatsink Title Ingram (Part 1) 1U LP TX3 Dual Ball Bearing AMD Title Ingram (Part 2) CPU Cooler Fan w/ Heatsink Website Product Headline Keeps an AMD Socket AM2 processor running cool Bullet 1 All copper heatsink & Skive Fin technology Bullet 2 Combines suitable desing with effective heat dispersion Bullet 3 Designed to direct hot air away from your CPU Marketing Copy Applications - (Socket AM2): AMD Opteron 1210HE - 1218 HE(to 65w)
- (Socket AM2): Athlon X2 BE2300 -BE2400(to 45w)
- (Socket AM2): Athlon 64 x2 3600+ - 5200+(to 65w)
- (Socket 754/939): Athlon 64 3000+ - 4000+(to 65w)
- (Socket AM2): Athlon 64 LE1600 - LE1620(to 62w)
- (Socket AM2): AMD Sempron 2800+ - 3800+(to 62w)
- (Socket AM2): AMD Sempron LE1100 - LE1250(to 45w)
- Designed for AMD Socket AM2 series, typically found in Server class systems with 1U low profile design:
Website Search Keyword - heatsinks
- heatsink and fan
- low profile fans
- 1u fan
- AM2 AMD
- socket am2 754 939
- 1u low profile cpu coolers
- Athlon 64 X2 Opteron Sempron
Accessory Products - SILVGREASE1
- HEATGREASE10
Related Products - FANOPT1U
- FANK8AM2
- FAN7751U
- FAN3701U

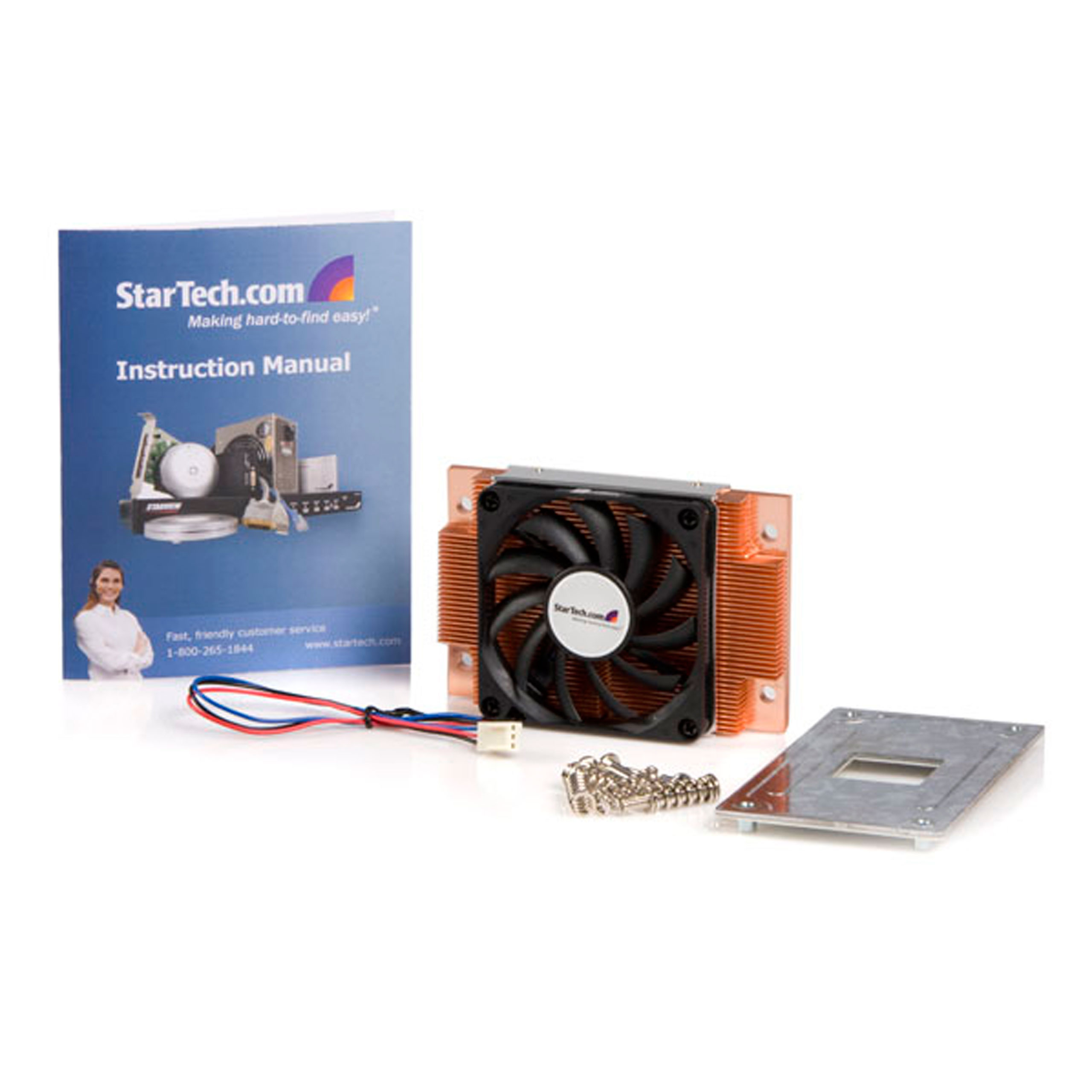

Input Voltage 12V DC Color Black Material Plastic Product Length (mm) 107 Product Width (mm) 71.8 Product Height (mm) 25.5 Product Weight (g) 526 TAA Compliant No Air Flow Rate 25.63 CFM MTBF (hours) 56,609 Hours Noise Level <36 dBA RPM 4000±10% Fan Bearing Type Dual Ball Bearing Fans 1 - 70 mm Carton Depth (mm) 474 Carton Height (mm) 161 Carton Quantity 32 Carton Weight Gross (g) 21680 Included in Package - 1 - Heatsink and Fan
- 1 - Instruction Manual
- 1 - Backing Plate
- 4 - Mounting Screw w/Spring
- 1 - Thermal Compound
Package Depth (mm) 95 Package Height (mm) 68 Package Width (mm) 114 Package Weight (g) 640 Packaging Description 1U Low Profile Socket AM2 CPU Cooler Packaging Description India 1U Low Profile Socket AM2 CPU Cooler Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Fan TX3 (3-Pin, 12V) Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager Rafal Gwozdz
