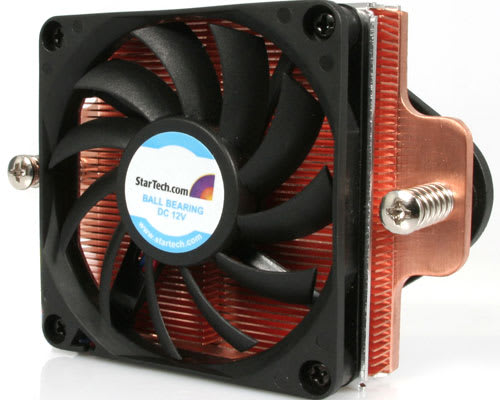

Product Name 1U AMD Opteron CPU Heatsink with Fan Product Number FANOPT1U UPC 065030824361 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX027X Product Title (Long) 1U Dual Ball Bearing AMD Opteron CPU Cooler and Heatsink Bullet 1 Dual Ball Bearing fan for extended long life span Bullet 2 All copper heatsink & Skive Fin technology Bullet 3 Combining aesthetics and heat dispersion Marketing Copy Applications - Predominantly designed for AMD Opteron Processors, typically found in Server class systems with 1U low profile design:
Website Search Keyword - Heatsink
- AMD Opteron
- CPU Heatsink with Fan
- 1U CPU Cooler
- Socket 939 940 754
Related Products - UNIVERSALHSF
- FAN939775HP
Color Black Product Length (mm) 100 Product Width (mm) 72 Product Height (mm) 25 Product Weight (g) 386 TAA Compliant No Air Flow Rate 25.63 CFM General Specifications - Fan Dimensions: 70x 70 x 10mm
- Heatsink Dimensions: 100 x 70 x 16mm
- Fan Speed: 4000 +/- 10% RPM
- Tested to support for compatible processors under 103W
- Rated Voltage: 12V
- Heatsink Base Material: Copper
Noise Level <36 dBA Fan Bearing Type Ball Bearing Carton Depth (mm) 430 Carton Height (mm) 120 Carton Quantity 40 Carton Weight Gross (g) 20400 Package Depth (mm) 70 Package Height (mm) 150 Package Width (mm) 186 Package Weight (g) 480 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Fan TX3 (3-Pin, 12V) Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
