Main Image
FANP100
Main Image

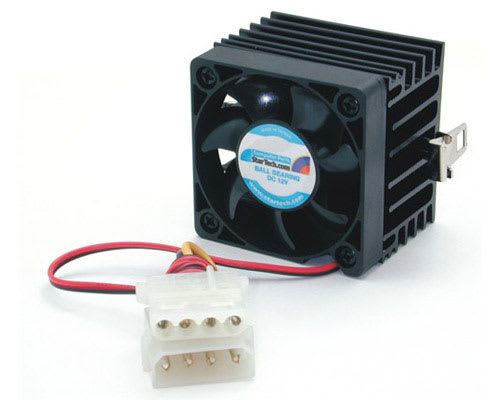

Product Name SOCKET 7/370 PENTIUM/CELERON CPU FAN Product Number FANP100 UPC 065030778176 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX020X Product Title (Long) Heavy Duty Pentium/Celeron CPU Cooler Fan (Socket 7/370) Bullet 1 Steel clip provides a secure fit Marketing Copy The StarTech Socket7/370 CPU cooling fan is a combination heatsink and fan designed for cooling Socket 370 (PPGA) Celerons, FC-PGA (Flip-chip) Pentium III, Socket 7 Pentiums, AMD K6, K6-2, K6-3, and Cyrix chips. It sports an extra-large heatsink with enough cooling capacity for even the newest and fastest processors. A quiet running 5 cm brushless ball bearing DC motor coupled with a high-efficiency blade design is capable of moving 9 CFM (cubic feet per minute) of air. Power is supplied to the fan using a standard LP4 (hard drive power connector) pass through plug. Applications - For Socket 370 (PPGA) Celerons, Socket 7 Pentiums, AMD K6, K6-2, K6-3, and Cyrix chips.
- Can be used as a replacement CPU fan for Pentium 100 or faster Socket 7 based computers.
- This fan is connected to the power supply. Refer to FANP1003LEAD for a fan that is connected to an ATX motherboard.
- Use thermal heatsink compound (HEATGREASE or HEATGREASE10) for optimal performance
Accessory Products - FANALARM
- HEATGREASE
- HEATGREASE10
- SILVGREASE1
Related Products - FANP100PRO
- FANP1003LEAD
Color Black Product Weight (g) 113 TAA Compliant No Air Flow Rate 9.3 CFM General Specifications - CPU Compatibility:
- Intel : Pentium II & III up to 500 MHz
- AMD : K-6 series up to 500 MHz
- VIA : C3, Cyrix III & Cyrix MII up to 500 MHz
- Socket Type: Socket 7 & Socket 370
- Heatsink material: Aluminum
- Fan Enclosure: Plastic
- Fan Type : Ball Bearing
- Fan Airflow (CFM) : 9.3
- Noise Level (dB) : 28
- Speed (RPM): 4500
- Voltage: 12V
- Weight: 113 grams
- Fan Dimensions:
- Inches: 1.95 x 1.95 x 0.4
- Millimeters: 50 x 50 x 10
- Heatsink dimensions:
- Inches: 2.1 x 1.9 x 0.8
- Millimeters: 53 x 48 x 20
- Connector: LP4 connector
RPM 4500 Fan Bearing Type Ball Bearing Carton Depth (mm) 333 Carton Height (mm) 584 Carton Quantity 160 Carton Weight Gross (g) 15600 Included in Package 1 - Socket 7/370 Pentium/Celeron CPU Fan Package Depth (mm) 50 Package Height (mm) 148 Package Width (mm) 102 Package Weight (g) 90 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Fan TX3 (3-Pin, 12V) Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
