FANP1003LEAD
Main Image

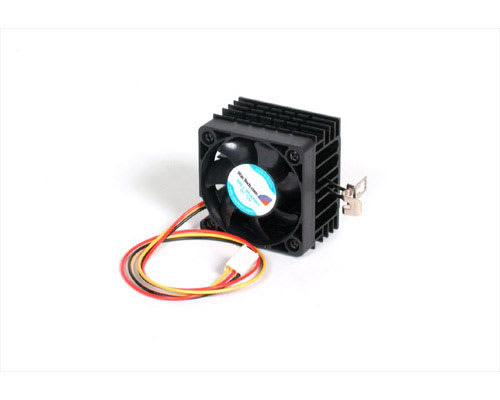

Product Name SOCKET 7/370 PENT/CELER CPU FAN w/3 LEAD Product Number FANP1003LEAD UPC 065030790437 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX020X Product Title (Long) Pentium/Celeron CPU Cooler Fan (Socket 7/370) w. 3-lead TX3 connector Bullet 1 Steel clip provides a secure fit Marketing Copy The StarTech Socket7/370 CPU cooling fan is a combination heatsink and fan designed for cooling Socket 370 (PPGA) Celerons, Socket 7 Pentiums, AMD K6, K6-2, K6-3, and Cyrix chips. It sports a large heatsink with enough cooling capacity for even the newest and fastest processors. A quiet running 5 cm brushless ball bearing DC motor coupled with a high-efficiency blade design is capable of moving 9 CFM (cubic feet per minute) of air. Power is supplied to the fan using a 3-lead TX3 connector that plugs into the motherboard and allows the system to monitor fan speed and operating status. Applications - This fan is connected directly to the motherboard. Refer to FANP100 for a fan that is connected to the power supply.
- Use thermal heatsink compound (HEATGREASE or HEATGREASE10) for optimal performance
Accessory Products - CPUFANADAPT
- FANALARM
- HEATGREASE
- HEATGREASE10
- SILVGREASE1
Related Products - FANP100
- FANP100PRO
Color Black Product Weight (g) 81 TAA Compliant No Air Flow Rate 9.3 CFM General Specifications - CPU Compatibility:
- Intel : Celeron up to 500 MHz
- AMD : K-6 series up to 500 MHz
- VIA : C3, Cyrix III & Cyrix MII up to 500 MHz
- Socket Type: Socket 7 & Socket 370
- Heatsink Material: Aluminum
- Fan Enclosure: Plastic
- Fan Type: Ball Bearing
- Fan Airflow (CFM): 9
- Noise Level (dB): 28
- Speed (RPM): 4500
- Voltage: 12V
- Connector: TX3 Motherboard connector
- Weight: 81 grams
- Fan Dimensions:
- Inches: 2 x 2 x 0.5
- Millimeters: 50 x 50 x 12.7
- Heatsink dimensions:
- Inches: 2 x 2 x .85
- Millimeters: 50 x 50 x 22
RPM 4500 Fan Bearing Type Ball Bearing Carton Depth (mm) 326 Carton Height (mm) 584 Carton Quantity 160 Carton Weight Gross (g) 129200 Included in Package 1 - Pentium/K6/Celeron 3-Lead CPU Fan Package Depth (mm) 50 Package Height (mm) 148 Package Width (mm) 103 Package Weight (g) 800 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Fan TX3 (3-Pin, 12V) Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
