Main Image
FANP233
Main Image

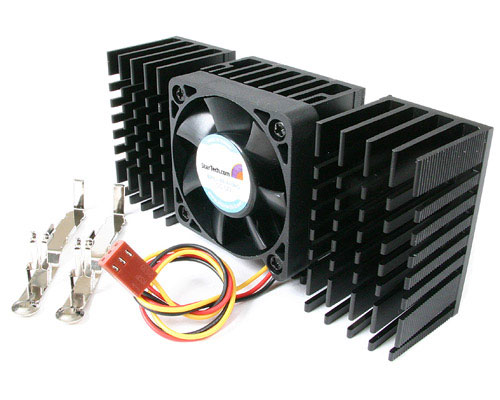

Product Name Pentium II/AMD Athlon CPU Fan Product Number FANP233 UPC 065030781862 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX020X Product Title (Long) Pentium II/AMD Athlon CPU Fan Bullet 1 Specially designed for Pentium II 233+ CPUs Bullet 2 Includes thermal conductive tape for improved heat transfer Bullet 3 Steel clip provides a secure fit Marketing Copy The StarTech.com Slot 1/A Pentium II/AMD Athlon CPU cooling fan is a combination heatsink and fan designed for cooling Intel Pentium II CPUs that use the original SECC plastic cartridge (233-400 MHz), or AMD Athlon CPUs. It sports an extra-large heatsink with enough cooling capacity for any CPU. A quiet running 5cm brushless ball bearing DC motor coupled with a high-efficiency blade design is capable of moving 9 CFM (cubic feet per minute) of air. Power is supplied to the fan using a 3-lead TX3 connector that plugs into the motherboard and allows the system to monitor fan speed and operating status. Applications - Designed for SECC mounted Pentium II CPUs
- Use thermal heatsink compound (HEATGREASE or HEATGREASE10) for optimal performance
Accessory Products - CPUFANADAPT
- FANALARM
- HEATGREASE
- HEATGREASE10
- SILVGREASE1
Related Products FANP2DUAL Color Black Product Weight (g) 280 TAA Compliant No Air Flow Rate 9.5 CFM General Specifications - CPU Compatibility:
- Intel : Pentium II up to 450 MHz
- AMD : Athlon up to 800 MHz
- Slot Type: SECC Type Slot 1 & Slot A
- Heatsink Material : Aluminum
- Fan Enclosure : Plastic
- Fan Type : Ball Bearing
- Weight : 280 grams
- Fan Airflow (CFM): 9.5
- Noise Level (dB): 28
- Fan Speed (RPM): 3500
- Voltage: 12V
- Connector: TX3 Motherboard
- Fan Dimensions:
- Inches: 2 x 2x 0.25
- Millimeters: 50 x 50 x 10
- Heatsink Dimensions:
- Inches: 4.75 x 2.25 x 1.5
- Millimeters: 124 x 57 x 38
RPM 3500 Fan Bearing Type Ball Bearing Carton Depth (mm) 330 Carton Height (mm) 588 Carton Quantity 70 Carton Weight Gross (g) 15900 Included in Package 1 - SECC Slot 1 Pentium II CPU Fan Package Depth (mm) 60 Package Height (mm) 180 Package Width (mm) 182 Package Weight (g) 210 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Fan TX3 (3-Pin, 12V) Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
