FANP2DUAL
Main Image

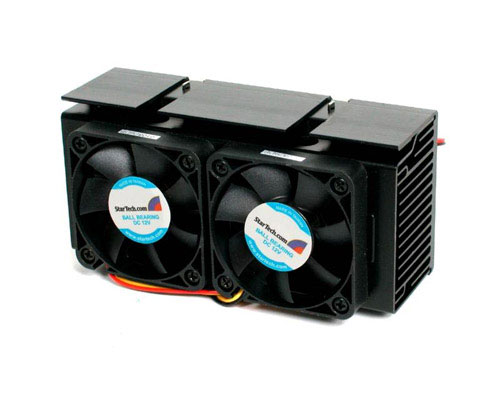

Product Name Pentium II/Athlon Heatsink with Dual Fan Product Number FANP2DUAL UPC 065030782708 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Long) Pentium II/Athlon CPU Heatsink with Dual Fan Bullet 1 Specially designed for Pentium II SECC-mounted CPUs Bullet 2 Includes thermal conductive grease for improved heat transfer Bullet 3 Steel clip provides a secure fit Marketing Copy The StarTech.com Slot 1/A Pentium II/Athlon CPU cooling fan is a combination heatsink and fan designed for cooling Intel Pentium II CPUs that use the original SECC plastic cartridge (233-400 MHz), or AMD Athlon CPUs. It sports an extra-large heatsink and twin motors for PCs that are running in hot conditions, or are used for heavy processing. The dual quiet running 5cm brushless ball bearing DC motors are capable of moving 13.5 CFM (cubic feet per minute) of air. Power is supplied to the fan using a 3-lead TX3 connector that plugs into the motherboard and allows the system to monitor fan speeds and operating status, and a LP4 hard drive power tap power the second fan. Applications - Designed for SECC mounted Pentium II CPUs
- Use thermal heatsink compound (HEATGREASE or HEATGREASE10) for optimal performance
Accessory Products - CPUFANADAPT
- FANALARM
- HEATGREASE
Color Black Product Weight (g) 290 TAA Compliant No Air Flow Rate 13.5 CFM General Specifications - CPU Compatibility:
- Intel : Pentium II up to 450 MHz
- AMD : Athlon up to 800 MHz
- AMD : K7 up to 800 MHz
- Slot Type: SECC Type Slot 1 & Slot A
- Heatsink Material : Aluminum
- Fan Enclosure : Plastic
- Fan Type: 2 Ball Bearing Fans
- Weight: 290 grams
- Fan Airflow (CFM): 13.5
- Noise Level (dB): 29
- Fan Speed (RPM): 3500
- Voltage: 12V
- Fan Dimensions:
- Inches: 2 x 2 x 0.25
- Millimeters: 50 x 50 x 10
- Heatsink Dimensions:
- Inches: 4.75 x 2.25 x 1.5
- Millimeters: 124 x 57 x 38
RPM 3500 Fan Bearing Type Ball Bearing Carton Depth (mm) 330 Carton Height (mm) 588 Carton Quantity 10 Carton Weight Gross (g) 21681.6976 Included in Package - 1 - Twin Fan SECC Pentium II CPU Cooler
- 1 - Pouch of heatsink compound
Package Depth (mm) 58 Package Height (mm) 180 Package Width (mm) 83 Package Weight (g) 320 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Fan TX3 (3-Pin, 12V) Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
