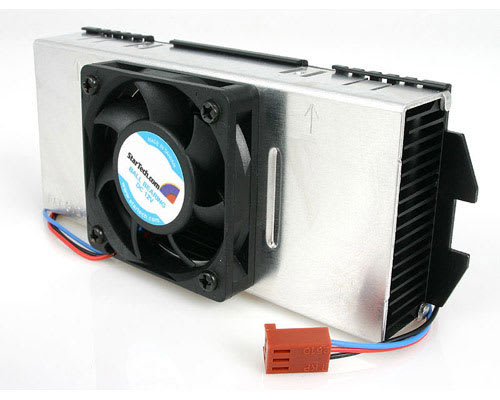

Pentium 2/3 Heatsink/Fan for SECC-2 CPU

Main Image

Product Name	Pentium 2/3 Heatsink/Fan for SECC-2 CPU
Product Number	FANP2SECC
UPC	065030782524
Lifecycle status	Discontinued
Warranty	2 Years
Taxonomy	Product > Legacy Discontinued
Category Level 1	Legacy Category
Category Level 2	Legacy Sub-Category
Category Level 3	Legacy Group
Country of Origin Europe & Japan	Taiwan
Country of Origin North America	Taiwan
Country of Origin History (1)	Taiwan
Country of Origin Revision (1)	XXXXXX020X

Product Title (Long)	Pentium II/III Heatsink/Fan for SECC-2 CPUs
Bullet 1	Specially designed for Pentium II and Pentium III SECC2-mounted CPUs
Bullet 2	Includes thermal conductive tape for improved heat transfer
Bullet 3	Steel clip provides a secure fit
Marketing Copy	The StarTech.com Slot 1 Pentium II/III CPU cooling fan is a combination heatsink and fan designed for cooling Intel Pentium II and III CPUs that use the newer SECC2 cartridge. A quiet running 5cm brushless ball bearing DC motor coupled with a high-efficiency blade design is capable of moving 9 CFM (cubic feet per minute) of air. Power is supplied to the fan using a 3-lead TX3 connector that plugs into the motherboard and allows the system to monitor fan speed and operating status.
Applications	Designed for SECC-2 mounted Pentium II & III CPUs Use thermal heatsink compound (HEATGREASE or HEATGREASE10) for optimal performance

Air Flow Rate	9.5 CFM
General Specifications	CPU Compatibility: Intel : Pentium II up to 800 MHz Intel : Pentium III up to 800 MHz Slot Type : SECC2 Heatsink Material : Aluminum Fan Enclosure : Plastic Fan Type : Ball Bearing Weight: 128 grams Fan Airflow (CFM): 9.5 Noise Level (dB): 28 Fan Speed (RPM): 3500 Voltage: 12V Fan Dimensions: Inches: 2.0 x 2.0 x 0.5 Millimeters: 50 x 50 x 10 Heatsink Dimensions: Inches: 5.4 x 1.2 x 1.8 Millimeters: 137 x 46 x 30
RPM	3500

Carton Depth (mm)	322
Carton Height (mm)	590
Carton Quantity	70
Carton Weight Gross (g)	18000
Included in Package	1 - SECC2 Pentium II/III CPU Fan 1 - Bracket
Package Depth (mm)	57
Package Height (mm)	180
Package Width (mm)	182
Package Weight (g)	240
Sub-Carton Depth (mm)	0
Sub-Carton Height (mm)	0
Sub-Carton Width (mm)	0
Sub-Carton Weight (g)	0

Accessory Products	CPUFANADAPT FANALARM HEATGREASE HEATGREASE10 SILVGREASE1
Related Products	FANP3PRO

Connector 1	Fan TX3 (3-Pin, 12V)
Connector 1 (Quantity)	1
