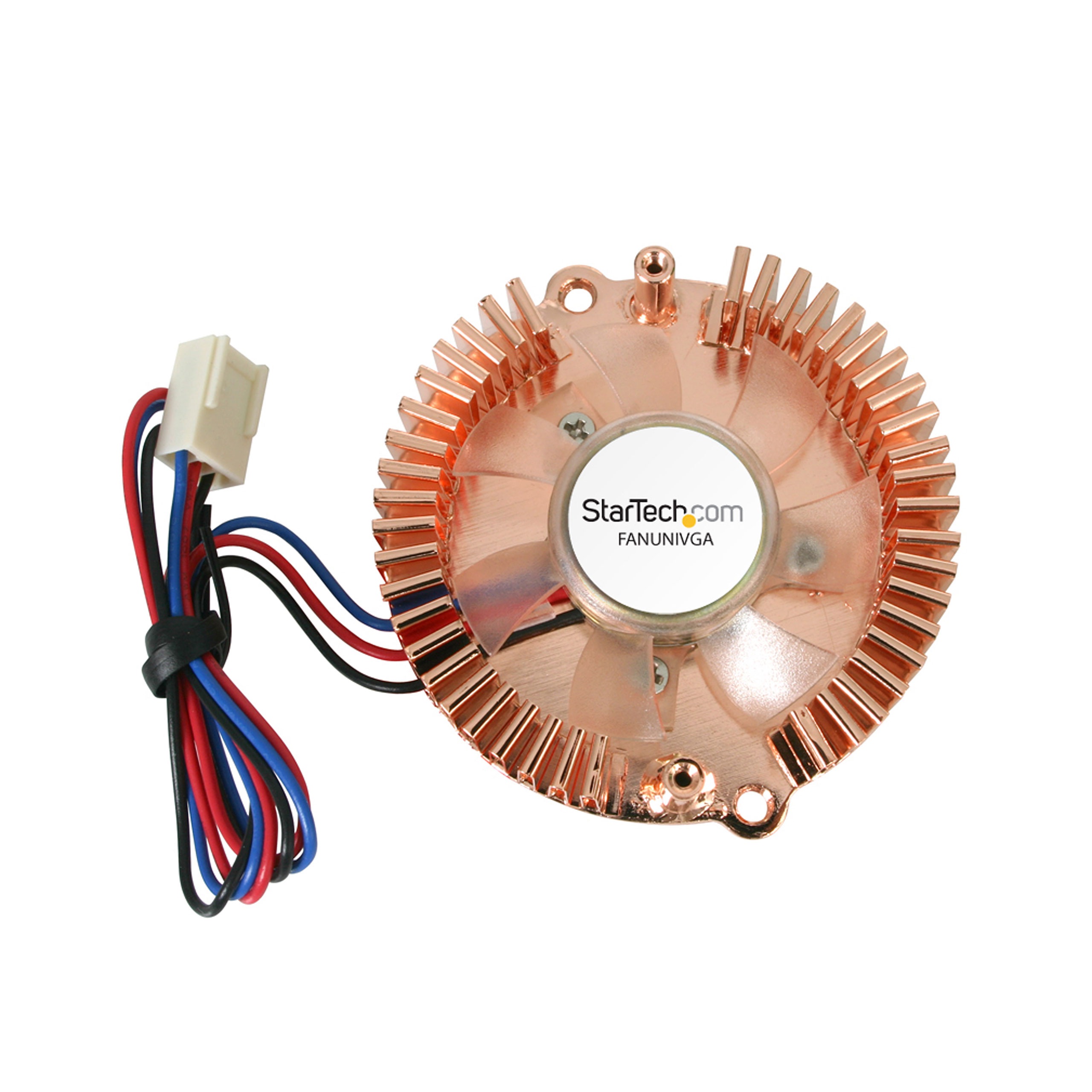

UNIVERSAL VGA Card Heatsink & Fan

Keep a VGA video card running cooler with a small heatsink fan

Main Image

BOM Image

Product Name	UNIVERSAL VGA Card Heatsink & Fan
Product Number	FANUNIVGA
UPC	065030818179
Lifecycle status	Discontinued
Warranty	2 Years
Taxonomy	Product > Legacy Discontinued
Category Level 1	Legacy Category
Category Level 2	Legacy Sub-Category
Category Level 3	Legacy Group
Country of Origin Europe & Japan	China
Country of Origin North America	China
Country of Origin History (1)	China
Country of Origin Revision (1)	XXXXXX027X

Product Title (Short)	Universal VGA Cooler Fan w/ Heatsink
Product Title (Standard)	StarTech.com Copper Universal VGA Cooler Fan w/ Heatsink and TX3 Connector - Universal VGA Card Heatsink & Fan - Video card cooler - copper
Product Title (Long)	Copper Universal VGA Cooler Fan w/ Heatsink and TX3 Connector
Product Title (AMZ)	Copper Universal VGA Cooler Fan w/ Heatsink and TX3 Connector (FANUNIVGA)
Title Ingram (Part 1)	Copper Universal VGA Cooler Fan
Title Ingram (Part 2)	w/ Heatsink & TX3 Connector
Website Product Headline	Keep a VGA video card running cooler with a small heatsink fan
Bullet 1	40mm ball bearing cooling fan
Bullet 2	Copper heatsink construction
Bullet 3	Standard 3-pin Molex fan connector
Marketing Copy
Applications	Replace a noisy/failing cooling fan on a VGA video card Add a cooling fan to a passive cooling (heatsink only) VGA video card
Website Search Keyword	VGA cooler VGA Heatsink and Fan Universal VGA Heatsink and Fan

Input Current 0.11
Input Voltage 12V DC
Power Consumption (In Watts) 1.32W
Cable Length (mm) 240
Color Copper
Product Length (mm) 61.6
Product Width (mm) 61.6
Product Height (mm) 14
Product Weight (g) 90.72
TAA Compliant No
Air Flow Rate 7.63 CFM
MTBF (hours) 12,500 Hours
Noise Level <24 dBA
RPM 4600 +/-10% RPM
Fan Bearing Type Ball Bearing
Fans 1 - 40 mm
Number of Conductors 3

Carton Depth (mm)	450
Carton Height (mm)	225
Carton Quantity	60
Carton Weight Gross (g)	10200

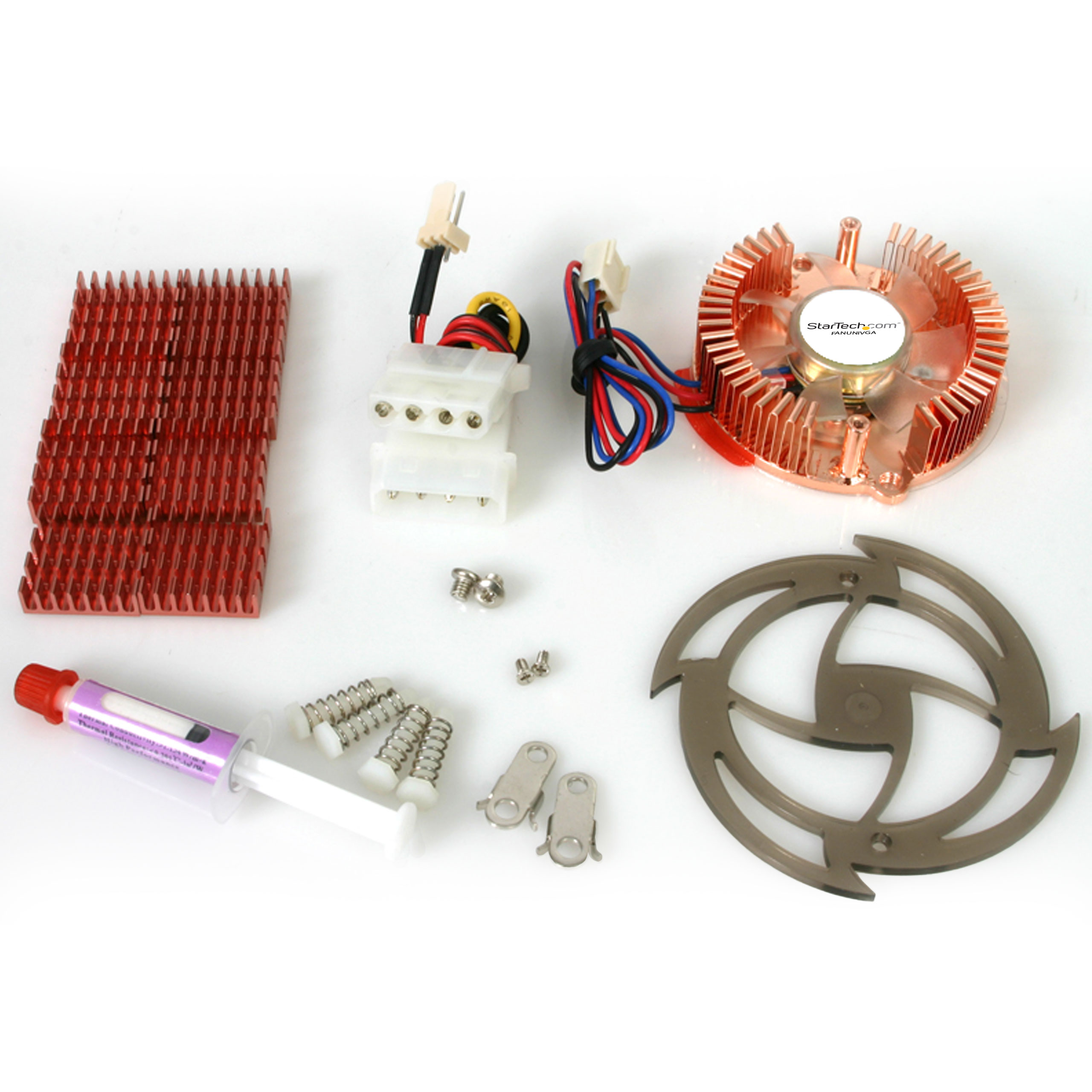

Included in Package	1 - Universal VGA Cooler 8 - Copper Heatsink 1 - Syringe of thermal paste 1 - LP4 Molex to 3-pin connector Cable 1 - Package of Mounting Hardware
Package Depth (mm)	186
Package Height (mm)	36
Package Width (mm)	142
Package Weight (g)	150
Packaging Description	Universal VGA Cooler Fan w/ Heatsink
Packaging Description India	Universal VGA Cooler Fan w/ Heatsink
Sub-Carton Depth (mm)	0
Sub-Carton Height (mm)	0
Sub-Carton Width (mm)	0
Sub-Carton Weight (g)	0

en-US Content Approved	Yes
Product Manager	Rafal Gwozdz
