FD121-KVM-EXTENDER
4K DP 1 2 Fibre KVM Extender
Control a DisplayPort-equipped computer or KVM switch up to 300m (985ft) away over fiber-optic cable
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 4K DP 1 2 Fibre KVM Extender Product Number FD121-KVM-EXTENDER UPC 065030901123 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > KVM Extenders Category Level 1 KVM Switches Category Level 2 KVM Extenders Category Level 3 HDMI KVM Extenders Family Pro Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) DP KVM Extender Kit Product Title (Short) DisplayPort KVM Extender Over Fiber, 4K Product Title (Medium) DisplayPort KVM Extender over Fiber, 4K 60Hz, Console Extender Kit, 984ft/300m Product Title (Standard) DisplayPort KVM Extender over Fiber Optic, 4K 60Hz Console Extender Kit Up to 984ft/300m, 2x 10G SFP+ Multi-mode Modules, TAA Product Title (Long) DisplayPort KVM Extender over Fiber Optic, 4K 60Hz, Console Extender Kit, Up to 984ft/300m (Multi-mode) with Pre-installed SFP+ Modules, 3x USB HID - TAA Product Title (AMZ) DisplayPort KVM Extender over Fiber Optic, 4K 60Hz, Console Extender Kit, Up to 984ft/300m , TAA (Multi-mode) Title Ingram (Part 1) DisplayPort KVM Extender Kit - Title Ingram (Part 2) Video/USB Console Extender, 4K 60Hz Website Product Headline Control a DisplayPort-equipped computer or KVM switch up to 300m (985ft) away over fiber-optic cable Bullet 1 FIBER OPTIC KVM EXTENDER: Control a KVM switch, console, or PC at a distance of up to 984ft (300m) away over multi-mode cabling using pre-installed SFP+ modules; Supports single-mode SFP+ modules (sold separately) to extend the range up to 1,640ft (500m) Bullet 2 4K 60HZ DISPLAYPORT VIDEO: Transmitter and receiver extension kit supports UHD resolutions up to 3840x2160 60Hz (4:4:4); EDID pass-through ensures optimal signal quality and compatibility by providing real-time display information; DP 1.2 compliant Bullet 3 UNIVERSAL COMPATIBILITY: No drivers or software required and works with any operating system including Windows, macOS, and Linux; Point-to-point fiber connection means no network settings to configure or manage; SFP+ slots support MSA-compliant modules Bullet 4 USB PERIPHERAL PORTS: USB HID ports allow users to connect a variety of peripherals, including mice, keyboards, or other input devices; Ideal for remote device control, flexible workstation setups, and collaborative multimedia environments Bullet 5 DURABLE DESIGN: Durable steel housing and fiber extension method help prevent Electro-Magnetic Interference (EMI), enhancing the stability and reliability of the extender; Sturdy construction makes it ideal for installation in a variety of environments Bullets (Compact) Control a 4K 60Hz KVM switch/console or PC at a distance of 984ft/300m (multimode) or 1640ft/500m (single-mode); Pre-installed MMF SFP+ modules; Transmitter/Receiver kit; 3x USB HID ports; Driverless; OS Independent; Point-to-point fiber connection Bullets (Consolidated) - Control a KVM switch/console or PC at a distance of up to 984ft (300m) with multimode cabling or 1640ft (500m) with single-mode cabling; Pre-installed multi-mode SFP+ modules - DisplayPort 1.2 Transmitter and receiver extension kit supports resolutions up to 4K 60Hz; EDID Passthrough; - 3x USB HID ports for mouse/keyboard; No drivers or software required; OS Independent - Point-to-point fiber connection means no network settings to configure; SFP slots support MSA compliant modules Marketing Copy Marketing Copy (No HTML) Applications - Professionals who need to work with computers or servers in remote or isolated locations
- Manage digital signage setups where the computer running the content is remote from the display
- Educational institutions that need to centralize and manage computer systems while providing access to users in different classrooms or locations
Website Search Keyword - displayport kvm extender
- kvm extender over fiber
- fiber kvm extender
- displayport over fiber
Required Regulatory Compliance Marks - WEEE - Waste - European Union - DO NOT USE - Disposal of Waste Batteries and Electrical & Electronic Equipment (WEEE)
- WEEE - Waste - United Kingdom - DO NOT USE - UK Waste Electrical and Electronic Equipment (WEEE) Regulations 2013.
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Paper
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- FCC - EMC/EMI - United States - FCC Part 15 Class A Digital Device Interference Full Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
Special Notes - SFP+ slots support MSA-compliant SFP+ modules
- Pre-installed multi-mode SFP+ modules are interchangeable with single-mode SFP+ modules for compatibility with single-mode fiber cabling
Accessory Products - 450FBLCLC25
- 450FBLCLC20
- USB2HABM3
- USB2HABM6
- USB2HABM10
- A50FBLCLC15
- A50FBLCLC10
- A50FBLCLC5
- SFP10GBSRST
Replacement Product - SV565DUTPU
- SV565FXDUSA
- SV565HDIP
- SV565UTPDUV
- SV565UTPHDU
- SV565UTPU
Input Current 0.3A Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 5 DC Power Consumption (In Watts) 10W Power Source AC Adapter Included Color Black Humidity 0% ~ 80% RH (non-condensing) Material Metal Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 114.000 Product Width (mm) 78.000 Product Height (mm) 28.000 Product Weight (g) 525.000 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant Yes Audio Specifications DisplayPort - 2 Channel Audio Auto Scan None Hot-Key Selection No KVM IP Control No MTBF (hours) 156,000 Hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Not Applicable Supported Resolutions Wide Screen Supported Yes Audio Yes Cables Included No LED Indicators - 2 - Status
- 2 - USB HID

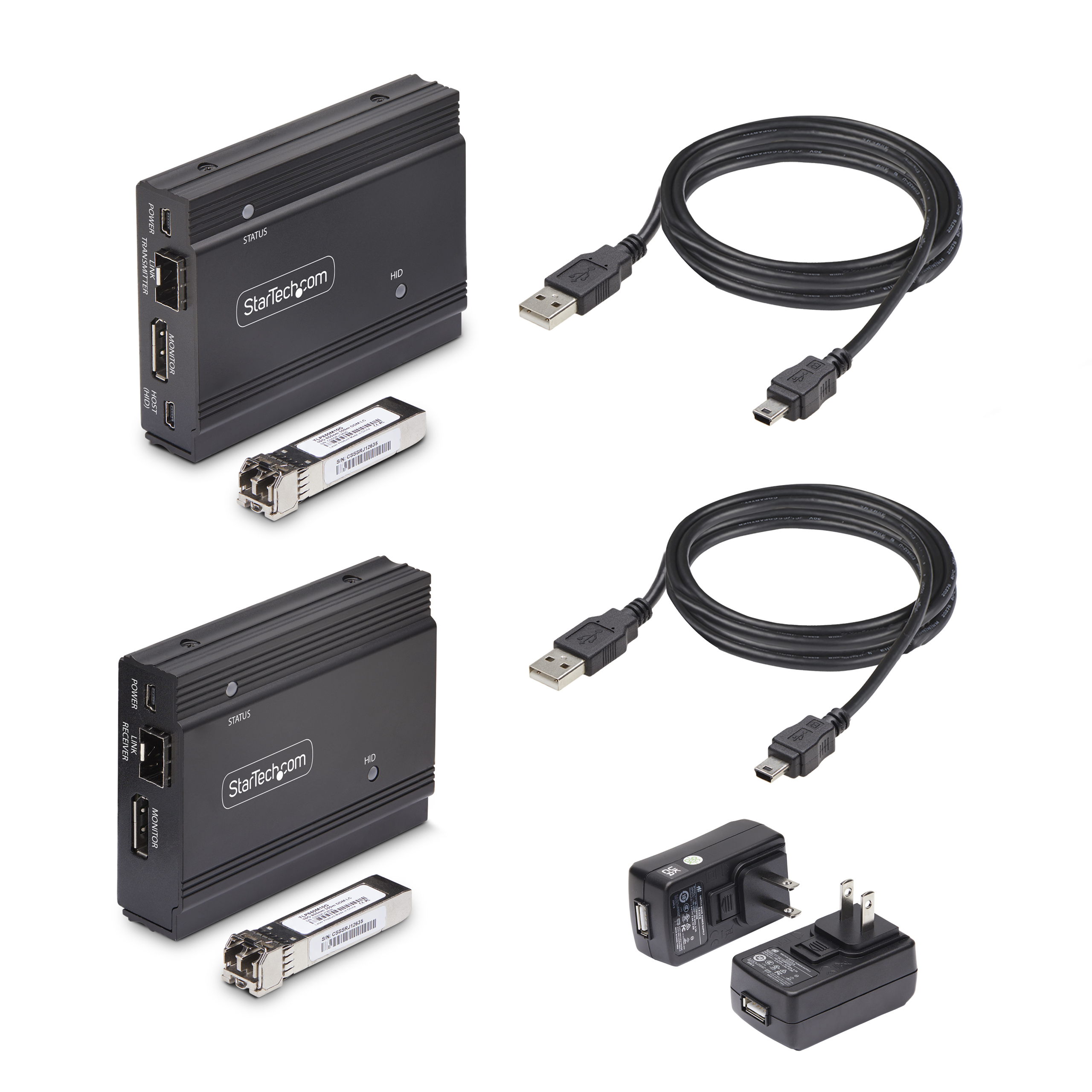

Number of KVM Ports 1 Number of Monitors Supported 1 PC Video Type DisplayPort Rack-Mountable No Supported Platforms USB Carton Depth (mm) 420 Carton Height (mm) 265 Carton Quantity 6 Carton Weight Gross (g) 6958 Included in Package - 1 - Transmitter (Local Unit)
- 1 - Receiver (Remote Unit)
- 2 - 10G SFP+ Modules (Pre-installed)
- 2 - Universal Power Adapter (NA/EU/UK/ANZ)
- 3 - 5ft (1.5m) USB-A to USB Mini-B Cables
Package Depth (mm) 308 Package Height (mm) 72 Package Width (mm) 179 Package Weight (g) 1032 Packaging Description DisplayPort KVM Console Extender Over Fiber - 4K 60Hz Packaging Description India DisplayPort KVM Console Extender Over Fiber - 4K 60Hz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SFP+ Slot Connector 1 (Quantity) 1 Connector 2 USB-A (1.5Mbps, 2.5W) Connector 2 (Quantity) 3 Connector 3 DisplayPort Connector 3 (Quantity) 1 Connector 4 USB Mini-B (480Mbps, 2.5W) Connector 4 (Quantity) 1 Host Connector 1 DisplayPort Host Connector 1 (Quantity) 1 Host Connector 2 USB Mini-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 Host Connector 3 USB Mini-B (480Mbps, 2.5W) Host Connector 3 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Required Artwork Due Date 2023-09-30 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Comparable SKU Comment HDMI Extender, T12 Rev $130K, AC 18 (Mar 2023) USDIST $580 Comparable SKU 2 Comment DVI version Digital Content Due Date 2024-04-09 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Sticker label - custom size - requires size population below Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,NL,SE,UK,US Primary Technology DisplayPort 1.2 / 4K 60Hz Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2023-08-16 Target Production Release 2023-09-30 Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle None Vending Machine Not Compatible with Vending Machine Video Not Required
