FHA-TV-WALL-MOUNT

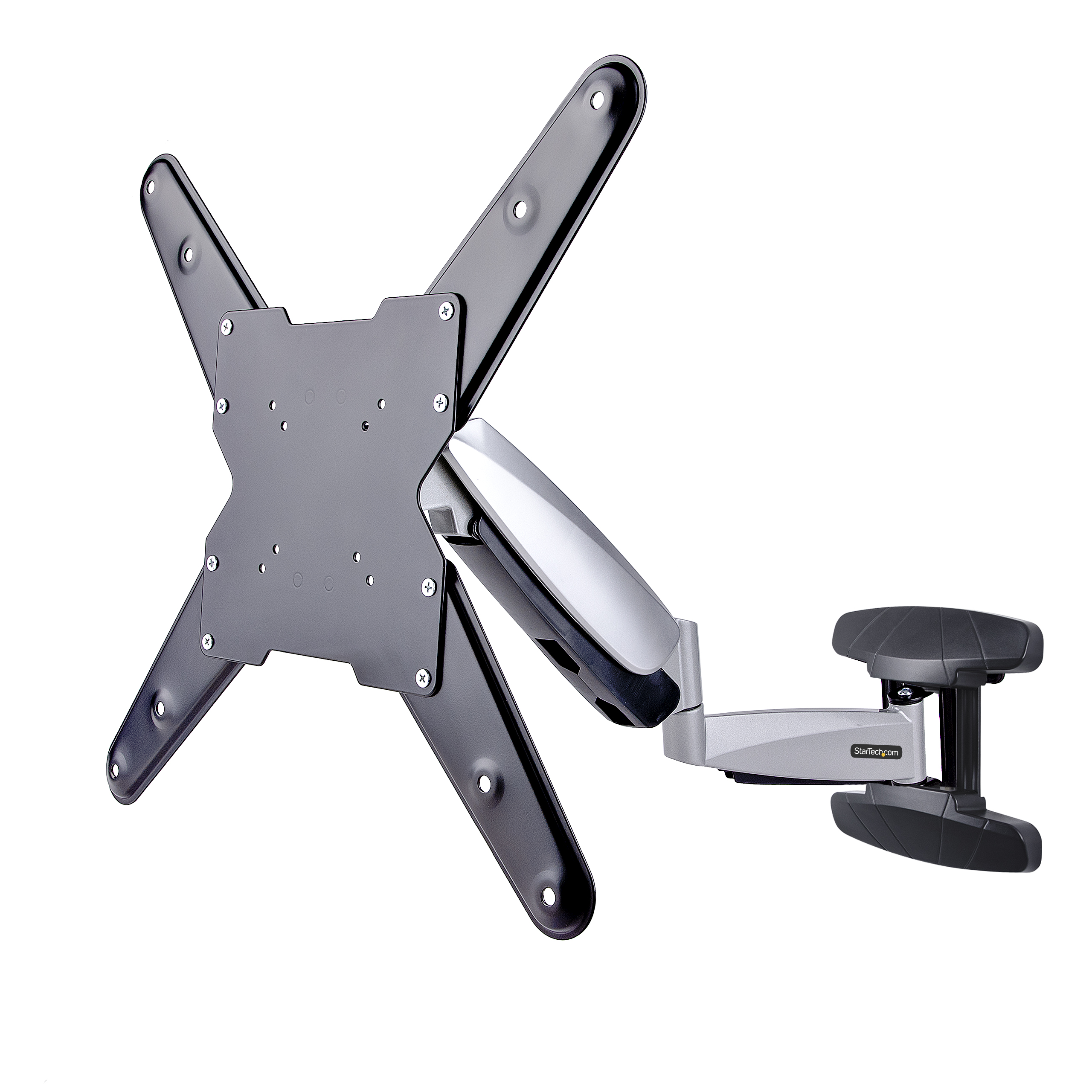

Height Adjustable TV Mount Full Motion 26
Mounting Hardware Included | One-touch Adjustments | Digital Signage
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Height Adjustable TV Mount Full Motion 26 Product Number FHA-TV-WALL-MOUNT UPC 065030895149 Lifecycle status Active Warranty 2 Years Taxonomy Product > Mechanical Products > Display Mounts Category Level 1 Display Mounts Category Level 2 TV Mounts Category Level 3 Display Wall Mounts Family Full Motion TV Wall Mounts Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX050X Product Title (Ultra-Short) VESA TV Wall Mount Product Title (Short) VESA TV Wall Mount, Full Motion TV Mount Product Title (Medium) VESA TV Wall Mount, Adjustable Full Motion TV Wall Mount For 23"-55" Displays Product Title (Standard) VESA TV Wall Mount, Adjustable Full Motion TV Wall Mount For 23"-55" Displays, Extendable/Tilting/Swivel TV Wall Mount Product Title (Long) VESA TV Wall Mount, Adjustable Full Motion Mount For 23"-55" Displays, Slim Wall Mount TV Bracket Supports 66lb (30kg), Extendable/Tilting/Swivel Monitor Wall Mount Product Title (AMZ) VESA TV Wall Mount, Adjustable Full Motion Mount For 23"-55" Displays, Slim Wall Mount TV Bracket Supports 66lb (30kg), Extendable/Tilting/Swivel Monitor Wall Mount (FHA-TV-WALL-MOUNT) Title Ingram (Part 1) VESA TV Wall Mount, Swivel - Title Ingram (Part 2) Full Motion TV Wall Mount, Tilting Website Product Headline Mounting Hardware Included | One-touch Adjustments | Digital Signage Bullet 1 HEIGHT ADJUSTABLE TV WALL MOUNT: Spring-assisted height adjustable range 12.6in (32cm); Articulating wall mount TV bracket supports TVs up to 55in; Max weight 66lb (30kg); Single-stud design made from powder-coated diecast aluminum for maximum durability Bullet 2 ONE-TOUCH MOTION: Full-motion TV wall mount features a spring mechanism for effortless viewing angle and height adjustments; VESA plate features +/-90° swivel, +8/-15° tilt, and +/-3° rotation; Toolless adjustment w/ built-in cable management Bullet 3 RANGE OF MOTION: Low profile VESA TV wall mount with jointed arm assembly supports +/-90° swivel and folds to just 2.2in (5.8cm) from the wall; Max arm extension 23.4in (59.5cm); Lateral range of 3.9ft (1.19m) ideal for corner mounting maximizing space Bullet 4 COMPATIBILITY: TV mounting bracket supports TVs up to 55" from LG, Samsung, Sony, Hisense, Sharp, and other TVs; Compatible VESA patterns: 75x75, 100x100, 200x100, 200x200, 300x300, 400x200, and 400x400; Spacers and various M5/M6/M8 screws included Bullet 5 QUICK AND CLEAN INSTALLATION: Swivel TV wall mount ships pre-assembled for quick deployment; Wall plate with mounting holes facilitate simplified installation; Includes installation template, bubble level, wood studs, and concrete wall mounting hardware Bullets (Compact) Spring-assisted height adjustable TV wall mount range 12.6in/32cm; Extendable arm range 23.4in/59.5cm - Tilting/swivel/full motion for 23-55in TVs; 75x75 to 400x400 VESA TV wall mount patterns; 66lb/30kg capacity - TV mounting bracket ships assembled Bullets (Consolidated) Spring-assisted height adjustable TV wall mount (range 12.6in/32cm); Tilting and full motion for 23"-55" TVs; VESA TV wall mount patterns 75x75 to 400x400; Max weight 66lb (30kg) - VESA plate features +/-90DEG swivel; +8/-15DEG tilt; +/-3DEG rotation - Jointed arm swivels +/-90DEG and folds to 2.2in (5.8cm) from the wall for low-profile storage; Max arm extension 23.4in (59.5cm) - TV mounting bracket ships assembled for quick deployment; Keyhole mounting on the wall plate simplifies installation Marketing Copy Marketing Copy (No HTML) Website Search Keyword - vesa tv wall mount
- adjustable tv wall mount
- extendable tv wall mount
- full motion tv wall mount
- slim tv mount
- swivel tv wall mount
- tilting tv wall mount
- tv mounting bracket
- wall mount tv bracket
Required Regulatory Compliance Marks - Temp - N/A - Global - Used to replace duplicates or identify for removal
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - Furniture and Non-EEE
Accessory Products - MDBOXMNT
- HD2MM10MA
- HDMM15
- HDMIMM10HS
- HDPMM25
- HDMIMM15HS
- HDMIPLATE
- ST121HDWP
- HDBOOST4K
- EXTEND-HDMI-4K40C6P1
- ST121HD20V
- ST121HDBT20L
- HD2MM30MAO
- ST121HD20FXA
- HDMI2-CABLE-4K60-6F
- HDMI2-CABLE-4K60-25F
- HDMI2-CABLE-4K60-2M
- HDMI2-CABLE-4K60-7M
Related Products - FLATPNLWALL
- FPWARPS
- FPWARTB1M
- FPWARTB2
- FPWARTS1
- FPWTLTPORT
- VIDWALLMNT

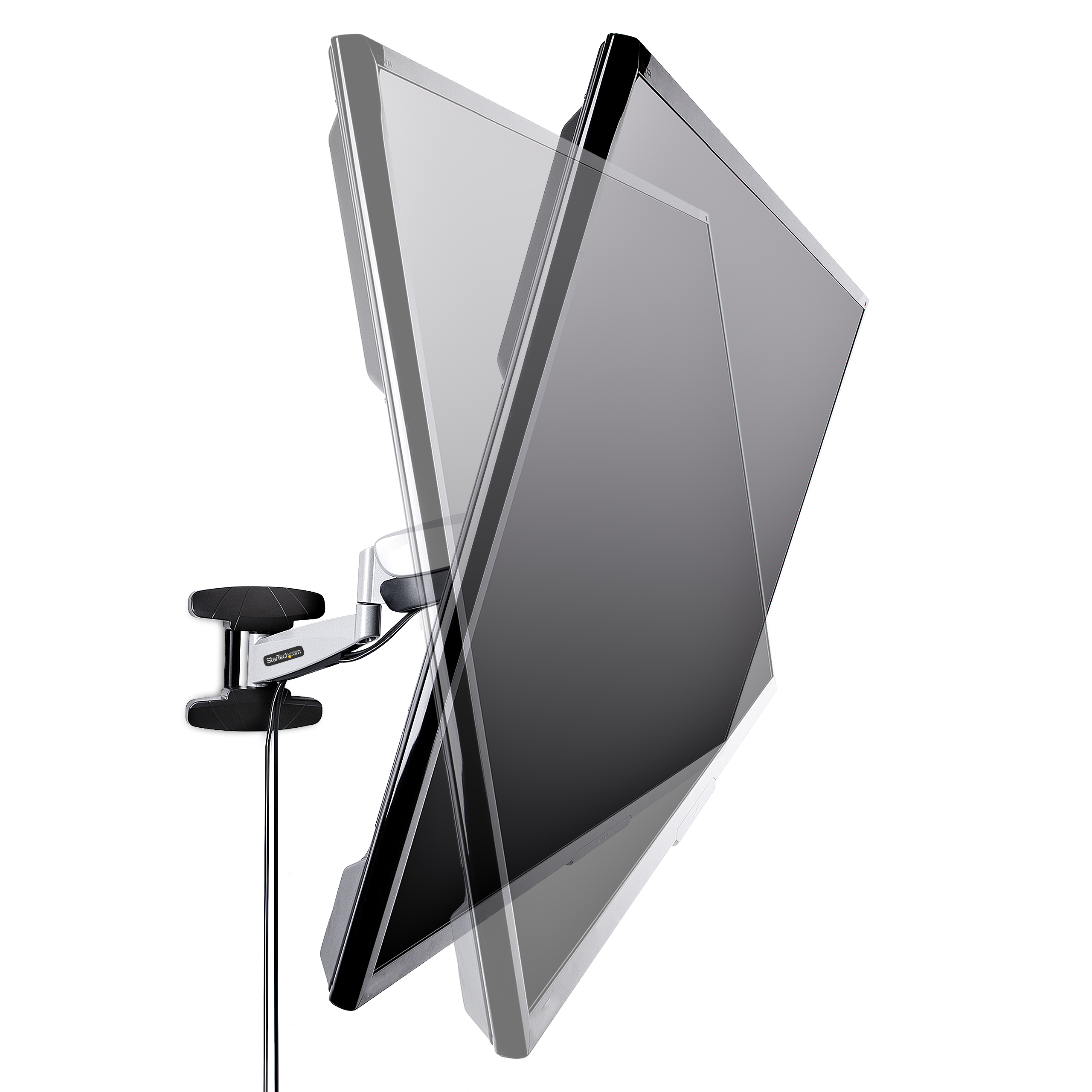

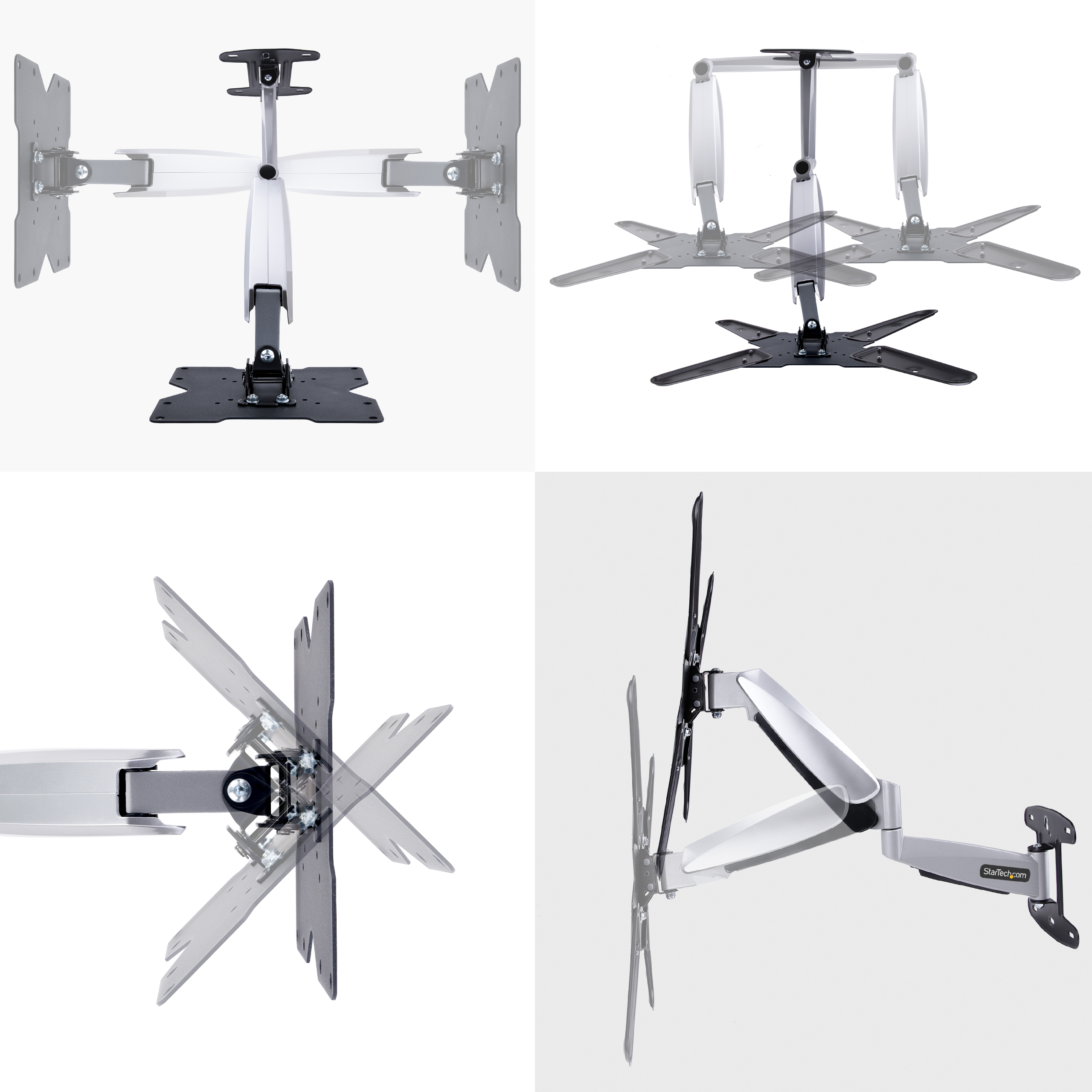

Color Black & Silver Construction Material Aluminum and Steel Product Length (mm) 595.000 Product Width (mm) 450.000 Product Height (mm) 450.000 Product Weight (g) 4800.000 TAA Compliant No Anti-theft No Display Rotation +3° / -3° Display Swivel 180° Display Tilt +8° / -15° Fits Curved Display Yes Fits UltraWide Displays Yes General Specifications - Minimum Distance to Wall: 2.2 in (5.8 cm)
- Maximum Distance to Wall: 23.4 in (59.5 cm)
Height Adjustment Yes Maximum Arm Extension 544.24 Maximum Display Size 55" Minimum Arm Extension 58 Minimum Display Size 23" Premium Monitor Mount Yes Projector Mount No TV Weight Capacity Range Up to 30 Kg (66 lb.) Video Wall No Weight Capacity for Display Mounts (g) 30000 Your Screen Size - Up to 49"
- 50"-59"

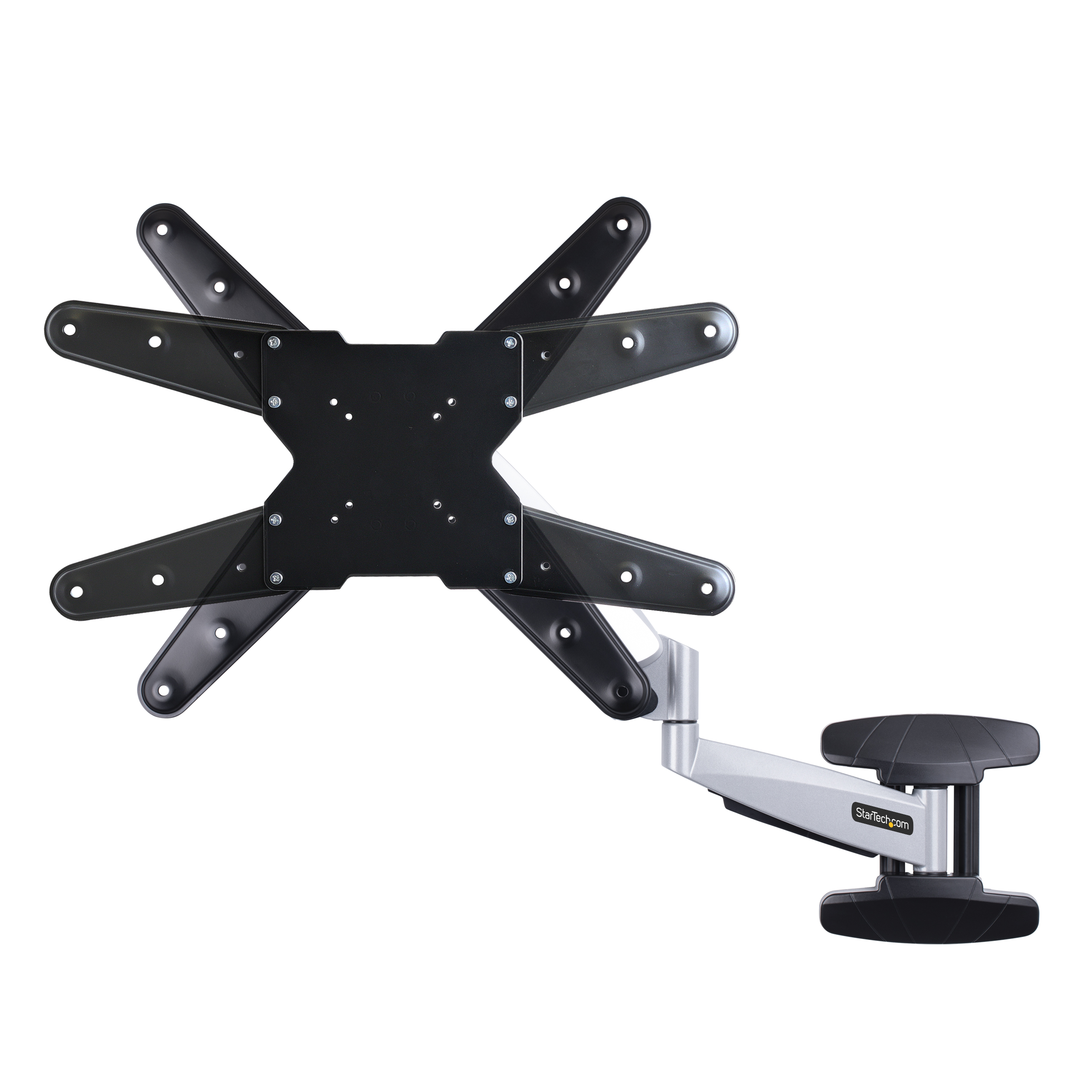

Articulating Yes Cable Management Yes Height Adjustment Method One-Touch (Spring Assisted) Minimum Profile from Wall (mm) 58 Mounting Options Wall-Mount Number of Displays 1 Orientation Horizontal Tools Included Yes VESA Hole Pattern(s) - 75x75 mm
- 100x100 mm
- 200x100 mm
- 200x200 mm
- 300x300 mm
- 400x200 mm
- 400x400 mm

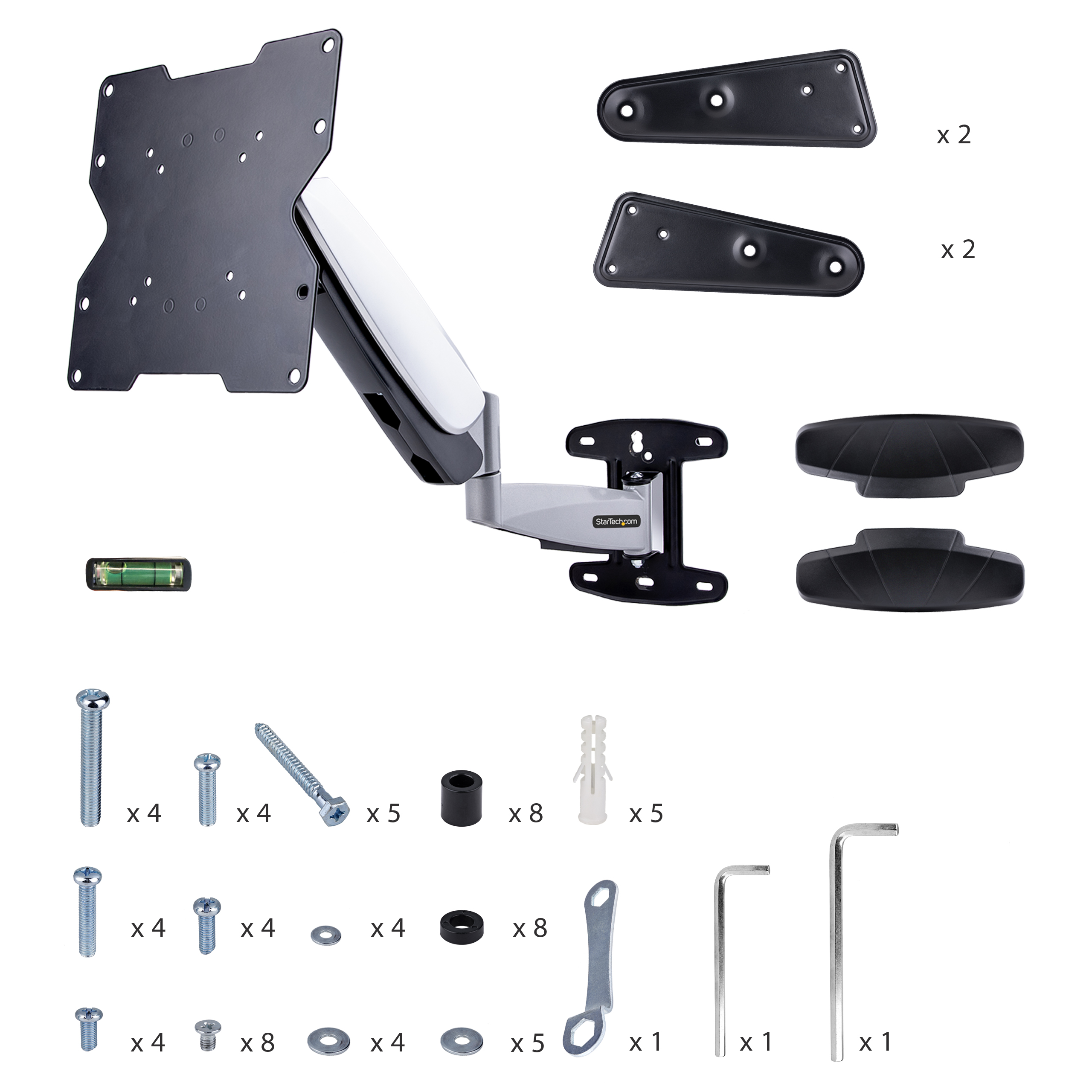

Wallmountable Yes Carton Depth (mm) 495 Carton Height (mm) 100 Carton Quantity 1 Carton Weight Gross (g) 6900 Included in Package - 1 - Arm assembly
- 2 - Decorative covers
- 2 - VESA extension plates, LH
- 2 - VESA extension plates, RH
- 8 - VESA extension plate screws
- 1 - Wrench
- 1 - 4mm hex key
- 1 - 6mm hex key
- 1 - Bubble level
- 4 - M5x14mm screws
- 4 - M6x14mm screws
- 4 - M6x30mm screws
- 4 - M8x30mm screws
- 4 - M8x50mm screws
- 4 - Display washers, small
- 4 - Display washers, large
- 8 - Short spacers
- 8 - Tall spacers
- 5 - Wall mounting screws
- 5 - Concrete anchors
- 5 - Wall mounting washers
- 1 - Manual
Included In Package for Label - 1 - Arm assembly
- 1 - Hardware Kit
- 4 - VESA extension plates
- 2 - Decorative covers
- 1 - Manual
- 1 - Tool Kit
- 1 - Spacer Kit
Package Depth (mm) 637 Package Height (mm) 108 Package Width (mm) 527 Package Quantity 1 Package Weight (g) 6922 Packaging Description Adjustable TV Wall Mount up to 55" and 66 lbs - VESA Compatible Packaging Description India Adjustable TV Wall Mount up to 55" and 66 lbs - VESA Compatible Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 A+ Not Required Actual Inbox Documents Created Manual in the box Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Artwork Due Date 2021-12-08 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2022-12-01 Enhanced Gallery Not Required Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Anthony Slater Product Information Creation Specialist (PICS) Alex Garcia Product Manager Tony Parackal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2021-11-24 Target Production Release 2022-05-27 Tech Lead Justin Weaver Technical Writer Alex Garcia Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine Video Required
