FLATPNLCEIL

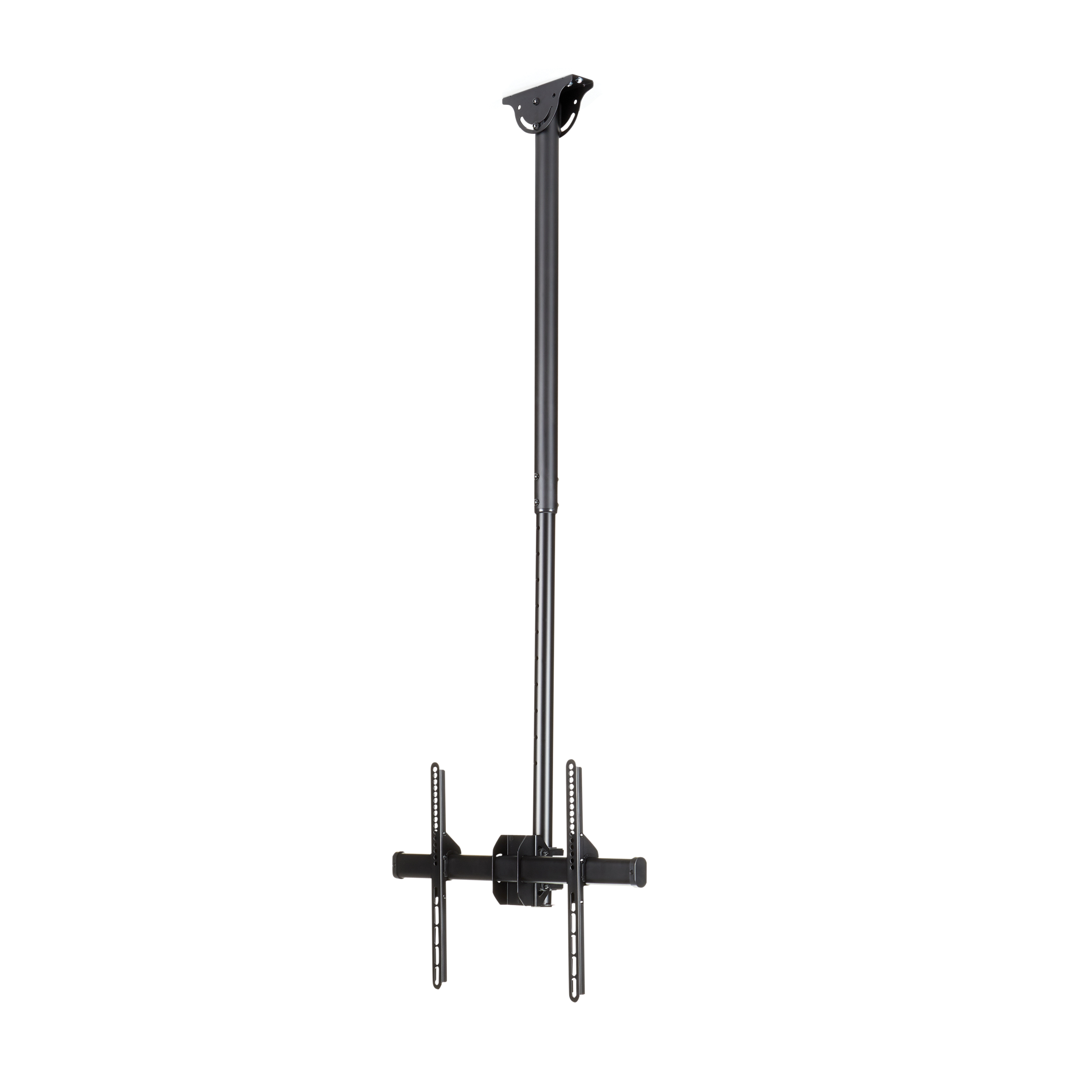

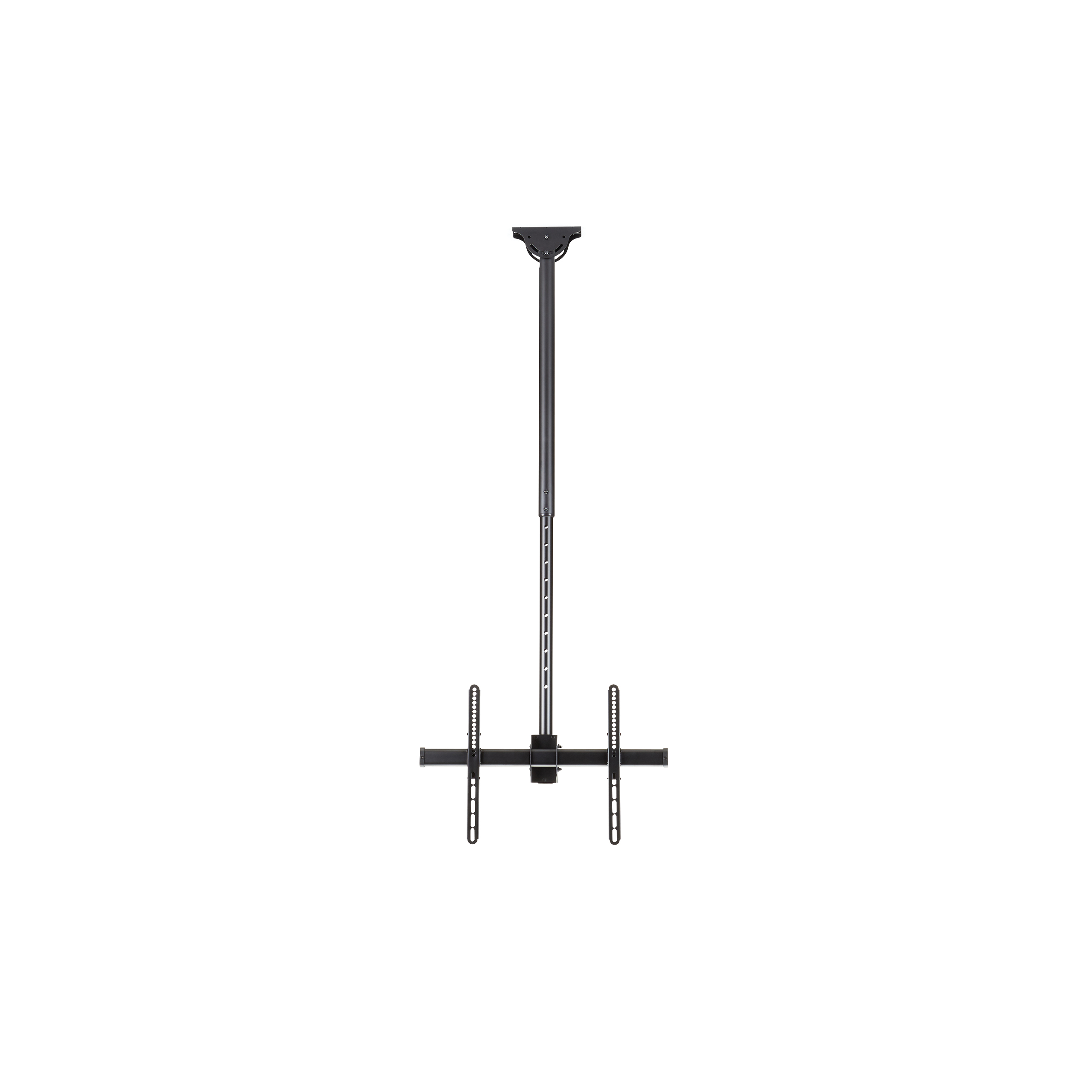

Flat panel ceiling mount
Display Ceiling Mount | Full Motion | For 32" to 75" Displays
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name Flat panel ceiling mount Product Number FLATPNLCEIL UPC 065030865470 Lifecycle status Active Warranty 5 Years Taxonomy Product > Mechanical Products > Display Mounts Category Level 1 Display Mounts Category Level 2 TV Mounts Category Level 3 Display Ceiling Mounts Family TV Ceiling Mounts Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX050X Product Title (Ultra-Short) Ceiling TV Mount Product Title (Short) Ceiling Mount for TV - 3.5' to 5' Pole Product Title (Medium) Ceiling TV Mount - 3.5' to 5' Pole - Full Motion - For 32" to 75" Displays Product Title (Standard) TV Ceiling Mount, Full-Motion Hanging Single Screen Vesa Mount for 32”-75" TVs / Displays - Height Adjustable Telescopic Pole Product Title (Long) TV Ceiling Mount - Full-Motion Universal Hanging Single Screen Mount with Adjustable Telescopic Pole - Tilt / Swivel - VESA Bracket for 32”-75" Displays Product Title (AMZ) TV Ceiling Mount, Hanging Single Screen Vesa Mount for 32”-75" TVs/Displays - Height Adjustable Telescopic Pole Title Ingram (Part 1) Ceiling TV Mount - 3.5' to Title Ingram (Part 2) 5' Pole - 32 to 75" TVs Website Product Headline Display Ceiling Mount | Full Motion | For 32" to 75" Displays Bullet 1 FULL MOTION: Ceiling TV mount allows for the display to be swiveled 180° around the telescopic pole, and tilt downwards -25 degrees, without using tools Bullet 2 VERSATILE INSTALLATION: Adjustable mounted ceiling bracket for TV / screen allows the pole to be adjusted and secured +/-60 degrees for angled/sloped/slanted ceilings to ensure displays are level Bullet 3 TIDY AESTHETIC: The universal television ceiling mount for one large display provides a hook-and-mount design for easy setup and integrated cable management; ideal for digital signage applications Bullet 4 SINGLE 75" TV CEILING MOUNT: VESA compatible ceiling mount supports displays up to 75" (110lb/50kg) including curved TVs; Height adjustable pole, 41.7"- 61.4" (106cm - 156cm) from ceiling Bullet 5 COMPATIBILITY: Universal hanging TV ceiling mount supports LG, Samsung, Sony, and Sharp TVs among others (screws/spacers incl) & VESA hole patterns of 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400 Bullets (Compact) Full motion single TV ceiling mount for VESA displays up to 75" - Adjust. telescopic pole, 3.5' to 5' (1 to 1,5m) - Weight capacity 110lb (50kg) - Swivel +180/-180 degrees / Tilt -25 degrees without tools - TV bracket features a hook-and-mount design Bullets (Consolidated) - Full motion single TV ceiling mount for VESA mounted displays or curved TVs from 32 to 75"; Weight capacity of up to 110lb (50kg) - Hanging TV mount features a adjustable telescopic pole, 3.5'-5' (1-1,5m) from ceiling - Flat screen ceiling mount swivels +60/-60 degrees to adjust to sloped or level ceilings - Universal mount lets you swivel the display +180/-180 degrees around the pole and tilt downwards -25 degrees without tools - LCD TV ceiling mount bracket features a hook-and-mount design Marketing Copy Marketing Copy (No HTML) Applications - Suspend a flat-screen TV from the ceiling for easy viewing

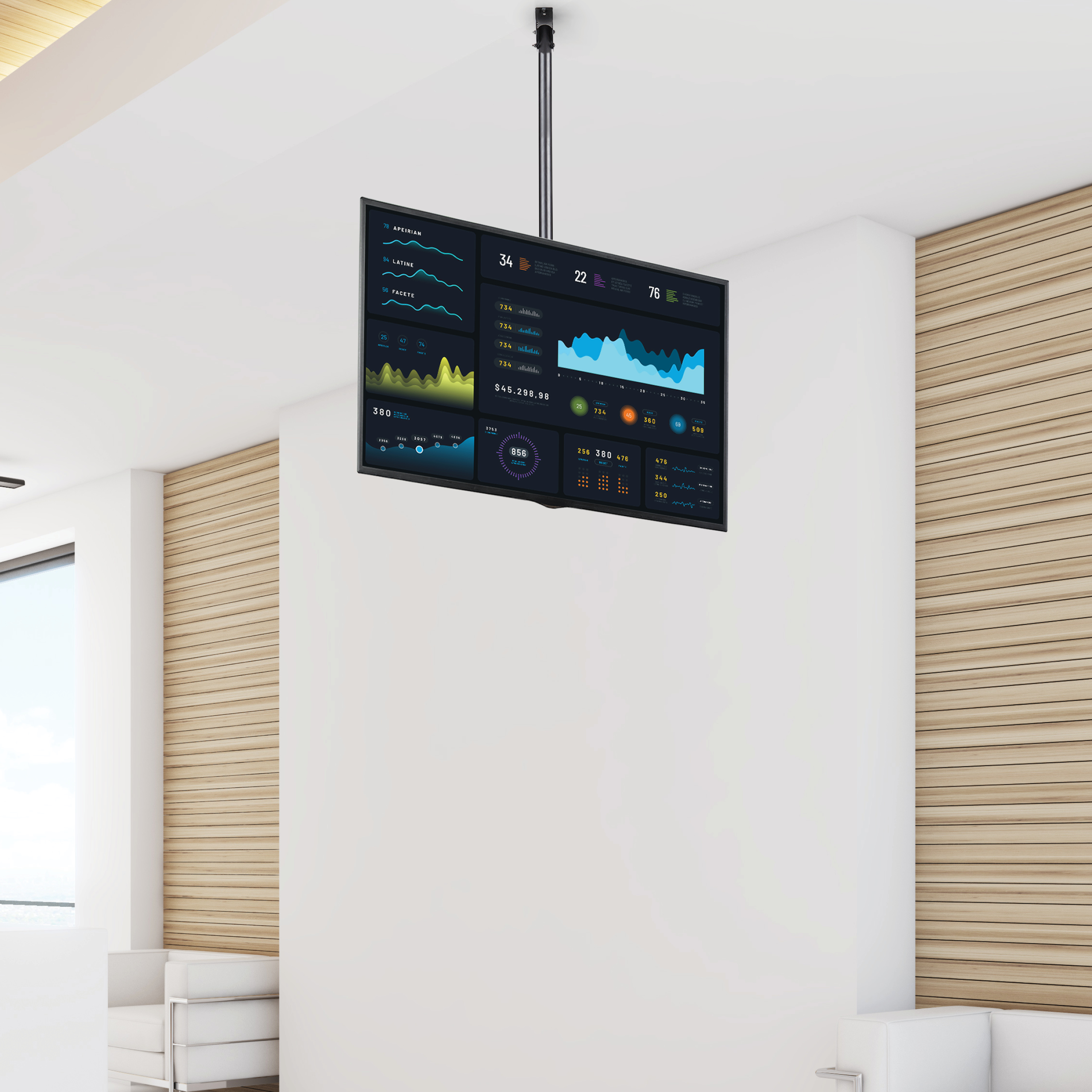

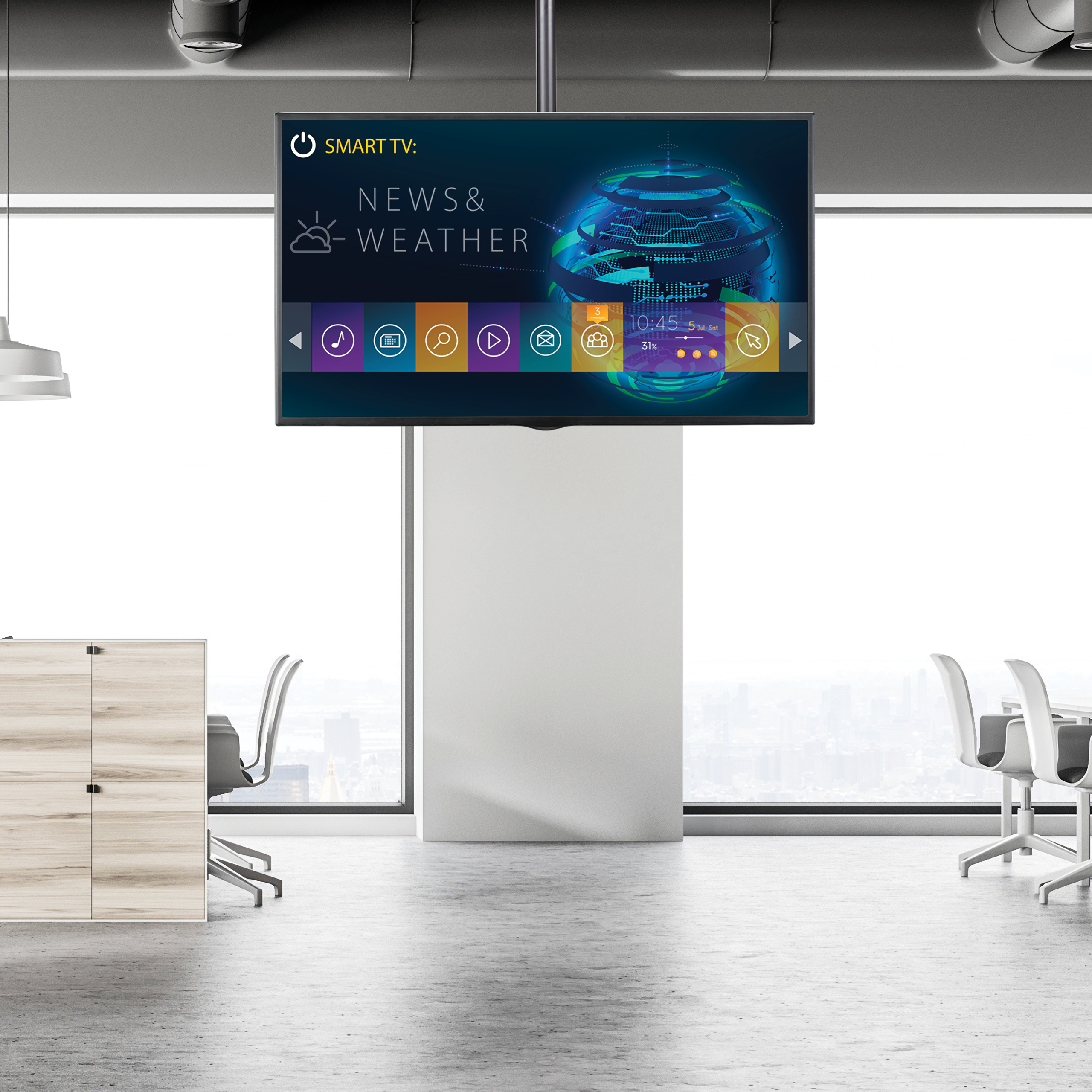

- Ideal for boardrooms, lobbies, entrances, meeting spaces, classrooms
- Keep your guests informed and entertained
Website Search Keyword - TV ceiling mount
- LCD ceiling mount
- ceiling mount
- Flat-Screen TV Ceiling Mount
- Flat-Panel TV Ceiling Mount
- large TV ceiling mount
- mount LCD on ceiling
- TV mount with adjustable pole length
- 32" to 75" flat screen tv mount
- DCTM
Required Regulatory Compliance Marks - Temp - N/A - Global - Used to replace duplicates or identify for removal
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - Furniture and Non-EEE
Accessory Products - MDBOXMNT
- HD2MM10MA
- HDMM2MP
- HDMM15
- HDMIMM10HS
- HDPMM25
- HDMIMM15HS
- HDMIPLATE
- ST121HDWP
- HDMI2-CABLE-4K60-6F
- HDMI2-CABLE-4K60-25F
- HDMI2-CABLE-4K60-2M
- HDMI2-CABLE-4K60-7M
Related Products - FPCEILPTBSP
- FPCEILPTBLP
- FPCEILBTB

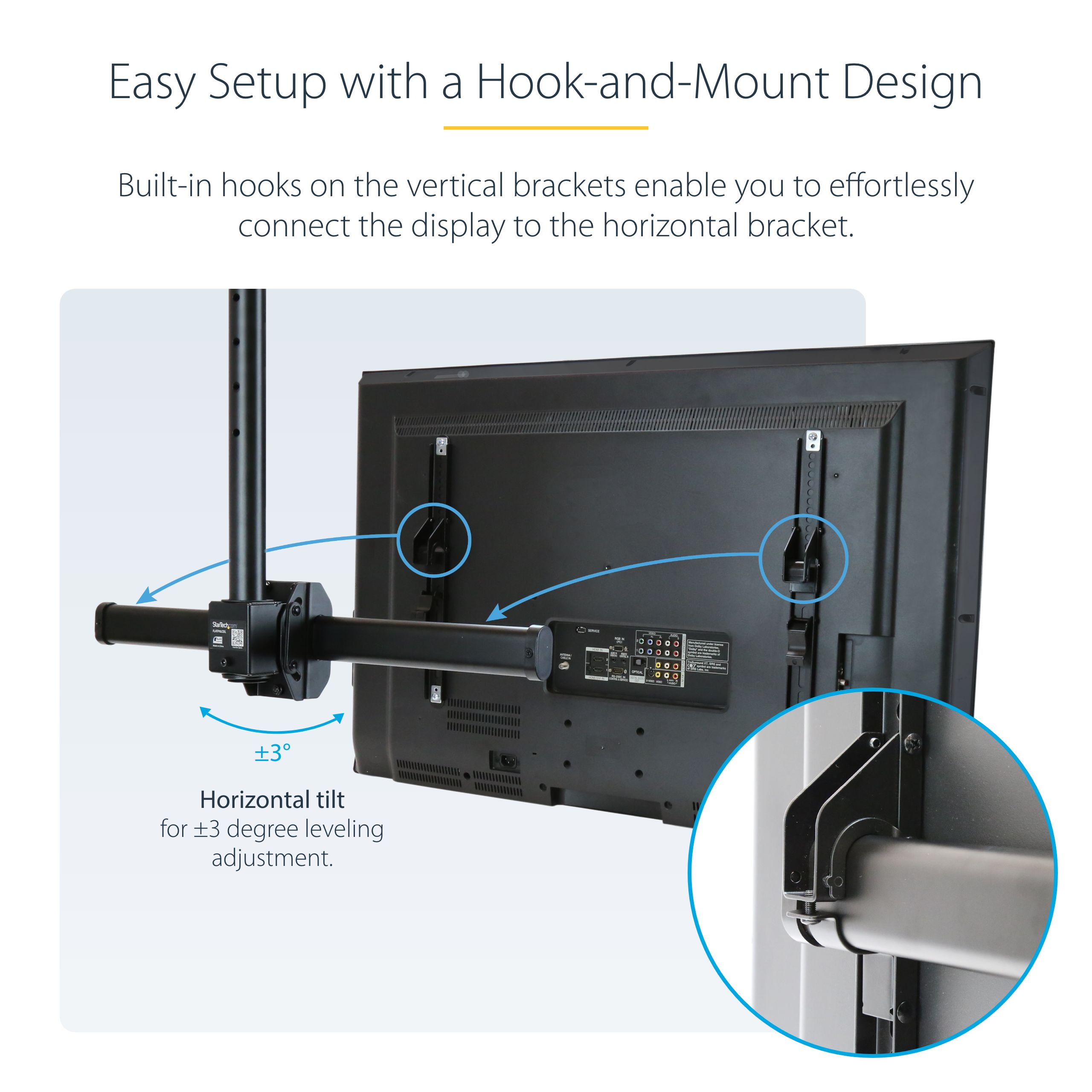

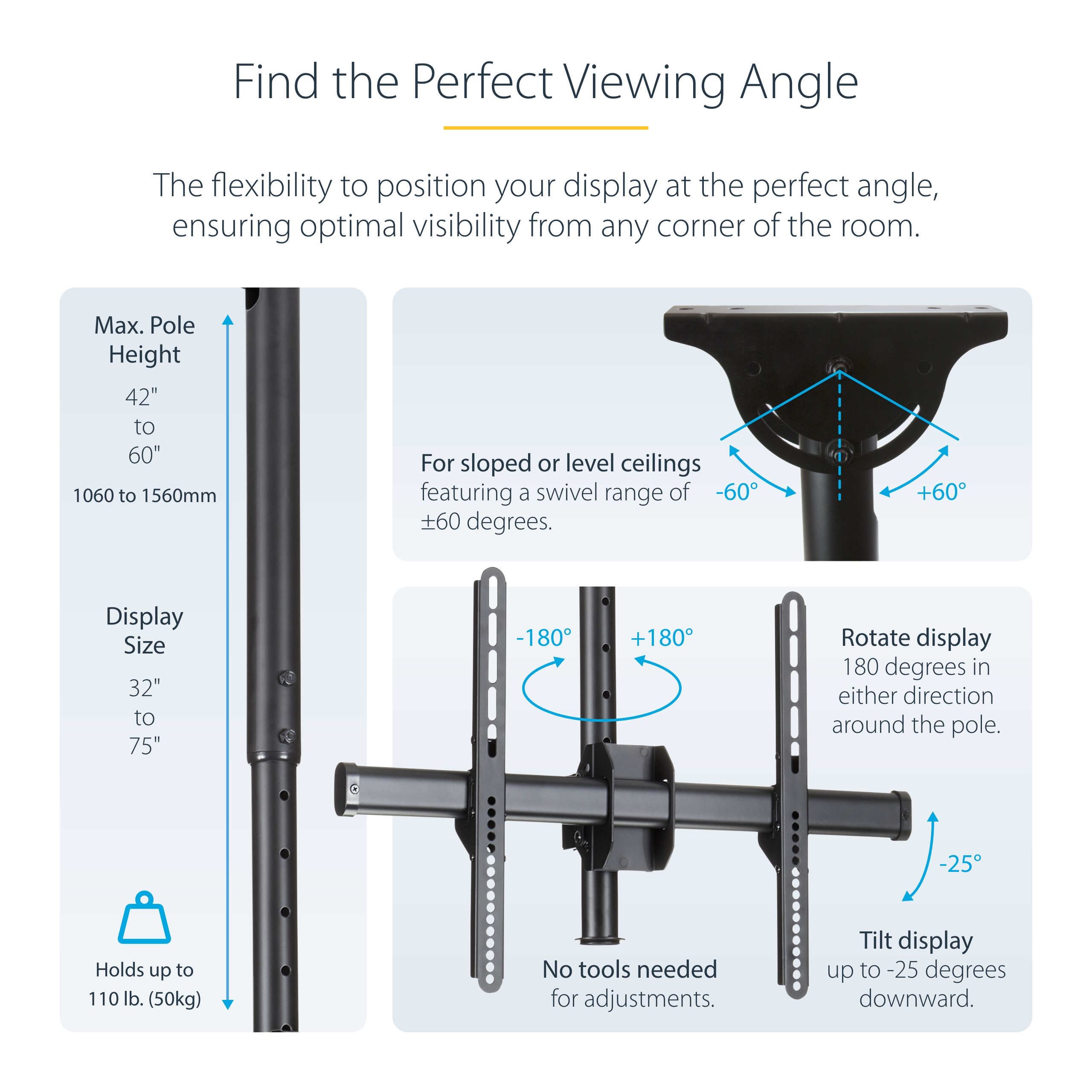

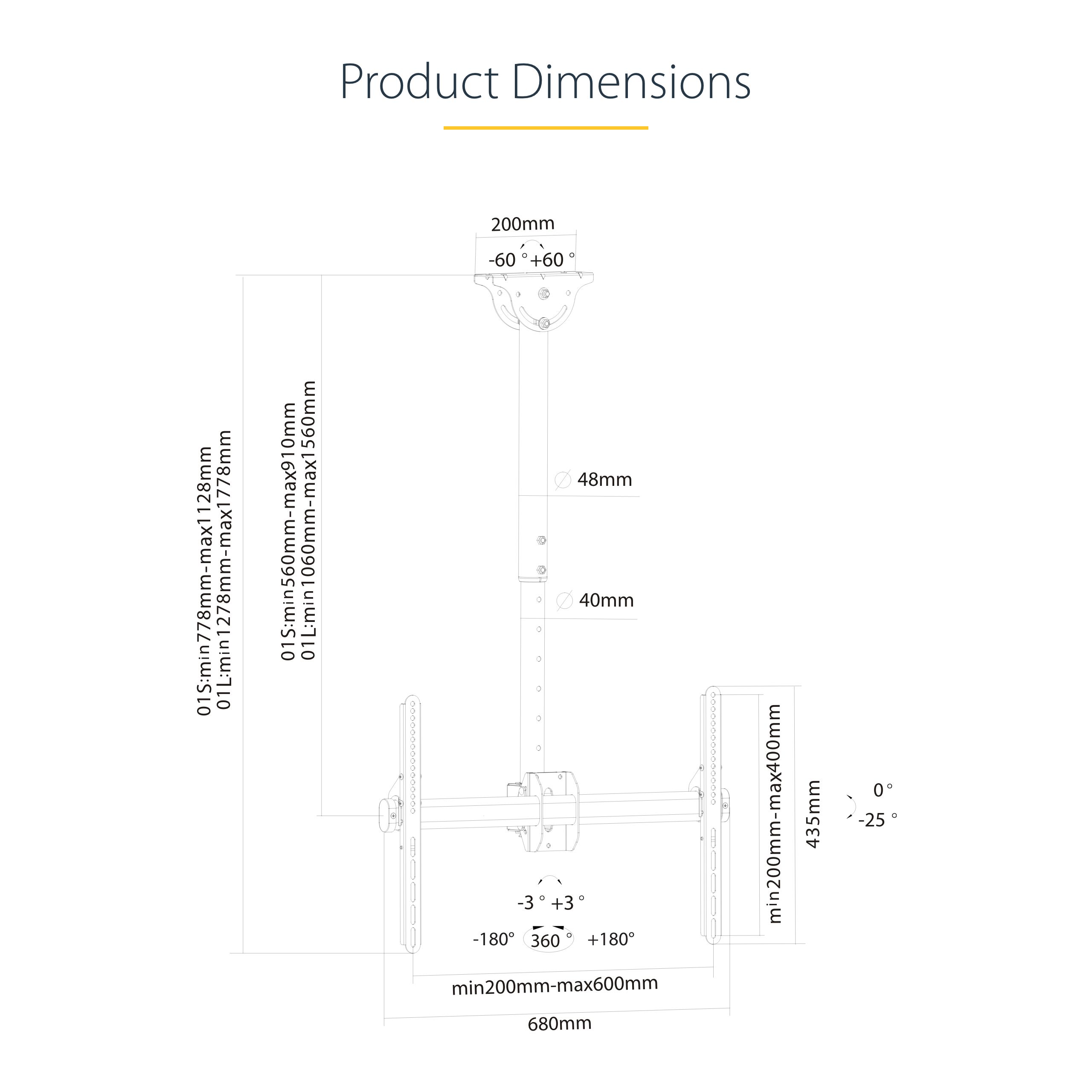

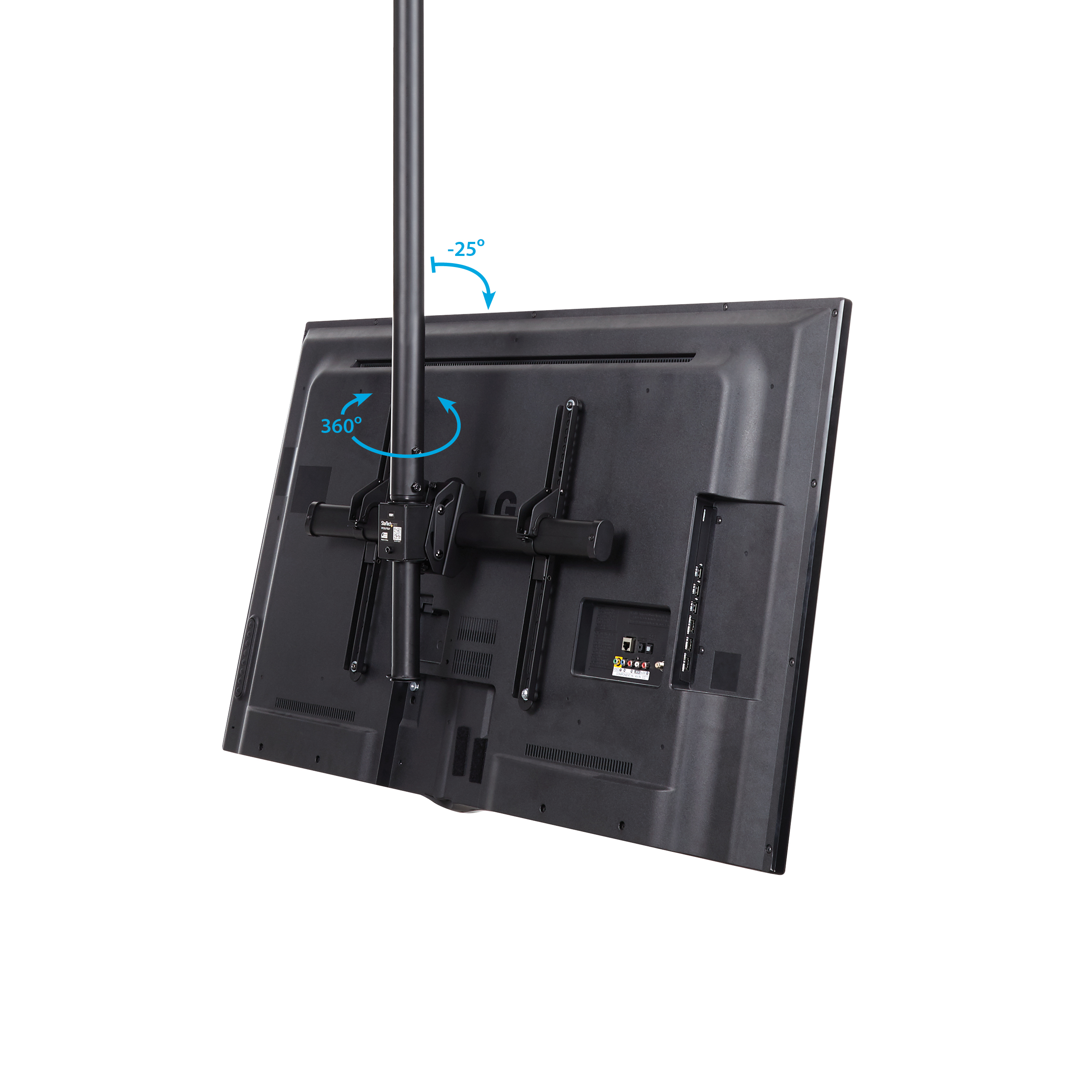

Constrained SKU Alternatives (Limited Stock) FPCEILBTB Color Black Material Steel Primary Material Steel Product Length (mm) 680.000 Product Width (mm) 140.000 Product Height (mm) 1778.000 Product Weight (g) 5980.000 TAA Compliant No Anti-theft No Display Rotation 360° Display Tilt +0° / -25° Fits Curved Display Yes General Specifications Post-Installation Leveling Adjustment: +/-3° Height Adjustment Yes Maximum Display Size 75" Maximum Height (mm) 1560 Minimum Display Size 32" Minimum Height Extension (mm) 1060 Swivel / Pivot +180° to -180° TV Weight Capacity Range - up to 35 kg (77.4 lb.)
- up to 40 kg (88.4 lb.)
- up to 45 kg (99.5 lb.)
- up to 50 kg (110.5 lb.)
Video Wall No Weight Capacity for Display Mounts (g) 50000 Your Screen Size - Up to 49"
- 50"-59"
- 60"-89"

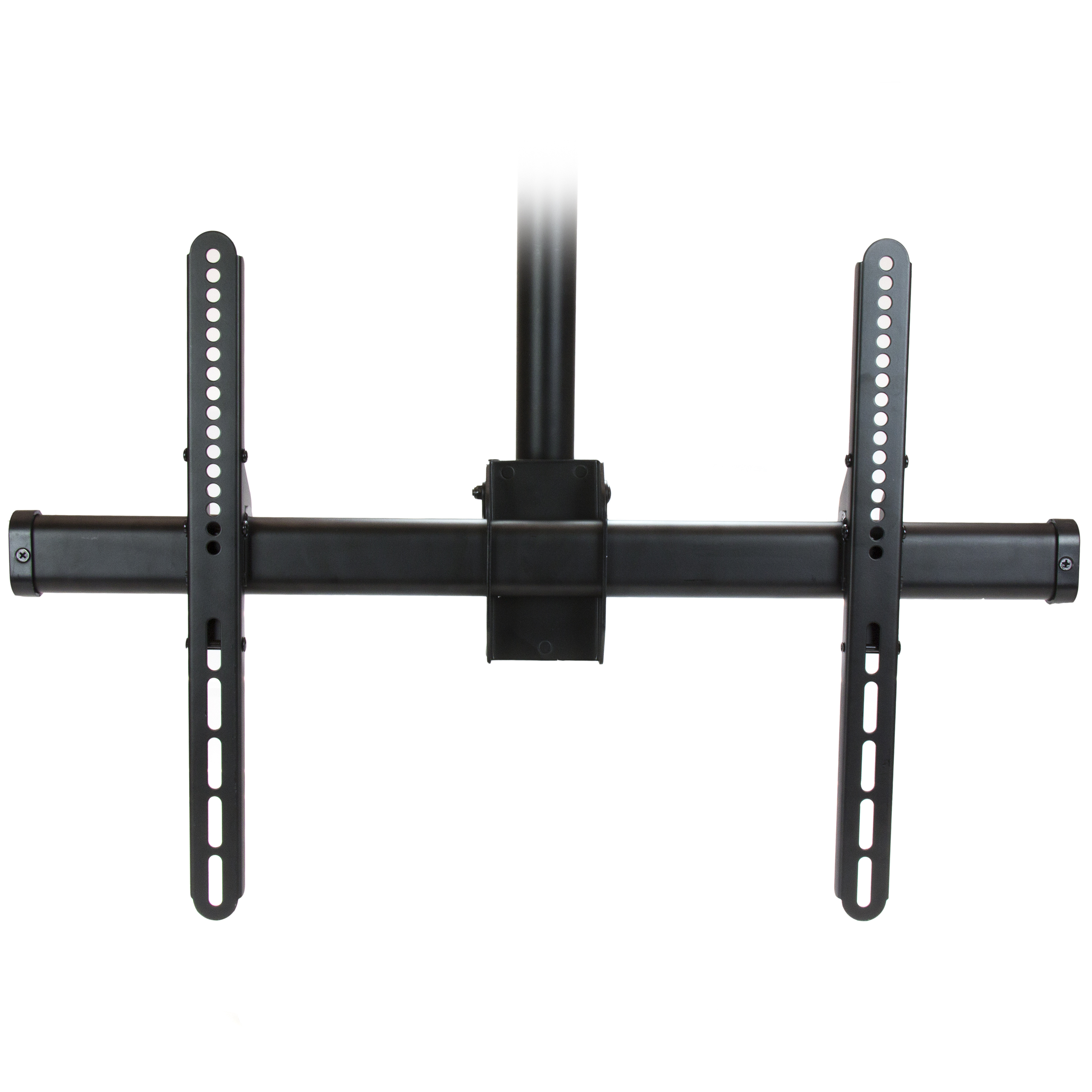

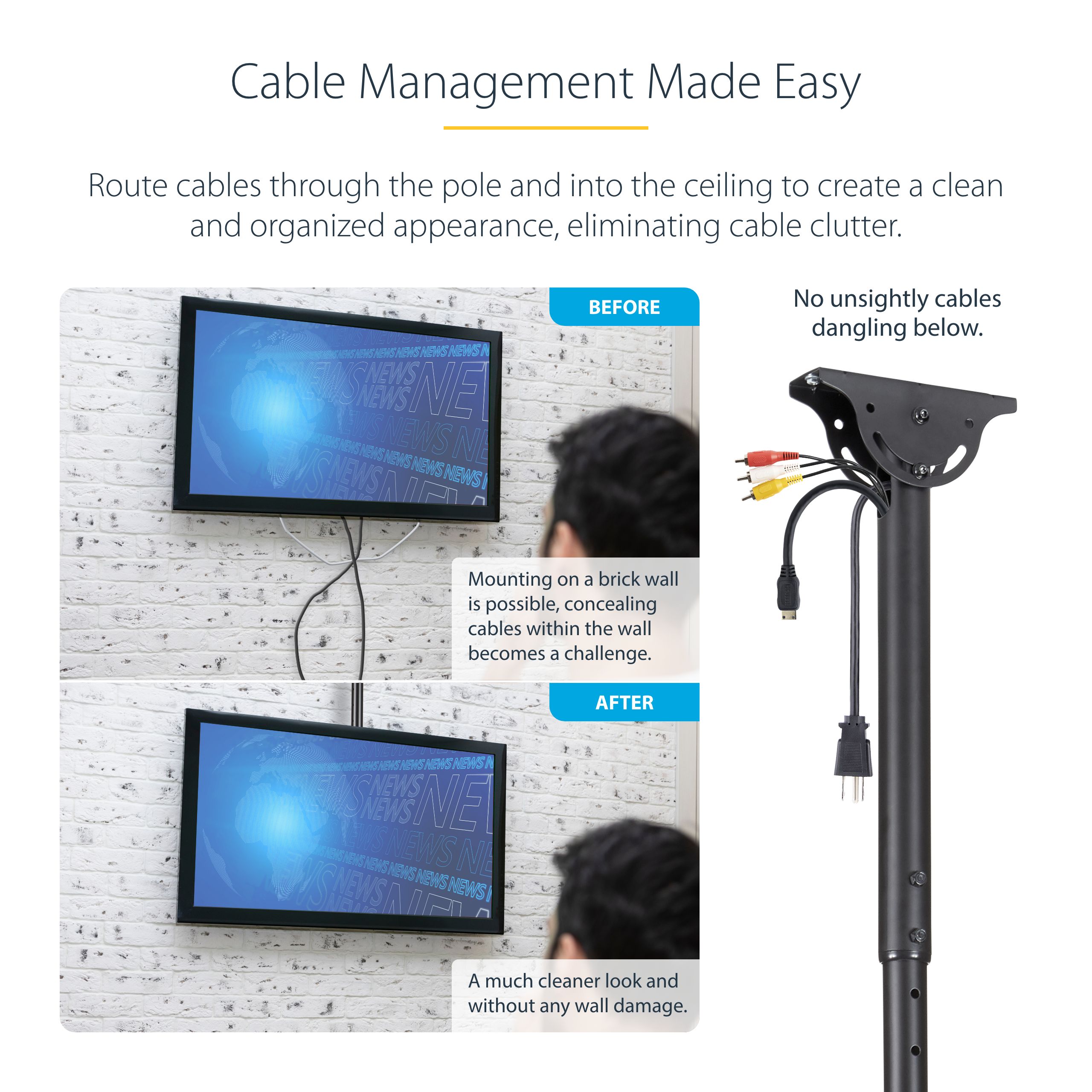

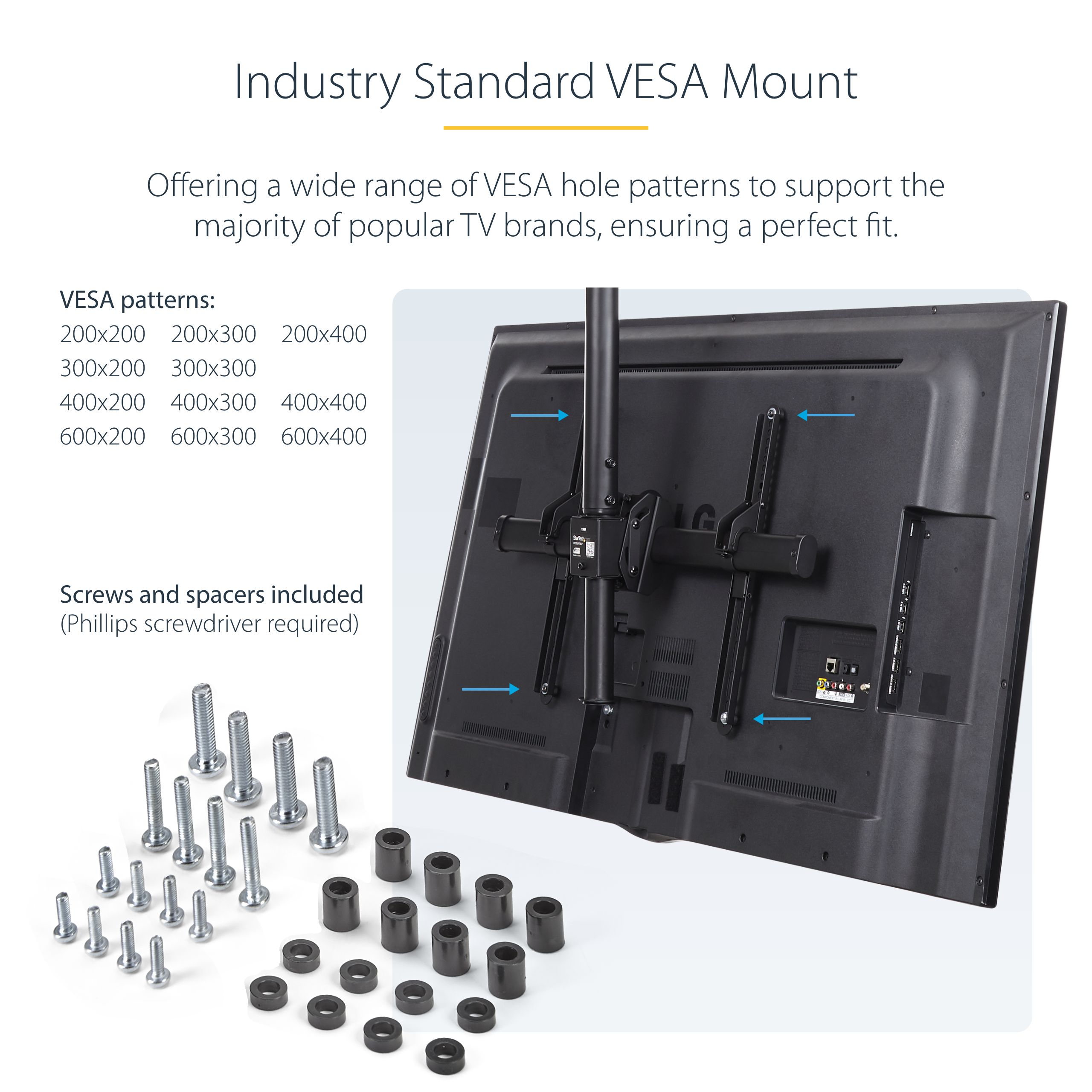

Cable Management Yes Height Adjustment Method Pole-Mounted Mounting Options Ceiling Mount Number of Displays 1 VESA Hole Pattern(s) - 200x200 mm
- 200x300 mm
- 200x400 mm
- 300x200 mm
- 300x300 mm
- 400x200 mm
- 400x300 mm
- 400x400 mm
- 600X200 mm
- 600x300 mm
- 600x400 mm

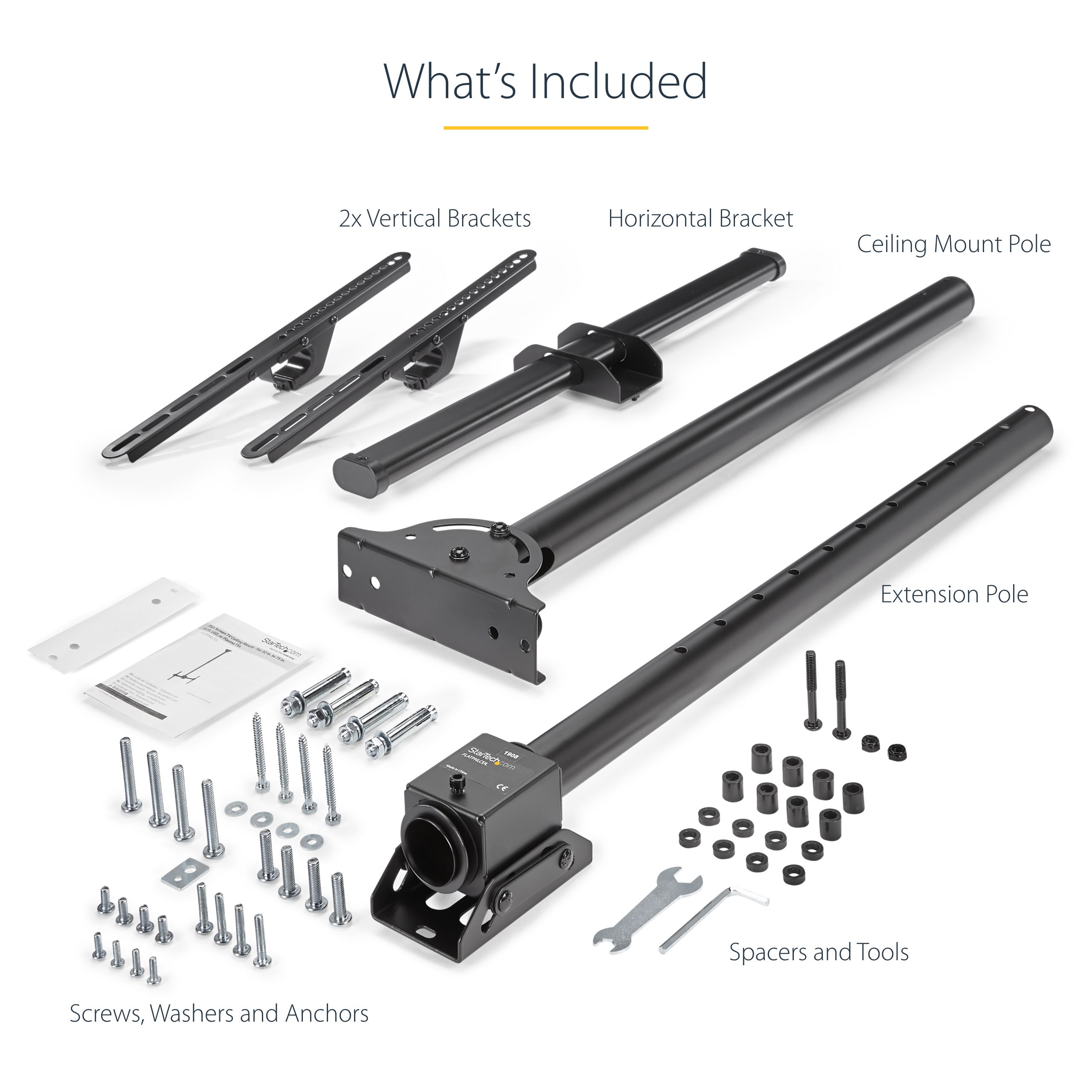

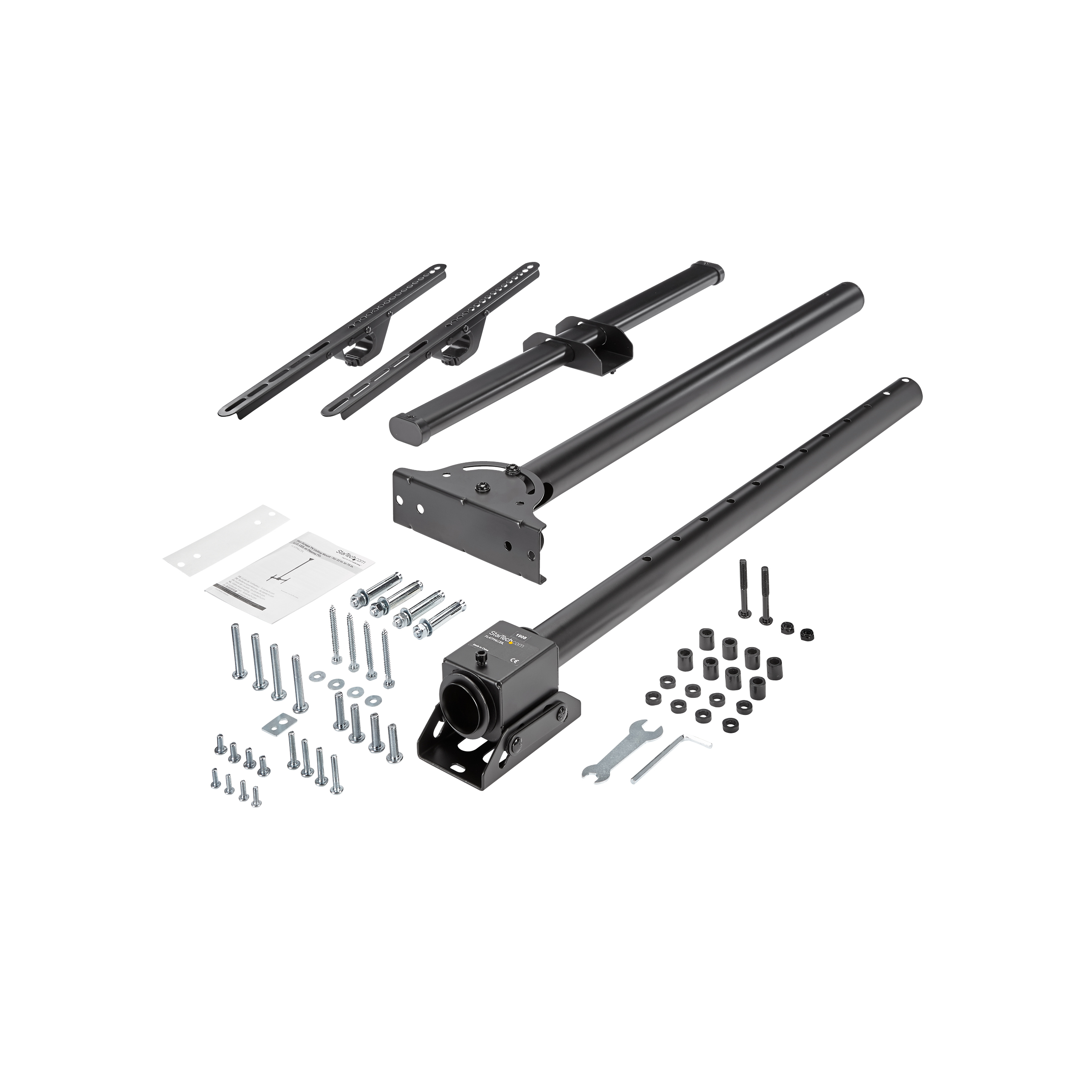

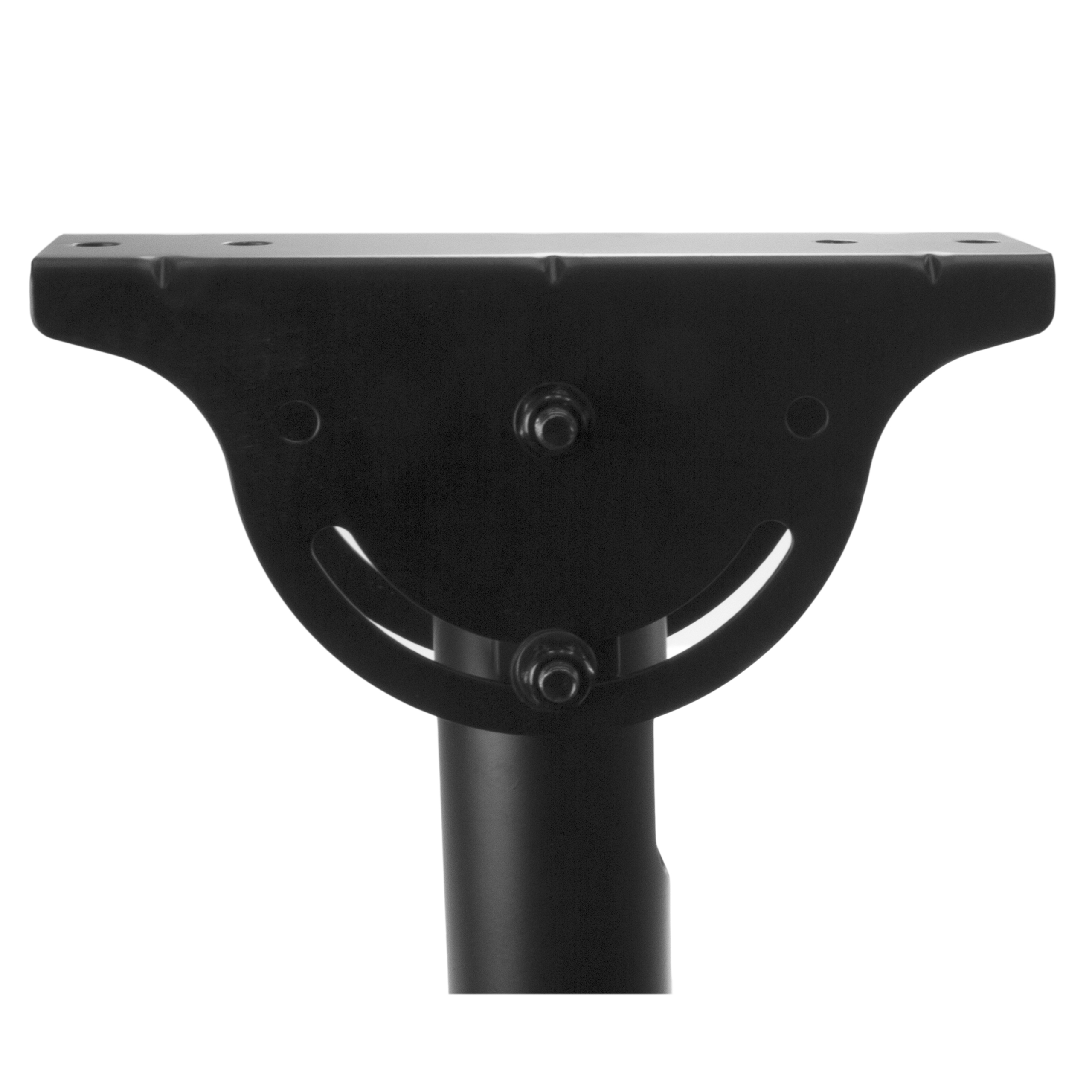

Wallmountable No Carton Depth (mm) 342 Carton Height (mm) 310 Carton Quantity 2 Carton Weight Gross (g) 16618 Included in Package - 1 - ceiling mount and pole
- 1 - extension pole
- 2 - vertical brackets
- 1 - horizontal bracket
- 2 - bolts
- 2 - nuts
- 1 - M13 wrench
- 1 - M5 Allen key
- 1 - mounting template
- 4 - M5x14 mm screws
- 4 - M6x14 mm screws
- 4 - M8x30 mm screws
- 4 - M6x30 mm screws
- 4 - M8x50 mm screws
- 4 - washers
- 8 - short spacers
- 8 - long spacers
- 4 - 6.3x55 mm screws
- 4 - concrete anchors
- 4 - flat washers
- 1 - instruction manual
Included In Package for Label - 1 - Poles
- 2 - Brackets
- 1 - Mounting Template
- 8 - Short Spacers
- 8 - Long Spacers
- 1 - Hardware Kit
- 1 - Manual
Package Depth (mm) 935 Package Height (mm) 148 Package Width (mm) 315 Package Quantity 1 Package Weight (g) 7736 Packaging Description Flat-screen TV Ceiling Mount - For 32 in. to 75 in. TVs Packaging Description India Flat-screen TV Ceiling Mount - For 32 in. to 75 in. TVs Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2016-08-02 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2016-12-02 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Anthony Slater Product Information Creation Specialist (PICS) Alex Garcia Product Manager Tony Parackal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Production Release 2016-09-19 Tech Lead Justin Weaver Technical Writer Alex Garcia Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine
