FPCEILPTBSP

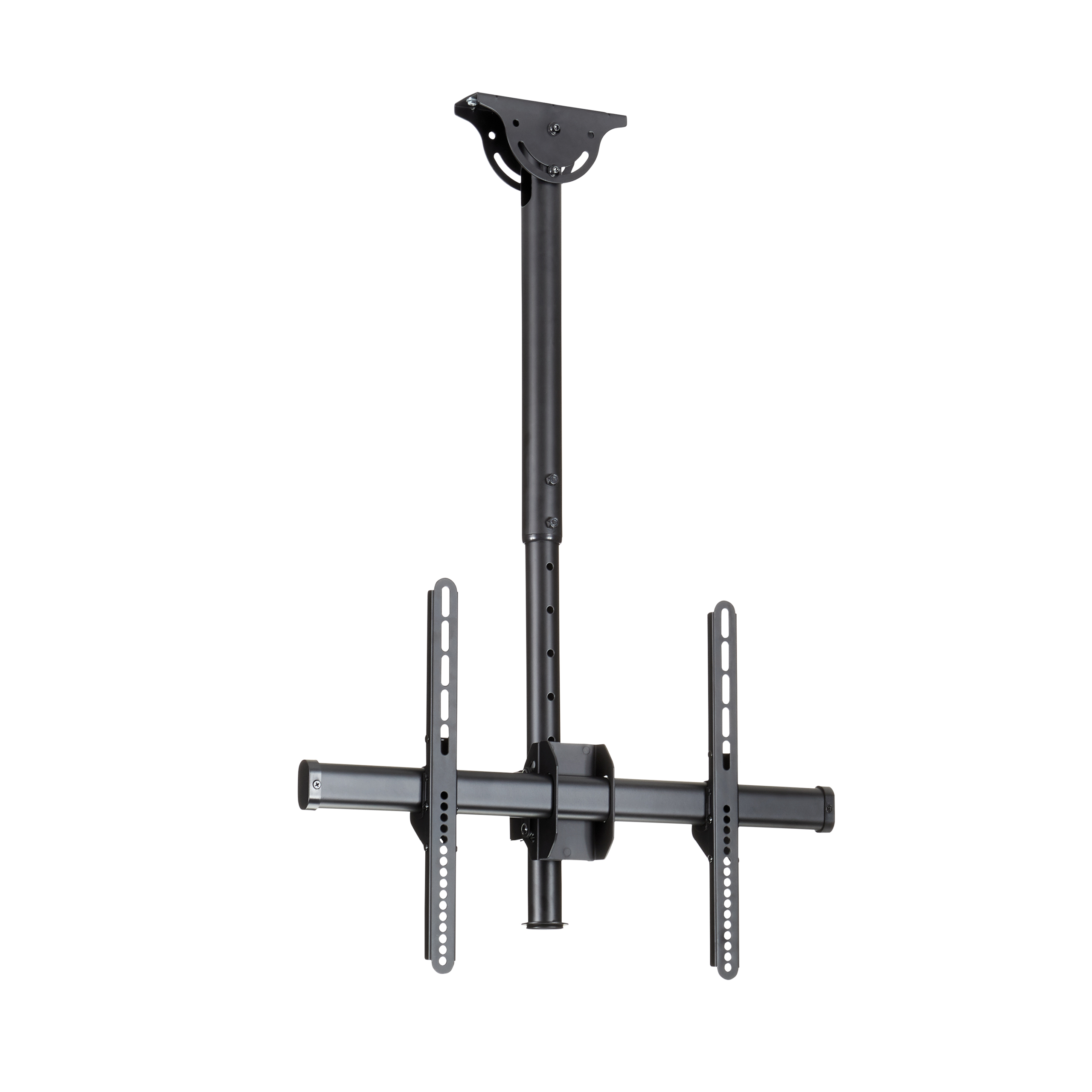

Flat Panel Ceiling Mount - Short Pole
Display Ceiling Mount | Full Motion | For 32" to 75" Displays
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name Flat Panel Ceiling Mount - Short Pole Product Number FPCEILPTBSP UPC 065030870405 Lifecycle status Active Warranty 5 Years Taxonomy Product > Mechanical Products > Display Mounts Category Level 1 Display Mounts Category Level 2 TV Mounts Category Level 3 Display Ceiling Mounts Family TV Ceiling Mounts Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX050X Product Title (Ultra-Short) Ceiling TV Mount Product Title (Short) Ceiling Mount for TV - 1.8' to 3' Pole Product Title (Medium) Ceiling TV Mount - 1.8' to 3' Short Pole - Full Motion - For 32" to 75" Displays Product Title (Standard) TV Ceiling Mount, Full-Motion Hanging Single Screen Vesa Mount for 32”-75" TVs / Displays - Height Adjustable Telescopic Pole Product Title (Long) TV Ceiling Mount - Full-Motion Universal Hanging Single Screen Mount with Adjustable Telescopic Short Pole - Tilt / Swivel - VESA Bracket for 32”-75" Displays Product Title (AMZ) TV Ceiling Mount, Hanging Single Screen Vesa Mount for 32”-75" TVs/Displays - Height Adjustable Telescopic Pole Title Ingram (Part 1) Ceiling TV Mount - 1.8' to Title Ingram (Part 2) 3' Short Pole - 32 to 75" TVs Website Product Headline Display Ceiling Mount | Full Motion | For 32" to 75" Displays Bullet 1 SINGLE 75" TV CEILING MOUNT: VESA compatible ceiling mount supports displays up to 75" (110lb/50kg) including curved TVs; Height adjustable pole, 22.0" - 35.8" (56cm - 91cm) from ceiling Bullet 2 FULL MOTION: Ceiling TV mount allows for the display to be swiveled 180° around the telescopic pole, and tilt downwards -25 degrees, without using tools Bullet 3 VERSATILE INSTALLATION: Adjustable mounted ceiling bracket for TV / screen allows the pole to be adjusted and secured +/-60 degrees for angled/sloped/slanted ceilings to ensure displays are level Bullet 4 COMPATIBILITY: Universal hanging TV ceiling mount supports LG, Samsung, Sony, and Sharp TVs among others (screws/spacers incl) & VESA hole patterns of 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400 Bullet 5 TIDY AESTHETIC: The universal television ceiling mount for one large display provides a hook-and-mount design for easy setup and integrated cable management; ideal for digital signage applications Bullets (Compact) Full motion single TV ceiling mount for VESA displays up to 75" - Adjust. telescopic pole, 1.8' - 3' (50 - 90cm) - Weight capacity 110lb (50kg) - Swivel +180/-180 degrees / Tilt -25 degrees without tools - TV bracket features a hook-and-mount design Bullets (Consolidated) - Full motion single TV ceiling mount for VESA mounted displays or curved TVs from 32 to 75"; Weight capacity of up to 110lb (50kg) - Hanging TV mount features a adjustable telescopic pole, 1.8'-3' (50-90cm) from ceiling - Flat screen ceiling mount swivels +60/-60 degrees to adjust to sloped or level ceilings - Universal mount lets you swivel the display +180/-180 degrees around the pole and tilt downwards -25 degrees without tools - LCD TV ceiling mount bracket features a hook-and-mount design Marketing Copy Marketing Copy (No HTML) Applications - Suspend a flat-screen TV from the ceiling for easy viewing

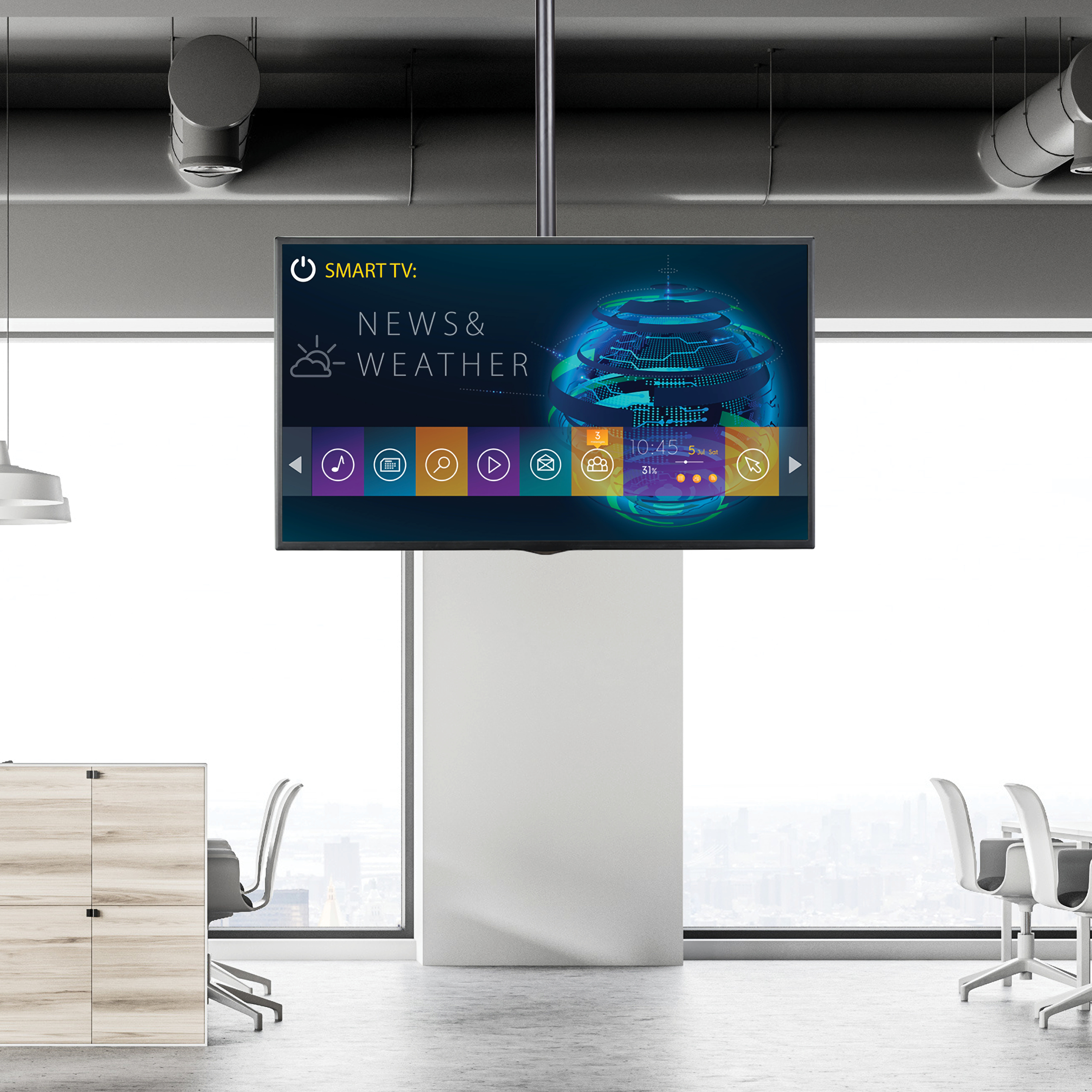

- Ideal for boardrooms, lobbies, entrances, meeting spaces, classrooms
- Keep your guests informed and entertained
Website Search Keyword - Ceiling TV Mount
- TV Ceiling Mount
- Ceiling Mount
- TV Mount
- 70" TV ceiling mount
- Television ceiling mount
- Full motion TV mount
- Ceiling mount TV bracket
- 75" TV ceiling mount
Required Regulatory Compliance Marks - Temp - N/A - Global - Used to replace duplicates or identify for removal
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - Furniture and Non-EEE
Accessory Products - MDBOXMNT
- HD2MM10MA
- HDMM2MP
- HDMM15
- HDMIMM10HS
- HDPMM25
- HDMIMM15HS
- HDMIPLATE
- ST121HDWP
- HDMI2-CABLE-4K60-6F
- HDMI2-CABLE-4K60-25F
- HDMI2-CABLE-4K60-2M
- HDMI2-CABLE-4K60-7M
Related Products - FLATPNLCEIL
- FPCEILPTBLP
- FPCEILBTB

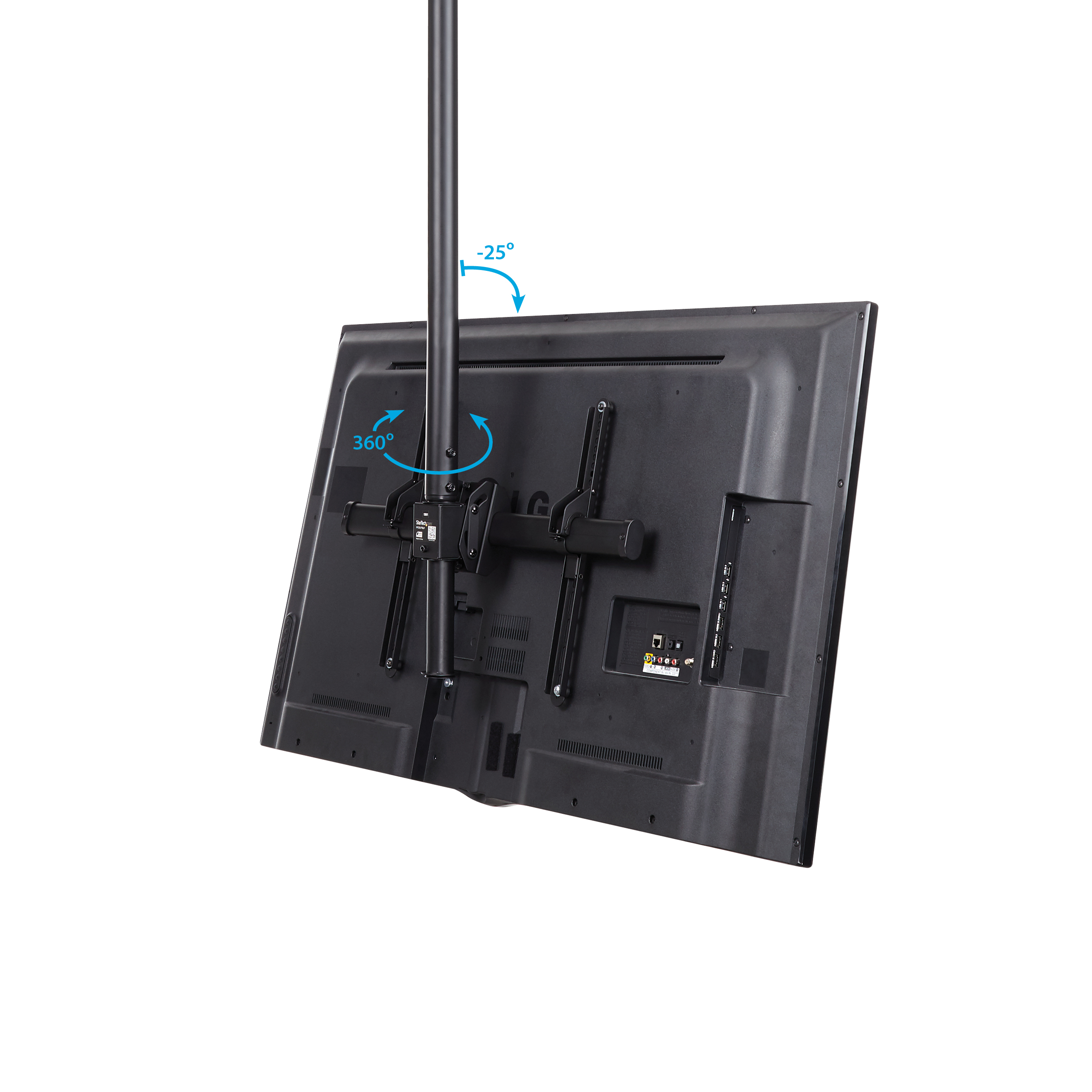

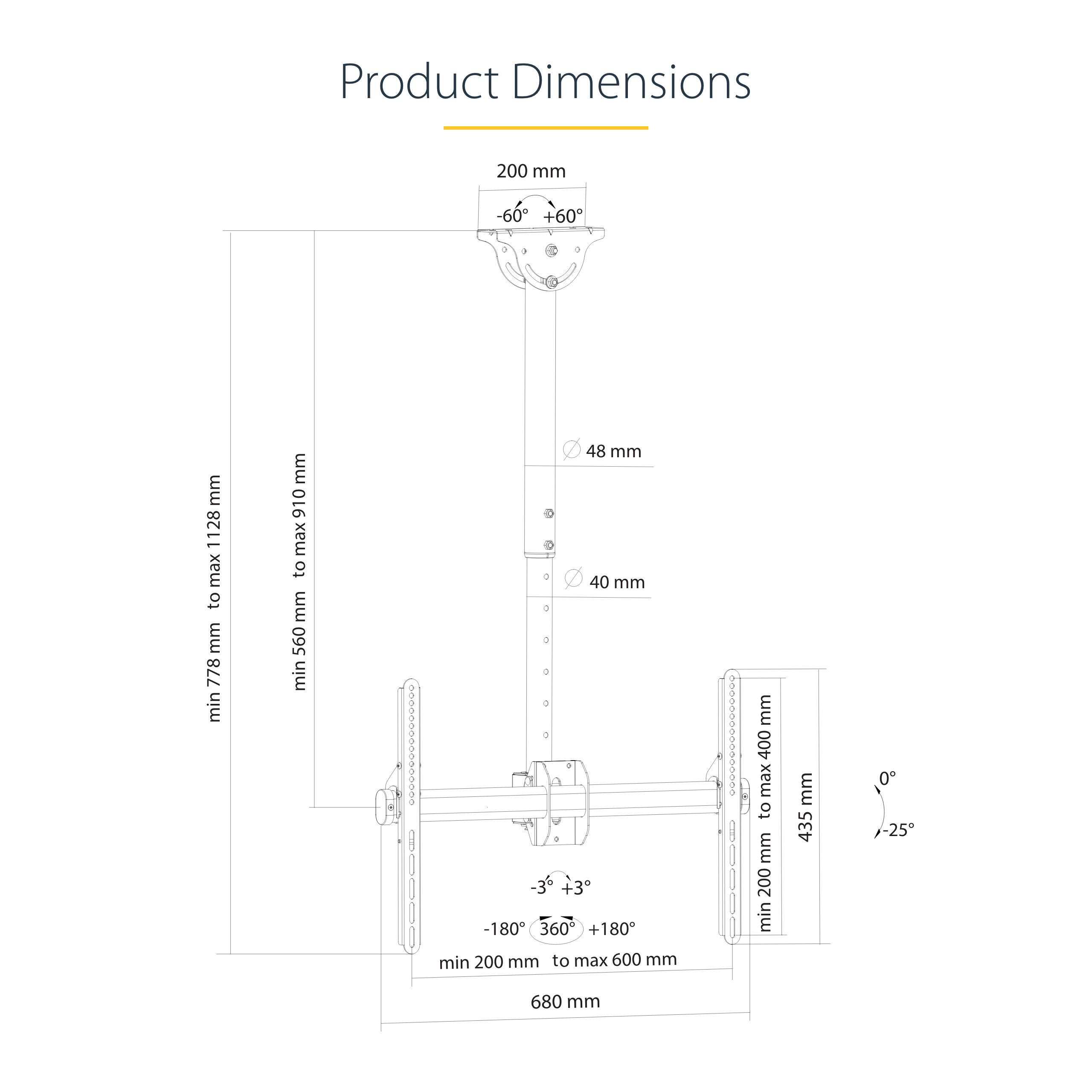

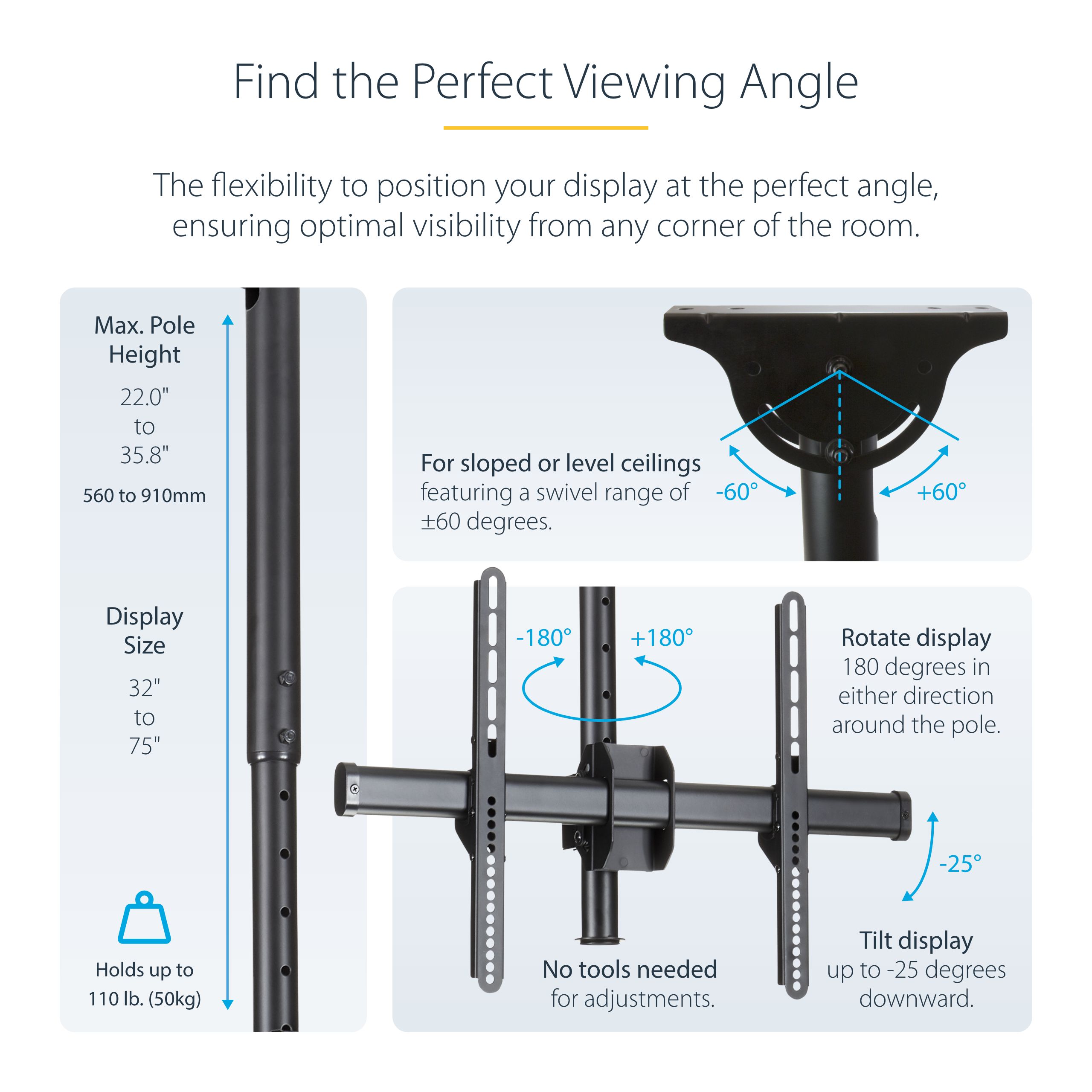

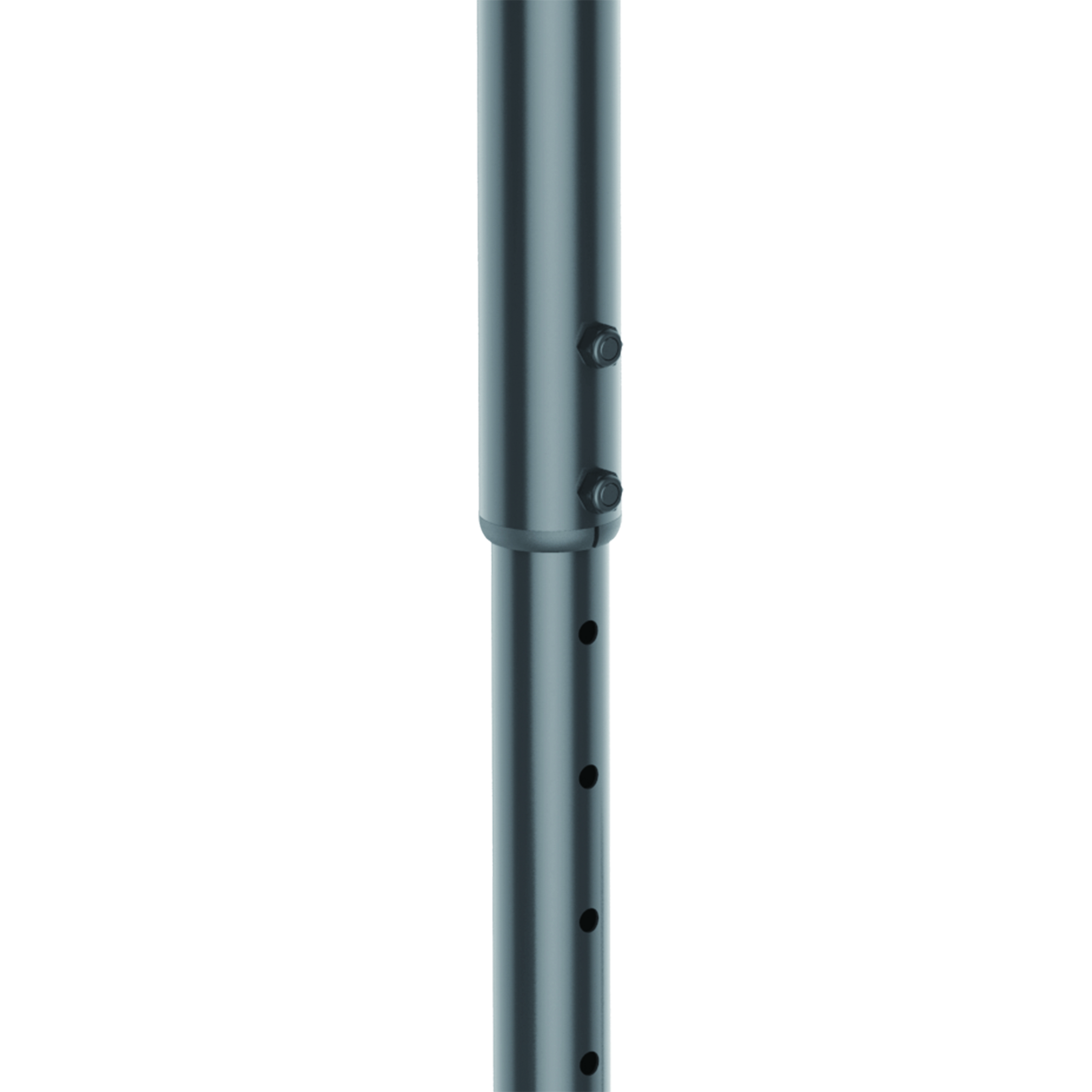

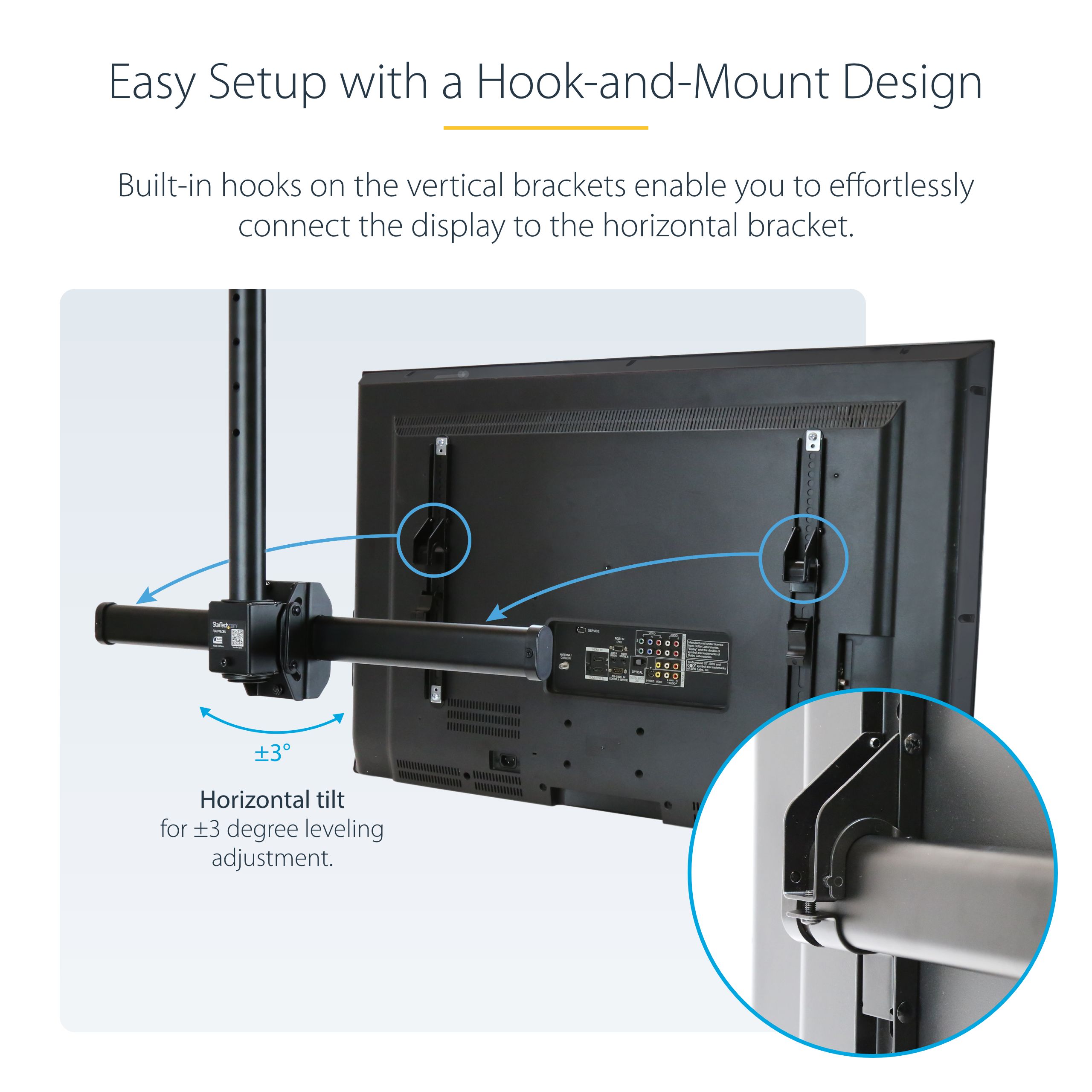

Constrained SKU Alternatives (Limited Stock) FPCEILBTB Color Black Material Steel Primary Material Steel Product Length (mm) 680.000 Product Width (mm) 435.000 Product Height (mm) 1150.000 Product Weight (g) 4890.000 TAA Compliant No Anti-theft No Display Rotation 360° Display Tilt +0° / -25° Fits Curved Display Yes General Specifications Post-Installation Leveling Adjustment: +/-3° Height Adjustment Yes Maximum Display Size 75" Maximum Height (mm) 910 Minimum Display Size 32" Minimum Height Extension (mm) 560 Swivel / Pivot +180° to -180° TV Weight Capacity Range - up to 35 kg (77.4 lb.)
- up to 40 kg (88.4 lb.)
- up to 45 kg (99.5 lb.)
- up to 50 kg (110.5 lb.)
Video Wall No Weight Capacity for Display Mounts (g) 50000 Your Screen Size - Up to 49"
- 50"-59"
- 60"-89"

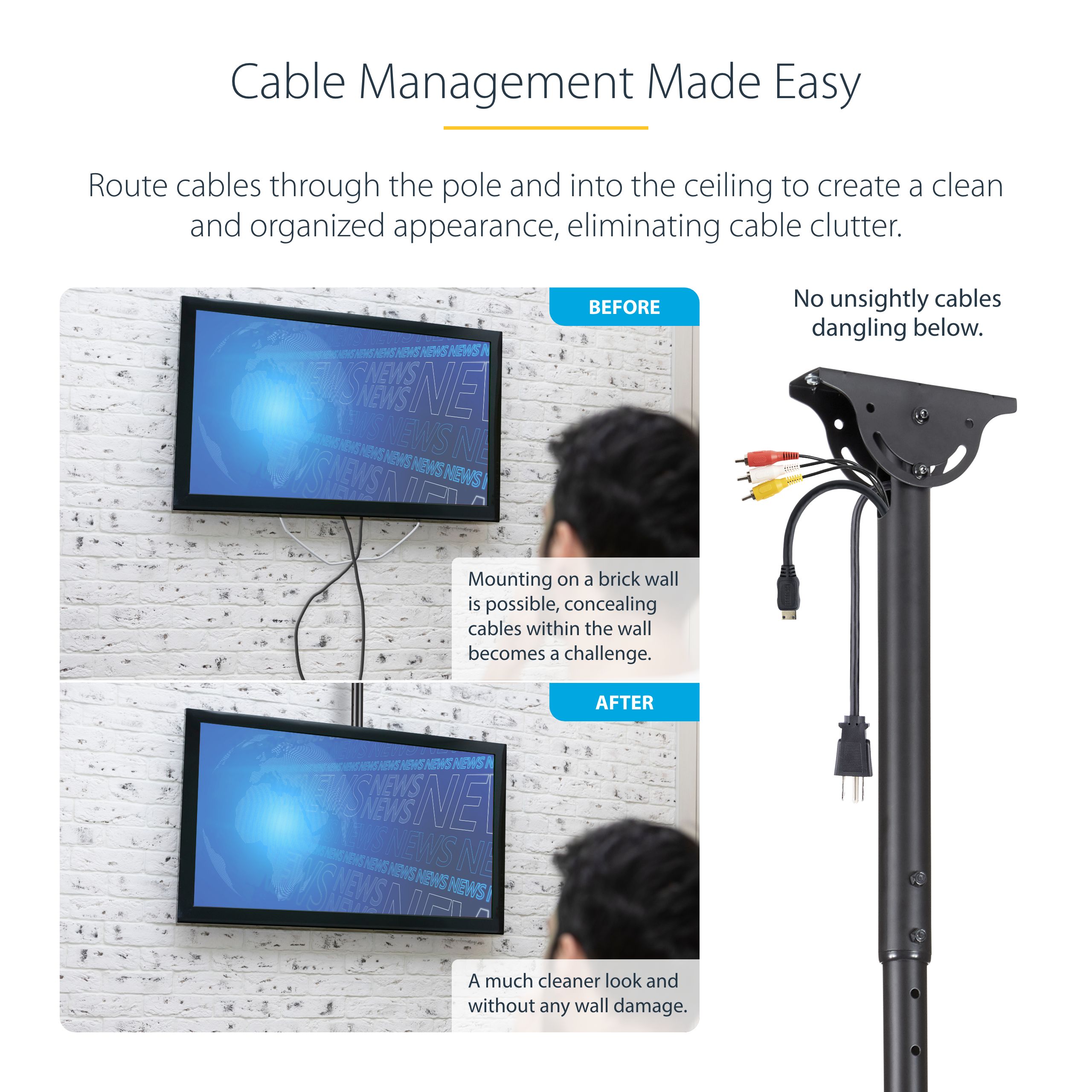

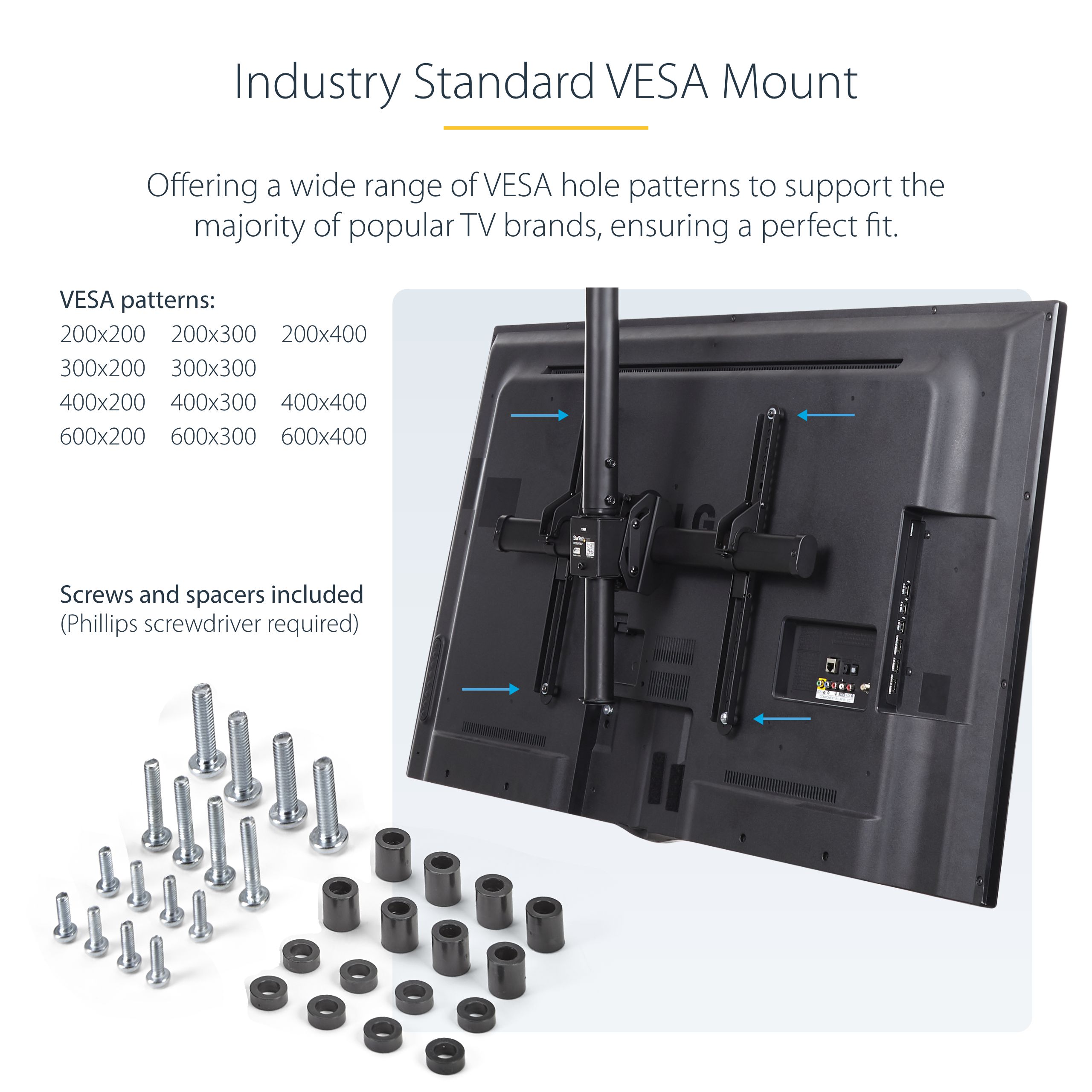

Cable Management Yes Height Adjustment Method Pole-Mounted Mounting Options Ceiling Mount Mounting Surface Thickness 560 mm to 910 mm Number of Displays 1 VESA Hole Pattern(s) - 200x200 mm
- 200x300 mm
- 200x400 mm
- 300x200 mm
- 300x300 mm
- 400x200 mm
- 400x300 mm
- 400x400 mm
- 600X200 mm
- 600x300 mm
- 600x400 mm

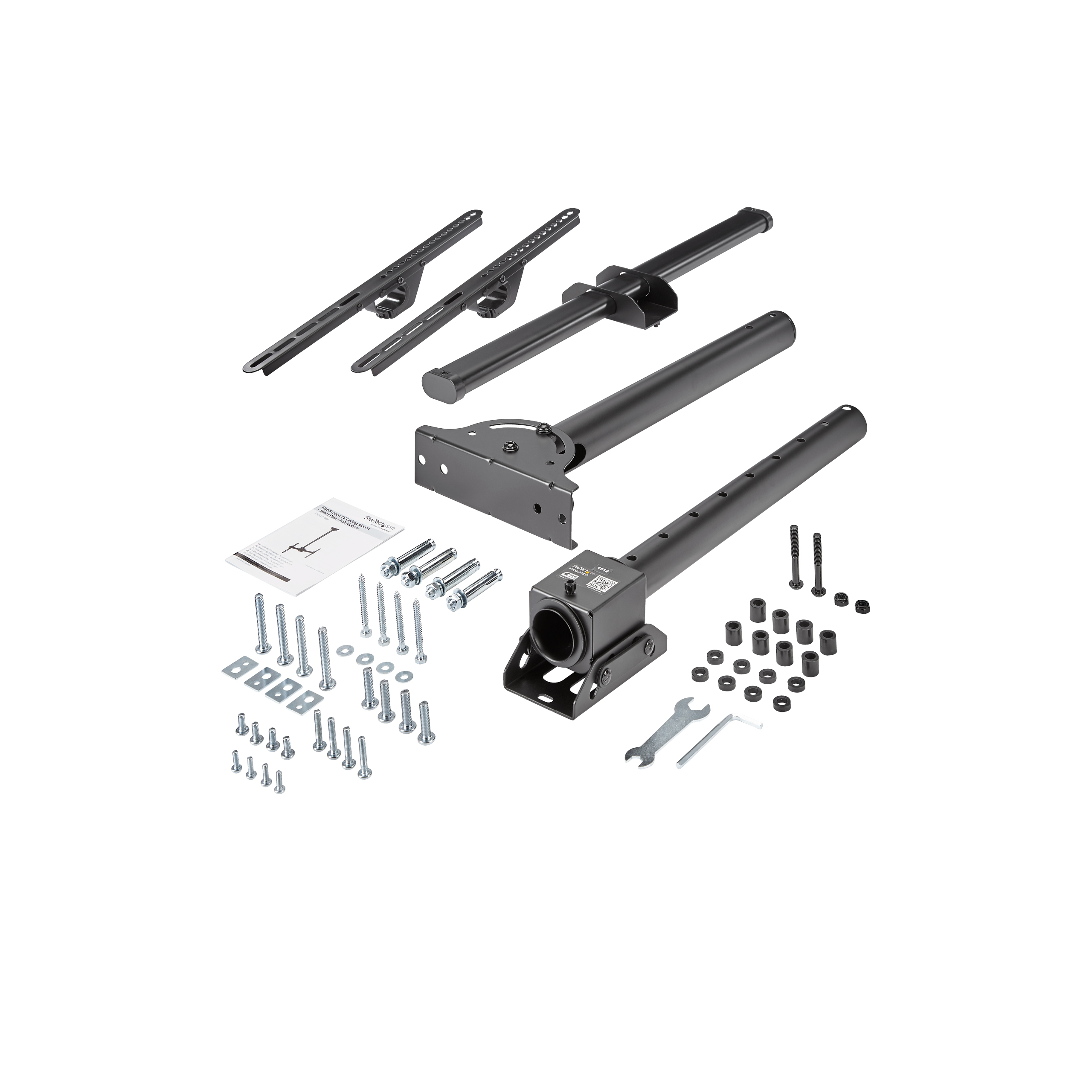

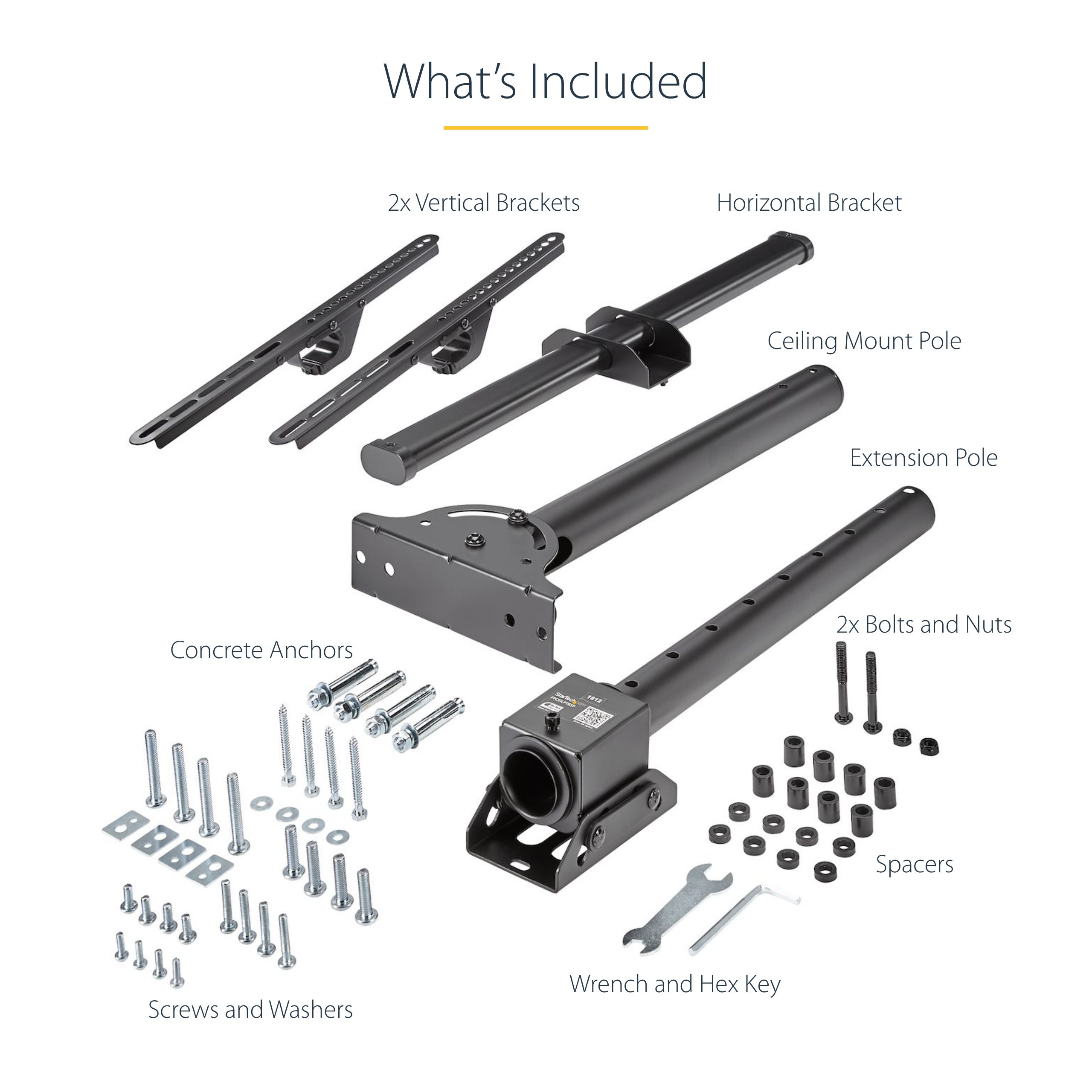

Wallmountable No Carton Depth (mm) 795 Carton Height (mm) 469 Carton Quantity 3 Carton Weight Gross (g) 21514 Included in Package - 1 - ceiling mount and pole
- 1 - extension pole
- 2 - vertical brackets
- 1 - horizontal bracket
- 2 - bolts
- 2 - nuts
- 1 - wrench
- 1 - hex key
- 1 - mounting template
- 4 - M5x14 mm screws
- 4 - M6x14 mm screws
- 4 - M6x30 mm screws
- 4 - M8x30 mm screws
- 4 - M8x50 mm screws
- 4 - rectangular washers
- 8 - small spacers
- 8 - large spacers
- 4 - 6.3x55 mm screws
- 4 - concrete anchor
- 4 - circular washers
- 1 - instruction manual
Included In Package for Label - 1 - Ceiling Mount And Pole
- 1 - Extension Pole
- 2 - Brackets
- 1 - horizontal bracket
- 1 - Assembly Kit
- 1 - Mounting Kit
- 1 - Instruction Manual
Package Depth (mm) 776 Package Height (mm) 150 Package Width (mm) 380 Package Quantity 1 Package Weight (g) 6726 Packaging Description Flat Panel Ceiling Mount - Short Pole Packaging Description India Flat Panel Ceiling Mount - Short Pole Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2016-12-23 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2017-02-24 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Anthony Slater Product Information Creation Specialist (PICS) Alex Garcia Product Manager Tony Parackal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2016-11-28 Target Production Release 2016-12-02 Tech Lead Justin Weaver Technical Writer Alex Garcia Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine
