FPWARPS

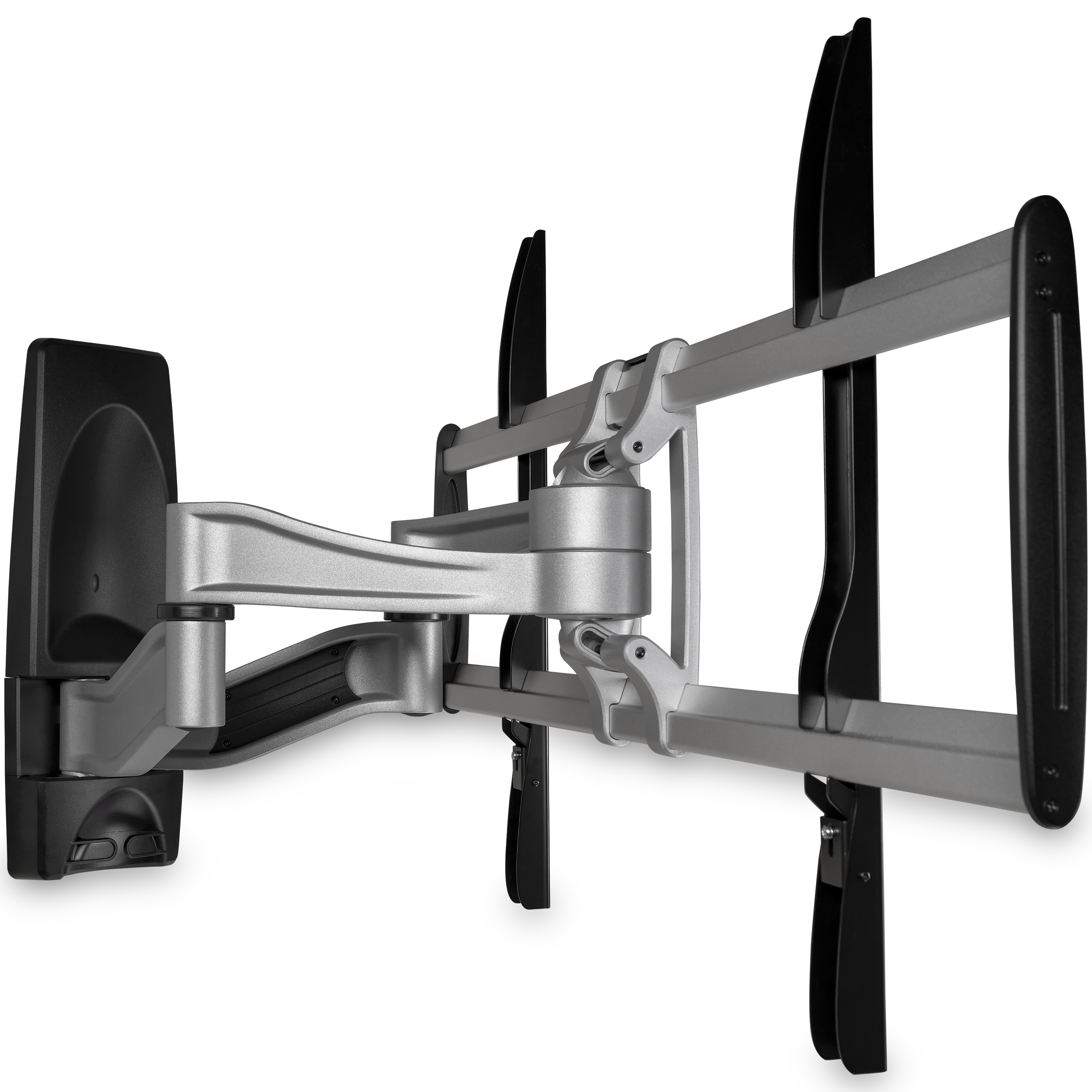

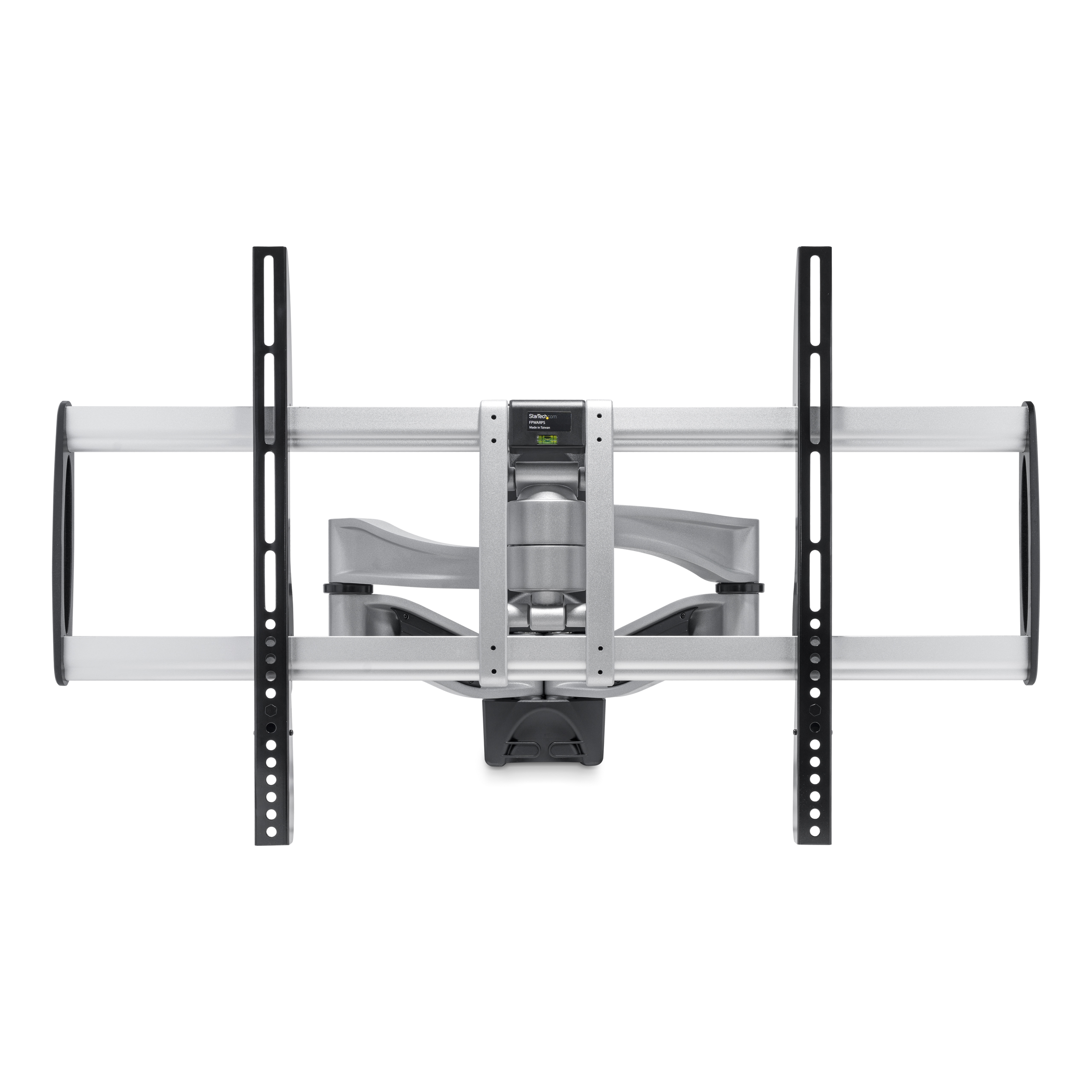

TV Wall Mount - Full Motion
Display Wall Mount | Steel/Aluminum | For 32" to 75" TVs
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name TV Wall Mount - Full Motion Product Number FPWARPS UPC 065030879866 Lifecycle status Active Warranty 5 Years Taxonomy Product > Mechanical Products > Display Mounts Category Level 1 Display Mounts Category Level 2 TV Mounts Category Level 3 Display Wall Mounts Family Premium TV Wall Mounts Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX036X Manual Diagram Product Title (Ultra-Short) TV Wall Mount Product Title (Short) Full Motion TV Wall Mount - 32-75in VESA Product Title (Medium) Full Motion TV Wall Mount - For 32" to 75" TVs - Steel & Aluminum - Premium Product Title (Standard) Full Motion TV Wall Mount, 32"-75" VESA Display, Heavy Duty Articulating Adjustable Large TV Wall Mount Bracket, Silver, TAA Product Title (Long) Full Motion TV Wall Mount - Heavy Duty Articulating TV Wall Mount Bracket for 32" to 75" (165lb/75kg) VESA Display - Universal Adjustable Tilt/Swivel Flat Screen Arm - Silver - TAA Product Title (AMZ) Full Motion TV Wall Mount - Heavy Duty Articulating TV Wall Mount Bracket for 32" to 75" (165lb/75kg) VESA Display - Universal Adjustable Tilt/Swivel Flat Screen Arm - Silver , TAA Title Ingram (Part 1) Full Motion TV Wall Mount - for Title Ingram (Part 2) 32" to 75" TVs - Steel & Aluminum Website Product Headline Display Wall Mount | Steel/Aluminum | For 32" to 75" TVs Bullet 1 LARGE 75" TV WALL MOUNT: Heavy-duty full horizontal motion TV wall mount supports VESA compatible displays from 32 to 75 inch (165 lb/75 kg) w/ a durable full-motion steel frame & premium silver powder-coated finish Bullet 2 WIDE RANGE OF MOTION: Full motion TV wall mount offers +/-60° swivel, +/-15° tilting to find the ideal viewing angle; Articulating extendable arms reach out to 21.6" (550mm) from the wall & fold in to 4.1" (105mm) for a lower profile Bullet 3 COMPATIBILITY: Universal LCD/LED television mount supports LG, Samsung, Sony, Sharp, others (screws/spacers incl) & VESA bracket hole patterns 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 500x300, 600x300, 600x400, 800x400, 800x500 Bullet 4 PREMIUM FINISH: Silver steel & aluminum mount designed to have a professional look; Decorative covers maintain the high quality aesthetic no matter how the LCD/LED flat screen is positioned Bullet 5 FLEXIBLE INSTALLATION: Adjustable TV wall mounting bracket is installed on a single stud for flexible positioning (ie. corner mounting); Integrated cable management; ideal for customer-facing digital signage, retail & education Bullets (Compact) Full-motion TV wall mount for large 32-75 inch (165lb) VESA display - Adjustable swivel/tilting articulating arms - Single stud install for easy positioning (ie. corner mount) - Premium silver finish - Heavy-duty universal television mount w/hardware Bullets (Consolidated) Full-motion TV wall mount for a large VESA display 32-75 in (165lb) | Silver powder-coated finish - Horizontal adjustable articulating TV mount +/-60DEG swivel +/-15DEG tilting | Extendable arm reaches out to 21.6" and folds in to 4" for a low profile - Heavy duty universal television mount bracket supports LG Samsung others | Screws/spacers incl. - Steel and aluminum flat screen mount w/ professional look; Decorative covers - Single stud mounting for easy install/positioning - Cable management Marketing Copy Marketing Copy (No HTML) Applications - Wall-mount your TV in a boardroom, lobby, lecture hall, classroom or meeting space
- Keep guests informed or entertained in hotels, restaurants and other hospitality venues
- Save space by wall-mounting your TV in your home theater or living room
Website Search Keyword - full motion tv wall mount
- swivel tv mount
- 55 inch tv wall mount
- wall mount tv bracket
- 32 inch tv wall mount
- 32" tv wall mount
- flat screen tv wall mount
- tv wall mount for flat screen
- tv wall mount
- tv holder
- best full motion tv wall mount
- television wall mount
- LCD tv wall mount
- commercial tv wall mount
- support mural TV
- TV mount
- full motion TV mount
Required Regulatory Compliance Marks - Temp - N/A - Global - Used to replace duplicates or identify for removal
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - Furniture and Non-EEE
Accessory Products - MDBOXMNT
- HD2MM10MA
- HDMM2MP
- HDMM15
- HDMIMM10HS
- HDPMM25
- HDMIMM15HS
- HDMIPLATE
- ST121HDWP
- HDMI2-CABLE-4K60-6F
- HDMI2-CABLE-4K60-25F
- HDMI2-CABLE-4K60-2M
- HDMI2-CABLE-4K60-7M
Color Black & Silver Material Steel Primary Material Steel Product Length (mm) 865.000 Product Width (mm) 520.000 Product Height (mm) 524.000 Product Weight (g) 10320.000 TAA Compliant Yes Display Tilt + 15° / - 15° Fits Curved Display Yes General Specifications - Minimum Distance to Wall: 4.13" (105 mm)
- Maximum Distance to Wall: 21.65" (550 mm)
Maximum Display Size 75" Minimum Display Size 32" Swivel / Pivot + 60° / - 60° TV Weight Capacity Range - up to 35 kg (77.4 lb.)
- up to 40 kg (88.4 lb.)
- up to 45 kg (99.5 lb.)
- up to 75 kg (165 lb.)
Video Wall No Weight Capacity for Display Mounts (g) 75000 Your Screen Size - 60"-89"
- 50"-59"
- Up to 49"
Cable Management Yes Mounting Options Wall-Mount Number of Displays 1 VESA Hole Pattern(s) - 200x100 mm
- 200x200 mm
- 200x300 mm
- 200x400 mm
- 300x200 mm
- 300x300 mm
- 400x200 mm
- 400x300 mm
- 400x400 mm
- 500x300 mm
- 600x300 mm
- 600x400 mm
- 800x400 mm
- 800x500 mm
- 810x500 mm

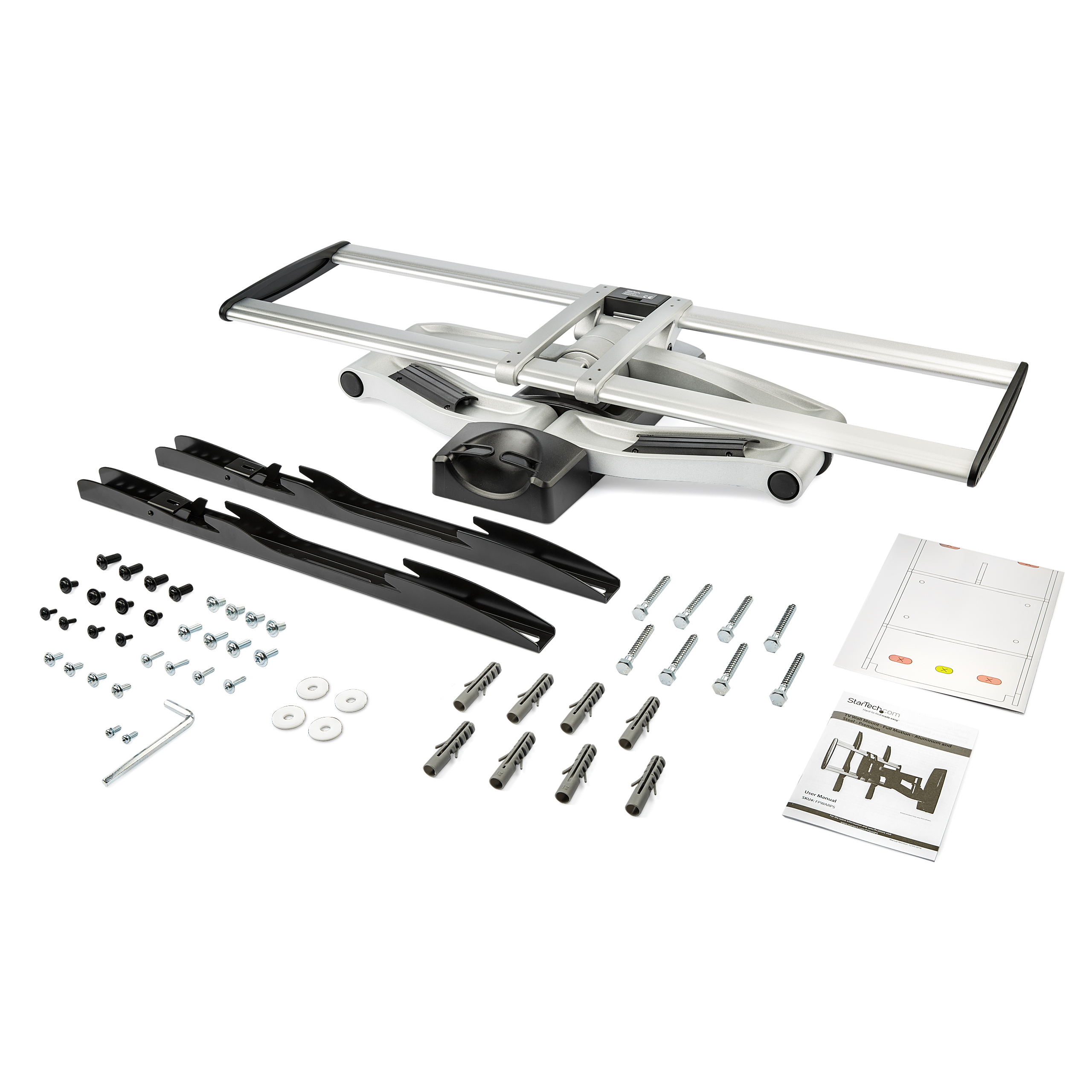

Wallmountable Yes Carton Depth (mm) 460 Carton Height (mm) 140 Carton Quantity 1 Carton Weight Gross (g) 12650 Included in Package - 1 - TV Wall-Mount Assembly

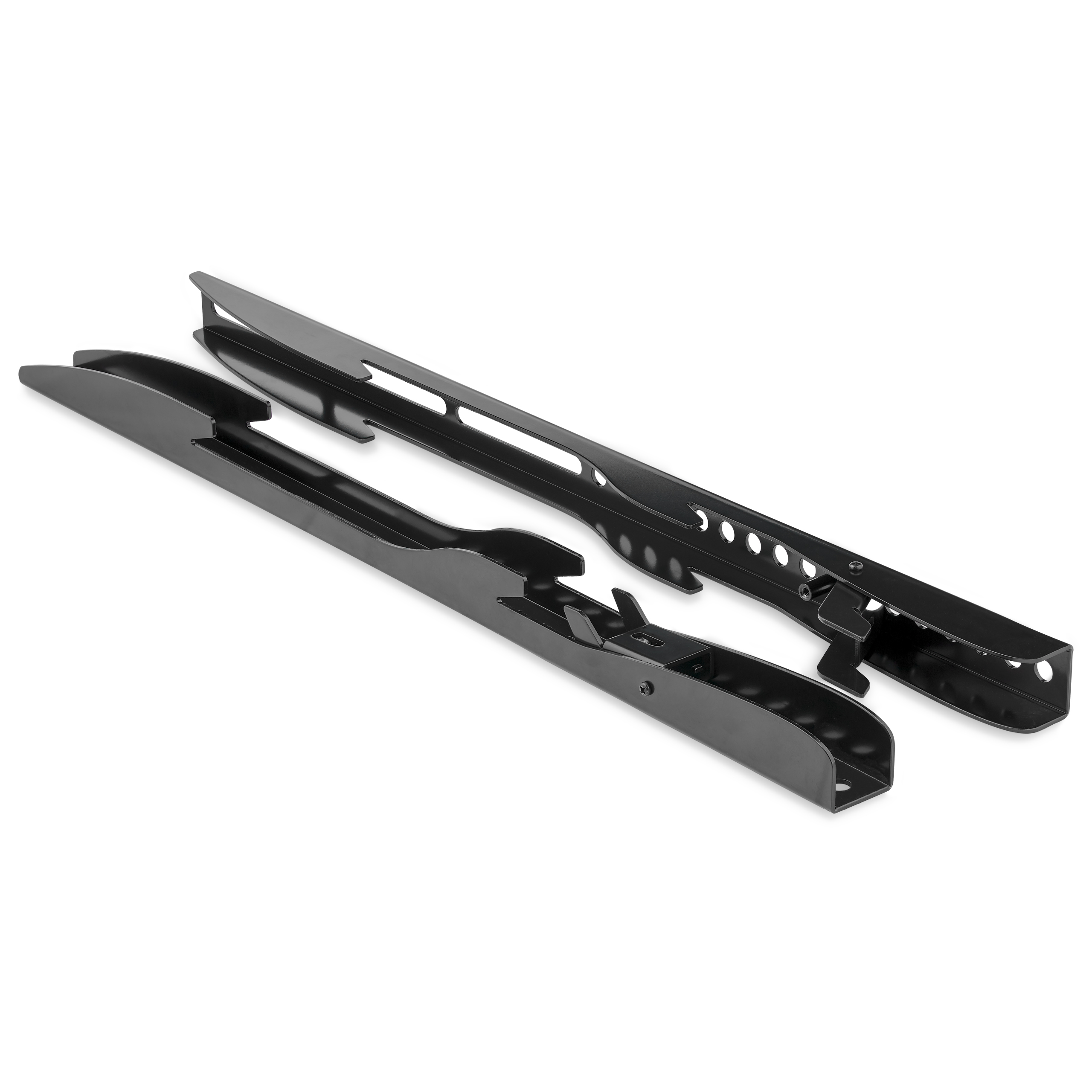

- 2 - Vertical Brackets
- 1 - 6 mm Hex Key
- 2 - Vertical Bracket Screws
- 8 - Concrete Anchors
- 4 - M4 x 12 mm Screws
- 4 - M4 x 18 mm Screws
- 4 - M5 x 12 mm Screws
- 4 - M6 x 12 mm Screws
- 4 - M6 x 18 mm Screws
- 4 - M8 x 12 mm Screws
- 4 - Flat Washers
- 4 - M8 x 18 mm Screws
- 1 - User Manual
- 8 - Wall Screws
Included In Package for Label - 1 - TV Wall-Mount Assembly
- 1 - User Manual
- 4 - Hardware Kit
- 2 - Vertical Brackets
- 1 - 6 mm Hex Key
Package Depth (mm) 918 Package Height (mm) 155 Package Width (mm) 471 Package Quantity 1 Package Weight (g) 12590 Packaging Description TV Wall Mount - Full Motion Packaging Description India TV Wall Mount - Full Motion Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2018-11-29 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2018-12-07 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Anthony Slater Product Information Creation Specialist (PICS) Alex Garcia Product Manager Tony Parackal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2018-08-10 Target Production Release 2018-12-21 Tech Lead Justin Weaver Technical Writer Evan Hanbidge Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine
