Main Image
FPWARTS2
TV Wall Mount - Articulating Dual Arms
Heavy Duty TV Wall Mount | Steel | For up to 100" Displays
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name TV Wall Mount - Articulating Dual Arms Product Number FPWARTS2 UPC 065030870344 Lifecycle status Active Warranty 5 Years Taxonomy Product > Mechanical Products > Display Mounts Category Level 1 Display Mounts Category Level 2 TV Mounts Category Level 3 Display Wall Mounts Family TV Wall Mounts - Pivot Arm Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX050X Product Title (Ultra-Short) TV Wall Mount Product Title (Short) Full Motion TV Wall Mount up to 100in TV Product Title (Medium) TV Wall Mount - Full Motion Articulating Arm - Up to 100 in. TV - 165 lb / 75 kg Product Title (Standard) TV Wall Mount supports up to 100" VESA Displays - Low Profile Full Motion Large TV Wall Mount - Heavy Duty Adjustable Bracket Product Title (Long) TV Wall Mount supports up to 100 inch VESA Displays - Low Profile Full Motion TV Wall Mount for Large Displays - Heavy Duty Adjustable Tilt/Swivel Articulating Arm Bracket Product Title (AMZ) TV Wall Mount supports up to 100 inch VESA Displays - Low Profile Full Motion TV Wall Mount for Large Displays - Heavy Duty Adjustable Tilt/Swivel Articulating Arm Bracket (FPWARTS2) Title Ingram (Part 1) TV Wall Mount - Full Motion Title Ingram (Part 2) - Articulating Arm - Up to 100in TV Website Product Headline Heavy Duty TV Wall Mount | Steel | For up to 100" Displays Bullet 1 LARGE 100" TV WALL MOUNT: This heavy-duty TV wall mount supports VESA compatible displays incl. curved TVs up to 100 inch (165 lb/75 kg) w/ a durable full-motion steel frame and a powder-coated finish Bullet 2 WIDE RANGE OF MOTION: Articulating TV wall mount offers +/-60° swivel, +2/-15° tilt & +/-3° LCD screen level adjustment & arms allow low-profile at 2.9" (75 mm) from wall or extend to 31.7" (805 mm) Bullet 3 LATERAL ADJUSTMENT: Full motion TV wall mount w/ post-install lateral shifting lets you center the display on a wall or corner, w/ 16"/24" off-centered studs w/ range of 47"/1.2m from left to right Bullet 4 COMPATIBILITY: Universal TV wall mount supports LG, Samsung, Sony, Sharp, among others (screws/spacers incl) & VESA hole patterns 200x100, 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400 Bullet 5 TIDY AESTHETIC: The adjustable tv wall mounting bracket w/ integrated cable management & optional black snap-on covers keeps flat screen cables organized; ideal for customer-facing digital signage Bullets (Compact) Adjustable TV Wall Mount bracket for large 100 inch (165lb) VESA displays/curved TVs - Swivel, tilt, rotate, extend screen w/ low profile full-motion articulating arms - Ideal for TV corner mounting - Universal TV mount w/ hardware - Heavy-duty steel Bullets (Consolidated) Full-motion TV Wall Mount for large VESA displays or curved TVs up to 100 inch (165lb) - Heavy-duty steel w/ durable powder-coated finish - Articulating TV mount w/ +/-60 DEG swivel +2/-15 DEG tilt +/-3 DEG screen level and arms allow low-profile at 2.9" or extend to 31.7" - Adjustable TV wall mount w/ post-install 47" lateral shift to center LCD television on wall/corner - Universal TV bracket supports LG Samsung other brands w/ screws/spacers incl - Cable management and black snap-on covers Marketing Copy Marketing Copy (No HTML) Applications - Keep guests informed in hotels, restaurants and other venues
- Securely wall-mount your TV for easy viewing in boardrooms, lobbies, classrooms and meeting spaces
- Save space by wall-mounting your TV in your home theater
Website Search Keyword - adjustable tv wall mount
- Articulating TV Wall Mount
- wall mount tv bracket
- large tv wall mount full motion
- curved tv wall mount
- heavy duty tv wall mount
- swivel tv wall mount
Required Regulatory Compliance Marks - Temp - N/A - Global - Used to replace duplicates or identify for removal
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - Furniture and Non-EEE
Accessory Products - MDBOXMNT
- HD2MM10MA
- HDMM2MP
- HDMM15
- HDMIMM10HS
- HDPMM25
- HDMIMM15HS
- HDMIPLATE
- ST121HDWP
- HDMI2-CABLE-4K60-6F
- HDMI2-CABLE-4K60-25F
- HDMI2-CABLE-4K60-2M
- HDMI2-CABLE-4K60-7M
Constrained SKU Alternatives (Limited Stock) FPWARTS1 Color Black Material Steel Primary Material Steel Product Length (mm) 670.000 Product Width (mm) 800.000 Product Height (mm) 487.000 Product Weight (g) 16800.000 TAA Compliant No Display Rotation +3° / -3° Display Swivel +60° / -60° Display Tilt +2° / -15° Fits Curved Display Yes General Specifications Screen Level Adjustment: +3° / -3° Maximum Arm Extension 805 Maximum Display Size 100" Minimum Arm Extension 75 Minimum Display Size 37" Swivel / Pivot +90° / -90° TV Weight Capacity Range up to 75 kg (165 lb.) Weight Capacity for Display Mounts (g) 75000 Your Screen Size - 60"-89"
- 90"-100"
Articulating Yes Cable Management Yes Minimum Profile from Wall (mm) 70 Mounting Options Wall-Mount Number of Displays 1 VESA Hole Pattern(s) - 200x100 mm
- 200x200 mm
- 200x300 mm
- 200x400 mm
- 300x200 mm
- 300x300 mm
- 400x200 mm
- 400x300 mm
- 400x400 mm
- 600X200 mm
- 600x300 mm
- 600x400 mm

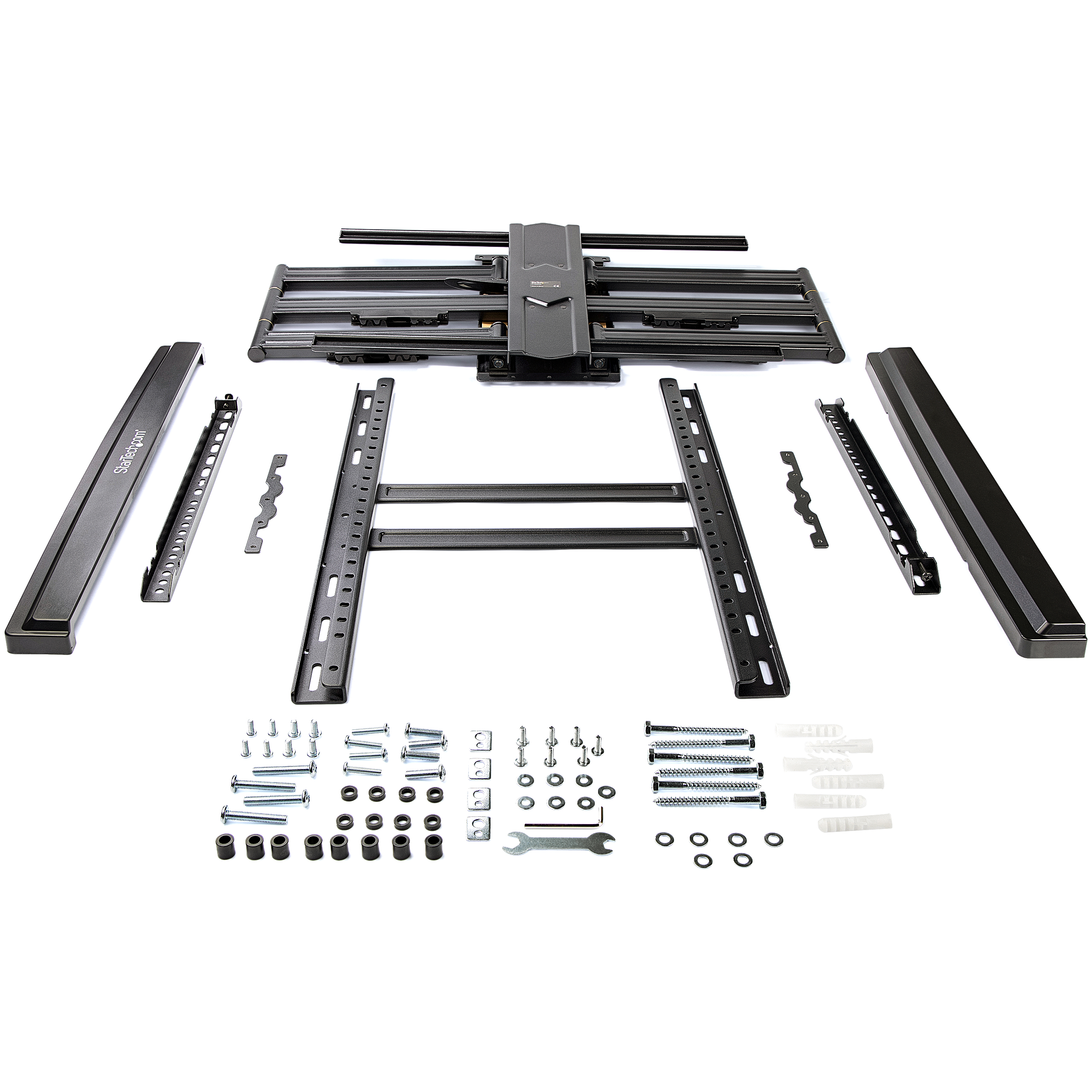

Wallmountable Yes Carton Depth (mm) 937 Carton Height (mm) 247 Carton Quantity 2 Carton Weight Gross (g) 39460 Included in Package - 1 - TV Wall Mount Assembly
- 1 - Wall Mounting Bracket
- 2 - Decorative Covers
- 2 - TV Mounting Brackets
- 2 - Mounting Plates
- 7 - M6 x 15 screws
- 7 - Round Washers, Small
- 1 - Wrench
- 1 - Hex Key
- 4 - M5 x 14 Screws
- 4 - M6 x 14 Screws
- 4 - M6 x 30 Screws
- 4 - M8 x 30 Screws
- 4 - M8 x 50 Screws
- 4 - Rectangular Washers
- 8 - Small Spacers
- 8 - Large Spacers
- 6 - Wall Anchors
- 6 - Round Washers, Large
- 6 - Mounting Screws
- 1 - User Manual
Included In Package for Label - 1 - TV Wall Mount Assembly
- 4 - Brackets
- 2 - Decorative Covers
- 2 - Mounting Plates
- 1 - User Manual
- 1 - Spacer Kit
- 1 - Assembly Kit
Package Depth (mm) 885 Package Height (mm) 111 Package Width (mm) 557 Package Quantity 1 Package Weight (g) 18426 Packaging Description TV Wall Mount - Articulating Dual Arms Packaging Description India TV Wall Mount - Articulating Dual Arms Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2019-11-07 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2019-11-29 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FI,FR,IE,IN,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Anthony Slater Product Information Creation Specialist (PICS) Alex Garcia Product Manager Tony Parackal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2019-10-17 Target Production Release 2019-11-07 Tech Lead Justin Weaver Technical Writer Evan Hanbidge Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine
