Digital Signage Mount | For 40" to 50" Displays | Steel | 5x Tilt Settings
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name menuboards-wallmount Product Number FPWMNB UPC 065030880657 Lifecycle status End of Life Warranty 5 Years Taxonomy Product > Mechanical Products > Display Mounts Category Level 1 Display Mounts Category Level 2 TV Mounts Category Level 3 Display Wall Mounts Family No Family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX050X Product Title (Ultra-Short) Triple TV Wall Mount Product Title (Short) TV Wall Mount, Triple Display, Landscape Product Title (Medium) Triple-Display TV Wall Mount - Menu Board - Landscape - For 40" to 50" Displays Product Title (Standard) Triple-Display TV Wall Mount - Menu Board Mount - Landscape - For 40" to 50" VESA Mount Displays - 5 Tilt Settings - Digital Signage Mount - Triple Monitor Wall Bracket Product Title (Long) Triple-Display TV Wall Mount - Menu Board Mount - Landscape Product Title (AMZ) Triple-Display TV Wall Mount - Menu Board Mount - Landscape - For 40" to 50" VESA Mount Displays - 5 Tilt Settings (FPWMNB) Title Ingram (Part 1) Triple-Display TV Wall Mount - Title Ingram (Part 2) Menu Board Mount for 40" to 50" TVs Website Product Headline Digital Signage Mount | For 40" to 50" Displays | Steel | 5x Tilt Settings Bullet 1 Create a digital menu board, mounting three 40" to 50" TVs in landscape position; Supports up to 110 lb. (50 kg) in weight per display Bullet 2 Tilt all displays to the same angle easily, with five fixed-tilt settings: 0/-5/-10°/-15°/-20° Bullet 3 Align your displays with micro height adjustment, fine-tuning the screen level +3° to -3° Bullet 4 3.0” (76 mm) profile to wall, and fast and easy installation Bullet 5 Universal LCD/LED television mount supports LG, Samsung, Sony, Sharp, others (screws/spacers incl) & VESA bracket hole patterns 200x100, 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400 Bullets (Compact) Create an impressive menu board with this triple-display TV wall mount - Digital signage mount - Supports three 40" to 50" VESA mount displays in landscape position - 5 tilt settings - Align your displays by fine-tuning the screen level +3° to -3° Bullets (Consolidated) Create an impressive menu board with this triple-display TV wall mount - Digital signage mount for three 40" to 50" VESA mount displays in landscape position - Adjust for optimum viewing with 5 fixed tilt settings 0/-5/-10DEG/-15DEG/-20DEG - Align displays by fine-tuning the screen level +3DEG to -3DEG - Steel mount supports VESA 200x200/300x200/300x300/400x200/400x300/400x400/600x400 -Up to 110 lb. (50 kg) weight capacity per display - Multi screen mount has 3.0" (76 mm) profile to wall Marketing Copy Marketing Copy (No HTML) Applications - Ideal for digital menu boards in restaurants and retail stores
- Create digital signage in customer-facing areas in business lobbies, airports and hospitality centers
- Communicate with visitors in schools, health care centers and other institutional settings
Website Search Keyword - tv wall mount
- vesa wall mount
- display wall mount
- multi screen mount
- menu board
- menu board mount
- triple monitor wall bracket
- digital signage
- digital signage mount
- menu wall mount
- monitor wall mount
- triple monitor mount
- VESA TV mount
- wall mount system
- multi TV mount
- triple TV mount
- FPWMNB
Required Regulatory Compliance Marks - REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - MDBOXMNT
- HD2MM10MA
- HDMM2MP
- HDMM15
- HDMIMM10HS
- HDPMM25
- HDMIMM15HS
- HDMIPLATE
- ST121HDWP
- HDMI2-CABLE-4K60-6F
- HDMI2-CABLE-4K60-25F
- HDMI2-CABLE-4K60-2M
- HDMI2-CABLE-4K60-7M
Color Black Material Steel Primary Material Steel Product Length (mm) 2900.000 Product Width (mm) 78.000 Product Height (mm) 225.000 Product Weight (g) 14250.000 TAA Compliant No Anti-theft No Display Tilt 0 / -5 / -10° / -15° / -20° Fits Curved Display No General Specifications Screen Level Adjustment: +3° to -3° Maximum Display Size 50" Minimum Display Size 40" TV Weight Capacity Range - up to 35 kg (77.4 lb.)
- up to 40 kg (88.4 lb.)
- up to 45 kg (99.5 lb.)
- up to 50 kg (110.5 lb.)
Video Wall No Weight Capacity for Display Mounts (g) 50000 Your Screen Size - Up to 49"
- 50"-59"
Cable Management No VESA Hole Pattern(s) - 200x100 mm
- 200x200 mm
- 200x300 mm
- 200x400 mm
- 300x200 mm
- 300x300 mm
- 400x200 mm
- 400x300 mm
- 400x400 mm
- 600X200 mm
- 600x300 mm
- 600x400 mm

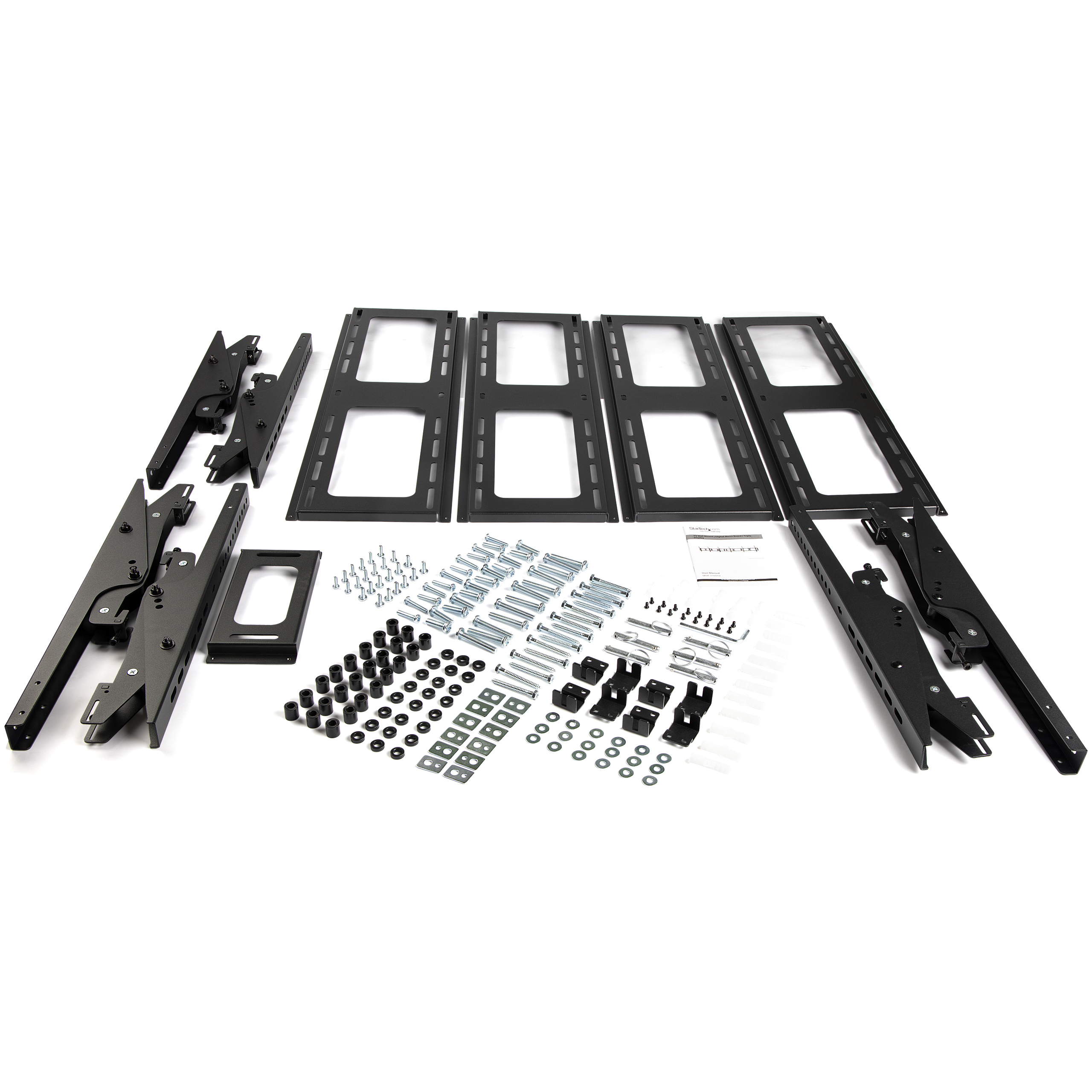

Wallmountable Yes Carton Depth (mm) 250 Carton Height (mm) 230 Carton Quantity 1 Carton Weight Gross (g) 16005 Included in Package - 4 - Wall Plates
- 1 - Small Wall Plate
- 6 - Adapter Brackets
- 8 - Wall Plate Clamps
- 16 - M4 x 6 mm Screws
- 6 - Safety Pins
- 12 - M5 x 14 mm Screws
- 12 - M6 x 14 mm Screws
- 12 - M6 x 30 mm Screws
- 12 - M8 x 30 mm Screws
- 12 - M8 x 50 mm Screws
- 12 - Plate Washers
- 24 - Small Spacers
- 24 - Large Spacers
- 18 - ST6.3 x 55 mm Screws
- 18 - Concrete Anchors
- 18 - D6 Washers
- 1 - User Manual
- 1 - 5 mm Hex Key
Included In Package for Label - 4 - Wall Plates
- 1 - Small Wall Plate
- 6 - Adapter Brackets
- 8 - Wall Plate Clamps
- 1 - Set of Installation Hardware
- 1 - User Manual
Package Depth (mm) 749 Package Height (mm) 238 Package Width (mm) 251 Package Quantity 1 Package Weight (g) 16100 Packaging Description TV Wall Mount - Menu Board - 3 Displays Packaging Description India TV Wall Mount - Menu Board - 3 Displays Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2019-02-14 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2019-02-08 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FI,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Brian Ha Product Information Creation Specialist (PICS) Alex Garcia Product Manager Tony Parackal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2018-12-17 Target Production Release 2019-02-15 Tech Lead Justin Weaver Technical Writer Evan Hanbidge Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
