FPWTLTB1
Flat Screen TV Wall Mount Tilt w bigger capacity
Display Wall Mount | Steel | For 60" to 100" TVs
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Flat Screen TV Wall Mount Tilt w bigger capacity Product Number FPWTLTB1 UPC 065030880503 Lifecycle status Active Warranty 5 Years Taxonomy Product > Mechanical Products > Display Mounts Category Level 1 Display Mounts Category Level 2 TV Mounts Category Level 3 Display Wall Mounts Family TV Wall Mounts - Standard Tilting Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX050X Product Title (Ultra-Short) TV Wall Mount - Tilt Product Title (Short) Tilting TV Wall Mount up to 100 inch TV Product Title (Medium) Flat Screen TV Wall Mount - Tilting - For 60" to 100" VESA Mount TVs - Steel Product Title (Standard) TV Wall Mount for 60-100 inch VESA Displays (165lb) - Heavy Duty Tilting Universal TV Mounting Bracket for Large Flat Screens Product Title (Long) TV Wall Mount supports 60-100 inch VESA Displays (165lb/75kg) - Heavy Duty Tilting Universal TV Wall Mount - Adjustable Mounting Bracket for Large Flat Screens - Low Profile Product Title (AMZ) TV Wall Mount supports 60-100 inch VESA Displays (165lb/75kg) - Heavy Duty Tilting Universal TV Wall Mount - Adjustable Mounting Bracket for Large Flat Screens - Low Profile (FPWTLTB1) Title Ingram (Part 1) Flat Screen TV Wall Mount - For Title Ingram (Part 2) 60" to 100" TVs - Tilting - Steel Website Product Headline Display Wall Mount | Steel | For 60" to 100" TVs Bullet 1 LARGE 100" TV WALL MOUNT: Heavy-duty TV wall mount supports VESA compatible displays incl. curved TVs up to 100inch (165lb/75kg) w/ a durable steel frame and a powder-coated finish Bullet 2 EASY ADJUSTMENT: Tilting TV wall mount offers +5/-10° precise tilt; Tilt is adjustable by hand using the tilt adjustment knobs, making it easier to position larger displays for an ideal viewing angle Bullet 3 COMPATIBILITY: Universal TV wall mount supports LG, Samsung and others (screws/spacers incl) & VESA hole patterns 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400, 600x600, 800x400, 800x600, 900x600 Bullet 4 EASY INSTALLATION: Features a hook-on bubble level for proper alignment; Click-in Spring Lock helps TV mounting brackets snap into place for added safety & can be released by pulling on the straps Bullet 5 LOW PROFILE DESIGN: A low profile design that sits just 3.3" (85mm) from the wall to complement the professional look of ultra-thin flat screen LCD/LED televisions Bullets (Compact) Heavy duty large TV wall mount for up to 100 inch (165lb) VESA displays - Adjustable tilting TV mount w/ adjustment knobs for ideal angle - Low profile (3.3in) - Bubble level/Click-in Lock - Universal flat screen mount (screws/spacers incl) - Steel Bullets (Consolidated) Heavy duty TV wall mount for large VESA displays or curved TVs up to 100 inch (165lb) - Tilting TV wall mount with +5/-10DEG tilt|Tilt is adjustable by hand to easily position larger televisions - Universal TV mount supports LG Samsung other brands w/ screws/spacers incl - Hook-on bubble level for proper alignment|Click-in Spring Lock to secure bracket for safe and easy release - Flat screen LCD/LED mount w/ steel frame and powder-coated finish - Low profile design sits 3.3" (85mm) from wall Marketing Copy Marketing Copy (No HTML) Applications - Securely wall-mount your TV in boardrooms, classrooms and meeting spaces
- Keep visitors informed in hotels, restaurants, commercial facilities and other venues
- Wall-mount your TV in your home theater or living room
Required Regulatory Compliance Marks - Temp - N/A - Global - Used to replace duplicates or identify for removal
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - Furniture and Non-EEE
Accessory Products - MDBOXMNT
- HD2MM10MA
- HDMM2MP
- HDMM15
- HDMIMM10HS
- HDPMM25
- HDMIMM15HS
- HDMIPLATE
- ST121HDWP
- HDMI2-CABLE-4K60-6F
- HDMI2-CABLE-4K60-25F
- HDMI2-CABLE-4K60-2M
- HDMI2-CABLE-4K60-7M

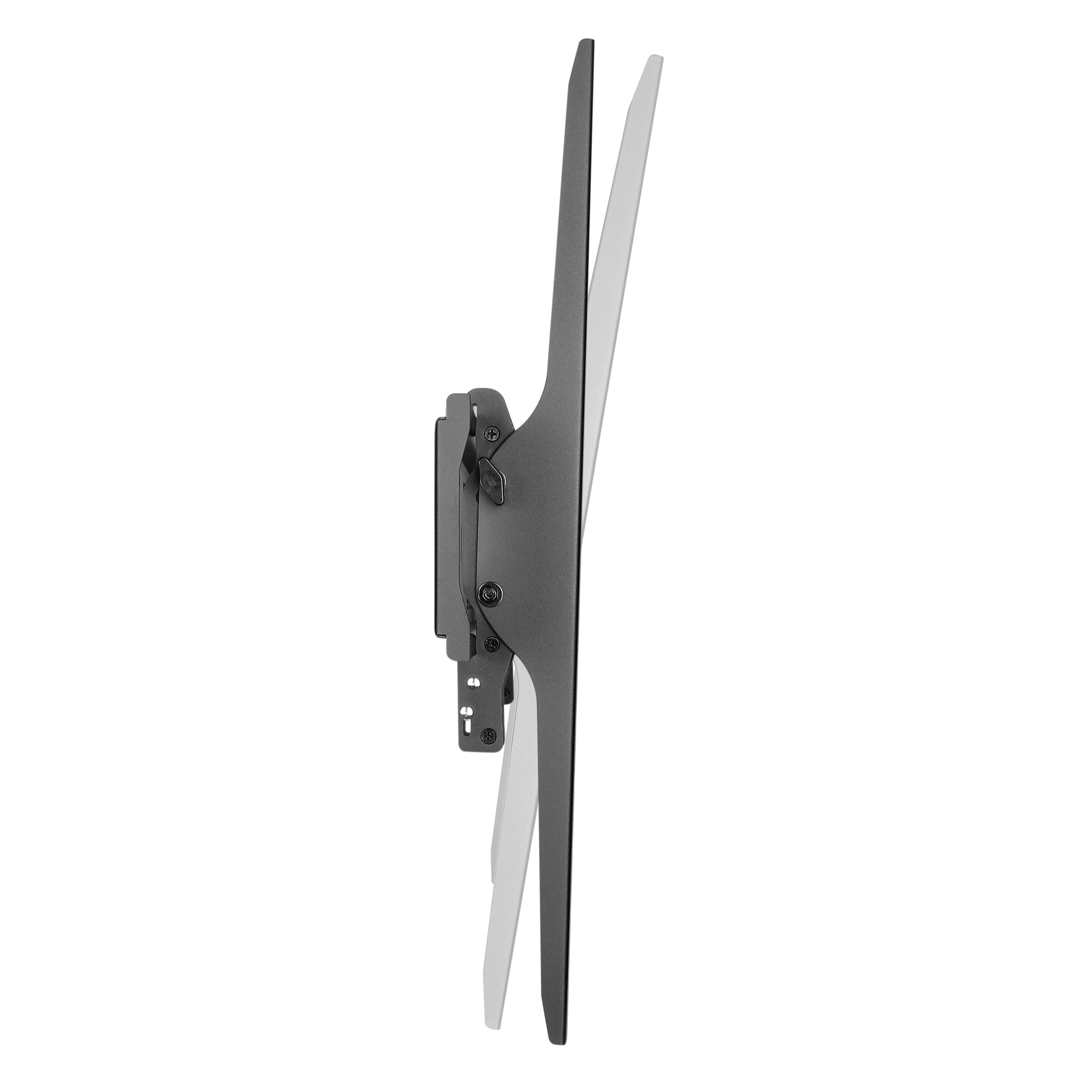

Constrained SKU Alternatives (Limited Stock) FPWARTS1 Color Black Material Steel Primary Material Steel Product Length (mm) 954.000 Product Width (mm) 625.000 Product Height (mm) 50.000 Product Weight (g) 4500.000 TAA Compliant No Anti-theft No Display Tilt + 5° / - 10° Fits Curved Display Yes Maximum Display Size 100" Minimum Display Size 60" TV Weight Capacity Range - up to 35 kg (77.4 lb.)
- up to 40 kg (88.4 lb.)
- up to 45 kg (99.5 lb.)
- up to 50 kg (110.5 lb.)
- over 50 kg (110.5 lb.)
- up to 75 kg (165 lb.)
Video Wall No Weight Capacity for Display Mounts (g) 75000 Your Screen Size - 90"-100"
- 60"-89"
Cable Management No Mounting Options Wall-Mount Number of Displays 1 VESA Hole Pattern(s) - 100x100 mm
- 100x200 mm
- 200x100 mm
- 200x200 mm
- 200x300 mm
- 200x400 mm
- 300x200 mm
- 300x300 mm
- 400x200 mm
- 400x300 mm
- 400x400 mm
- 600X200 mm
- 600x300 mm
- 600x400 mm
- 600x600 mm
- 800x400 mm
- 800x600 mm
- 900x600 mm

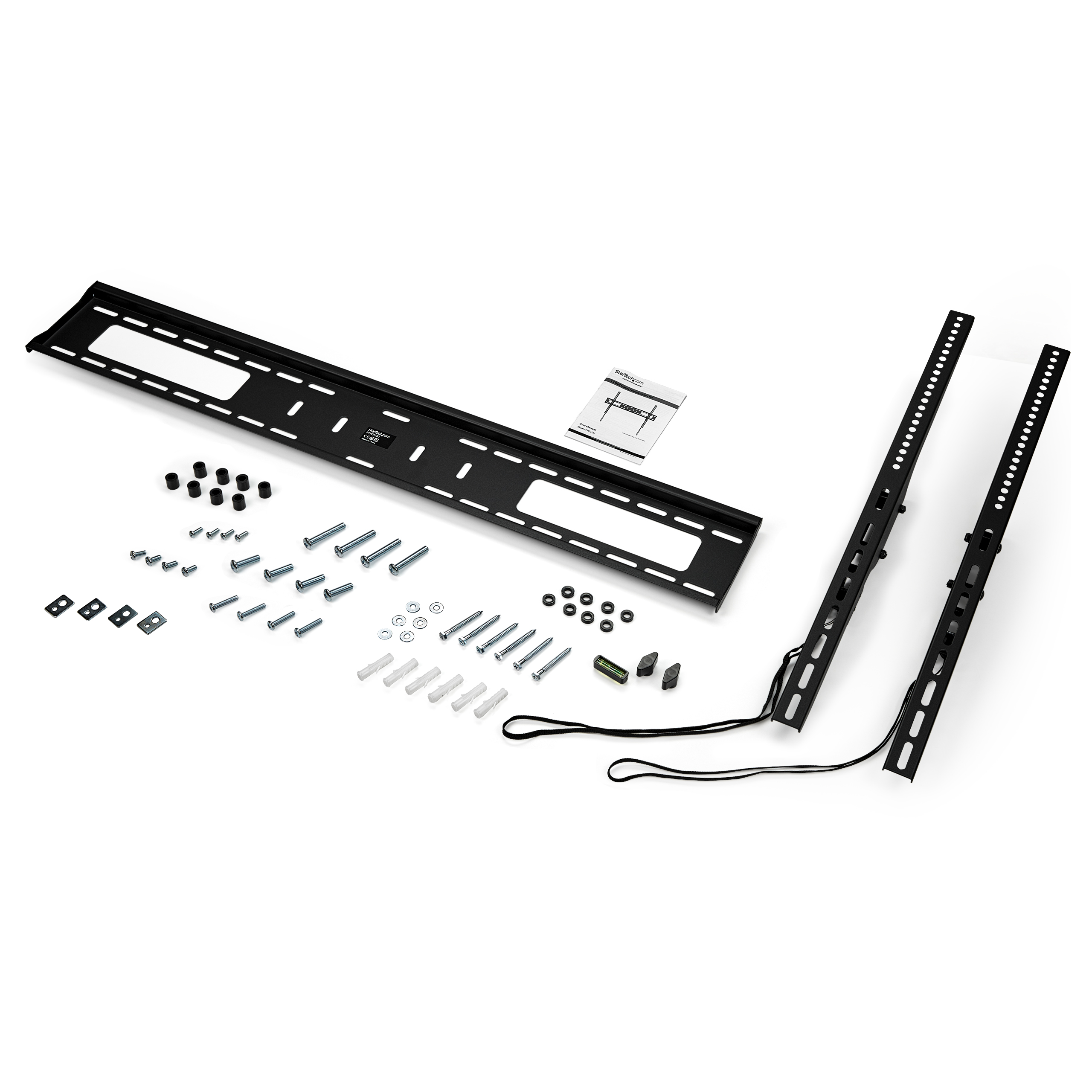

Wallmountable Yes Carton Depth (mm) 182 Carton Height (mm) 235 Carton Quantity 4 Carton Weight Gross (g) 19720 Included in Package - 1 - Wall Bracket
- 2 - Vertical Brackets
- 2 - Tilt-Adjustment Knobs
- 1 - Bubble Level
- 4 - M5 x 14 Screws
- 4 - M6 x 30 Screws
- 4 - M8 x 30 Screws
- 4 - M8 x 50 Screws
- 4 - Rectangular Washers
- 8 - Small Spacers
- 8 - Large Spacers
- 6 - Wall Screws
- 6 - Concrete Anchors
- 6 - Round Washers
- 1 - Instruction Manual
- 4 - M6 x 14 Screws
Included In Package for Label - 1 - Wall Bracket
- 2 - Vertical Brackets
- 1 - Bubble Level
- 1 - Set Of Installation Hardware
- 1 - Instruction Manual
- 2 - Tilt-Adjustment Knobs
Package Depth (mm) 160 Package Height (mm) 57 Package Width (mm) 985 Package Quantity 1 Package Weight (g) 4730 Packaging Description TV Wall Mount - Heavy Duty - Tilt Packaging Description India TV Wall Mount - Heavy Duty - Tilt Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2018-09-27 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2018-11-22 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Anthony Slater Product Information Creation Specialist (PICS) Alex Garcia Product Manager Tony Parackal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2018-08-27 Target Production Release 2018-09-28 Tech Lead Justin Weaver Technical Writer Evan Hanbidge Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine
