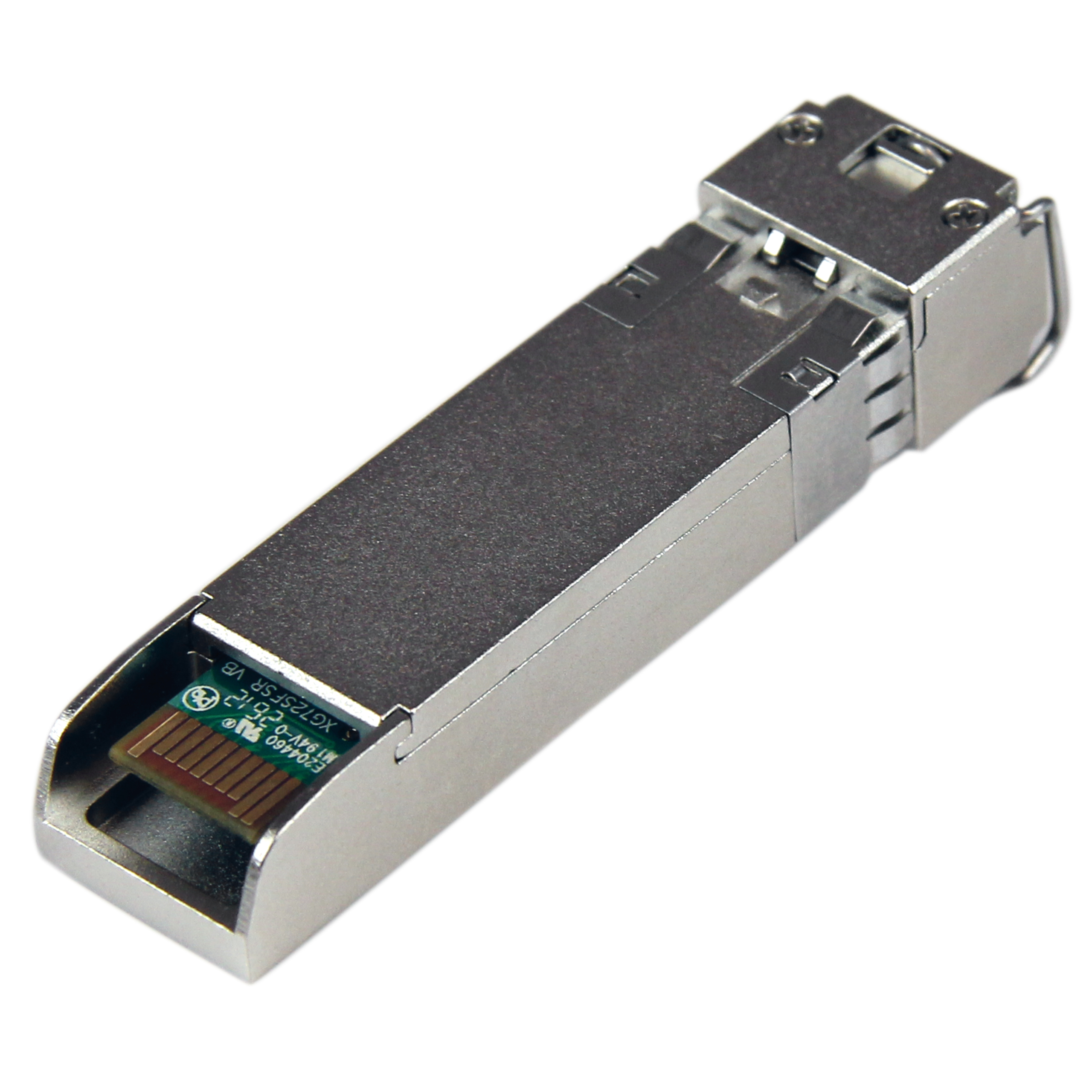

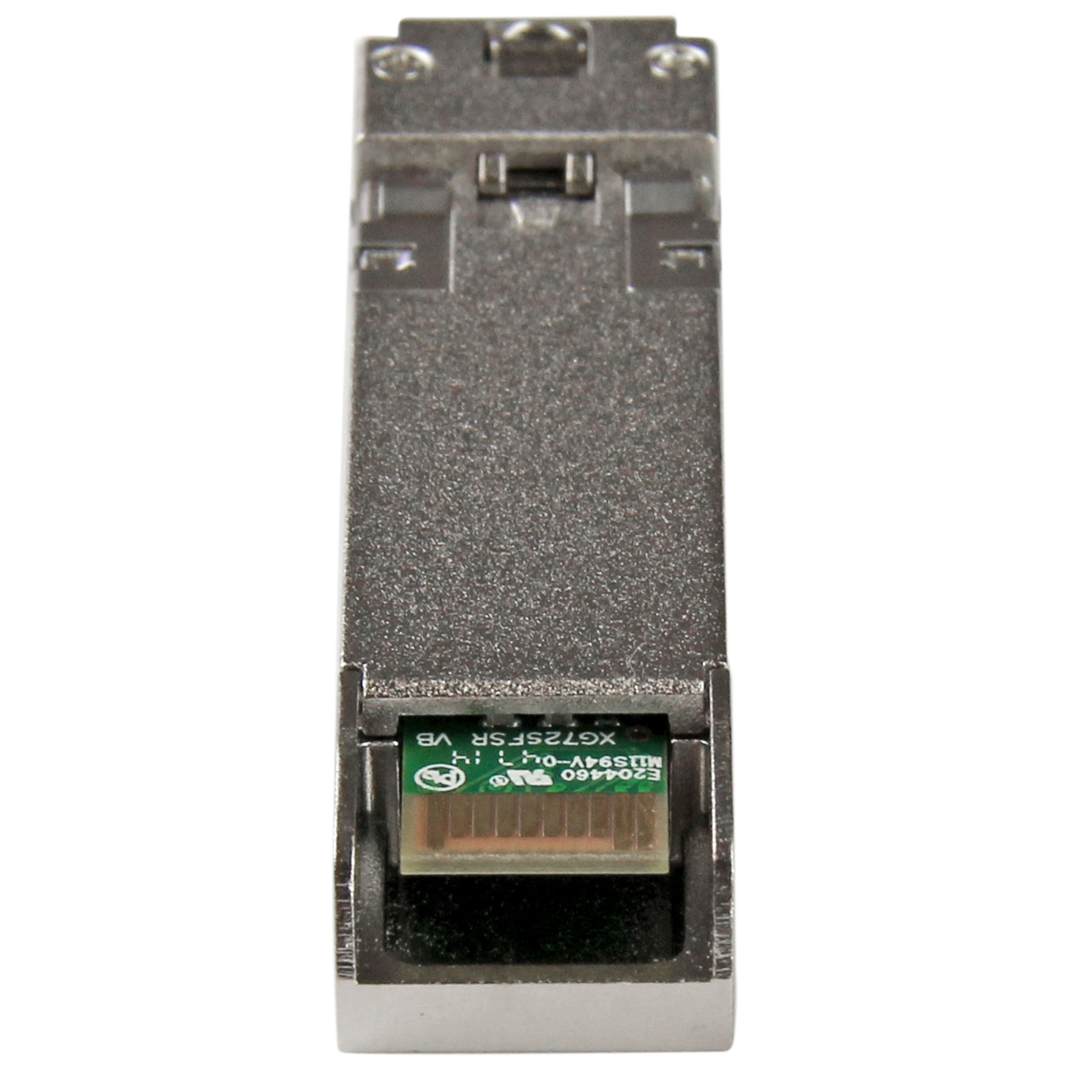

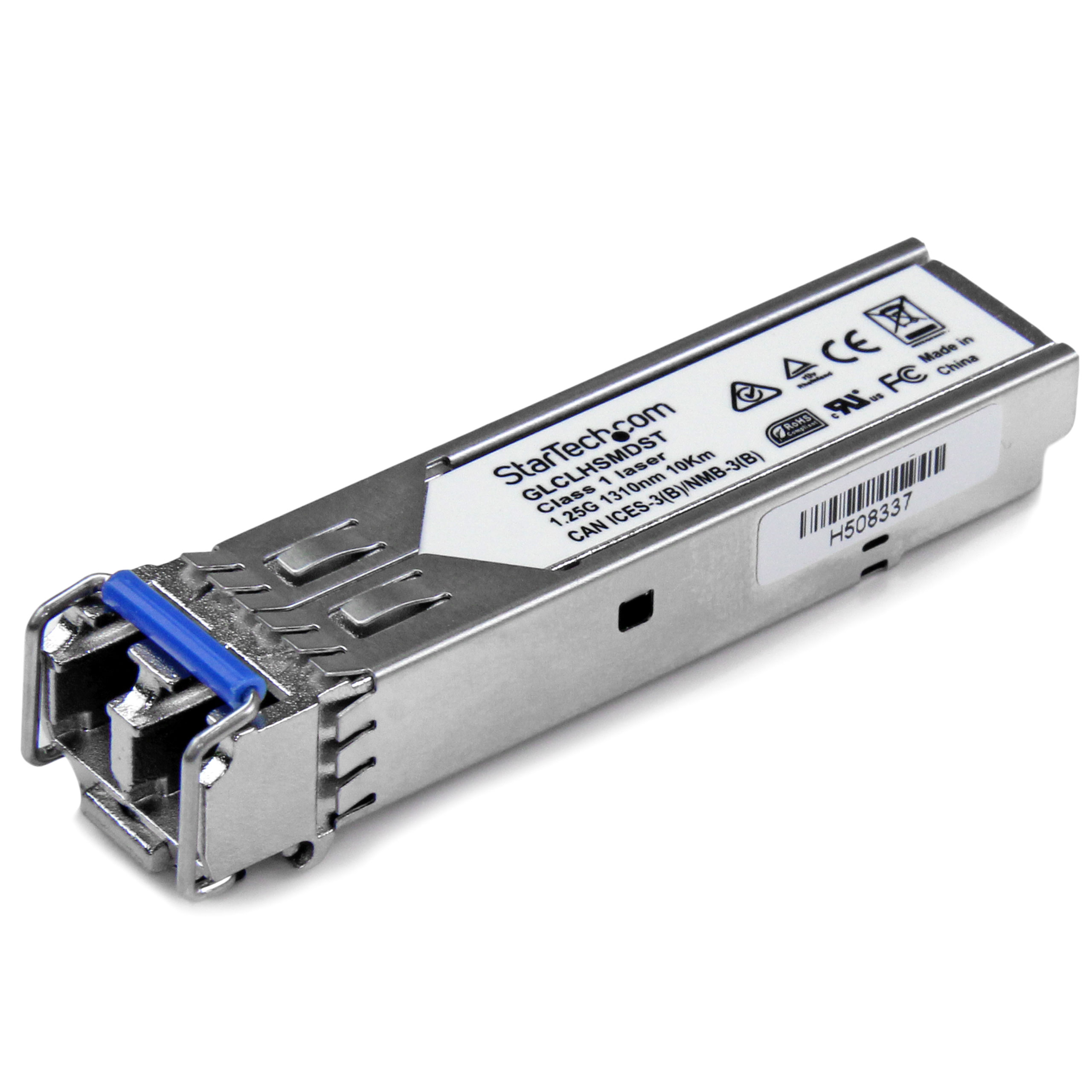

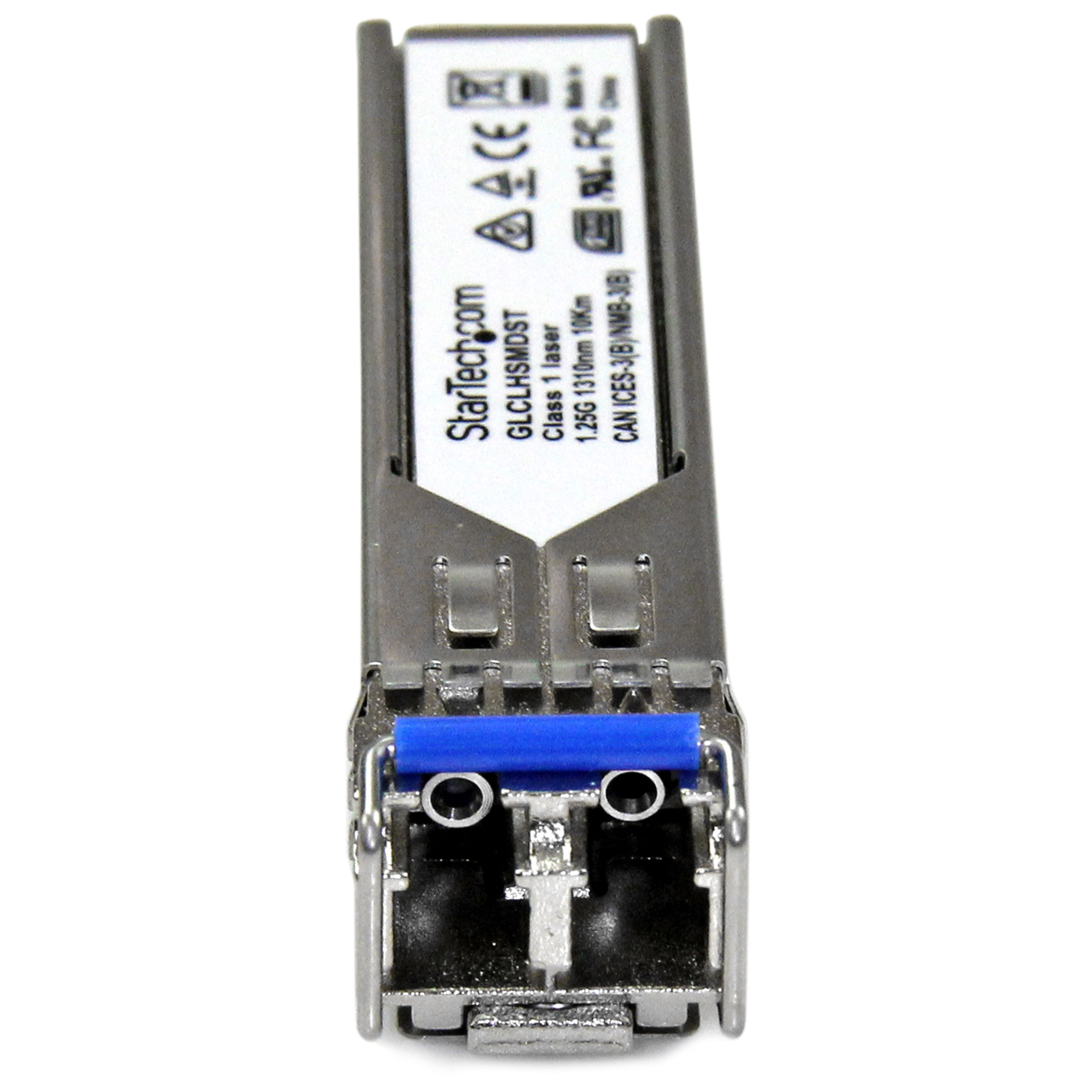

Main Image
GLCLHSMDST
Gigabit Fiber SFP SM MM LC Cisco Compatible
1000 Mbps (1 Gbps) | Single & Multi Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
Main Image
Product Images
Product Images
Product Images
Product Name Gigabit Fiber SFP SM MM LC Cisco Compatible Product Number GLCLHSMDST UPC 065030864268 Lifecycle status Active Warranty Lifetime Taxonomy Product > Networking > SFP Transceivers Category Level 1 Networking Category Level 2 SFP Transceivers Category Level 3 Cisco Compatible Family Cisco Compatible - 1G SFP Modules Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX091X Product Title (Ultra-Short) Gigabit Fiber SFP Product Title (Short) Cisco GLC-LH-SMD Comp. SFP - 1GbE DDM Product Title (Medium) Cisco GLC-LH-SMD Comp. SFP Fiber Module - 1000BASE-LX/LH - Lifetime Warranty Product Title (Standard) Cisco GLC-LH-SMD Compatible SFP Module - 1000BASE-LX/LH - 1GE Gigabit Ethernet 1GbE Single Mode Fiber SMF Optic Transceiver Product Title (Long) Cisco GLC-LH-SMD Compatible SFP Module - 1000BASE-LX/LH - 1GbE Single Mode Fiber SMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 10km - 1310nm - DDM Cisco Firepower, ASR920, IE2000 Product Title (AMZ) Cisco GLC-LH-SMD Compatible SFP Module - 1000BASE-LX/LH - 1GbE Single Mode Fiber Optic Transceiver - 1GbE SFP - LC 10km - 1310nm - DDM Cisco Firepower, ASR920, IE2000 (GLCLHSMDST) Title Ingram (Part 1) Cisco GLC-LH-SMD Compatible - Title Ingram (Part 2) SFP Module - Fiber Transceiver Website Product Headline 1000 Mbps (1 Gbps) | Single & Multi Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty Bullet 1 100% CISCO GLC-LH-SMD COMPATIBLE: Works with Cisco switches like Firepower, ASR920, IE2000, IE4000, ASR1000 and others Bullet 2 TECHNICAL SPECS: 1000BASE-LX/LH | 1 Gbps | Single Mode (SMF)/Multi Mode (MMF) | LC Connector | 1310nm | Digital Diagnostic Monitoring (DDM) | Distances up to 10km (6.2mi) Bullet 3 TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools Bullet 4 THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance. Bullet 5 WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules Bullets (Compact) Cisco GLC-LH-SMD Compatible SFP - 1000BASE-LX/LH 1 Gbps - 1GbE Module - 1GE Gigabit Ethernet SFP 1310nm - Single Mode (SMF)/Multi Mode (MMF) Transceiver - 10km (6.2mi) - LC Connector DDM - Hot-Swappable & MSA Compliant - Lifetime Warranty Bullets (Consolidated) Cisco GLC-LH-SMD Compatible SFP 1000BASE-LX/LH (1 Gbps) Gigabit Ethernet - 1310nm | Single Mode (SMF)/Multi Mode (MMF) - Up to 10km (6.2mi) - LC Connector DDM - For Cisco switches like: Firepower ASR920 IE2000 IE4000 ASR1000 ASR9000 C9300 IE3000 - Hot-Swappable and MSA Compliant - Backed by a StarTech.com lifetime warranty on the module itself not the life of the OEM switch/router and will not void your OEM warranty Marketing Copy Marketing Copy (No HTML) Applications - Replacing defective or damaged SFP modules in Cisco switches and routers
- Expand your network to remote segments
Website Search Keyword - sfp
- sfp transceiver
- gigabit sfp module
- 1000Base-lh sfp
- Cisco GLC-LH-SMD compatible sfp
- gigabit single mode
- gigabit multimode
- Gb SM/MM sfp
- Cisco 3800 routers
- Cisco 3900 routers
- Cisco 4451, 892 routers
- Cisco Catalyst 29XX, 3650, 3750 and ME3600 Series Switches
- catalyst 4500e sfp
- gigabit sfp with ddm
- gigabit sfp with dom
- Gigabit Fiber SFP
- Gigabit Fiber SFP transceiver module
- 1000base-LX/LH
- N286-01GLCLHSMD
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UL - Safety - Electrical - Canada / United States - Enhanced UL Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
Special Notes For use in Gigabit fiber networking equipment and media converters System and Cable Requirements MSA or Cisco compliant SFP port Accessory Products - 50FIBLCLC1
- 50FIBLCLC2
- 50FIBLCLC3
- 50FIBLCLC5
- 50FIBLCLC10
- SMFIBLCLC1
- SMFIBLCLC4
- SMFIBLCLC7
- SMFIBLCLC10
- PEX1000SFP2
- IES101002SFP
- IES101GP2SFW
- IES101G2SFPW
- MCM1110SFP
Related Products - GLCLHSMD10ST
- SFPGLCLHSMST
- SFPGLCSXMMST
- SFPGESST
- GLCSXMM10PST
- GLCLHSM10PST
Constrained SKU Alternatives (Limited Stock) GLCLHSMDSTTA Output Voltage (V) 3.3V DC Power Consumption (In Watts) < 1 W Color Silver Humidity 5~95% RH Material Aluminum Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Aluminum Product Length (mm) 58.000 Product Width (mm) 12.000 Product Height (mm) 8.000 Product Weight (g) 18.000 Storage Temperature -40°C to 85°C (-40°F to 185°F) TAA Compliant No Auto MDIX Yes Compatible Networks 1000 Mbps (1 Gbps) Digital Diagnostics Monitoring Support Yes Fiber Operating Mode Full-Duplex Fiber Type Single Mode / Multi Mode Maximum Data Transfer Rate 1.25 Gbps Max Transfer Distance 10 km (6.2 mi) - SM / 1 km (0.6 mi) - MM MTBF (hours) 200,000 hours Wavelength 1310nm Fiber Connector LC Industry Standards IEEE 802.3z 1000BASE-LX/LH OEM Part Number GLC-LH-SMD SFP Compatible Brand Cisco Carton Depth (mm) 346 Carton Height (mm) 356 Carton Quantity 108 Carton Weight Gross (g) 6030 Included in Package 1 - SFP transceiver Package Depth (mm) 91 Package Height (mm) 33 Package Width (mm) 112 Package Quantity 1 Package Weight (g) 46 Packaging Description Gb Fiber SFP - GLC-LH-SMD Compatible - SM/MM LC - 10km / 550m Packaging Description India Gb Fiber SFP - GLC-LH-SMD Compatible - SM/MM LC - 10km / 550m Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 LC Duplex Fiber Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2015-11-17 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-12-18 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
