H1M1AG1-MONITOR-ARM
Heavy Duty, Single Monitor Arm, Mechanical Spring, Side clam

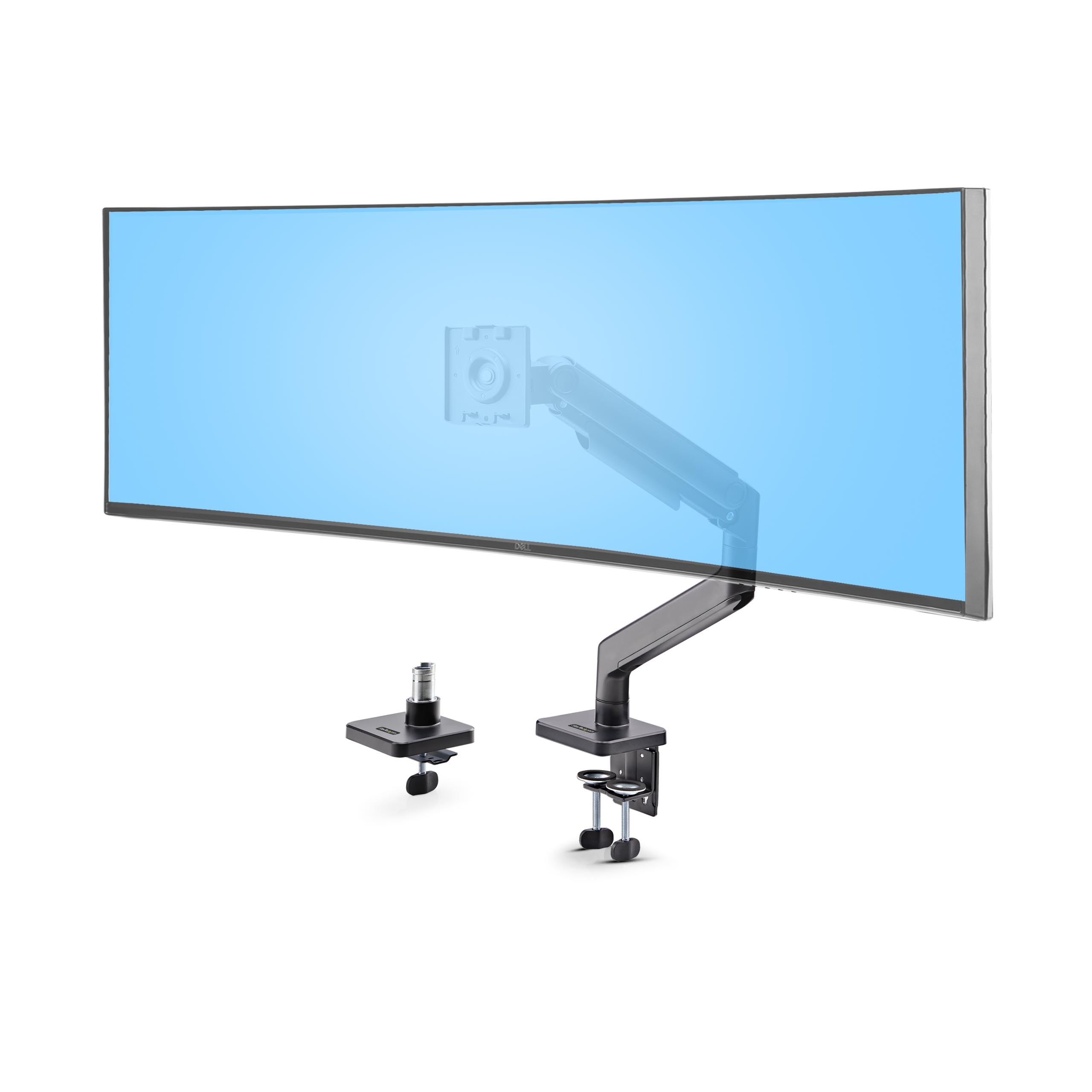

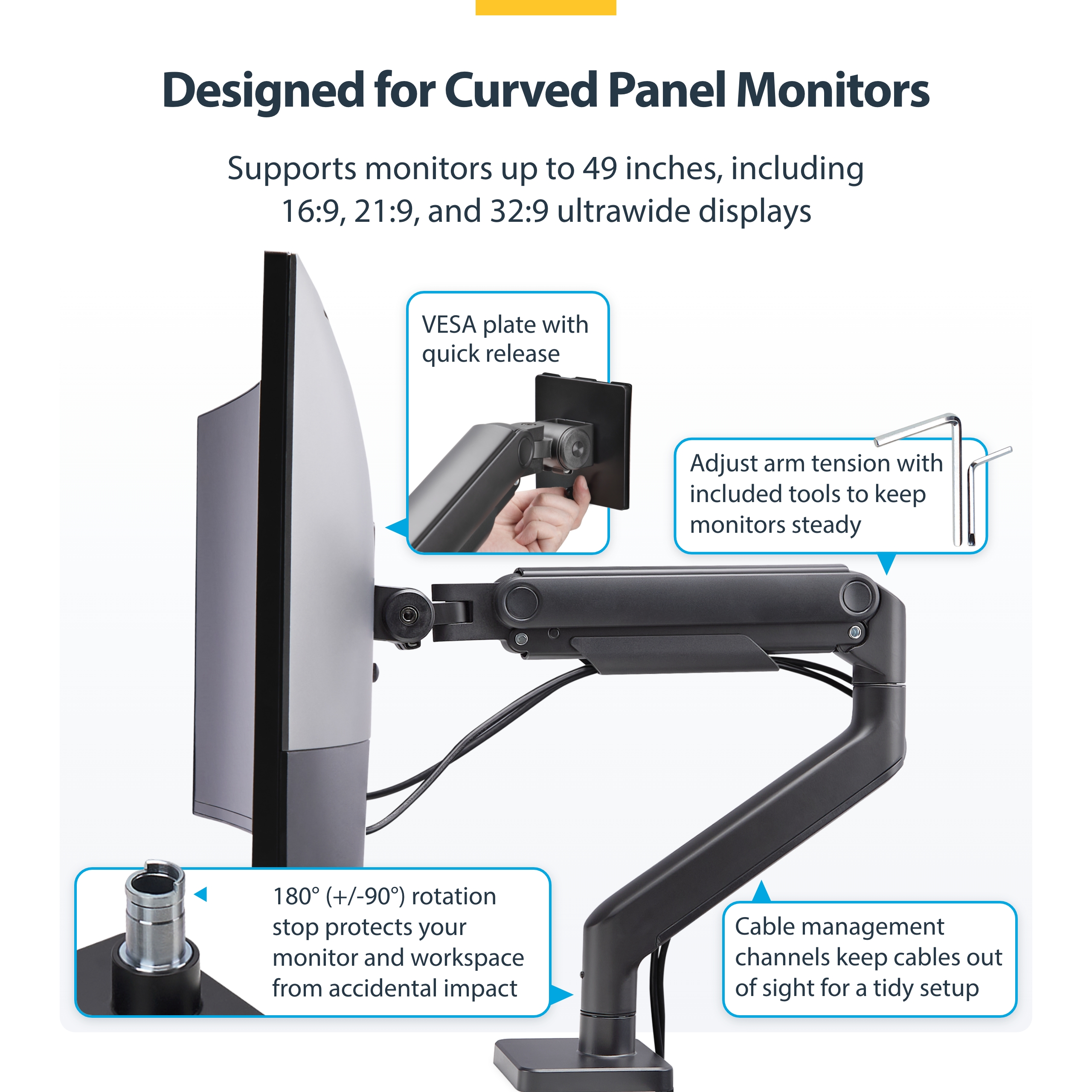

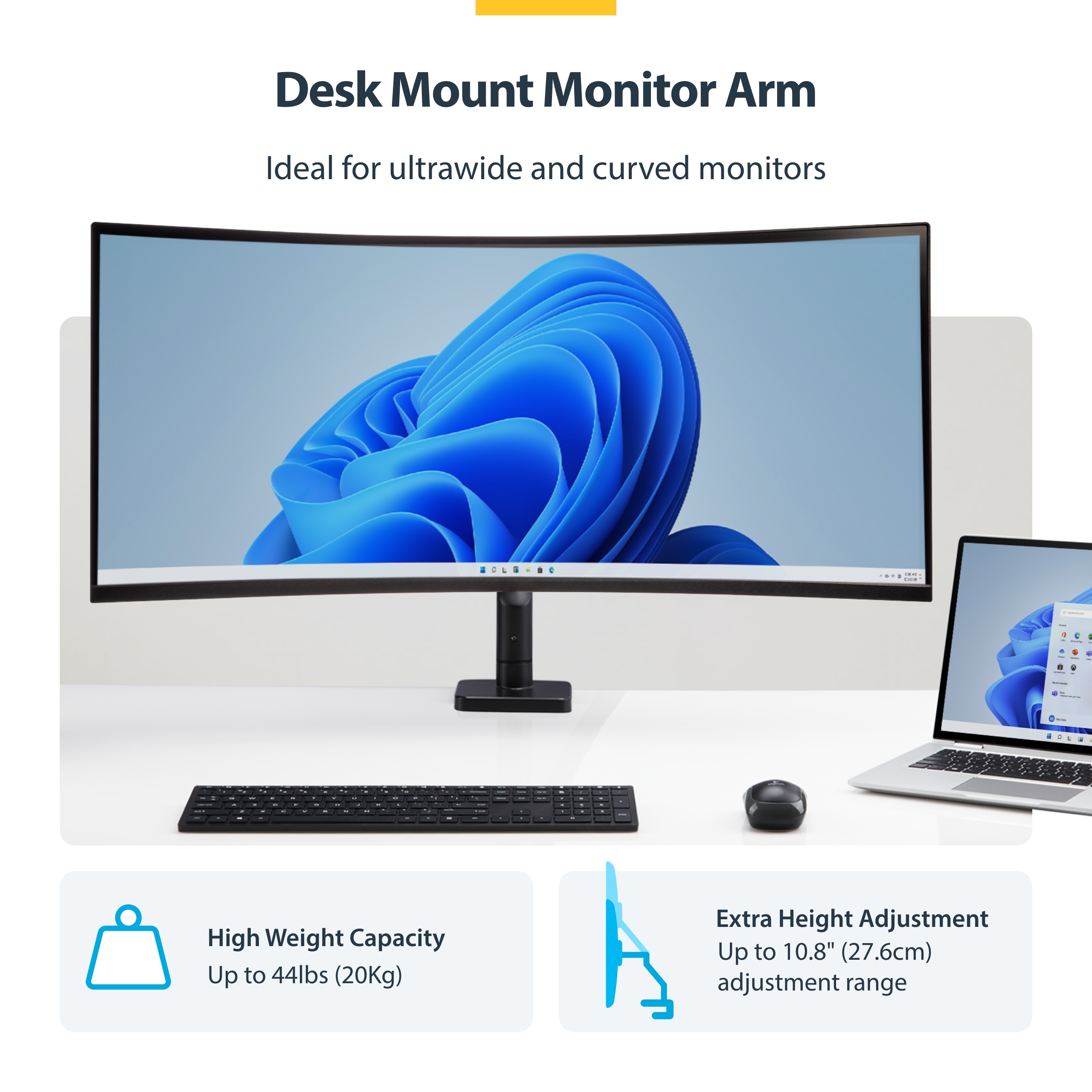

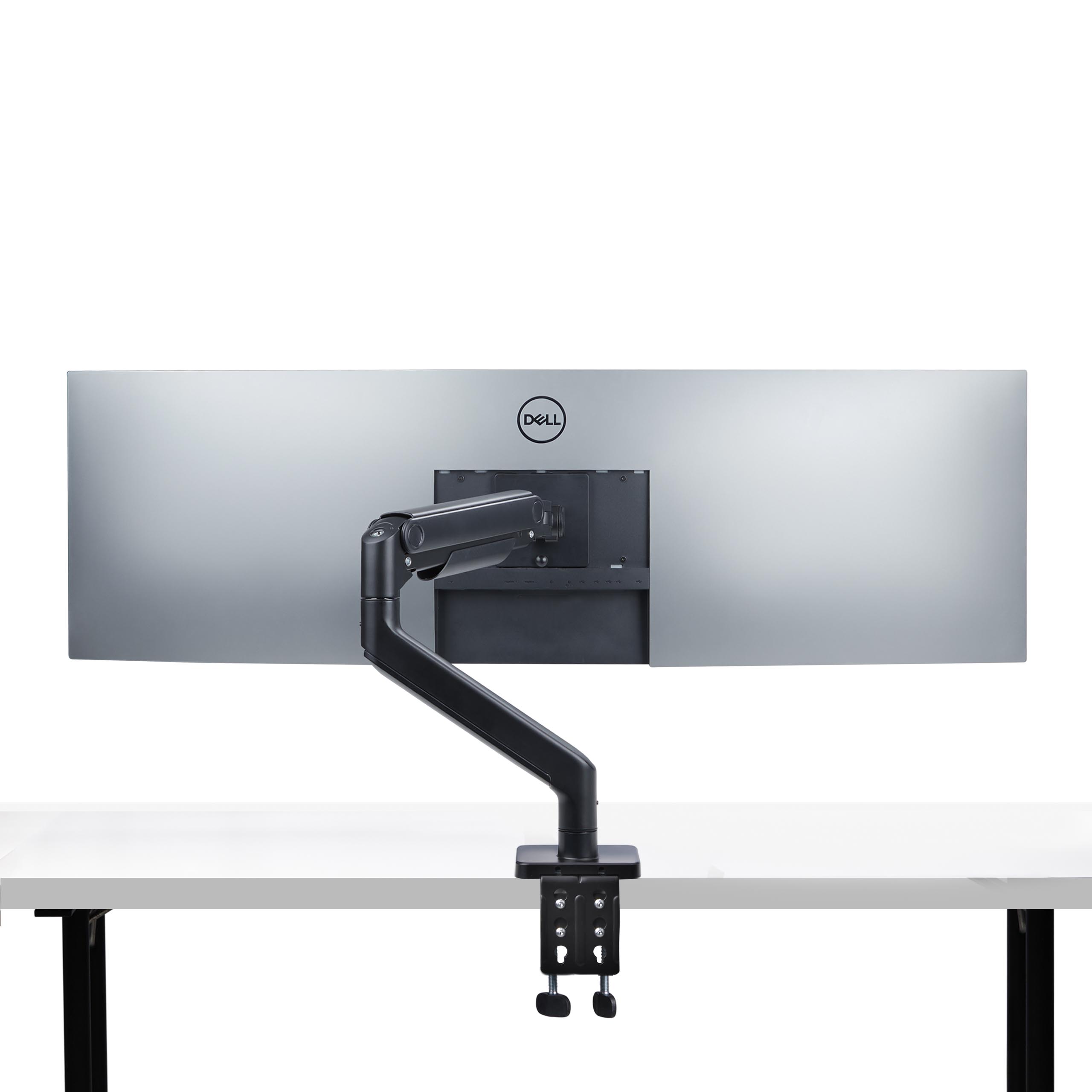

Heavy-duty single monitor desk mount with support for up to 49" monitors and height-adjustable articulating arm
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Name Heavy Duty, Single Monitor Arm, Mechanical Spring, Side clam Product Number H1M1AG1-MONITOR-ARM UPC 065030906333 Lifecycle status Active Warranty 5 Years Weighted Opportunity 0 Taxonomy Product > Mechanical Products > Display Mounts Category Level 1 Display Mounts Category Level 2 Workstation Monitor Mounts Category Level 3 Desk Mount Monitor Arms Family Spring Arm Monitor Mounts Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX050X Product Title (Ultra-Short) Monitor Desk Mount Product Title (Short) Monitor Desk Mount For 49" Curved Screen Product Title (Medium) Monitor Desk Mount For 49in Ultrawide Curved Screens, C-Clamp/Grommet, Max 44lb Product Title (Standard) Monitor Desk Mount for up to 49in 32:9 Ultrawide Curved Screen, Mechanical Spring Arm, C-Clamp/Grommet, Max Weight 44lb/20kg Product Title (Long) Monitor Desk Mount for up to 49in 32:9 Ultrawide Curved Screens, Mechanical Spring Arm, C-Clamp/Grommet, Tool-Less Adjustment, Max 44lb/20kg Product Title (AMZ) Monitor Desk Mount for up to 49in 32:9 Ultrawide Curved Screen, Mechanical Spring Arm, C-Clamp/Grommet, Max 44lb Title Ingram (Part 1) Monitor Desk Mount For 49in Title Ingram (Part 2) Ultrawide Curved Screens - Max 44lb Website Product Headline Heavy-duty single monitor desk mount with support for up to 49" monitors and height-adjustable articulating arm Bullet 1 DESK MOUNT MONITOR ARM: Single monitor VESA mount (75x75/100x100mm) supports monitors up to 49 inches and 44lb (20kg); Compatible with 16:9 displays as well as 21:9 and 32:9 ultrawide monitors; One-touch tool-less height adjustments up to 10.8in (27.6) Bullet 2 DESIGNED FOR CURVED PANELS: Supports up to 49" curved screen w/max arm height 20in (50.8cm) & max arm reach of 24.4in (62.1cm); VESA plate w/quick release, +/-90° horizontal swivel, -20°/+50° tilt, & portrait/landscape support; Articulating arm w/180° pan Bullet 3 MOUNTING OPTIONS: Interchangeable desk C-clamp or grommet mount for desks up to 3.1-inches (8cm) thick for C-clamp and 1.4in (3.5cm) thick for grommet; The monitor stand includes tools to adjust the arm tension to match the monitor weight Bullet 4 ORGANIZED WORKSPACE: Maximize desk space with this computer monitor mount, featuring a mechanical spring arm for smooth and easy adjustments, along with cable management channels along the arms to keep cables out of sight for a tidy setup Bullet 5 SAFETY: The single monitor mount features a rotation stop that prevents the arm from rotating more than +/-90° (180° total), protecting the monitor and surrounding area from accidental impact and ensuring safe operation Bullets (Compact) Monitor Desk Mount for up to 49in 32:9 ultrawide curved screens - VESA 75x75/100x100 - Mechanical spring arm w/toolless adjustments +/-90 deg swivel; -20/+50 deg tilt; VESA 360 deg rotation - Arm height range 20in; C-clamp/grommet - Max weight 44lb Bullets (Consolidated) Monitor Desk Mount fits up to 49-inch curved screens including ultrawide (21:9 or 32:9); Quick-release 75x75/100x100mm VESA mount - Articulating mechanical spring arm - Tool-less ergonomic arm with +/-90DEG swivel; -20/50DEG tilt; Portrait/landscape support- Max arm extension 24.4in and 20in height range - C-clamp/grommet mounting; For desks up to 3.1in thick for C-clamp and 1.4in thick for grommet; Max weight 44lb - Computer display mount features cable management under arms for a tidy setup Marketing Copy Marketing Copy (No HTML) Required Regulatory Compliance Marks - REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Triman/Info-Tri - Product - Waste - European Union - Furniture and Non-EEE
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes Note: Monitors with a width of less than 40" (50.8 cm) may be used in portrait orientation. However, please be aware that limited desk clearance might restrict monitor rotation. Accessory Products - 2569-PRIVACY-SCREEN
- 2461A-PRIVACY-SCREEN
- 2769A-PRIVACY-SCREEN
- PRIVSCNMON27
- 2769G-PRIVACY-SCREEN
- HDMI2-CABLE-4K60-6F
- HDMI2-CABLE-4K60-25F
- HDMI2-CABLE-4K60-2M
- HDMI2-CABLE-4K60-7M
Related Products - ARMPIVOTHDB
- ARMPIVOTE2
- ARMPIVOTB
- ARMPIVOTHD
- 1MP1ACG-MONITOR-ARM

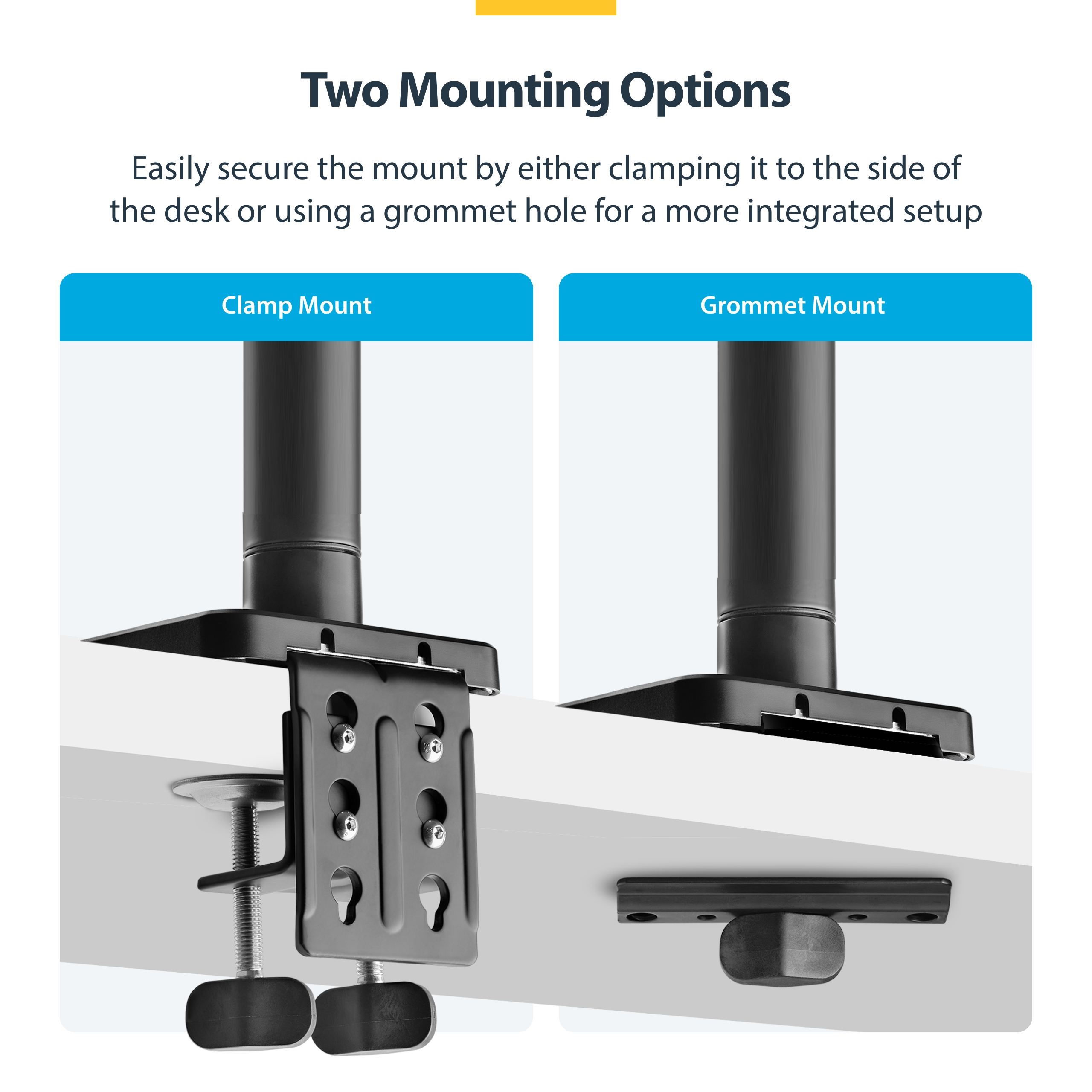

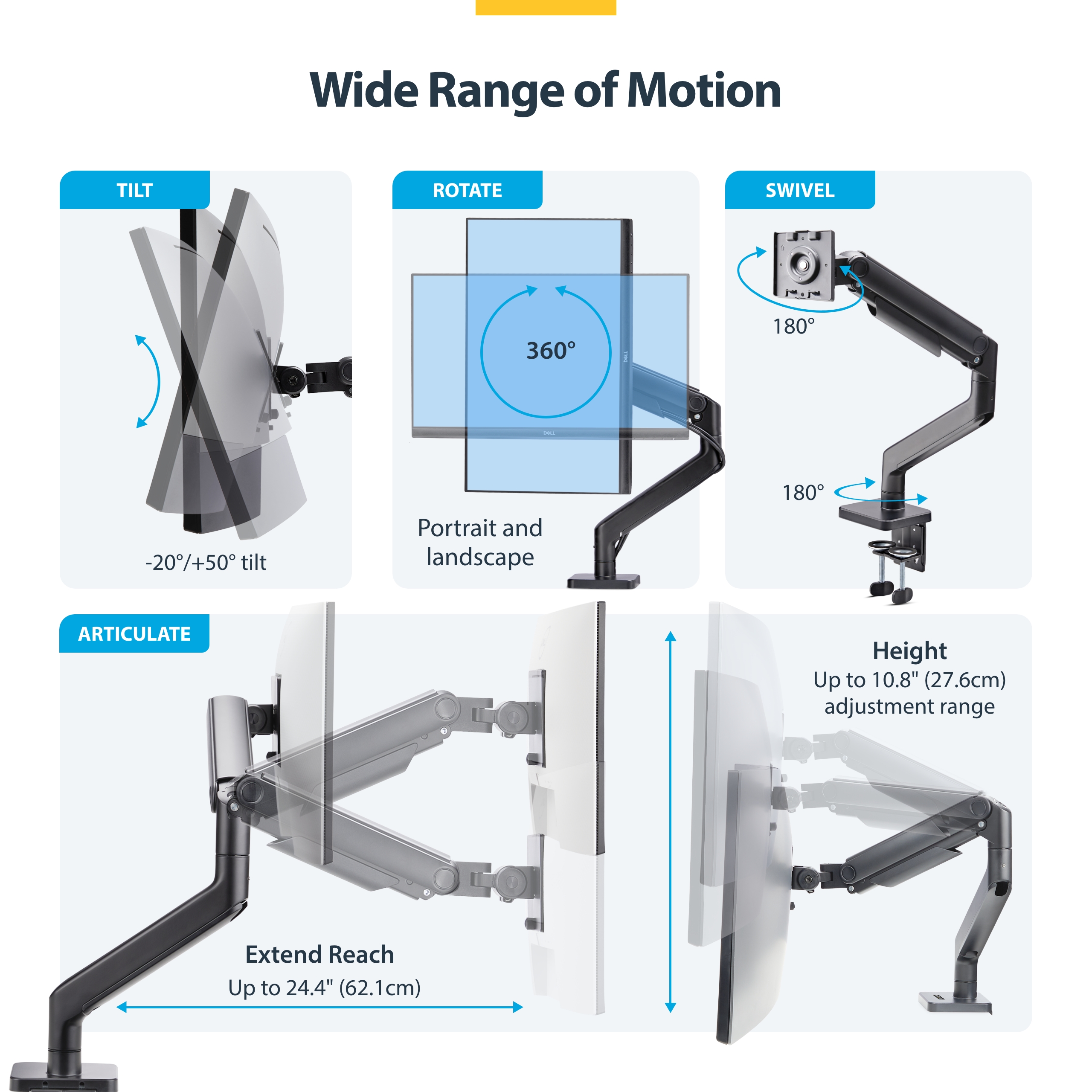

Color Black Construction Material Aluminum, Steel, and Plastic Primary Material Aluminum Product Length (mm) 134.000 Product Width (mm) 663.000 Product Height (mm) 625.000 Product Weight (g) 4900.000 TAA Compliant No Anti-theft No Display Rotation 360° Display Swivel +/- 90° Display Tilt +50° / -20° Fits Curved Display Yes Fits UltraWide Displays Yes Height Adjustment Yes Maximum Arm Extension 621 Maximum Display Size 49" (32:9) Maximum Height (mm) 508 Minimum Arm Extension 293 Minimum Display Size 17" Minimum Height Extension (mm) 232 Swivel / Pivot +180° / -180° Weight Capacity for Display Mounts (g) 20000 Articulating Yes Cable Management Yes Height Adjustment Method One-Touch (Spring Assisted) Mounting Options Desk & Grommet Clamp Mounting Surface Thickness Number of Displays 1 Tools Included Yes VESA Hole Pattern(s) - 75x75 mm
- 100x100 mm

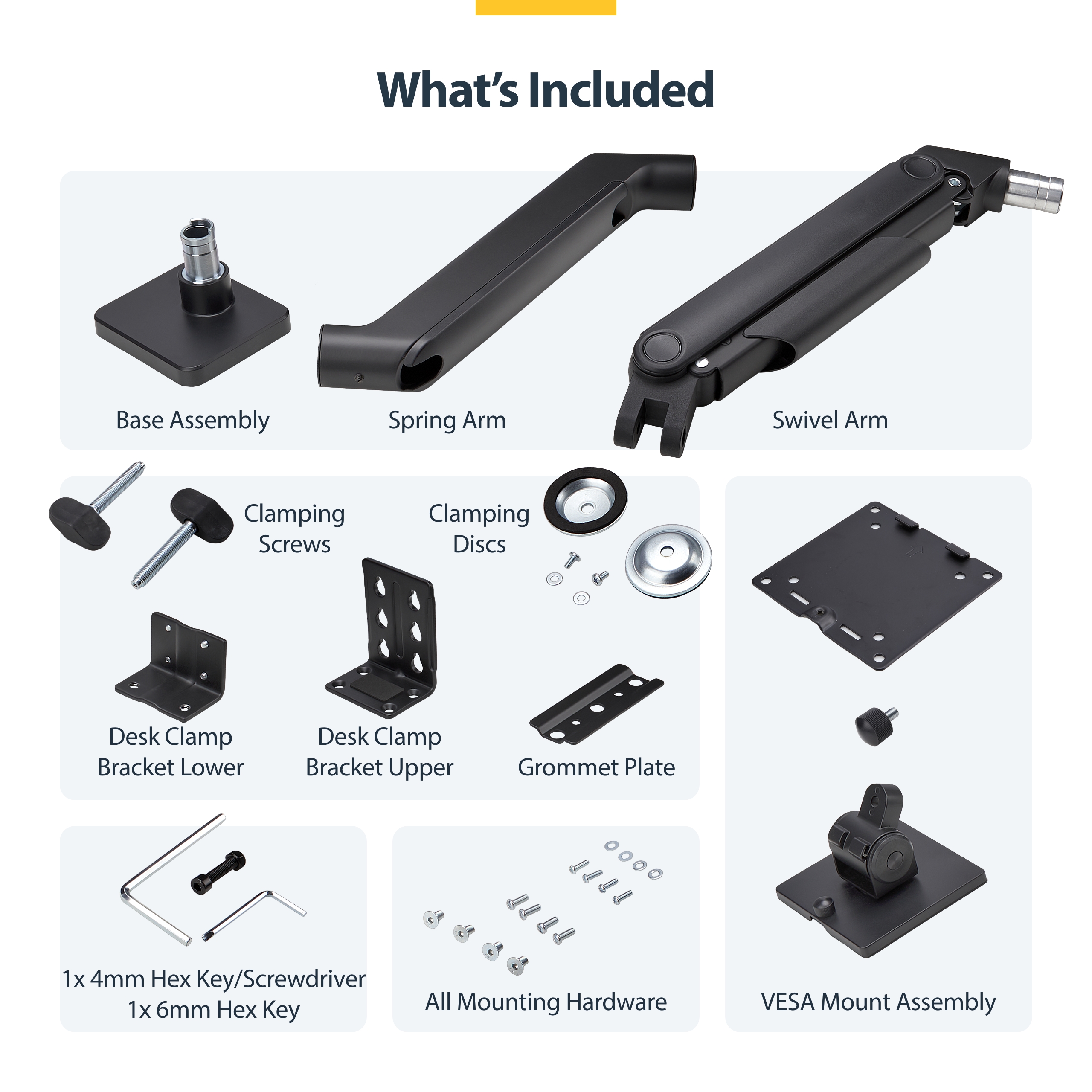

Wallmountable No Carton Depth (mm) 440 Carton Height (mm) 130 Carton Quantity 1 Carton Weight Gross (g) 5500 Included in Package - 1 - Spring Arm
- 1 - Swivel Arm
- 1 - Base
- 1 - Desk Clamp Bracket, Upper
- 1 - Desk Clamp Bracket, Lower
- 2 - Clamping Discs
- 1 - VESA Mount Assembly
- 1 - VESA Mount Nut
- 2 - M4x10mm Screws
- 2 - Clamping Screws
- 4 - Large Washers
- 4 - M6x12mm Screw
- 1 - M8x35mm Screw
- 4 - M4x12mm Screws
- 4 - M5x12mm Screws
- 1 - 4mm Hex Key with Screwdriver
- 1 - 6mm Hex Key
- 1 - User Manual
- 1 - Grommet Plate
- 2 - Small Washers
Package Depth (mm) 440 Package Height (mm) 130 Package Width (mm) 186 Package Weight (g) 5500 Packaging Description Heavy-Duty Monitor Desk Mount - Height Adjustable - For up to 49" Monitors Packaging Description India Heavy-Duty Monitor Desk Mount - Height Adjustable - For up to 49" Monitors Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Artwork Due Date 2024-06-15 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Comparable SKU Comment Heavy Duty - Single 34" (19.8lb/9kg) Display - Full Motion, Height Adjustable, Articulating - Aluminum - C-Clamp/Grommet- Silver Comparable SKU 2 Comment Heavy Duty - Single 34" (19.8lb/9kg) Display - Full Motion, Height Adjustable, Articulating - Aluminum - C-Clamp/Grommet- Black Digital Content Due Date 2024-11-22 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Sticker label - 37x20mm Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,FI,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Anthony Slater Product Information Creation Specialist (PICS) Alex Garcia Product Manager Tony Parackal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2023-12-01 Target Production Release 2024-06-15 Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine Video Required
