H5A4A-USB-HUB

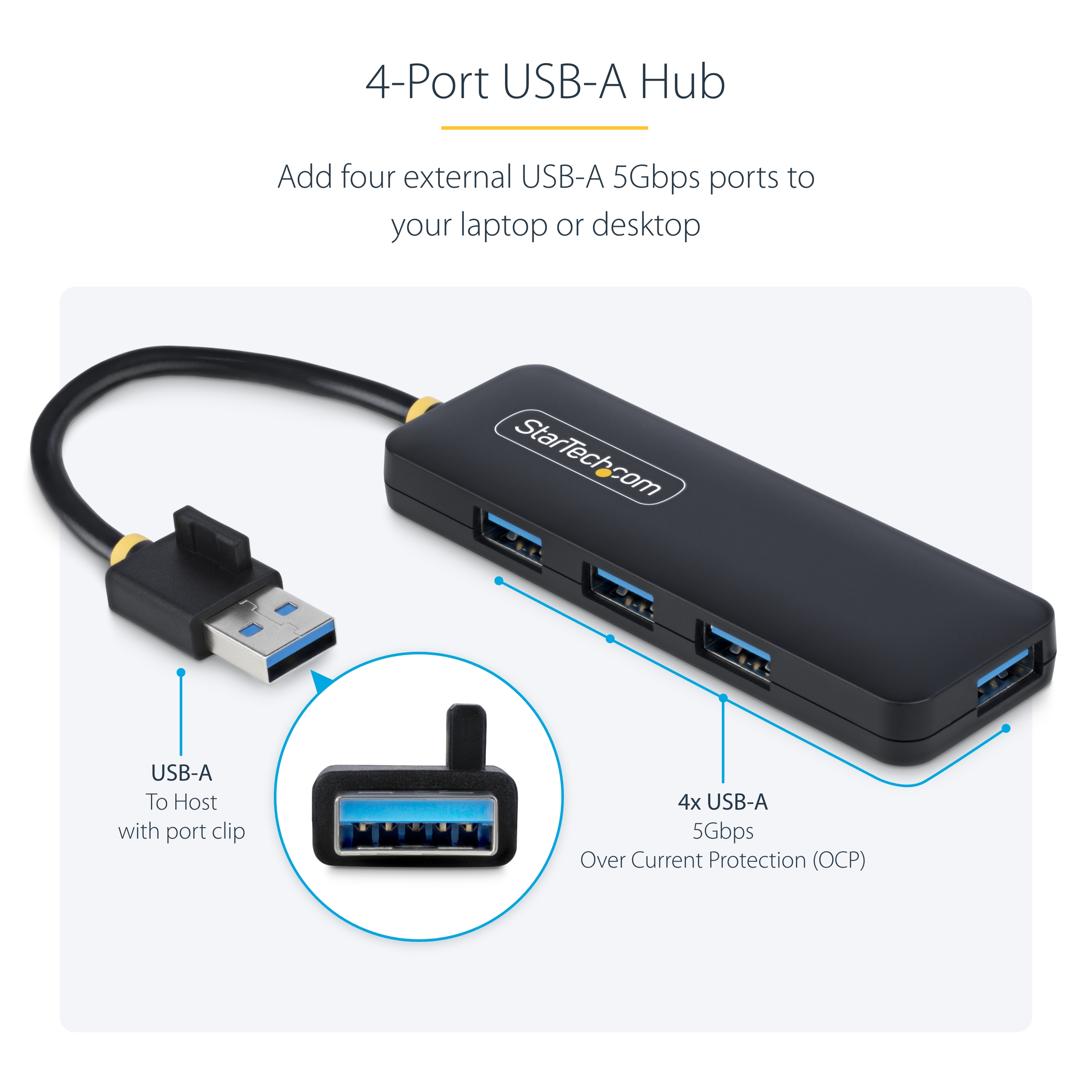

4-Port USB-A 5Gbps USB-A Hub

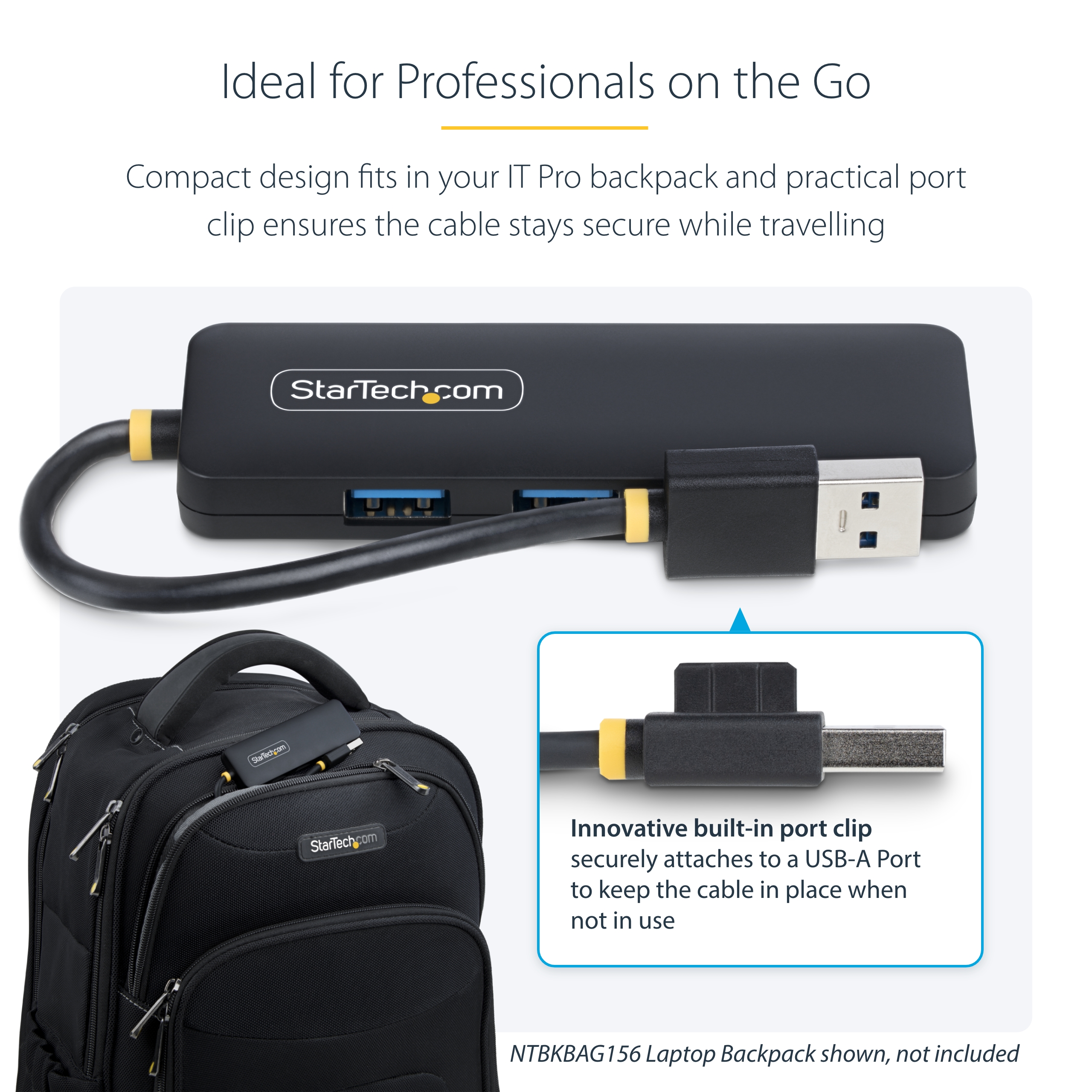

Add four external USB 3.0 ports to your notebook or Ultrabook™ with a slim, portable hub
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name 4-Port USB-A 5Gbps USB-A Hub Product Number H5A4A-USB-HUB UPC 065030912143 Lifecycle status Active Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 USB-A Hubs Category Level 3 USB-A Bus Powered Hubs - 5Gbps Family USB-A Bus Powered Hubs - 5Gbps - 4-Port - All A Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX177X Product Title (Ultra-Short) 4-Port USB-A Hub Product Title (Short) 4-Port USB-A Hub, Bus Powered, 5Gbps Product Title (Medium) 4-Port USB-A Hub, 5Gbps, Bus Powered, Small Travel Mini USB Hub, Portable Product Title (Standard) 4-Port USB-A Hub, 5Gbps, Bus Powered, Small Travel Mini USB Hub, Multi-Port USB 3.0 Splitter, Portable USB Hub Product Title (Long) 4-Port USB-A Hub, 5Gbps, Bus Powered, Small Travel Mini USB Hub, Multi-Port USB 3.0 Splitter, Portable USB Hub, Overcurrent Protection (OCP) Product Title (AMZ) 4-Port USB-A Hub, USB 3.0 (5Gbps) Data Transfer, Bus Powered, Travel Mini Hub, Portable Multi-Port USB Splitter, Windows PC, MacBook, iMac, Chromebook, Surface and More Title Ingram (Part 1) 4-Port USB-A Hub, 5Gbps Title Ingram (Part 2) USB Bus Powered Website Product Headline Add four external USB 3.0 ports to your notebook or Ultrabook™ with a slim, portable hub Bullet 1 4-PORT USB-A HUB: Bus-powered USB 3.0 expansion hub with built-in USB-A host cable connects up to four USB devices to a desktop or laptop computer through a single USB-A port; Supports USB 3.0 (5Gbps) transfer speeds; Wake on USB; Easy, driverless setup Bullet 2 COMPACT & PORTABLE: Compact and lightweight design with 5in (13cm) attached USB-A cable for travelling and desktop use; Cable Management Clip prevents tangles; Three ports on one side/one on the end for easy access when connecting/disconnecting devices Bullet 3 BUS-POWERED: Versatile USB-A hub is bus-powered, drawing power directly from a computer's USB-A port and eliminating the need to carry an external power adapter; Overcurrent Protection (OCP) protects connected peripherals from overdrawing power Bullet 4 PLUG-AND-PLAY: Automatically detected, configured & installed when connected to a host computer; Works on all operating systems incl. Windows, macOS & ChromeOS; Compatible with USB Type-A host devices incl. Lenovo X1 Carbon, Dell XPS and Microsoft Surface Bullet 5 OUR ADVANTAGE: Included connectivity tools for IT Professionals and IT Help-Desk support teams; Features USB Event Monitoring that logs and timestamps USB port usage, enabling IT administrators to identify potentially malicious devices Bullets (Compact) Connect up to four USB 3.0 devices to a laptop/PC with a single USB 2.0/3.0 port; Support for 5Gbps; Supports hot-swapping /hot-plugging; Works on all operating systems including Windows/macOS/Linux/ChromeOS; Compatible with USB Type-A host devices Bullets (Consolidated) - Bus-powered USB 3.0 expansion hub with compact plastic housing and built-in USB-A host cable connects up to four USB devices to a computer with a single USB-A port; Support for 5Gbps - Plug-and-play installation; Installs automatically when connected to a computer - Works on all operating systems including Windows/macOS/Linux/ChromeOS - Cable Management Clip prevents tangles; Three ports on one side and one on the end for easy access when connecting/disconnecting devices Marketing Copy Marketing Copy (No HTML) Applications - Compatible with USB Type-A host devices incl. Lenovo X1 Carbon, Dell XPS and Microsoft Surface
- Make hard to access USB ports more accessible, by being able to position the hub anywhere the cable will reach
- Separate tightly packed USB ports, to better accommodate larger USB plugs or prevent overcrowding
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes USB 3.2 Gen 1 (5Gbps) is also known as USB 3.1 Gen 1 (5Gbps) and USB 3.0 (5Gbps). System and Cable Requirements Available USB Port Accessory Products - PEXUSB3S42
- USB3S2SAT3CB
- SDOCK2U313
- SDOCKU33BV
Related Products - H5C4A-USB-HUB
- SDOCKU313
- SDOCK2U33
- USB31CAADP
- USB3AUB2MS
- USB3SEXT2MBK
- USB2HABM3RA
- UUSBHAUB3RA
- UUSBHAUB1
- UUSBHAUB10
- USBLT1MW
- USB3CAB1M

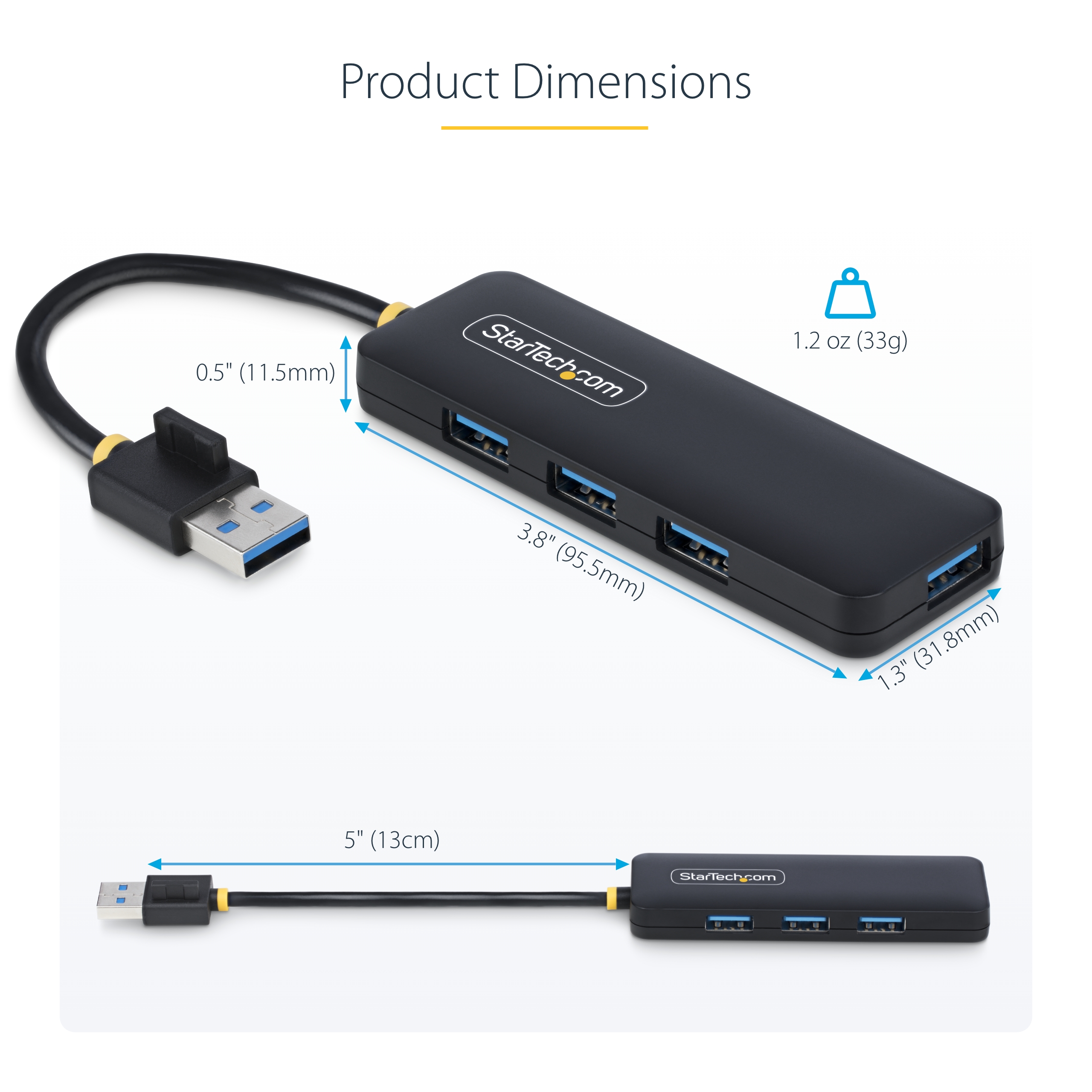

Input Voltage 5V DC Output Voltage (V) 5 DC Power Source USB-Powered Cable Length (mm) 130 Color Black Humidity 20~80% RH Material Plastic Operating Temperature 5°C to 35°C (41°F to 95°F) Primary Material Plastic Product Length (mm) 95.5 Product Width (mm) 31.8 Product Height (mm) 11.5 Product Weight (g) 33 Storage Temperature 5°C to 35°C (41°F to 95°F) TAA Compliant No Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Fast Charge Ports (BC 1.2) No Maximum Data Transfer Rate 5 Gbps (USB 3.2 Gen 1) MTBF (hours) 196439 hours OS Compatibility OS Independent UASP Support Yes USB Type and Rate USB 5Gbps Bus Type USB 3.2 Gen 1 (5Gbps) Cable Jacket Material TPE - Thermoplastic Elastomers Chipset ID VIA - VL817S Ethernet Port No Industry Standards USB 3.2 Gen 1 - Backward compatible with USB 2.0 and 1.1 Interface/Bridge USB 3.2 Gen 1 (5Gbps) Laptop Dock / USB Hub Fast-Charge No USB-C Device Port(s) No USB-C Host Connection No Carton Depth (mm) 440 Carton Height (mm) 280 Carton Quantity 160 Carton Weight Gross (g) 7732 Included in Package - 1 - USB Hub
- 1 - Product Documentation
Included In Package for Label - 1 - USB Hub
- 1 - Product Documentation
Number of Sub-Cartons 16 Package Depth (mm) 127 Package Height (mm) 33 Package Width (mm) 161 Package Weight (g) 42 Packaging Description 4-Port USB 3.0 Hub - USB-A to 4x USB-A - 5Gbps - Bus Powered Packaging Description India 4-Port USB 3.0 Hub - USB-A to 4x USB-A - 5Gbps Sub-Carton Depth (mm) 153 Sub-Carton Height (mm) 68 Sub-Carton Width (mm) 222 Sub-Carton Quantity 10 Sub-Carton Weight (g) 428 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 4 Host Connector 1 USB-A (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 A+ Required Actual Inbox Documents Created Compliance Insert Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Artwork Due Date 2024-11-07 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment Portable 4 Port SuperSpeed Mini USB 3.0 Hub - 5Gbps - Black Comparable SKU 2 Comment Portable 4 Port SuperSpeed Mini USB 3.0 Hub - 5Gbps - White Digital Content Due Date 2025-01-24 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,FI,FR,IE,IN,IT,JP,MX,NL,NZ,SE,UK,US Priority New Product High Product Development Specialist Yipeng Zhang Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Development Completion Date 2024-10-25 Target Production Release 2024-12-23 Tech Lead Stefan Tirolese Technical Writer Brian Chan Technology Lifecycle Latest Video Not Required
