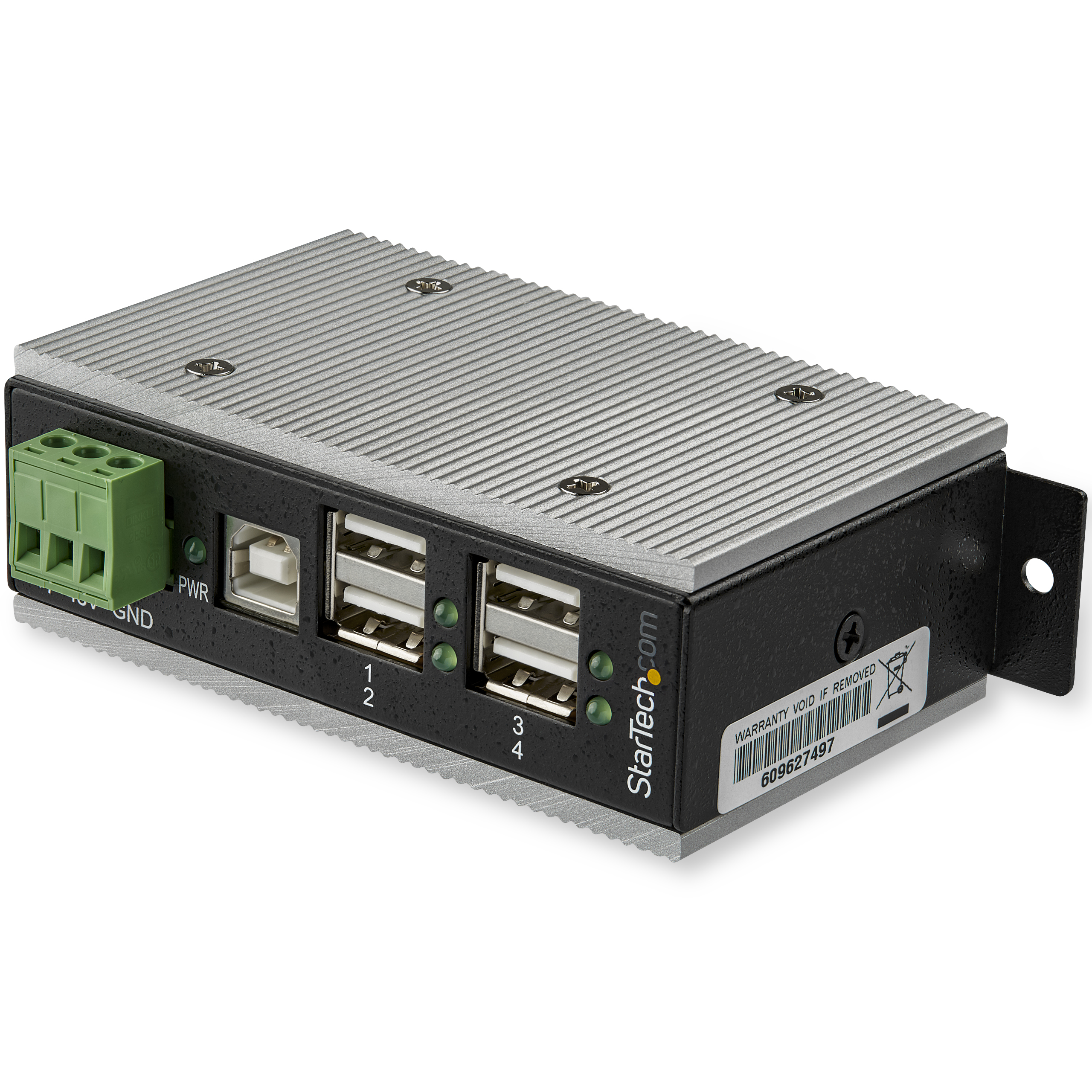

HB20A4AME
Industrial 4 Port USB 2 0 Hub w Terminal Block Ext Temp ES
Extended Temperature| 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 480 Mbps
Main Image
Product Images
Product Images
BOM Image
Product Name Industrial 4 Port USB 2 0 Hub w Terminal Block Ext Temp ES Product Number HB20A4AME UPC 065030878623 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 Industrial USB Hubs Category Level 3 Industrial USB Hubs - USB 2.0 Family Industrial USB Hubs - USB 2.0 - 4-Port Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Ultra-Short) 4-port USB 2.0 Hub Product Title (Short) 4 Port USB 2.0 Hub Industrial (-40/185F) Product Title (Medium) 4 Port Industrial USB Hub - USB 2.0 - 15kV ESD Protection - Multi Port USB Hub Product Title (Standard) 4-Port USB 2.0 Hub, Metal Industrial USB Hub, USB-A to 4 USB-A, Mountable, ESD/Surge Protection, Extended Operating Temp, TAA Product Title (Long) 4-Port USB 2.0 Hub - Metal Industrial USB-A Hub with ESD & 350W Surge Protection - Extended Operating Temp -40 to 185°F - Din Rail/Wall/Desk Mountable - USB Expander Hub - TAA Product Title (AMZ) 4-Port USB 2.0 Hub - Metal Industrial USB-A Hub with ESD & 350W Surge Protection - Extended Operating Temp -40 to 185°F - Din Rail/Wall/Desk Mountable - USB Expander Hub , TAA Title Ingram (Part 1) 4-Port Industrial USB Hub - USB Title Ingram (Part 2) 2.0 - 15kV ESD Protection - Metal Website Product Headline Extended Temperature| 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 480 Mbps Bullet 1 4 PORT USB 2.0 HUB: Expand the connectivity of a USB Type-A computer by adding 4x USB-A high speed ports; Speeds up to 480Mbps shared across devices; Power LEDs on each port for status identification Bullet 2 EXTENDED TEMPERATURE RANGE: USB port expander rated for operation between -40°F to 185°F (-40°C to 80°C) w/relative humidity from 5 ~ 95% | Aluminum heat sinks on enclosure to protect from temp spikes Bullet 3 ESD PROTECTION: USB Hub with 15kV Air and 8kV Contact electrostatic (ESD) protection & 350W surge protection, this rugged metal-enclosed hub is suitable for harsh industrial/commercial environments Bullet 4 INSTALLATION FLEXIBILITY: Ear mount & DIN rail mountable (bracket incl) for wall/desk surface locations; Incl terminal block power connector, 6.6' (2m) USB host cable; Flexible 7 to 48V DC power input Bullet 5 WIDE COMPATIBILITY: USB expansion hub is OS independent, supports Windows, macOS, Linux, iPadOS, Chrome OS, Android; Works w/USB 1.1; Multi Transaction Translator (MTT) support for mixed speed devices Bullets (Compact) Industrial 4 port USB 2.0 hub w/ USB Type-A ports (status LEDs) 480Mbps - Rugged metal USB hub | 15kV Air/8kV Contact ESD - 350W surge protection - Ear/DIN mountable (bracket incl) - Operating temp -40F to 185F | RH 5%~95% - 7 to 48VDC power terminal Bullets (Consolidated) Industrial 4 port USB 2.0 hub with USB Type-A ports with status LEDs|480Mbps shared with devices - Wide operating range of -40DEG F to 185DEG F with RH 5~95% - External aluminum heat sinks protect from temp spike - 350W surge and ESD protection (15kV Air/8kV Contact)|Rugged metal USB hub ideal for harsh environments - Ear mount/DIN rail mountable (bracket incl)|Incl terminal block power connector|6.6' USB host cable|7 to 48V DC power input - OS independent|MTT support|Works w/USB 1.1 Marketing Copy Marketing Copy (No HTML) Applications - Ideal for tough conditions that are subject to large temperature variances, or where there’s a risk of physical damage
- Great for industrial and manufacturing environments where only terminal block connection is preferred
- Connect a variety of USB devices such as industrial printers or cameras, plus fast-charge your smartphone and tablet
- Mount to a wall near or under a desk surface in a Lab, Service Repair area or office area connecting multiple USB peripherals
- Use in a conference or meeting room utilizing multiple USB peripherals or for charging several mobile devices
Website Search Keyword - 4-Port Industrial USB Hub
- USB hub
- rackmount USB hub
- USB 2.0 hub
- USB 2 hub
- industrial hub
- rugged USB hub
- Multi port USB hub
- DIN Rail USB hub
- Wall mountable USB hub
- 4 port USB 2.0 hub
- U223-004-IND-1
- U223-004-IND
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
System and Cable Requirements Any computer with a USB 2.0 port Accessory Products - PEXUSB3S11
- PEXUSB3S2
- ECUSB3S2
- USB3SAB3BK
- USB3SAB6BK
- USB3SAB10BK
- USB3SAB3
- USB3SAB10
- USB3SAB6
- USB3SAUB3BK
- USB3SEXTAA6
- ITB20D3250
Related Products - HB20A7AME
- ST4300USBM
- ST4200USBM
- ST7200USBM
- ST7202USB
- ST7300USBME
- ST1030USBM
- ST7300U3M
- HB30C5A2CST
- HB30C3A1CST
- ST4300U3C3
Input Current 2A Input Voltage 7 ~ 48 DC Power Consumption (In Watts) 14 W Power Source Terminal Block Color Black & Silver Extended Temperature Range Yes Humidity 5 - 95% RH Material Steel Operating Temperature -40°C to 85°C (-40°F to 185°F) Primary Material Steel Product Length (mm) 95 Product Width (mm) 55 Product Height (mm) 32 Product Weight (g) 292 Storage Temperature -40°C to 85°C (-40°F to 185°F) TAA Compliant Yes Device Power Consumption (In Watts) 12 Watts Downstream Maximum Data Transfer Rate USB 2.0 (480Mbps) ESD Protection - +/-15kV (Air)
- +/-8kV (Contact)
Maximum Data Transfer Rate 480 Mbps OS Compatibility OS Independent Surge Protection 350W on the DFP and UFP Total Available Power Output (In Watts) 10 Watts USB Speed USB 2.0 (480Mbps) USB Type and Rate USB 2.0 (480Mbps) Bus Type USB 2.0 Chipset ID Genesys Logic - GL852GT Industry Standards USB 2.0 Interface/Bridge USB 2.0 LED Indicators - 1 - Power
- 4 - Port Connection

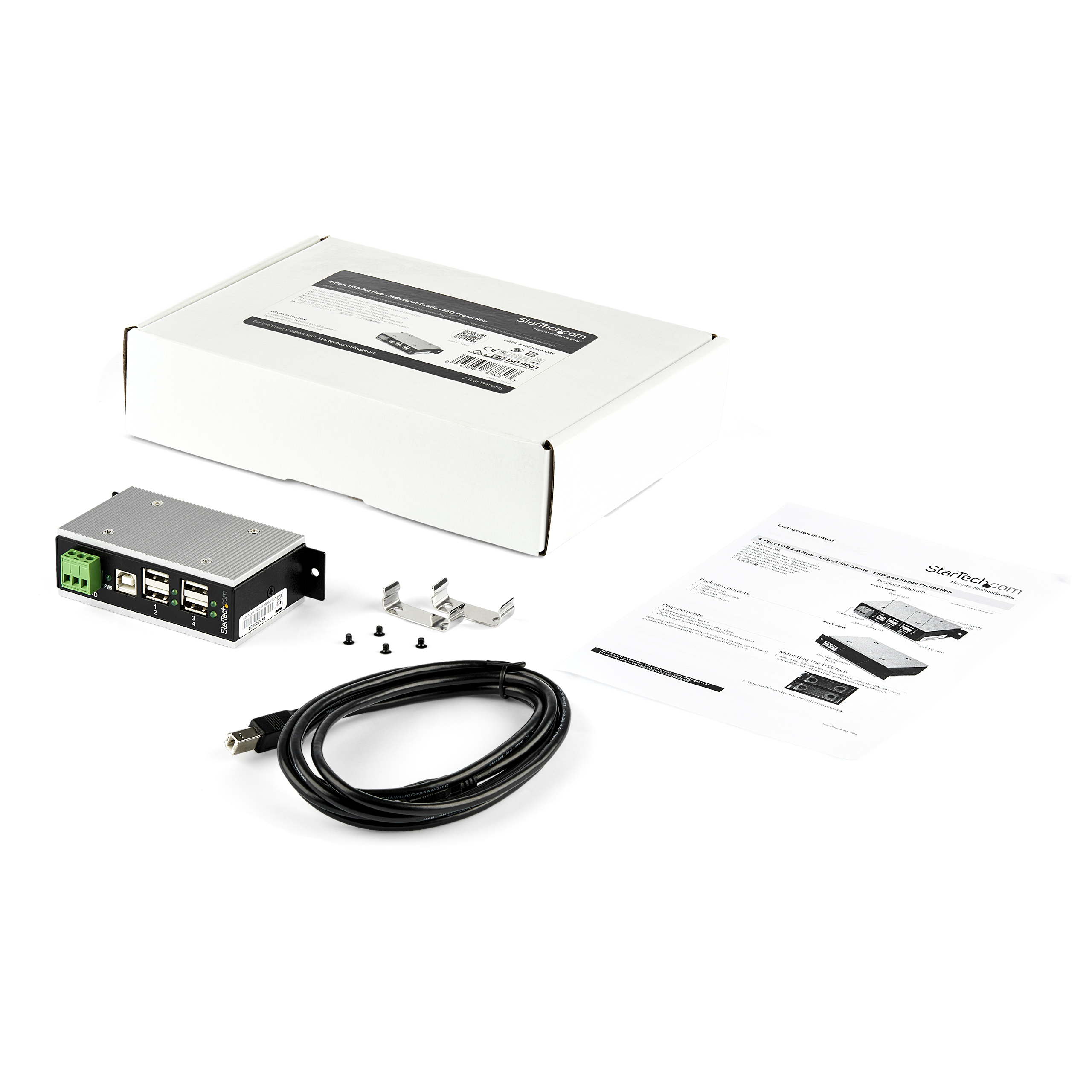

Mounting Options DIN Rail USB-C Device Port(s) No USB-C Host Connection No USB Port Type USB-A Carton Depth (mm) 440 Carton Height (mm) 340 Carton Quantity 25 Carton Weight Gross (g) 13250 Included in Package - 1 - instruction manual
- 1 - USB 2.0 hub
- 1 - DIN rail kit
- 1 - 2 m [6.6 ft] USB-A to USB-B cable
Included In Package for Label - 1 - Din Rail Kit
- 1 - Instruction Manual
- 1 - 2 M [6.6 Ft] USB-A To USB-B Cable
- 1 - USB 2.0 Hub
Package Depth (mm) 168 Package Height (mm) 55 Package Width (mm) 244 Package Quantity 1 Package Weight (g) 484 Packaging Description 4-Port USB 2.0 Hub - Industrial - ESD Protection Packaging Description India 4-Port USB 2.0 Hub - Industrial - ESD Protection Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 4 Connector 2 USB-B (480Mbps, 2.5W) Connector 2 (Quantity) 1 Connector 3 Terminal Block (3 Wire) Connector 3 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2018-02-23 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2018-04-13 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FI,FR,IE,IN,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Development Completion Date 2018-01-05 Target Production Release 2018-03-02 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Mainstream
