HB30A13AM

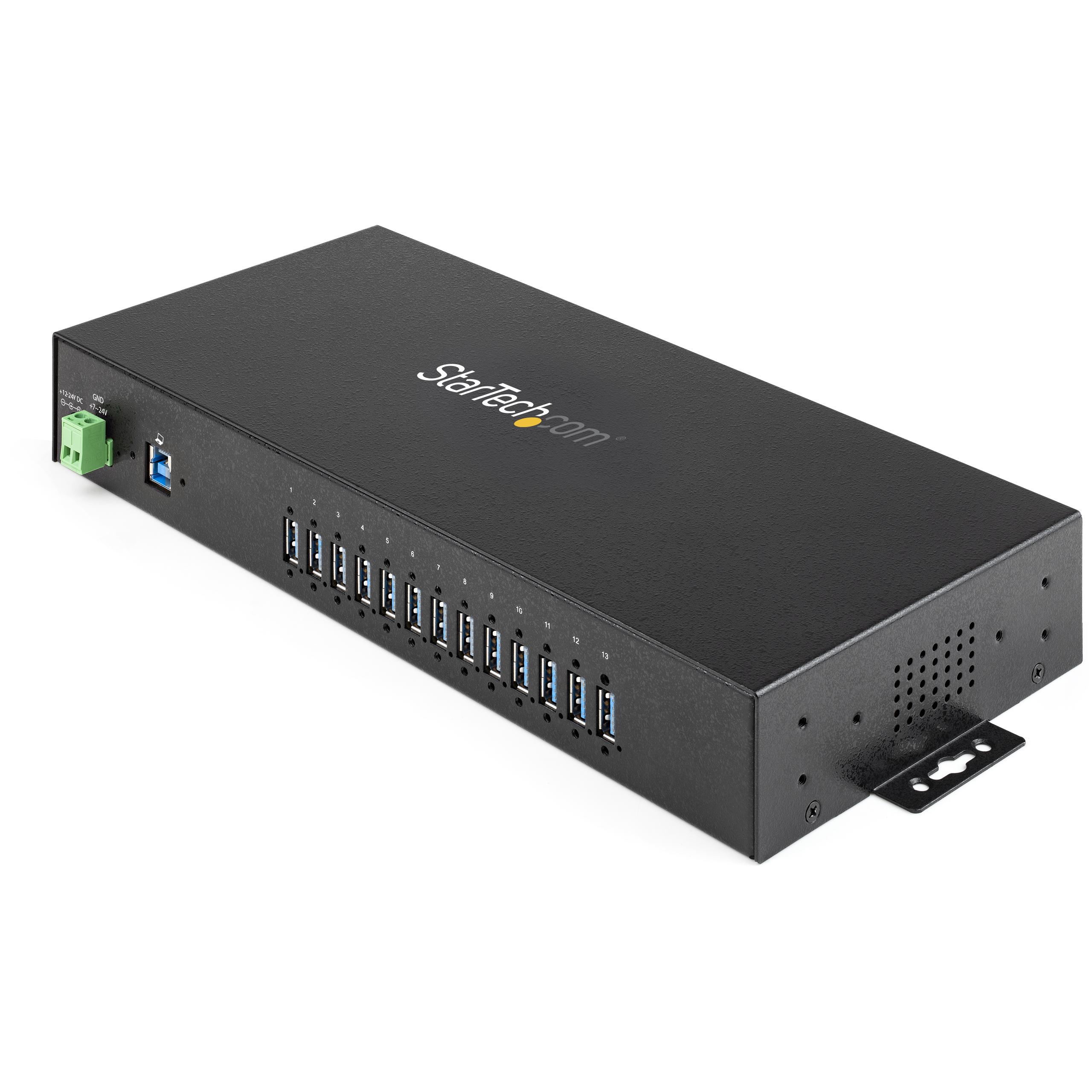

13 Port USB 3.1 Gen 1 Charge and Sync HUB
Industrial USB Hub | Metal Housing | Built-in Mounting Hardware | Included 19 in. Rack Mount Hardware | Screw Locking Ports
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 13 Port USB 3.1 Gen 1 Charge and Sync HUB Product Number HB30A13AM UPC 065030891424 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Hubs Category Level 2 Industrial USB Hubs Category Level 3 Industrial USB Hubs - 5Gbps Family Rackmount Industrial Hub - 5Gbps Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Website Product Headline Industrial USB Hub | Metal Housing | Built-in Mounting Hardware | Included 19 in. Rack Mount Hardware | Screw Locking Ports Marketing Copy Applications - Connect equipment to a computer in industrial environments
- Power and charge devices
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
System and Cable Requirements Available USB 3.2 Gen 1 (5 Gbps) Type-A port Accessory Products - USB3CAB1M
- USB3CAB2M
- USB3SAB1
- USB3SAB10
- USB3SAB10BK
- USB3SAB10M
- USB3SAB1MRA
- USB3SAB3
- USB3SAB3BK
- USB3SAB5M
- USB3SAB6
- USB3SAB6BK
Related Products - ST4200USBM
- ST4300USB3
- ST7200USBM
- ST7202USB
- ST4300USBM
- HB31C3A1CB
- HB31C2A1CGB
- HB31C2A2CB
- HB31C3A1CPD3
- HB31C3ASDMB
- HB31C4AB
- HB31C4AS
- HB31C2A1CGS
- HB31C3A1CS
- HB30A10AME
- HB30A7AME
- ST1030USBM
- ST7300USBME
- HB31C3A1CME
Input Current 2.2A Input Voltage 110V-240V AC Output Current 6.6 A Output Voltage (V) 24 DC Power Consumption (In Watts) 158.4 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 5~95% RH Material Metal Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 127.000 Product Width (mm) 279.000 Product Height (mm) 44.000 Product Weight (g) 1066.000 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant No Device Power Consumption (In Watts) 36 Watts Maximum Data Transfer Rate 5 Gbps MTBF (hours) 123,076 Hours OS Compatibility OS Independent Supported Charging Outputs BC 1.2 (1.5A) Total Available Power Output (In Watts) 30 Watts UASP Support Yes USB Speed USB 3.2 Gen 1 (5Gbps) USB Type and Rate USB 3.0 (5Gbps) Bus Type USB 3.2 Gen 1 (5 Gbps) Chipset ID Genesys Logic - GL3523 Laptop Dock / USB Hub Fast-Charge Yes LED Indicators - 1 - Power LED
- 13 - USB Device Link LED

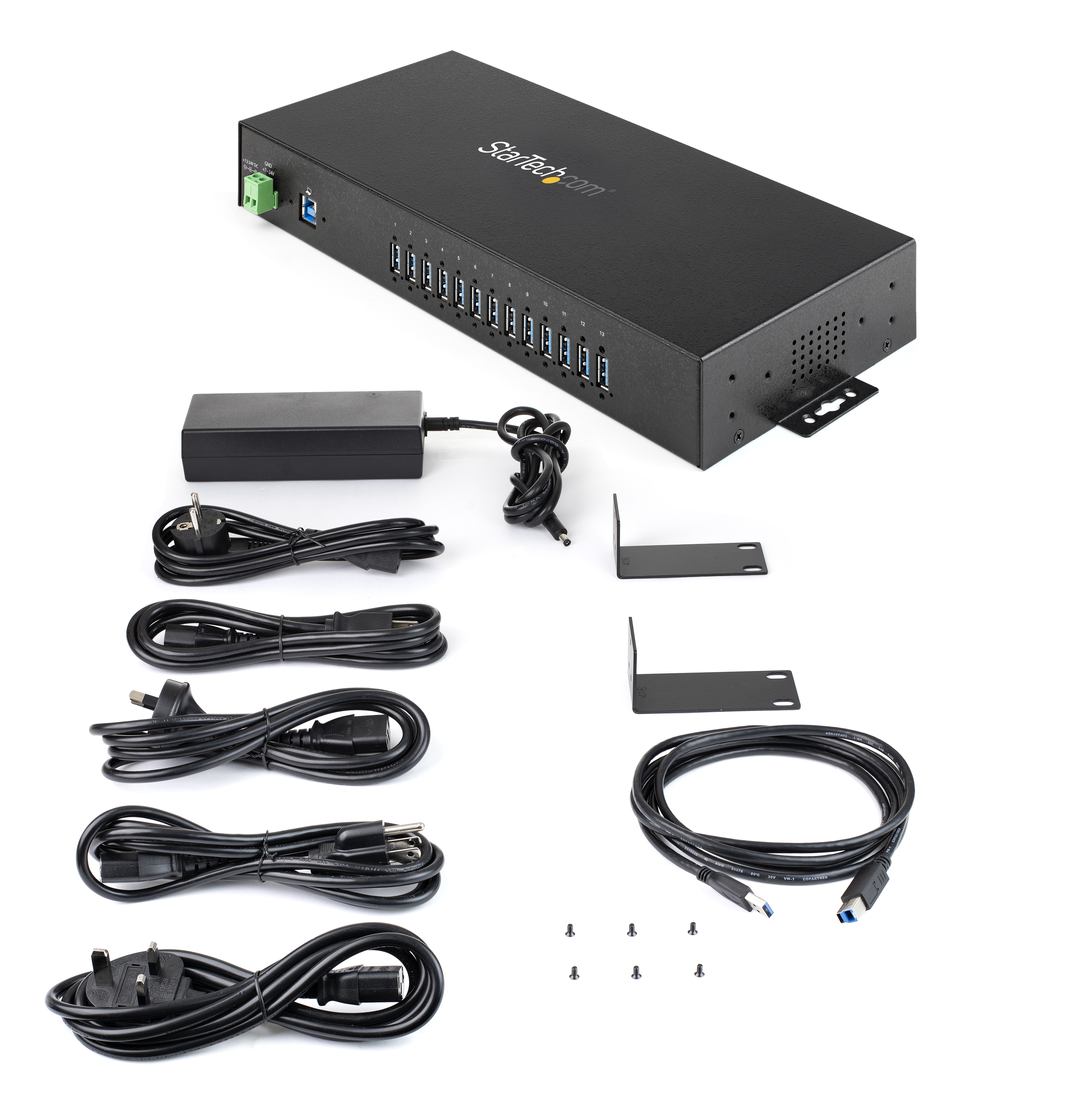

Number of Battery Charge 1.2 Ports 13 USB-C Device Port(s) No USB-C Host Connection No USB Port Type USB-A Carton Depth (mm) 560 Carton Height (mm) 290 Carton Quantity 5 Carton Weight Gross (g) 17000 Included in Package - 1 - USB Hub
- 1 - 6 ft [1.8 m] USB-A to USB-B Cable
- 1 - Terminal Block Connector (Installed)
- 1 - Product Documentation
- 1 - Universal Power Adapter (NA, JP, UK, EU, ANZ)

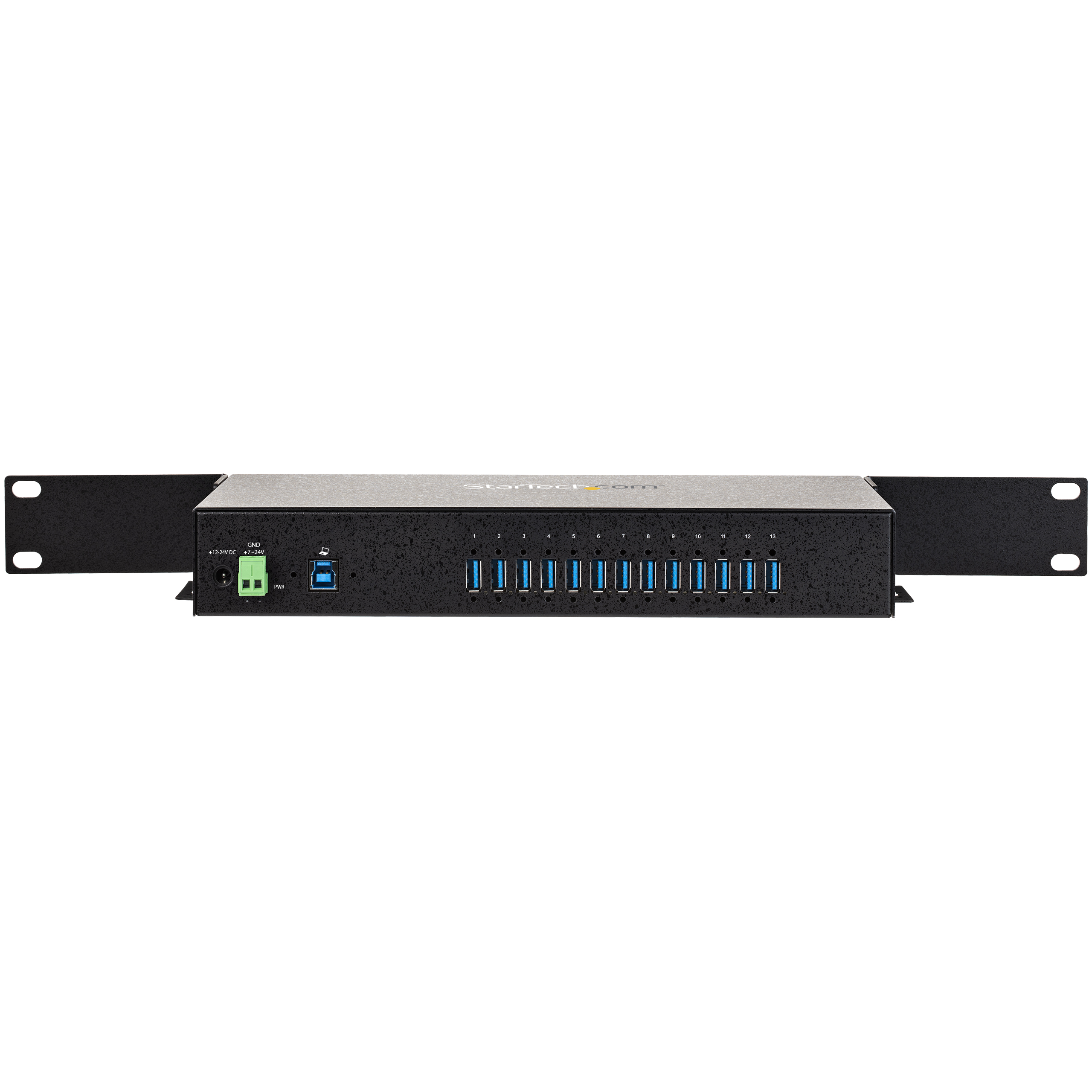

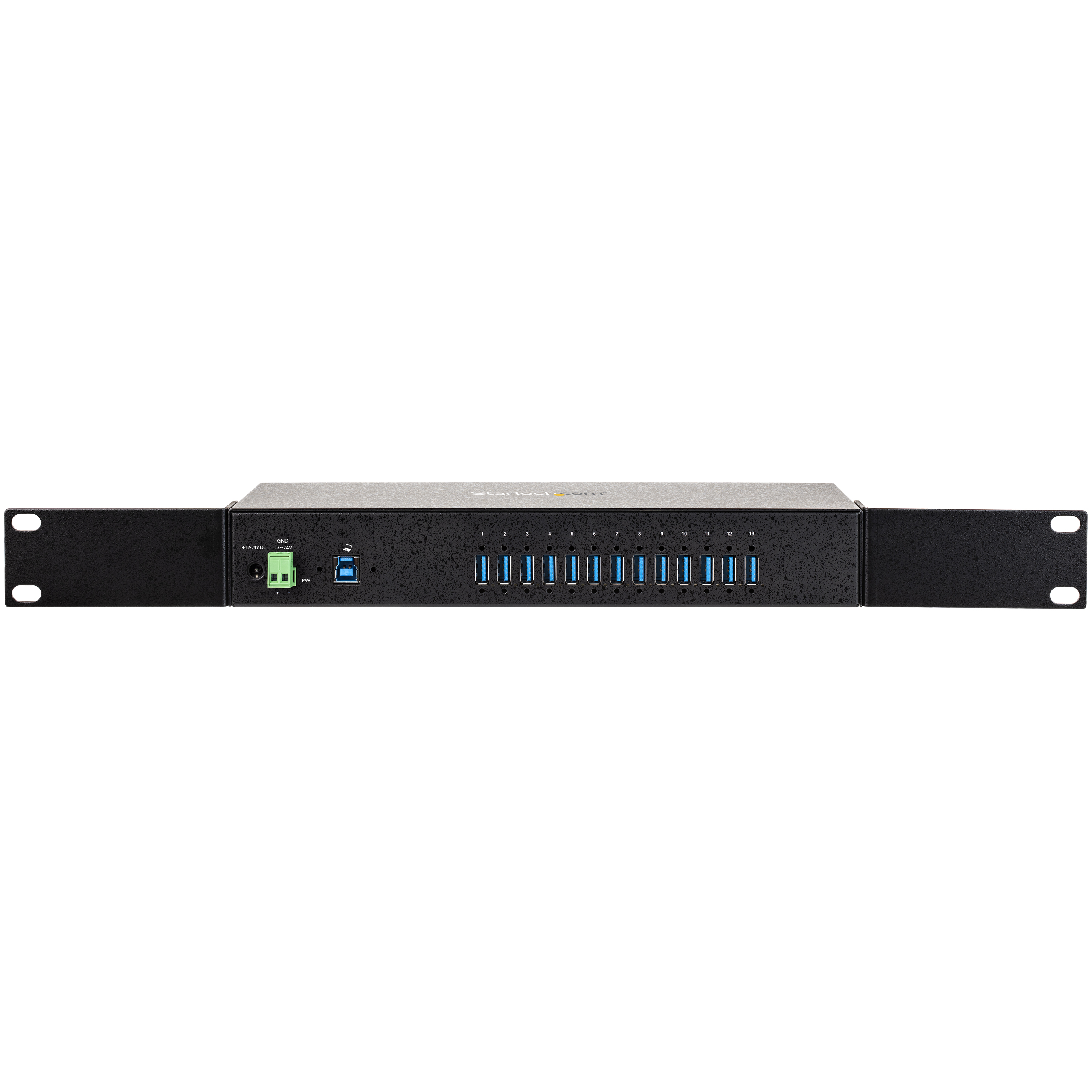

- 1 - Rack-Mount Kit (2x Brackets with Bracket Installation Screws)
Package Depth (mm) 370 Package Height (mm) 110 Package Width (mm) 275 Package Weight (g) 3400 Packaging Description 13-Port Industrial USB 3.0 (5 Gbps) Hub Packaging Description India 13-Port Industrial USB 3.0 (5 Gbps) Hub Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 13 Connector 2 USB-B (5Gbps, 4.5W) Connector 2 (Quantity) 1 Actual Inbox Documents Created Compliance Insert Amazon Merchandising Manager Kristian Haighton Enhanced Gallery Designer Catherine Almeida en-US Content Approved No Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) BE,CA,DE,DK,ES,FR,IE,NL,UK,US Primary Technology USB 3.2 Gen 1 / 5Gbps Priority New Product 5 Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle None
