Main Image
HB30A3A1CST
4 Port USB Hub USB A to C A USB 3 0 Metal
Add three USB Type-A ports and one USB Type-C port to your computer, using this mountable USB 3.2 Gen 1 (5Gbps) hub
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 4 Port USB Hub USB A to C A USB 3 0 Metal Product Number HB30A3A1CST UPC 065030867887 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 USB-C Hubs Category Level 3 USB-C External Powered Hubs - 5Gbps Family USB-A External Powered Hubs - 5Gbps - 4-Port - C/A Mix Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX157X Product Title (Ultra-Short) 4 Port USB 3.0 Hub Product Title (Short) 4 Port USB 3.0 Hub 5Gbps 1 USB-C/3 USB-A Product Title (Medium) 4 Port USB Hub - Metal - USB-A to 3x USB-A and 1x USB-C - USB 3.0 - 5Gbps Product Title (Standard) 4 Port USB 3.0 Hub - 1x USB-C & 3x USB-A - Mountable Metal USB Type-A Hub - 5Gbps USB 3.2 Gen 1 - Self Powered - BC 1.2 Product Title (Long) 4 Port USB 3.0 Hub - USB Type-A to 1x USB-C & 3x USB-A - Commercial Metal USB Hub - SuperSpeed USB 3.2 Gen 1 (5Gbps)- Self Powered - BC 1.2 Fast Charge - Mountable/Rugged Product Title (AMZ) 4 Port USB 3.0 Hub - USB Type-A to 1x USB-C & 3x USB-A - Commercial Metal USB Hub - SuperSpeed USB 3.0 (5Gbps) - Self Powered - BC 1.2 Fast Charge - Mountable/Rugged (HB30A3A1CST) Title Ingram (Part 1) 4Port USB Hub - USB-A to C & A Title Ingram (Part 2) - USB 3.0 Hub - Metal Website Product Headline Add three USB Type-A ports and one USB Type-C port to your computer, using this mountable USB 3.2 Gen 1 (5Gbps) hub Bullet 1 4 PORT USB 3.2 Gen 1 HUB: Expand the connectivity of a USB Type-A laptop/desktop by adding 3x USB-A & 1x USB-C ports with this SuperSpeed USB 3.2 Gen 1 (5Gbps) adapter hub; Incl 3ft (1m) USB-A host cable Bullet 2 CHARGE & SYNC: Incl power supply w/24W (shared among all ports); Self-powered USB hub w/ USB-A Charging Downstream Port (CDP) provides up to 12W (BC 1.2); Charge a device with or without a PC connected Bullet 3 MOUNTABLE: Using incl mounting bracket, this compact metal hub is ideal for commercial environments; Capable of being securely wall or desk mounted w/ screws; Incl. rubber feet for better surface grip Bullet 4 THOUGHTFUL DESIGN: Easily disconnect all devices through main power switch on hub; Power LEDs for status identification; Easy port access with top facing USB-A ports & side-panel USB-C port Bullet 5 WIDE COMPATIBILITY: Rugged USB hub is OS independent, works w/ Windows, macOS, Linux, iPadOS, Chrome OS; USB 1.0/2.0/3.0 compatible; Supports SSD/thumb drives, keyboards, mice, web cams, scanner, printers Bullets (Compact) 4-Port USB 3.2 Gen 1 hub - USB Type-A laptop/desktop to 3x USB-A (1x BC 1.2) and 1x USB-C - SuperSpeed 5Gbps - Incl 24W power adapter/USB-A host cable - Mountable self-powered USB hub - Rugged metal housing - Power switch - OS independent Bullets (Consolidated) Compact 4-Port USB 3.2 Gen 1 hub with SuperSpeed 5Gbps | USB Type-A laptop/desktop to 3x USB-A and 1x USB-C - Incl 24W power adapter (shared w/all ports) | USB-A dedicated charging port up to 12W (BC 1.2) | Charge device with or without PC - Self-powered rugged metal USB hub ideal for commercial environments | Wall/desk mountable (bracket incl) - Main power switch | Status LEDs - Supports SSD/thumb drives/keyboards/web cams/scanners/printers - OS independent | USB 2.0 compatible Marketing Copy Applications - Installation in locations where USB 3.2 Gen 1 ports need to be securely mounted to a surface, such as a wall or under a desk
- Upgrade and expand the connection capabilities of your MacBook, Ultrabook, laptop, or desktop
- Deploy in hot desk environments to provide USB hub access for multiple devices
Website Search Keyword - 4 port hub
- 4 port powered usb hub
- 4 port usb 3 hub
- 4 port usb 3.0 hub
- 4 port usb c hub
- 4 port usb hub
- desk mount usb hub
- desk mounted usb hub
- desk usb hub
- in desk usb 3.0 hub
- industrial usb 3.0 hub
- industrial usb hub
- laptop usb hub
- metal usb 3.0 hub
- Mountable 4 Port usb hub
- mountable usb 3.0 hub
- mountable usb hub
- powered usb 3.0 hub
- powered usb hub
- rugged usb hub
- usb 3 hub
- usb 3 hub 4 port
- usb 3.0 4 port hub
- usb 3.0 desk hub
- usb 3.0 hub
- usb 3.0 hub 4 port
- usb 3.0 type b
- usb desk hub
- usb hub
- usb hub 3.0 powered
- usb hub 4 port
- usb hub desk mount
- usb hub for laptop
- usb hub laptop
- usb hub wall mount
- usb hub with cable
- usb hub with type c
- usb hub with usb c
- usb port expander
- usb port hub
- usb powered hub
- usb wall hub
- usb-c hub
- wall mounted usb hub
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes System and Cable Requirements Available USB Type-A ports - USB 3.0 (5Gbps) Accessory Products - USB31CAADP
- UNI251BMU33
- S2510BMU33CB
- SVA12M2NEUA
- USB315CB2M
- USB315CC2M
- USB315AC1M
- SVA12M5NA
Related Products - HB30C3A1CFB
- HB30C3A1CFS
- ST43004UA
- ST4300PBU3
- ST4300MINU3B
Constrained SKU Alternatives (Limited Stock) HB31C3A1CME Input Current 0.6 A Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 12V DC Power Consumption (In Watts) 24 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Cable Length (mm) 1000 Color Black Humidity 20~80% RH (Non-condensing) Material Aluminum Operating Temperature 5°C to 35°C (41°F to 95°F) Primary Material Aluminum Product Length (mm) 100.000 Product Width (mm) 60.000 Product Height (mm) 24.000 Product Weight (g) 135.000 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant No Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Fast Charge Ports (BC 1.2) Yes Maximum Data Transfer Rate 5 Gbps (USB 3.2 Gen 1) OS Compatibility OS Independent USB Type and Rate USB 5Gbps Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID Realtek - RTS5411E Ethernet Port No Industry Standards Interface/Bridge USB 3.2 Gen 1 (5Gbps) Laptop Dock / USB Hub Fast-Charge Yes LED Indicators - 1 - Power
- 4 - Hub Port Connection

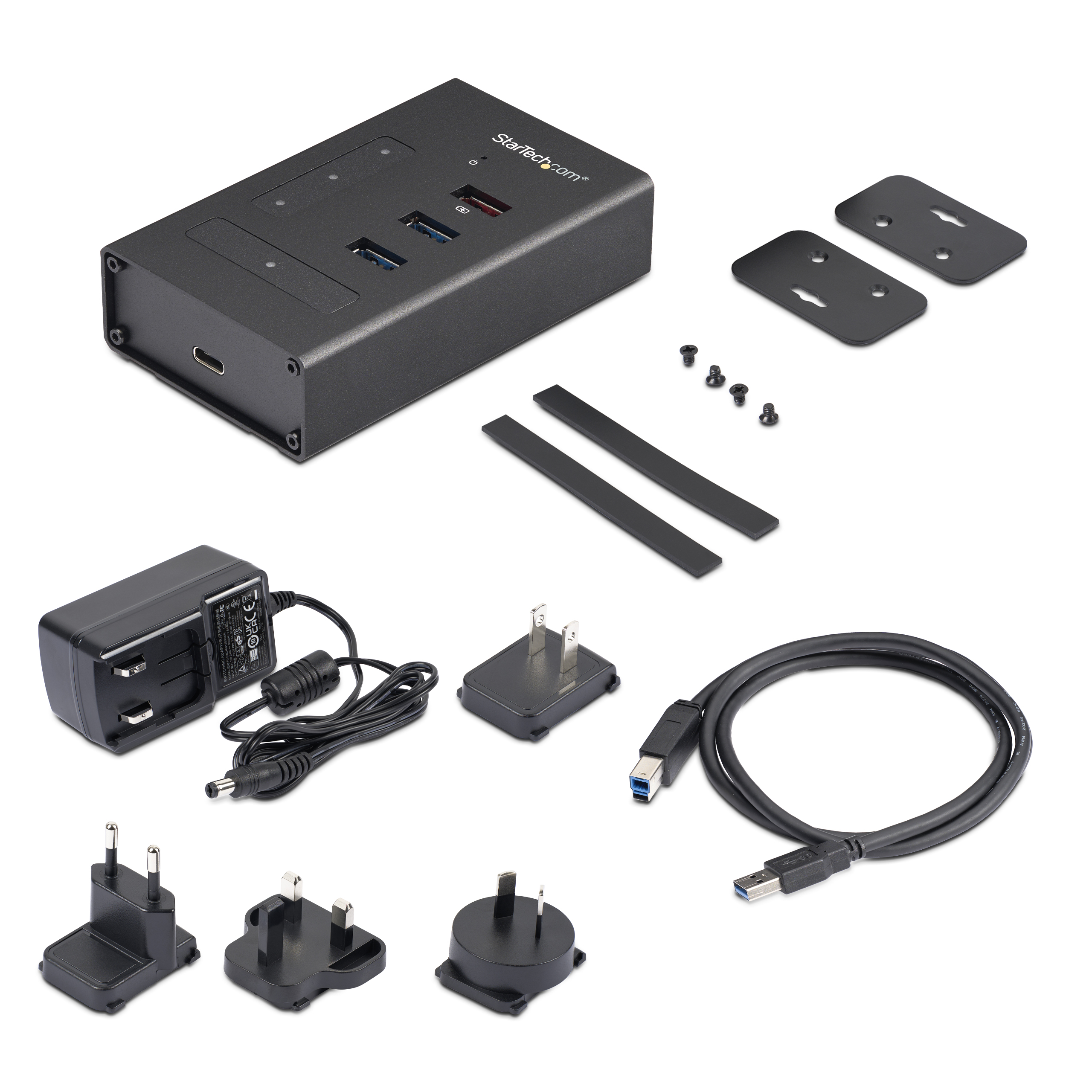

USB-C Device Port(s) Yes USB-C Host Connection No Carton Depth (mm) 320 Carton Height (mm) 340 Carton Quantity 18 Carton Weight Gross (g) 9750 Included in Package - 1 - USB 3.0 hub
- 1 - quick-start guide
- 1 - universal power adapter (NA/JP, UK, EU, ANZ)
- 2 - rubber feet
- 2 - mounting brackets
- 1 - USB-A to USB-B cable
- 4 - mounting screws
Package Depth (mm) 103 Package Height (mm) 98 Package Width (mm) 154 Package Quantity 1 Package Weight (g) 502 Packaging Description 4-Port Metal USB 3.0 Hub Packaging Description India 4-Port Metal USB 3.0 Hub Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-B (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 2 Connector 3 USB-C (5Gbps, 4.5W) Connector 3 (Quantity) 1 Connector 4 USB-A (7.5W Power Only) Connector 4 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2017-07-07 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Digital Content Due Date 2017-08-11 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FI,FR,IE,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology USB-C Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Development Completion Date 2017-07-21 Target Production Release 2017-07-21 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Mainstream
