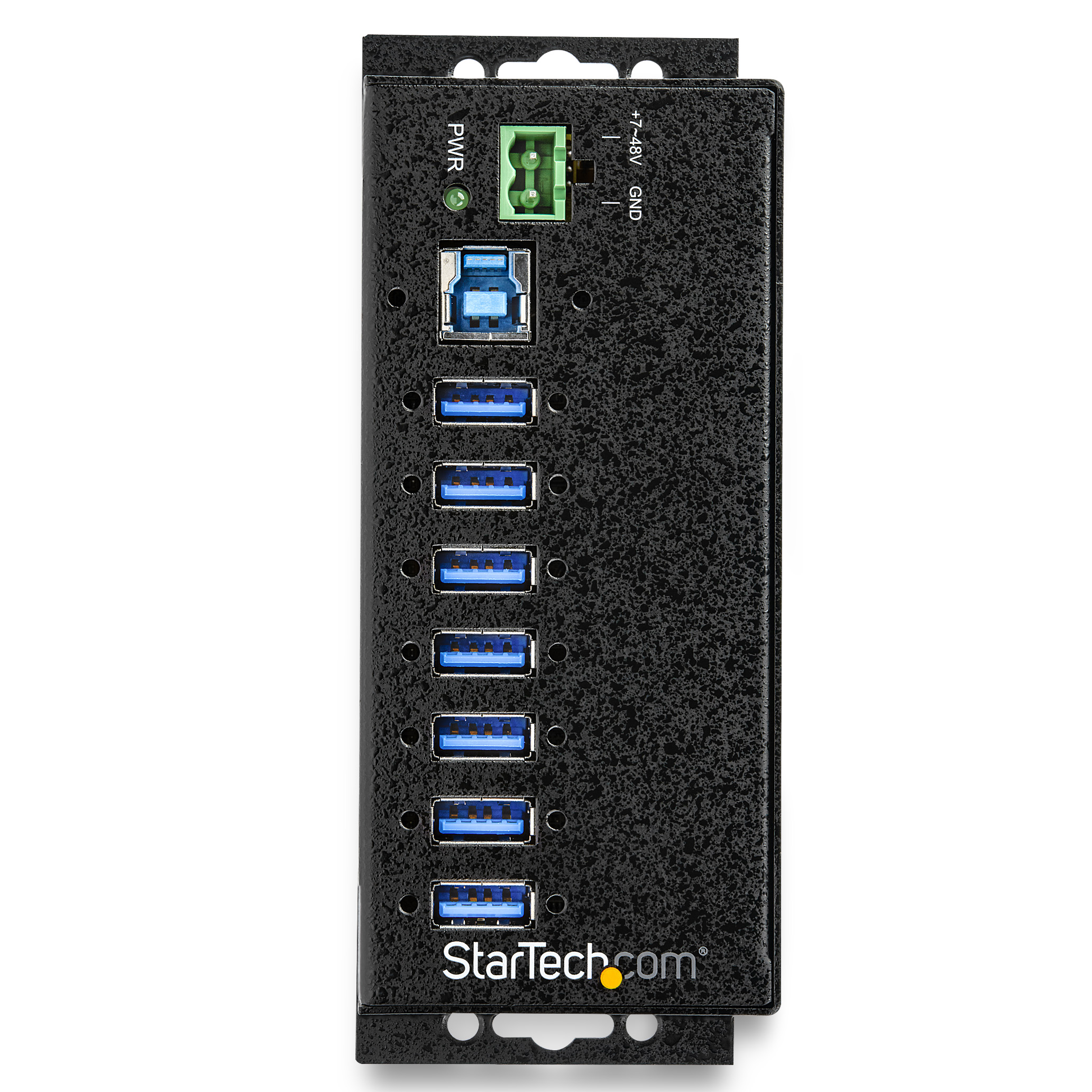

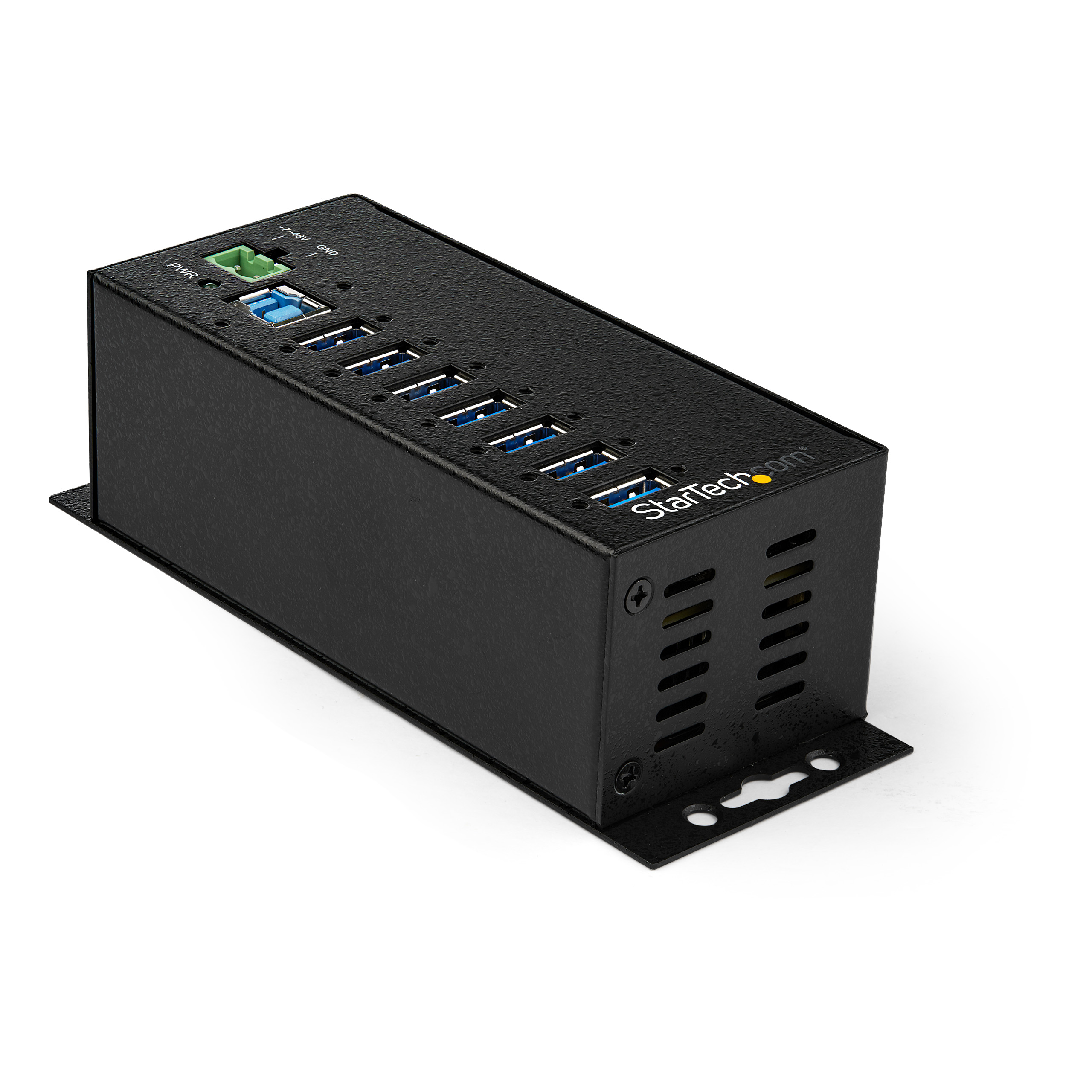

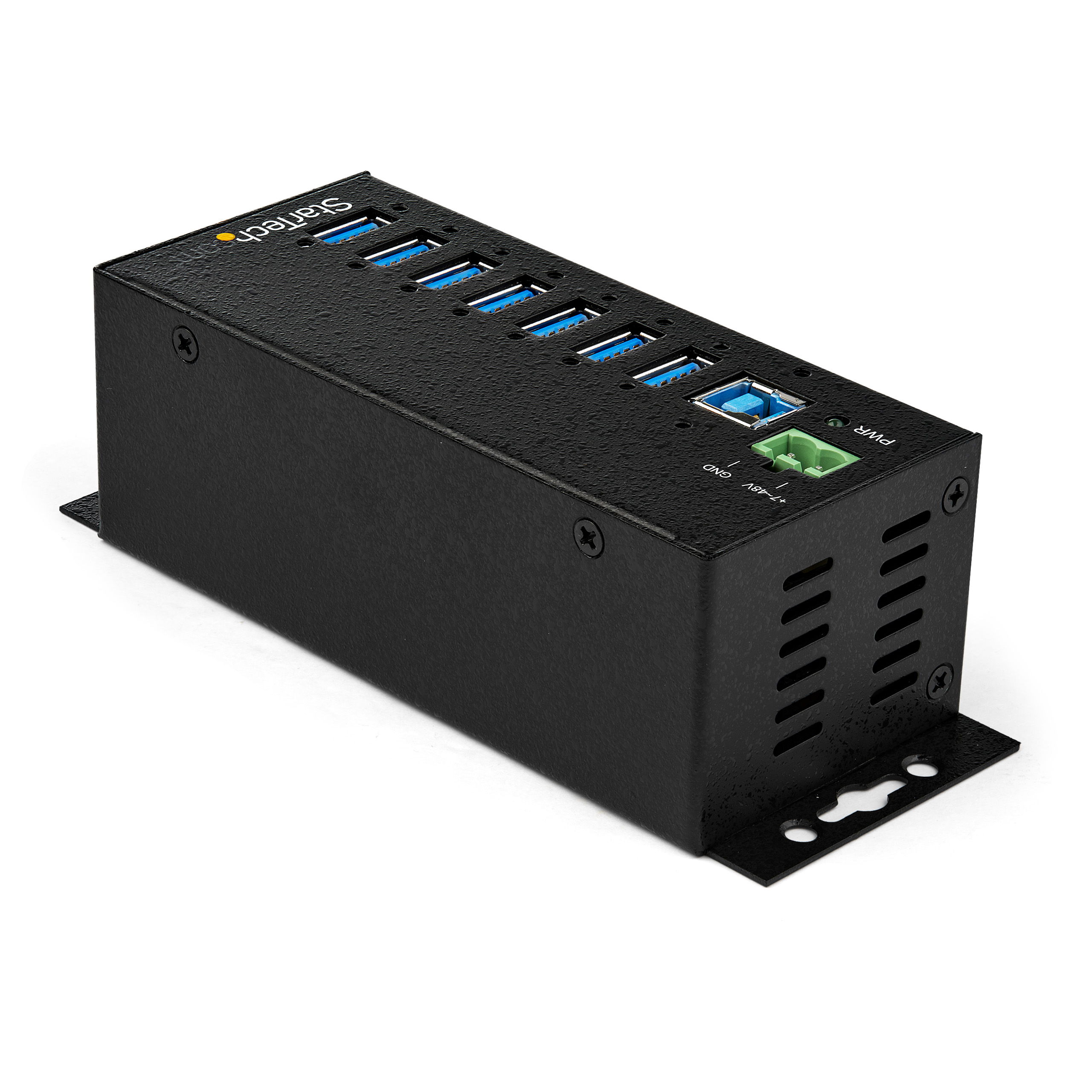

HB30A7AME
7 Port Industrial USB 3 1 Gen 1 HUB with ESD Protection
Industrial-Grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 5Gbps
Main Image
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 7 Port Industrial USB 3 1 Gen 1 HUB with ESD Protection Product Number HB30A7AME UPC 065030881876 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 Industrial USB Hubs Category Level 3 Industrial USB Hubs - 5Gbps Family Industrial USB Hubs - 5Gbps - 7-Port Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Ultra-Short) 7Pt Ind. USB3 Hub Product Title (Short) 7 Port USB 3.0 Hub Powered - Industrial Product Title (Medium) 7-Pt Industrial USB 3.0 Hub w/ Ext. Power Supply - ESD & 350W Surge Protection Product Title (Standard) 7 Port USB Hub w/ Power Adapter, Metal Industrial USB 3.0 Data Hub, Din Rail, Wall & Desk Mountable USB 5Gbps Hub, TAA Product Title (Long) 7-Port USB 3.0 Hub with Power Adapter - Metal Industrial USB-A Hub with ESD & 350W Surge Protection - Din/Wall/Desk Mountable - High Speed USB 3.2 Gen 1 (5Gbps) Hub - TAA Product Title (AMZ) 7-Port USB 3.0 Hub with Power Adapter - Metal Industrial USB-A Hub with ESD & 350W Surge Protection - Din/Wall/Desk Mountable - High Speed USB 3.0 (5Gbps) - Hub , TAA (HB30A7AME) Title Ingram (Part 1) 7-Port Industrial USB 3.0 Hub Title Ingram (Part 2) with External Power Adapter Website Product Headline Industrial-Grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 5Gbps Bullet 1 RUGGED & RELIABLE: With a metal housing, 15kV/8kV air/contact ESD protection & 350W surge protection this heavy duty USB 3.2 Gen 1 hub reliably connects 7 USB devices in harsh, industrial grade environments Bullet 2 MOUNTING OPTIONS: This mountable USB hub securely installs on/under a desk, to a wall or DIN rail using the built-in mounting ears & included DIN brackets, a 6ft (1.8 m) USB 3.2 Gen 1 cable is also included Bullet 3 POWER FLEXIBILITY: For unique power requirements the USB 3.2 Gen 1 hub supports a +7-48 volt DC range, powered via DC drop, LPS with a terminal block or by AC outlet with the included power supply adapter Bullet 4 POWER & CHARGE YOUR DEVICES: This USB 3.2 Gen 1 hub provides a total of 35W to power all downstream devices and can support BC 1.2 supplying up to 2.4A (12W) on any two ports based on available power Bullet 5 THE STARTECH.COM ADVANTAGE: StarTech.com offers a 2-year warranty and free lifetime technical support on this hub with a variety of USB cables available to connect downstream devices (sold separately) Bullets (Compact) Industrial USB 3.2 Gen 1 hub w/ rugged metal housing. 15kV/8kV ESD protection and 350W surge protection. Mountable to desk, wall or DIN rail. Powered +7-48 volt range, 35W max (shared). 7 USB 3.2 Gen 1 5Gbps ports. USB cable and AC adapter included. Bullets (Consolidated) Reliable industrial hub w/ ruggedized heavy duty metal housing 15kV/8kV ESD protection and 350W surge protection. - Hub is mountable under desk on wall or DIN rail. - 6ft (1.8m) USB 3.2 Gen 1 cable included. - Powered USB 3.2 Gen 1 hub w/ +7-48 volt DC range via DC drop LPS terminal block or AC outlet w/ included power supply adapter. - 7 USB 3.2 Gen 1 Superspeed 5Gbps ports transfer data and charge devices with 2.4A (12W) max power on 4 ports or a combination of lower power draw up to 35W max (shared). Marketing Copy Marketing Copy (No HTML) Website Search Keyword - 7 port powered usb hub
- 7 port usb 3.0 hub
- 7 port usb hub
- belkin usb hub
- c2g usb hub
- compact usb hub
- heavy duty usb hub
- industrial grade usb hub
- industrial usb 3.0 hub
- laptop hub
- laptop usb hub
- metal usb 3.0 hub
- mini usb hub
- multi port usb hub
- multi usb port
- portable usb hub
- ruggedized usb hub
- sabrent 7 port usb 3.0 hub
- tripp lite usb hub
- usb 3 hub
- usb 3.0 7 port hub
- usb 3.0 hub
- usb 3.0 hub with power
- usb 3.0 port hub
- usb 3.1 gen 1 hub
- usb hub
- usb hub 3.0
- usb hub for mac
- usb hub with individual switches
- usb hub with on/off switch
- usb hub with power switch
- usb hub with power switches
- usb hub with switches
- usb multiport
- usb port
- usb port hub
- usb power hub
- usb splitter
- usb splitter 3.0
- usb to usb
- usb to usb hub
- U360007IND
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- UL - Safety - Electrical - Canada / United States - Enhanced UL Mark
Special Notes - If connected to a USB 2.0 host port, performance may be limited
- This product is intended for use with terminal block power only – Standard AC adapter not available
System and Cable Requirements Host computer with an available USB 3.0 port Accessory Products - USB3CAB1M
- USB3CAB2M
- USB3SAB5M
- USB3SAB3BK
- USB3SAB6BK
- USB3SAB10BK
- ICUSB2321F
- PEXUSB3S44V
- PEXUSB3S7
- PEXUSB3S25
- PEXUSB3S4V
- PEXUSB3S24
- ITB20D3250
- USB2HAB6
Related Products - ST4300USBM
- ST4300USB3
- HBS304A24A
- ST4300U3C3
- ST7300USBME
- ST1030USBM
- ST7300U3M
- HB30A3A1CST
- HB30C3A1CST
- HB30C5A2CST
- ST7CU35122
- ST4200USBM
- ST7200USBM
- HB20A4AME
- HB20A7AME
Input Current 1.4A Input Voltage 100 - 240 AC Output Current 3.25A Output Voltage (V) 20V DC Power Consumption (In Watts) 65W Power Source AC Adapter Included Plug Type Terminal Block (2 Wire) Cable Length (mm) 2000 Color Black Extended Temperature Range Yes Humidity 5 to 95% RH Material Steel Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Steel Product Length (mm) 145.000 Product Width (mm) 55 Product Height (mm) 45 Product Weight (g) 326 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant Yes Device Power Consumption (In Watts) 41 Watts Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) ESD Protection - +/-15kV (Air)
- +/-8kV (Contact)

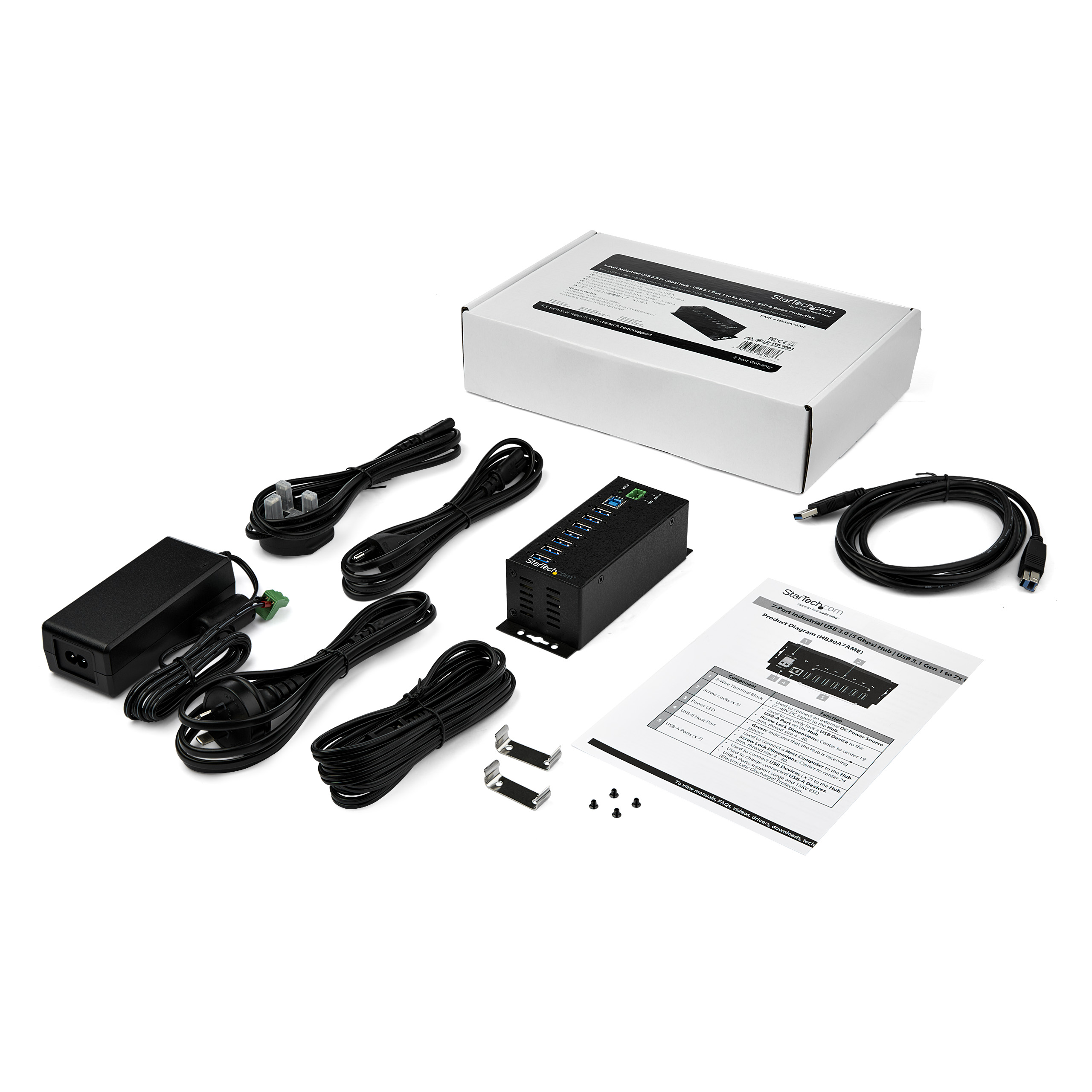

Maximum Data Transfer Rate 5 Gbps (USB 3.2 Gen 1) MTBF (hours) 126,106 Hours OS Compatibility OS Independent Surge Protection 350W on the DFP and UFP Total Available Power Output (In Watts) 35W UASP Support Yes USB Type and Rate USB 5Gbps Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID Genesys Logic - GL3523 Industry Standards Interface/Bridge USB 3.2 Gen 1 (5Gbps) Laptop Dock / USB Hub Fast-Charge Yes LED Indicators 1 - Power (Green) Mounting Options DIN Rail USB-C Device Port(s) No USB-C Host Connection No USB Port Type USB-A Carton Depth (mm) 390 Carton Height (mm) 313 Carton Quantity 14 Carton Weight Gross (g) 19310 Included in Package - 1 - USB Hub
- 1 - 6.6 ft [2 m] USB 3.0 Host Cable
- 1 - Power Adapter (NA/JP, ANZ, UK, EU)
- 2 - DIN Rail Brackets
- 4 - Mounting Screws
- 1 - Quick-Start Guide
Package Depth (mm) 183 Package Height (mm) 68 Package Width (mm) 293 Package Quantity 1 Package Weight (g) 1310 Packaging Description 7-Port USB 3.0 Industrial Hub - 7x USB-A Packaging Description India 7-Port USB 3.0 Industrial Hub - 7x USB-A Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 7 Connector 2 USB-B (5Gbps, 4.5W) Connector 2 (Quantity) 1 Connector 3 Terminal Block (2 Wire) Connector 3 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2019-07-26 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2019-08-09 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Development Completion Date 2019-07-26 Target Production Release 2019-07-26 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine
