HB30C3A1CFS
4 Port USB 3.0 C Hub - C to C and A - Power Adapt
Turn a USB Type-C port on your laptop into three USB Type-A charge-and-sync ports (5Gbps) and one USB Type-C port
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 4 Port USB 3.0 C Hub - C to C and A - Power Adapt Product Number HB30C3A1CFS UPC 065030862684 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Hubs Category Level 2 USB-C Hubs Category Level 3 USB-C External Powered Hubs - 5Gbps Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX004X Product Title (Ultra-Short) 4 Port USB 3.0 C Hub Product Title (Short) Hub USB C 4 Port C to C & A Power Adapt Product Title (Medium) 4 Port USB C Hub - USB-C to 1x C and 3x A - USB 3.0 Hub - Includes Power Adapter Product Title (Standard) USB C Hub – 4 Port USB-C to USB-A (3x) and USB-C (1x) – with Power Adapter – USB Type C Hub – Port Expander Product Title (Long) 4-Port USB-C Hub - USB-C to 1x USB-C and 3x USB-A - USB 3.0 Hub - Includes Power Adapter Product Title (AMZ) USB C Hub - 4 Port USB-C to USB-A (3x) and USB-C (1x) - with Power Adapter - USB Type C Hub - Port Expander (HB30C3A1CFS) Title Ingram (Part 1) 4Port USB C Hub - USB-C to C & Title Ingram (Part 2) A - USB 3.0 - w/ Power Adapter Website Product Headline Turn a USB Type-C port on your laptop into three USB Type-A charge-and-sync ports (5Gbps) and one USB Type-C port Bullet 1 Expand the connectivity of your USB-C enabled computer Bullet 2 Add both USB-C and USB-A ports to your USB-C port enabled laptop, MacBook, Chromebook, or desktop computer Bullet 3 USB bus-powered and includes optional power adapter (for self powering) Bullet 4 Compact design for easy portability Bullet 5 Thunderbolt 3 data port compatible Bullets (Compact) Turn a laptop's USB Type-C port into three USB A charge & sync ports (5Gbps) and one USB C port - 4 Port USB 3.0 Hub - USB-C to 1x USB-C & 3x USB-A - Includes Power Adapter - 3x USB-A fast-charge ports - Powered USB hub ideal for power hungry devices Bullets (Consolidated) Turn a USB Type-C port on your laptop into three USB A charge-and-sync ports (5Gbps) and one USB C port - 4 Port USB 3.0 Hub - USB-C to 1x USB-C and 3x USB-A - Includes Power Adapter - Powered USB hub ideal for power hungry devices such as external hard drives - 4 Port USB hub for computers/Chromebook/MacBook - Works with USB 3.0 and USB 2.0 devices/OS independent/Easy to install - 3x USB-A fast-charge ports - USB Multiport Hub/USB Type C Hub/USB Port Expander/USBC Marketing Copy Marketing Copy (No HTML) Applications - Connect and operate USB devices that require additional power, using the included power adapter
- Leverage the USB-C port on your MacBook or other laptop to expand your USB connection options to include both USB Type-A and USB Type-C
- Perfect for home, office, and hot-desk environments
- Carry the hub with you while you're traveling, and connect virtually any USB peripheral wherever you go
Website Search Keyword - USB 3.1 Gen 1 hub
- 4 Port USB 3.1 Gen 1 Hub
- 4-port USB 3.1 Gen 1 hub
- USB 3.1 Hub
- Type c hub
- USB type c hub
- USB-C hub
- Type C USB 3.1 Gen 1 Hub
- Type C USB 3.0 Hub
- MacBook Type C Hub
- MacBook USB 3.1 Gen 1 Type C Hub
- Chrome Pixel Type C Hub
- Chrome Pixel USB 3.1 Gen 1 Type C Hub
- MacBook USB 3.0 Type C Hub
- USB hub
- usb 3.0 hub
- Chrome Pixel USB 3.0 Type C Hub
- Portable Type C Hub
- Portable USB 3.0 Hub
- Portable USB 3.1 Hub
- Travel Type C Hub
- Travel USB 3.0 Hub
- Travel USB 3.1 Hub
- Compact Type C Hub
- Compact USB 3.0 Hub
- Compact USB 3.1 Hub
- Type c USB hub
- type c usb 3.1 hub
- USB-C usb 3.1 hub
- usb3 hub
- USB 3 Hub
- four port hub
- type-c hub
- USB 3.0 hub
- usb-c hub with power adapter
- usb type-c hub with power adapter
- self-powered usb 3.0 hub
- self-powered usb 3.0 hub with usb-c
- self-powered usb-c hub
- self-powered usb type-c hub
- desktop type c hub
- usb hub with fast charge
- usb 3.0 hub with fast charge
- fast charge usb hub
- Dell Latitude 11 5000 2-in-1
- Dell Latitude 11
- Dell Latitude 5000
- Dell Latitude
- Dell XPS 12
- Dell XPS
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes - All ports support USB based video adapters including the USB-C port. This hub does not support DP Alt Mode (DisplayPort™ Alt Mode) - non-USB based native video support over the USB Type-C port.
- The hub does not support DP Alt Mode or USB Power Delivery.
- When USB-charged devices are connected to the hub, the provided charge output depends on the number of devices connected, and the amount of power current each devices draws. The hub’s USB-C port does not support charging.
System and Cable Requirements Available USB Type-C port - USB 3.0 (5Gbps) Accessory Products - USB31CAADP
- USB2CB1M
- USB2AC1M
- US1GC30B
- USB2CUB1M
- S251BPU313
- S351BU313
Related Products - ST4300PBU3
- ST4300MINU3B
- ST4300MINU3W
- HB30C3A1CFB

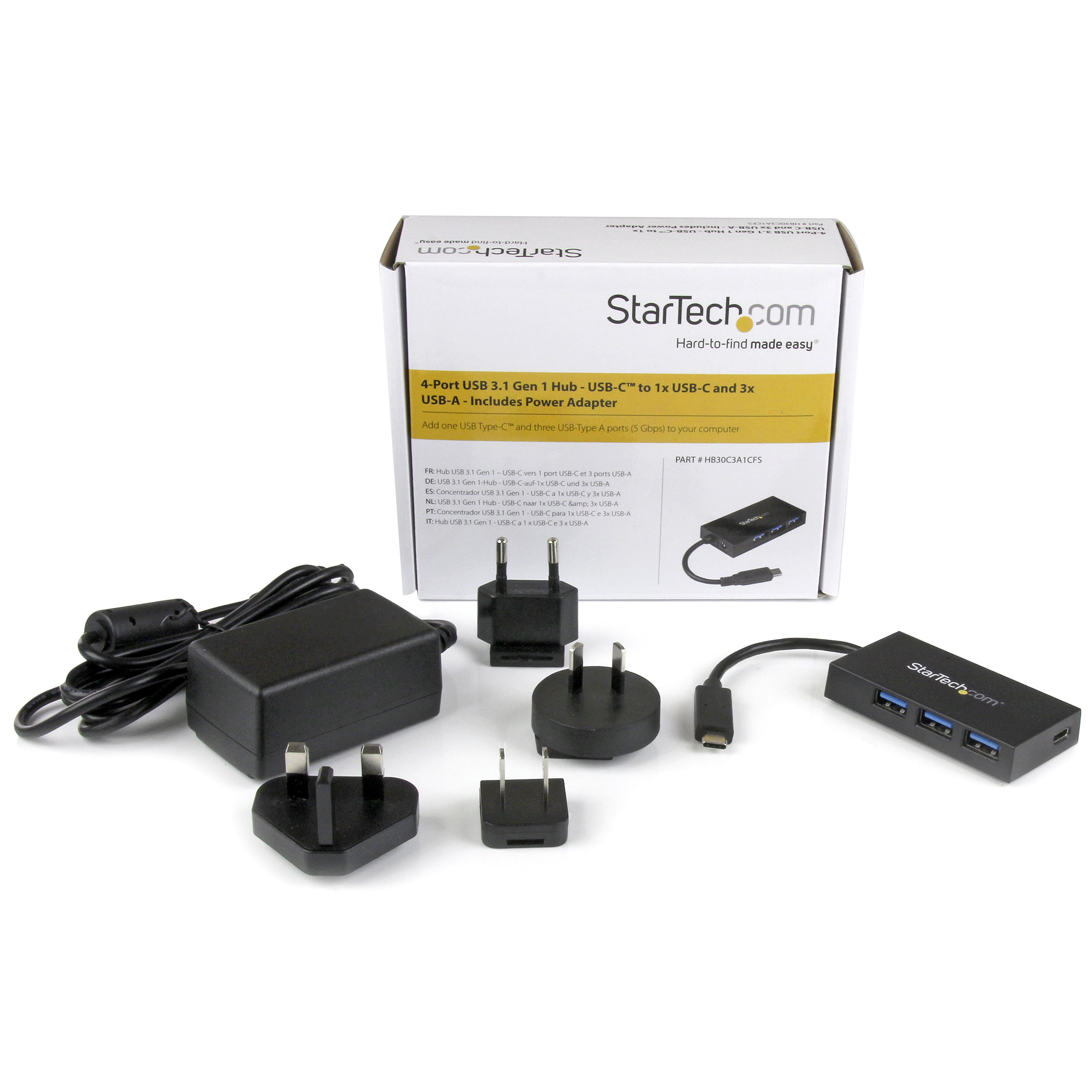

Input Current 1 A Input Voltage 100 - 240 AC Output Current 4 A Output Voltage (V) 5 DC Power Consumption (In Watts) 20 Power Delivery No PD Pass-Through Power Source AC Adapter Included Plug Type B Center Tip Polarity Positive Cable Length (mm) 114 Color Black Humidity 0%~90% RH (Non-condensing) Material Plastic Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 75.000 Product Width (mm) 40.000 Product Height (mm) 13.000 Product Weight (g) 30.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Fast Charge Ports (BC 1.2) Yes Maximum Data Transfer Rate 5 Gbps OS Compatibility OS Independent USB Type and Rate USB 3.0 (5Gbps) Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID Genesys Logic - GL3523-S Ethernet Port No Industry Standards Interface/Bridge USB 3.2 Gen 1 (5Gbps) Laptop Dock / USB Hub Fast-Charge Yes USB-C Device Port(s) Yes USB-C Host Connection Yes Carton Depth (mm) 283 Carton Height (mm) 311 Carton Quantity 20 Carton Weight Gross (g) 7520 Included in Package - 1 - USB 3.0 hub
- 1 - universal power adapter (NA/EU/UK/AU)
Package Depth (mm) 164 Package Height (mm) 51 Package Width (mm) 134 Package Quantity 1 Package Weight (g) 343 Packaging Description 4-Port USB 3.0 Hub - USB-C to 3x USB-A and 1x USB-C Packaging Description India 4-Port USB 3.0 Hub - USB-C to 3x USB-A and 1x USB-C Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (7.5W Power Only) Connector 1 (Quantity) 3 Connector 2 USB-C (5Gbps, 4.5W) Connector 2 (Quantity) 1 Connector 3 USB-C (5Gbps, 4.5W) Connector 3 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2015-07-31 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,FR,IE,IT,JP,NL,NZ,PE,SE,UK,US Primary Technology USB-C Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Production Release 2015-10-30 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle None
