HB30C3A1CST
4Port USB C Hub USB C to C A USB 3 0 Metal
Add three USB Type-A ports and one USB Type-C port to your USB-C equipped computer, using this mountable USB 3.2 Gen 1 (5Gbps) hub
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 4Port USB C Hub USB C to C A USB 3 0 Metal Product Number HB30C3A1CST UPC 065030867900 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 USB-C Hubs Category Level 3 USB-C External Powered Hubs - 5Gbps Family USB-C External Powered Hubs - 5Gbps - 4-Port - C/A Mix Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Ultra-Short) 4 Port USB 3.0 C Hub Product Title (Short) 4 Port USB C Hub 5Gbps 1 USB-C/3 USB-A Product Title (Medium) 4 Port USB-C Hub - Metal - USB C to 3x USB-A and 1x USB-C - USB 3.0 - 5Gbps Product Title (Standard) 4 Port USB-C Hub - 1x USB-C & 3x USB-A - Mountable Metal USB Type-C Hub - 5Gbps USB 3.2 Gen 1 - Self Powered - BC 1.2 Product Title (Long) 4 Port USB C Hub - USB Type-C to 1x USB-C/3x USB-A - Commercial Metal USB 3.0 Hub - SuperSpeed USB 3.2 Gen 1 (5Gbps) - Self Powered - BC1.2 Fast Charge - Mountable/Rugged Product Title (AMZ) 4 Port USB C Hub - USB Type-C to 1x USB-C/3x USB-A - Commercial Metal USB 3.0 Hub - SuperSpeed USB 3.0 (5Gbps) - Self Powered - BC1.2 Fast Charge - Mountable/Rugged (HB30C3A1CST) Title Ingram (Part 1) 4Port USB-C Hub - USB-C to C & Title Ingram (Part 2) A - USB 3.0 Hub - Metal Website Product Headline Add three USB Type-A ports and one USB Type-C port to your USB-C equipped computer, using this mountable USB 3.2 Gen 1 (5Gbps) hub Bullet 1 4 PORT USB-C HUB: Expand the connectivity of a USB Type-C laptop/desktop by adding 3x USB-A & 1x USB-C ports with this SuperSpeed USB 3.2 Gen 1 (5Gbps) adapter hub; Incl 3ft (1m) USB-C host cable; Bullet 2 CHARGE & SYNC: Self-powered USB hub w/Incl 24W power supply (shared among all ports); USB-A ports provide up to 12W (BC 1.2); Supports Charging Downstream Port (CDP), and Dedicated Charge Port (DCP) modes, charging devices with or without a PC connected Bullet 3 MOUNTABLE: Using incl mounting bracket, this compact metal USB 3.2 Gen 1 hub is ideal for commercial environments; Capable of being securely wall or desk mounted w/ screws; Incl. rubber feet for better grip Bullet 4 THOUGHTFUL DESIGN: Easily disconnect all devices through main power switch on hub; Power LEDs for status identification; Easy port access with top facing USB-A ports & side-panel USB-C port Bullet 5 WIDE COMPATIBILITY: Rugged USB hub is OS independent, works w/ Windows, macOS, Linux, iPadOS, Chrome OS; USB 3.0/2.0/1.0 compatible; Supports SSD/thumb drives, keyboards, mice, web cams, scanner, printers Bullets (Compact) 4-Port USB-C hub - USB Type-C laptop/desktop to 3 USB-A (1x BC 1.2) and 1 USB-C - 5Gbps USB 3.2 Gen 1 - Incl 24W power adapter/USB-C host cable - Mountable self-powered USB 3.2 Gen 1 hub - Rugged metal housing - Power switch - OS independent Bullets (Consolidated) Compact 4-Port USB-C hub with SuperSpeed 5Gbps (USB 3.2 Gen 1) | USB Type-C laptop/desktop to 3x USB-A and 1x USB-C - Incl 24W power adapter (shared w/all ports) | USB-A dedicated charging port up to 12W (BC 1.2) | Charge device with or without PC - Self-powered rugged metal USB 3.2 Gen 1 hub ideal for commercial environments | Wall/desk mountable (bracket incl) - Main power switch | Status LEDs - Supports SSD/thumb drives/keyboards/web cams/scanners/printers - OS independent | Works w/ USB 2.0 Marketing Copy Applications - Installation in locations where USB 3.2 Gen 1 ports need to be securely mounted to a surface, such as on a wall or under a desk
- Upgrade and expand the connection capabilities of your MacBook, Ultrabook™, laptop, or desktop
- Deploy in hot-desk environments to provide USB hub access for multiple devices
Website Search Keyword - 4 port hub
- 4 port powered usb hub
- 4 port usb 3 hub
- 4 port usb 3.0 hub
- 4 port usb c hub
- 4 port usb hub
- desk mount usb hub
- desk mounted usb hub
- desk usb hub
- in desk usb 3.0 hub
- industrial usb 3.0 hub
- industrial usb hub
- laptop usb hub
- metal usb 3.0 hub
- Mountable 4 Port usb hub
- mountable usb 3.0 hub
- mountable usb hub
- powered usb 3.0 hub
- powered usb hub
- rugged usb hub
- usb 3 hub
- usb 3 hub 4 port
- usb 3.0 4 port hub
- usb 3.0 desk hub
- usb 3.0 hub
- usb 3.0 hub 4 port
- usb 3.0 type b
- usb c port expander
- usb c to a
- usb desk hub
- usb hub
- usb hub 3.0 powered
- usb hub 4 port
- usb hub desk mount
- usb hub for laptop
- usb hub laptop
- usb hub wall mount
- usb hub with cable
- usb port expander
- usb port hub
- usb powered hub
- usb type c to type a
- usb wall hub
- usb-c hub
- wall mounted usb hub
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes System and Cable Requirements Available USB Type-C port - USB 3.0 (5Gbps) Accessory Products - USB3SAA3MBK
- USB3SAA6BK
- USB3SAB6BK
- USB3SAB10BK
- SVA12M2NEUA
- USB315CB2M
- USB315CC2M
- USB315AC1M
- SVA12M5NA
Related Products - HB30C3A1CFS
- HB30C3A1CFB
- HB30C3A1GE
- ST4300PBU3
- ST4300MINU3B
- HB30C4ABW
- HB30C3APDW
- HB30C5A2CST
Constrained SKU Alternatives (Limited Stock) HB30C5A2CST Input Current 0.6 A Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 12V DC Power Consumption (In Watts) 24 Power Delivery No PD Pass-Through Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Cable Length (mm) 1022.35 Color Black Humidity 20~80% RH Material Aluminum Operating Temperature 5°C to 35°C (41°F to 95°F) Primary Material Aluminum Product Length (mm) 100.000 Product Width (mm) 60.000 Product Height (mm) 26.000 Product Weight (g) 137.000 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant No Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Fast Charge Ports (BC 1.2) Yes Maximum Data Transfer Rate 5 Gbps (USB 3.2 Gen 1) OS Compatibility OS Independent USB Type and Rate USB 5Gbps Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID Realtek - RTS5411 Ethernet Port No Industry Standards Interface/Bridge USB 3.2 Gen 1 (5Gbps) Laptop Dock / USB Hub Fast-Charge Yes LED Indicators - 1 - Power
- 4 - Hub Port Connection

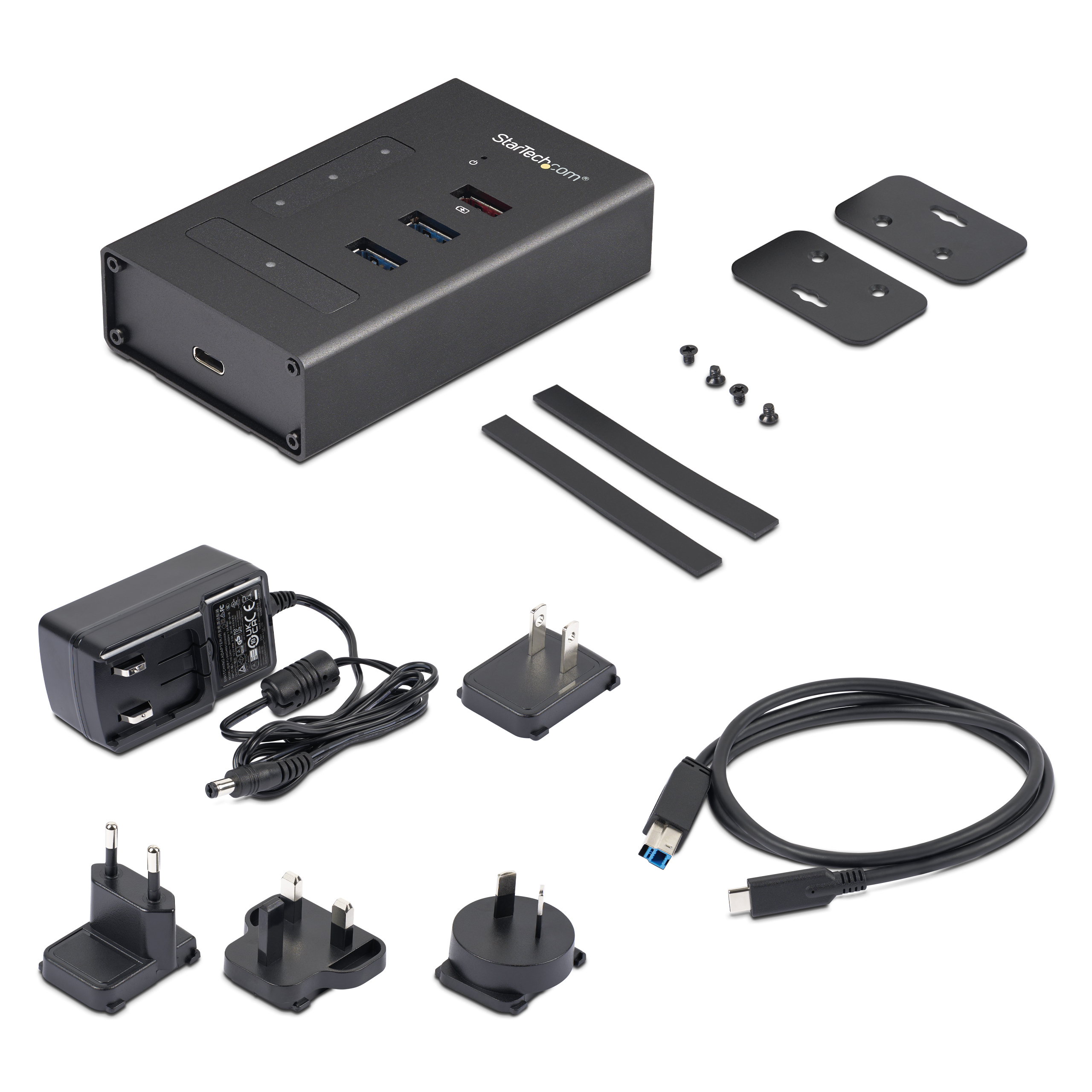

USB-C Device Port(s) Yes USB-C Host Connection Yes Carton Depth (mm) 322 Carton Height (mm) 336 Carton Quantity 18 Carton Weight Gross (g) 10234 Included in Package - 1 - USB-C hub
- 1 - universal power adapter (NA/JP, UK, EU, ANZ)
- 1 - USB-C to USB-B cable
- 2 - rubber feet
- 2 - mounting brackets
- 4 - mounting screws
- 1 - quick-start guide
Package Depth (mm) 103 Package Height (mm) 96 Package Width (mm) 153 Package Quantity 1 Package Weight (g) 518 Packaging Description 4-Port Metal USB 3.0 Hub Packaging Description India 4-Port Metal USB 3.0 Hub Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-B (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 2 Connector 3 USB-C (5Gbps, 4.5W) Connector 3 (Quantity) 1 Connector 4 USB-A (7.5W Power Only) Connector 4 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2017-07-07 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2017-08-11 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FI,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology USB-C Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Development Completion Date 2017-07-21 Target Production Release 2017-07-21 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Legacy
