HB30C3A1GE
3 Port USB C Hub w GbE Power C to A USB 3 0
Turn a USB Type-C port on your laptop into three USB Type-A ports (5Gbps) and one Gigabit Ethernet port
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Quick-Start Guide
Product Name 3 Port USB C Hub w GbE Power C to A USB 3 0 Product Number HB30C3A1GE UPC 065030864206 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 USB-C Hubs Category Level 3 USB-C Multifunction Hubs - 5Gbps Family USB-C Multifunction Hubs - 5Gbps - with Ethernet Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX052X Quick-Start Guide Driver Product Title (Ultra-Short) 3 Port USB 3.0 C Hub Product Title (Short) Hub USB C 3 Port GbE C to A, Power Adapt Product Title (Medium) 3 Port USB C Hub w/ Gigabit Ethernet - C to 3x A - USB 3.0 Hub w/ Power Adapter Product Title (Standard) USB-C to Ethernet Adapter – Gigabit – 3 Port USB C to USB Hub and Power Adapter – Thunderbolt 3 Compatible, TAA Product Title (Long) 3-Port USB-C Hub with Gigabit Ethernet - USB-C to 3x USB-A - USB 3.0 (5Gbps) - Includes Power Adapter - TAA Product Title (AMZ) 3 Port USB C Hub with Ethernet - USB-C to 3x USB-A w/ Power Adapter & Gigabit Ethernet - Thunderbolt 3 Compatible - USB C Network Adapter , TAA (HB30C3A1GE) Title Ingram (Part 1) 3Port USB C Hub w/ GbE - USB Title Ingram (Part 2) C to 3x A - USB 3.0 Hub w/ Power Website Product Headline Turn a USB Type-C port on your laptop into three USB Type-A ports (5Gbps) and one Gigabit Ethernet port Bullet 1 Expand your laptop’s connectivity through USB-C by adding three USB-A ports (5Gbps) and a GbE RJ45 port Bullet 2 Supports Wake-On-LAN, Energy-Efficient Ethernet, jumbo frames, full duplex flow control, VLAN tagging, and layer 2 priority encoding Bullet 3 Compact, small-footprint design makes it perfect for travel, or for desktop placement Bullet 4 Built-in, extended length (30 cm) USB Type-C cable, for flexible desk placement options Bullet 5 Included power adapter ensures your connected devices are fully powered and operational Bullets (Compact) Turn a laptop's USB Type C port into 3x USB Type A ports (5Gbps) & 1x Gigabit Ethernet port - 3 Port USB 3.0 Hub with GbE - Includes Power Adapter - Powered USB Hub - Connect simultaneously to both a network and USB peripherals - USB C to USB Adapter Bullets (Consolidated) Turn your laptop's USB C port into 3x USB A ports (5Gbps) and 1x Gigabit Ethernet port - 3 Port USB 3.2 Gen 1 Hub with USB-C and GbE - Includes Power Adapter - Built-in extended-length USBC cable - Place the hub where you need it - Use with Dell XPS, MacBook Pro, Chromebook Pixel, or other MacOS or Windows based laptop or tablet - Perfect for travel or desktop placement - Powered USB Hub/USB Type-C Hub/Port Expander/USB Type C to Ethernet Marketing Copy Marketing Copy (No HTML) Applications - Avoid having to use multiple adapters, and use this multiport hub to connect both USB peripherals and a network device to your USB-C equipped laptop, tablet, Chromebook, Ultrabook™ or MacBook
- Add wired Internet connectivity to a computer in settings where Wi-Fi® isn’t available
- Flexible hub placement options with an extended-length cable, so you can connect a wide variety of peripherals at home or in the office
Website Search Keyword - USB 3.0 hub
- USB 3.1 Gen 1 hub
- USB 3.1 Hub
- Type C USB 3.1 Gen 1 Hub
- Type C USB 3.0 Hub
- MacBook Type C Hub
- MacBook USB 3.1 Gen 1 Type C Hub
- Chrome Pixel Type C Hub
- Chrome Pixel USB 3.1 Gen 1 Type C Hub
- MacBook USB 3.0 Type C Hub
- USB hub
- Chrome Pixel USB 3.0 Type C Hub
- Portable Type C Hub
- Portable USB 3.0 Hub
- Travel Type C Hub
- Travel USB 3.0 Hub
- Travel USB 3.1 Hub
- Compact Type C Hub
- Compact USB 3.0 Hub
- Compact USB 3.1 Hub
- Type c USB hub
- type c usb 3.1 hub
- USB-C usb 3.1 hub
- usb3 hub
- USB 3 Hub
- type-c hub
- usb-c hub with power adapter
- usb type-c hub with power adapter
- self-powered usb 3.0 hub
- self-powered usb 3.0 hub with usb-c
- self-powered usb-c hub
- self-powered usb type-c hub
- desktop type c hub
- USB hub plus gigabit ethernet
- usb 3.0 hub with gigabit ethernet
- usb 3.0 gigabit ethernet
- gigabit ethernet adapater
- gbe adapter
- usb gigabit ethernet adapter
- usb gbe adapater
- usb combo hub
- usb 3.0 combo hub
- usb 3.1 combo hub
- usb 3.1 gen 1 combo hub
- MacBook hub
- Chromebook hub
- Ultrabook hub
- chromebook
- chromebook pixel
- dell xps 12
- dell latitude
- maxbook air
- 5000 2-in-1
- surface pro
- surface
- microsoft surface
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Special Notes The hub does not support DisplayPort Alt Mode, or USB Power Delivery System and Cable Requirements Available USB Type-C port - USB 3.0 (5Gbps) Accessory Products - PEXUSB311A1C
- PEXUSB312C
- USB31AC1M
- USB2AC1M
- 45PATCH15OR
- 45PATCH25BK
- DS51002
- S3510BMU33T
Related Products - ST3300GU3B
- ST3300G3UA
- ST3300U3S
- US1GC301AU
- US1GC30B
- US1GC30W
- US1GC30A
- HB30C3A1CFB
- HB30C3A1CFS
- HB30C3A1GEA
Input Current 0.5 A Input Voltage 100 - 240 AC Output Current 2 A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 Power Delivery No PD Pass-Through Power Source AC Adapter Included Plug Type H Center Tip Polarity Positive Cable Length (mm) 300 Color Black Humidity 0%~85% RH (Non-condensing) Material Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Plastic Product Length (mm) 87.000 Product Width (mm) 45.000 Product Height (mm) 14.000 Product Weight (g) 50.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Auto MDIX Yes Auto-Negotiation Yes Compatible Networks 10/100/1000 Mbps Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Fast Charge Ports (BC 1.2) No Flow Control Full duplex flow control Full Duplex Support Yes Jumbo Frame Support 4K max. Maximum Data Transfer Rate OS Compatibility - Windows 8
- Windows 10
- Windows Server 2012
- Chrome OS
- Windows 7
- macOS Sierra (10.12)
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- Windows Server 2022
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- Ubuntu
- macOS Tahoe (26.0)
- Windows Server 2025
USB Type and Rate USB 5Gbps Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID Ethernet Port Yes Industry Standards - IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- USB 3.0 - Backward compatible with USB 2.0 and 1.1
- IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3x Flow Control, 802.1q VLAN Tagging, 802.1p Layer 2 Priority Encoding
Interface/Bridge - USB 3.2 Gen 1 (5Gbps)
- RJ45 (Gigabit Ethernet)
Laptop Dock / USB Hub Fast-Charge No LED Indicators - 1 - Link
- 1 - Activity

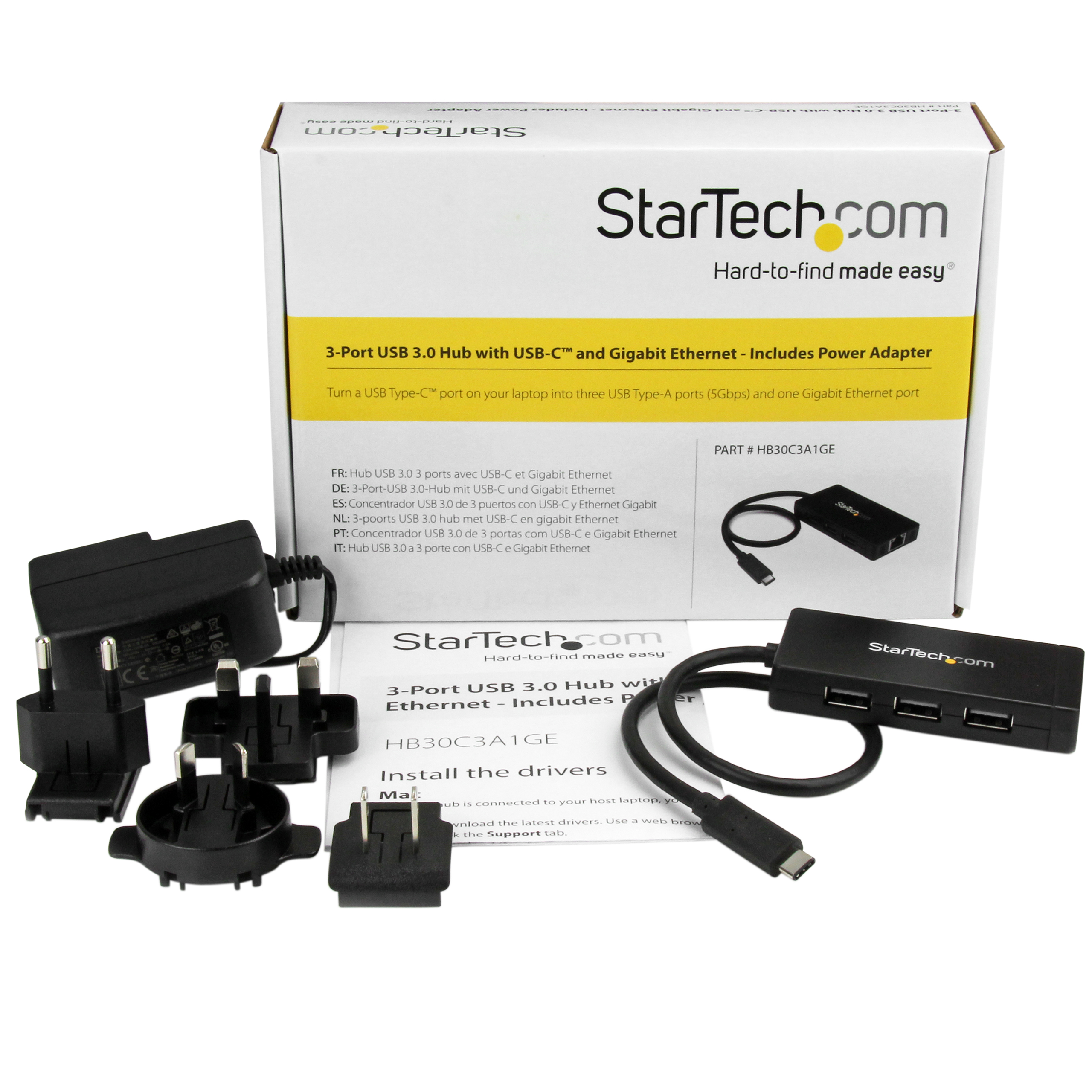

USB-C Device Port(s) No USB-C Host Connection Yes Carton Depth (mm) 459 Carton Height (mm) 309 Carton Quantity 20 Carton Weight Gross (g) 7600 Included in Package - 1 - 3-port USB 3.0 hub plus GbE
- 1 - universal power adapter (NA/JP, EU, UK, ANZ)
Package Depth (mm) 220 Package Height (mm) 56 Package Width (mm) 155 Package Quantity 1 Package Weight (g) 350 Packaging Description 3-Port USB 3.0 Hub with USB-C and Gigabit Ethernet Packaging Description India 3-Port USB 3.0 Hub with USB-C and Gigabit Ethernet Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 3 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 USB-C (5Gbps, 4.5W) Connector 3 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology USB-C Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Production Release 2016-03-15 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Mainstream
