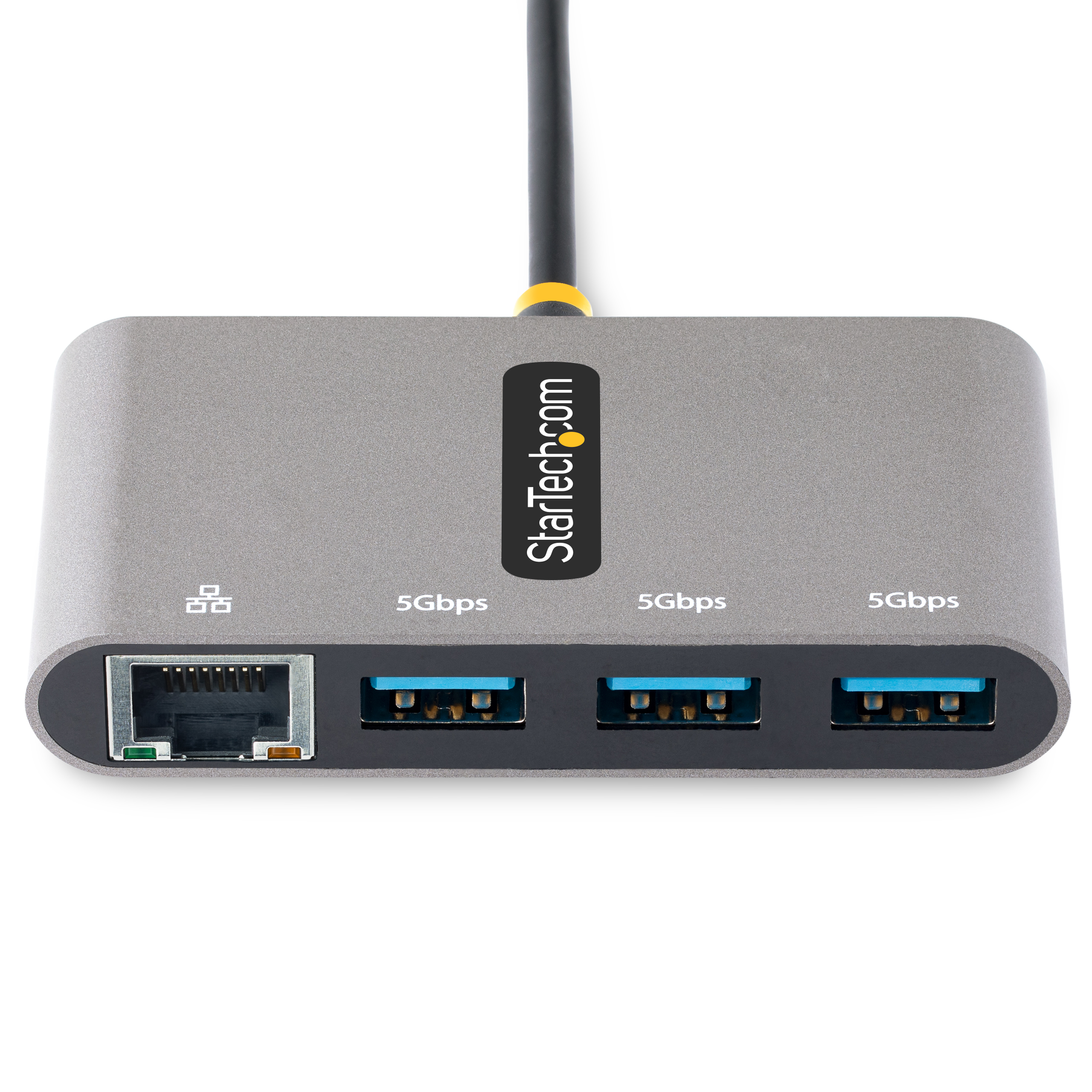

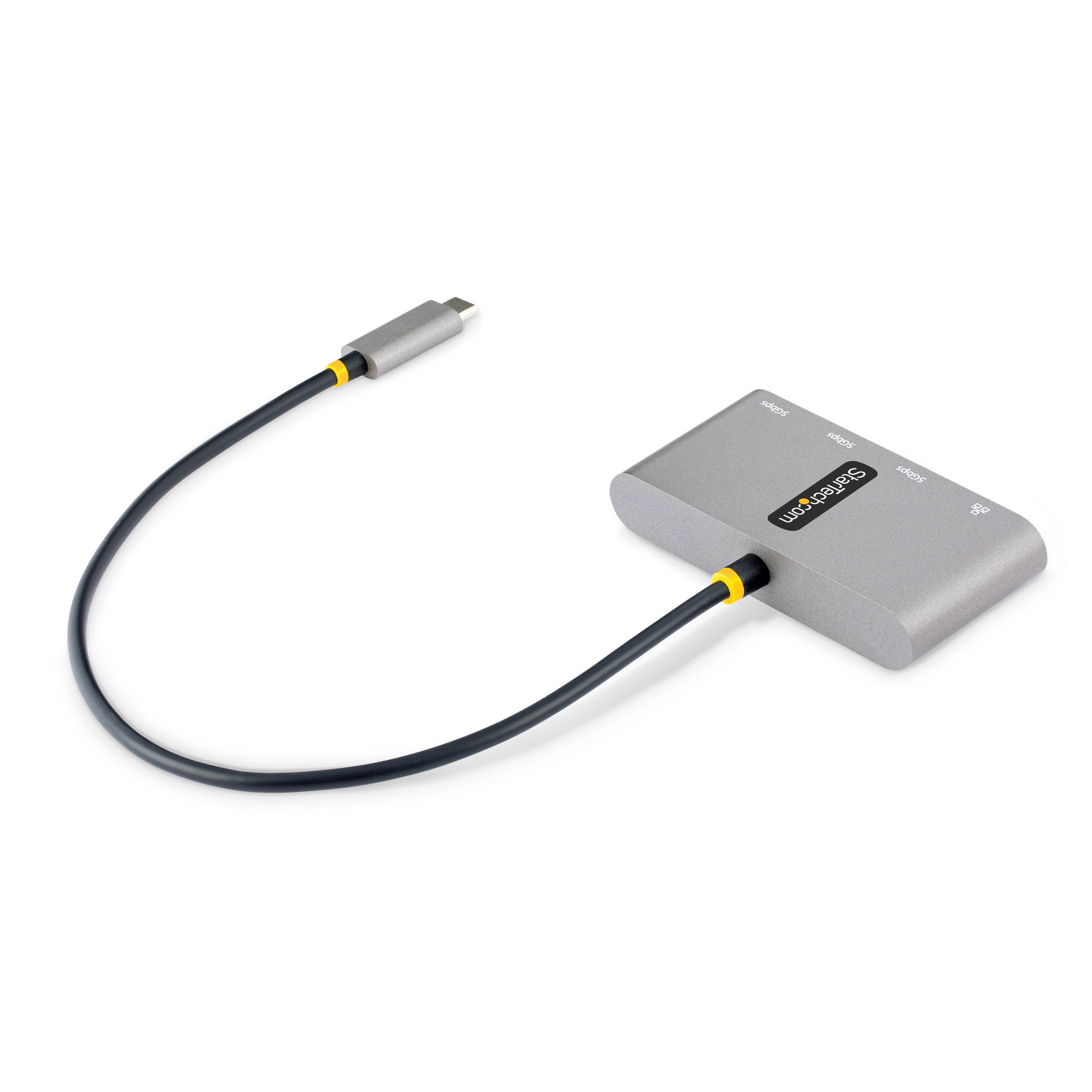

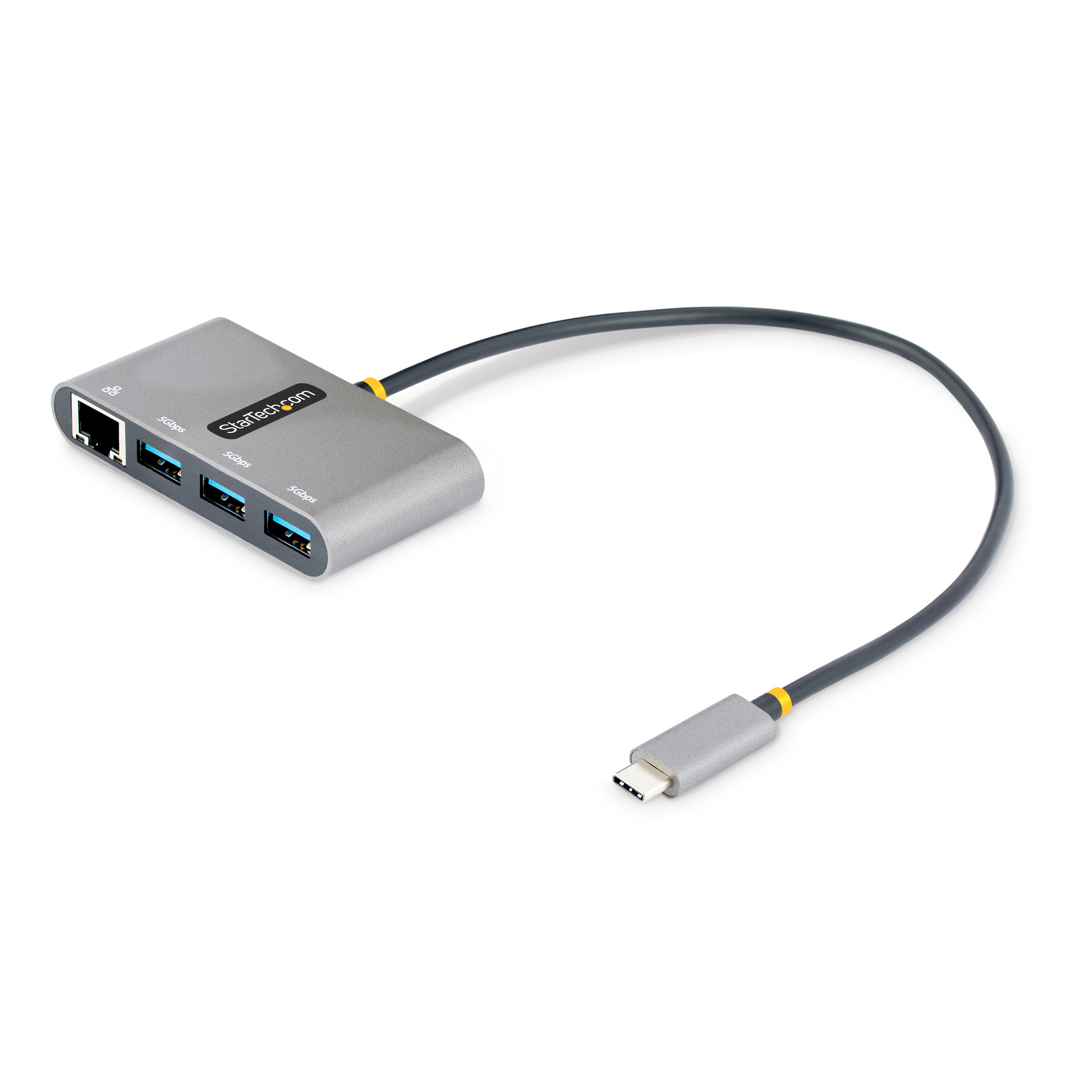

HB30C3A1GEA2

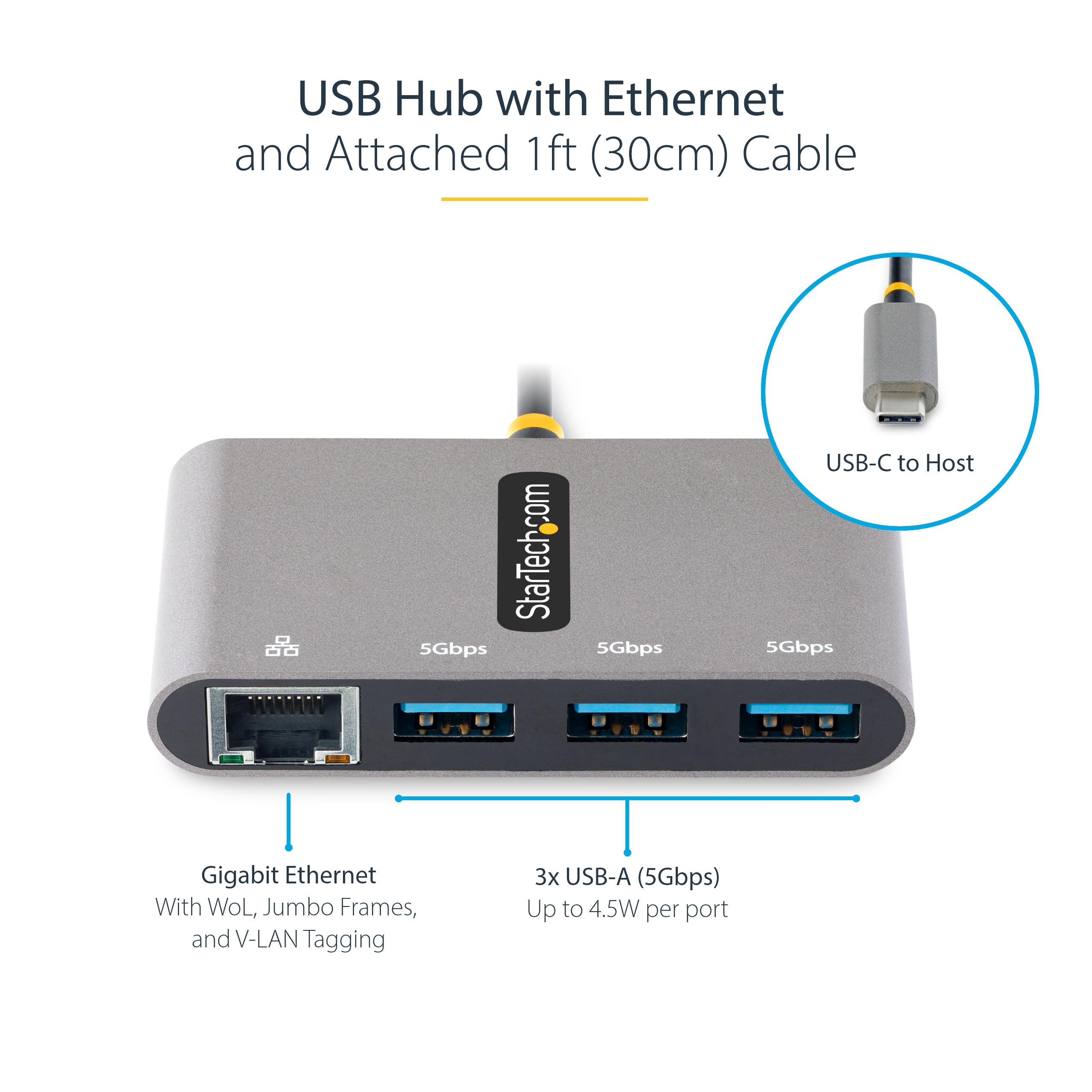

3-Port USB-C Hub with Gigabit Ethernet - USB-C to 3x USB-A -

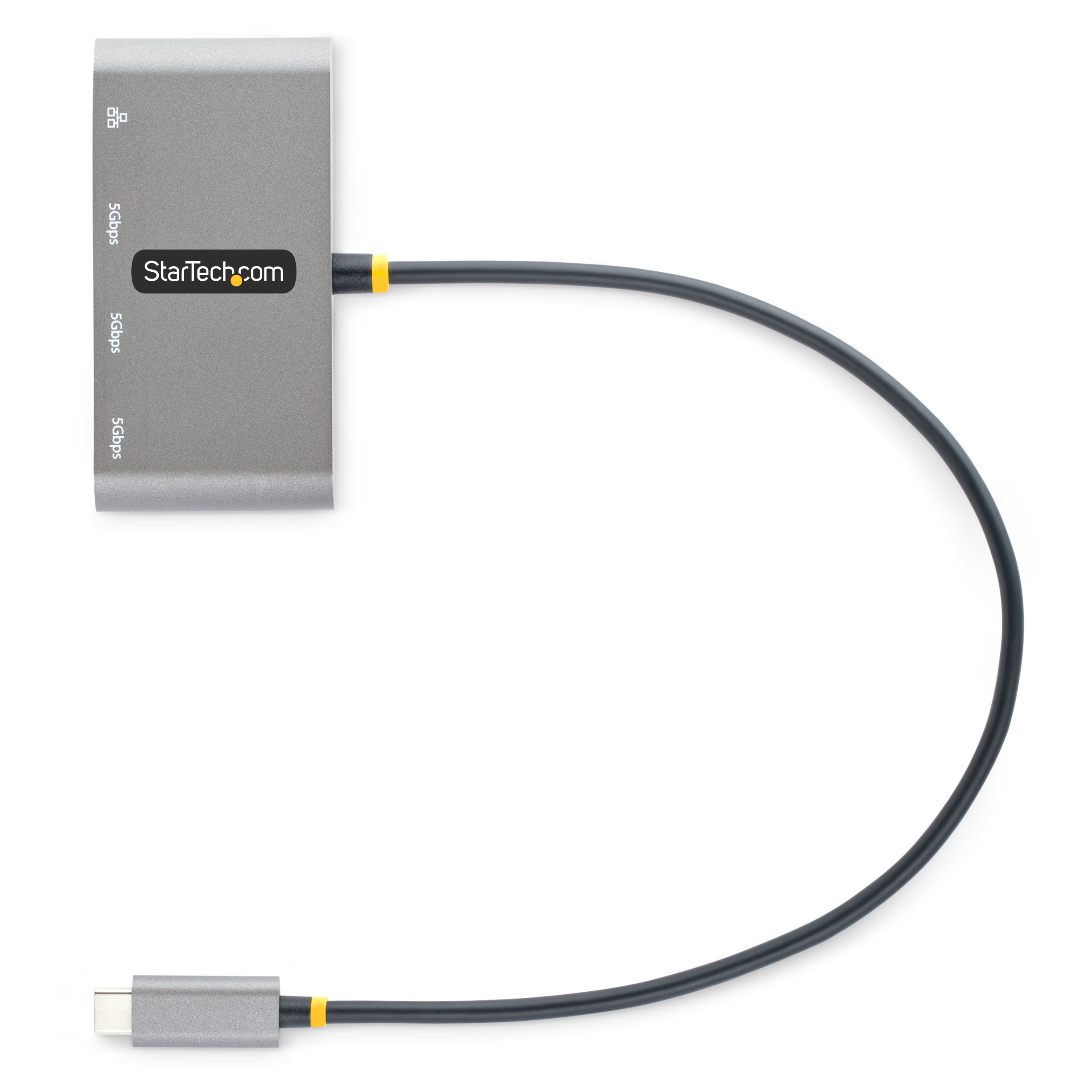

10/100/1000Mbps Ethernet | USB Type-C to 3x USB Type-A | USB 3.2 Gen 1 (5Gbps) | 1ft (30cm) Built-In Host Cable
Main Image
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Video Link YouTube
Product Name 3-Port USB-C Hub with Gigabit Ethernet - USB-C to 3x USB-A - Product Number HB30C3A1GEA2 UPC 065030897709 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 USB-C Hubs Category Level 3 USB-C Multifunction Hubs - 5Gbps Family USB-C Multifunction Hubs - 5Gbps - with Ethernet Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX190X Product Title (Ultra-Short) 3-Pt USB-C Hub w/GbE Product Title (Short) 3-Port USB-C Hub with Ethernet, Portable Product Title (Medium) 3-Port USB-C Hub with Ethernet, 3x USB-A 3.0 5Gbps, Gigabit Ethernet, Bus-Power Product Title (Standard) 3-Port USB-C Hub with Ethernet, 3x USB-A, Gigabit Ethernet, USB 3.0 5Gbps, Bus-Powered, Portable Laptop USB Type-C Hub w/ GbE Product Title (Long) 3-Port USB-C Hub with Ethernet - 3x USB-A - Gigabit Ethernet - USB 3.0 5Gbps - Bus-Powered - 1ft/30cm Long USB Type-C Host Cable - GbE - Portable USB-C to USB-A Hub Product Title (AMZ) 3-Port USB-C Hub with Ethernet - 3x USB-A - Gigabit Ethernet - USB 3.0 (5Gbps) - Bus-Powered - 1ft/30cm Long USB Type-C Host Cable - GbE - Portable USB-C to USB-A Splitter (HB30C3A1GEA2) Title Ingram (Part 1) 3-Port USB-C Hub with Gigabit Title Ingram (Part 2) Ethernet, Portable Laptop Hub Website Product Headline 10/100/1000Mbps Ethernet | USB Type-C to 3x USB Type-A | USB 3.2 Gen 1 (5Gbps) | 1ft (30cm) Built-In Host Cable Bullet 1 USB HUB WITH ETHERNET: USB 3.2 Gen 1 (5Gbps) expansion hub features a USB-C host connector, 3x USB-A ports, and GbE - Each USB port can provide up to 4.5W dependent on bus power provided by laptop/computer, with overcurrent protection on downstream ports Bullet 2 GIGABIT ETHERNET: The USB hub features a built-in GbE adapter to provide the reliability and security of wired Ethernet - The Ethernet controller is fully compatible with IEEE 802.3u/ab standards and supports WoL, Jumbo Frames, and V-LAN Tagging Bullet 3 COMPATIBILITY: Supports all major operating systems, incl. Windows, macOS, Linux, iPadOS, ChromeOS, Android - Compatible w/ Thunderbolt 3/4 & USB4 host devices such as MacBook (Intel/M1/M2), Lenovo X1 Carbon, Dell XPS, Microsoft Surface - Works w/USB 2.0 Bullet 4 EXTRA LONG CABLE: Bus-powered USB Hub with compact housing and extra long attached 1ft. (30cm) host cable for longer reach, and to reduce connector strain when used with laptops risers or 2-in-1 devices (such as Surface Pro 7, iPad Pro, HP Elite X2) Bullet 5 CONNECTIVITY TOOLS: Optimize the performance and security of this USB-C hub, using the included MAC Address Changer, USB Event Monitoring and Wi-Fi Auto Switch utilities (available for download) Bullets (Compact) Portable Bus-Powered USB-C Expansion Hub with 3x USB-A ports and Gb Ethernet network (WoL/Jumbo Frames/V-LAN Tagging) for laptops - 3x USB 3.2 Gen 1 (5Gbps) Type-A ports - Each USB port provides 4.5W - 1ft/30cm long host cable - Win/Mac/Chrome/Linux Bullets (Consolidated) USB-C laptop expansion hub with 3x USB-A and Gigabit Ethernet - IEEE 802.3u/ab standards | Wake-on-LAN | Jumbo Frames | V-LAN Tagging | USB 3.2 Gen 1 (5Gbps) | USB C to USB A Hub - Each USB port can provide up to 4.5W (5V/0.9A) dependent on provided bus power from host | Overcurrent protection (OCP) on downstream ports | Wake-on-USB - Windows/macOS/Linux/iPadOS/ChromeOS - Bus-powered portable USB-C hub| Connectivity Tools App - Upgraded Version of HB30C3A1GEA with 1ft cable for extended reach Marketing Copy Marketing Copy (No HTML) Applications - Connect three USB-A peripherals and enable Gigabit Ethernet by connecting to a USB-C equipped laptop
- Carry the hub with you while you're traveling, and connect your USB devices wherever you go
- Add wired internet connectivity to the laptop in settings where Wi-Fi isn't available
Website Search Keyword - bus powered usb hub
- portable usb c hub
- usb c 3.1 gen 2 hub
- usb c expansion hub
- usb c hub dongle
- usb c hub with long cable
- usb c splitter
- usb c to ethernet adapter
- usb c to usb a hub
- usb c to usb adapter
- usb c to usb hub
- usb type c hub
- usb-c hub with ethernet
Required Regulatory Compliance Marks - RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Special Notes - USB 3.2 Gen 1 (5Gbps) is also known as USB 3.1 Gen 1 (5Gbps) and USB 3.0 (5Gbps).
- DisplayPort Alternate Mode and USB Power Delivery are not supported
- Wake-on-LAN (WoL) functionality can be disabled by the host computer, if the host computer USB controller enters power save mode. It's recommended that USB power save modes be disabled within your operating system, if the WoL functionality is required for your application.
- To protect your connected devices from power surges, this device features Over Current Protection (OCP).
- If a high-powered USB Peripheral, such as a USB-powered external drive, is connected to a USB port on this device, and the USB Peripheral Device attempts to draw more power then is safely allocated to the port, the device will prevent this peripheral from consistently connecting to the Computer. This may result in the Computer re-recognizing the device continuously, until the device is disconnected.
Accessory Products - C6PATCH15BK
- N6PATCH10BK
- N6PATCH1BL
- N6PATCH10BL
- N6PATCH6BK
- N6PATCH6BL
- N6PATCH3BL
- N6PATCH4RD
- N6LPATCH7BK
- N6PATCH7BL
- N6LPATCH10BL
- N6PATCH7BK
- N6LPATCH7BL
- USB3S2SAT3CB
- SDOCK2U33
- SDOCK2U33V
- SDOCK4U33
Related Products - 5G3AGBB-USB-A-HUB
- 5G3AGBB-USB-C-HUB
- HB30C3A1GEA
- DKT30CSDHPD3
- DKT30CSDHPD
- DKT31CHPDL
- 120B-USBC-MULTIPORT

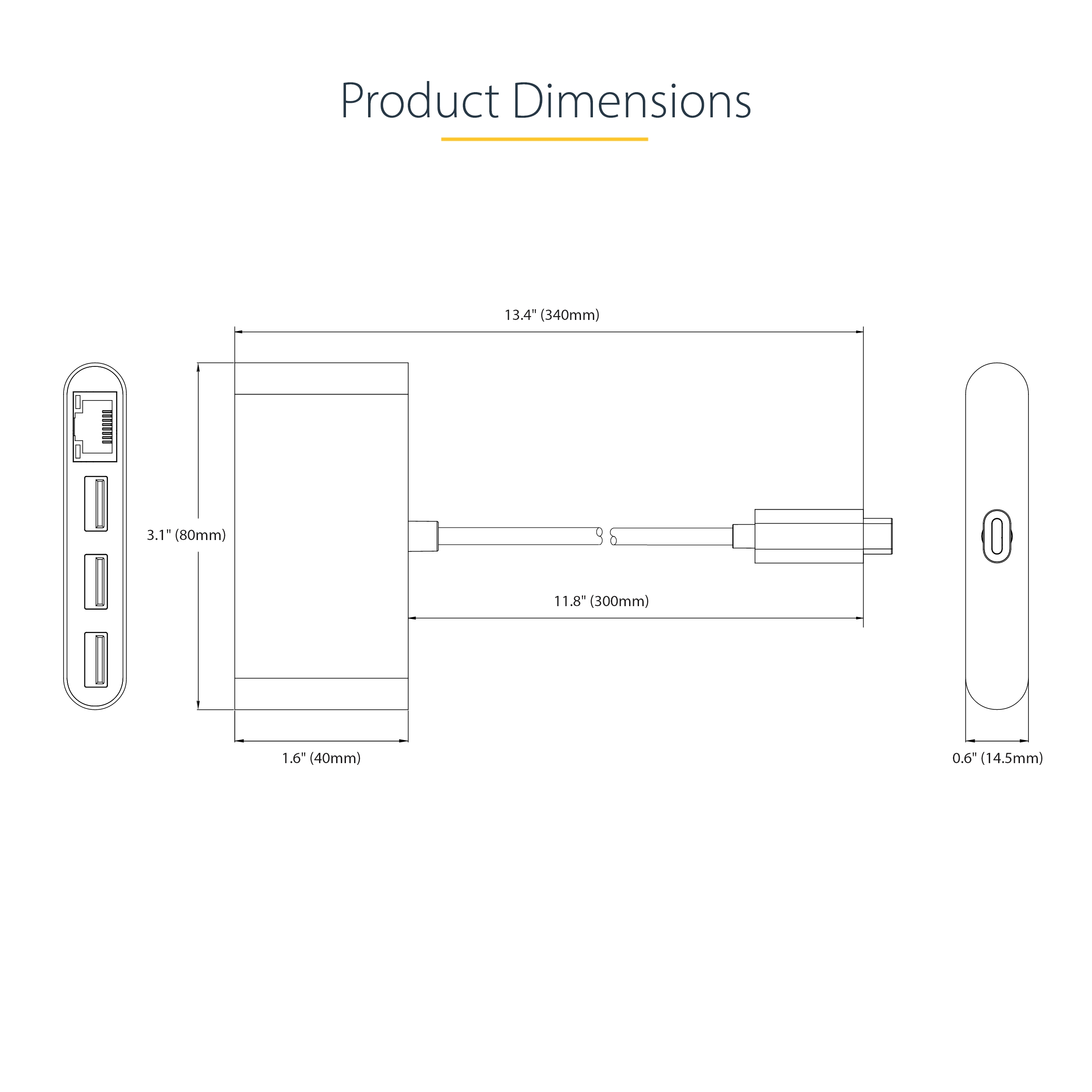

Power Delivery No PD Pass-Through Power Source Bus Powered Cable Length (mm) 300 Color Space Gray Humidity 10%-85%RH Material Plastic Operating Temperature 0°C to 45°C (32°F to 113°F) Product Length (mm) 40.000 Product Width (mm) 80.000 Product Height (mm) 15.000 Product Weight (g) 42.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Fast Charge Ports (BC 1.2) No Flow Control Full duplex flow control Full Duplex Support Yes Jumbo Frame Support 9K max. Maximum Data Transfer Rate OS Compatibility - Windows 11
- Windows 8
- Windows 7
- macOS Sierra (10.12)
- Linux
- Mac OS X El Capitan (10.11)
- macOS Mojave (10.14)
- Windows 10
- macOS High Sierra (10.13)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- macOS Monterey (12.0)
- Chrome OS
- Android
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- iPadOS
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
Total Available Power Output (In Watts) 9W UASP Support Yes USB Type and Rate USB 5Gbps Wake-On-LAN (WOL) Yes Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID - VIA/VLI - VL817
- ASIX - AX88179A
Ethernet Port Yes Industry Standards - IEEE 802.3u, IEEE 802.3ab
- IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3x Flow Control, 802.1q VLAN Tagging, 802.1p Layer 2 Priority Encoding
- USB 3.0 - Backward compatible with USB 2.0 and 1.1
Interface/Bridge - USB 3.2 Gen 1 (5Gbps)
- RJ45 (Gigabit Ethernet)
Laptop Dock / USB Hub Fast-Charge No LED Indicators - 1 - Network Link LED - Green
- 1 - Network Activity LED - Amber

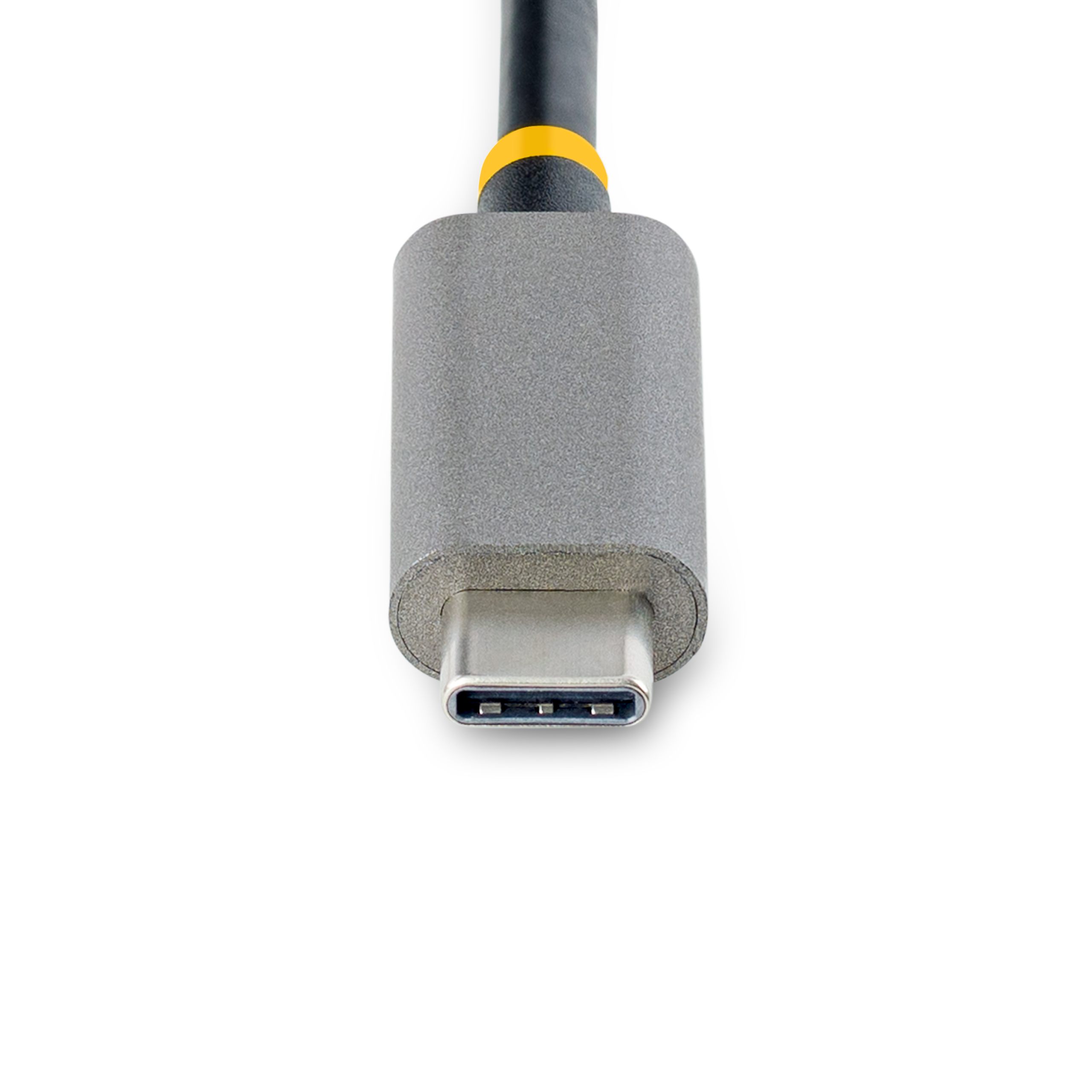

USB-C Device Port(s) No USB-C Host Connection Yes Carton Depth (mm) 542 Carton Height (mm) 317 Carton Quantity 60 Carton Weight Gross (g) 6492 Included in Package 1 - USB Hub Included In Package for Label 1 - USB Hub Package Depth (mm) 143 Package Height (mm) 34 Package Width (mm) 173 Package Quantity 1 Package Weight (g) 92 Packaging Description 3-Port USB 3.2 Gen 1 (5Gbps) Hub with Gigabit Ethernet - USB-C Packaging Description India 3-Port USB 3.2 Gen 1 (5Gbps) Hub with Gigabit Ethernet - USB-C Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 3 Connector 2 RJ-45 Connector 2 (Quantity) 1 Host Connector 1 USB-C (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Actual Inbox Documents Created None Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Artwork Due Date 2022-02-03 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Comparable SKU Comment very similar to HB30C3A1GEA but have black color, and 12” cable Comparable SKU 2 Comment n/a Digital Content Due Date 2022-08-08 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology - USB 3.2 Gen 1 / 5Gbps
