HB30C3AGEPD
3 Port USB C Hub GbE PD 2 0 C to A USB 3 0

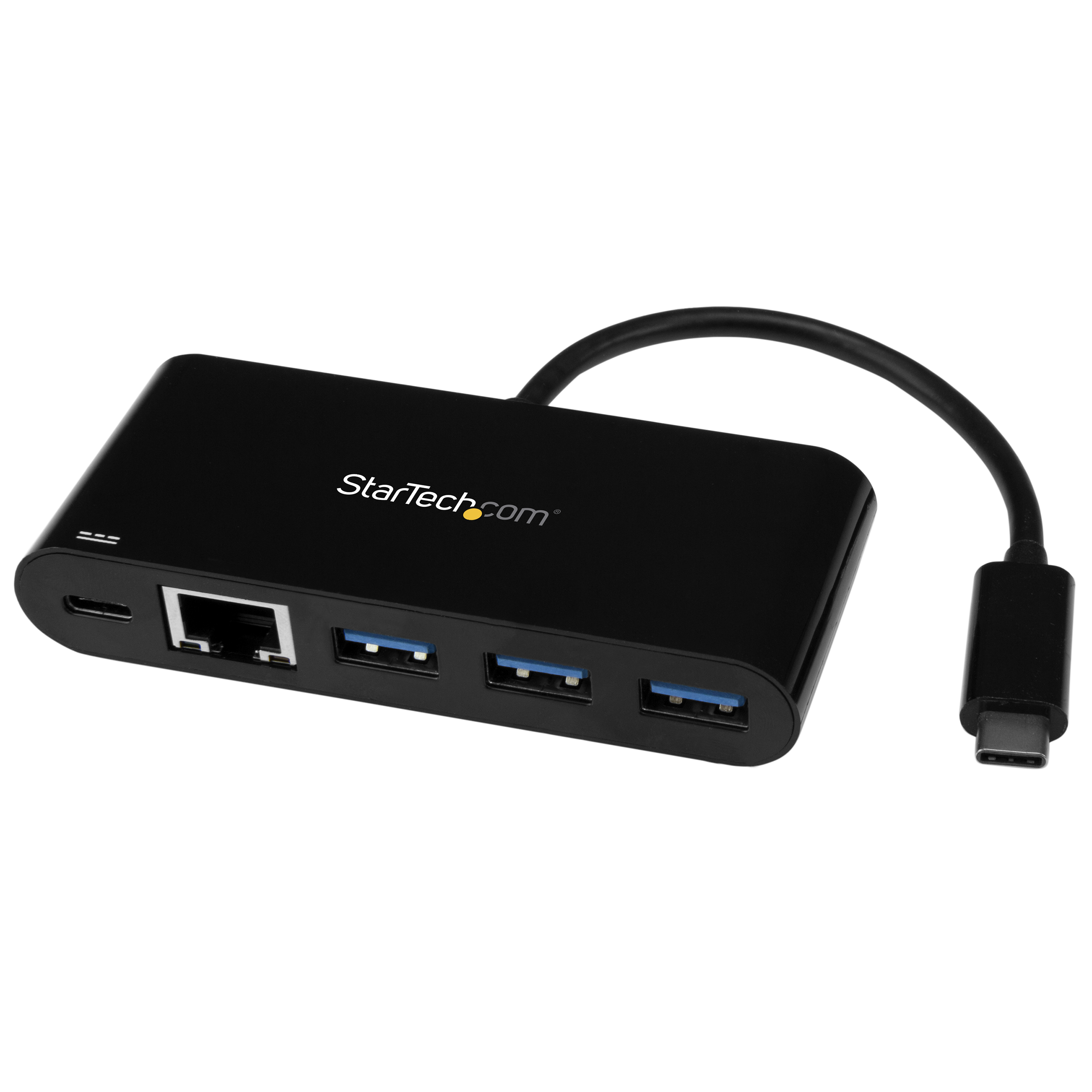

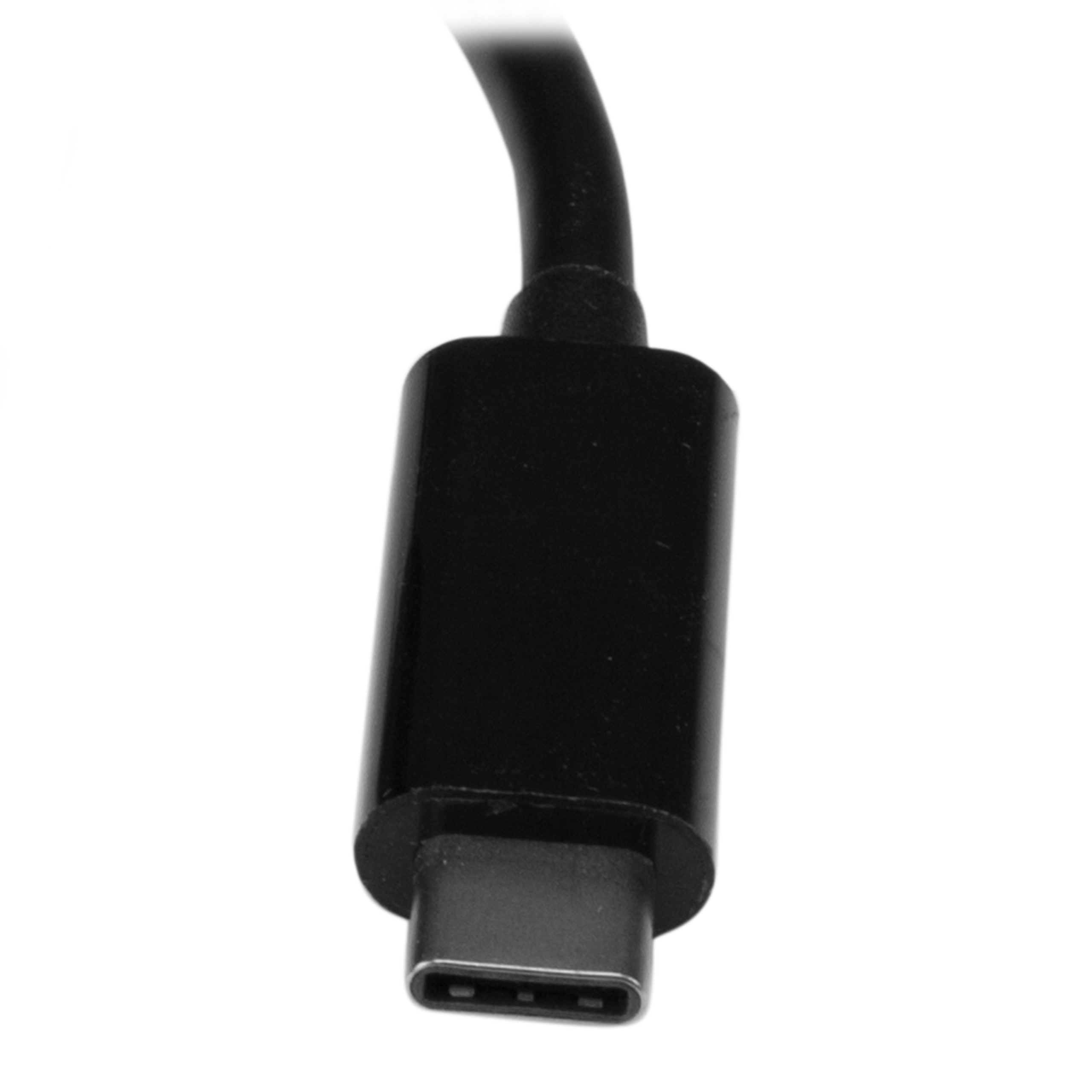

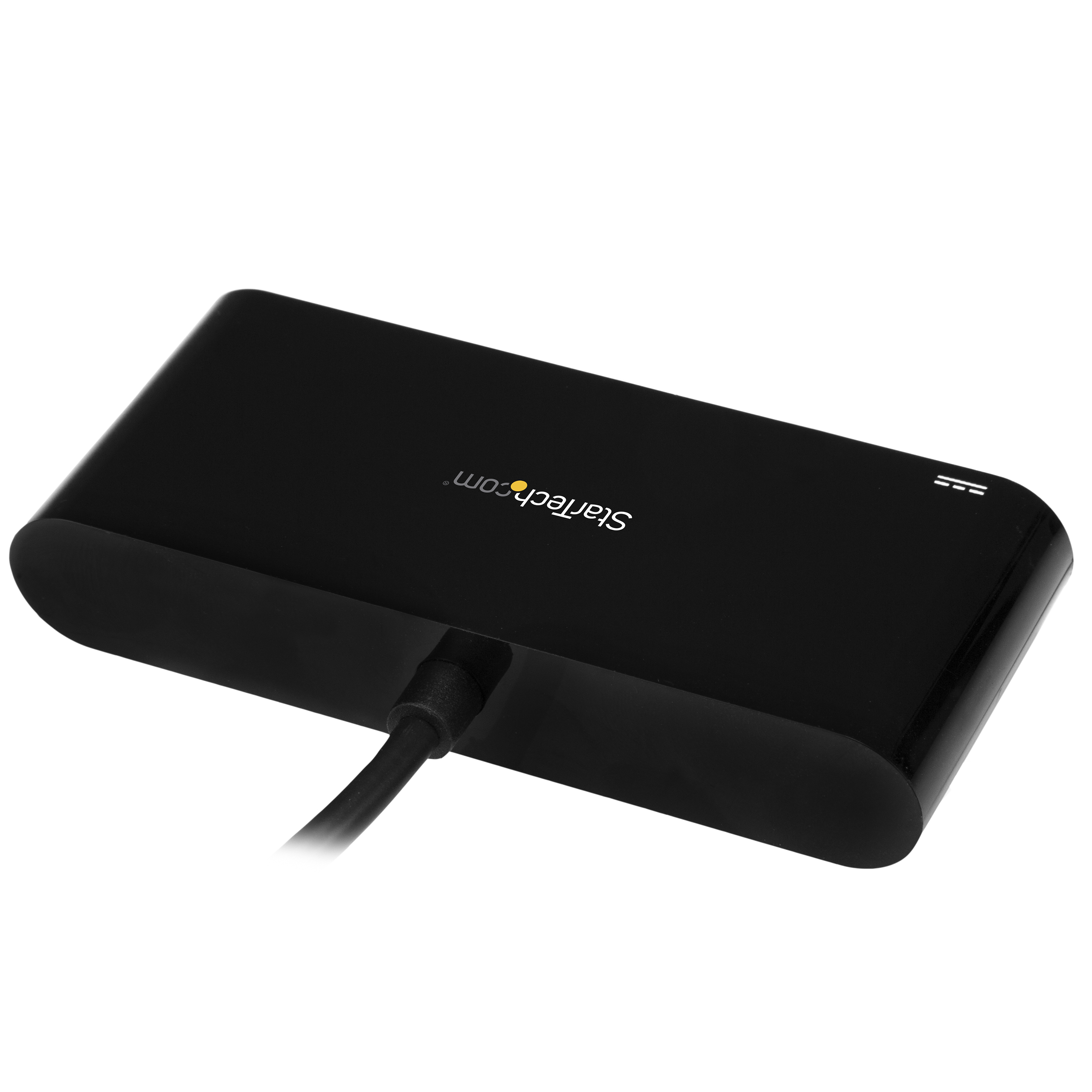

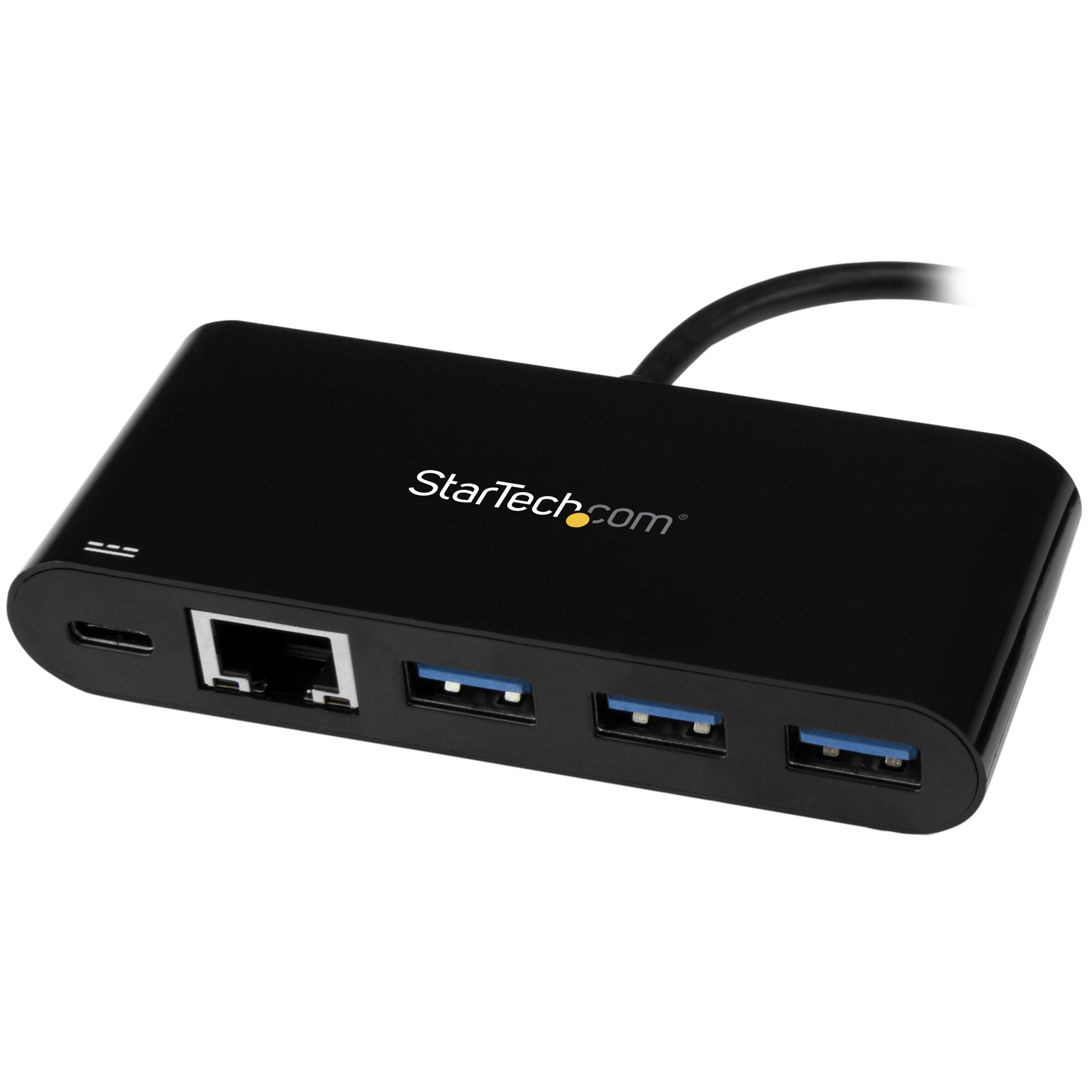

Turn a laptop USB-C port into three USB Type-A ports (5Gbps) and one GbE port, plus power and charge your laptop
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 3 Port USB C Hub GbE PD 2 0 C to A USB 3 0 Product Number HB30C3AGEPD UPC 065030867917 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 USB-C Hubs Category Level 3 USB-C Multifunction Hubs - 5Gbps Family USB-C Multifunction Hubs - 5Gbps - with Ethernet Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) China Country of Origin Revision (1) XXXXXX012X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX190X Product Title (Ultra-Short) 3 Port USB 3.0 C Hub Product Title (Short) 3 Port USB C Hub to USB-A 5Gbps/GbE/PD Product Title (Medium) 3 Port USB C Hub with GbE and Power Delivery - USB-C to 3x USB-A - USB 3.0 Hub Product Title (Standard) 3 Port USB-C Hub with Gigabit Ethernet & 60W Power Delivery Passthrough - USB-C to 3xUSB-A - 5Gbps USB 3.0 Type-C Adapter Hub Product Title (Long) 3 Port USB-C Hub with Gigabit Ethernet & 60W Power Delivery Passthrough Laptop Charging - USB-C to 3x USB-A (USB 3.0 SuperSpeed 5Gbps) - USB 3.2 Gen 1 Type-C Adapter Hub Product Title (AMZ) 3 Port USB-C Hub with Gigabit Ethernet & 60W Power Delivery Passthrough Laptop Charging - USB-C to 3x USB-A (USB 3.0 SuperSpeed) - USB 3.0 (5Gbps) Type-C Adapter Hub (HB30C3AGEPD) Title Ingram (Part 1) 3Port USB C Hub w/ GbE and PD Title Ingram (Part 2) 2.0 - Type C to 3x A - USB 3.0 Website Product Headline Turn a laptop USB-C port into three USB Type-A ports (5Gbps) and one GbE port, plus power and charge your laptop Bullet 1 3 PORT USB C HUB: Expand the connectivity of a USB-C computer by adding 3x USB-A (USB 3.2 Gen 1 SuperSpeed 5Gbps) & a Gigabit Ethernet RJ45 port for wired network connectivity (Wake-On-Lan, 10/100/1000Mbps) Bullet 2 POWER AND CHARGE YOUR LAPTOP: USB-C hub supports Power Delivery (PD 2.0) up to 60W pass-through charging when used with your USB Type-C power adapter; 7.4W reserved for hub/downstream port operation Bullet 3 SPEEDS UP TO 5Gbps: USB 3.2 Gen 1 SuperSpeed shared with all downstream devices, supports thumb drives, data storage devices, keyboards, mice, web cams, headsets Bullet 4 COMPACT & PORTABLE: A lightweight USB-C to USB-A adapter hub with plastic housing, 5.9" (15 cm) attached USB-C host cable and small form factor [3.7 in (95 mm) x 1.6 in (41 mm) x 0.7 in (1.7 cm)] Bullet 5 WIDE COMPATIBILITY: USB C hub with ethernet is OS independent and supports major operating systems including Windows, macOS, Linux, iPadOS, Chrome OS; Compatible with USB 2.0 devices Bullets (Compact) Portable 3 Port USB-C hub with 3x USB Type-A and Gigabit Ethernet RJ45 port - Power Delivery up to 60W pass-through laptop charging; 7.4W reserved for adapter hub - SuperSpeed USB 3.2 Gen 1 5Gbps - 5.9in attached cable - OS independent Bullets (Consolidated) Portable 3 Port USB C hub (USB 3.2 Gen 1 SuperSpeed 5Gbps) | USB Type-C host to 3x USB-A and 1x Gigabit Ethernet (GbE) port | USB 3.2 Gen 1/2.0 compatible - USB C adapter hub with Gigabit Ethernet RJ45 port | Jumbo 9K Frames/Wake-On-Lan and 10/100/1000 Mbps - Power Delivery (PD 2.0) up to 60W pass-through for laptop charging with your USB-C power adapter | 7.4W reserved for hub - Compact housing | 5.9" attached host cable - Windows/macOS/Linux/iPadOS/Chrome OS Marketing Copy Marketing Copy (No HTML) Applications - Take advantage of USB-C by using the hub to connect simultaneously to both a network and USB peripherals
- Power both the hub and your laptop simultaneously using your laptop’s USB-C based power adapter
- Carry the hub with you while you're traveling, to connect virtually any USB peripheral to your laptop wherever you go
Website Search Keyword - 3 port hub
- 3 port industrial usb c hub
- 3 port industrial usb hub
- 3 port industrial usb type c hub
- 3 port powered usb c hub
- 3 port powered usb hub
- 3 port powered usb type c hub
- 3 port usb 3 hub
- 3 port usb c hub
- 3 port usb hub
- 3 port usb type c hub
- desk usb c hub
- desk usb hub
- desk usb type c hub
- ethernet to usb hub
- ethernet usb c hub
- ethernet usb hub
- in desk usb 3.0 hub
- in desk usb c 3.0 hub
- industrial usb c hub 3 port
- industrial usb hub 3 port
- industrial usb type c hub 3 port
- laptop usb c hub
- laptop usb hub
- laptop usb type c hub
- powered usb 3.0 hub
- powered usb hub
- rugged usb hub
- usb 3 ethernet hub
- usb 3 hub
- usb 3 hub 3 port
- usb 3 hub ethernet
- usb 3.0 3 port hub
- usb 3.0 desk hub
- usb 3.0 ethernet hub
- usb 3.0 hub 3 port
- usb 3.0 hub ethernet
- usb 3.0 hub gigabit ethernet
- usb 3.0 hub with ethernet port
- usb 3.0 to ethernet
- usb and ethernet hub
- usb c desk hub
- usb c hub 3 port
- usb c hub ethernet
- usb c hub for laptop
- usb c hub laptop
- usb c hub with ethernet
- usb c to a
- usb c to ethernet
- usb c to ethernet hub
- usb desk hub
- usb hub 3.0 powered
- usb hub 3 port
- usb hub desk mount
- usb hub ethernet
- usb hub for laptop
- usb hub laptop
- usb hub to ethernet
- usb hub with cable
- usb hub with ethernet
- usb hub with ethernet port
- usb hub with type c
- usb hub with usb c
- usb port expander
- usb port hub
- usb powered hub
- usb to ethernet
- usb to ethernet hub
- usb type c desk hub
- usb type c hub 3 port
- usb type c hub for laptop
- usb type c hub laptop
- usb type c to type a
- U4600033AGC
- U4600033AGBC
- U460-003-3AGALC
- U460-003-3AG-C
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes - The hub's USB-C port is for USB Power Delivery only. It does not support DisplayPort alt mode, or data transfers.
- Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host laptop's USB-C port supports USB Power Delivery 2.0
- The hub can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 2.0. However, in this configuration if a power adapter is connected to the hub, it will not pass power through to your host laptop.
- USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
System and Cable Requirements - Available USB Type-C port - USB 3.0 (5Gbps) (to ensure the hub powers and charges your laptop, your host laptop's USB-C port must support USB Power Delivery 2.0)
- Optional: USB-C power adapter (for example, your laptop’s USB-C based power adapter)
Accessory Products - PEXUSB311A1C
- 45PATCH15OR
- 45PATCH25BK
- S3510BMU33T
- PEXUSB312C
- PEXUSB312EIC
- USB31AC1M
- USB2AC1M
- 45PATCH10WH
- RJ45PATCH6
- DS51002
- S3510BMU33B
- S251BRU33
- S251SMU33EP
- S2510BMU33
- USB2AC2M
- USB3SAA3MBK
- USB3SAA6BK
- USB3SAB6BK
- USB3SAB10BK
Related Products - HB30C3A1GE
- ST3300G3UA
- ST3300GU3B
- HB30C3A1CFB
- HB30C3A1CFS
- US1GC301AU
- ST3300U3S
- US1GC30B
- US1GC30W
- US1GC30A
- HB30C3APD
- ST4300PBU3
- ST4300MINU3B
Output Voltage (V) 5 DC Power Delivery 60W Power Source USB-Powered Cable Length (mm) 150 Color Black Humidity 10~90% RH (Non-condensing) Material Plastic Operating Temperature 0°C to 45°C (32°F to 113°F) Primary Material Plastic Product Length (mm) 95.000 Product Width (mm) 41.000 Product Height (mm) 16.200 Product Weight (g) 46.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Auto MDIX Yes Auto-Negotiation Yes Compatible Networks 10/100/1000 Mbps Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Fast Charge Ports (BC 1.2) Yes Flow Control Full duplex flow control Full Duplex Support Yes Jumbo Frame Support 9K max. Maximum Data Transfer Rate OS Compatibility - Chrome OS
- Windows 8
- Windows 7
- macOS Sierra (10.12)
- Windows Server 2012
- Windows Server 2016
- Linux
- Windows 10
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- Windows Server 2022
- macOS Sonoma (14.0)
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
- Windows Server 2025
UASP Support Yes USB Type and Rate USB 5Gbps Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID Ethernet Port Yes Industry Standards - USB 3.0 - Backward compatible with USB 2.0 and 1.1
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3x Flow Control, 802.1q VLAN Tagging, 802.1p Layer 2 Priority Encoding
Interface/Bridge - USB 3.2 Gen 1 (5Gbps)
- RJ45 (Gigabit Ethernet)
Laptop Dock / USB Hub Fast-Charge No USB-C Device Port(s) USB Power Delivery USB-C Host Connection Yes Carton Depth (mm) 95 Carton Height (mm) 60 Carton Quantity 60 Carton Weight Gross (g) 8116 Included in Package - 1 - USB hub

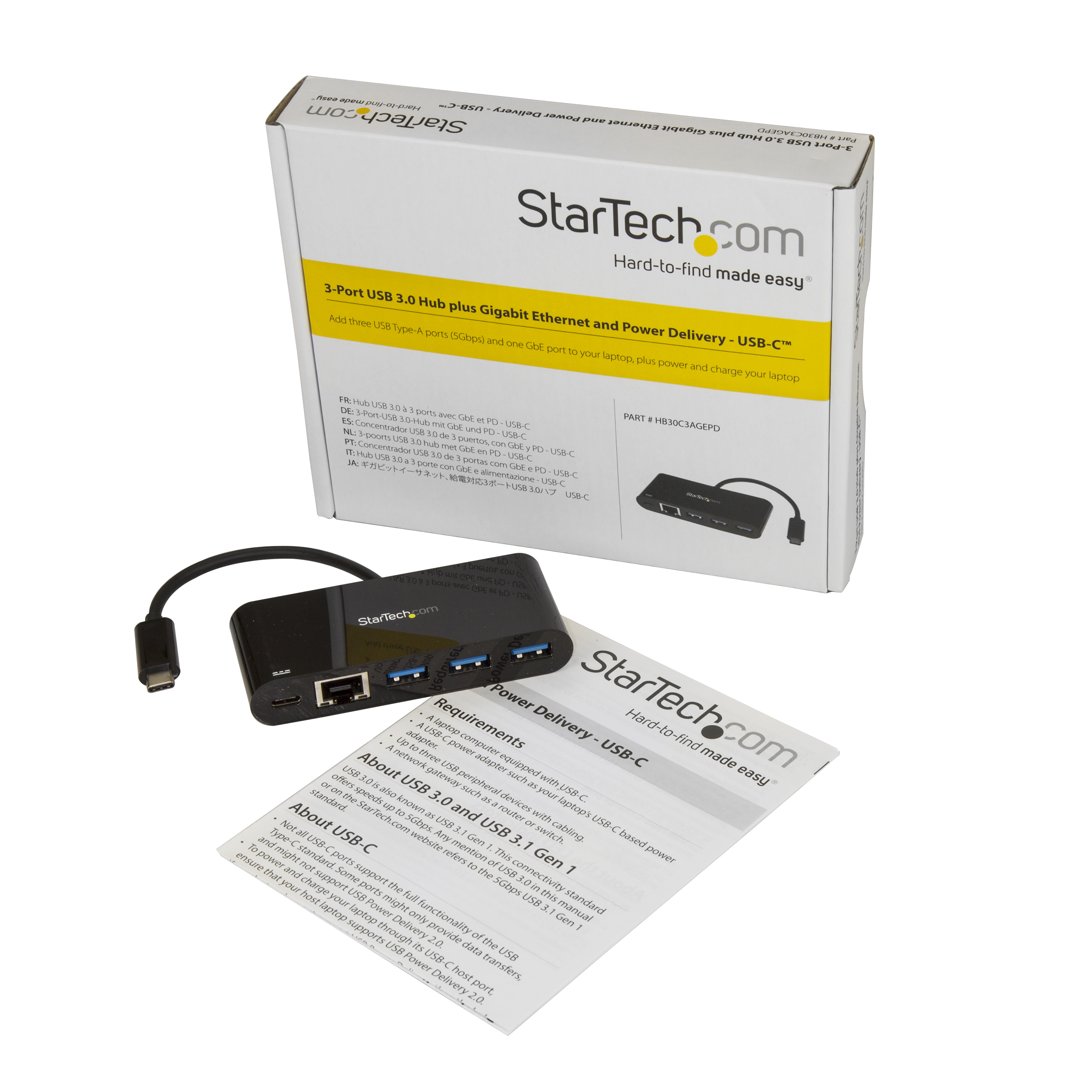

- 1 - quick-start guide
Package Depth (mm) 145 Package Height (mm) 33 Package Width (mm) 172 Package Quantity 1 Package Weight (g) 122 Packaging Description 3-Port USB 5Gbps Hub with GbE and PD - USB-C Packaging Description India 3-Port USB 5Gbps Hub with GbE and PD - USB-C Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 3 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 USB-C (5Gbps, 4.5W) Connector 3 (Quantity) 1 Connector 4 USB-C (100W PD Only) Connector 4 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2016-12-30 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Digital Content Due Date 2017-01-20 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology USB-C Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Development Completion Date 2017-01-27 Target Production Release 2017-02-03 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Mainstream
