HB30C3APD

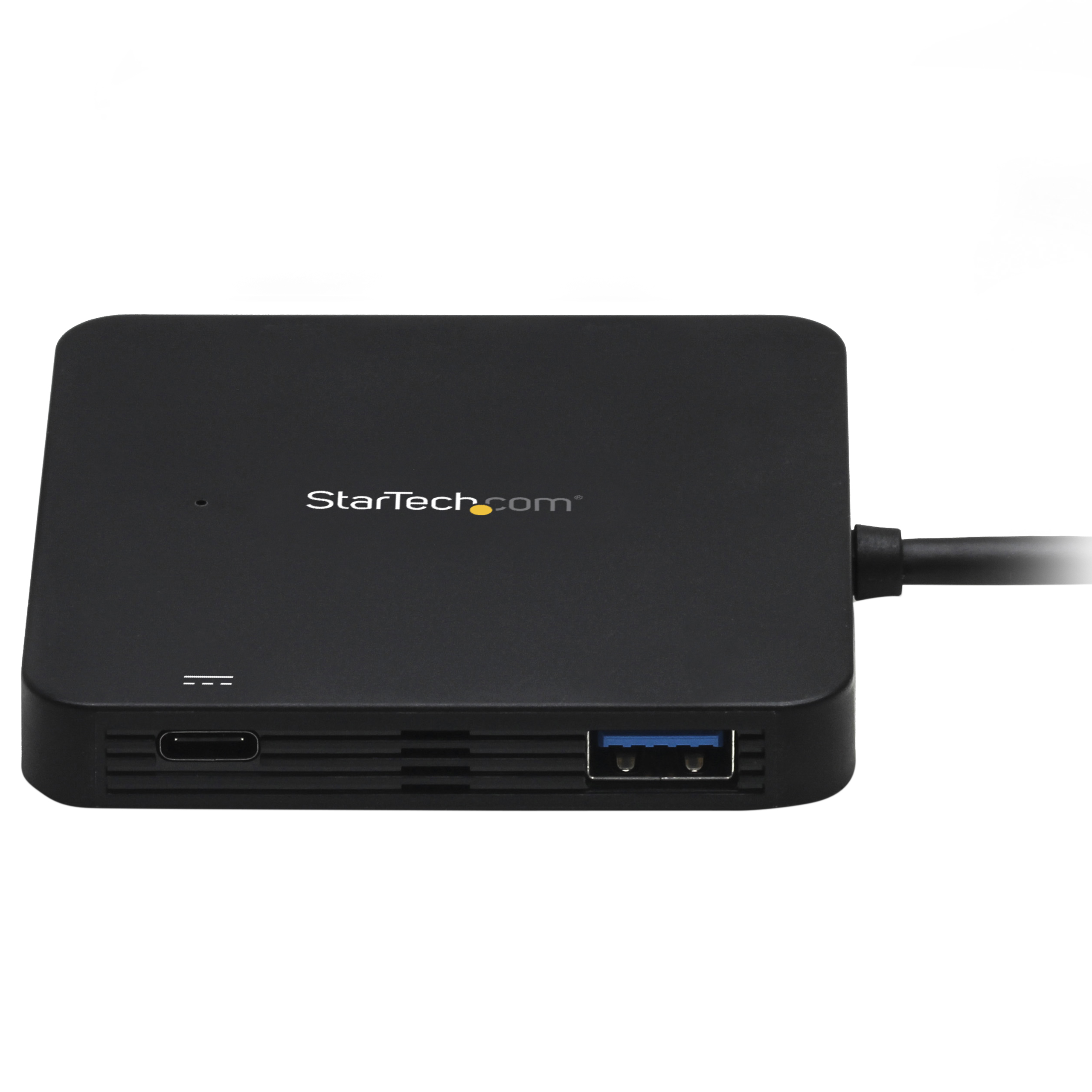

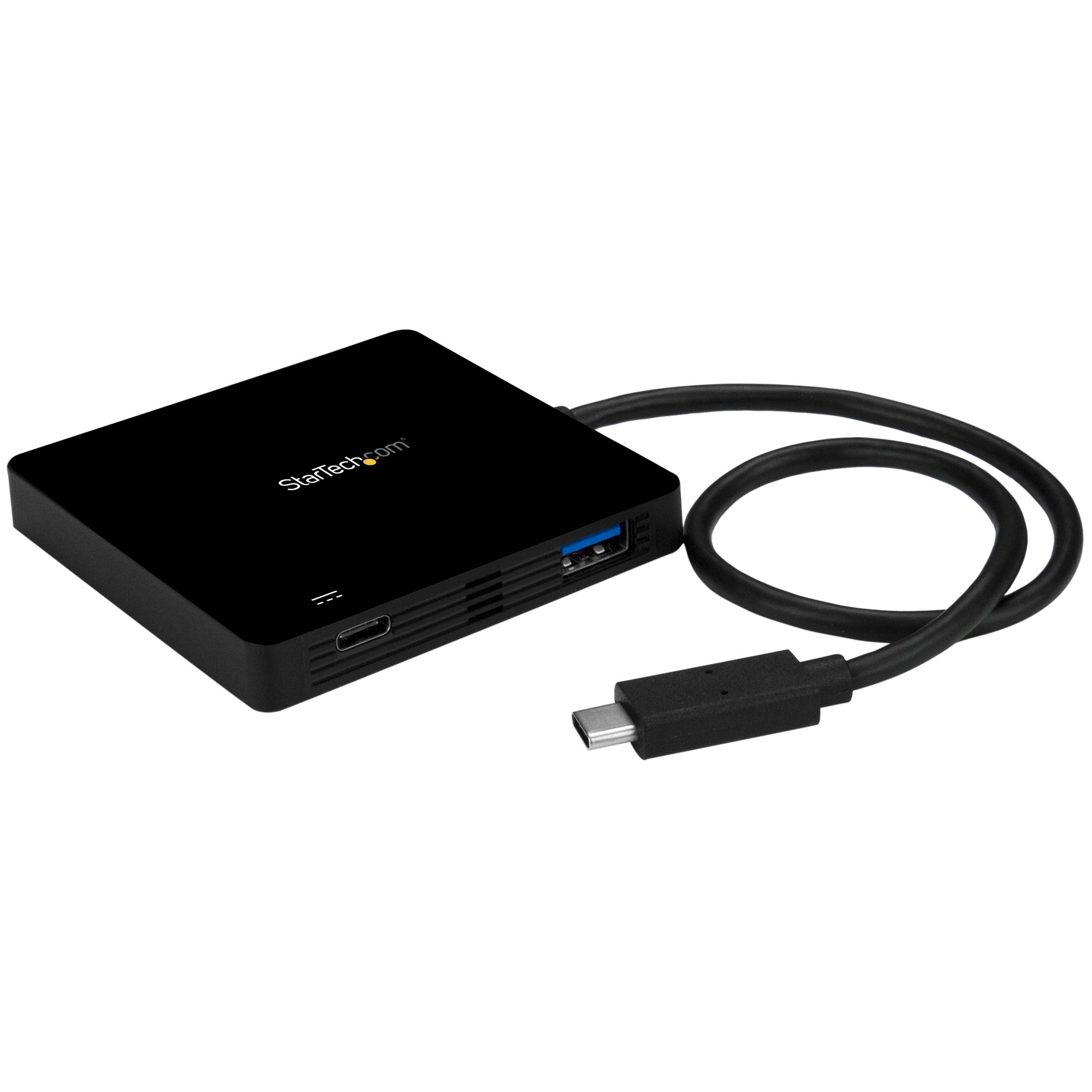

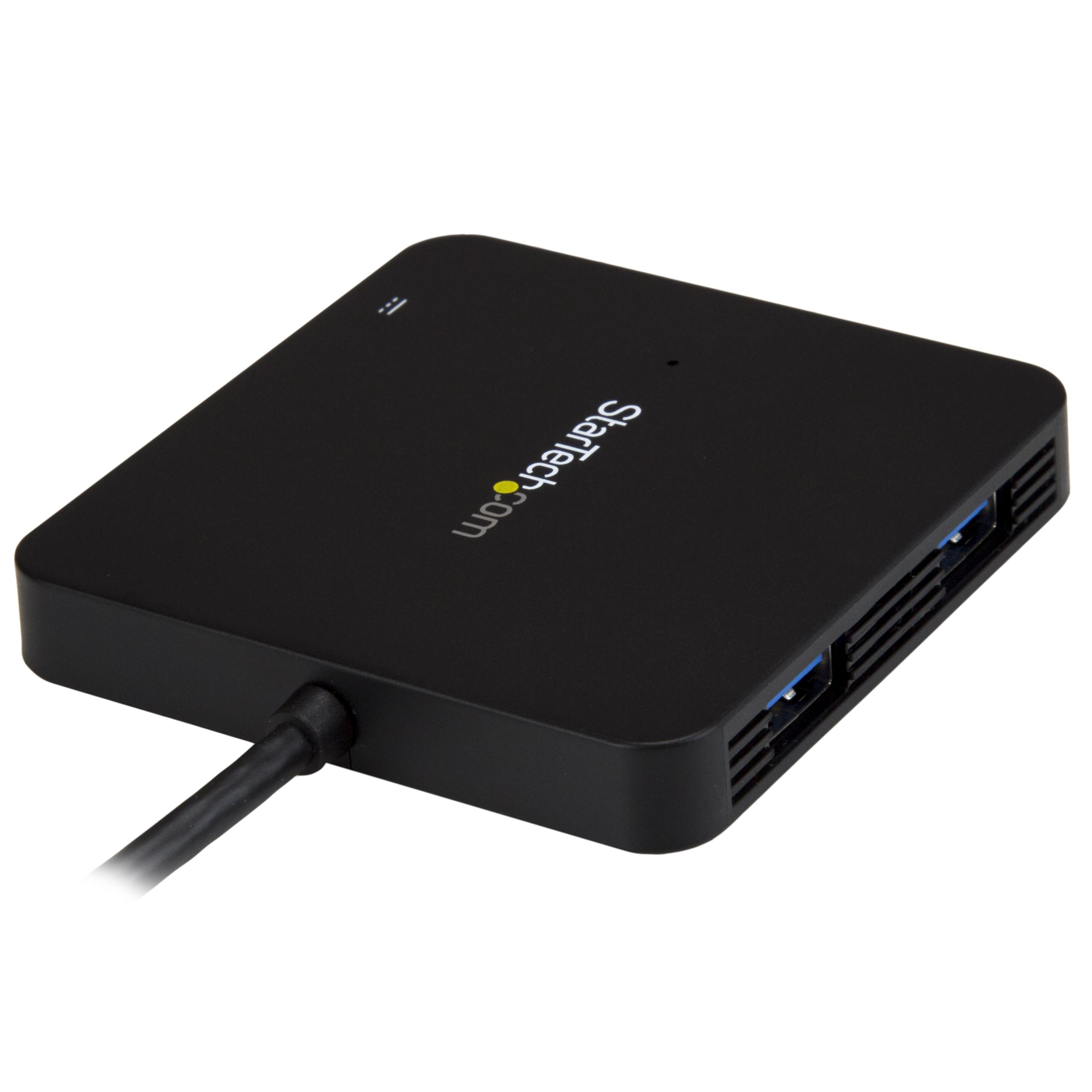

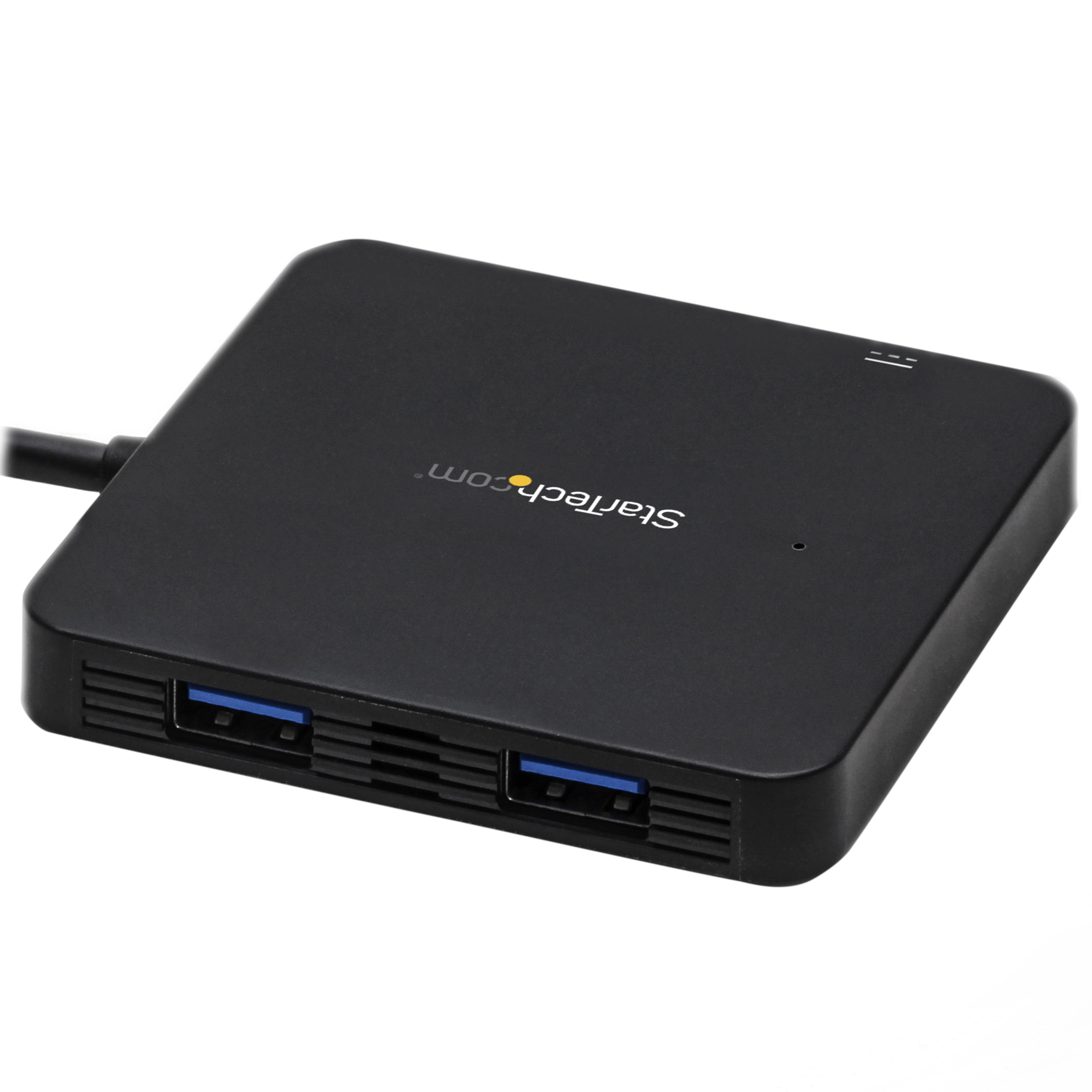

3 Port USB C Hub with PD - C to 3x A - USB 3.0 Hub
Turn your laptop’s USB Type-C port into three USB Type-A ports (5Gbps), plus power and charge your laptop
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 3 Port USB C Hub with PD - C to 3x A - USB 3.0 Hub Product Number HB30C3APD UPC 065030867085 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Hubs Category Level 2 USB-C Hubs Category Level 3 USB-C Bus Powered Hubs - 5Gbps Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX004X Product Title (Ultra-Short) 3PT USB C Hub w/ PD Product Title (Short) Hub USB C 3 Port - PD - C to A - USB 3.0 Product Title (Medium) 3 Port USB C Hub with Power Delivery - USB-C to 3x USB-A - USB 3.0 Hub Product Title (Standard) USB C Hub – 3 Port USB C to USB-A (3x) – with Power Delivery (USB PD) – USB-C Hub – Powered USB Hub Product Title (Long) 3-Port USB-C Hub with Power Delivery - USB-C to 3x USB-A - USB 3.0 Hub Product Title (AMZ) USB C Hub - 3 Port USB C to USB-A (3x) - with Power Delivery (USB PD) - USB-C Hub - Powered USB Hub (HB30C3APD) Title Ingram (Part 1) 3Port USB C Hub with PD 2.0 - Title Ingram (Part 2) Type C to 3x A - USB 3.0 Hub Website Product Headline Turn your laptop’s USB Type-C port into three USB Type-A ports (5Gbps), plus power and charge your laptop Bullet 1 Compact and portable hub that adds three USB-A ports to your laptop through a USB-C port Bullet 2 Supports USB Power Delivery 2.0 (up to 60W) to power and charge your laptop, when coupled with the laptop’s USB-C based power adapter Bullet 3 Built-in, extended-length (34 cm) USB Type-C cable provides flexible desk placement options Bullet 4 Universal, multi-platform compatible with fast, easy installation, and native support in most operating systems (Windows, Mac, Chrome OS, Linux) Bullet 5 Plug-and-play, and supports hot-swapping or hot-plugging Bullets (Compact) Turn your laptop’s USB Type-C port into three USB Type-A ports (5Gbps), plus power and charge your laptop - 3 Port USB 3.0 Hub with Power Delivery - Built-in cable - Portable USB Type C Hub - USB Powered Hub - USB Port Expander Bullets (Consolidated) Turn a laptop's USB-C port into x3 USB A ports (5Gbps) - Power and charge a laptop - Portable USB Type C hub - Supports USB Power Delivery 2.0 (up to 60W)/Couple w/ a laptop's USBC power adapter - Built-in extended-length cable lets you place the hub where you need it - 3 port USB hub for use w/ virtually any USB C equipped laptop that uses a USB-C power adapter such as an Ultrabook /MacBook Pro/Chromebook Pixel - USB Port Expander/USB Powered Hub/Type C to Type A Hub/USB Multiport Hub Marketing Copy Applications - Power both the hub and your laptop simultaneously using your laptop’s USB-C based power adapter
- Use the USB-C port on your port-limited laptop, Ultrabook™, Chromebook Pixel™, or MacBook to expand your connection options by adding extra USB-A ports
- Carry the hub with you while you're traveling and connect virtually any USB peripheral to your laptop wherever you go
Website Search Keyword - usb 3.0 hub
- usb hub
- usb-c hub
- usb type-c hub
- 3-port usb 3.0 hub
- USB 3.0 Hub with USB-C
- USB 3.1 Hub
- USB 3.1 Gen 1 hub
- usb 3.0 hub with usb type-c
- type-c hub
- type c hub
- portable hub
- usb 3.0 hub with power delivery
- usb-c hub + pd
- usb-c hub with power delivery
- usb-c to 3 port hub
- 3 port usb-c hub
- Type C USB 3.1 Gen 1 Hub
- Type C USB 3.0 Hub
- MacBook Type C Hub
- MacBook USB 3.1 Gen 1 Type C Hub
- Chrome Pixel Type C Hub
- Chrome Pixel USB 3.1 Gen 1 Type C Hub
- MacBook USB 3.0 Type C Hub
- Chrome Pixel USB 3.0 Type C Hub
- Portable Type C Hub
- Portable USB 3.0 Hub
- Travel Type C Hub
- Travel USB 3.0 Hub
- Travel USB 3.1 Hub
- Compact Type C Hub
- Compact USB 3.0 Hub
- Compact USB 3.1 Hub
- Type c USB hub
- type c usb 3.1 hub
- USB-C usb 3.1 hub
- usb3 hub
- USB 3 Hub
- desktop type c hub
- MacBook hub
- Chromebook hub
- Ultrabook hub
- chromebook
- chromebook pixel
- power delivery usb hub
- power delivery usb 3.0 hub
- power delivery usb-c hub
- usb 3.0 hub power delivery
- usb hub with power delivery
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes - The hub's USB-C port is for USB Power Delivery only. It does not support DisplayPort alt mode, or data transfers.
- Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host laptop's USB-C port supports USB Power Delivery 2.0
- USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
- The hub can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 2.0. However, in this configuration if a power adapter is connected to the hub, it will not pass power through to your host laptop.
System and Cable Requirements - Available USB Type-C port - USB 3.0 (5Gbps) (to ensure the hub powers and charges you laptop, your host laptop's USB-C port must support USB Power Delivery 2.0)
- Optional: USB-C power adapter (for example, your laptop’s USB-C based power adapter)
Accessory Products - S251BRU33
- S251SMU33EP
- S2510BMU33
- USB2AC2M
- USB2AC1M
- USB3SAA3MBK
- USB3SAA6BK
- USB3SAB6BK
- USB3SAB10BK
Related Products - HB30C3A1CFS
- HB30C3A1CFB
- HB30C3A1GE
- ST4300PBU3
- ST4300MINU3B
Constrained SKU Alternatives (Limited Stock) HB30C4AFPD Power Delivery 60W Power Source USB-Powered Cable Length (mm) 340 Color Black Humidity 0~90% RH (Non-condensing) Material Plastic Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 72.000 Product Width (mm) 71.000 Product Height (mm) 12.000 Product Weight (g) 60.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Fast Charge Ports (BC 1.2) No Maximum Data Transfer Rate 5 Gbps OS Compatibility OS Independent USB Type and Rate USB 3.0 (5Gbps) Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID Ethernet Port No Industry Standards USB 3.0 - Backward compatible with USB 2.0 and 1.1 Interface/Bridge USB 3.2 Gen 1 (5Gbps) Laptop Dock / USB Hub Fast-Charge No LED Indicators 1 - Power (Blue) USB-C Device Port(s) USB Power Delivery USB-C Host Connection Yes Carton Depth (mm) 236 Carton Height (mm) 324 Carton Quantity 20 Carton Weight Gross (g) 4143 Included in Package - 1 - USB 3.0 hub

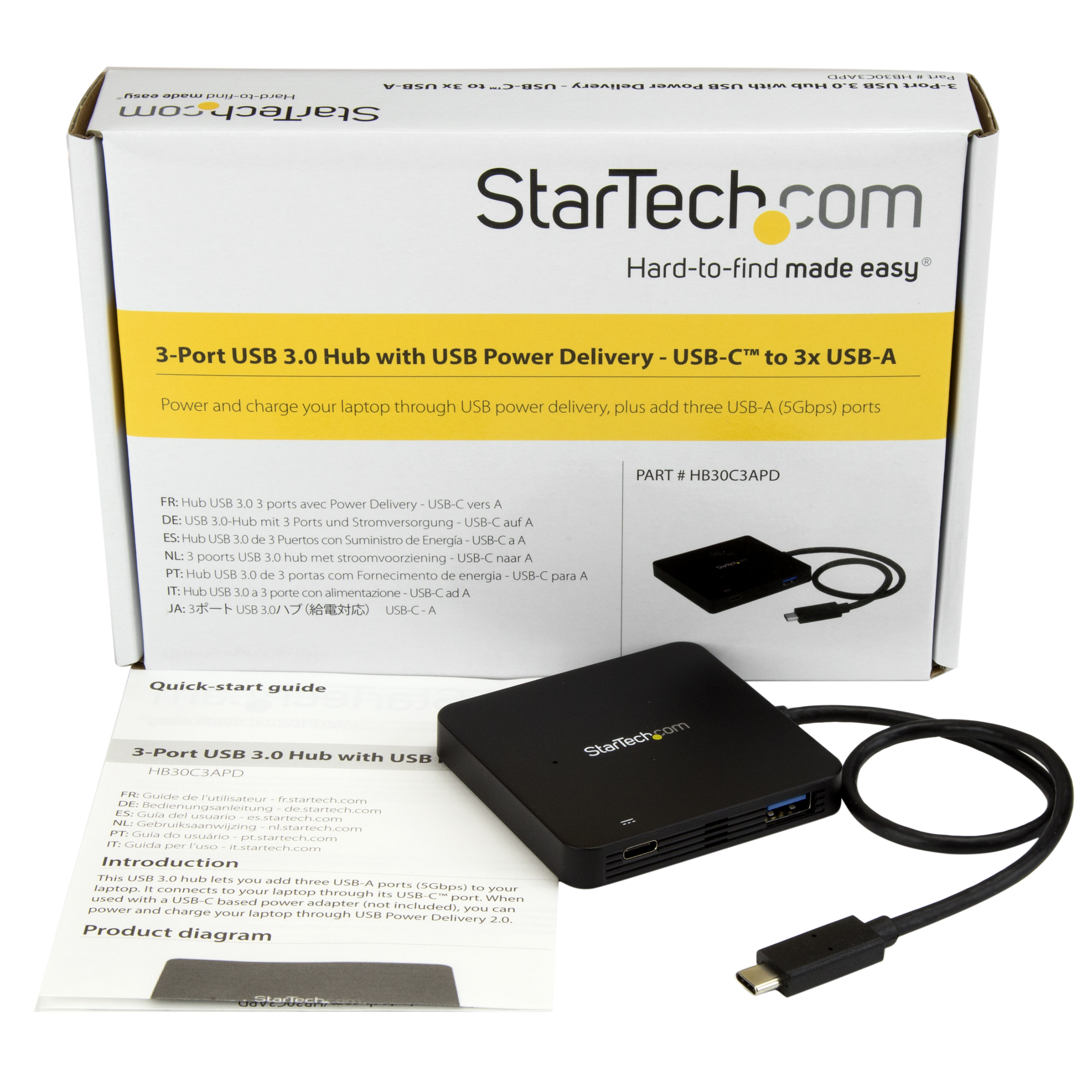

- 1 - quick-start guide
Package Depth (mm) 211 Package Height (mm) 42 Package Width (mm) 147 Package Quantity 1 Package Weight (g) 170 Packaging Description 3-Port USB 3.0 Hub with Power Delivery - USB-C to A Packaging Description India 3-Port USB 3.0 Hub with Power Delivery - USB-C to A Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 3 Connector 2 USB-C (5Gbps, 4.5W) Connector 2 (Quantity) 1 Connector 3 USB-C (5Gbps, 4.5W) Connector 3 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2016-10-20 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2016-11-03 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,DE,DK,ES,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology USB-C Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Development Completion Date 2016-09-29 Target Production Release 2016-10-21 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Legacy
