HB30C5A2CSC

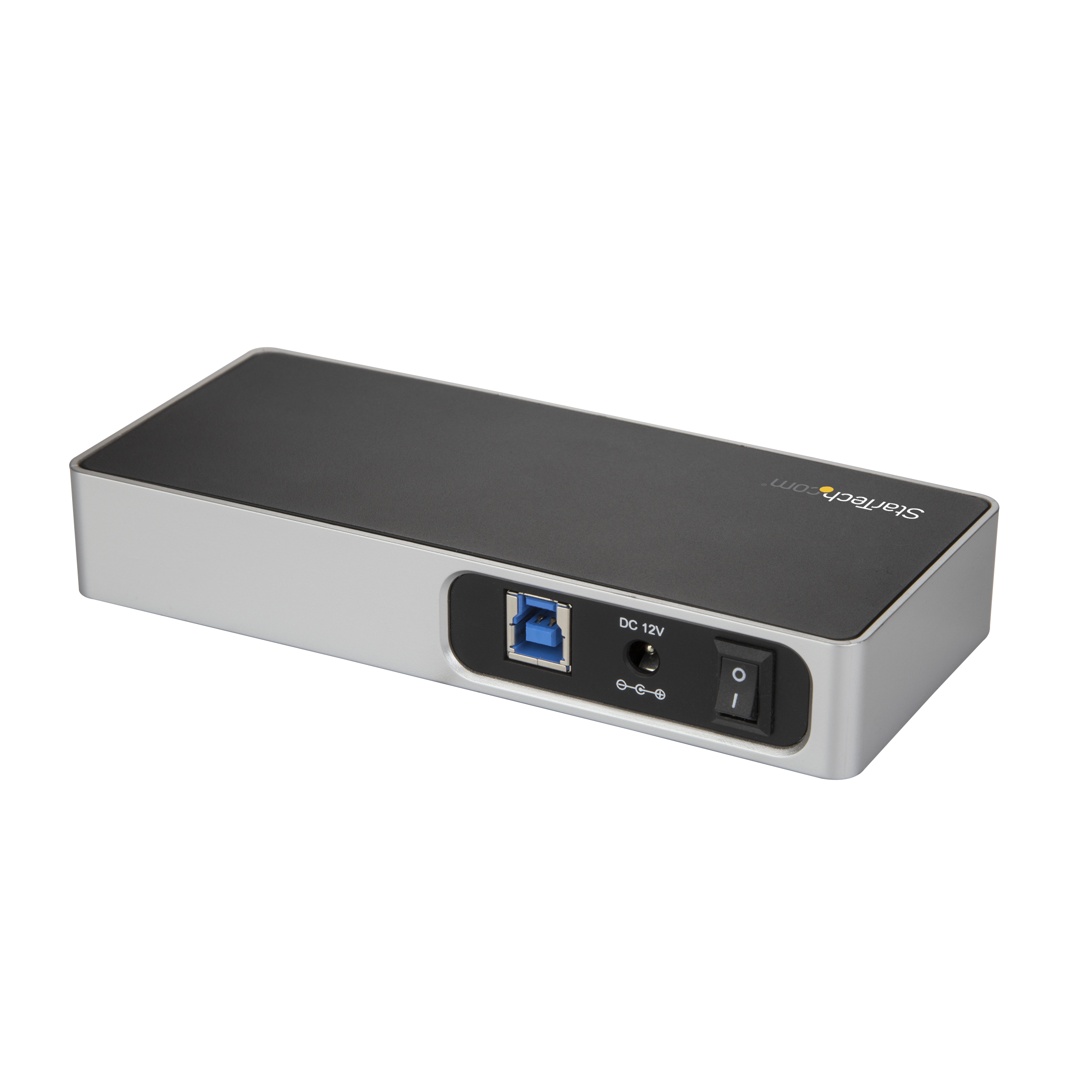

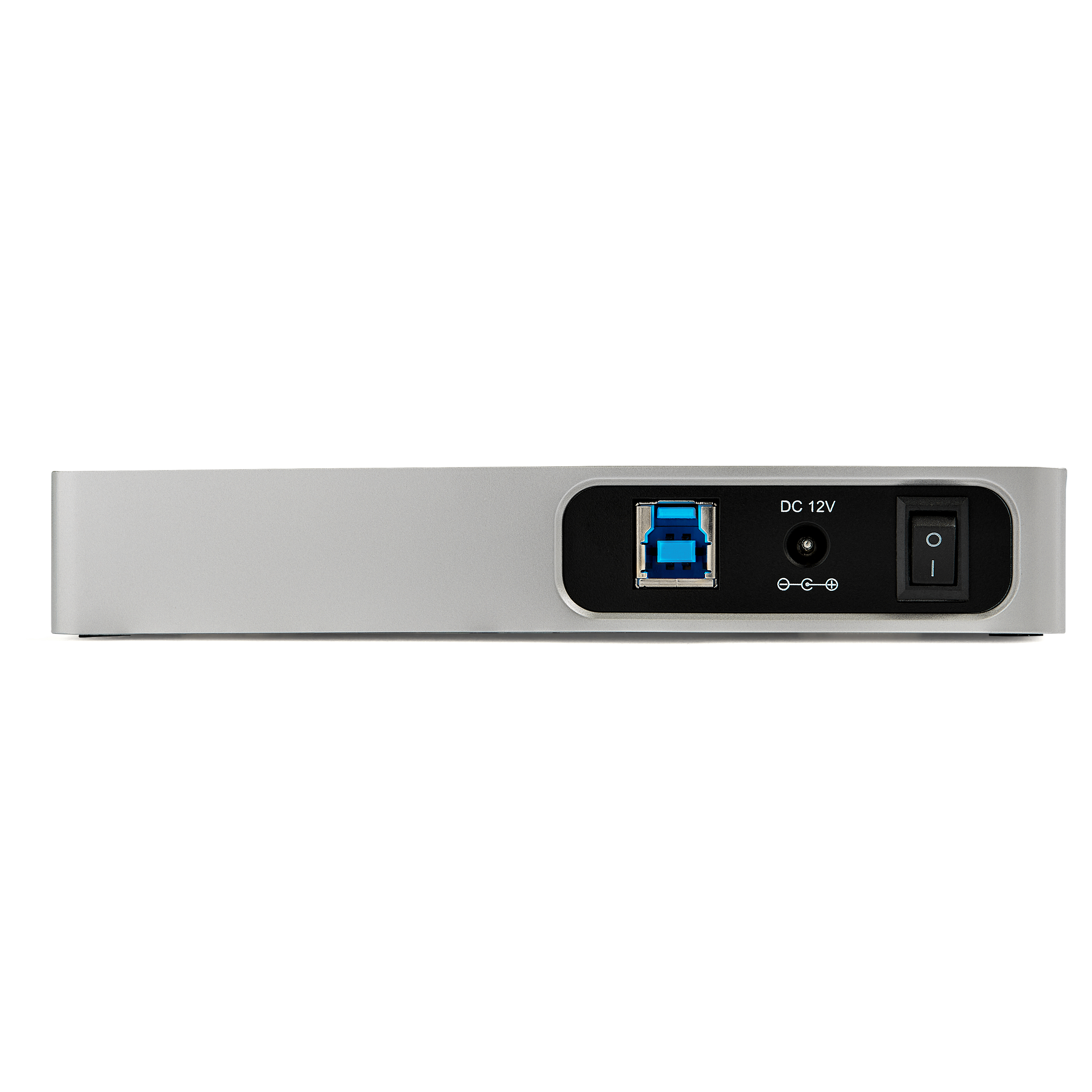

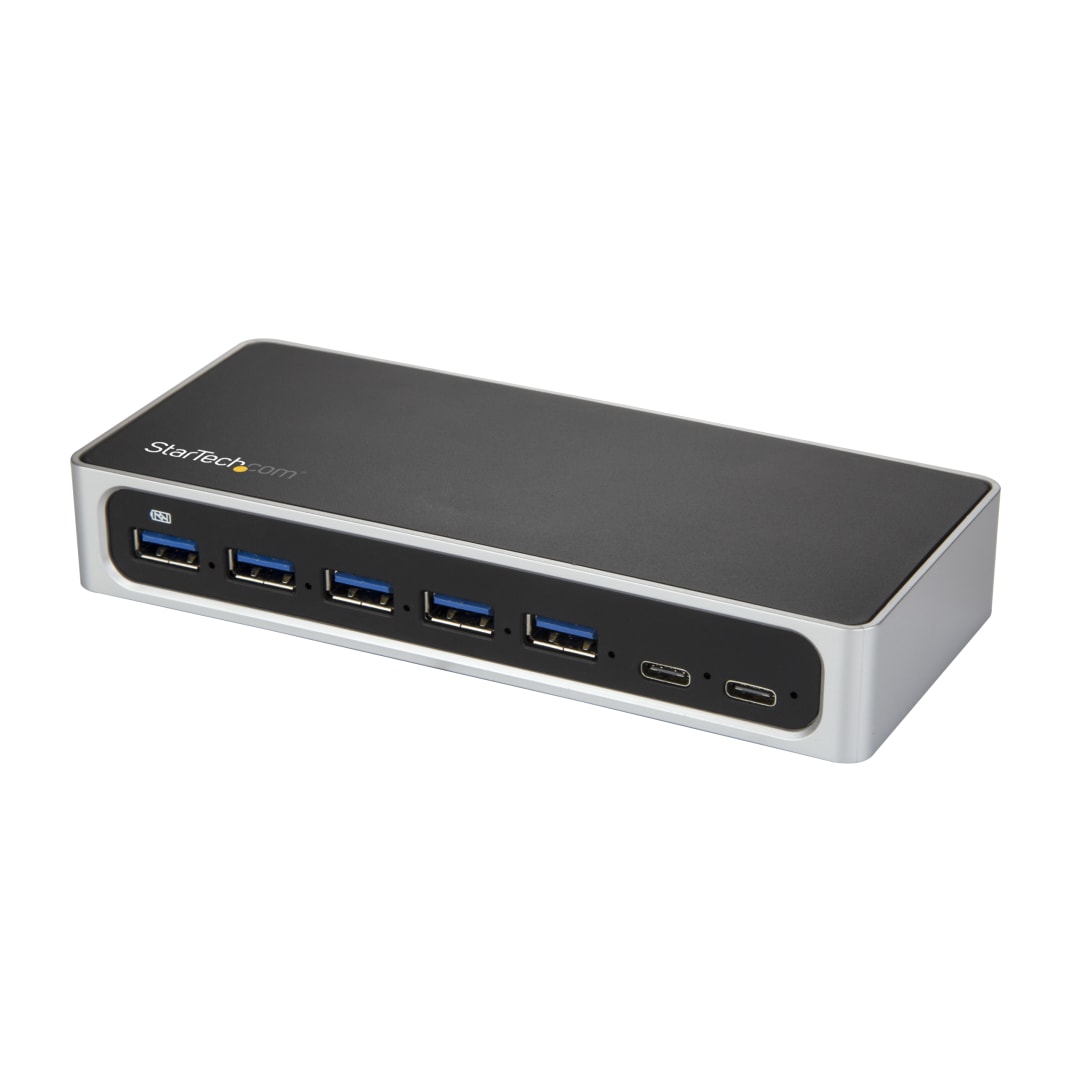

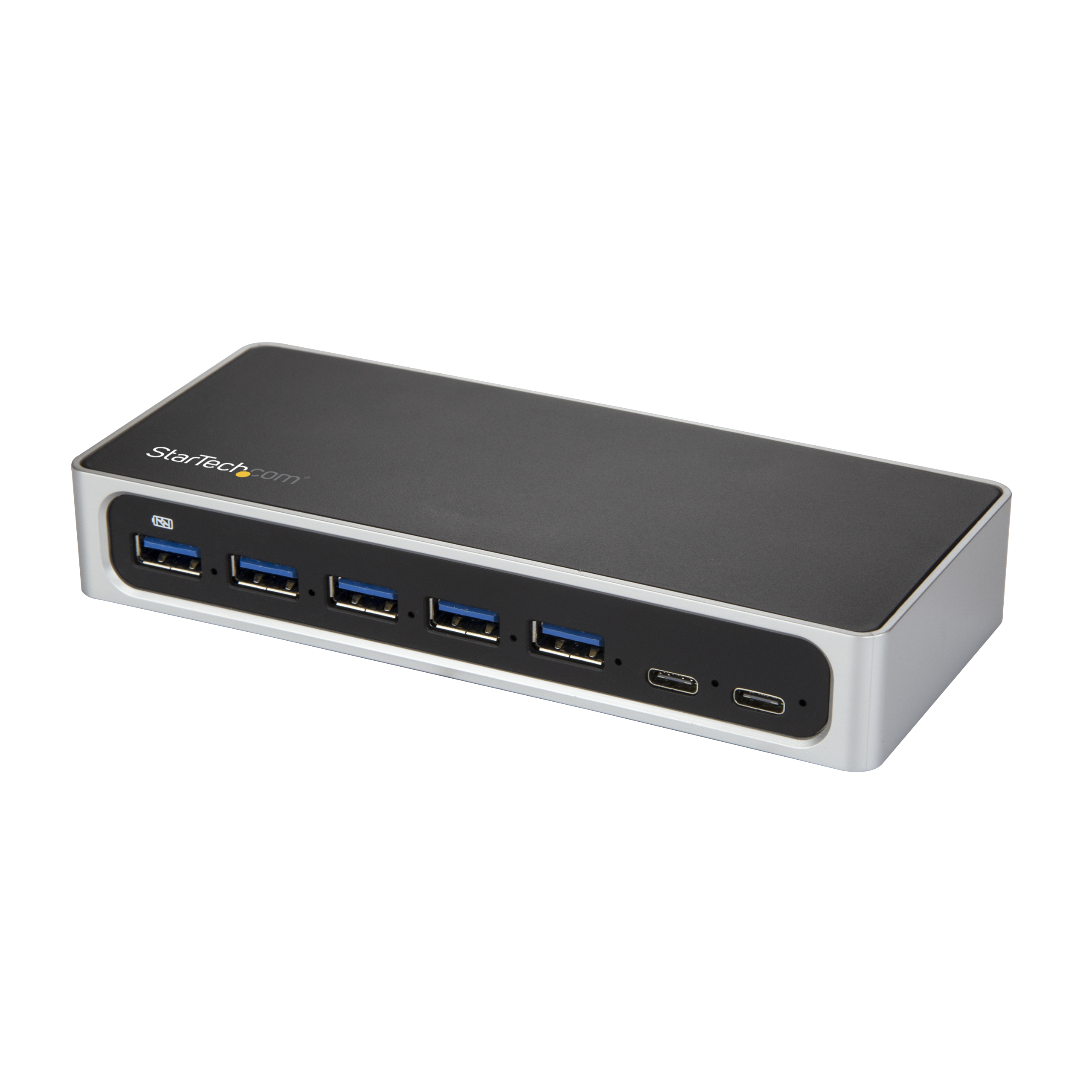

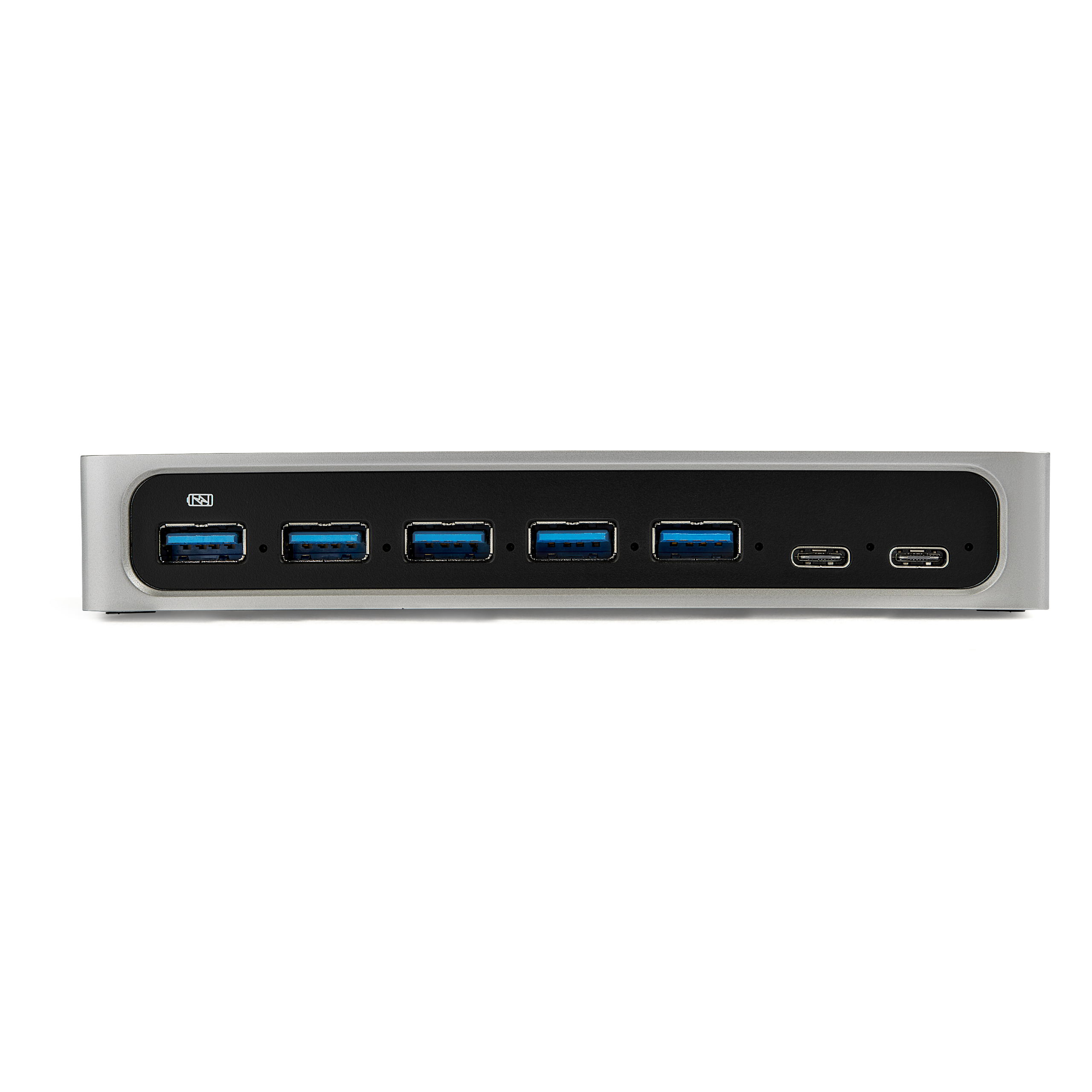

A Type C to 5 A and 2 C charging hub, self-powered
Turn a USB Type-C port on your laptop into five USB Type-A ports (5Gbps) and two USB Type-C ports
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name A Type C to 5 A and 2 C charging hub, self-powered Product Number HB30C5A2CSC UPC 065030868273 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 USB-C Hubs Category Level 3 USB-C External Powered Hubs - 5Gbps Family USB-C External Powered Hubs - 5Gbps - 7-Port - C/A Mix Country of Origin Europe & Japan Malaysia Country of Origin North America Malaysia Country of Origin History (1) Malaysia Country of Origin Revision (1) XXXXXX156X Country of Origin History (2) China Country of Origin Revision (2) XXXXXX163X Product Title (Ultra-Short) 7 Port USB 3.0 C Hub Product Title (Short) 7 Port USB C Hub 5Gbps 5 USB-A/2 USB-C Product Title (Medium) 7 Port USB C Hub - USB-C to 5x USB-A and 2x USB-C - USB 3.0 - 5Gbps Product Title (Standard) 7 Port USB C Hub with Fast Charge - 5x USB-A & 2x USB-C (USB 3.0 SuperSpeed 5Gbps) - USB 3.2 Gen 1 Adapter Hub - Self Powered Product Title (Long) 7 Port USB C Hub with Fast Charge Port - USB-C to 5x USB-A 2x USB-C (USB 3.0 SuperSpeed 5Gbps) - Self Powered USB 3.2 Gen 1 Type-C Hub w/ Power Adapter - Desktop/Laptop Hub Product Title (AMZ) 7 Port USB C Hub with Fast Charge Port - USB-C to 5x USB-A 2x USB-C (USB 3.0 SuperSpeed) - Self Powered USB 3.0 (5Gbps) Type-C Hub w/ Power Adapter - Desktop/Laptop Hub (HB30C5A2CSC) Title Ingram (Part 1) 7Port USB C Hub - USB-C to 2x C Title Ingram (Part 2) & 5x A - USB 3.0 Hub Website Product Headline Turn a USB Type-C port on your laptop into five USB Type-A ports (5Gbps) and two USB Type-C ports Bullet 1 7 PORT USB C HUB: From a USB 3.2 Gen 1 (5Gbps)Type-C host port, add 5x USB-A and 2x USB-C ports; Backwards compatible with USB 2.0/1.1; Includes 3.3ft (1m) USB-C host cable; Thunderbolt 3 Compatible Bullet 2 SELF-POWERED USB HUB: Includes external 12V 4A universal power adapter (NA, EU, UK, JP, AU/NZ) & a dedicated power switch for easy power toggling of all connected downstream devices to conserve energy Bullet 3 SPEEDS UP TO 5Gbps: USB 3.2 Gen 1 SuperSpeed shared with all downstream devices, supports thumb drives, data storage devices, keyboards, mice, web cams, headsets Bullet 4 FAST CHARGE PORT WITH BC 1.2: Power up to 1.5A (7.5W) features a standalone Dedicated Charging Port (DCP) for hostless charging or works as a Charging Downstream Port (CDP) for data and charging Bullet 5 WIDE OPERATING SYSTEM COMPATIBILITY: USB C laptop/desktop hub is OS Independent, driverless setup, supporting major operating systems including Windows, macOS, Linux, iPadOS, Chrome OS and Android Bullets (Compact) 7 port USB-C laptop or desktop hub - USB Type-C to 5x USB-A/2x USB-C - SuperSpeed 5Gbps (USB 3.2 Gen 1) - Incl 3.3ft host cable - Self-Powered w/ universal power adapter - Dedicated BC 1.2 fast charging port - OS Independent -Works w/ TB3 Bullets (Consolidated) 7 port USB C hub with SuperSpeed 5Gbps (USB 3.2 Gen 1/USB 3.2 Gen 1) | USB Type-C to 5x USB-A and 2x USB-C ports | Compatible w/ Thunderbolt 3/USB 2.0 - Self-Powered USB hub w/ Fast Charge BC 1.2 Port | Up to 1.5A (7.5W) | Hostless Dedicated Charging Port - USB C Laptop/Desktop hub with 3.3' (1m) host cable incl - Supports keyboards/mice/web cams/headsets/storage devices - 12V 4A universal power adapter w/ dedicated power switch for powering down all connected devices - OS Independent Marketing Copy Applications - Upgrade and expand the connection capabilities of your MacBook, Ultrabook™, laptop, or desktop
- Deploy in hot-desk environments to provide USB hub access for multiple devices
- Connect a wide variety of peripherals at home or in the office, all from a single USB 3.2 Gen 1 connection
Website Search Keyword - 7 port usb 3.0 hub
- 7 port usb c hub
- 7 port usb hub
- charging station
- multi port usb hub
- multiport adapter
- port expander
- powered usb 3.0 hub
- powered usb hub
- usb 3 hub
- usb 3.0 hub
- usb 3.0 type c hub
- usb c hub
- usb c port expander
- usb c port hub
- usb c to c
- usb c to usb a
- usb c to usb a hub
- usb c to usb hub
- usb hub
- usb hub adapter
- usb hub powered
- usb multiport
- usb port expander
- usb port hub
- usb powered hub
- usb type c hub
- usb type c to c
- usb type c to type a
- usb type c to usb
- usb type-c hub
- usb-c hub
- usb-c to usb
- usb-c to usb-a
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes System and Cable Requirements Available USB Type-C port - USB 3.0 (5Gbps) Accessory Products - SVA12M5NA
- USB3SAA3MBK
- USB3SAA6BK
- USB3SAB6BK
- USB3SAB10BK
- USB315CB2M
- USB315CC2M
- USB315AC1M
Related Products - HB30C3A1CFS
- HB30C3A1CFB
- HB30C3A1GE
- ST4300PBU3
- ST4300MINU3B
- HB30C4ABW
- HB30C3APDW
- HB30C3A1CST
- HB30C5A2CST
- TB33A1C
- DK30CH2DPPD
- MST30C2HDPPD
- DKWG30DPHPD
Input Current 1 A Input Voltage 100 - 240 AC Output Current 4 A Output Voltage (V) 12V DC Power Consumption (In Watts) 48 Power Delivery No PD Pass-Through Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Cable Length (mm) 1000 Color Black & Silver Humidity 0~95% RH (Non-condensing) at 25°C Material Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Plastic Product Length (mm) 149.000 Product Width (mm) 65.000 Product Height (mm) 24.000 Product Weight (g) 150.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Fast Charge Ports (BC 1.2) Yes Maximum Data Transfer Rate 5 Gbps (USB 3.2 Gen 1) OS Compatibility OS Independent Supported Charging Outputs BC 1.2 (1.5A) UASP Support Yes USB Type and Rate USB 5Gbps Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID VIA/VLI - VL817 Ethernet Port No Industry Standards Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators 7 - Active USB-C Device Port(s) Yes USB-C Host Connection Yes Carton Depth (mm) 560 Carton Height (mm) 246 Carton Quantity 20 Carton Weight Gross (g) 11016 Included in Package - 1 - USB-C hub

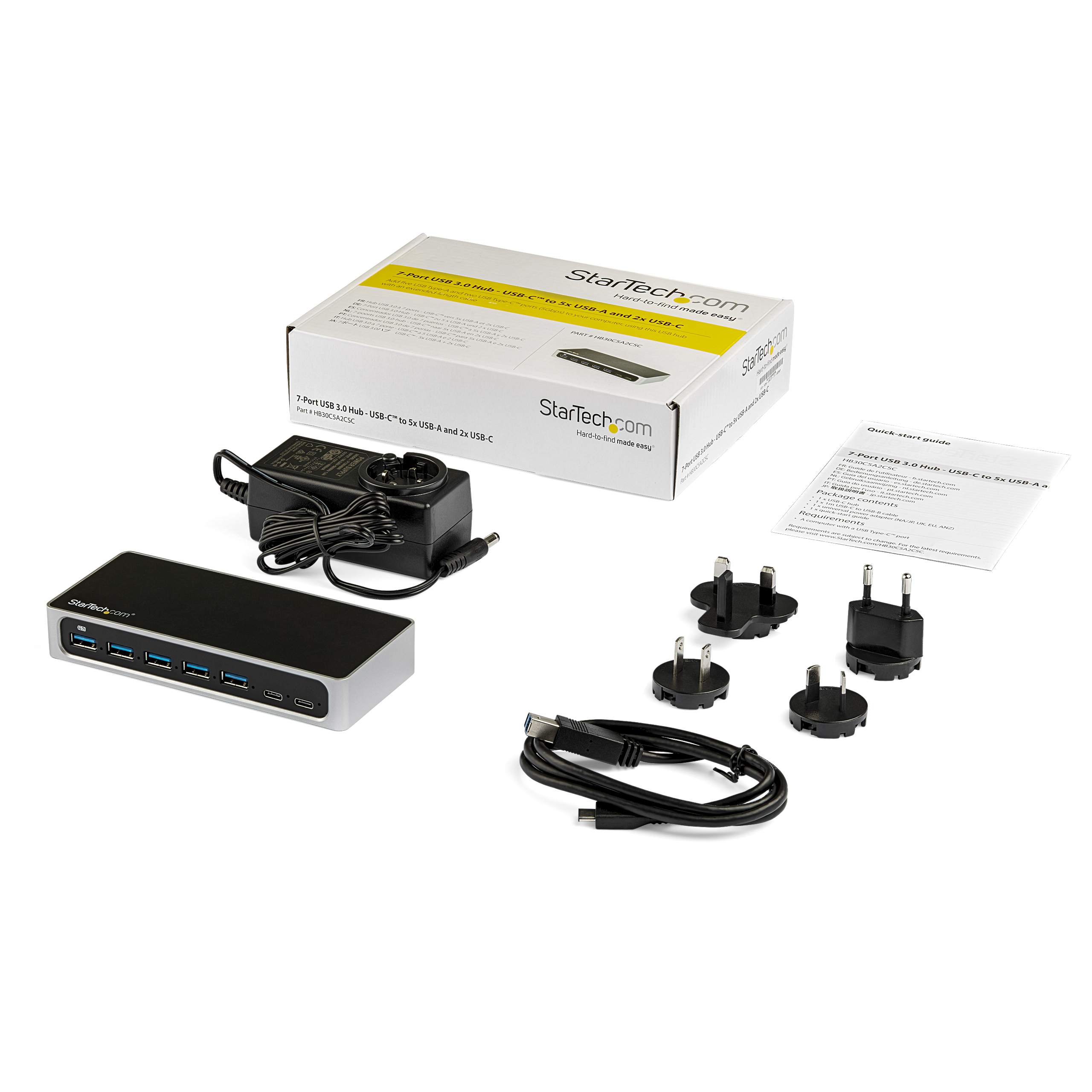

- 1 - 1m USB-C to USB-B cable
- 1 - quick-start guide
- 1 - universal power adapter (NA/JP, UK, EU, ANZ)
Package Depth (mm) 214 Package Height (mm) 54 Package Width (mm) 152 Package Quantity 1 Package Weight (g) 512 Packaging Description 7-Port USB 3.0 Hub - USB-C™ to 5x USB-A and 2x USB-C Packaging Description India 7-Port USB 3.0 Hub - USB-C™ to 5x USB-A and 2x USB-C Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 4 Connector 2 USB-C (5Gbps, 4.5W) Connector 2 (Quantity) 2 Connector 3 USB-B (5Gbps, 4.5W) Connector 3 (Quantity) 1 Connector 4 USB-A (7.5W Power Only) Connector 4 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2018-02-02 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Digital Content Due Date 2018-02-02 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FI,FR,IE,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology USB-C Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Development Completion Date 2018-01-19 Target Production Release 2018-02-02 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Mainstream
