Main Image
HB30C5A2CST
7Port USB C Hub USB C to C A USB 3 0 Metal

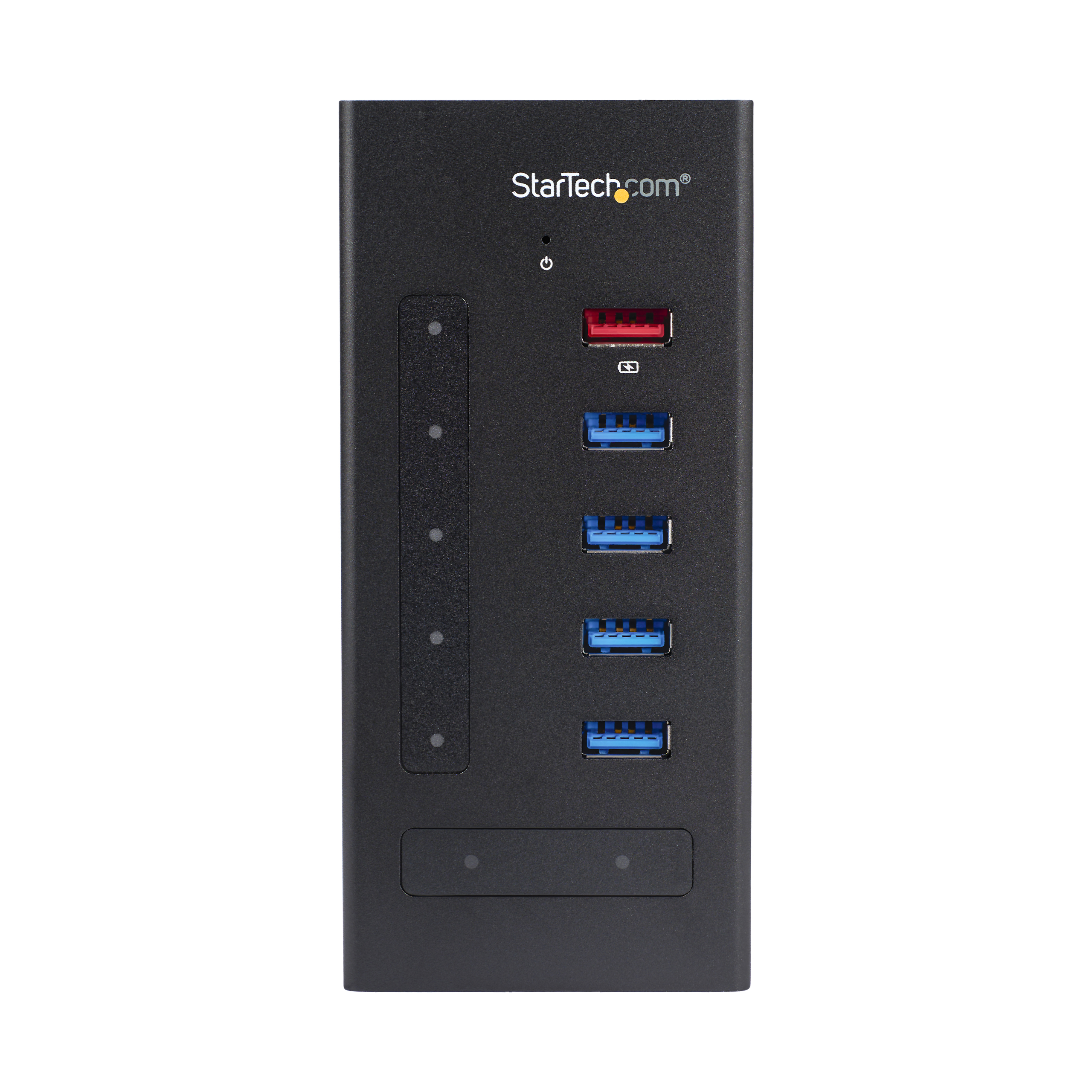

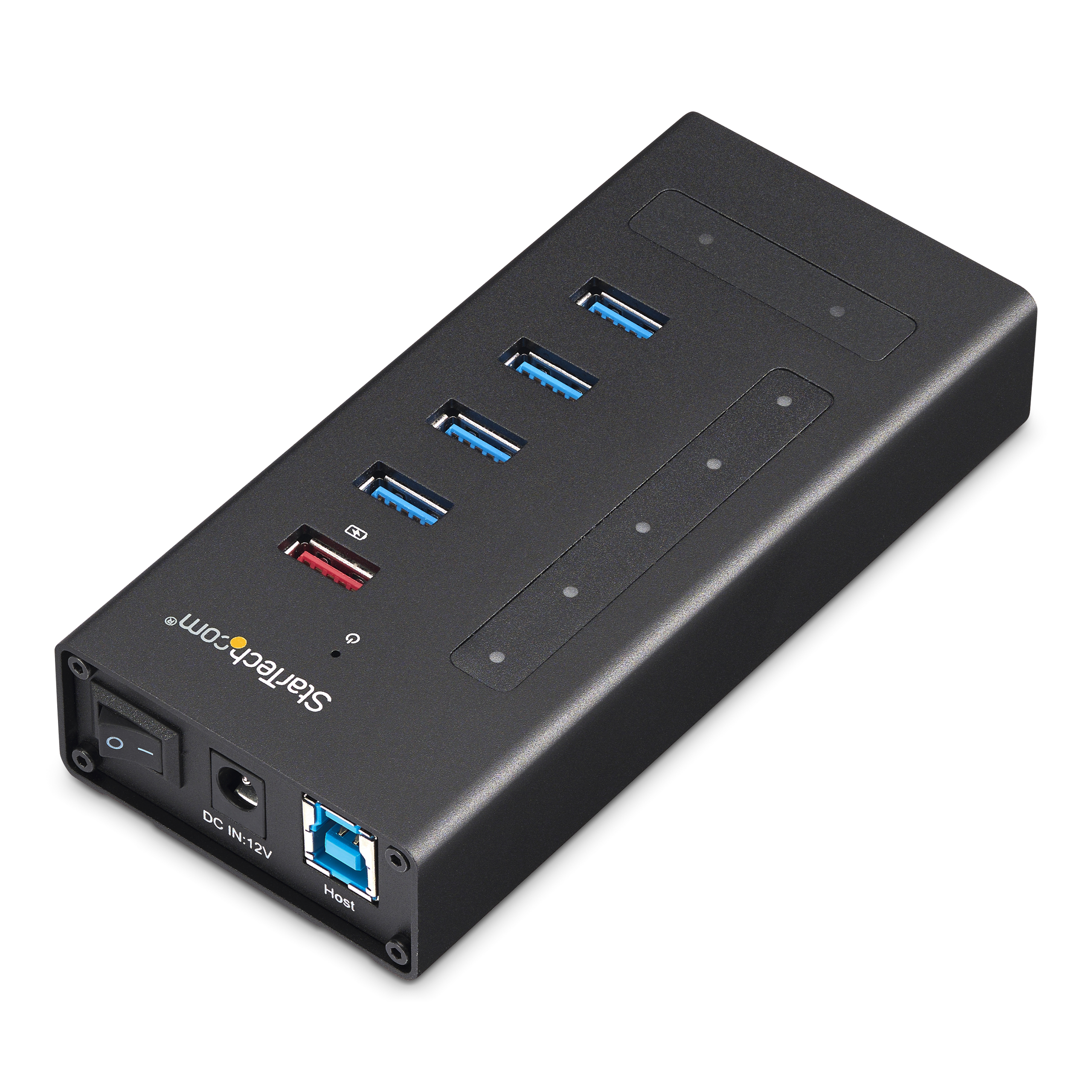

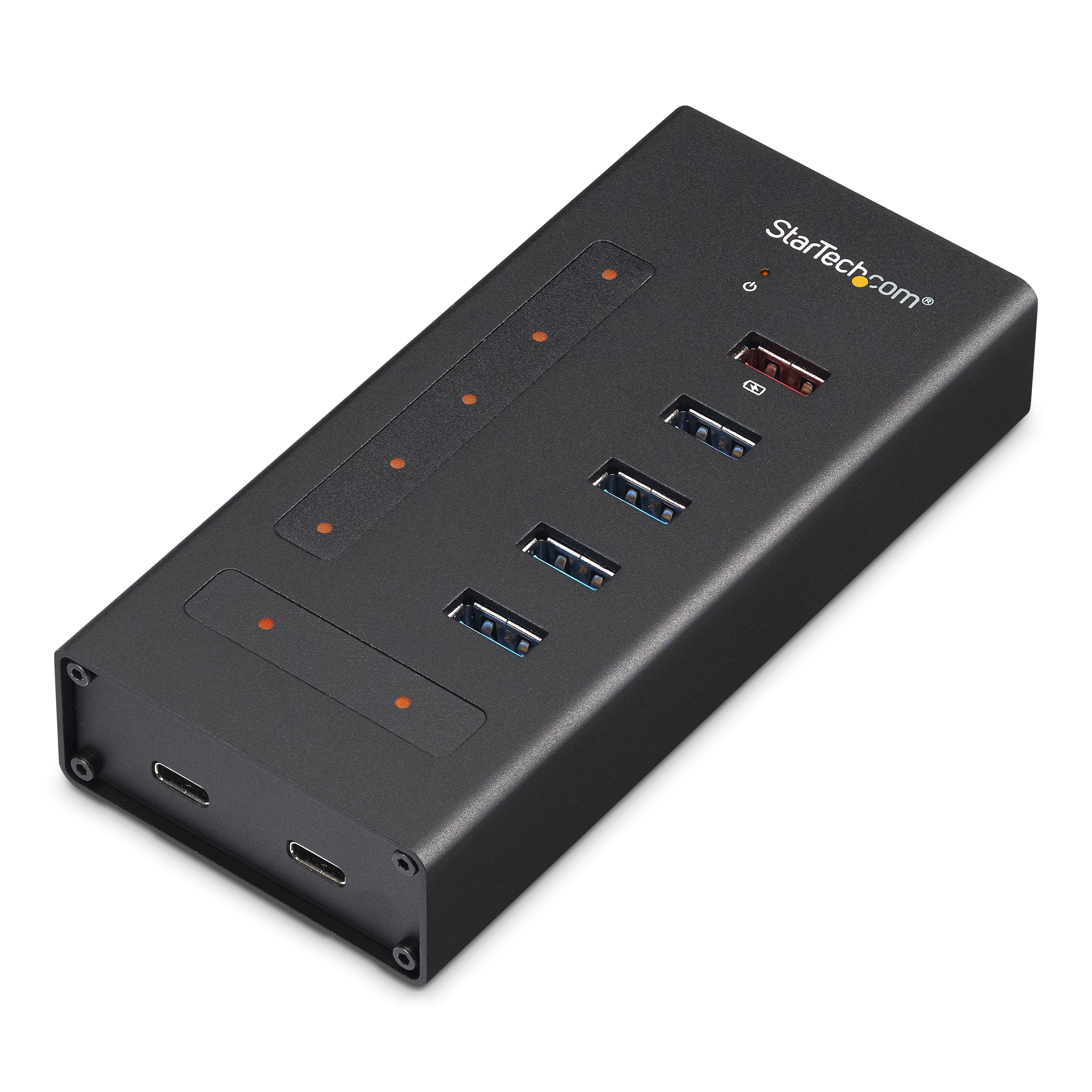

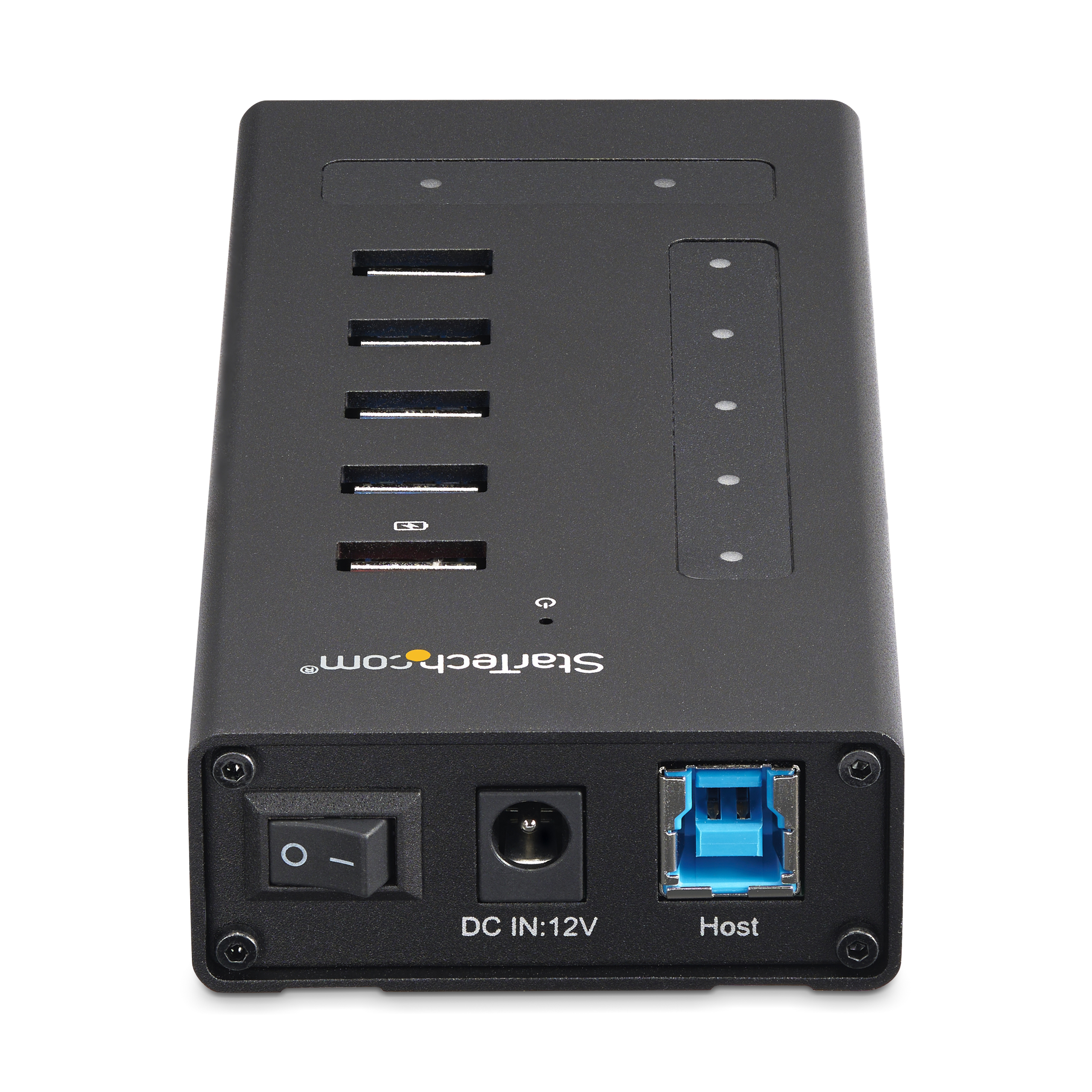

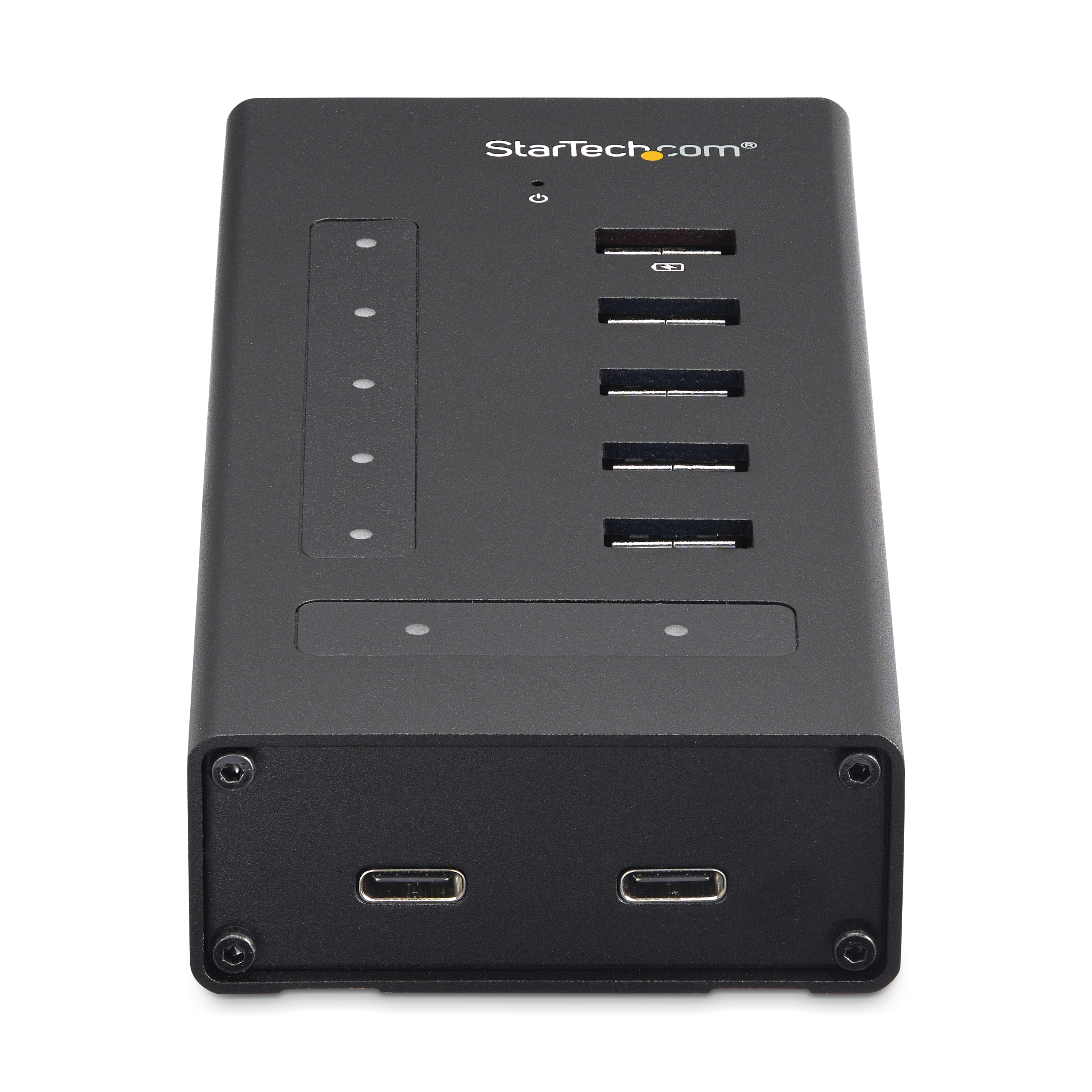

Add five USB Type-A ports and two USB Type-C ports to your USB-C equipped computer, using this mountable USB 3.2 Gen 1 (5Gbps) hub
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 7Port USB C Hub USB C to C A USB 3 0 Metal Product Number HB30C5A2CST UPC 065030867894 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 USB-C Hubs Category Level 3 USB-C External Powered Hubs - 5Gbps Family USB-C External Powered Hubs - 5Gbps - 7-Port - C/A Mix Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX157X Product Title (Ultra-Short) 7 Port USB 3.0 C Hub Product Title (Short) 7 Port USB C Hub 5Gbps 2 USB-C/5 USB-A Product Title (Medium) 7 Port USB-C Hub - Metal - USB-C to 5x USB-A and 2x USB-C - USB 3.0 - 5Gbps Product Title (Standard) 7 Port USB C Hub - 2x USB-C & 5x USB-A - Mountable Metal USB 3.0 Type-C Hub - 5Gbps USB 3.2 Gen 1 - Self Powered - BC 1.2 Product Title (Long) 7 Port USB C Hub - USB Type-C to 2x USB-C/5x USB-A - Commercial Metal USB 3.0 Hub - SuperSpeed USB 3.2 Gen 1 (5Gbps) - Self Powered - BC 1.2 Fast Charge - Mountable/Rugged Product Title (AMZ) 7 Port USB C Hub - USB Type-C to 2x USB-C/5x USB-A - Commercial Metal USB 3.0 - SuperSpeed USB 3.0 (5Gbps) - BC 1.2 Fast Charge - 5 x usb-a, 2 x usb-c (HB30C5A2CST) Title Ingram (Part 1) 7Port USB-C Hub - USB-C to 2x C Title Ingram (Part 2) & 5x A - USB 3.0 Hub - Metal Website Product Headline Add five USB Type-A ports and two USB Type-C ports to your USB-C equipped computer, using this mountable USB 3.2 Gen 1 (5Gbps) hub Bullet 1 7 PORT USB-C HUB: Expand the connectivity of a USB Type-C laptop/desktop by adding 5x USB-A & 2x USB-C ports (data only) with this SuperSpeed USB 3.2 Gen 1 (5Gbps) adapter hub; Incl 3ft (1m) USB-C host cable Bullet 2 CHARGE & SYNC: Self-powered USB hub w/Incl 36W power supply (shared among all ports); USB-A port provides up to 12W (BC 1.2); Supports Charging Downstream Port (CDP), and Dedicated Charge Port (DCP) modes, charging devices with or without a PC connected Bullet 3 MOUNTABLE: Using incl mounting bracket, this compact metal USB 3.2 Gen 1 hub is ideal for commercial environments; Capable of being securely wall or desk mounted w/ screws; Incl. rubber feet for better grip Bullet 4 THOUGHTFUL DESIGN: Easily disconnect all devices through main power switch on hub; Power LEDs for status identification; Easy port access with top facing USB-A ports & side-panel USB-C ports Bullet 5 WIDE COMPATIBILITY: Rugged USB hub is OS independent, works w/ Windows, macOS, Linux, iPadOS, Chrome OS; USB 3.0/2.0/1.0 compatible; Supports SSD/thumb drives, keyboards, mice, web cams, scanner, printers Bullets (Compact) 7-Port USB-C hub - USB Type-C laptop/desktop to 5 USB-A (1x BC 1.2) and 2 USB-C - SuperSpeed 5Gbps USB - Incl 36W power adapter/USB-C host cable - Mountable self-powered USB 3.2 Gen 1 hub - Rugged metal housing - Power switch - OS independent Bullets (Consolidated) Compact 7-Port USB-C hub with SuperSpeed 5Gbps (USB 3.2 Gen 1) | USB Type-C laptop/desktop to 5x USB-A and 2x USB-C - Incl 36W power adapter (shared w/all ports) | USB-A dedicated charging port up to 12W (BC 1.2) | Charge device with or without PC - Self-powered rugged metal USB 3.2 Gen 1 hub ideal for commercial environments | Wall/desk mountable (bracket incl) - Main power switch | Status LEDs - Supports SSD/thumb drives/keyboards/web cams/scanners/printers - OS independent | Works w/ USB 2.0 Marketing Copy Marketing Copy (No HTML) This 7-port USB-C hub turns your laptop or desktop USB Type-C port into four standard USB-A ports, one USB-A fast-charge port, and two USB-C ports. You can also extend the range of your USB devices by using this industrial USB 3.2 Gen 1 hub as a mid-point repeater. The mountable USB hub is designed for easy port access when the hub is mounted or sitting on your desk. The hub ports are spaced with enough room between them to easily plug or unplug your USB devices, without having to disconnect other devices from neighboring ports. The USB-C charging hub lets you extend the life of your current USB 3.2 Gen 1 devices while also taking advantage of newer USB-C devices. It's perfect for IT professionals or anyone who needs to plug and unplug their devices regularly. This USB-C port expander has a rugged metal housing that can withstand the wear and tear of daily use. With the included wall-mount bracket, you can attach the USB 3.2 Gen 1 hub to a surface such as a desktop or a wall, to best suit your needs. With the available fast-charge port, the USB 3.2 Gen 2 Type-C hub helps to ensure that your tablet or smartphone are charged and ready to use when you need them. You can also sync and access your device while it's charging using this powered USB-C hub. The USB-A charge port supports USB Battery Charging Specification 1.2 and delivers up to 2.4 amps of power. The rugged USB hub is backed by a 2-year StarTech.com warranty and free lifetime technical support. Applications - Installation in locations where USB 3.2 Gen 1 ports need to be securely mounted to a surface, such as on a wall or under a desk
- Upgrade and expand the connection capabilities of your MacBook, Ultrabook™, laptop, or desktop

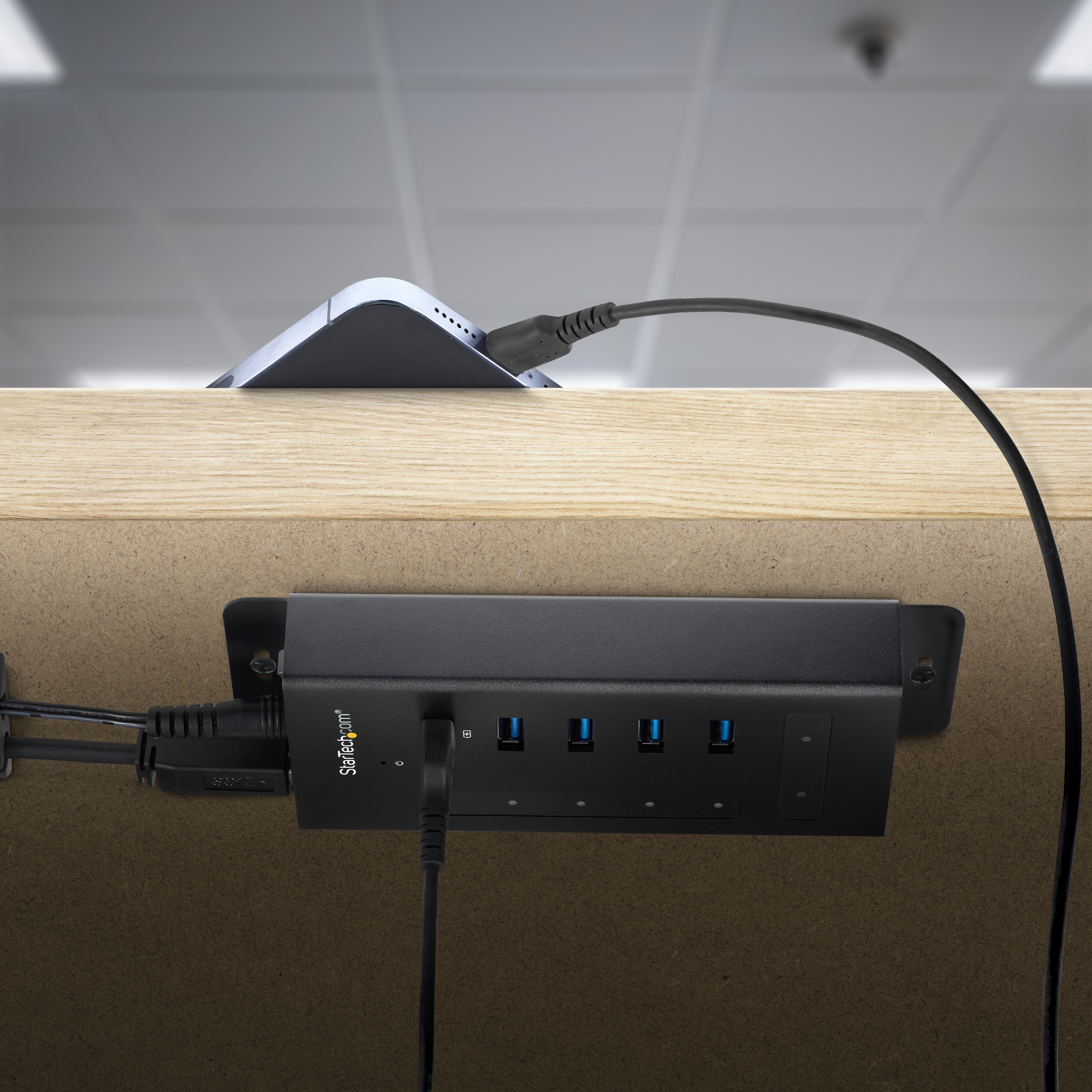

- Deploy in hot-desk environments to provide USB hub access for multiple devices
- Connect a wide variety of peripherals at home or in the office, all from a single USB 3.2 Gen 1 connection
Website Search Keyword - 7 port hub
- 7 port powered usb hub
- 7 port usb 3.0 hub
- 7 port usb hub
- desk mount usb hub
- desk mounted usb hub
- desk usb hub
- industrial usb 3.0 hub
- industrial usb hub
- laptop usb hub
- metal usb 3.0 hub
- mountable usb 3.0 hub
- mountable usb hub
- powered usb 3.0 hub
- powered usb hub
- rugged usb hub
- usb 3 hub
- usb 3 hub 7 port
- usb 3.0 7 port hub
- usb 3.0 hub
- usb 3.0 hub 7 port
- usb 3.0 type b
- usb c port expander
- usb desk hub
- usb hub
- usb hub 3.0 powered
- usb hub 7 port
- usb hub desk mount
- usb hub for laptop
- usb hub laptop
- usb hub wall mount
- usb hub with cable
- usb hub with type c
- usb hub with usb c
- usb port expander
- usb port hub
- usb powered hub
- usb wall hub
- usb-c hub
- wall mounted usb hub
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes System and Cable Requirements Available USB Type-C port - USB 3.0 (5Gbps) Accessory Products - USB3SAA3MBK
- USB3SAA6BK
- USB3SAB6BK
- USB3SAB10BK
- USB315CB2M
- USB315CC2M
- USB315AC1M
- SVA12M5NA
Related Products - HB30C3A1CFS
- HB30C3A1CFB
- HB30C3A1GE
- ST4300PBU3
- ST4300MINU3B
- HB30C4ABW
- HB30C3APDW
- HB30C3A1CST
Input Current 1.5 A Input Voltage 100 - 240 AC Output Current 3 A Output Voltage (V) 12V DC Power Consumption (In Watts) 36 Power Delivery No PD Pass-Through Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Cable Length (mm) 1022.35 Color Black Humidity 20~80% RH Material Aluminum Operating Temperature 5°C to 35°C (41°F to 95°F) Primary Material Aluminum Product Length (mm) 130.000 Product Width (mm) 60.000 Product Height (mm) 26.000 Product Weight (g) 170.000 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant No Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Fast Charge Ports (BC 1.2) Yes Maximum Data Transfer Rate 5 Gbps (USB 3.2 Gen 1) OS Compatibility OS Independent USB Type and Rate USB 5Gbps Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID VIA Labs - VL817-Q7 Ethernet Port No Industry Standards Interface/Bridge USB 3.2 Gen 1 (5Gbps) Laptop Dock / USB Hub Fast-Charge Yes LED Indicators - 1 - Power
- 7 - Hub Port Connection

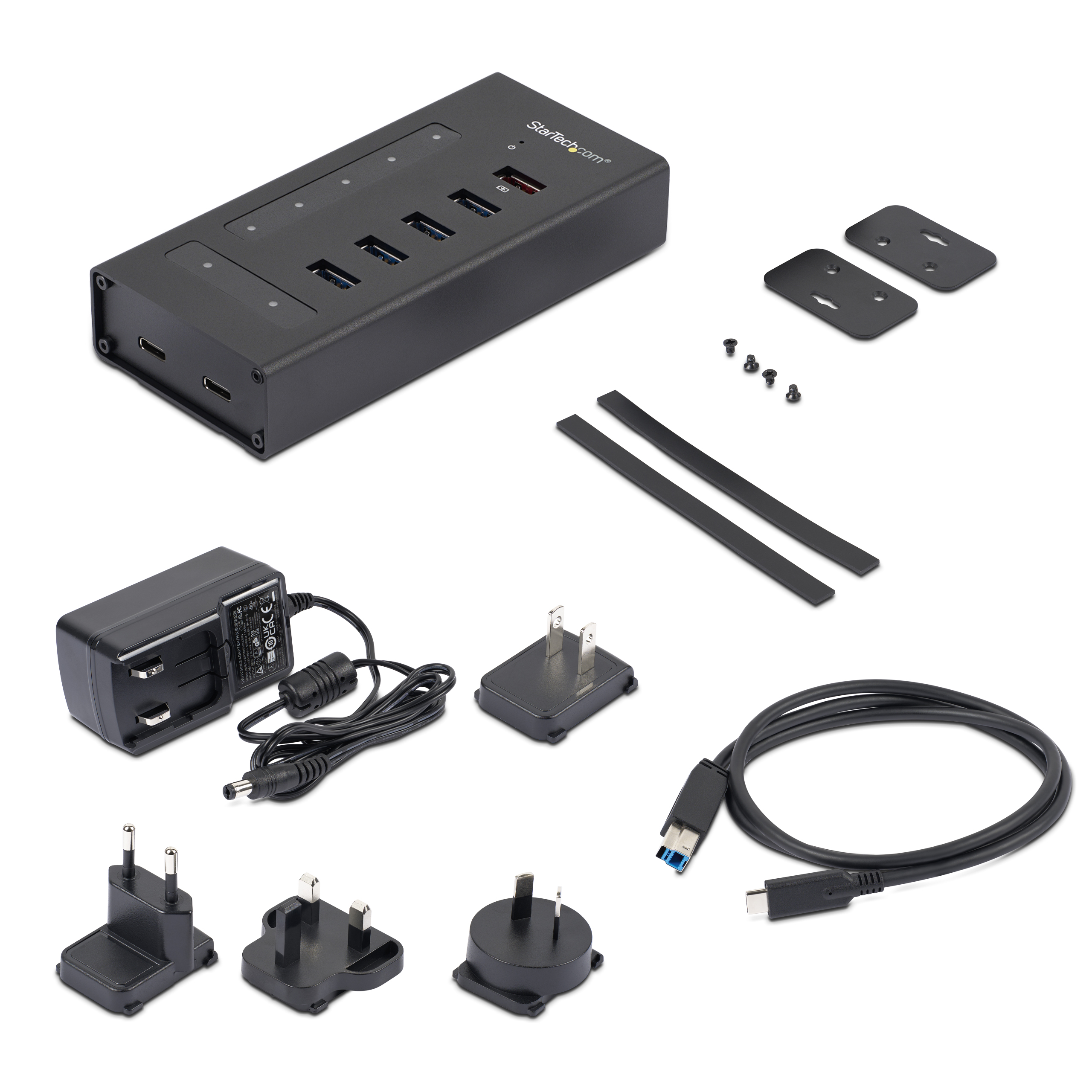

USB-C Device Port(s) Yes USB-C Host Connection Yes Carton Depth (mm) 536 Carton Height (mm) 345 Carton Quantity 15 Carton Weight Gross (g) 9738 Included in Package - 1 - USB-C hub
- 1 - universal power adapter (NA/JP, UK, EU, ANZ)
- 1 - USB-C to USB-B cable
- 2 - rubber feet
- 2 - mounting brackets
- 4 - mounting screws
- 1 - quick-start guide
Package Depth (mm) 105 Package Height (mm) 96 Package Width (mm) 195 Package Quantity 1 Package Weight (g) 598 Packaging Description 7-Port Metal USB 3.0 Hub Packaging Description India 7-Port Metal USB 3.0 Hub Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-B (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 4 Connector 3 USB-C (5Gbps, 4.5W) Connector 3 (Quantity) 2 Connector 4 USB-A (7.5W Power Only) Connector 4 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2017-07-07 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Digital Content Due Date 2017-08-11 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FI,FR,IE,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology USB-C Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Development Completion Date 2017-07-21 Target Production Release 2017-07-21 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Mainstream
