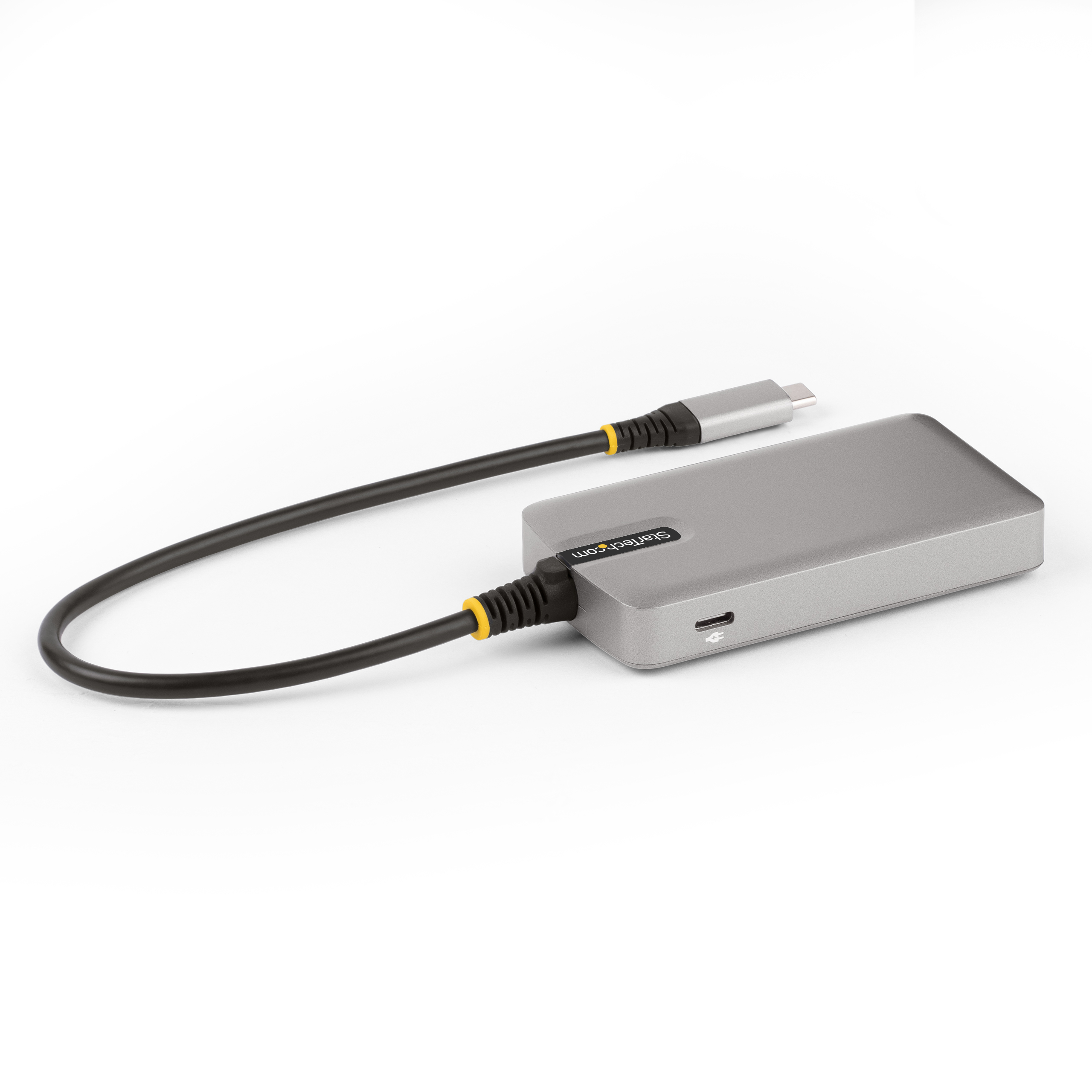

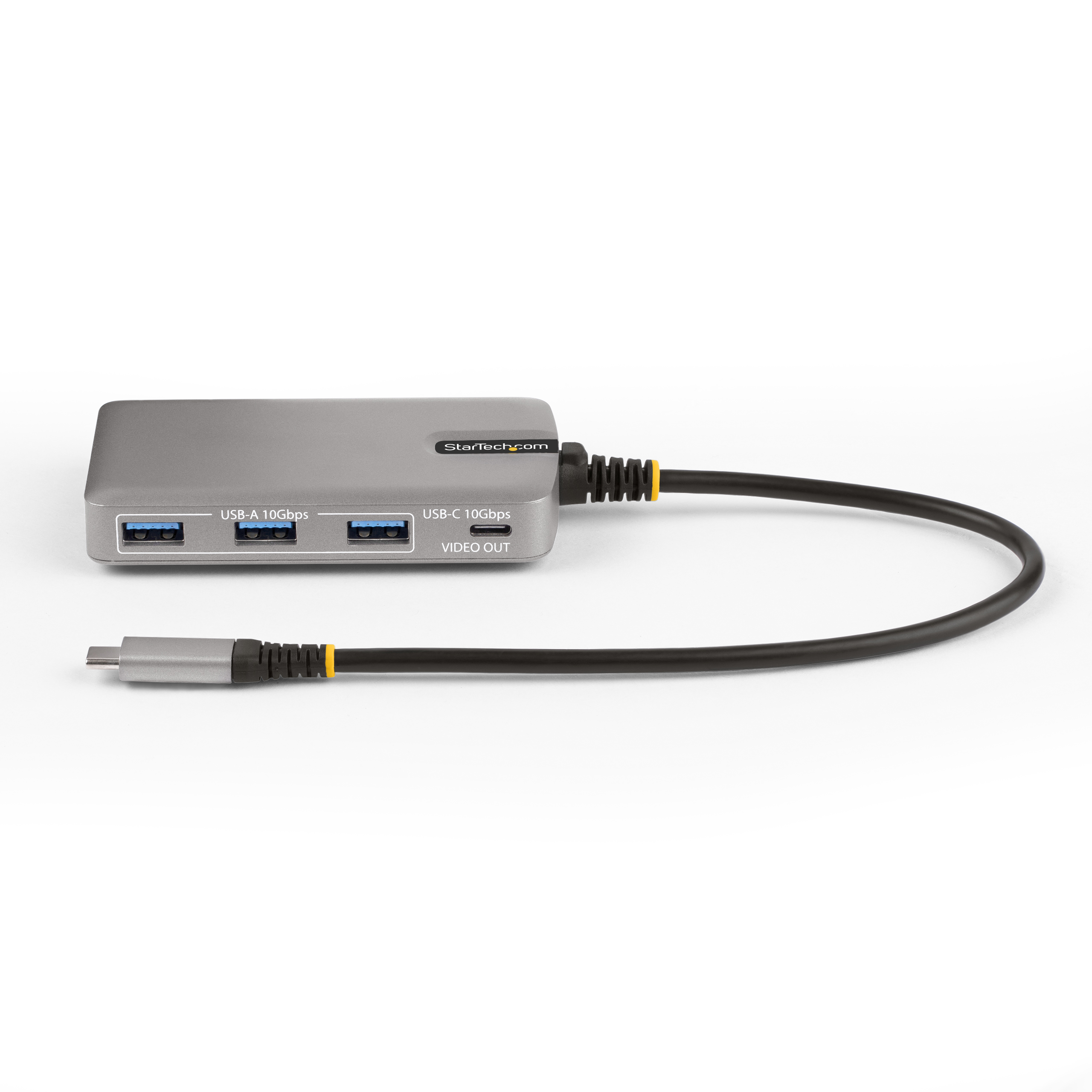

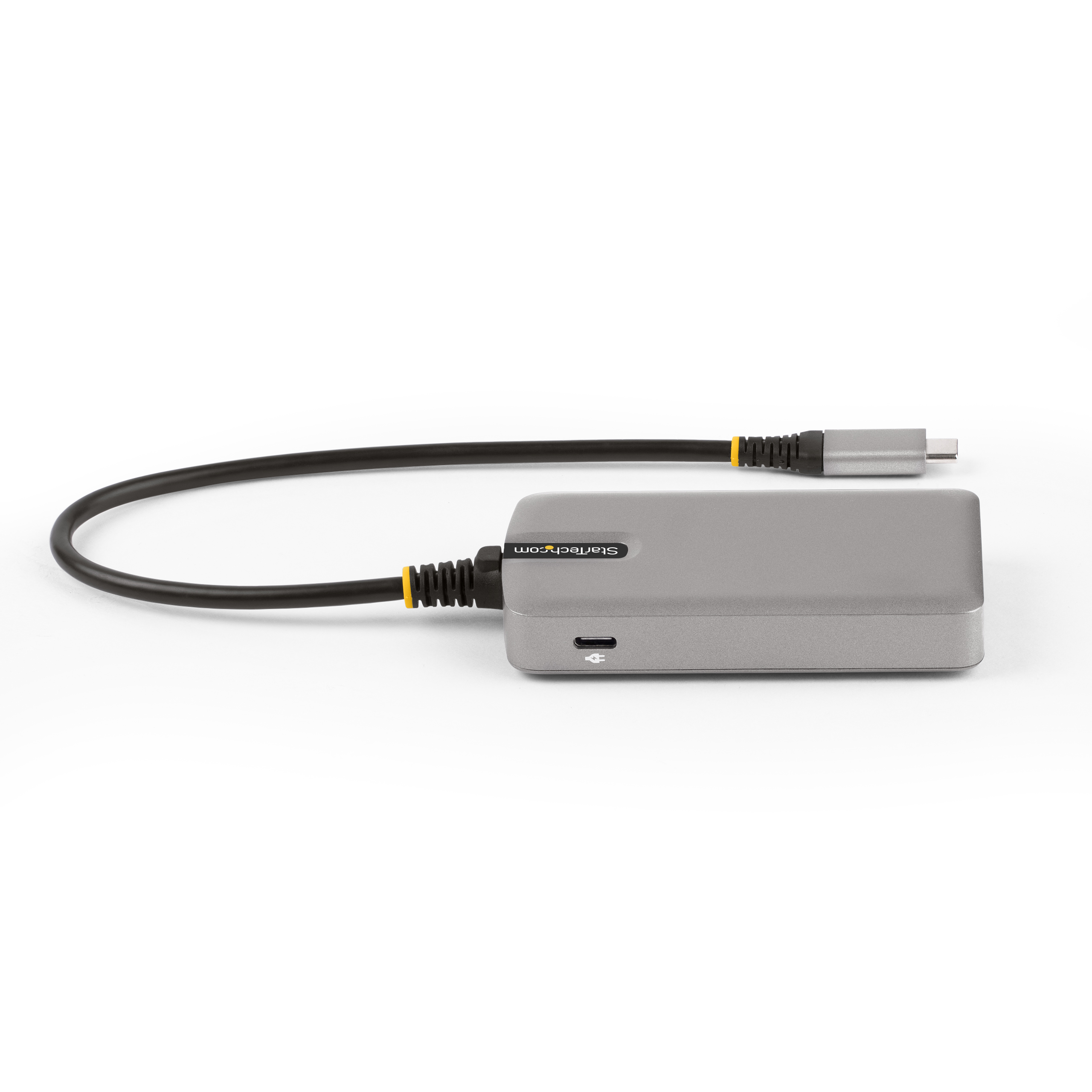

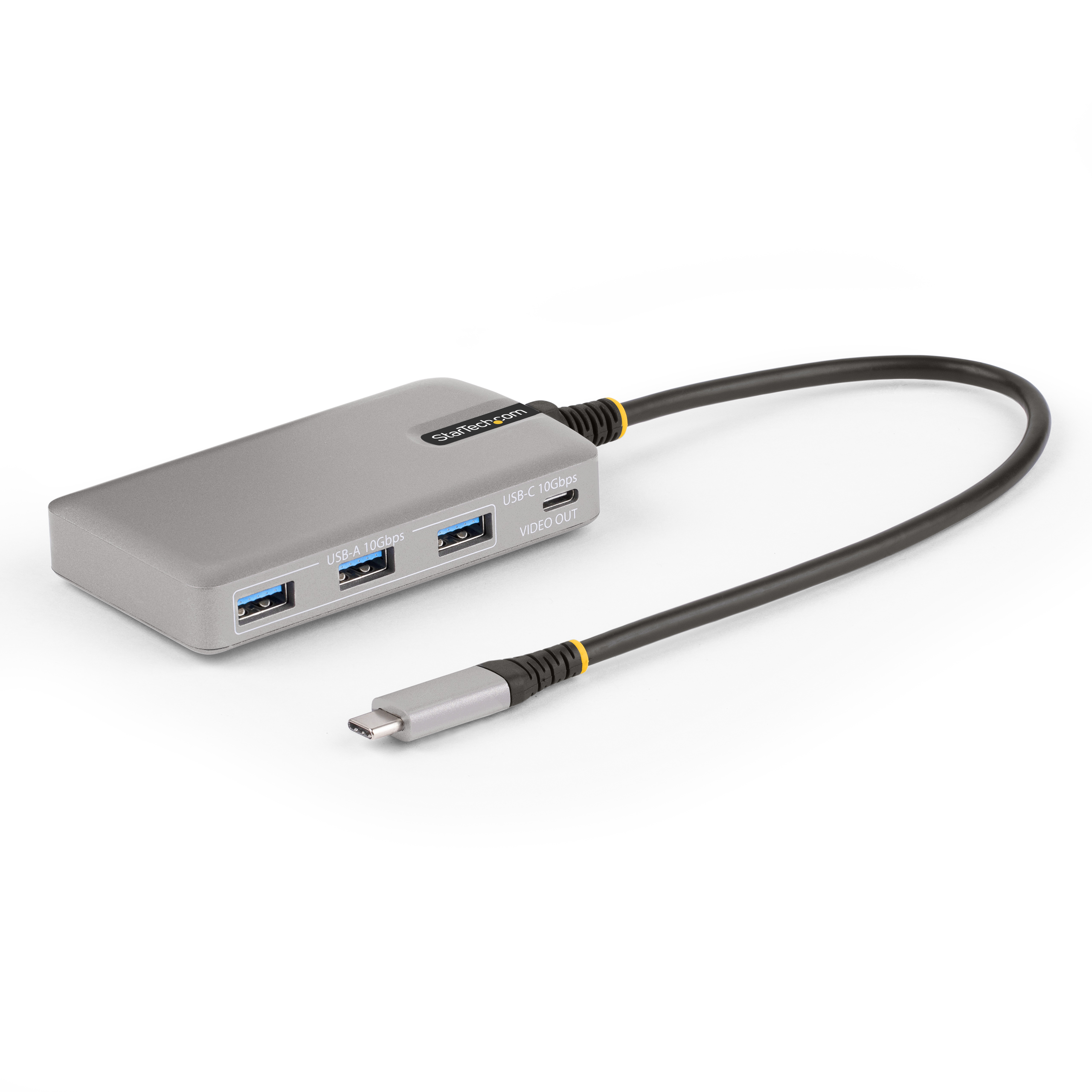

HB31C3A1CDPPD3
4 Port USB-C Hub 3A, 1C DFP with DP Alt Pass-through, and US

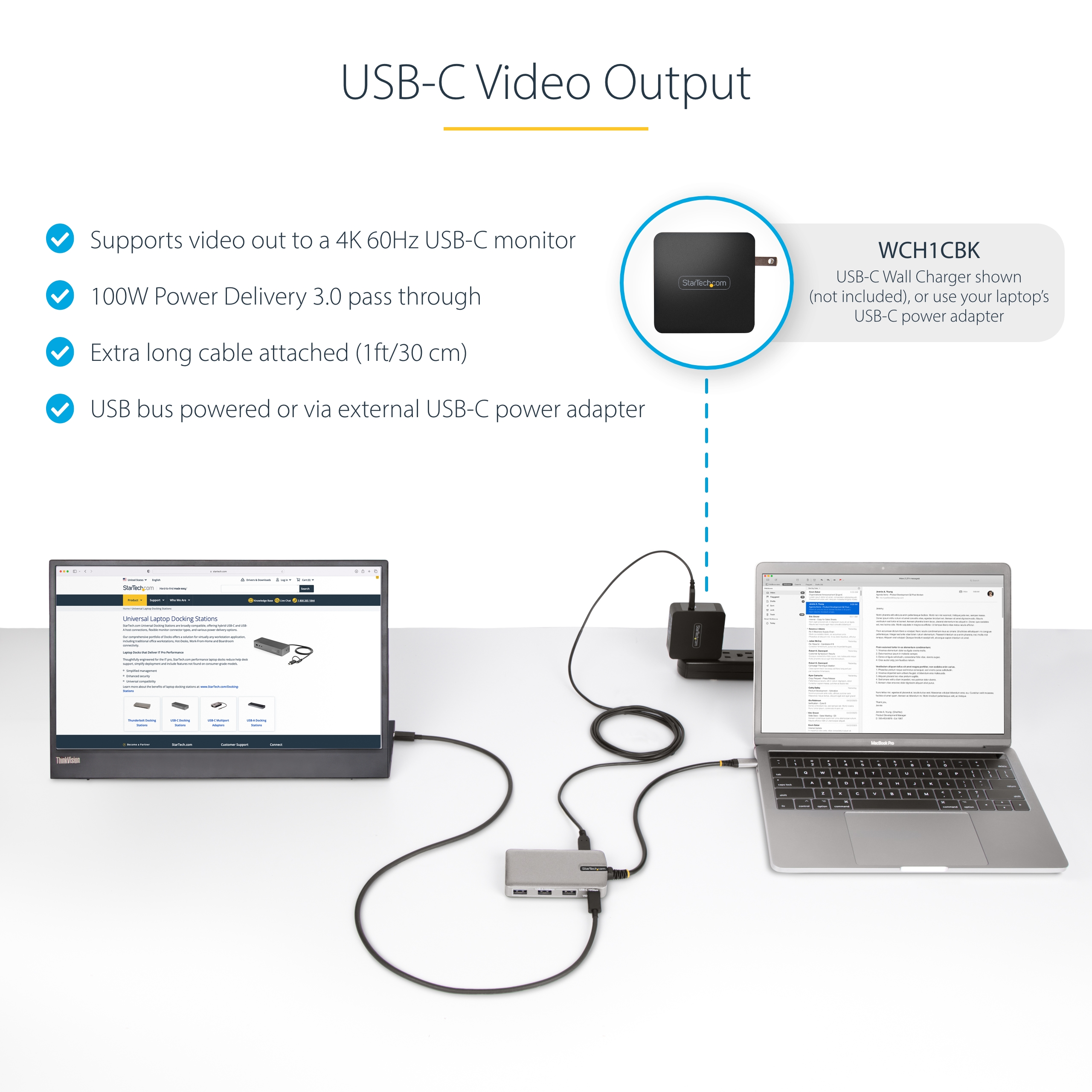

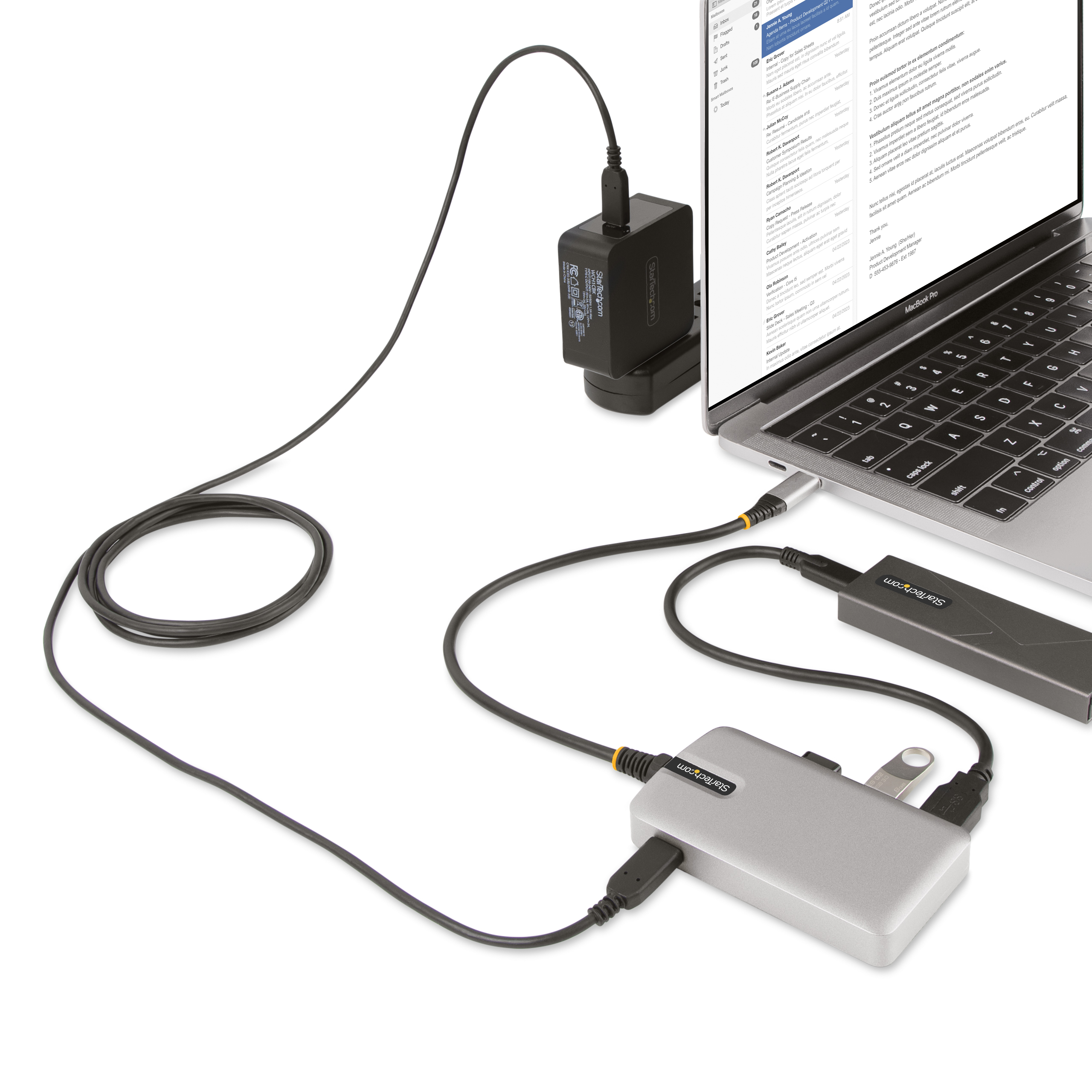

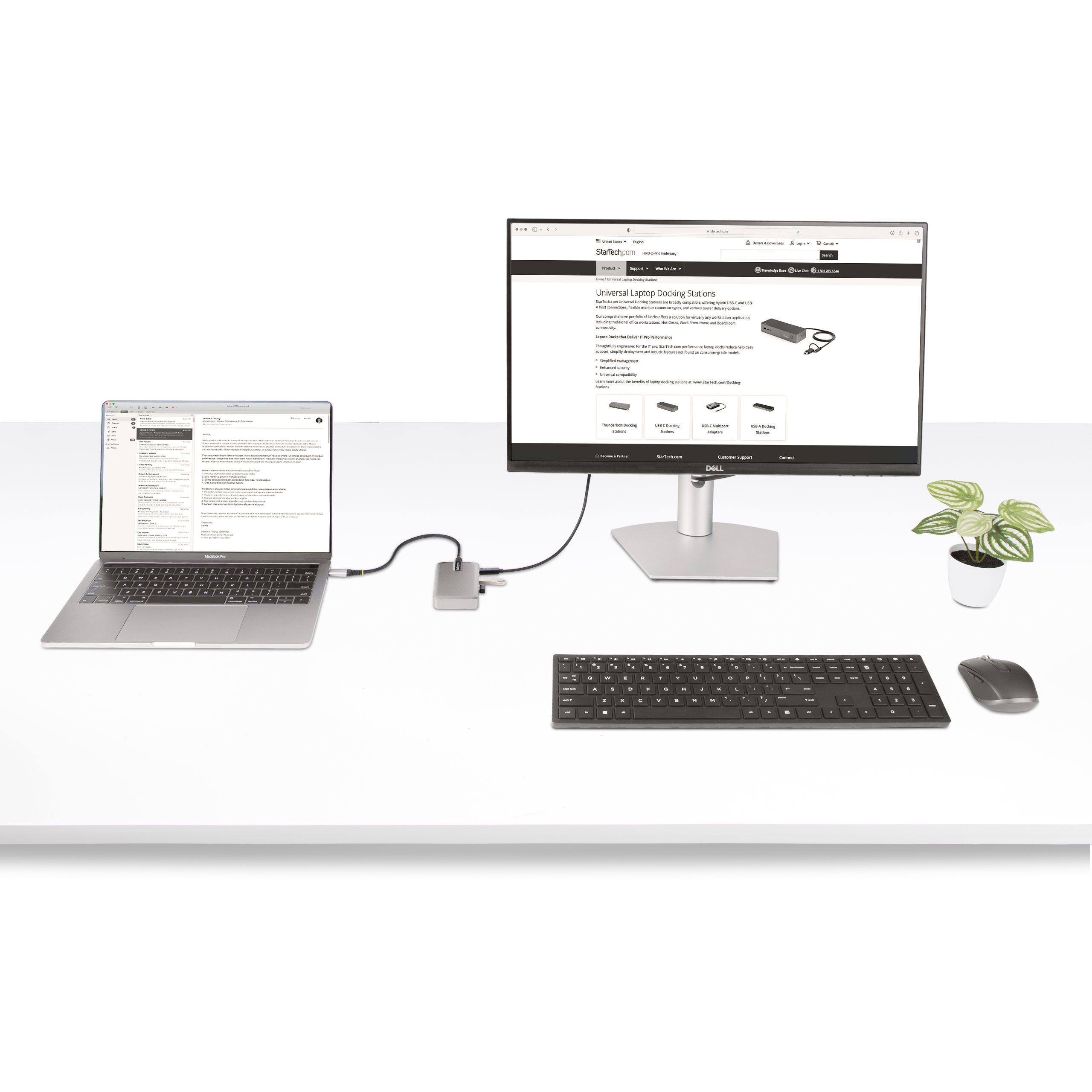

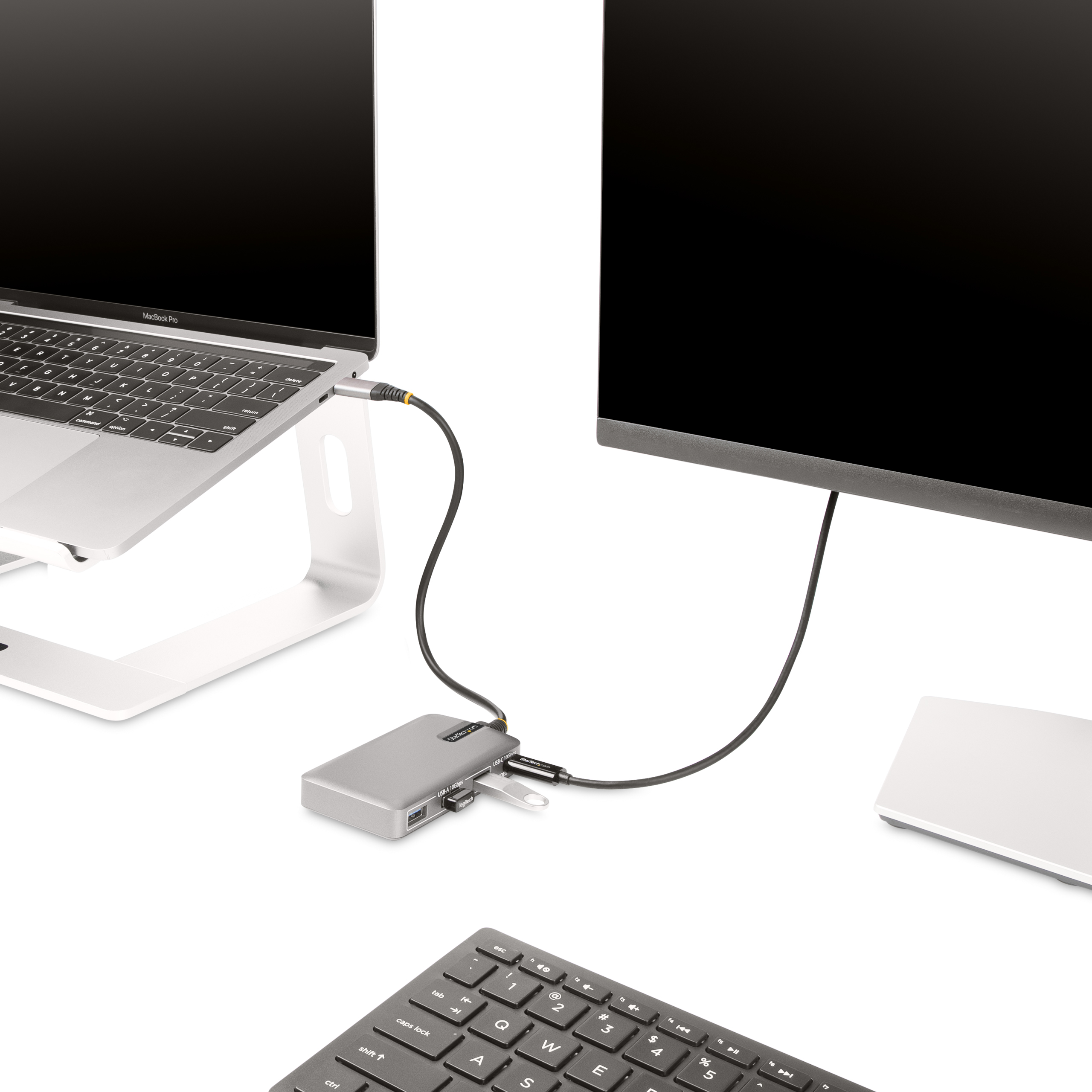

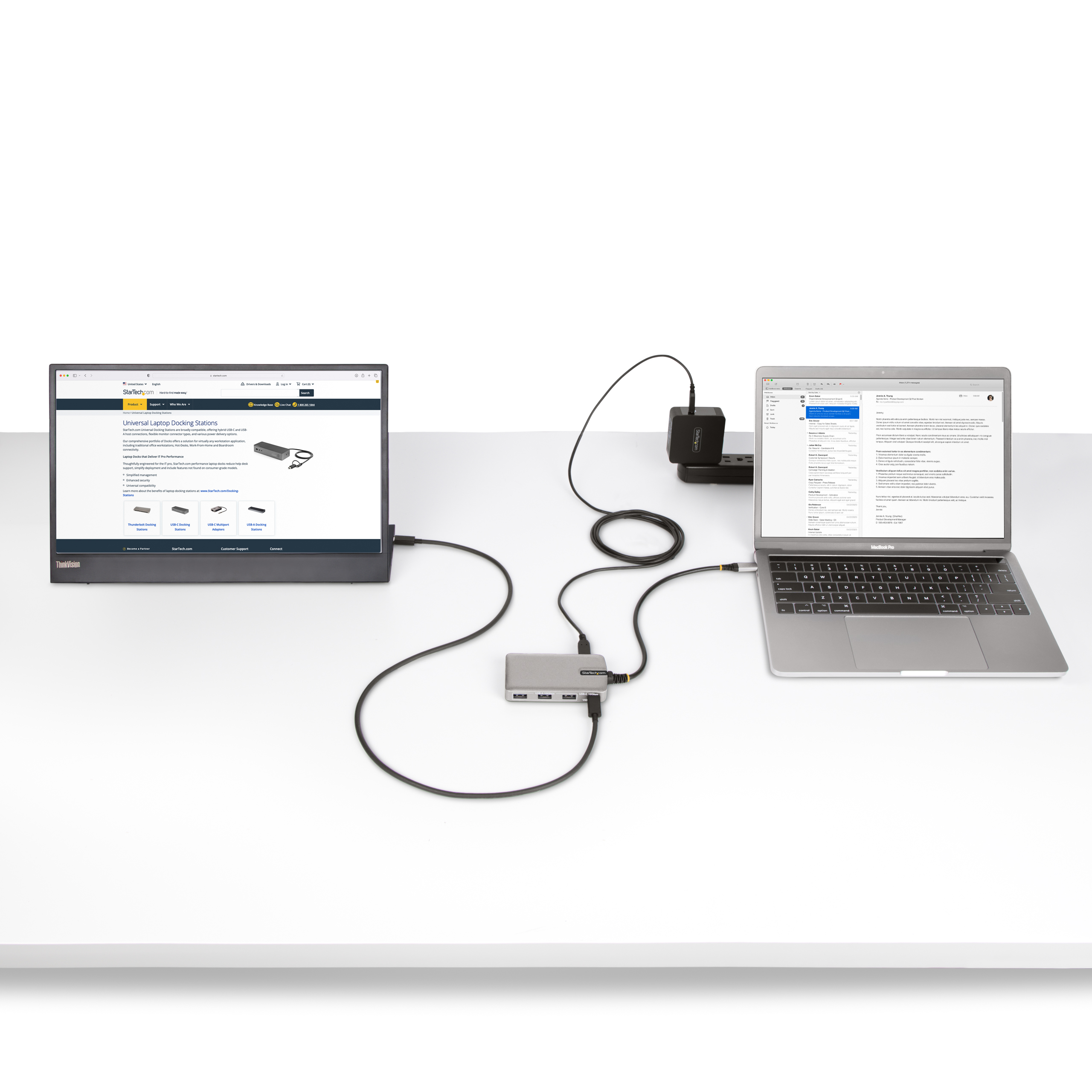

Add four 10Gbps USB ports (3x USB-A and 1x USB-C) to a USB-C enabled laptop while powering and charging the host device with Power Delivery 3.0
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Video Link YouTube
Product Name 4 Port USB-C Hub 3A, 1C DFP with DP Alt Pass-through, and US Product Number HB31C3A1CDPPD3 UPC 065030893022 Lifecycle status Active Warranty 2 Years Weighted Opportunity 44975 Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 USB-C Hubs Category Level 3 USB-C Multifunction Hubs - 10Gbps Family USB-C Multifunction Hubs - 10Gbps - with Video Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) China Country of Origin Revision (1) XXXXXX028X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX132X Product Title (Ultra-Short) 4pt USB-C 10Gbps Hub Product Title (Short) 4-Port USB-C Hub with USB-C Video Output Product Title (Medium) 4-Port USB-C 10Gbps Hub w/USB-C Video Output, 3x USB-A/1xC, 100W PD Pass-Through Product Title (Standard) 4-Port USB-C Hub with USB-C DP Alt Mode Video Output, 3x USB-A, 1x USB-C, 100W Power Delivery Pass-Through, USB 3.2 10Gbps Product Title (Long) 4-Port USB-C Hub with USB-C DP Alt Mode Video Output 4K 60Hz - 3x USB-A, 1x USB Type-C, 100W Power Delivery Pass-Through, USB 3.2 10Gbps, 1ft/30cm Cable, Portable USB Hub Product Title (AMZ) 4-Port USB-C Hub with DP Alt Mode Video Output, 4K 60Hz, 10Gbps, 100W PD Charging, 3x USB-A and 1x Type-C, 1ft/30cm Cable, Portable Laptop Hub Title Ingram (Part 1) 4-Port USB-C Hub w/USB-C Video Title Ingram (Part 2) - 3x USB-A/1x USB-C for Laptops Website Product Headline Add four 10Gbps USB ports (3x USB-A and 1x USB-C) to a USB-C enabled laptop while powering and charging the host device with Power Delivery 3.0 Bullet 1 4-PORT USB-C HUB: USB 3.2 Gen 2 (10Gbps) expansion hub with built-in USB-C host cable; 3x USB-A, 1x USB-C (Alt Mode DisplayPort 1.4 + 10Gbps data), 1x USB-C PD Pass-Through; Overcurrent Protection (OCP) & Wake on USB; Easy driverless setup Bullet 2 USB-C VIDEO OUTPUT: USB-C port (video + data) supports video out to a 4K 60Hz portable or desktop USB-C monitor; NOTES: Computer must support USB-C DP Alt Mode; Power adapter must be connected to PD Pass-Through port to power a USB-C monitor Bullet 3 RELIABLE PERFORMANCE: Connect an external USB-C power adapter for 100W Power Delivery 3.0 pass through; 18W is reserved for the adapter to avoid video flickering, device dropouts or power overdraw that's common in other hubs; Up to 82W for laptop charging Bullet 4 EXTRA-LONG CABLE: Attached 1ft/30cm cable with TPE jacket provides long reach for easy setup and prevents adapter from dangling on the host connector; Ideal cable length to reduce port strain on 2-in-1 convertible laptops, or host laptops on riser stands Bullet 5 OUR ADVANTAGE: Included connectivity tools for IT Pros and IT help-desk support teams; Features USB Event Monitoring that logs and timestamps USB port usage enabling admins to identify potentially malicious devices; Features Windows Layout Utility Bullets (Compact) 4-Port USB-C Expansion Hub (USB 3.2 Gen 2 10Gbps) - 3x USB-A/1x USB-C (DP 1.4 video + 10Gbps data) - USB-C video output supports video output to portable USB-C monitors up to 4K 60Hz - Bus powered or 100W PD charging - 1ft USB-C cable w/TPE jacket Bullets (Consolidated) - 4-Port USB-C 10Gbps Expansion Hub w/ 3x USB-A and 1x USB-C (DP 1.4 video + 10Gbps data) - USB-C video output supports portable USB-C monitors up to 4K 60Hz - USB bus powered or via external USB-C power adapter | 100W Power delivery 3.0 pass-through w/ 18W reserved for hub to avoid video flickering dropouts and overdrawing | 82W for laptop charging - Wake on USB | Driverless setup - 1ft USB-C cable w/ TPE jacket - Connectivity Tools software w/ USB Event Monitoring/Windows Layout Utilities Marketing Copy Marketing Copy (No HTML) Applications - Connect a portable USB-C monitor
- Connect a USB Solid State Drive (SSD)
Website Search Keyword - 4 port usb 3.0 hub
- 4 port USB-C hub
- bus powered usb hub
- desktop usb hub
- laptop usb hub
- portable hub
- portable usb c hub
- superspeed usb 3.0 hub
- usb 3.0 hub for macbook pro
- usb 3.0 travel hub
- usb 3.1 gen 1 hub
- usb c hub dongle
- usb c hub with power delivery
- usb c splitter
- usb c to usb a hub
- usb c to usb adapter
- usb c to usb hub
- usb expansion hub
- usb hub for mac
- usb type c hub
- usb-c hub
- usb-c port
- usb-c to usb-a hub
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Paper
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes - Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure the host USB-C port supports USB Power Delivery.
- Power will not pass through to the adapter when connected to a host USB-C port that lacks USB PD functionality.
- Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information about Power Delivery, refer to the manufacturer of your hardware.
System and Cable Requirements - A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery).
- Optional: USB-C power adapter (for example, your laptop's USB-C based power adapter).
Accessory Products - WCH1C
- WCH1CEU
- WCH1CUK
- USB3S2SAT3CB
- SDOCK2U33
- SDOCK2U33V
- SDOCK4U33
Related Products - 5G2A2CPDB-USB-C-HUB
- HB30CM3A1CB
- HB31C2A2CB
- HB31CM1A3CB
- HB30C3A1CFBW
- HB31C3A1CPD3

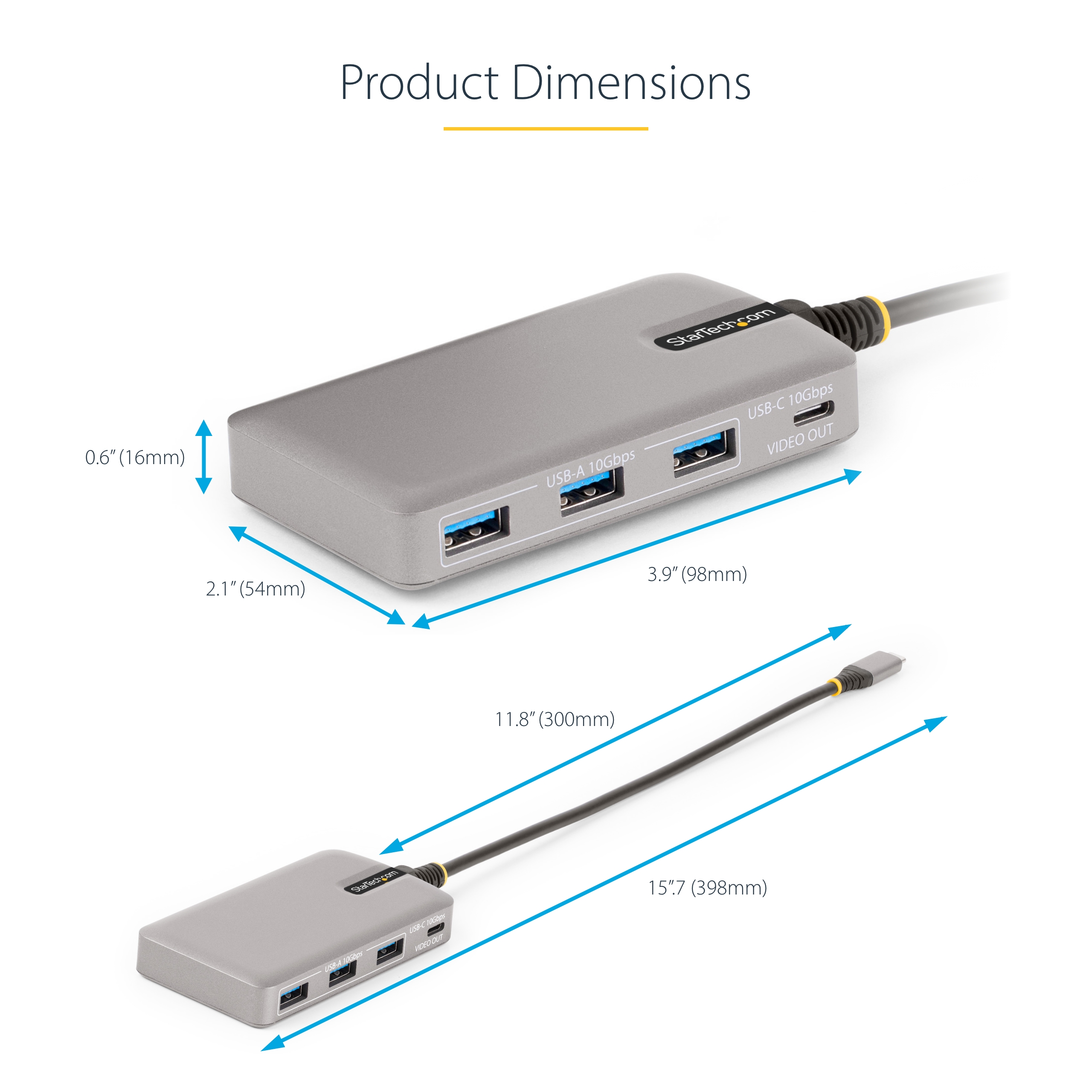

Power Consumption (In Watts) 18W Power Delivery 100W Power Source Bus Powered and Host USB-C Power Adapter Color Space Gray Humidity 0% ~ 95% RH at 25°C (77°F) Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 98.000 Product Width (mm) 54.000 Product Height (mm) 16.000 Product Weight (g) 90.000 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Device Power Consumption (In Watts) 18W Downstream Maximum Data Transfer Rate USB 3.2 Gen 2 (10Gbps) Fast Charge Ports (BC 1.2) Yes General Specifications Maximum Laptop Charging: 82W Maximum Data Transfer Rate 10Gbps (USB 3.2 Gen 2) Maximum Digital Resolutions 4K (4096 x 2160) 60Hz OS Compatibility OS Independent Total Available Power Output (In Watts) Up to 100W Total USB Power Output 4.5W (5V/0.9A) UASP Support Yes USB Speed USB 3.2 Gen 2 (10Gbps) USB Type and Rate USB 10Gbps Bus Type USB 3.2 Gen 2 10Gbps Chipset ID - VIA - VL103-Q4
- VIA - VL822-Q7
- Parade - PS8802
- Parade - FL7102-2L0
- TMI - IM2605
- Realtek - RTD2186
Ethernet Port No Industry Standards - USB 3.2 Gen 2 - Backward compatible with USB 3.2 Gen 1, USB 2.0, and 1.1
- USB Power Delivery 3.0
- USB-C DP 1.4 Alt Mode
- Wake on USB
Interface/Bridge USB 10Gbps Laptop Dock / USB Hub Fast-Charge Yes Number of Battery Charge 1.2 Ports 1 USB-C Device Port(s) Yes USB-C Host Connection Yes Carton Depth (mm) 483 Carton Height (mm) 465 Carton Quantity 70 Carton Weight Gross (g) 12460 Included in Package - 1 - USB-C Hub
- 1 - Quick-Start Guide
Included In Package for Label - 1 - USB-C Hub
- 1 - Quick-Start Guide

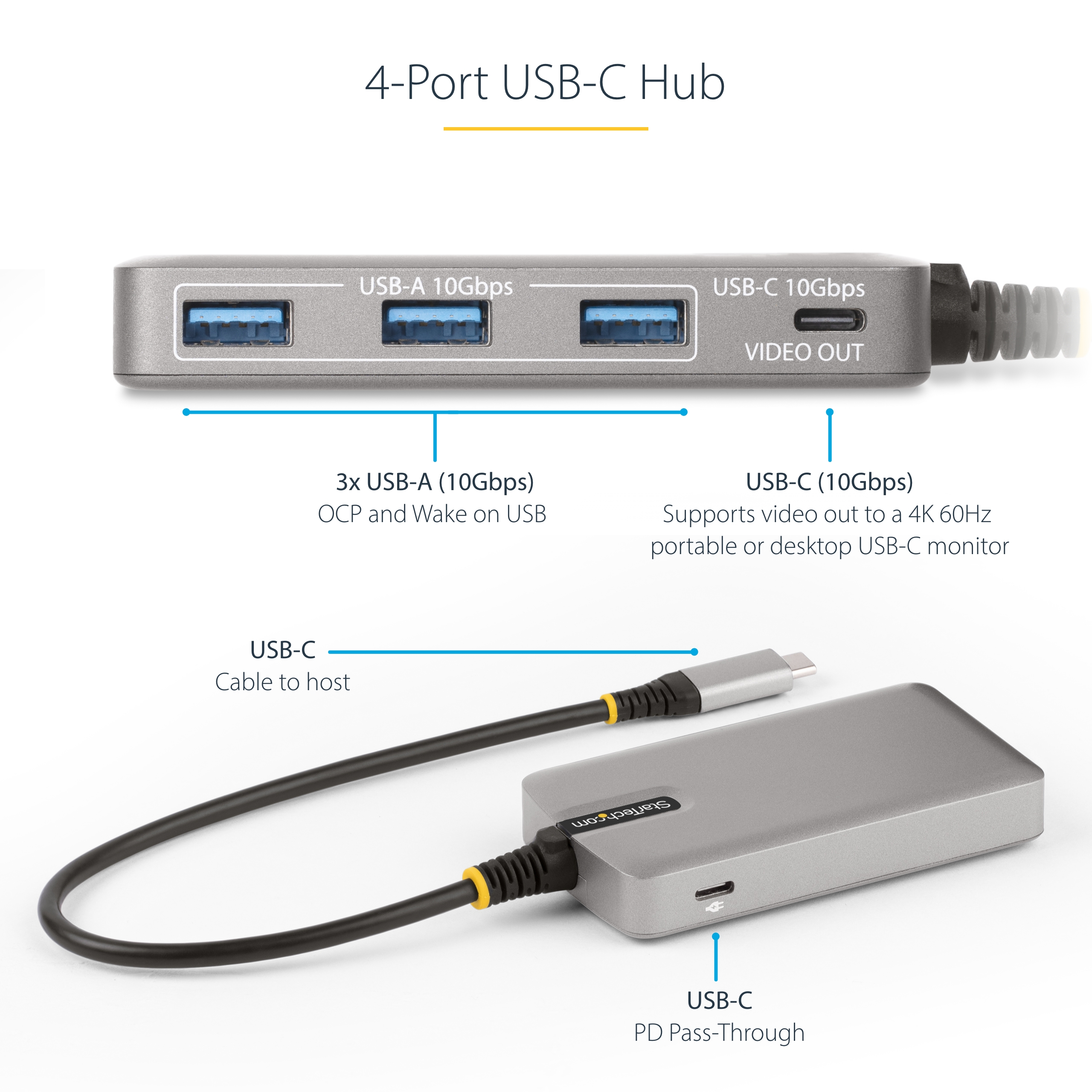

Number of Sub-Cartons 1 Package Depth (mm) 173 Package Height (mm) 33 Package Width (mm) 146 Package Quantity 1 Package Weight (g) 158 Packaging Description 4-Port USB-C Hub - PD 3.0 Pass-through - DP 1.4 Alt-Mode - USB 3.2 (10Gbps) Packaging Description India 4-Port USB-C Hub - PD 3.0 Pass-through - DP 1.4 Alt-Mode - USB 3.2 (10Gbps) Sub-Carton Depth (mm) 455 Sub-Carton Height (mm) 418 Sub-Carton Width (mm) 313 Sub-Carton Quantity 70 Sub-Carton Weight (g) 9400 Connector 1 USB-C Dual-Mode DP++ (10Gbps, 12W / DP Alt-Mode) Connector 1 (Quantity) 1 Connector 2 USB-A (10Gbps, 4.5W) Connector 2 (Quantity) 3 Connector 3 USB-C (100W PD Only) Connector 3 (Quantity) 1 Host Connector 1 USB-C (10Gbps, 4.5W) Host Connector 1 (Quantity) 1 A+ Not Required Actual Inbox Documents Created None Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Artwork Due Date 2023-01-06 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Comparable SKU Comment Same amount of hub ports with 100W PD USB-C port, no USB-C DP Alt mode port Comparable SKU 2 Comment Multiport adapter with 100W PD Passthrough and USB-C with DP Alt mode port; also has HDMI, VGA, standalone USB-C DFP and 2x USB A 10G DFPs Digital Content Due Date 2023-11-09 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology - DisplayPort 1.4
- USB 3.2 Gen 2 / 10Gbps
- Power Delivery
- USB-C
Product Development Specialist Sam Bushell Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Development Completion Date 2023-02-03 Target Production Release 2023-06-15 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle Mainstream Video Not Required
