4 Port USB 3 2 Gen 2 USB C to 3xA 1xC Hub Self Powered

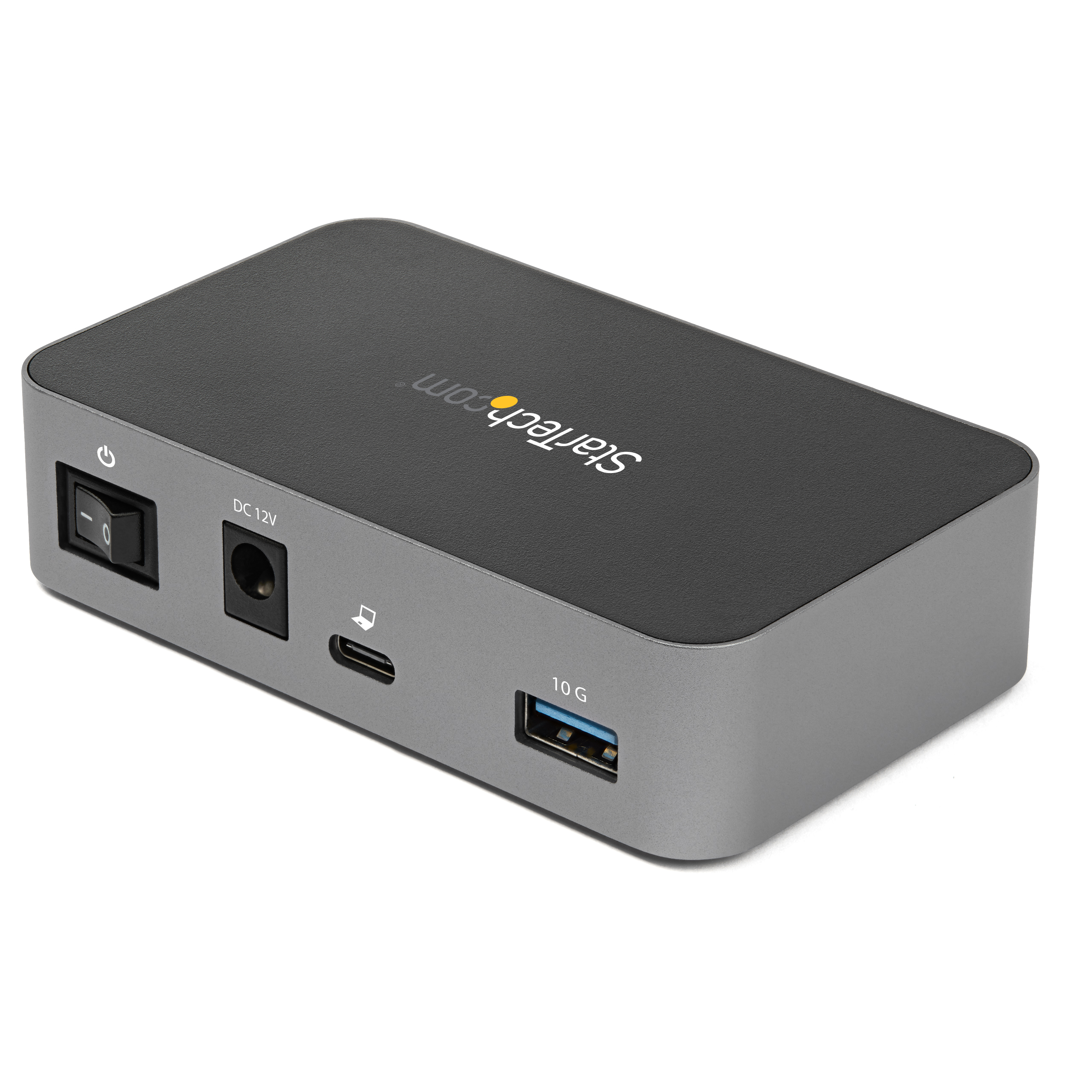

Main Image

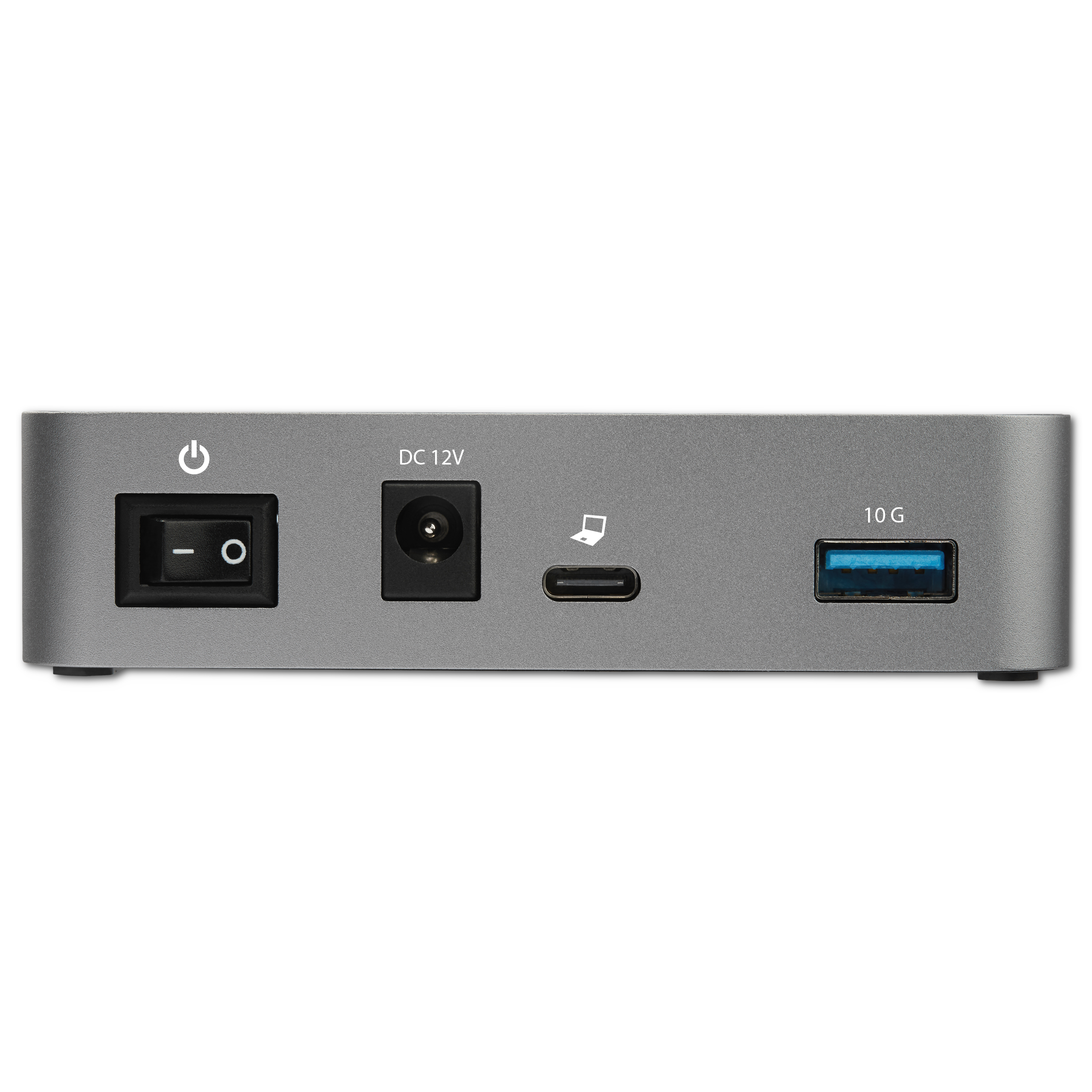

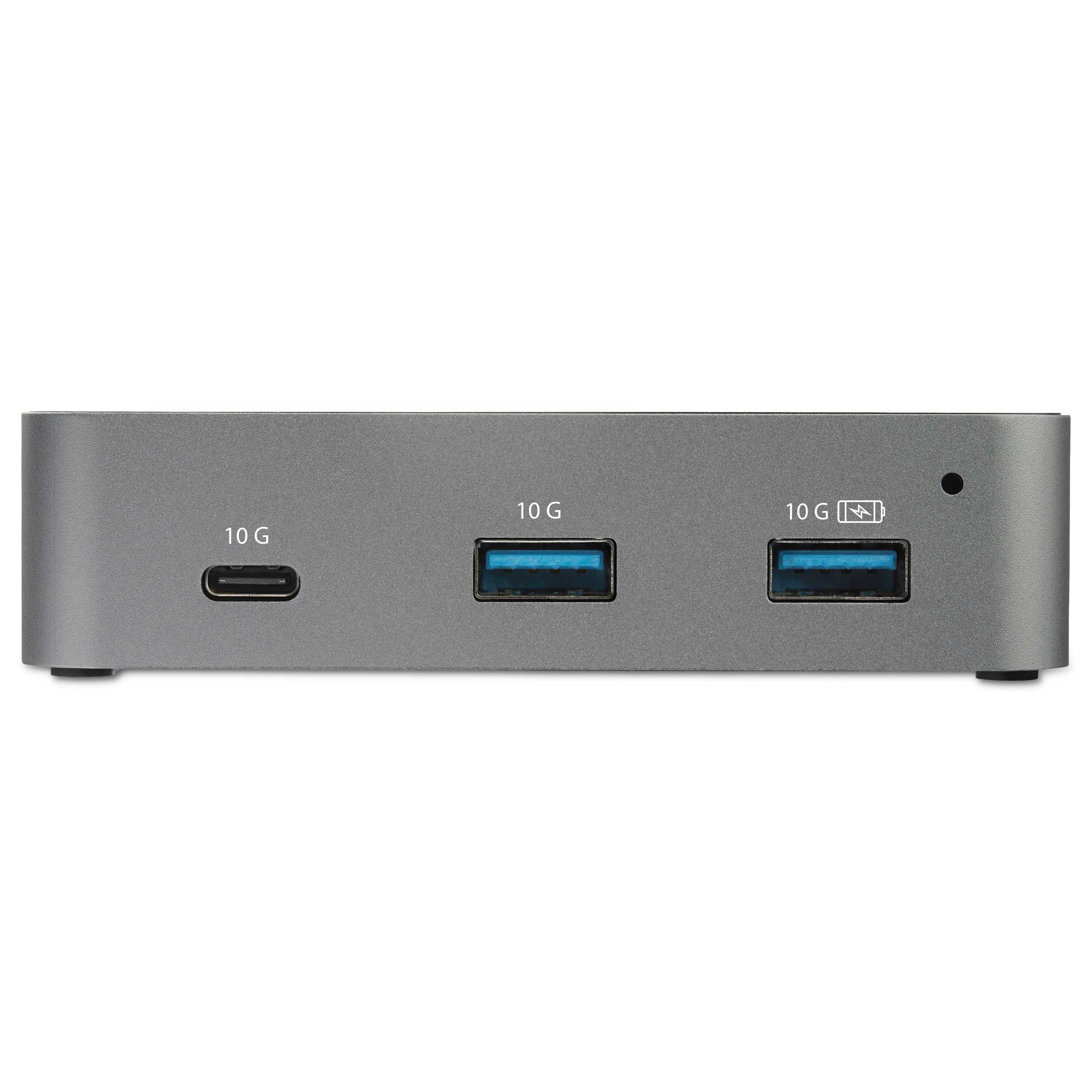

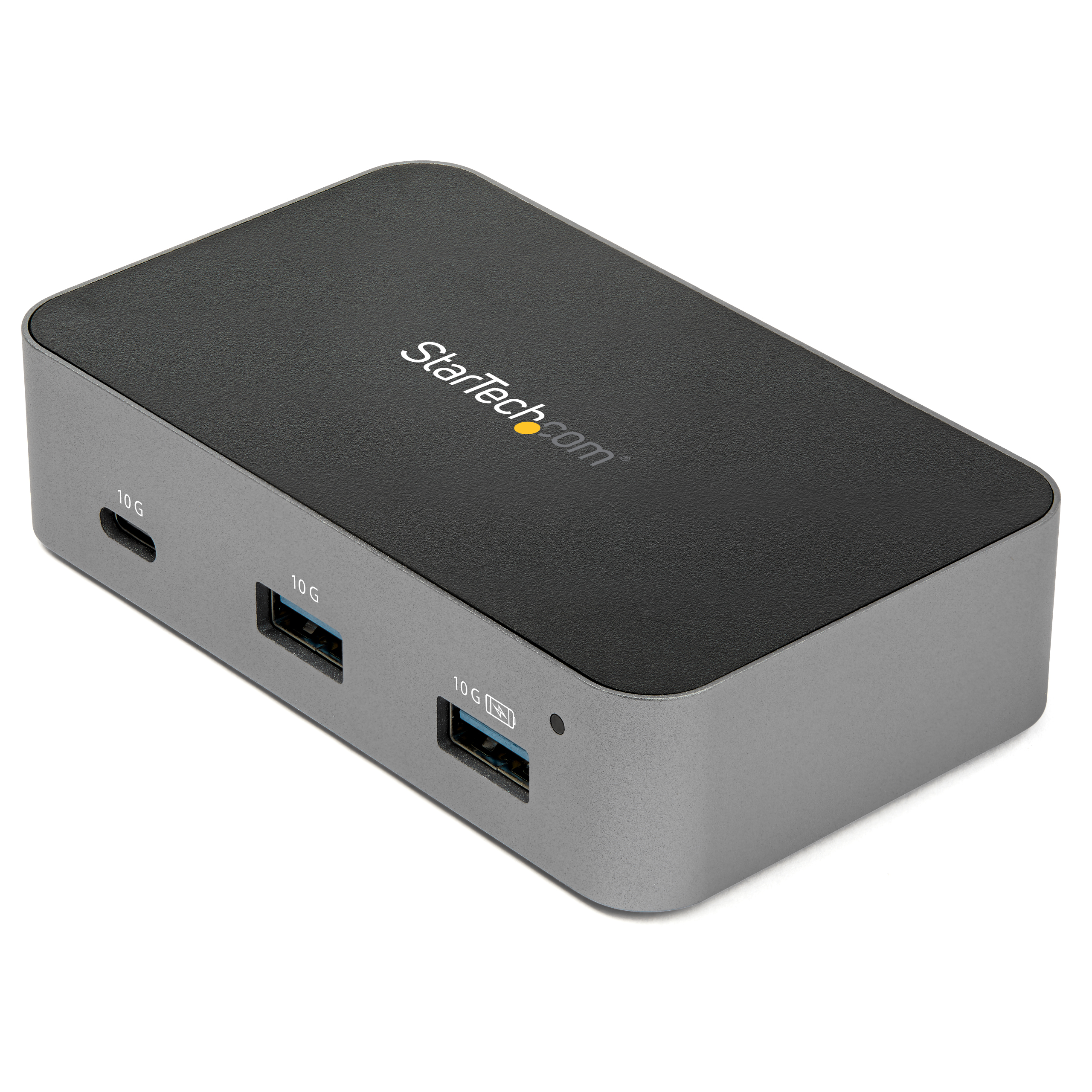

Product Images

Product Images

Product Images

BOM Image

Product Name	4 Port USB 3 2 Gen 2 USB C to 3xA 1xC Hub Self Powered
Product Number	HB31C3A1CS
UPC	065030877930
Lifecycle status	Active
Warranty	2 Years
Taxonomy	Product > Docks, Hubs & Video Adapters > USB Hubs
Category Level 1	Hubs
Category Level 2	USB-C Hubs
Category Level 3	USB-C External Powered Hubs - 10Gbps
Family	USB-C External Powered Hubs - 10Gbps - 4-Port - C/A Mix
Country of Origin Europe & Japan	Taiwan
Country of Origin North America	Taiwan
Country of Origin History (1)	Taiwan
Country of Origin Revision (1)	XXXXXX052X

Product Title (Ultra-Short)	4-Port USB C Hub
Product Title (Short)	USB C Hub - Powered - 1x C / 3x A
Product Title (Medium)	4-Port USB C Hub - USB 3.2 Gen 2 (10Gbps) - 3x USB-A & 1x USB-C - Powered
Product Title (Standard)	4-Port USB C Hub, USB 3.2 Gen 2 (10 Gbps), 3x USB-A & 1x USB-C, Powered, Universal Adapter Included, TAA
Product Title (Long)	4-Port USB-C™ Hub 10 Gbps - 3x USB-A & 1x USB-C - Powered - TAA
Product Title (AMZ)	4-Port USB C Hub - USB 3.2 Gen 2 (10Gbps) - 3x USB-A & 1x USB-C - Powered - Universal Power Adapter Included , TAA (HB31C3A1CS)
Title Ingram (Part 1)	4-Port USB C Hub - 10 Gbps
Title Ingram (Part 2)	3x Type A - 1x Type C - Powered
Website Product Headline	USB Type-C™ Hub \| USB 3.2 Gen 2 \| 1 m Host Cable \| Fast-Charge Port \| Mountable \| Mac & Windows®
Bullet 1	Adds one USB-C and three USB-A ports (including one fast-charge BC 1.2 port) to your Mac, Windows, Linux or other USB-C laptop or USB-C enabled tablet (ie. iPad Pro)
Bullet 2	USB hub is self-powered with included universal power adapter
Bullet 3	USB Type-C hub supports USB 3.2 Gen 2 data transfer rates up to 10 Gbps
Bullet 4	Mountable with StarTech.com dock mounts for flexible wall and desktop installations
Bullet 5	Compact design with an extended host cable of 3.3’ (1 m) to accommodate a variety of setups
Bullets (Compact)	USB C hub adds 1x USB C + 3x USB A ports (incl. one fast-charge BC 1.2) to your USB-C laptop or tablet - Universal power adapter incl. - USB 3.2 Gen 2 hub data transfer rates up to 10Gbps - Mountable - 1 meter host cable - Plug-and-play installation
Bullets (Consolidated)	USB C hub adds one USB-C and 3 USB-A ports (including 1 fast-charge BC 1.2 port) to your Mac Windows Linux or other USB-C laptop or tablet (ie. iPad Pro) - USB 3.2 Gen 2 (10Gbps) hub is bus powered with included power adapter - USB Type-C Mini hub supports USB 3.2 Gen 2 data transfer rates up to 10Gbps - Multi port hub is mountable with StarTech.com dock mounts - Ideal for Travel with a compact portable design and 3.3’ (1m) host cable - Plug-and-play installation with no drivers required
Marketing Copy
Marketing Copy (No HTML)
Website Search Keyword	3 port usb hub 4 port usb c hub amazon usb hub amazonbasics usb hub bus powered usb hub dell usb c dock macbook usb c hub mini usb c hub multi port usb hub portable usb c dock powered usb 3.1 hub small usb c hub usb 3 type c hub usb 3.1 gen 2 hub usb a c hub usb c hub usb c hub anker usb c hub macbook pro usb c multiport adapter usb c port expander usb c to usb hub usb hub adapter usb multiport adapter usb type c to type a

Required Regulatory Compliance Marks

FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
RCM - EMC/EMI - Australia/New Zealand - RCM Mark
CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Recycling - Waste - Japan - Plastic Recycling Mark
Recycling - Waste - Japan - Paper Recycling Mark
Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords

Accessory Products	USB31CAADG USB31CAADP USB31C5C1M USB31CC1M USB31CC50CM USB31CUB1M USB31CUB50CM USB31CB1M PEXUS313AC2V PEXUSB312C2 PEXUSB312EIC PEXUSB311AC2 PEXUSB314A2V2 PEXUSB312A3 PEXUSB312C3 SSPMSVESA SSPMSUDWM DOCK-NUC-VESA-MOUNT
Related Products	HB31C2A1CGS HB31C4AS HB31C3A1CME HB31C3A1CPD3 HB31C2A1CGB HB31C3A1CB HB31C3ASDMB HB31C2A2CB HB31C6A1C HB31C5A2C HB31C8A2C

Input Current	0.8A
Input Voltage	100 - 240 AC
Output Current	2A
Output Voltage (V)	12V DC
Power Consumption (In Watts)	24W
Power Delivery	No PD Pass-Through
Power Source	AC Adapter Included
Plug Type	M
Center Tip Polarity	Positive

Cable Length (mm)	1000
Color	Black & Space Gray
Humidity	0% to 95% (non-condensing) at 25°C
Material	Aluminum and Plastic
Operating Temperature	0 to 50°C
Primary Material	Aluminum
Product Length (mm)	100.000
Product Width (mm)	60.000
Product Height (mm)	25.000
Product Weight (g)	84.000
Storage Temperature	-20 to 70°C
TAA Compliant	Yes

Downstream Maximum Data Transfer Rate	USB 3.2 Gen 2 (10Gbps)
Fast Charge Ports (BC 1.2)	Yes
Maximum Data Transfer Rate	10 Gbps (USB 3.2 Gen 2)
OS Compatibility	OS Independent
Supported Charging Outputs	BC 1.2 (1.5A) Apple 1A Apple 2.4A
Total Available Power Output (In Watts)	24W
UASP Support	Yes
USB Speed	USB 3.2 Gen 2 (10Gbps)
USB Type and Rate	USB 10Gbps

Bus Type	USB 3.2 Gen 2 10Gbps
Chipset ID	Realtek - RTS5423
Ethernet Port	No
Industry Standards	USB 3.2 Gen 2 - Backwards compatible with USB 3.0, 2.0, and 1.1
Interface/Bridge	USB 3.2 Gen 2
LED Indicators	1 - Green: Power and Link Indicator
Network Adapter Host	USB 3.2 - USB-C
USB-C Device Port(s)	Yes
USB-C Host Connection	Yes
USB Port Type	USB-A, USB-C

Carton Depth (mm)	462
Carton Height (mm)	583
Carton Quantity	40
Carton Weight Gross (g)	18236

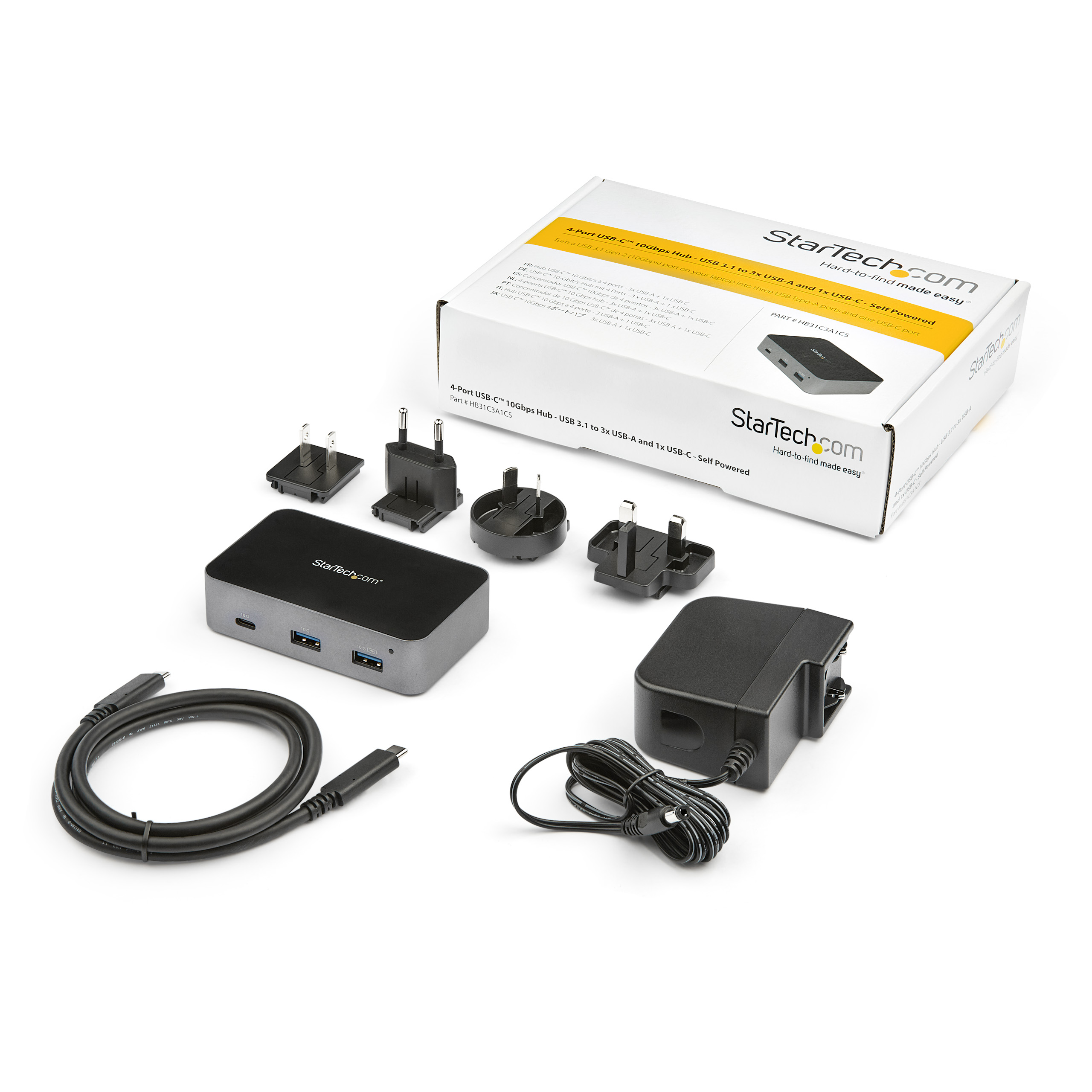

Included in Package	1 - USB-C Hub 1 - Universal Power Adapter 4 - Power Adapter Clips (NA/JP, UK, EU, ANZ) 1 - 3.3 ft [1 m] USB-C Host Cable
Package Depth (mm)	234
Package Height (mm)	54
Package Width (mm)	152
Package Quantity	1
Package Weight (g)	430
Packaging Description	4-Port USB-C™ 10Gbps Hub - 3x USB-A + 1x USB-C
Packaging Description India	4-Port USB-C™ 10Gbps Hub - 3x USB-A + 1x USB-C
Sub-Carton Depth (mm)	0
Sub-Carton Height (mm)	0
Sub-Carton Width (mm)	0
Sub-Carton Weight (g)	0

Connector 1 USB-C (10Gbps, 4.5W)
Connector 1 (Quantity) 1
Connector 2 USB-C (10Gbps, 4.5W)
Connector 2 (Quantity) 1
Connector 3 USB-A (10Gbps, 4.5W)
Connector 3 (Quantity) 3

Amazon Merchandising Manager	Kristian Haighton
Artwork Due Date	2019-08-08
Buying Center - AV & Collaboration	No
Buying Center - Data Center	No
Buying Center - End User Compute	Yes
Buying Center - Networking & Edge	Yes
Digital Content Due Date	2019-09-13
Enhanced Gallery Designer	Catherine Almeida
en-US Content Approved	Yes
Focus Rank	Level 0 - Not Applicable
Graphic Designer	Shane Arnett
Launch Markets (concatenated)	AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,IE,IT,JP,MX,NL,NZ,PE,SE,UK,US
Primary Technology	USB-C
Priority New Product	N/A
Product Development Specialist	Scott Dunlop
Product Information Creation Specialist (PICS)	Maria Powell
Product Manager	Natalie Goodale
Product Performance Specialist	Aaron Bens
Product Photographer	Caleigh Le Grand
Target Development Completion Date	2019-08-09
Target Production Release	2019-08-15
Tech Lead	Stefan Tirolese
Technical Writer	Maria Powell
Technology Lifecycle	Mainstream

Connector 1	USB-C (10Gbps, 4.5W)
Connector 1 (Quantity)	1
Connector 2	USB-C (10Gbps, 4.5W)
Connector 2 (Quantity)	1
Connector 3	USB-A (10Gbps, 4.5W)
Connector 3 (Quantity)	3
