Main Image
HB31C3ASDMB
USB C USB 3 2 Gen 2 to 3A SD MicroSD

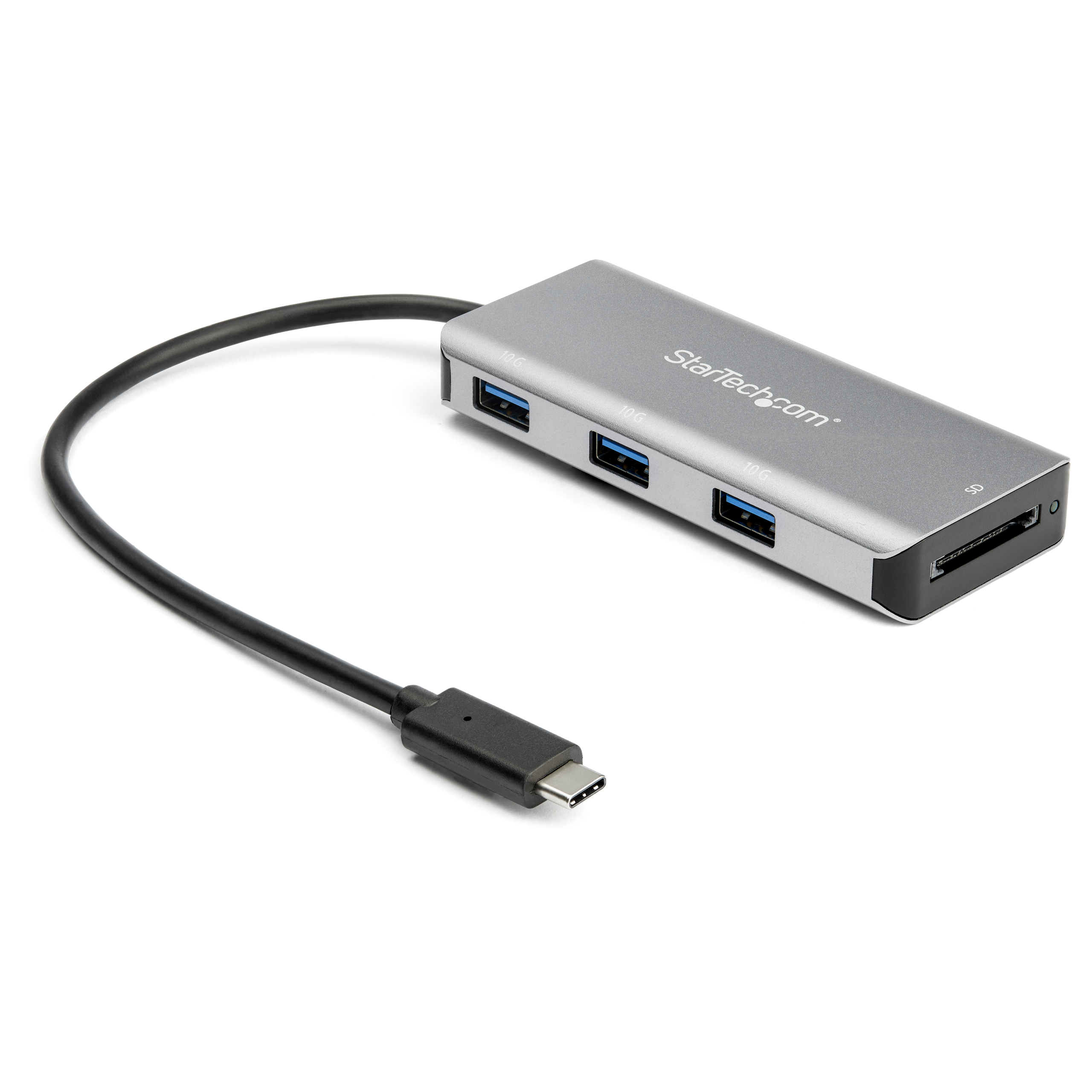

USB Type-C™ Hub | USB 3.2 Gen 2 |SD & microSD |25cm Cable | Bus-Powered | Mac & Windows®
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name USB C USB 3 2 Gen 2 to 3A SD MicroSD Product Number HB31C3ASDMB UPC 065030880480 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 USB-C Hubs Category Level 3 USB-C Multifunction Hubs - 10Gbps Family USB-C Multifunction Hubs - 10Gbps - with SD Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX052X Product Title (Ultra-Short) 3-Port USB-C Hub Product Title (Short) 3-Port USB C Hub with SD Slot/USB 10Gbps Product Title (Medium) 3-Port USB-C Hub w/ SD Card Reader - USB 3.1 10Gbps - 3x USB-A - 9.8” Host Cable Product Title (Standard) 3 Port USB C Hub with SD Card Reader, 3x USB-A & SD Slot, USB 3.2 Gen 2 10Gbps Type C Laptop Adapter Hub, Bus Powered, TAA Product Title (Long) 3 Port 10Gbps USB C Hub with SD Card Reader - 3x USB-A & 1x SD Slot - Portable USB 3.2 Gen 2 Type C Adapter Hub - Laptop Hub - USB Bus Powered - Thunderbolt 3 Compatible - TAA Product Title (AMZ) 3 Port 10Gbps USB C Hub with SD Card Reader - 3x USB-A & 1x SD Slot - Portable USB 3.1 Type C Adapter Hub - Laptop Hub - USB Bus Powered - Thunderbolt 3 Compatible , TAA (HB31C3ASDMB) Title Ingram (Part 1) 3-Port USB-C Hub with SD Card Title Ingram (Part 2) Reader - 10Gb - 3x USB-A & 1x USB-C Website Product Headline USB Type-C™ Hub | USB 3.2 Gen 2 |SD & microSD |25cm Cable | Bus-Powered | Mac & Windows® Bullet 1 BUS-POWERED 3-Port USB-C HUB: USB 3.2 Gen 2 Type-C hub with 3x USB-A ports and 1x UHS-II SD/microSD card reader (microSD adapter not incl); Supports data transfer up to SuperSpeed 10Gbps Bullet 2 UHS-II (ULTRA HIGH-SPEED-II) SD CARD READER: Data transfer up to 312Mbps utilizing SD 4.0; supports SD (Secure Digital), SDHC (SD High Capacity), SDXC (SD Extended Capacity) and MMC (Multimedia Card) Bullet 3 3x USB-A 10Gbps PORTS: For high speed data transfers between storage devices, SSDs & other USB devices like AV adapters, thumb drives, keyboards & mice; Compatible with USB 3.0/2.0/1.0 Bullet 4 COMPACT & PORTABLE: A light weight USB Type-C laptop hub with durable aluminum housing, 9.8” (25 cm) length attached host cable and small form factor [4.1" (105mm) x 1.8" (45mm) x 0.6" (16mm)] Bullet 5 WIDE OPERATING SYSTEM COMPATIBILITY: USB C hub with SD card reader slot has driverless setup; USB-C to multiple USB hub supports Windows, macOS, Linux, iPadOS, Chrome OS and Android Bullets (Compact) Bus powered USB 3.2 Gen 2 Type-C SuperSpeed 10Gbps hub - USB C Hub with SD Card Reader (UHS-II, SD 4.0) and 3x USB-A - Supports SD/SDHC/SDXC/MMC - USB C laptop hub w/ aluminum housing - 9.8in cable - OS independent - USB C to USB-A adapter hub Bullets (Consolidated) Bus powered 3-Port USB 3.2 Gen 2 Type-C adapter hub supports data transfer up to SuperSpeed 10Gbps - UHS-II SD slot with data transfer up to 312Mbps utilizing SD 4.0 | supports SD/SDHC/SDXC/MMC - Portable USB C Hub with SD card reader and 3x USB-A 10Gbps for storage devices/SSD | Works with USB 3.2 Gen 1/2.0 - Compact USB C laptop hub with durable aluminum housing [4.1" x 1.8" x 0.6"] | 9.8" (25 cm) attached cable - Driverless setup - Windows/macOS/Linux/iPadOS/Chrome OS/Android Marketing Copy Marketing Copy (No HTML) Applications - Ideal for mobile workers, for use in the office and at home
- Compact size works well in small or shared workspaces such as hot desks
Website Search Keyword - 3 port usb 3.0 hub
- 3 port usb c hub
- apple usb c sd card reader
- bus powered usb hub
- macbook sd card reader
- micro sd card hub
- multi port usb hub
- portable usb c hub
- self powered usb hub
- usb 3.1 gen 2 hub
- usb 3.1 gen 2 type c hub
- usb 3.1 hub
- usb 3.1 type a hub
- usb 3.1 type c hub
- usb and sd card hub
- usb c 3 port hub
- usb c card reader
- usb c cf card reader
- usb c hub
- usb c hub sd card
- usb c hub with sd card reader
- usb c port expander
- usb c port replicator
- usb c sd card adapter
- usb c splitter
- usb c to micro sd
- usb c to multiple usb
- usb c to sd card
- usb c to usb 3.1 hub
- usb c to usb hub
- usb c usb a hub
- usb hub micro sd
- usb hub sd card reader
- usb sd card hub
- usb type c hub
- usb type c sd card reader
- usb type c usb hub
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Accessory Products - PEXUSB312C3
- PEXUSB311AC3
- PEXUSB313A1C
- PEXUSB311AC2
- PEXUSB312C2
- PEXUSB312EIC
- USB31CAADG
- USB31CAADP
- USB31C5C1M
- USB31CC1M
- USB31CC50CM
- USB31CUB1M
- USB31CUB50CM
- USB31CB1M
Related Products - HB31C3A1CPD3
- HB31C2A1CGB
- HB31C4AB
- HB31C2A2CB
- HB31C2A1CGS
- HB31C3A1CS
- HB31C4AS
- HB31C6A1C
- HB31C5A2C
- HB31C8A2C
- HB31C3A1CME
Power Delivery No PD Pass-Through Power Source Bus Powered Cable Length (mm) 250 Color Black & Space Gray Humidity 0% to 95% (non-condensing) at 25℃ Material Aluminum and Plastic Operating Temperature 0 to 50℃ Primary Material Aluminum Product Length (mm) 45.000 Product Width (mm) 360.000 Product Height (mm) 15.000 Product Weight (g) 70.000 Storage Temperature -20 to 70℃ TAA Compliant Yes Downstream Maximum Data Transfer Rate USB 3.2 Gen 2 (10Gbps) Fast Charge Ports (BC 1.2) No General Specifications SD Card Reader: Supports SD 4.0 and UHS-II (Ultra High Speed) for high speed file transfers, with bus speed up to 312 Mbps Maximum Data Transfer Rate 10 Gbps (USB 3.2 Gen 2) Memory Media Type - SD/MMC (Secure Digital/Multimedia Card)
- SDHC (Secure Digital High Capacity)
- SDXC (Secure Digital eXtended Capacity)
- microSD (Micro Secure Digital) (adapter required)
- microSDHC (Micro Secure Digital High Capacity) (adapter required)
- microSDXC (Micro Secure Digital eXtended Capacity) (adapter required)
OS Compatibility OS Independent Total Available Power Output (In Watts) UASP Support Yes USB Speed USB 3.2 Gen 2 (10Gbps) USB Type and Rate USB 10Gbps Bus Type USB 3.2 Gen 2 10Gbps Chipset ID Realtek - RTS5420</br> Realtek - RTS5329 Ethernet Port No Industry Standards USB 3.1 Gen 2</br> Backward compatible with USB 3.0, 2.0 and 1.1 Interface/Bridge USB 3.2 Gen 2 Laptop Dock / USB Hub Fast-Charge No LED Indicators 1 - Link and Activity LED Network Adapter Host USB 3.2 - USB-C USB-C Device Port(s) No USB-C Host Connection Yes USB Pass-Through Yes USB Port Type USB-A Carton Depth (mm) 316 Carton Height (mm) 436 Carton Quantity 40 Carton Weight Gross (g) 8040 Included in Package 1 - USB-C Hub Included In Package for Label 1 - USB-C Hub Package Depth (mm) 147 Package Height (mm) 41 Package Width (mm) 210 Package Quantity 1 Package Weight (g) 180 Packaging Description 4-Port USB-C™ 10 Gbps Hub - 3x USB-A and SD Packaging Description India 4-Port USB-C™ 10 Gbps Hub - 3x USB-A and SD Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (10Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 USB-A (10Gbps, 4.5W) Connector 2 (Quantity) 3 Connector 3 SD Card Slot Connector 3 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2019-07-12 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Digital Content Due Date 2019-08-09 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology USB-C Priority New Product N/A Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Development Completion Date 2019-07-05 Target Production Release 2019-07-12 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Mainstream
