HB31CM4CPD3

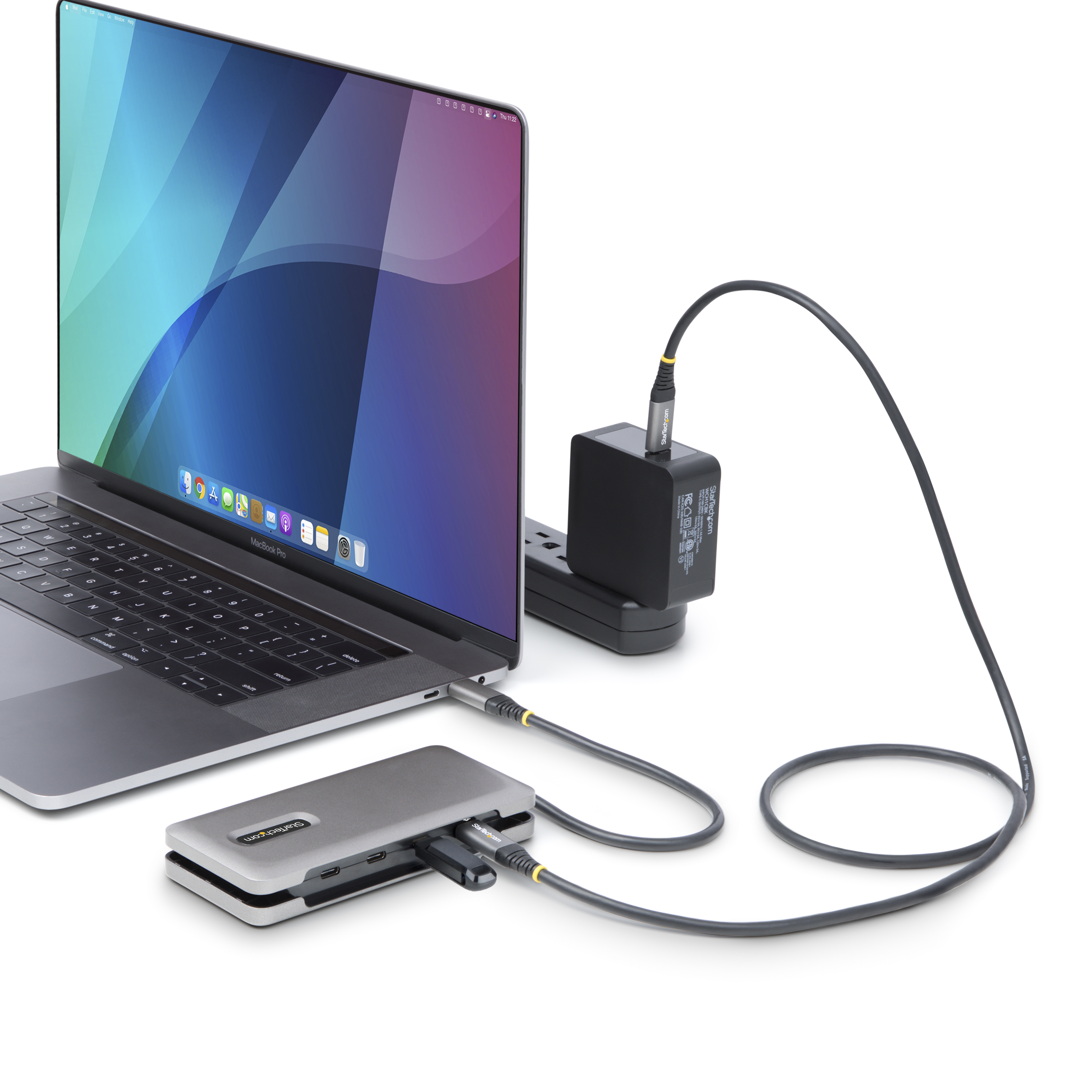

USBC 10G to 4x USB-C - PD Pass Through - Long hideaway cable

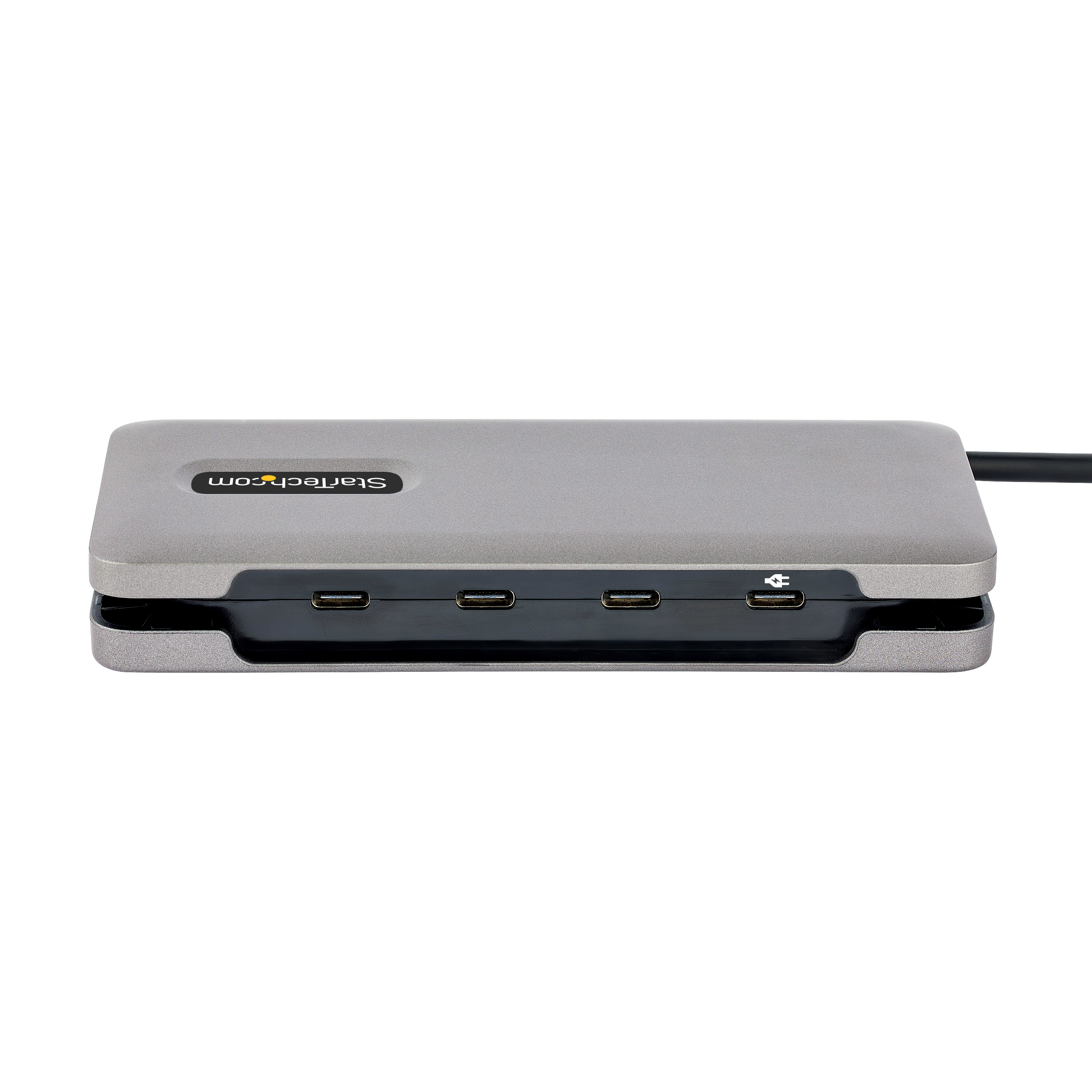

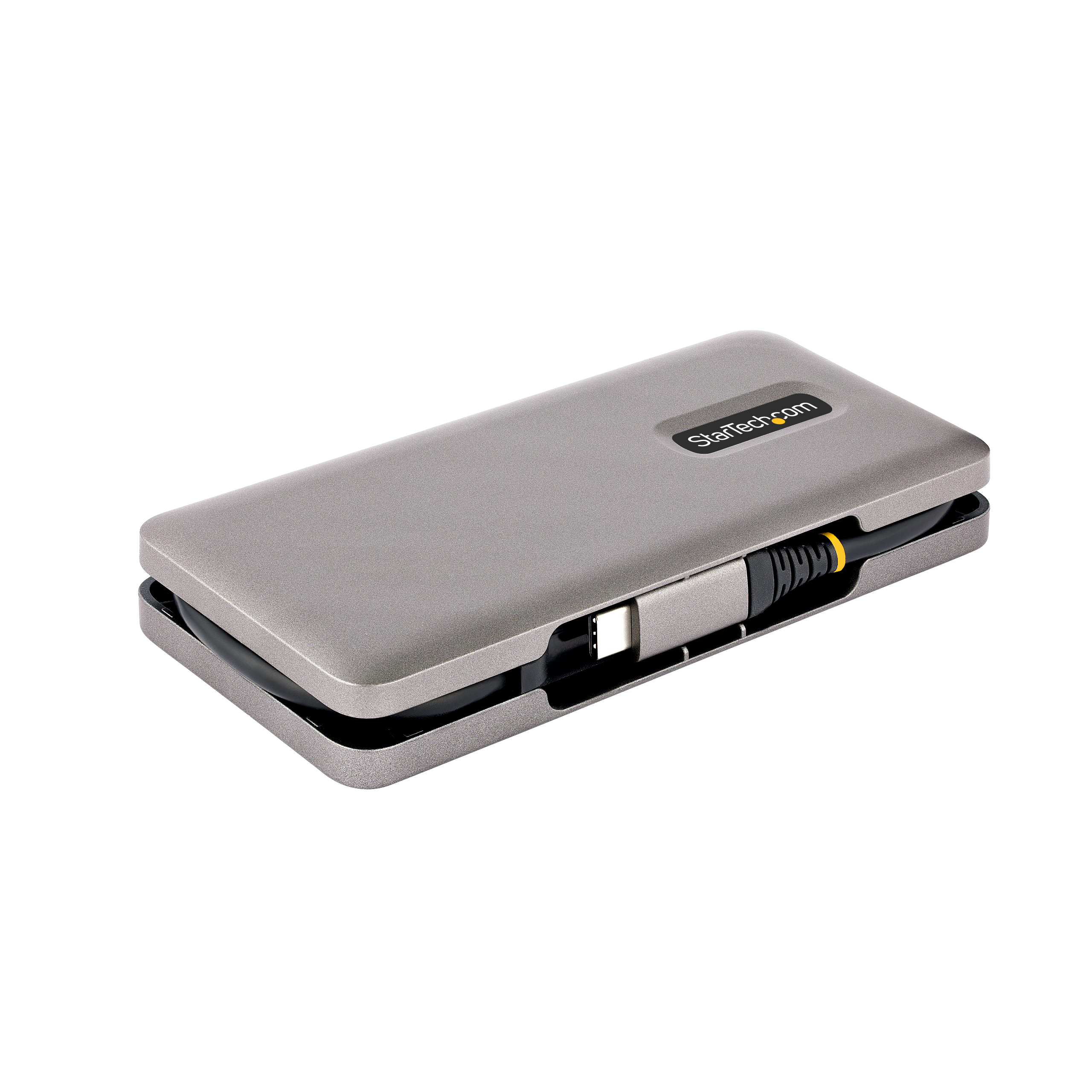

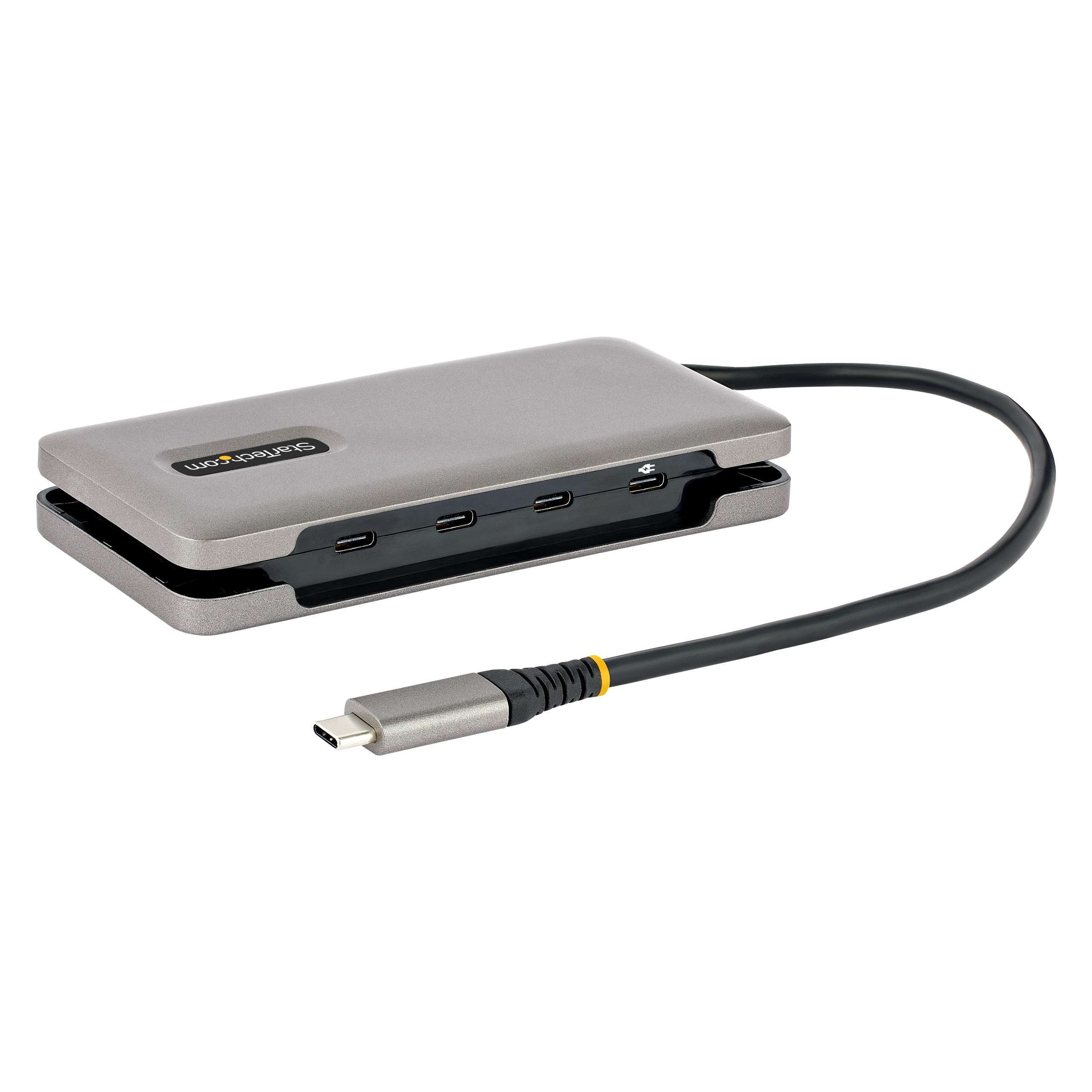

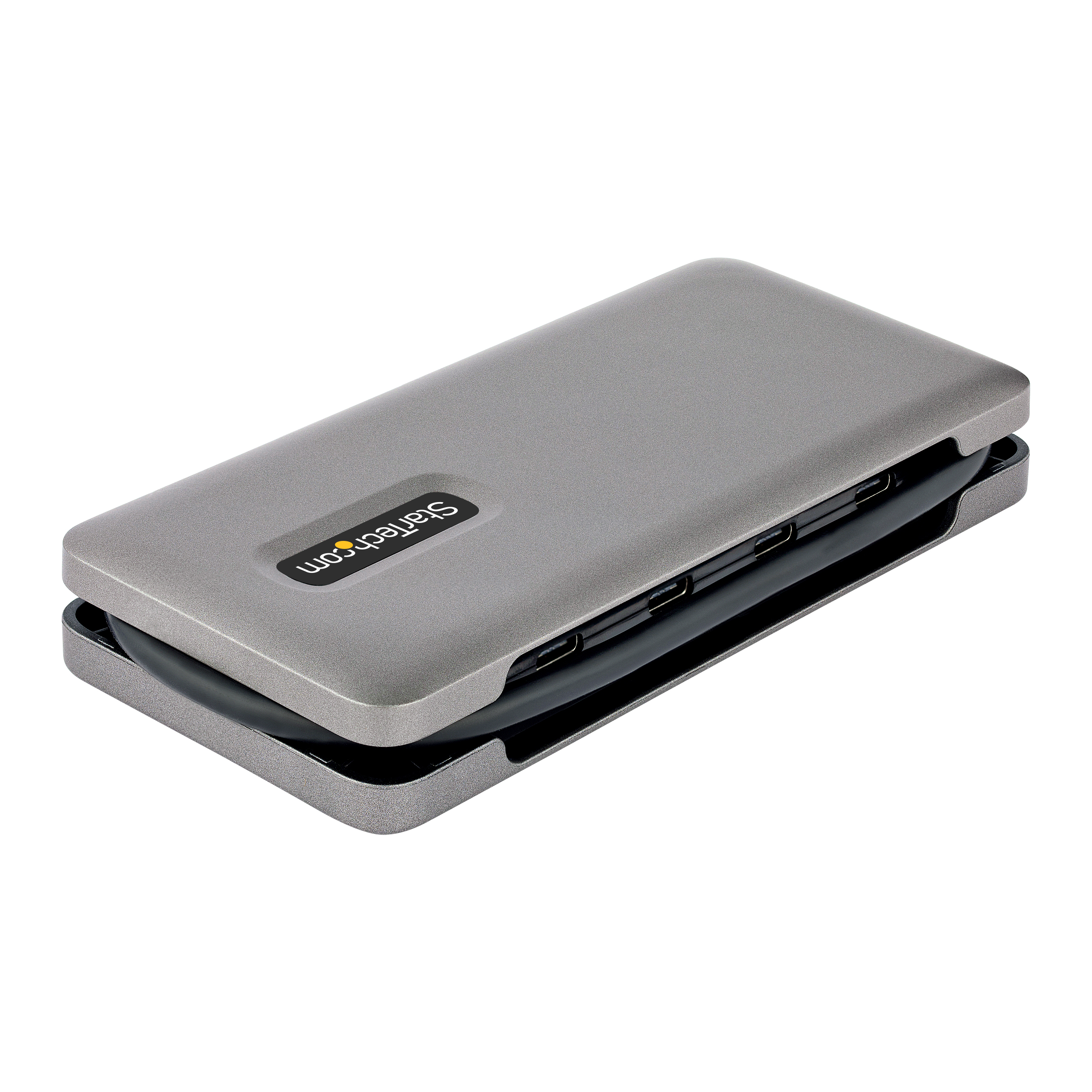

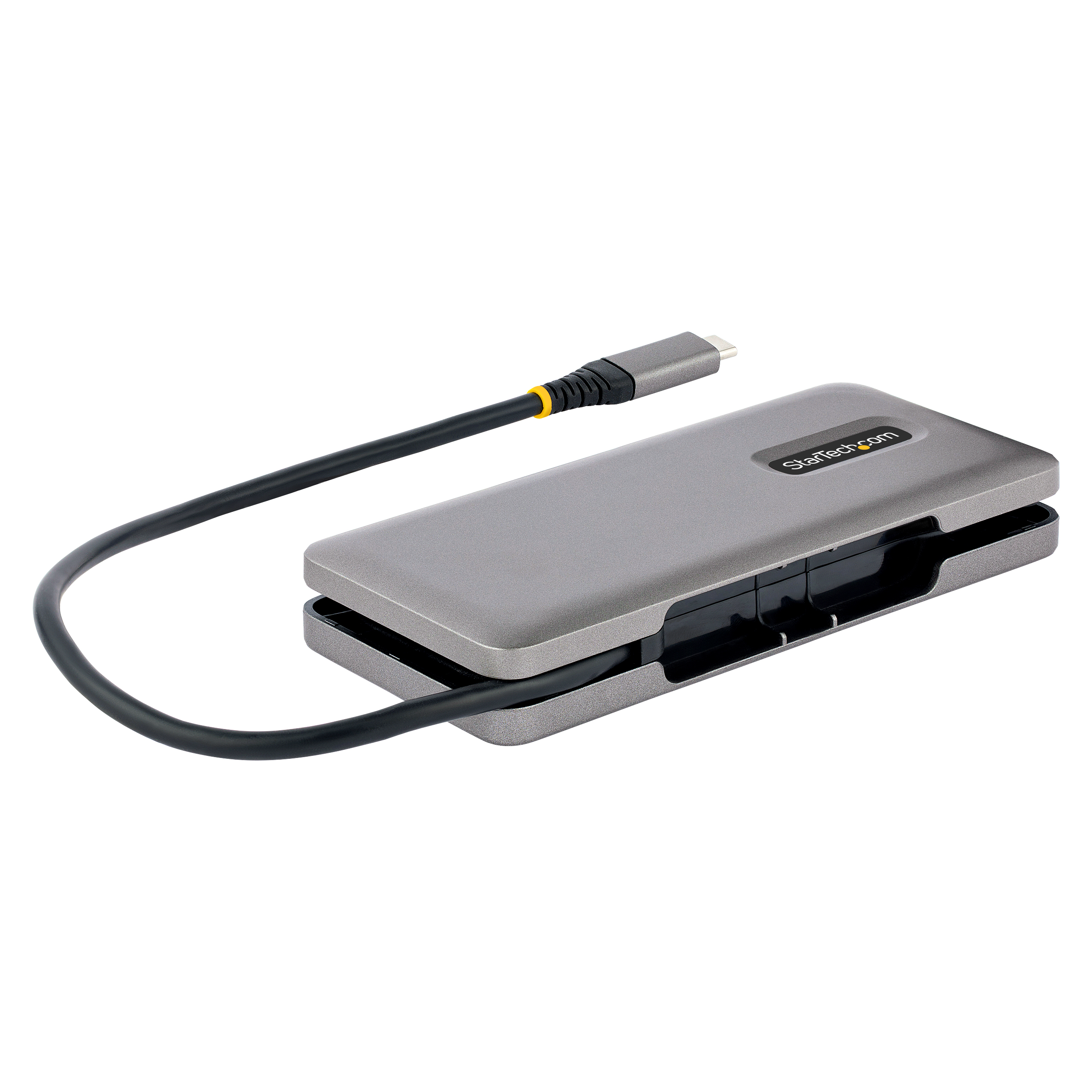

USB 3.2 Gen 2 (10Gbps) | 4x USB-C | 100W Power Delivery Pass-Through | Built-in 12.6 in (32 cm) Wrap-Around Cable
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name USBC 10G to 4x USB-C - PD Pass Through - Long hideaway cable Product Number HB31CM4CPD3 UPC 065030888097 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 USB-C Hubs Category Level 3 USB-C External Powered Hubs - 10Gbps Family USB-C Bus Powered Hubs - 10Gbps - 4-Port - All C Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX028X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX132X Product Title (Ultra-Short) 4x USB-C Hub 100W PD Product Title (Short) 4-Port USB-C Hub, 100W PD Pass-Through Product Title (Medium) 4-Port USBC Hub, USB 3.2, 10Gbps, 100W Power Delivery Pass-Through, 12.6in Cable Product Title (Standard) 4-Port USB-C Hub, USB 3.2 Gen 2, 10Gbps, 100W Power Delivery Pass-Through, 12.6in (32cm) Cable, Portable USB Expansion Hub Product Title (Long) 4-Port USB-C Hub, 4x USB-C Ports, USB 3.2 Gen 2 (10Gbps) - Portable USB C Hub with 100W Power Delivery Pass-Through - USB Type C Hub w/ 12.6in/32cm Wrap-Around Cable Product Title (AMZ) 4-Port USB-C Hub, 4x USB-C Ports, USB 3.1 - 10Gbps - Portable USB C Hub w/ 100W Power Delivery Pass-Through - USB Type C Hub w/ 12.6in/32cm Wrap-Around Cable - USBC Splitter (HB31CM4CPD3) Title Ingram (Part 1) 4-Port USB-C Hub, 4x USB Type-C Title Ingram (Part 2) 3.1 10Gbps, 100W PD Pass-Through Website Product Headline USB 3.2 Gen 2 (10Gbps) | 4x USB-C | 100W Power Delivery Pass-Through | Built-in 12.6 in (32 cm) Wrap-Around Cable Bullet 1 HIGH PERFORMANCE: This USB 3.2 Gen 2 (10Gbps) expansion hub features a USB-C host port and 4x downstream USB-C ports, The USB hub can be bus powered, or powered with a USB-C power adapter (not incl.) for up to 100W USB Power Delivery Pass-Through Bullet 2 USB POWER DELIVERLY PASS-THROUGH: The USB hub supports the connection of a USB-C power adapter with up to 100W, 15W will be reserved for the hub, with up to 85W available to power/charge the host computer and downstream USB devices (up to 7.5W per port) Bullet 3 COMPACT & PORTABLE: Small-form-factor USB 3.1 hub features durable plastic housing; Built-in 12.6" (32cm) long host cable with wrap-around cable management to prevent tangles during travel from office workstation to boardrooms and work-from-home Bullet 4 HOST COMPATIBILITY: USB hub works with any USB-C host device incl. laptops & Ultrabooks (Lenovo, HP, Dell, Microsoft & Apple Macbook Pro/Macbook Air) and tablets, convertibles & Chromebooks (Google Pixelbook, iPad Pro, Samsung Galaxy devices) Bullet 5 EASY SETUP: USB hub/splitter with multiple USB-C ports is OS independent with native plug-and-play support on all operating systems incl. Windows, macOS, Linux, iPadOS, Chrome OS & Android Bullets (Compact) 4 Port USB-C 10Gbps (USB 3.2 Gen 1) portable expansion hub/splitter for laptops - USB bus powered or with 100W USB PD Pass-Through (USB Type-C Power Adapter not incl) - OS independent - Built-in 12.6" long cable with wrap around cable management Bullets (Consolidated) Portable 4 port USB-C hub with USB 3.2 Gen 2 (10Gbps) | Supports 100W Power Delivery Pass-Through | USB Type-C to 4x downstream USB-C ports - USB bus powered or with USB-C Power Adapter (not incl.) - Up to 100W USB Power Delivery Pass-through | 15W reserved for hub | Up to 85W available to power/charge host laptop and USB devices (up to 7.5W per port) - compact durable USB-C hub/splitter | Built-in 12.6" long cable w/wrap around cable management - Driverless setup | OS independent Marketing Copy Marketing Copy (No HTML) Applications - Connect external storage devices (e.g. thumb drives, HDDs/SSDs), HD cameras, mice, keyboards, webcams, and/or USB headsets to a computer

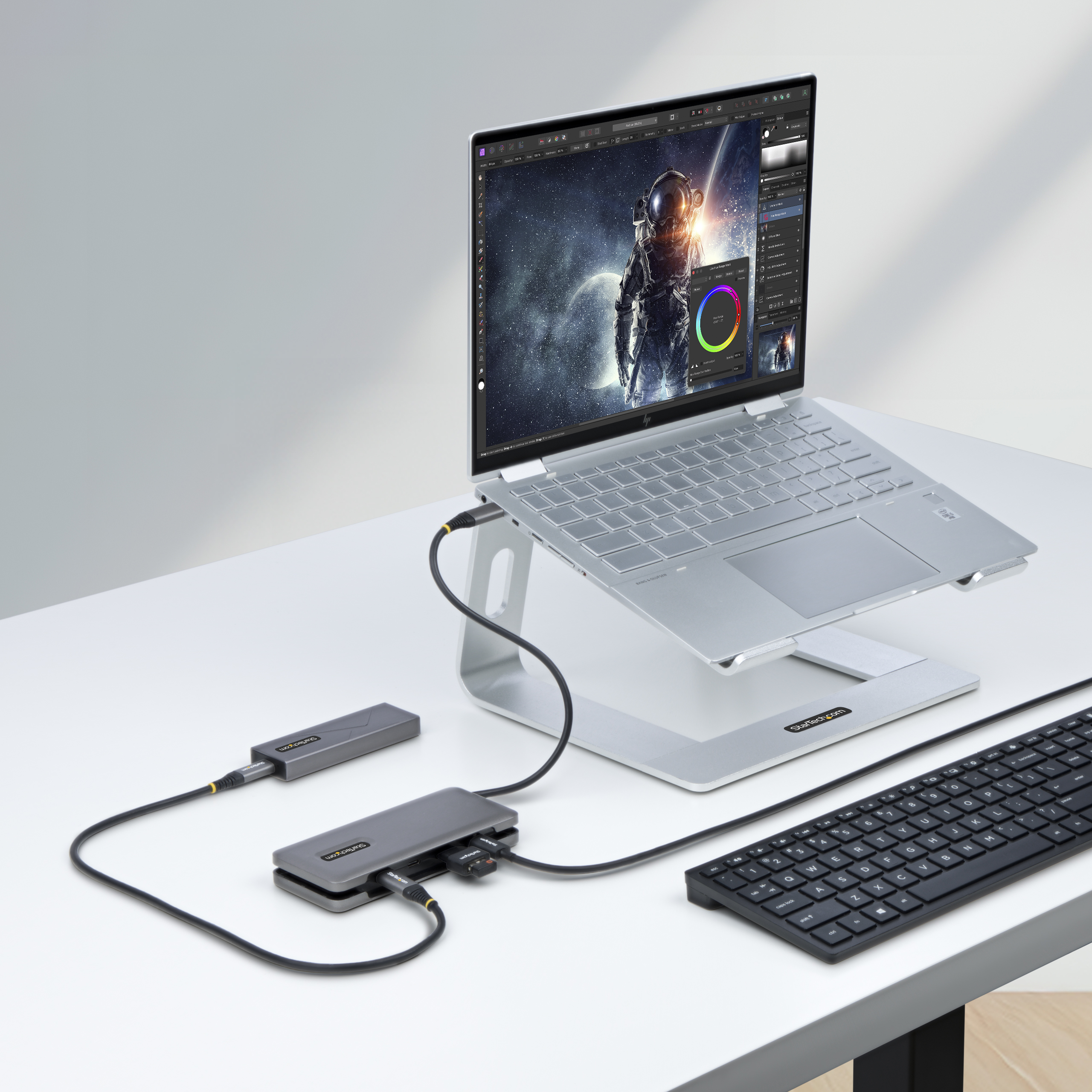

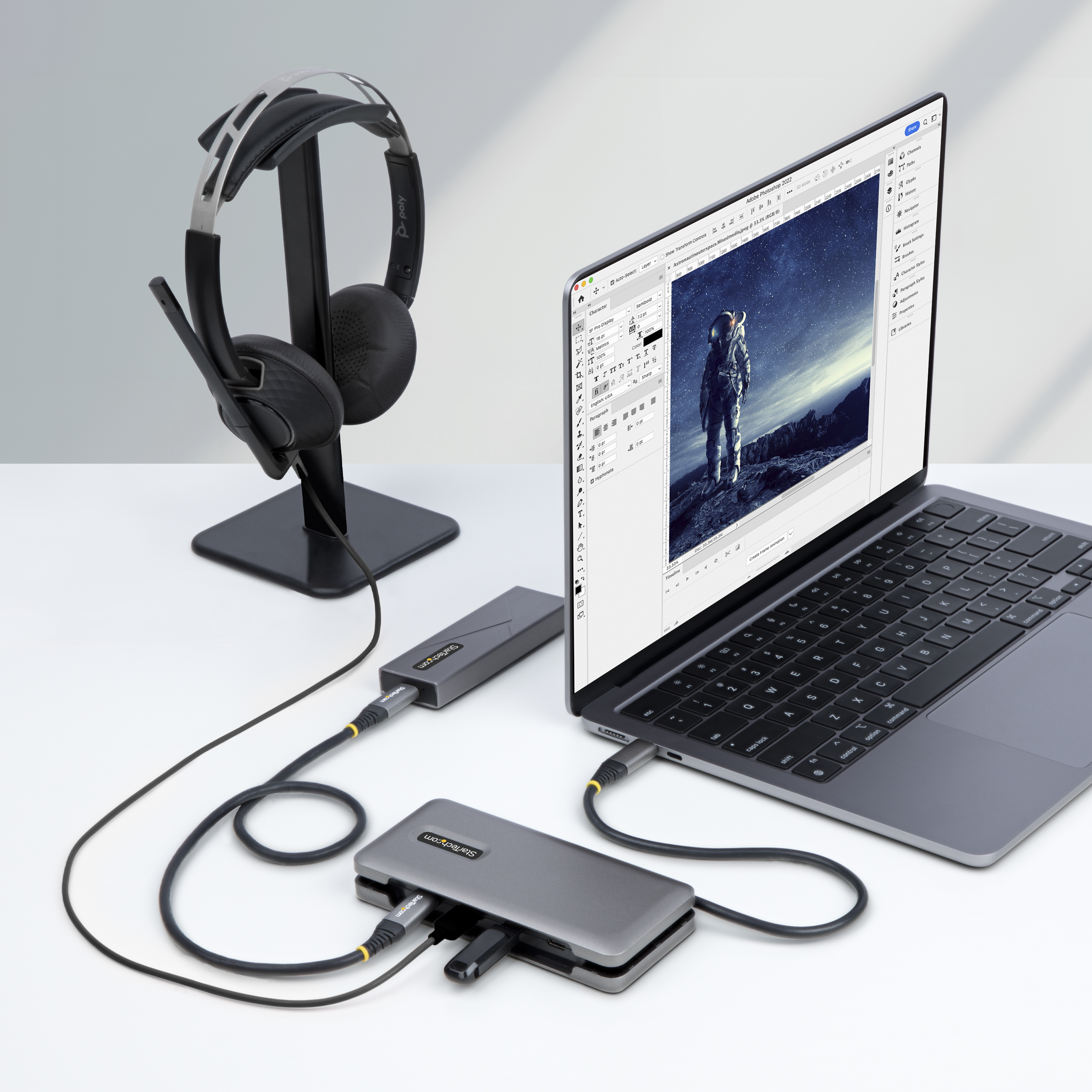

- Ideal for mobile workers, for use in the office and at home
- Compact size works well in small or shared workspaces such as hot desks
Website Search Keyword - 4 port usb c hub
- multiple usb c ports hub
- portable usb hub
- usb 3.1 gen 2 hub
- usb c 3.1 gen 2 hub
- usb c expansion hub
- usb c hub dongle
- usb c hub for laptop
- usb c hub with cable management
- usb c hub with long cable
- usb c hub with power delivery
- usb c splitter
- usb c to usb adapter
- usb c to usb hub
- usb expansion hub
- usb type c hub
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
Special Notes USB 3.2 Gen 2 (10Gbps) is also known as USB 3.1 Gen 2 (10Gbps) Related Products - HB31C2A1CGS
- HB31C2A2CB
- HB31C3A1CB
- HB31C3A1CPD3
- HB31C4AB
- HB31C4AS
- HB31C3A1CS
- HB30C3A1CFB
- HB30C3A1CFBW
- HB30C3A1CST
- HB30C4AB
- HB30C4ABW
- HB30C4AFPD
- HB30C4AFS
- HB30C4AIB
- HB30C5A2CSC
- HB30CM3A1CB
Constrained SKU Alternatives (Limited Stock) HB30C3AGEPD Output Voltage (V) 5 DC Power Consumption (In Watts) 15W Power Delivery 100W Power Source Bus Powered and Host USB-C Power Adapter Cable Length (mm) 320 Color Space Gray Humidity 0%~85% RH (Non-condensing) Material Plastic Operating Temperature -20°C to 60°C (-4°F to 140°F) Product Length (mm) 135.200 Product Width (mm) 60.200 Product Height (mm) 20.000 Product Weight (g) 92.000 Storage Temperature -20°C to 80°C (-4°F to 176°F) TAA Compliant No Downstream Maximum Data Transfer Rate USB 3.2 Gen 2 (10Gbps) Fast Charge Ports (BC 1.2) No General Specifications Maximum Laptop Charging: 85W Maximum Data Transfer Rate 10 Gbps (USB 3.2 Gen 2) OS Compatibility OS Independent USB Type and Rate USB 10Gbps Bus Type USB 3.2 Gen 2 10Gbps Chipset ID - Realtek - RTS5423
- VIA - VL160
Ethernet Port No Industry Standards - USB 3.2 Gen 2 (10Gbps)
- USB Power Delivery 3.0
Interface/Bridge USB 3.2 Gen 2 (10 Gbps) Laptop Dock / USB Hub Fast-Charge Yes Number of Battery Charge 1.2 Ports 3 USB-C Device Port(s) Yes USB-C Host Connection Yes Carton Depth (mm) 479 Carton Height (mm) 449 Carton Quantity 70 Carton Weight Gross (g) 11518 Included in Package 1 - USB-C Hub Included In Package for Label 1 - USB-C Hub Number of Sub-Cartons 7 Package Depth (mm) 143 Package Height (mm) 32 Package Width (mm) 172 Package Quantity 1 Package Weight (g) 152 Packaging Description 4-Port USB-C™ (10Gbps) Hub with 4C Packaging Description India 4-Port USB-C™ (10Gbps) Hub with 4C Sub-Carton Depth (mm) 325 Sub-Carton Height (mm) 185 Sub-Carton Width (mm) 150 Sub-Carton Quantity 10 Sub-Carton Weight (g) 0 Connector 1 USB-C (10Gbps, 4.5W) Connector 1 (Quantity) 4 Host Connector 1 USB-C (10Gbps, 4.5W) Host Connector 1 (Quantity) 1 Actual Inbox Documents Created None Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Artwork Due Date 2021-11-19 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Digital Content Due Date 2022-06-07 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AU,BE,CA,DE,DK,ES,FR,IN,IT,JP,MX,NL,NZ,SE,UK,US Primary Technology USB-C Product Development Specialist Sam Bushell Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Development Completion Date 2022-03-18 Target Production Release 2020-04-30 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Mainstream
