Main Image
HBS304A24A
4 to 4 USB 3 0 Peripheral Sharing Switch
Share up to four USB 3.2 Gen 1 devices between four different computers
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Product Name 4 to 4 USB 3 0 Peripheral Sharing Switch Product Number HBS304A24A UPC 065030879156 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 USB-A Hubs Category Level 3 USB-A Bus Powered Hubs - 5Gbps Family USB-A Peripheral Sharing Switches - 5Gbps - 4x4 Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX172X Product Title (Ultra-Short) 4X4 USB 3.0 Switch Product Title (Short) Switch - 4X4 USB 3.0 Peripheral Sharing Product Title (Medium) 4X4 USB 3.0 Peripheral Sharing Switch - USB Switch for Mac / Windows / Linux Product Title (Standard) 4X4 USB 3.0 Peripheral Sharing Switch - USB Switch for Mac / Windows / Linux - 4 Port USB 3.0 Switch - USB A/B Switch Product Title (Long) 4 to 4 USB 3.0 Peripheral Sharing Switch Product Title (AMZ) USB 3.0 Peripheral Sharing Switch - 4 USB 3.0 (5Gbps) x 4 Computers - Mac / Windows / Linux - USB A/B Switch - USB Switch (HBS304A24A) Title Ingram (Part 1) 4X4 USB 3.0 Peripheral Sharing Title Ingram (Part 2) Switch - For Mac / Windows / Linux Website Product Headline Share up to four USB 3.2 Gen 1 devices between four different computers Bullet 1 Save costs by sharing four USB peripherals between four computers Bullet 2 Remote port selector lets you switch devices from one computer to another, with the press of a button Bullet 3 USB 3.2 Gen 1 throughput support with data transfer rates of up to 5Gbps (backwards compatible) Bullet 4 Hot-pluggable USB switch, with over-current protection Bullet 5 Includes four USB-A to USB-B cables - 2x 1.2 m (4 ft) / 2x 1.8 m (6 ft) Bullets (Compact) Share up to four USB 3.0 devices between four different computers - 4X4 USB 3.0 Peripheral Sharing Switch for Mac/Windows/Linux - Save by sharing USB devices such as a printer, mouse, keyboard with four computers - USB switch w/ remote port selector Bullets (Consolidated) Share up to four USB 3.2 Gen 1 devices between four different computers - 4X4 USB 3.2 Gen 1 Peripheral Sharing Switch for Mac/Windows/Linux - Save costs with this USB switch by sharing USB devices such as a printer/portable hard drive/mouse/keyboard with four computers - USB 3.2 Gen 1 switch with remote port selector lets you switch devices from one computer to another with the press of a button - Hot pluggable USB A/B switch - Over-current protection - LED indicates active computer - USB Printer Switch Marketing Copy Marketing Copy (No HTML) This 4x4 USB 3.2 Gen 1 peripheral sharing switch lets you share four USB 3.2 Gen 1 peripheral devices between four different computers, providing a cost-effective way to create a more productive, space-efficient work area. Save the expense of purchasing duplicate peripherals, by sharing devices (such as USB printers, portable hard drives, mouse and keyboard) with up to four computers. The 4X4 USB switch also lets you avoid having to swap cables from one system to another, saving time and effort. Enjoy fast data transfers to and from your shared peripheral devices. The USB switch supports USB 3.2 Gen 1 (up to 5Gbps), providing high-bandwidth support for devices like external hard drives and webcams. The USB 3.2 Gen 1 switch is also backward compatible with USB 2.0/1.1 and works with older devices.The plug-and-play USB switch is easy to use, with no drivers or software required. The USB 3.2 Gen 1 peripheral sharing switch features a remote port selector that lets you switch peripheral devices from one computer to another with the press of a button. The LED indicates the active computer.The switch's compact design takes up minimal desk space and it's USB-powered.The 4-port USB switch can also be connected to a USB hub or docking station, to expand the number of shared devices.The 4X4 USB 3.2 Gen 1 peripheral sharing switch is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Ideal for small businesses and home offices.

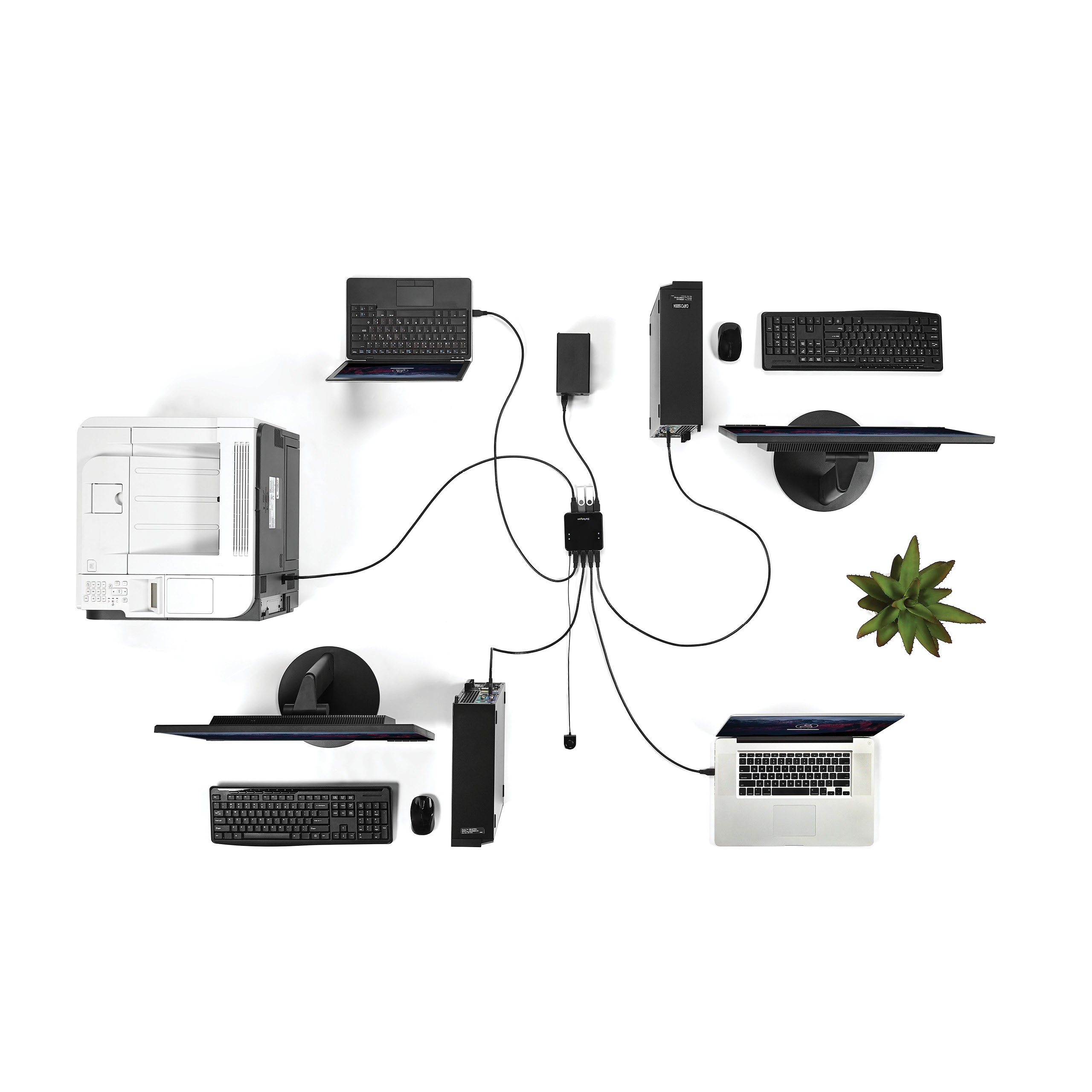

- Share a USB 3.2 Gen 1 peripheral between up to four computers on a work bench.
- Connect an external hard drive between four systems for merging data to a single shared drive.
Website Search Keyword - USB Switch
- 4X4 USB Switch
- USB 3.0 Switch
- 4X4 USB 3.0 Switch
- 4X4 USB 3.0 Peripheral Sharing Switch
- 4X4 USB 3.0 Sharing Switch
- USB switch
- USB A/B switch
- USB A?B switch
- 4 port USB 3.0 Switch
- USB Printer Switch
- USB Keyboard Mouse Switch
- switch
- USB 3.0 switch box
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes The switch does not require an external power source as it draws power from the computers that it’s connected to. If you have a special application that requires additional power, such as higher powered USB peripherals or if less than 4 hosts are connected and powered at one time, connect a 5V source to the power adapter port (USB Micro-B). Accessory Products - PCIUSB3S4
- PEXUSB3S4V
- PEXUSB3S2E2I
- ECUSB3S22
- USB3SAB3
- USB3SAUB3BK
- USB3SAB6BK
- USB3SAB6
- USB3CAB2M
- USB3AUB2MS
- USB3CAUB1M
- USB3CAB1M
- USB3AUB1MS
- USB3SAB3BK
- USB3SAUB3
- USB315CB2M
- USB31AC50CM
- USB31AC1M
- USB315AC1M
- USB31CB1M
- USB2PACUBK
- UUSBHAUB3
Related Products - USB221SS
- USB421HS
- USB4000IP
- USB1000IP
- ST4300USB3
- ST4300USBM
- TB33A1C
- HB30A3A1CSFS

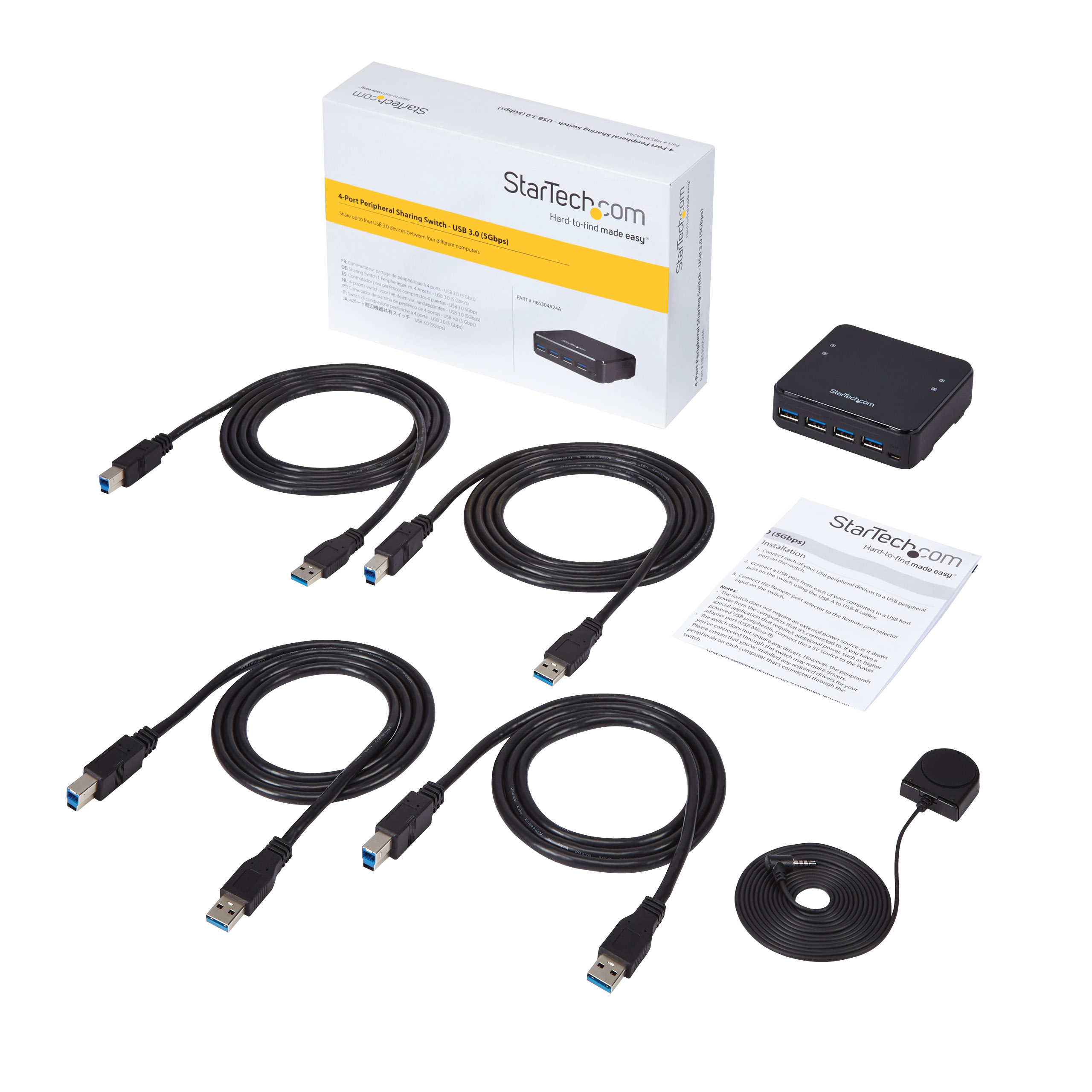

Input Voltage 5V DC Output Voltage (V) 5 DC Power Source USB-Powered Color Black Humidity 0~80% RH Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Plastic Product Length (mm) 94.000 Product Width (mm) 94.000 Product Height (mm) 26.000 Product Weight (g) 124.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Fast Charge Ports (BC 1.2) No General Specifications Optional power requirements: 5V 2A Maximum Data Transfer Rate 5 Gbps (USB 3.2 Gen 1) OS Compatibility OS Independent USB Speed USB 3.2 Gen 1 (5Gbps) USB Type and Rate USB 5Gbps Bus Type USB 3.2 Gen 1 (5Gbps) Ethernet Port No Interface/Bridge USB 3.2 Gen 1 Laptop Dock / USB Hub Fast-Charge No LED Indicators 4 - Computer selection indicators USB-C Device Port(s) No USB-C Host Connection No USB Port Type USB-A Carton Depth (mm) 104 Carton Height (mm) 346 Carton Quantity 20 Carton Weight Gross (g) 12206 Included in Package - 1 - peripheral sharing switch
- 1 - quick-start guide

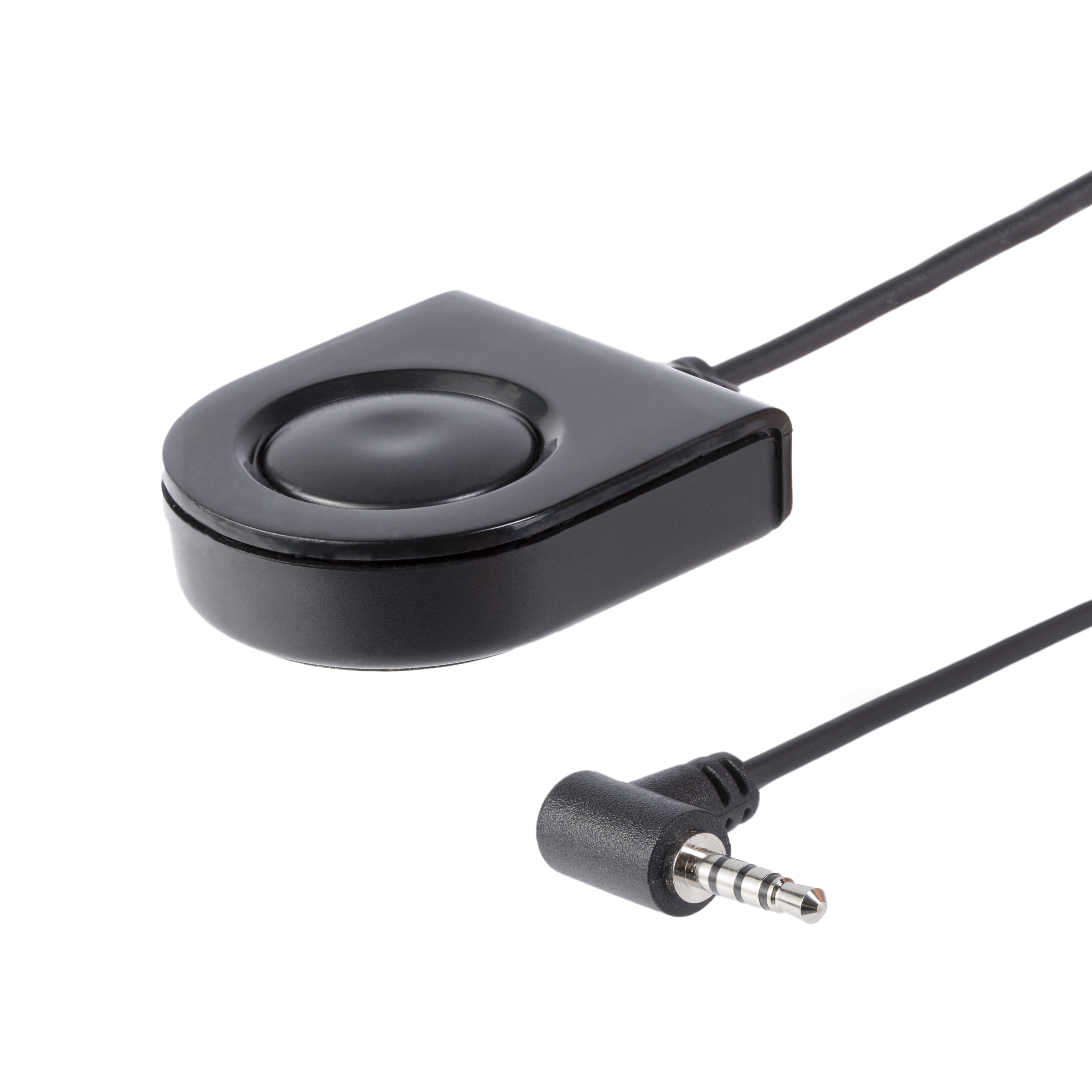

- 1 - 1.8 m [6 ft] remote port selector

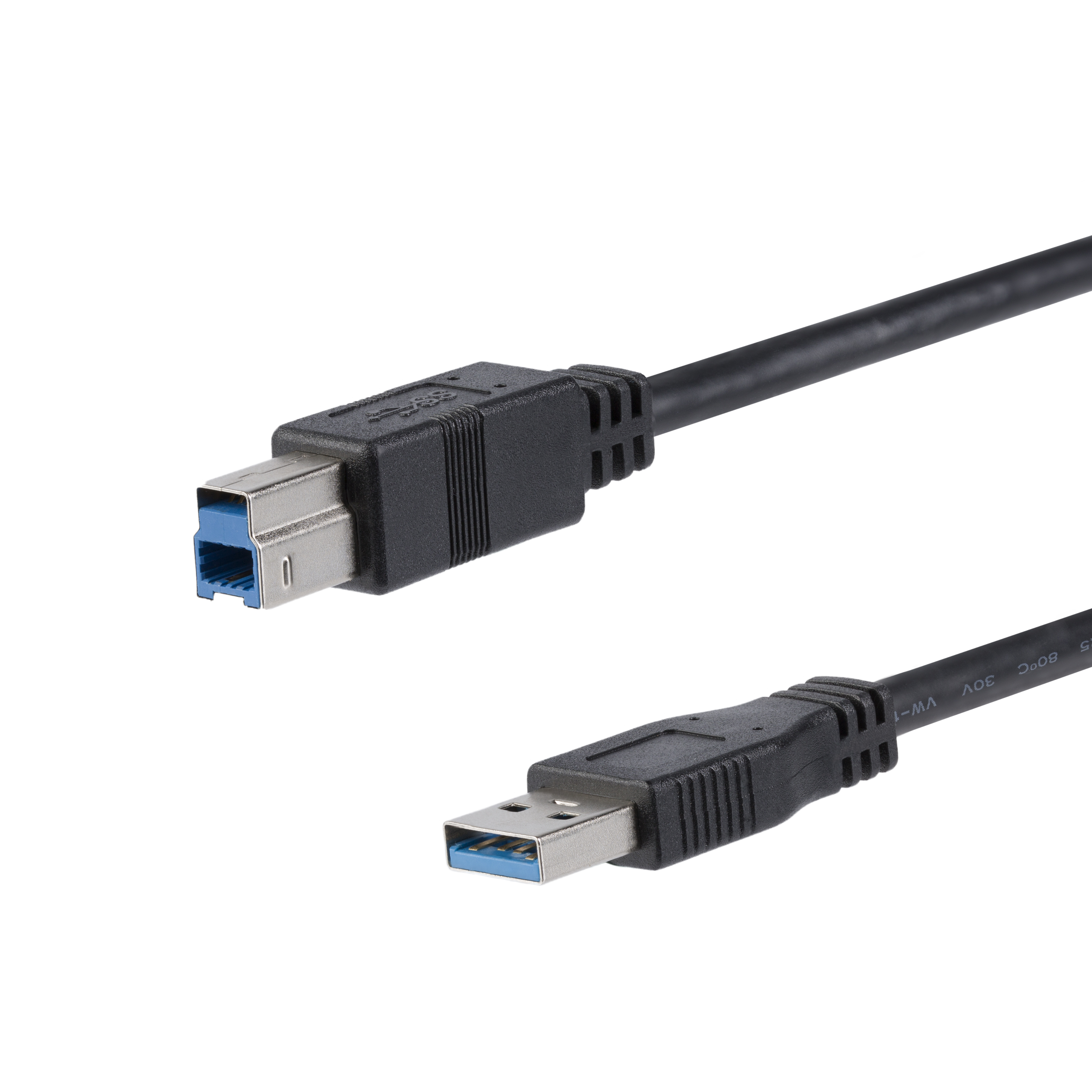

Included In Package for Label - 4 - USB 3.0 Cables
- 1 - Peripheral Sharing Switch
- 1 - Product Documentation
- 1 - 1.8 M [6 Ft] Remote Port Selector
Package Depth (mm) 161 Package Height (mm) 63 Package Width (mm) 240 Package Quantity 1 Package Weight (g) 562 Packaging Description 4-Port Peripheral Sharing Switch - USB 3.0 (5Gbps) Packaging Description India 4-Port Peripheral Sharing Switch - USB 3.0 (5Gbps) Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 4 Connector 2 USB-B (5Gbps, 4.5W) Connector 2 (Quantity) 4 Connector 3 USB Micro-B (2.5W Power Only) Connector 3 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2018-02-16 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2018-03-09 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Development Completion Date 2018-02-02 Target Production Release 2018-03-02 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Mainstream
