HD2AP-15M-HDMI-CABLE
50ft 15m HDMI 2 0 Cable 4K 60Hz Active HDMI Cable Plen
Reliably connect high-bandwidth HDMI 2.0 devices through plenum spaces
Main Image
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name 50ft 15m HDMI 2 0 Cable 4K 60Hz Active HDMI Cable Plen Product Number HD2AP-15M-HDMI-CABLE UPC 065030894265 Lifecycle status Active Warranty Lifetime Weighted Opportunity 27516 Taxonomy Product > Cables > Video Cables Category Level 1 Digital Display Cables Category Level 2 HDMI Cables Category Level 3 HDMI Cables - Active Family Active HDMI 2.0 Plenum Cables, 4K60 Web Hierarchy Cables - Audio-Video Cables - HDMI Cables Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX170X Product Title (Ultra-Short) Active HDMI Cable 4K Product Title (Short) 15m Active HDMI 2.0 Cable, Plenum Rated Product Title (Medium) 15m Active HDMI 2.0 Cable, CMP, Plenum Rated, High Speed HDMI Cable, 4K 60Hz Product Title (Standard) 15m (49.2ft) Active HDMI 2.0 Cable, CMP, Plenum Rated, High Speed HDMI Cable, 4K 60Hz, HDR10/HDCP 2.2/ARC Product Title (Long) 50ft (15m) Active HDMI 2.0 Cable, CMP, Plenum Rated, High Speed HDMI Cable, 4K 60Hz, HDR10/HDCP 2.2/ARC, CMP In Wall HDMI Cord Product Title (AMZ) 15m (49.2ft) Active HDMI 2.0 Cable, CMP, Plenum Rated, High Speed HDMI Cable, 4K 60Hz, HDR10/HDCP 2.2/ARC Title Ingram (Part 1) Active HDMI 2.0 Cable Title Ingram (Part 2) 15m/CMP/Plenum/4K 60Hz Website Product Headline Reliably connect high-bandwidth HDMI 2.0 devices through plenum spaces Bullet 1 DESIGNED FOR LONG RANGE: Active HDMI 2.0 Cable delivers 4K 60Hz beyond the length of passive copper cables; An integrated active chipset enables consistent performance without requiring an external booster or power source; Note: Cable is unidirectional Bullet 2 PLENUM RATED: CMP-rated HDMI cable jacket is designed for safe installation in plenum spaces; Suitable for ceiling, conduit, and in-wall cable runs; For use in commercial environments where compliance with fire codes must be considered Bullet 3 APPLICATIONS: Full-featured HDMI 2.0 enables Dynamic HDR10 w/10-bit processing for vibrant picture quality; Ideal for UHD/4K monitors/projectors/large displays, conference rooms, and video walls; 7.1 and 32-ch audio w/ARC; Compatible w/HDMI 1.4/1.2 Bullet 4 QUALITY CONSTRUCTION: Gold-plated connectors rated beyond 10,000 insertion cycles; Durable plenum jacket with robust strain reliefs; Tested beyond 1,000 bending cycles at -/+ 60° Embossed markings on connectors for Source and Display Bullet 5 SPECS: Black; 15-meter (49.2-foot); Unidirectional; CMP (Plenum-Rated); High Speed HDMI 2.0; Supports HDR10/HDCP 2.2/7.1 & 32-ch audio; 18Gbps; 4K 60Hz; 9mm (0.35in) O.D.; Ideal for long cable runs Bullets (Compact) Route this Active High Speed HDMI 2.0 Cable through office plenum spaces for 4K 60Hz video and 32-channel audio; CMP Rated; Gold-plated connectors with robust strain reliefs; Unidirectional; HDMI 2.0 w/HDR10/HDCP 2.2/ARC; 4K 60Hz; 18Gbps; 9mm O.D. Bullets (Consolidated) - Route this Active High Speed HDMI 2.0 Cable through office plenum spaces for 4K 60Hz video and high quality audio; CMP-rated for ceiling/in-wall cable runs - Gold-plated connectors rated beyond 10k insertions; Tested beyond 1000 bending cycles at -/+ 60deg; Labeled connector ends for Source and Display - Dynamic HDR10 w/12-bit processing; 7.1 and 32-ch audio w/ARC; Compatible w/HDMI 1.4/1.2 - 15m (49.2ft); Unidirectional; HDMI 2.0 w/HDR10/HDCP 2.2/ARC; 18Gbps; 4K 60Hz; 9mm (0.35in) O.D. Marketing Copy Marketing Copy (No HTML) Applications - Deliver 4K 60Hz video over longer distances
- Ideal for use in plenum spaces and dropped ceilings
Website Search Keyword - Active HDMI cable
- Plenum Rated HDMI Cable
- HDMI 2.0 Cable
- Long HDMI Cable
- Monitor Cable
- HDMI UHD Cable
- High Speed HDMI Cable
- Replacement HDMI Cord
- Active HDMI Cord
Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Prop 65 - Environmental - United States - Proposition 65 Warning Label
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene

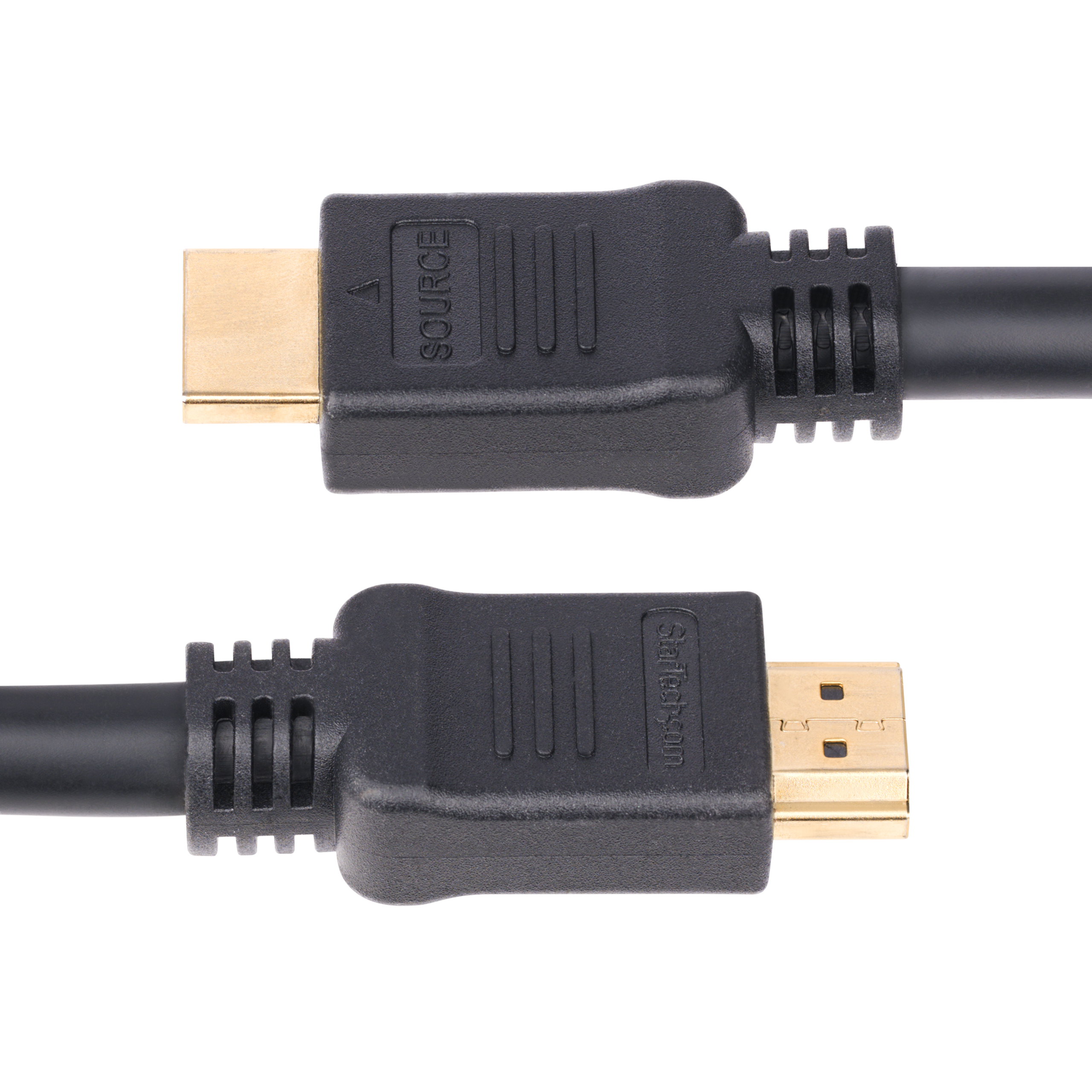

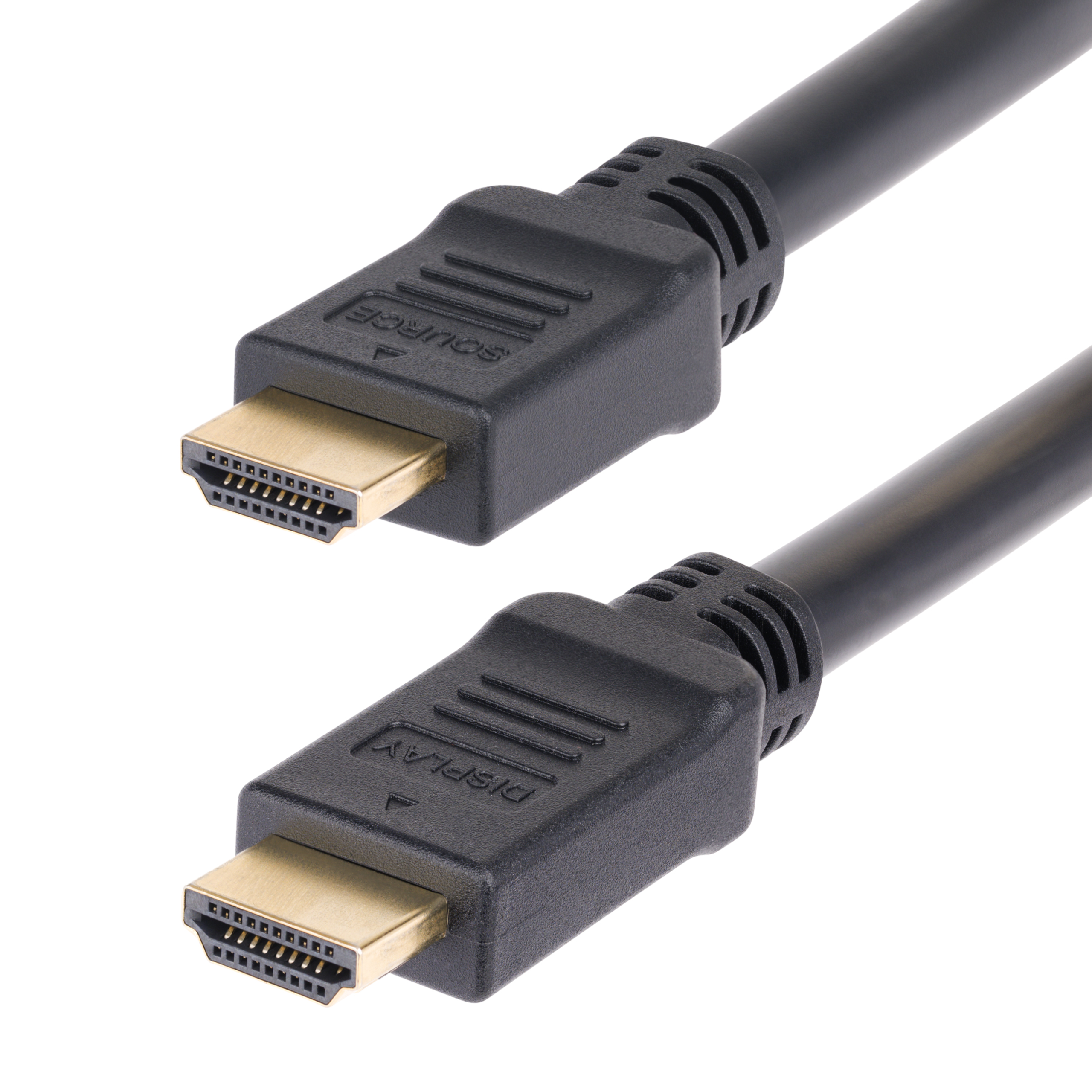

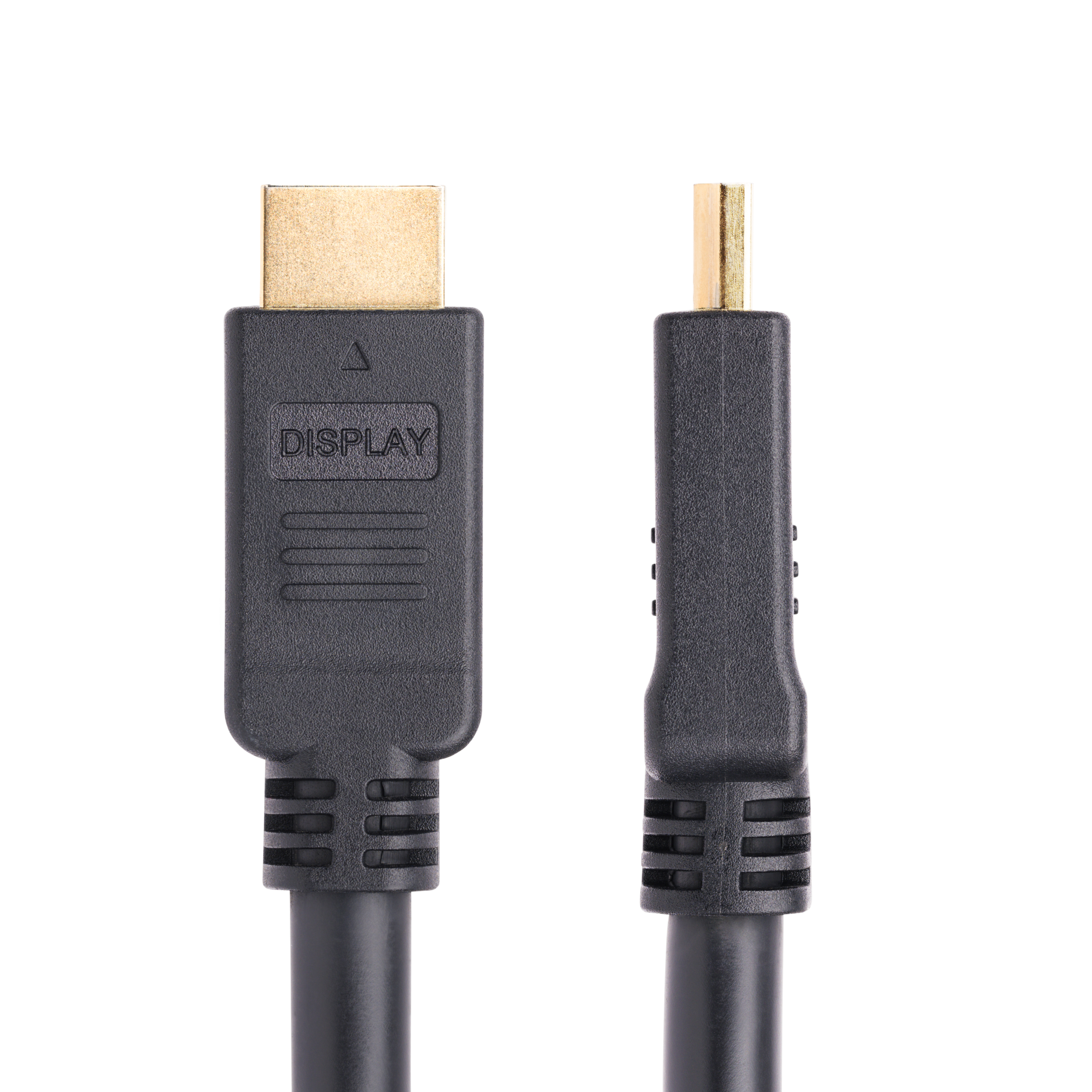

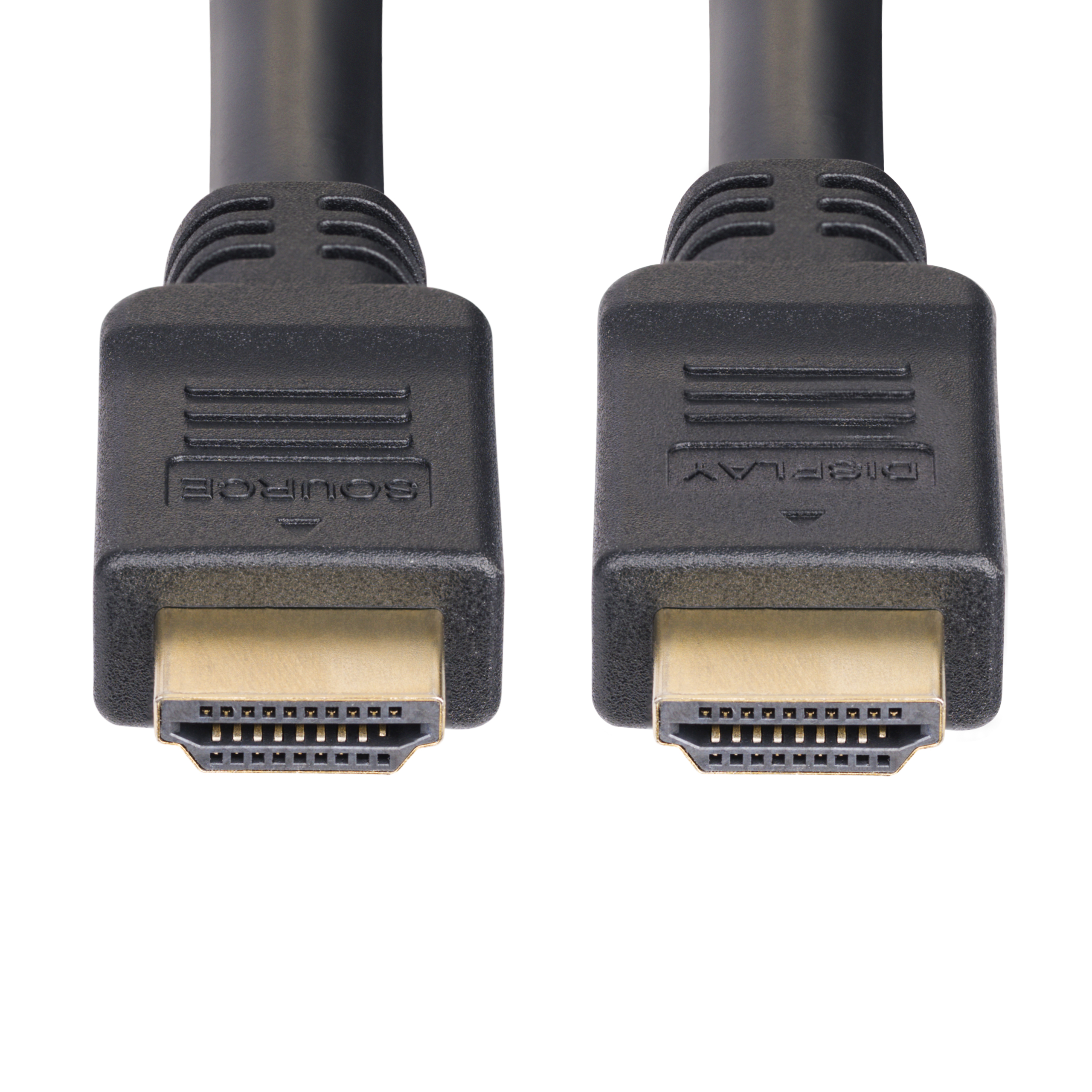

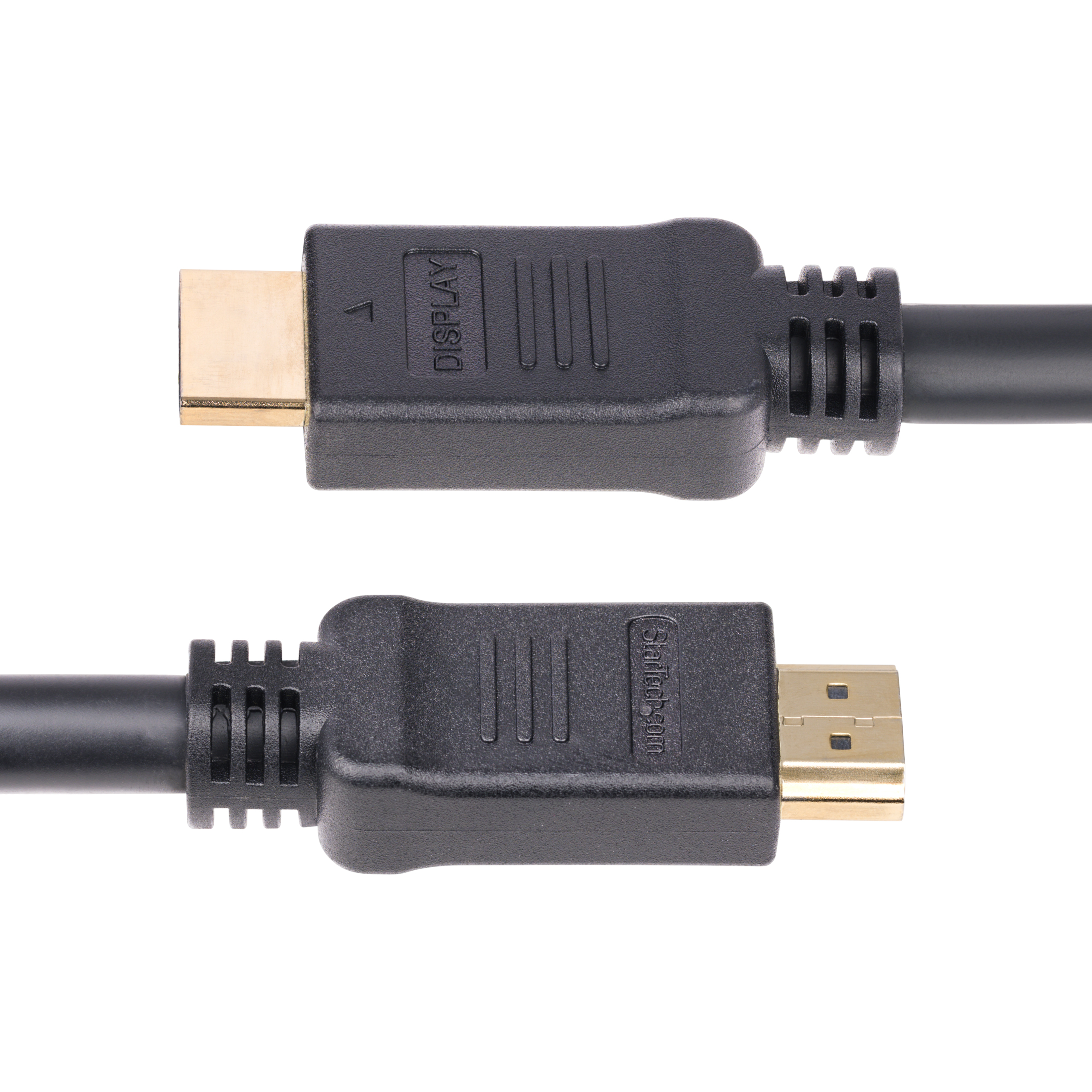

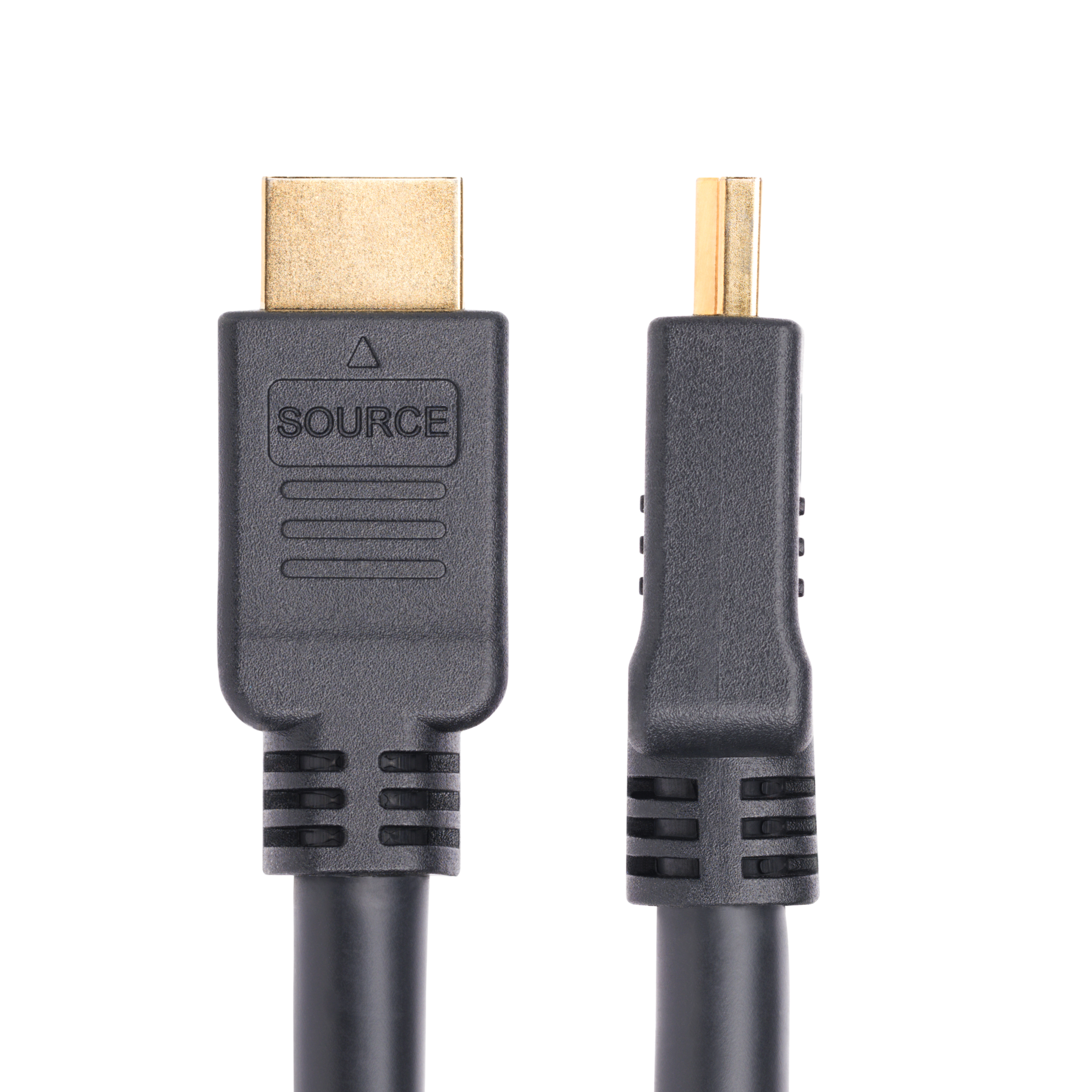

Special Notes This HDMI Cable is unidirectional with identified connectors for Source and Display. Please ensure that the HDMI connector labelled with "Display" is connected to the Display, TV, or Projector. Accessory Products - VS221HD20
- VS421HD20
- SV431HU34K6
- KITBZDOCK
- KITBXAVHDPNA
Related Products - 8K-A-30F-HDMI-CABLE
- HD2MM30MAO
- HD2MM15MA
- 8K-A-50F-HDMI-CABLE
- RH2A-7M-HDMI-CABLE
- RH2A-10M-HDMI-CABLE
- HD2AP-10M-HDMI-CABLE
Input Current 300 mA Input Voltage 5V DC Power Source Bus Powered Cable Length (mm) 15000 Cable OD 9 Color Black Connector Style Straight Humidity 0%~95% Material PVC Operating Temperature -20°C to 70°C (-4°F to 158°F) Product Length (mm) 15018.400 Product Width (mm) 20.000 Product Height (mm) 12.500 Product Weight (g) 1365 Storage Temperature 0°C to 50°C (32°F to 122°F) TAA Compliant No Wire Gauge 24/28 AWG Audio Specifications - HDMI - 7.1 Channel Audio
- HDMI - 32 Channel Audio
HDMI Version HDMI 2.0 (18Gbps) HDR Support HDR10 Maximum Data Transfer Rate 18Gbps Maximum Digital Resolutions 4K 60Hz MTBF (hours) Rated beyond 10,000 Insertion Cycles Active or Passive Adapter Active Cable Jacket Material PVC Cable Shield Material Aluminum-Mylar Foil with Braid Cable Type Active Copper Cable Chipset ID HT8181 Connector Plating Gold Connectors HDMI to HDMI Fire Rating Plenum Industry Standards HDMI 2.0 Carton Depth (mm) 405 Carton Height (mm) 314 Carton Quantity 8 Carton Weight Gross (g) 12626 Included in Package 1 - 15m Active HDMI Cable Package Depth (mm) 264 Package Height (mm) 72 Package Width (mm) 253 Package Quantity 1 Package Weight (g) 1476 Packaging Description 15m Active HDMI 2.0 Cable - 4K 60Hz - Plenum Packaging Description India 15m Active HDMI 2.0 Cable - 4K 60Hz - Plenum Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 A+ Not Required Actual Inbox Documents Created None Amazon Merchandising Manager Veronica Ye Application Photos Not Required Artwork Due Date 2024-03-15 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment Plenum Rated 4k30 version Comparable SKU 2 Comment CL2 4k60 Digital Content Due Date 2024-05-08 Enhanced Gallery Not Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,MX,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Chi Zhang Product Information Creation Specialist (PICS) Brian Chan Product Manager David Muzinic Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2024-03-15 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine Video Not Required
