HD2SDI
HDMI to SDI converter
Connect an SDI Display to your HDMI Video Source
Main Image
Product Images
Product Images
BOM Image
Product Name HDMI to SDI converter Product Number HD2SDI UPC 065030854979 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Cards & Adapters > AV Converters Category Level 1 Video Display Connectivity Category Level 2 AV Converters and Scalers Category Level 3 HDMI Converters Family No Family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX012X Product Title (Ultra-Short) HDMI to Dual 3G SDI Product Title (Short) HDMI to 3G Dual SDI Adapter Converter Product Title (Medium) HDMI to SDI Converter – HDMI to 3G SDI Adapter with Dual SDI Output Product Title (Standard) HDMI to SDI Converter – HDMI to 3G SDI Adapter with Dual SDI Output Product Title (Long) HDMI to SDI Converter – HDMI to 3G SDI Adapter with Dual SDI Output Product Title (AMZ) HDMI to SDI Converter – HDMI to 3G SDI Adapter with Dual SDI Output – HDMI to SDI Audio/Video Adapter - 755ft (230m) (HD2SDI) Title Ingram (Part 1) HDMI to 3G SDI Converter - HDMI Title Ingram (Part 2) to SDI Adapter - Dual SDI Output Website Product Headline Connect an SDI Display to your HDMI Video Source Bullet 1 Supports video resolutions up to 1080p Bullet 2 Dual 3G SDI output ports Bullet 3 Extends HDMI signals up to 755ft (230m) over 3G SDI Bullet 4 Plug-and-play HDMI to SDI conversion Bullet 5 Pre-installed mounting brackets Bullets (Compact) Connect an SDI Display to your HDMI Video Source - Connect an HDMI audio/vide source such as laptop or desktop computer to an SDI Display - HDMI to SDI video Converter SDI HD SDI to HDMI - Extends over SDI cabling up to 755 ft Bullets (Consolidated) Connect an SDI Display to your HDMI Video Source - Connect an HDMI audio/vide source such as laptop or desktop computer to an SDI Display - 3G HD-SDI/Convert HDMI to SDI/HDMI to SDI Adapter/HDMI to SDI audio video converter/HDMI to SDI Converter/HDMI to SDI video/HDMI to SDI video Converter SDI HD-SDI to HDMI Marketing Copy Applications - Convert HDMI to a 3G SDI video signal that can be extended over standard coaxial cable
- Connect your SDI display to an HDMI audio/video source
- Connect your HDMI video source to a local SDI display, and output an additional SDI signal into your broadcasting equipment
Website Search Keyword - HDMI to SDI converter
- hdmi to SDI adapter
- HDMI to SDI 3G Adapter
- HDMI to 3G SDI
- hdmi to sdi
- hdmi to SDI 3G SDI converter
- HDMI to BNC
- HDMI to Coax
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
System and Cable Requirements The converter is intended for distribution of original content. Digitally encrypted HDMI sources will not be converted. Accessory Products - HDMM6
- HDMM10
- HDMM15
- SVA5M3NEUA

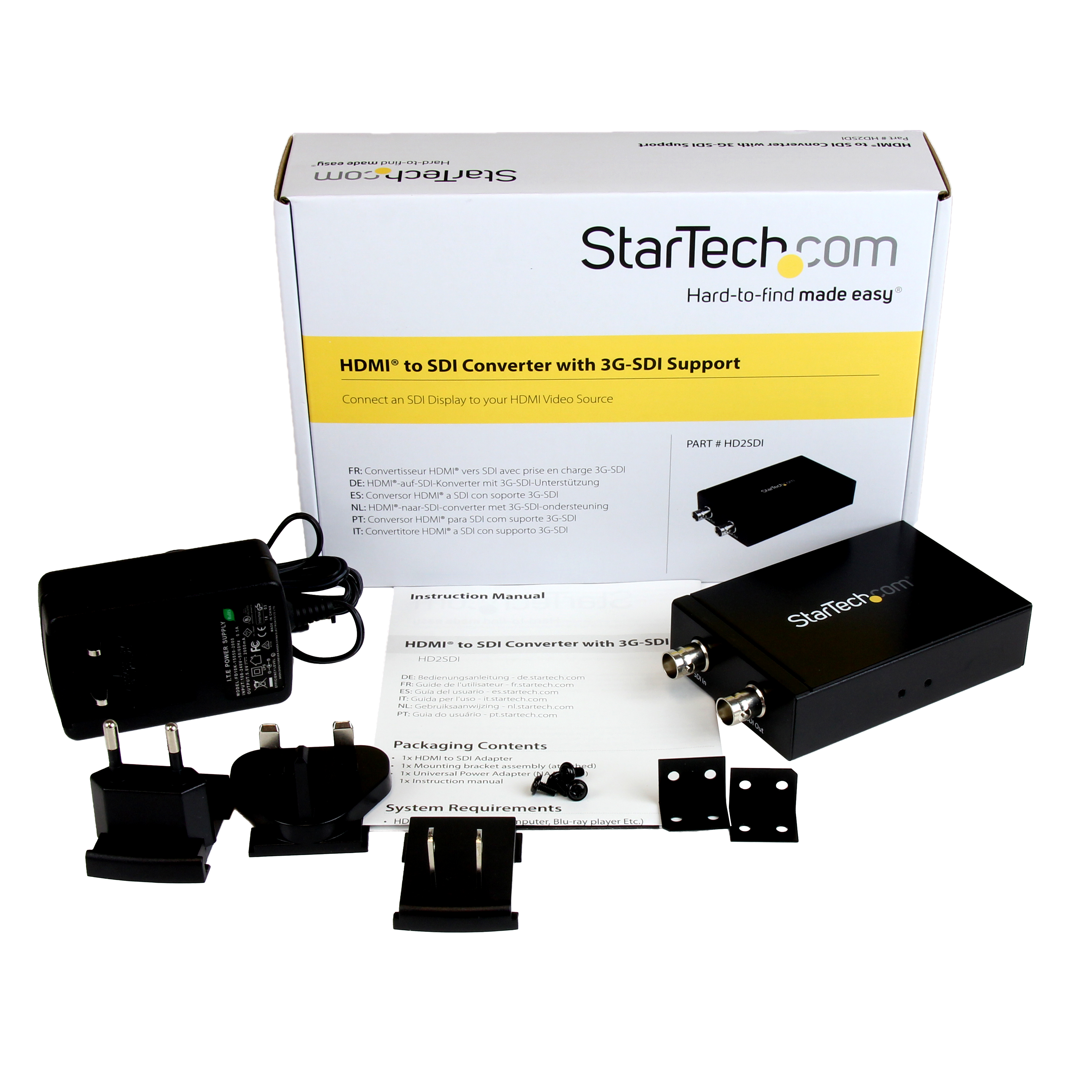

Input Current 0.5 A Input Voltage 100 - 240 AC Output Current 2 A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 5% to 90 % RH (no condensation) Material Steel Operating Temperature 0°C to 40°C (32°F to 158°F) Primary Material Steel Product Length (mm) 100.000 Product Width (mm) 70.000 Product Height (mm) 25.000 Product Weight (g) 202.000 Storage Temperature -10°C to 60°C (14°F to 176°F) TAA Compliant No General Specifications Max Distance 230m [755ft] Maximum Cable Length (mm) 230000 Maximum Data Transfer Rate 2.97 Gbps Maximum Digital Resolutions 1080p Supported Resolutions Wide Screen Supported Yes Active or Passive Adapter Active Audio Yes AV Input HDMI AV Output SDI (BNC) Cabling Coaxial Cascadable No Chipset ID Gennum - GV7600 Converter Type Format Converter Rack-Mountable Yes Carton Depth (mm) 324 Carton Height (mm) 251 Carton Quantity 16 Carton Weight Gross (g) 9390 Included in Package - 1 - HDMI to SDI Adapter
- 1 - Universal Power Adapter (NA/UK/EU)
- 1 - Instruction manual
- 1 - Mounting bracket assembly (attached)
Package Depth (mm) 151 Package Height (mm) 55 Package Width (mm) 217 Package Quantity 1 Package Weight (g) 625 Packaging Description HDMI® to SDI Converter w/ 3G-SDI Support Packaging Description India HDMI® to SDI Converter w/ 3G-SDI Support Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 SDI (BNC, 75 Ohm) Connector 2 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-02-27 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,CO,DE,DK,ES,EU,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Greg Visser Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
