HD2VGAMICRA

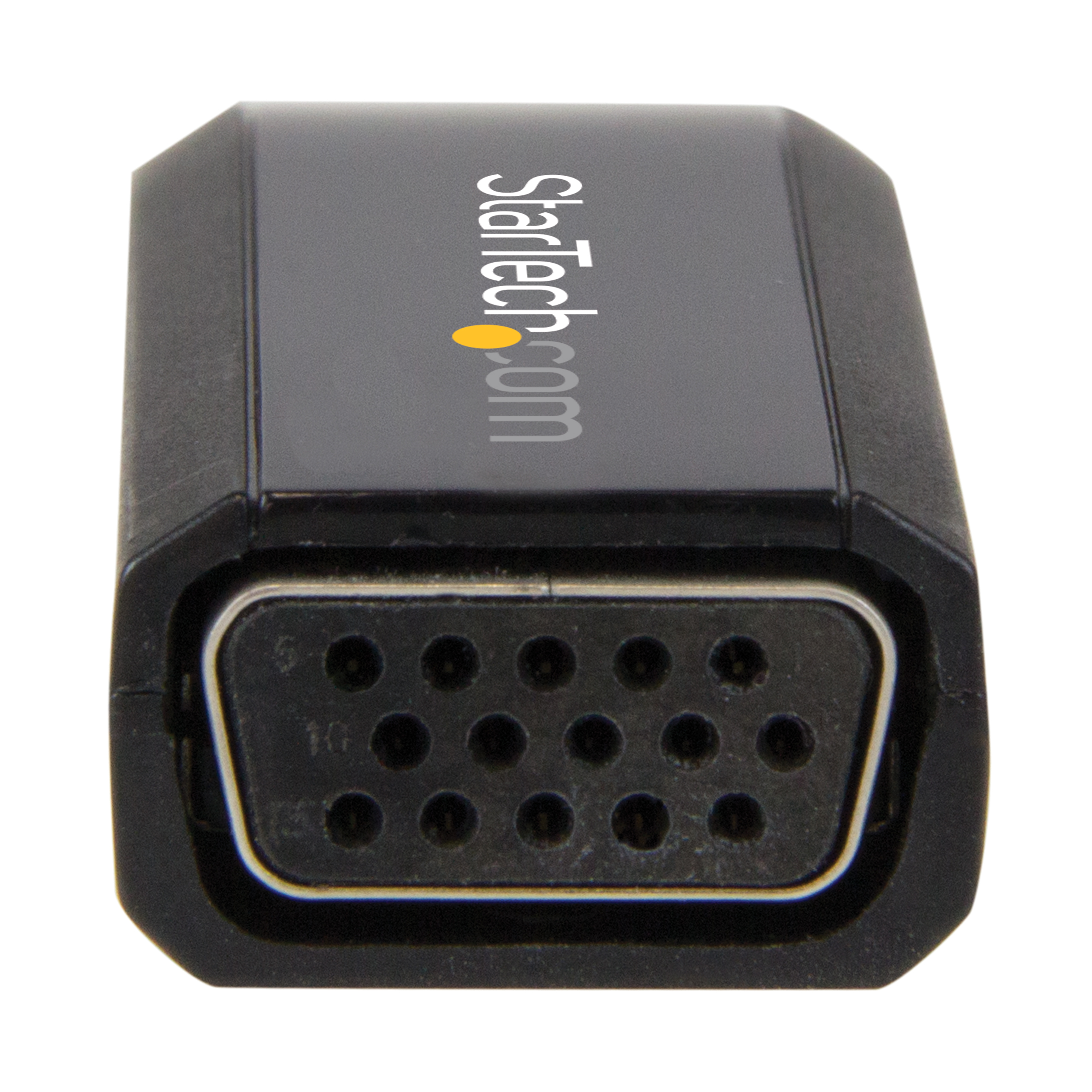

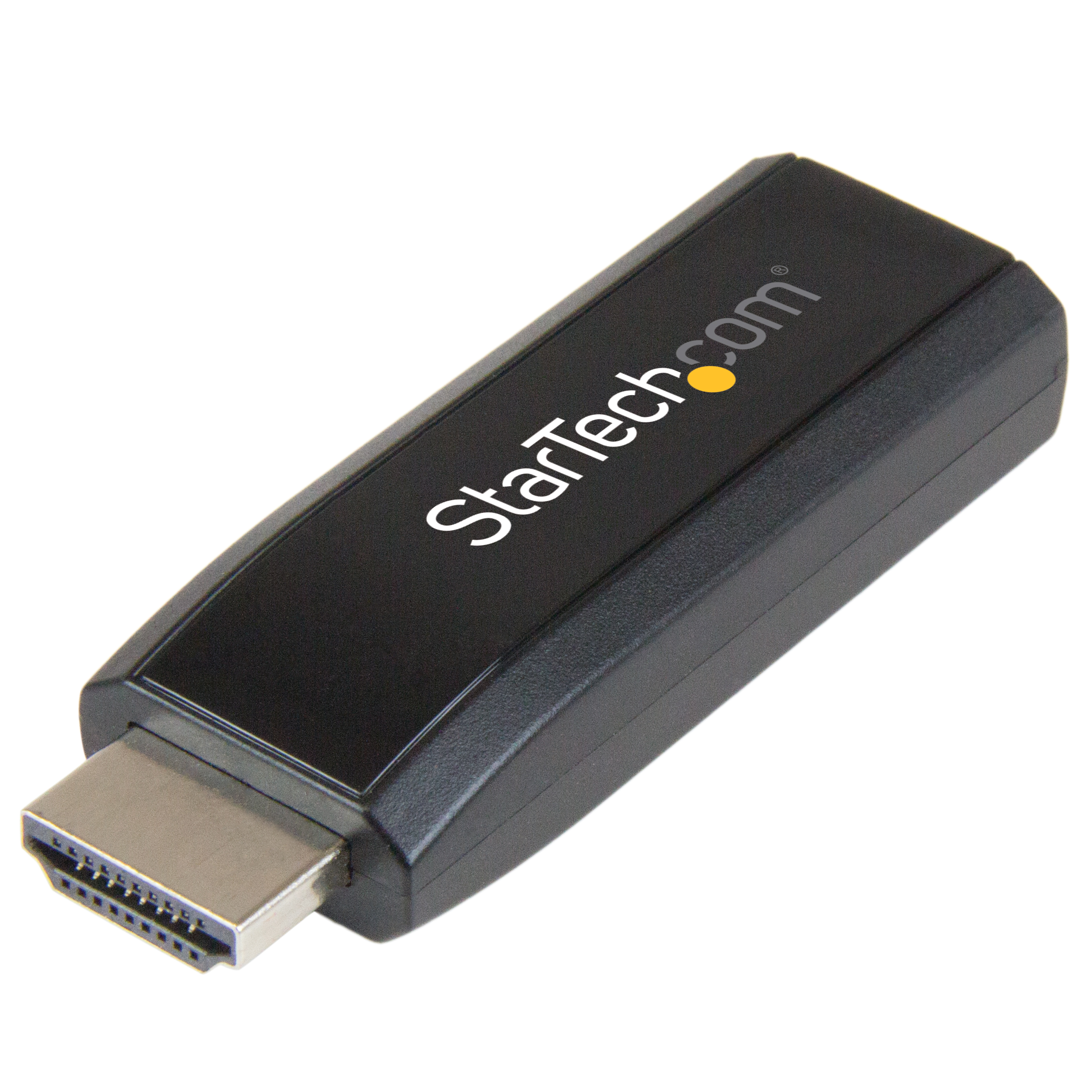

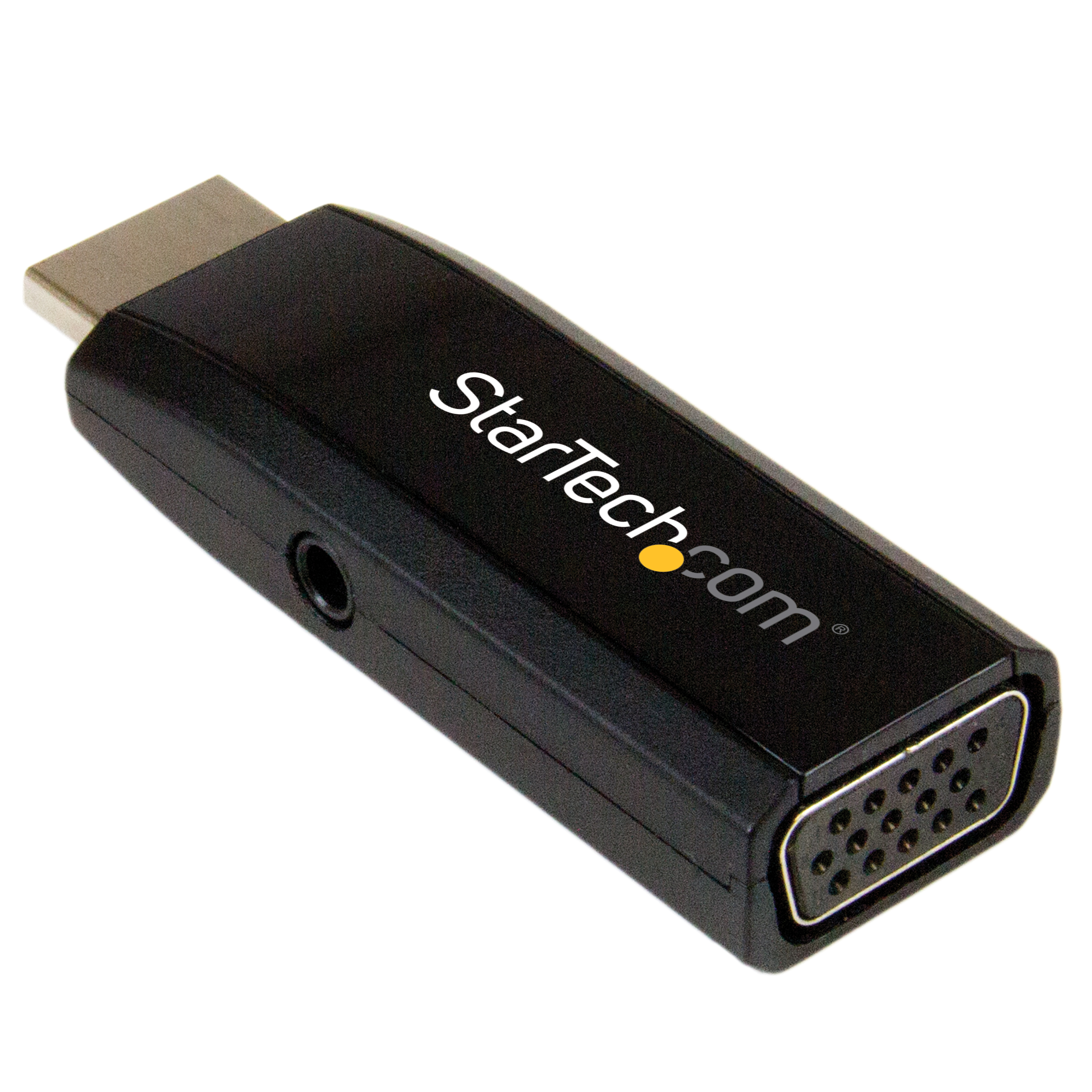

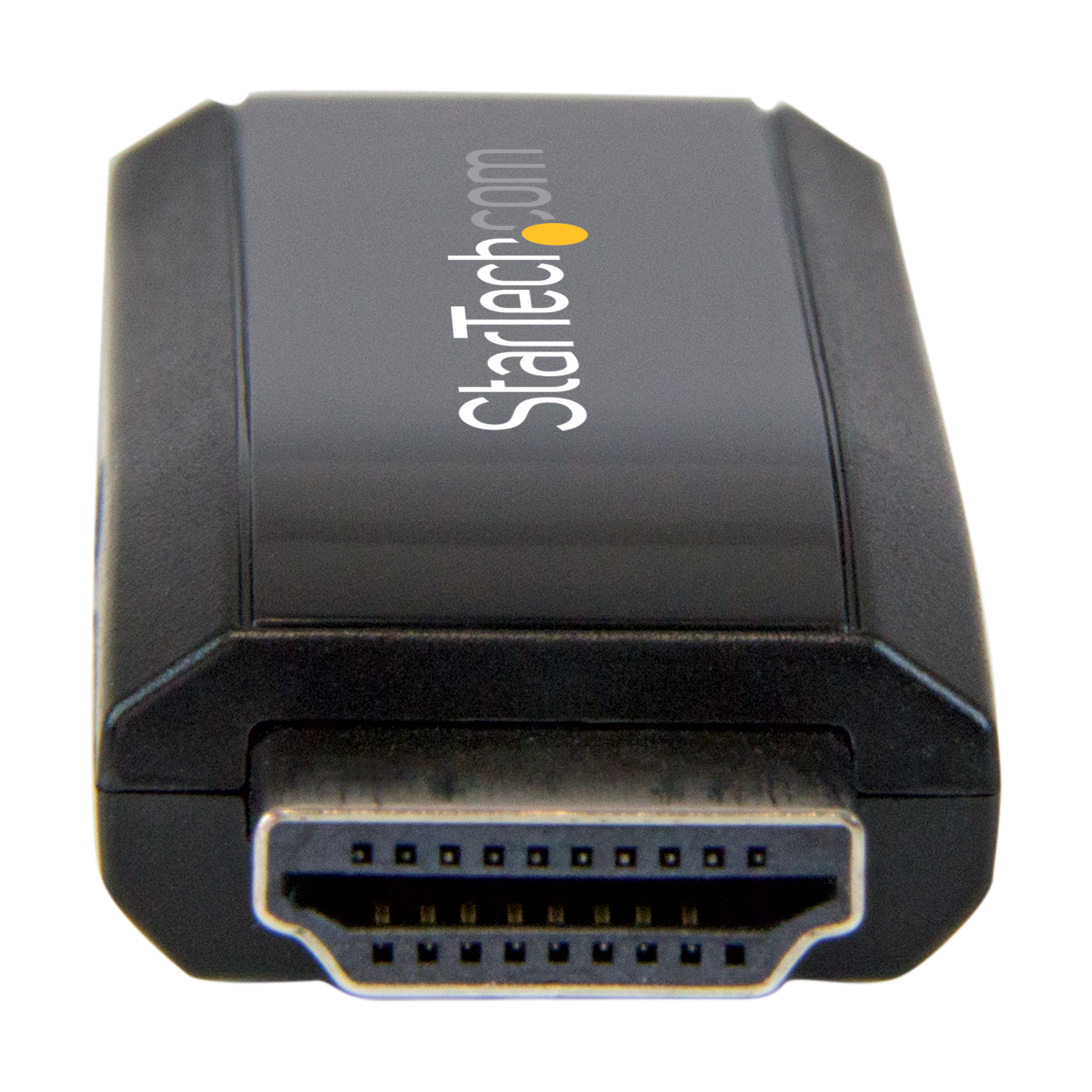

HDMI to VGA Adapter with Audio
This highly-portable adapter is the ideal travel companion for your Chromebook or Ultrabook laptop
Main Image
Product Images
Product Images
Product Images
Product Name HDMI to VGA Adapter with Audio Product Number HD2VGAMICRA UPC 065030861014 Lifecycle status End of Life Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 HDMI and DVI Display Adapters Category Level 3 HDMI to VGA Family no family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX031X Product Title (Ultra-Short) HDMI to VGA Adapter Product Title (Short) HDMI to VGA Adapter w/ Audio - Compact Product Title (Medium) HDMI to VGA Converter with Audio - Compact Adapter - 1920x1200 Product Title (Standard) HDMI to VGA Converter with Audio - Compact Adapter - 1920x1200 Product Title (Long) HDMI to VGA Converter with Audio - Compact - 1920x1200 Product Title (AMZ) HDMI to VGA Adapter - Aux Audio Output - Compact - 1920x1200 - HDMI to VGA (HD2VGAMICRA) Title Ingram (Part 1) HDMI to VGA Adapter with Audio Title Ingram (Part 2) - Compact Converter HDMI to VGA Website Product Headline This highly-portable adapter is the ideal travel companion for your Chromebook or Ultrabook laptop Bullet 1 Increase the compatibility of your HDMI equipped Ultrabook or Chromebook by adding support for VGA Bullet 2 Hassle-free setup, through plug-and-play installation Bullet 3 Maximum portability with a small foot print and lightweight design Bullet 4 Supports resolutions up to 1920x1200 (1080p) Bullet 5 Discrete 3.5mm audio output Bullets (Compact) This highly portable adapter is the ideal travel companion for your Chromebook or Ultrabook laptop - Compatible with HDMI computers like HP Chromebook 14 & Acer C720 and VGA monitors and TVs - HDMI to VGA adapter - HDMI to VGA converter with audio Bullets (Consolidated) This highly portable adapter is the ideal travel companion for your Chromebook or Ultrabook laptop - Compatible with HDMI equipped computers such as HP Chromebook 14 and Acer C720 and VGA monitors, televisions and projectors - Supports resolutions up to 1920x1200 or 1080p - HDMI to VGA/HDMI to VGA adapter/HDMI to VGA converter/HDMI to VGA with audio - Carry with you while you travel to ensure your laptop is compatible with VGA displays in BYOD applications Marketing Copy Applications - Connect your Ultrabook or Chromebook to a boardroom display
- Use your VGA monitor as secondary display
- Carry the adapter with you while travelling to ensure your laptop is compatible with VGA displays in BYOD applications
Website Search Keyword - HDMI to VGA
- HDMI to VGA adapter
- HDMI to VGA converter
- HDMI to VGA with audio
- HDMI to 3.5mm audio out
- HDMI audio extracter
- HDMI to analog
- digital to analog adapter
- HDMI to analog audio
- HDMI to RCA audio
- P131-000-A
- P131-06N
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes Accessory Products - MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- MU6MMS
- MU10MMS
- MU15MMS
- MU1MMRCA
- MU3MMRCA
- MU6MMRCA
Related Products - HD2VGAE2
- HD2VGAMICRO
- MCHD2VGA
- HDMI2VGA
Color Black Humidity 90% RH Operating Temperature 10°C to 40°C (50°F to 104°F) Primary Material Plastic Product Length (mm) 62.300 Product Width (mm) 21.000 Product Height (mm) 12.500 Product Weight (g) 8.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Maximum Digital Resolutions 1900x1200 @ 60Hz Maximum Supported Resolution 1080p OS Compatibility OS Independent Supported Resolutions Video Output Port VGA Wide Screen Supported Yes Active or Passive Adapter Active Audio Yes AV Input HDMI AV Output VGA Chipset ID Chrontel - CH7101A-BF Converter Type Format Converter Host Connection Port HDMI Carton Depth (mm) 326 Carton Height (mm) 284 Carton Quantity 90 Carton Weight Gross (g) 4428 Included in Package 1 - Compact HDMI to VGA adapter Package Depth (mm) 80 Package Height (mm) 22 Package Width (mm) 176 Package Weight (g) 42 Packaging Description Compact HDMI® to VGA adapter w/ audio - 1080p Packaging Description India Compact HDMI® to VGA Converter w/ audio - 1080p Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2015-01-01 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,CO,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Production Release 2015-03-31 Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle None
