HD2VID

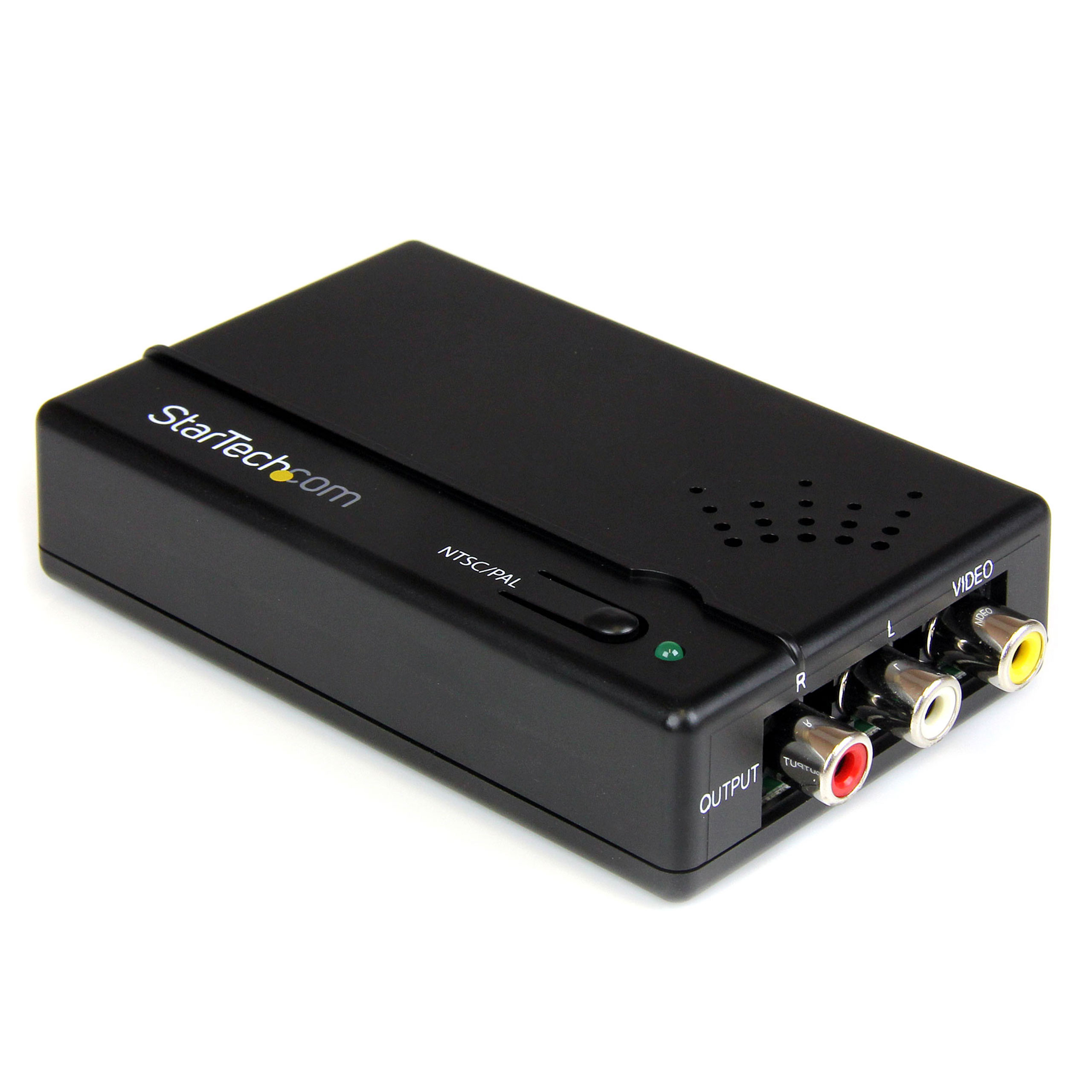

HDMI to Composite and S-Video Converter
Convert an HDMI® signal with supporting audio to work with legacy composite video televisions and displays
Main Image
Product Images
Product Images
BOM Image
Product Name HDMI to Composite and S-Video Converter Product Number HD2VID UPC 065030845151 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Cards & Adapters > AV Converters Category Level 1 Video Display Connectivity Category Level 2 AV Converters and Scalers Category Level 3 HDMI Converters Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX017X Product Title (Short) HDMI® to Composite Converter with Audio Product Title (Standard) HDMI® to Composite Converter with Audio Product Title (Long) HDMI to Composite Converter with Audio Product Title (AMZ) HDMI® to Composite Converter with Audio - HDMI RCA A/V Video Converter (HD2VID) Title Ingram (Part 1) HDMI® to Composite Converter wit Title Ingram (Part 2) h Audio Website Product Headline Convert an HDMI® signal with supporting audio to work with legacy composite video televisions and displays Bullet 1 Converts HDMI® source to NTSC or PAL Bullet 2 Converts HDMI audio to analog stereo RCA Audio Bullet 3 Supports input HDTV resolutions up to 720p (PC up to 1280x800) Bullet 4 Output picture size Underscan / Overscan Bullet 5 Adaptive contrast enhancement Bullets (Consolidated) Convert an HDMI® signal with supporting audio to work with legacy composite video televisions and displays - HDMI to Composite Audio - HDMI to Composite Video - HDMI to Composite Converter - HDMI to RCA Converter - HDTV up to 720p - PC up to 1280x800 Marketing Copy Applications - Great for use in presentations, tradeshows, conferences, retail, entertainment, and home video applications
- Ideal for converting newer HDMI devices to work with older composite or S-Video televisions
Website Search Keyword - hdmi composite
- hdmi video converter
- hdmi to rca
- hdmi to composite adapter
- HDMI to composite scaler
- HDMI to Composite scan converter
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - HDMM6
- HDMM10
- HDMM15
Related Products - VGA2NTSCPRO
- VID2DVIDTV
- VID2VGATV
- VGA2VID
- COMP2VGA
- HDMI2VGA

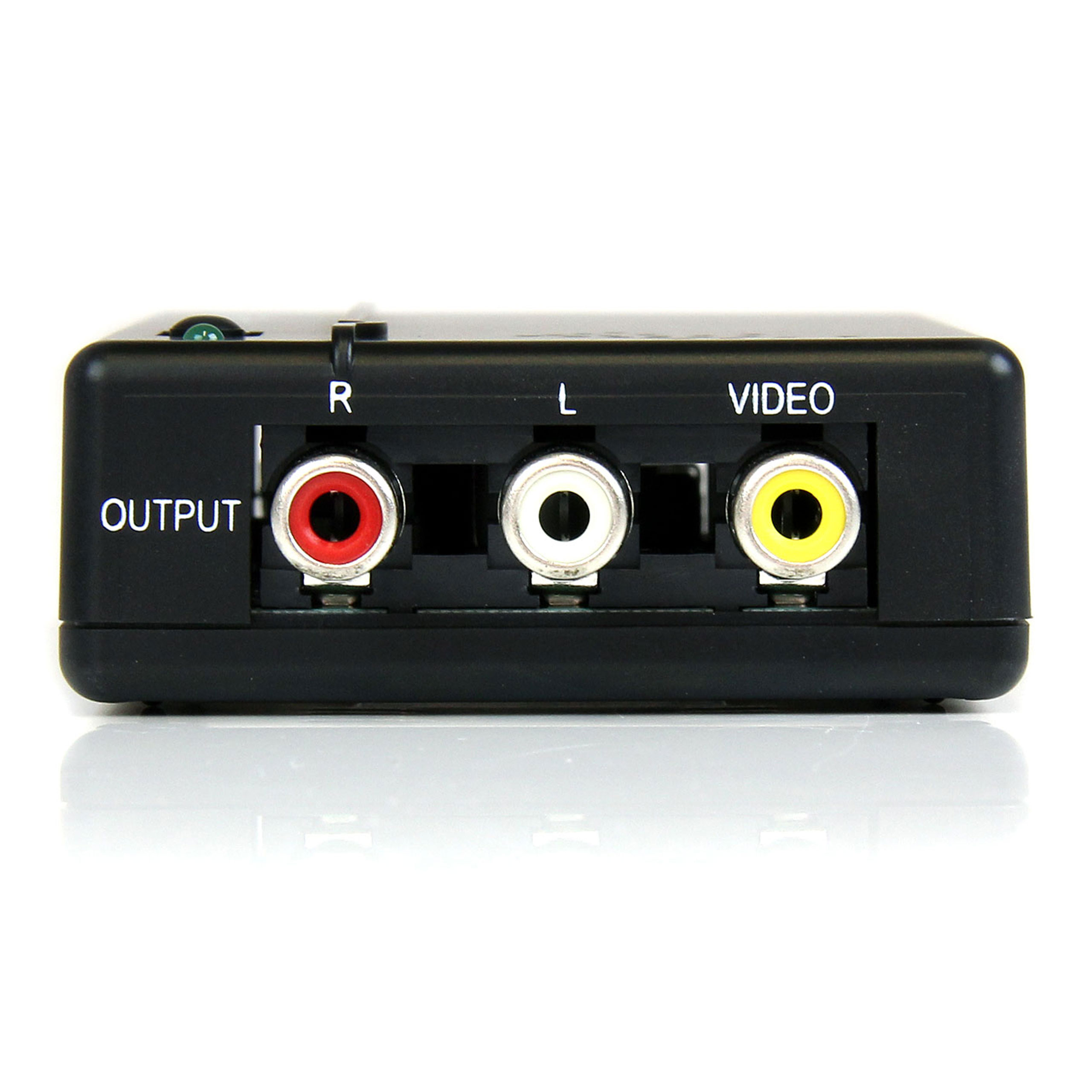

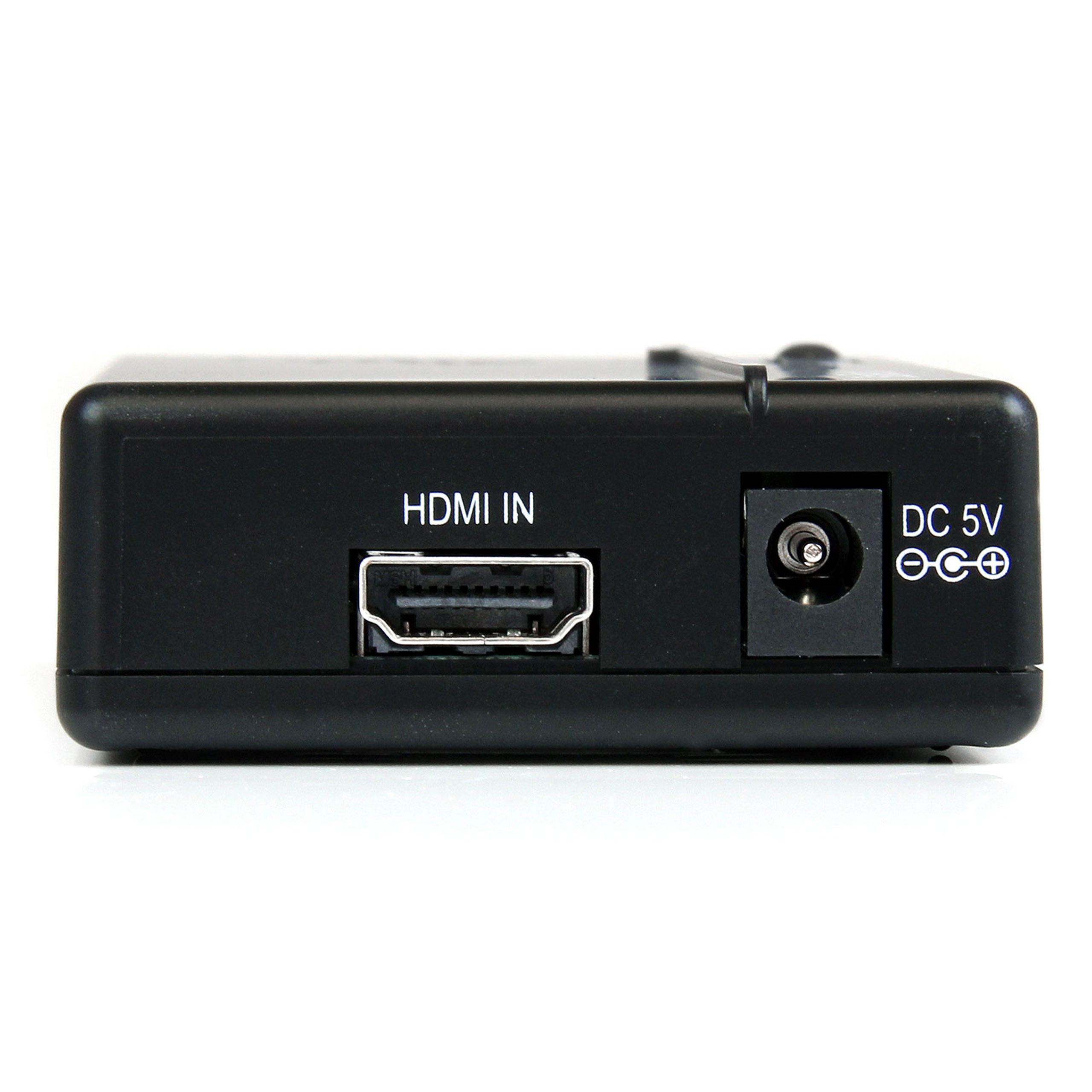

Input Current 0.3 A Input Voltage 100 - 240 AC Output Current 1A Output Voltage (V) 5 DC Power Consumption (In Watts) 3 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color White Humidity 20~90% RH Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 100.000 Product Width (mm) 64.000 Product Height (mm) 26.000 Product Weight (g) 81.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Supported Resolutions Active or Passive Adapter Active Audio Yes AV Input HDMI AV Output - Composite
- Audio RCA

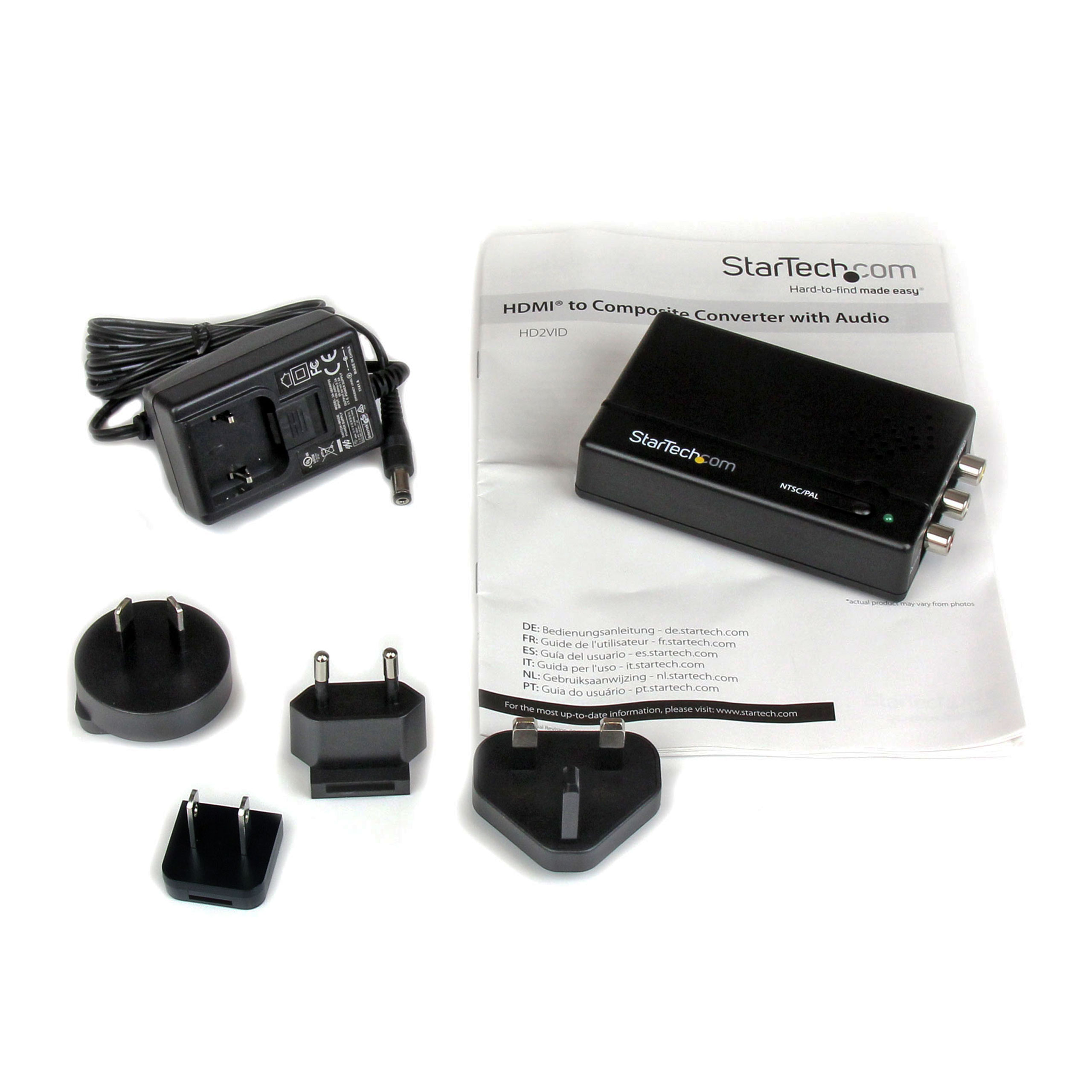

Converter Type Scaler Industry Standards Standard HDMI, DVI 1.0 Carton Depth (mm) 316 Carton Height (mm) 277 Carton Quantity 30 Carton Weight Gross (g) 10090 Included in Package - 1 - HDMI® to Composite Converter
- 1 - Universal Power Adapter (NA/UK/EU/AU)
- 1 - Instruction Manual
Package Depth (mm) 152 Package Height (mm) 57 Package Width (mm) 123 Package Quantity 1 Package Weight (g) 321 Packaging Description HDMI® to Composite Video Converter w/ Audio Packaging Description India HDMI® to Composite Video Converter w/ Audio Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 RCA (Composite Video) Connector 2 (Quantity) 1 Connector 3 RCA (Stereo Audio) Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,EU,NZ,UK,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle Legacy
