Main Image
HDBOOST
HDMI booster
Amplify the strength of your HDMI signal to extend your video source up to 115 ft. over standard HDMI cable
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name HDMI booster Product Number HDBOOST UPC 065030863209 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > Video Extenders Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 HDMI Extenders Family HDMI Booster Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX062X Product Title (Ultra-Short) HDMI Booster - 115ft Product Title (Short) HDMI Signal Booster - 115 ft - 1080p Product Title (Medium) HDMI Signal Booster - HDMI Video Signal Amplifier - 115 ft - 1080p Product Title (Standard) HDMI Signal Booster - HDMI Video Signal Amplifier - 115 ft - 1080p Product Title (Long) HDMI Signal Booster - 115 ft - 1080p Product Title (AMZ) 115 ft/35 m HDMI Signal Booster - 1080p Signal Repeater - HDMI Inline Amplifier & Extender - 7.1 Audio Support (HDBOOST) Title Ingram (Part 1) HDMI Signal Amplifier - HDMI Title Ingram (Part 2) Booster - 35 m - 1080p 60 Hz Website Product Headline Amplify the strength of your HDMI signal to extend your video source up to 115 ft. over standard HDMI cable Bullet 1 INLINE CAPABILITY: You can place the HDMI signal booster inline between two HDMI cables, up to 82 ft. in length at the video input, and up to 33 ft. in length at the video output. Bullet 2 SIMPLE INSTALLATION: The HDMI booster mounting hardware is included. No CAT5 or CAT6 cable infrastructure required. A power adapter is not required for standard applications, SVUSBPOWER sold separately. Bullet 3 EASILY CUSTOMIZABLE: The HDMI extender features an equalization switch with ten different levels. The switch lets you adjust the amplification of your signal based on the distance of your cables. Bullet 4 LONG DISTANCE CAPABILITY: When extending HDMI over long distances, higher resolutions can become unavailable. Using the HDMI amplifier ensures high-definition resolutions up to 1080p at 60Hz. Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this HDMI Extender is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance. Bullets (Compact) Amplify the strength of your HDMI signal to extend your video source up to 115 ft. over standard HDMI cable - Extends your HDMI video signal up to 115 ft. (35 m) - Boosts normal HDMI cables - 1080p at 60hz resolution support - Amplifies standard HDMI Bullets (Consolidated) Amplify the strength of your HDMI signal to extend your video source up to 115 ft over standard HDMI cable - Compatible with HDMI video source devices such as Blu-ray players and computers and HDMI displays monitors and projectors - Extends up to 115ft (45m) - Works with normal HDMI cables - 1080p resolution support - HDMI amplifier/HDMI booster/1080p at 60 Hz/HDMI extender/HDMI cable extender/HDMI repeater/Extend HDMI signal - Discreet installation with no power adapter required Marketing Copy Marketing Copy (No HTML) This HDMI signal booster lets you increase the signal strength of your HDMI video source so you can connect an HDMI display up to 115 ft. (35 m) away, using standard HDMI cables. You can place the HDMI booster inline between two HDMI cables, up to 82 ft. in length at the video input, and up to 33 ft. in length at the video output. With its small form factor, the HDMI amplifier is easy to hide, for a discreet installation. You don't need an external power adapter to operate the HDMI extender, and it includes mounting hardware, so installing it is hassle-free. By extending your video signal using standard HDMI cables, the HDMI repeater is a cost-effective alternative to more expensive HDMI extension systems that require the installation of CAT5 or CAT6 cabling infrastructure. The HDMI signal booster features an equalization switch with ten different levels. The equalization switch ensures your HDMI extension will be perfect even at distances up to 115 ft. (35 m). The HDMI booster is perfect for boardrooms, offices or classrooms that may require varying distances depending on the room size. When extending HDMI over long distances using standard video cabling, higher resolutions can become unavailable. Using the HDMI signal booster ensures that you'll still be able to depend on high-definition resolutions up to 1080p at 60Hz. The HDMI amplifier is backed by a 2-year StarTech.com warranty and free lifetime technical support. Applications - Avoid running network cabling to extend video signals, by using this booster with standard HDMI cabling
- Boost the signal strength of your HDMI video signals for classroom, office or boardroom displays
Website Search Keyword - 1080p
- HDMI extender
- 60Hz
- HDMI Booster
- HDMI cable extender
- HDMI repeater
- HDMI signal amplifier
- hdmi to hdmi extender
- extend hdmi
- extend hdmi signal
- boost hdmi signal
- Tripp Lite B122-000
- Tripp Lite B122-000-60
- 35m extension
- boost hdmi
- hdmi to hdmi repeater
- hdmi to hdmi booster
- hdmi to hdmi cable extender
- B12200060
- B122-000
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + cords
System and Cable Requirements - The HDMI cable connected to your video source must be longer or equal to the length of the cable connected to your display.
- The maximum supported video source cable length is 82 ft. (25m).
- The maximum supported display cable length is 33 ft. (10m).
Accessory Products - SVUSBPOWER
- HDMM6
- HDMM10
- HDMM15
- HDMM20
- HDMM30
- HDMM40
- HDMM50
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- HDMIDVIMM20
- HDMIDVIMM30
- HDMIDVIMM50
- USB2TYPEN1M
Related Products DPBOOST Constrained SKU Alternatives (Limited Stock) HDBOOST4K2 Input Voltage 100 - 240 AC Output Current 1 A Output Voltage (V) 5 DC Power Source Not Included (not required for standard applications) Plug Type N Center Tip Polarity Positive Color Black Humidity 5% to 90% Material Steel Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Steel Product Length (mm) 54.18 Product Width (mm) 42.2 Product Height (mm) 26.21 Product Weight (g) 74 Storage Temperature -10°C to 80°C (14°F to 176°F) TAA Compliant No Max Distance 35m [115ft] Maximum Cable Length (mm) 35000 Maximum Digital Resolutions 1920 x 1080 at 60Hz Supported Resolutions 1920 x 1080, 1680 x 1050, 1600 x 900, 1440 x 900, 1360 x 768, 1280 x 800, 1280 x 768, 1280 × 720 Wide Screen Supported Yes Audio Yes AV Input HDMI AV Output HDMI Cabling HDMI Cascadable No LED Indicators - 1 - power LED (blue)
- 1 - video source LED (blue)

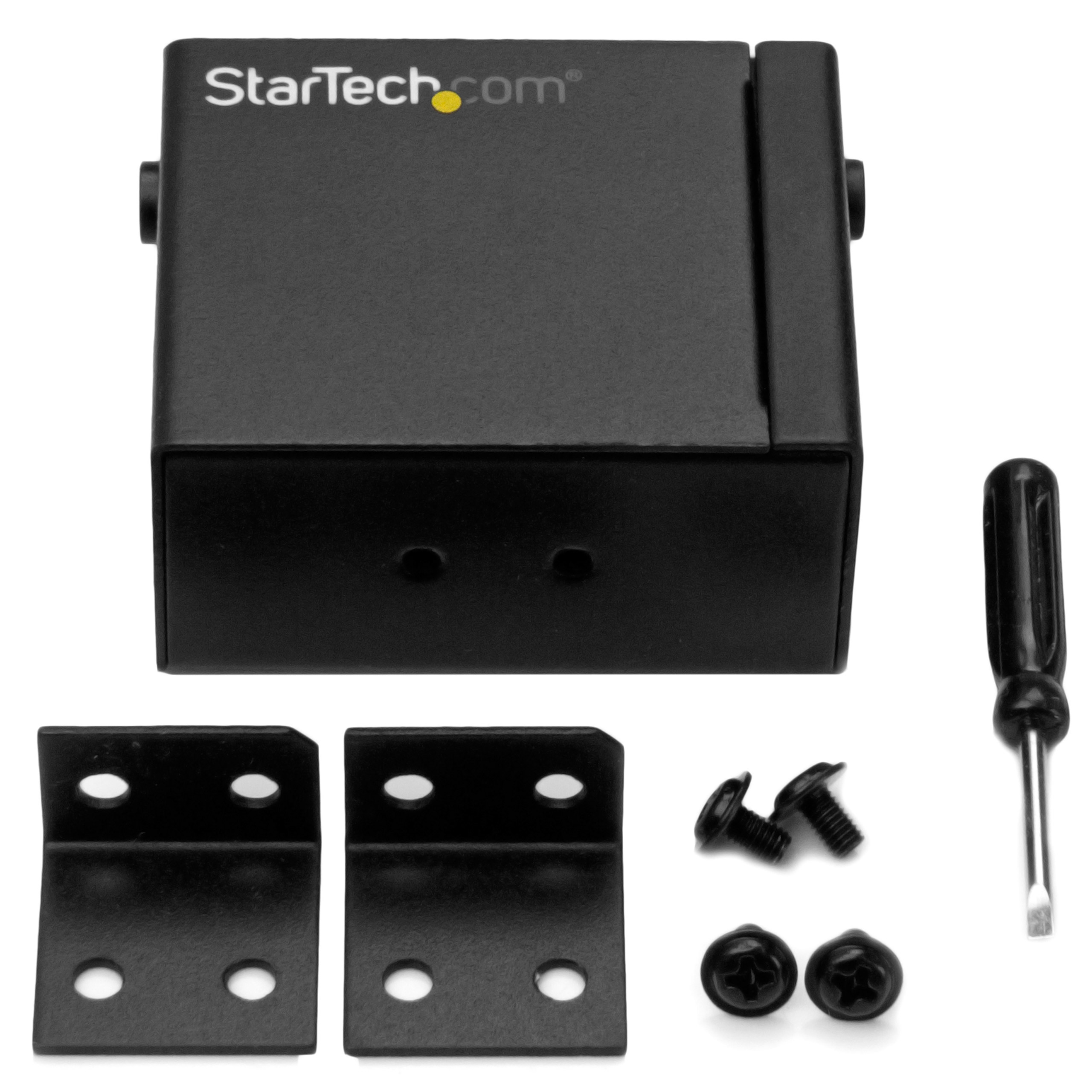

Rack-Mountable Yes Carton Depth (mm) 570 Carton Height (mm) 314 Carton Quantity 100 Carton Weight Gross (g) 16206 Included in Package - 2 - mounting brackets
- 4 - mounting screws
- 1 - HDMI signal booster
- 1 - screwdriver
Included In Package for Label - 1 - Screwdriver
- 2 - Mounting Brackets
- 4 - Mounting Screws
- 1 - HDMI Signal Booster
Package Depth (mm) 143 Package Height (mm) 33 Package Width (mm) 174 Package Quantity 1 Package Weight (g) 154 Packaging Description HDMI® Signal Booster - 115ft - 1080p Packaging Description India HDMI® Signal Booster - 115ft - 1080p Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2015-10-14 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-11-30 Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
