Main Image
HDBOOST4K
4K HDMI signal booster
Use this repeater to amplify your 4K HDMI signal and extend it 30 ft. using a standard HDMI cable
Main Image
Product Images
Product Images
BOM Image
Product Name 4K HDMI signal booster Product Number HDBOOST4K UPC 065030866422 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > Video Extenders Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 HDMI Extenders Family HDMI Booster Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) 4K60 HDMI Booster Product Title (Short) Extender HDMI Signal Booster 4K 60Hz Product Title (Medium) HDMI Signal Booster - HDMI Extender - 4K 60Hz Product Title (Standard) HDMI Signal Booster, HDMI Repeater Extender, 4K 60Hz, TAA Product Title (Long) HDMI Signal Booster - HDMI Extender - 4K 60Hz - TAA Product Title (AMZ) 115 ft. (35 m) 4K HDMI Extender - HDMI Extender - Up To 4K60 - Amplifier/Booster - HDMI to HDMI Booster , TAA (HDBOOST4K) Title Ingram (Part 1) HDMI Booster - 4K HDMI Extender Title Ingram (Part 2) - HDMI signal Amplifier - 4K 60Hz Website Product Headline Use this repeater to amplify your 4K HDMI signal and extend it 30 ft. using a standard HDMI cable Bullet 1 Discreet installation with no external power adapter required Bullet 2 Astonishing picture quality with support for 4K (60Hz) at up to 30 ft. (10 m) away from your video source Bullet 3 Backward compatible with 1080p resolutions at up to 115 ft. (35 m) away from your video source Bullet 4 Works with two standard HDMI cables Bullet 5 Supports HDCP 2.2 Bullets (Compact) Use this repeater to amplify your 4K HDMI signal and extend it 30 ft. using a standard HDMI cable - Works with HDMI sources like MacBook / Lenovo x1 Carbon - HDMI 4K amplifier - HDMI 2.0 repeater - HDMI booster - HDMI amplifier / HDMI signal booster Bullets (Consolidated) Use this repeater to amplify your 4K HDMI signal and extend it 30 ft. using a standard HDMI cable and no external power adapter - Supports 4K60 at up to 30ft. - Supports 1080p at up to 115 ft. - For 4K 60 Hz place the repeater between two 15 ft. HDMI cables for total of 30 ft. (longer distances supported at 1080p) - Works w/ HDMI devices like MacBook and Lenovo X1 Carbon/HDCP 2.2/HDMI 4K amplifier/HDMI 2.0 repeater/HDMI booster/HDMI cable extender /HDMI amplifier+E322/ HDMI signal booster Marketing Copy Marketing Copy (No HTML) This 4K HDMI® signal booster lets you increase the signal strength of your HDMI video source so it can travel greater distances using standard HDMI cables. You can achieve resolutions up to 4K at 60Hz at distances of up to 30 ft. (10 m), and depending on your desired resolution, the booster supports distances up to 115 ft. (35 m) away at 1080p 60Hz resolution. When you're extending HDMI over distances using standard video cabling, higher resolutions from your HDMI 2.0 devices can become unavailable after a few feet. Using this HDMI signal booster ensures that HDMI 2.0 resolutions up to UHD 4K at 60Hz are available even at distances up to 30 ft. (10 m). You can achieve even longer distances at lower resolutions -- up to 4K at 30Hz, at up to 82 ft. (25 m), and 1080p at 60Hz at up to 115 ft. (35 m). With its small form factor design and no external power adapter, the HDMI booster is easy to hide, for a discreet installation. By extending your video signal using standard HDMI cables, the 4K booster is a cost-effective alternative to more expensive extension systems that require the installation of a CAT5 or CAT6 cabling infrastructure. The booster makes it easy to adjust your HDMI signal strength based on the distance of your cables, with equalization adjustment buttons. This means that you can adjust the amplification of your HDMI signal, to ensure your signal will be flawless. Support for a variety of extension distances makes the booster perfect for multi-device deployment across large institutions, such as boardrooms in corporate offices, classrooms in schools, or waiting rooms in hospitals, as these applications may require varied distances in different rooms. Note: To achieve resolutions up to 4K60, your video source, display and cabling must support HDMI 2.0. The HDBOOST4K is backed by a 2-year StarTech.com warranty and free lifetime technical support. Applications - Avoid the time and expense of running network cabling to extend video signals, using this booster with standard HDMI cables
- Boost the signal strength of your HDMI video signals for classroom, office or boardroom displays
Website Search Keyword - macbook pro
- Lenovo X1 Carbon
- HDMI 2.0
- Spectre x360
- hdmi extender
- HDCP 2.2
- Classrooms
- HDMI 4K
- Lenovo X1 Yoga
- Lenovo X260
- HP Pavilion 15t
- hdmi repeater
- HDMI booster
- hdmi cable extender
- HP Pavilion 15z
- hdmi amplifier
- HDMI signal booster
- signal extender
- Dell Latitude 15 3000
- HDMI 1080p
- Boardrooms
- Dell Latitude 14 3000
- video signal amplifier
- Lecture Halls
- video signal generator
- Huddle Rooms
- HDMI 25m
- 4k60
- 4k hdmi extender
- hdmi port extender
- hdmi signal generator
- 4k amplifier
- hdmi 2.0 extender
- hdmi signal amplifier
- hdmi extender 4k
- hdmi repeater 4k
- hdmi 2.0 repeater
- 4k extender
- extend video
- HDMI signal extender
- HDMI signal repeater
- video signal extender
- hdmi 2.0 amplifier
- extend HDMI Signal
- 4k booster
- 4K HDMI booster
- 4k video extender
- boost video signal
- boost video sender signal
- 4K HDMI 2.0 extender
- 4k hdmi 2.0 signal generator
- 4k HDMI 2.0 signal repeater
- 4K HDMI signal booster
- 4k hdmi signal generator
- 4k signal booster
- extend video signal
- HDMI 2.0 signal booster
- hdmi 2.0 signal generator
- hdmi 2.0 signal generator 4k
- hdmi amplifier 4k
- hdmi amplifier booster
- HDMI 2.0 booster
- hdmi signal generator 4k
- hdmi signal booster 4k
- HDMI signal equalizer
- hdmi signal repeater 4k
- B12200060
- B122-000-4K6
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + cords
Accessory Products - USB2HABM3
- USB2HABM6
- USB2HABM10
- HDMMV3M
- HDMMV5M
Related Products - HDBOOST
- DPBOOST
Constrained SKU Alternatives (Limited Stock) HDBOOST4K2 Input Voltage 5V DC Output Voltage (V) 5 DC Power Source USB-Powered Color Black Humidity 20°C to 80°C (68°F to 176°F) Operating Temperature 0°C to 35°C (32°F to 95°F) Primary Material Aluminum Product Length (mm) 56 Product Width (mm) 46 Product Height (mm) 15 Product Weight (g) 150 Storage Temperature -5°C to 40°C (23°F to 104°F) TAA Compliant Yes Max Distance 35m [115ft] Maximum Cable Length (mm) 35000 Maximum Digital Resolutions Supported Resolutions 3840x2160 (4K), 2560x1600, 1920x1200, 1920x1080 (1080p), 1280x720 (720p) Wide Screen Supported Yes Audio Yes AV Input HDMI AV Output HDMI Cabling HDMI Cascadable No LED Indicators 1 - Power LED Rack-Mountable No Carton Depth (mm) 176 Carton Height (mm) 180 Carton Quantity 12 Carton Weight Gross (g) 2410 Included in Package - 1 - HDMI signal booster

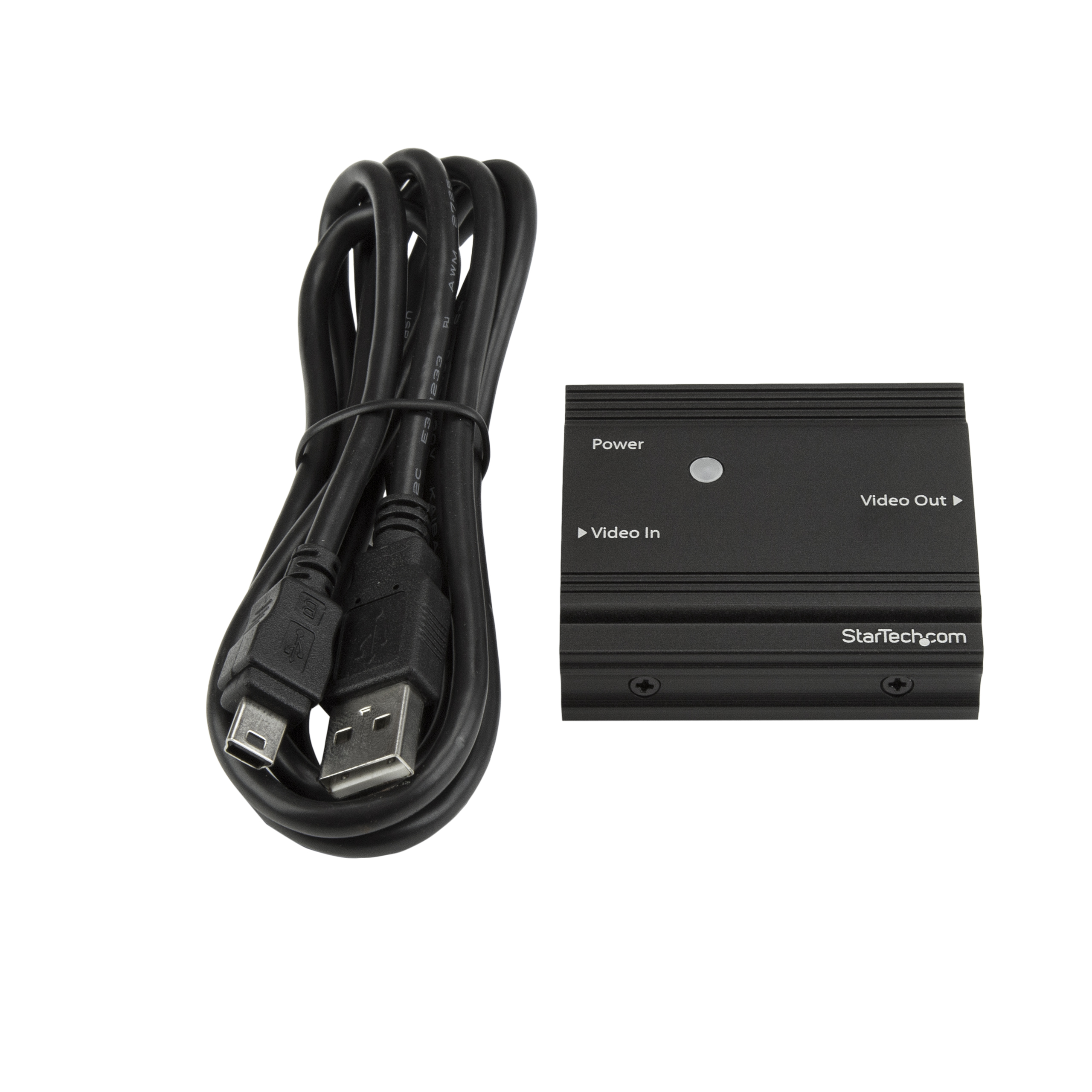

- 1 - 5 ft [1.5 m] USB power cable
Included In Package for Label - 1 - HDMI Signal Booster
- 1 - 5 Ft [1.5 M] USB Cable
Package Depth (mm) 102 Package Height (mm) 48 Package Width (mm) 159 Package Quantity 1 Package Weight (g) 168 Packaging Description HDMI® Signal Booster - 30 ft - 4K at 60 Hz Packaging Description India HDMI® Signal Booster - 30 ft - 4K at 60 Hz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2016-10-07 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2016-12-23 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2016-09-21 Target Production Release 2016-10-07 Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
