HDMI-SPLITTER-44K60S
4 port HDMI splitter with Scaler
4-Port HDMI Splitter | 4K 60Hz | Built-In Scaler | 3.5mm, Optical, and HDMI Audio
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name 4 port HDMI splitter with Scaler Product Number HDMI-SPLITTER-44K60S UPC 065030897204 Lifecycle status Active Warranty 2 Years Taxonomy Product > KVMs, Switches & Splitters > Video Switches & Splitters Category Level 1 Video Display Connectivity Category Level 2 Video Splitters Category Level 3 HDMI Splitters - 4K HDR Family HDMI Splitter / Audio Extrator - 4K60 Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX035X Product Title (Ultra-Short) 4-Port HDMI Splitter Product Title (Short) 4-Port HDMI Splitter 1 In 4 Out, 4K 60Hz Product Title (Medium) 4-Port HDMI Splitter, 4K 60Hz, 1 In 4 Out, Built-in Scaler, 3.5mm/Optical Audio Product Title (Standard) 4-Port HDMI Splitter, 4K 60Hz HDMI 2.0, 1 In 4 Out HDMI Splitter, 4K HDMI Splitter w/Built-in Scaler, 1x4 HDMI Display/Output Product Title (Long) 4-Port HDMI Splitter, 4K 60Hz HDMI 2.0 Video, 4K HDMI Splitter w/ Built-in Scaler, HDMI Splitter 1 In 4 Out, 3.5mm/Optical Audio Port, HDMI Display/Output Splitter Product Title (AMZ) 4-Port HDMI Splitter, 4K 60Hz HDMI 2.0 Video, 4K HDMI Splitter w/ Built-in Scaler, 1 In 4 Out HDMI Splitter, 3.5mm/Optical Audio Port, HDMI Display/Output Splitter (HDMI-SPLITTER-44K60S) Title Ingram (Part 1) 4-Port HDMI Splitter - Title Ingram (Part 2) 4K 60Hz, Built-In Scaler Website Product Headline 4-Port HDMI Splitter | 4K 60Hz | Built-In Scaler | 3.5mm, Optical, and HDMI Audio Bullet 1 4-PORT HDMI SPLITTER: This HDMI Splitter displays the same image, with audio, on 4 screens | 4:4:4 chroma subsampling support | HDMI 2.0b 4K 60Hz | HDR | 18Gbps Bandwidth | 7.1ch HDMI Audio | HDCP 2.2/1.4| 8kV Air and 4kV Contact ESD Protection Bullet 2 EDID MANAGEMENT SWITCH: The 4 way HDMI Splitter's EDID Auto setting uses a built-in scaler for outputting 2 different display resolutions | EDID Copy clones the EDID settings from output port 1 to another display at the same resolution (720p and up) Bullet 3 FLEXIBLE AUDIO SUPPORT: The 4K HDMI Splitter has HDMI, 3.5mm, and Optical audio outputs to connect to a variety of speakers or amplifiers | Simultaneous audio output is supported across all ports | Supports Digital to Analog conversion (DAC) Bullet 4 LONG REACH: Reach up to 16.4ft (5m) with passive HDMI cables | The 1x4 HDMI Splitter supports active HDMI cables and HDMI extenders (sold separately) to reach further distances which makes it ideal for boardrooms, digital signage and more Bullet 5 EASY SETUP: No drivers or software required for the 1-Input 4-output HDMI 2.0 splitter | The metal enclosure makes it suitable for installation in many environments | Widescreen resolutions supported | DVI compatible with adapters (sold separately) Bullets (Compact) The HDMI 2.0 splitter displays the same image on 4 screens; 4K 60Hz 4:4:4; HDR; 7.1ch Audio; 8kV Air/4kV Contact ESD Protection; Built-in scaler; Simultaneous HDMI/3.5mm/Optical output; No drivers; Metal enclosure; Supports widescreen resolutions Bullets (Consolidated) The HDMI 2.0 splitter displays the same image on 4 screens; HDMI 2.0b; 4K 60Hz 4:4:4; 7.1ch HDMI Audio; HDCP 2.2/1.4; HDR; 8kV Air and 4kV Contact ESD Protection - Built-in scaler enables 2 different resolutions; Simultaneous HDMI/3.5mm/Optical audio output support - The 1x4 HDMI Splitter works with up to 16.4ft passive HDMI cables; Compatible with active HDMI cables/HDMI extenders/DVI adapters (sold separately) - No drivers required; Metal enclosure; Widescreen resolutions supported Marketing Copy Marketing Copy (No HTML) Applications - Display the same information on multiple HDMI displays
- Output and split your 4K 60Hz HDMI signal to four different HDMI displays, with different resolutions
- Display corporate information, advertising, or other content on multiple displays
Website Search Keyword - 1-in 4-out hdmi splitter
- 4 port HDMI splitter
- 4k hdmi splitter
- HDMI 2.0 splitter
- hdmi display splitter
- HDMI output splitter
- hdmi port splitter
- hdmi splitter 1 in 4 out
- hdmi splitter 4k 60hz
Required Regulatory Compliance Marks - ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- ETL - Safety - Electrical - Canada / United States - cETLus Mark (Intertek)
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes Audio output performance may be limited to 2-channel audio when all audio outputs are in use. Accessory Products - HDMM21V1M
- HDMM21V2M
- HDMM21V3M
- HDMM21V5M
- THINTOS3
- THINTOS6
- MU6MMS
Related Products - ST122HD20S
- ST128HD20
Input Current 0.35 A Input Voltage 100 - 240 AC Output Current 1 A Output Voltage (V) 5 DC Power Consumption (In Watts) 0.1 W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 20 - 90% RH (non-condensing) Material Metal Operating Temperature 0°C - 40°C (32°F - 104°F) Product Length (mm) 180.000 Product Width (mm) 60.000 Product Height (mm) 14.000 Product Weight (g) 244 Storage Temperature -20°C - 60°C (-4°F - 140°F) TAA Compliant No Audio Specifications - Analog Stereo - 2 Channel Audio
- HDMI - 7.1 Channel Audio
Maximum Cable Length (mm) 5000 Maximum Data Transfer Rate 18 Gbps Maximum Digital Resolutions OS Compatibility OS Independent Wide Screen Supported Yes Audio Yes AV Input HDMI - 2.0 AV Output HDMI - 2.0 Industry Standards HDMI 2.0b LED Indicators - 1 - Power LED
- 1 - Input LED
- 4 - Output LEDs

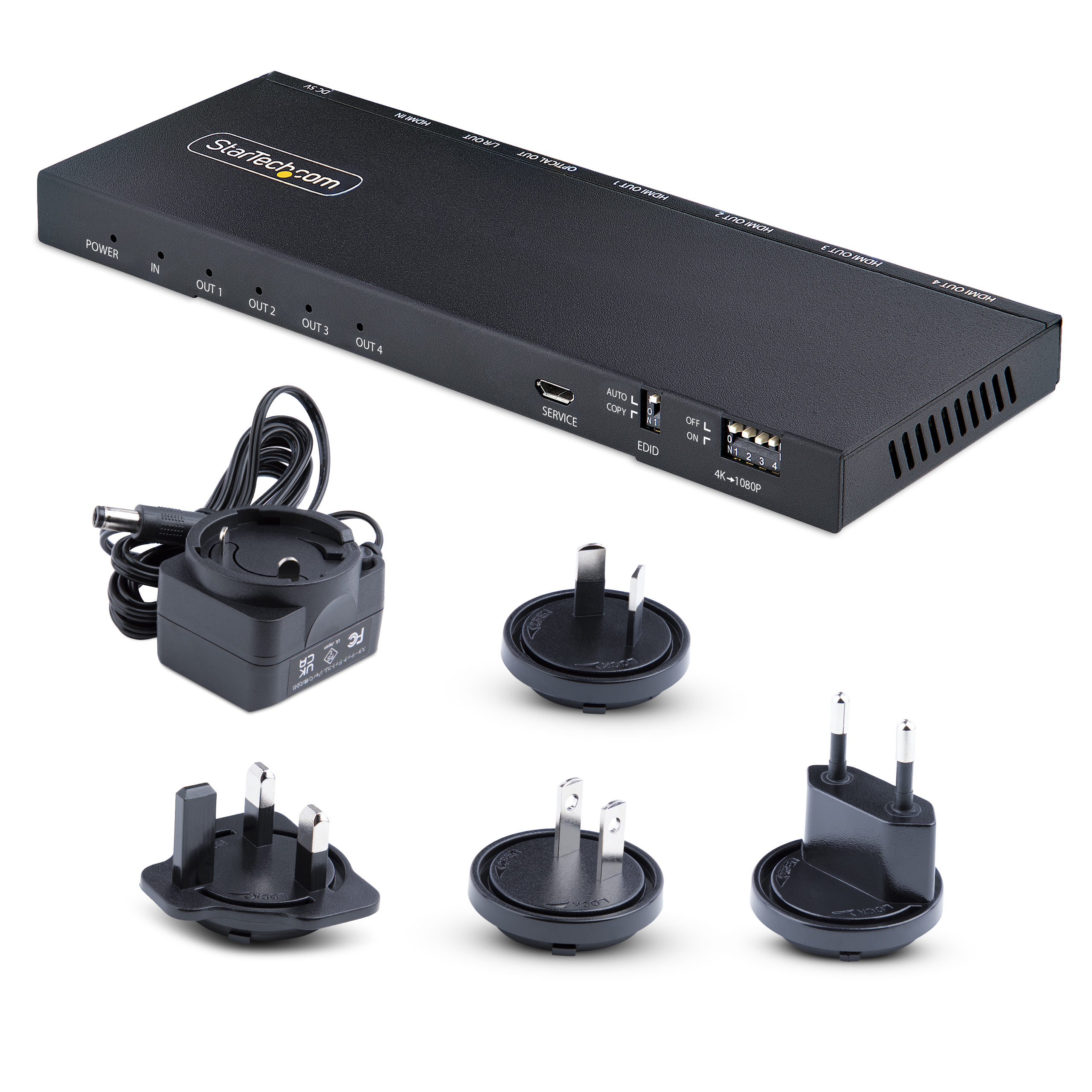

Carton Depth (mm) 305 Carton Height (mm) 320 Carton Quantity 20 Carton Weight Gross (g) 10300 Included in Package - 1 - 4-port HDMI Video Splitter
- 1 - Power Adapter
- 1 - User Manual
Number of Sub-Cartons 20 Package Depth (mm) 150 Package Height (mm) 55 Package Width (mm) 210 Package Quantity 1 Package Weight (g) 478 Packaging Description 4-port HDMI Video Splitter with Scaler - 4K 60Hz Packaging Description India 4-port HDMI Video Splitter with Scaler - 4K 60Hz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Quantity 1 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 4 Connector 3 TOSLINK (Optical S/PDIF) Connector 3 (Quantity) 1 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 1 Actual Inbox Documents Created Manual in the box Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2022-01-27 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2022-06-15 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,BE,CA,CH,CO,DE,DK,ES,FI,FR,HK,IE,IT,JP,NL,SE,UK,US Primary Technology HDMI 2.0 / 4K 60 Hz and HDR Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2022-01-13 Target Production Release 2022-02-14 Tech Lead Justin Weaver Technical Writer Dan Dagenais Technology Lifecycle None
