HDMI2VGA

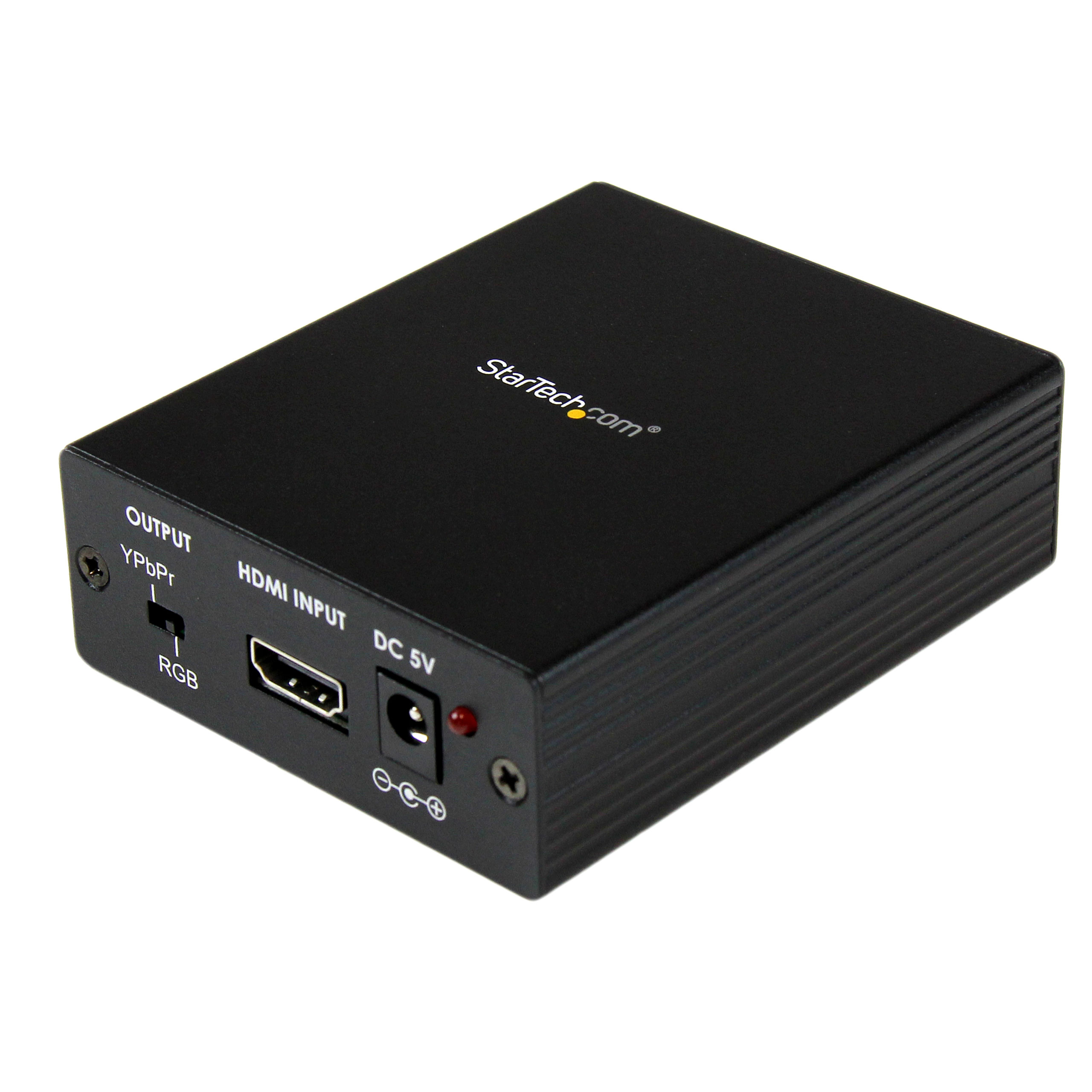

HDMI to VGA Audio Video Converter
Connect HDMI® enabled devices to a VGA monitor with stereo audio separation
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name HDMI to VGA Audio Video Converter Product Number HDMI2VGA UPC 065030839587 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Cards & Adapters > AV Converters Category Level 1 Video Display Connectivity Category Level 2 AV Converters and Scalers Category Level 3 HDMI Converters Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX017X Product Title (Short) HDMI to VGA Video Converter with Audio Product Title (Standard) HDMI® to VGA Video Adapter Converter with Audio, HD to VGA Monitor 1080p, TAA Product Title (Long) HDMI to VGA Video Adapter Converter with Audio - HD to VGA Monitor 1080p - TAA Product Title (AMZ) HDMI® to VGA Video Adapter Converter with Audio - HD to VGA Monitor 1920x1200 1080p - HDMI to VGA HD15 , TAA (HDMI2VGA) Title Ingram (Part 1) HDMI to VGA Video Adapter Conver Title Ingram (Part 2) ter w/Audio - HD to VGA Website Product Headline Connect HDMI® enabled devices to a VGA monitor with stereo audio separation Bullet 1 Supports VGA and Component (YPbPr) output conversion Bullet 2 Built-in EDID Bullet 3 Compliant with HDCP 1.1, and DVI Bullet 4 Audio video are separated on output Bullets (Consolidated) Connect HDMI enabled devices to a VGA monitor with stereo audio separation - Compatible with HDMI video source devices such as desktop and laptop computers and VGA monitors televisions and projectors - HDMI to VGA/HDMI to VGA adapter/HDMI to VGA converter/HD to VGA/HDMI to monitor - Supports Resolutions up to 1920x1200 or 1080p - Convert an HDMI signal from your PS3 or other HDMI source to work with a VGA display - Use the HDMI port on your computer as a secondary display with a VGA monitor Marketing Copy Applications - Convert an HDMI® signal from a Blu-Ray player, PS3, or other HDMI-enabled source to work with an analog VGA display
- Convert a DVI or HDMI signal from a desktop or notebook video card to work with an analog VGA display / projector
Website Search Keyword - HDMI to VGA
- HD to PC
- HDTV to PC
- HDTV to VGA
- 1080 to VGA
- 1080 to PC
- HDMI to VGA Monitor
- HDMI to VGA Projector
- HDMI PC to VGA
- HDMI Notebook to VGA
- HDMI Video Card to VGA
- HDMI Converter
- HDMI Format Converter
- HDMI Signal Format Converter
- Digital Video to Analog Video
- Digital Audio to Analog Audio
- HDMI to component
- HDMI to CPNT
- HDMI to YPbPr
- P131-06N
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Special Notes - PC resolutions below 1280x1024 may support multiple refresh rates; 60Hz supported across all
- Audio from computers running macOS is not supported
- When using the VGA to component breakout cable, maximum resolution is 720i
Accessory Products - SVUSBPOWER
- MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- HDMM6
- HDMM10
- HDMM15
- MU6MMS
- MU10MMS
- MU15MMS
- MU1MMRCA
- MU3MMRCA
- MU6MMRCA
Related Products - VGAHD2HDMI
- VGA2HDMIPRO
- HDMI2DVI
- DVI2HDMI

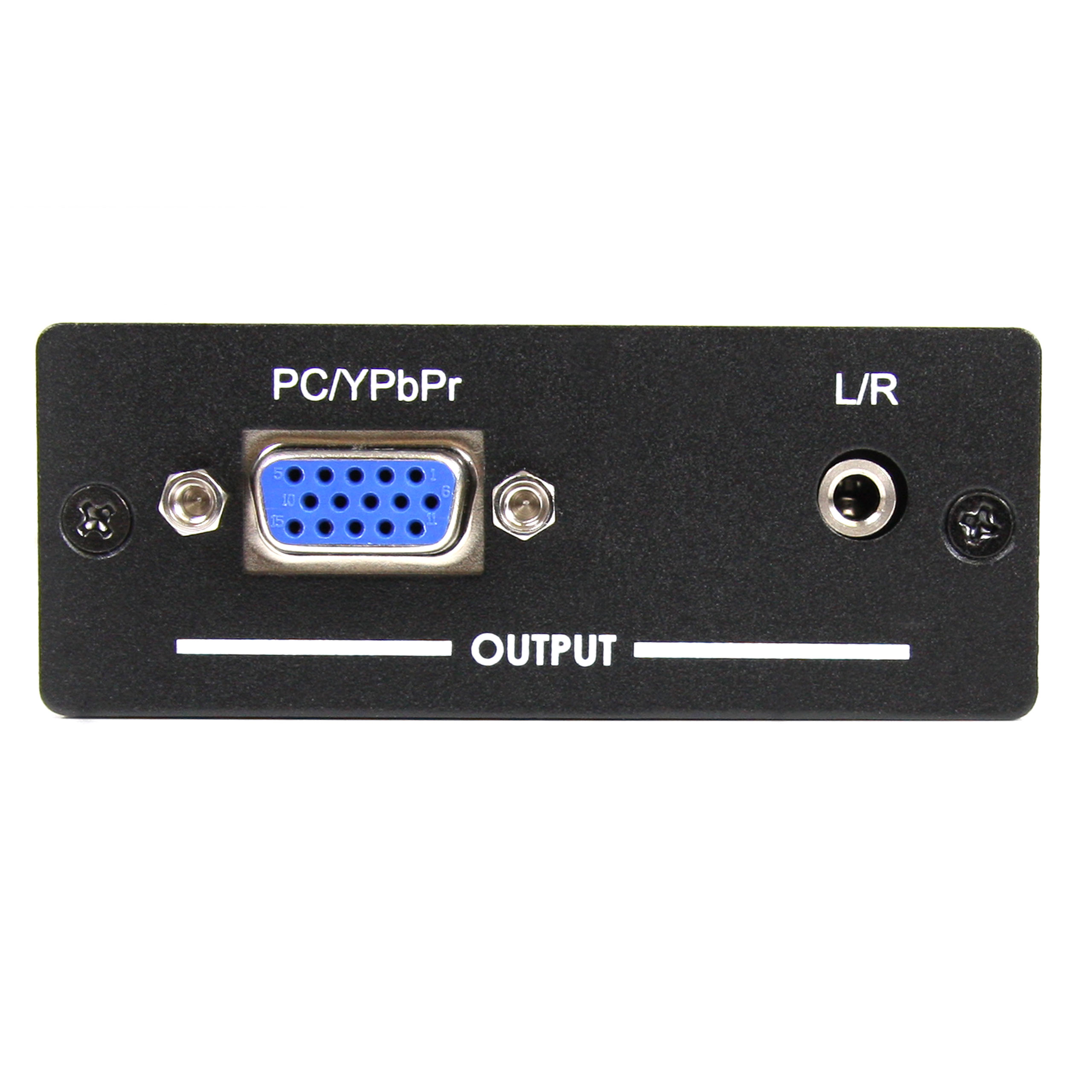

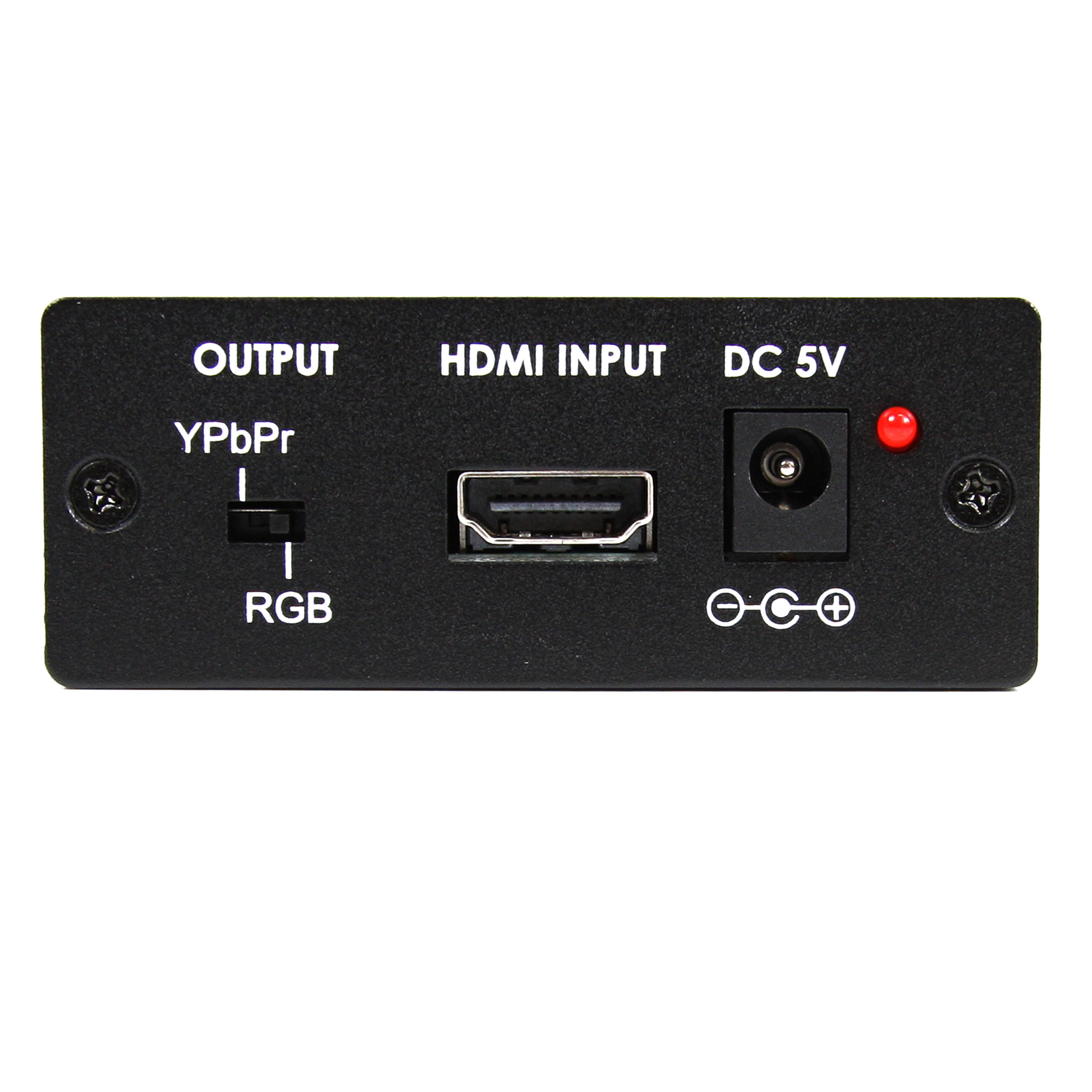

Input Current 0.3A Input Voltage 100 - 240 AC Output Current 1.2A Output Voltage (V) 5 DC Power Consumption (In Watts) 6 Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Black Humidity 0~60% RH Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Aluminum Product Length (mm) 76 Product Width (mm) 76 Product Height (mm) 92 Product Weight (g) 181 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant Yes Supported Resolutions Active or Passive Adapter Active Audio Yes AV Input HDMI AV Output - VGA
- 3.5 mm Stereo Audio
- Component

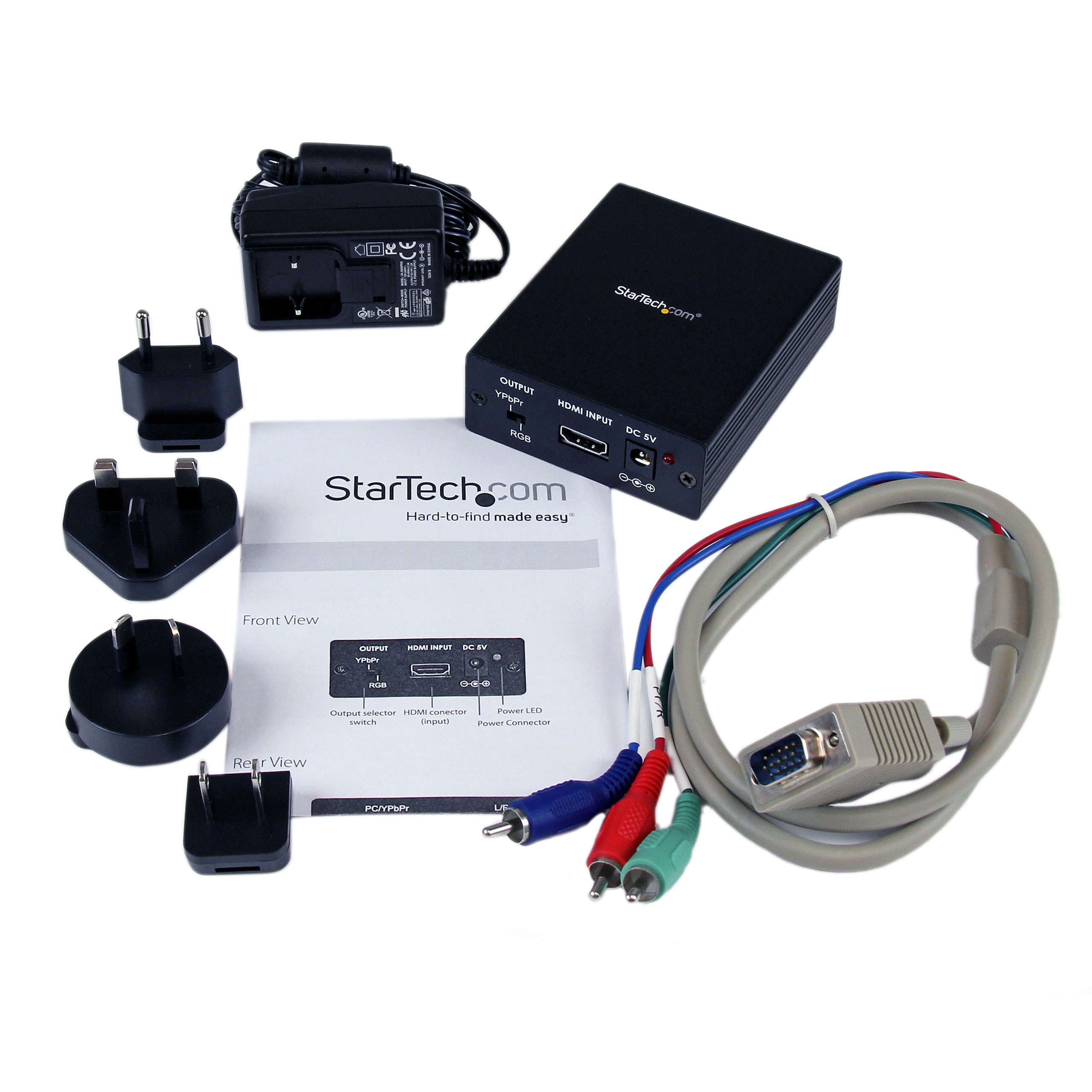

Converter Type Format Converter LED Indicators 1 - Power (Red) Carton Depth (mm) 380 Carton Height (mm) 340 Carton Quantity 30 Carton Weight Gross (g) 17178 Included in Package - 1 - HDMI to VGA Converter w/ Audio

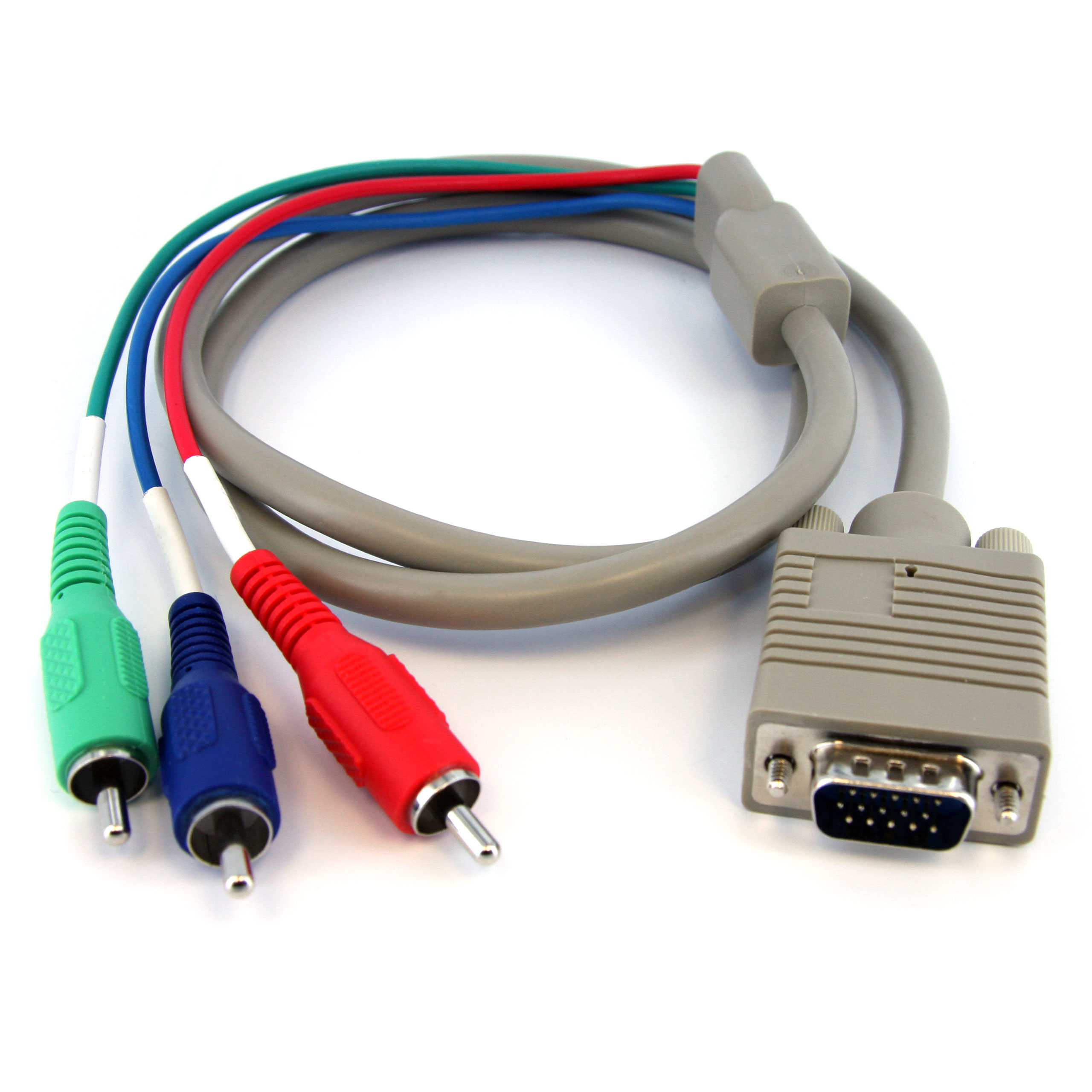

- 1 - VGA to Component Breakout Cable
- 1 - Instruction Manual
- 1 - Universal Power Adapter (US/UK/EU/AUS)
Package Depth (mm) 118 Package Height (mm) 62 Package Width (mm) 210 Package Quantity 1 Package Weight (g) 538 Packaging Description HDMI® to VGA Video Converter with Audio Packaging Description India HDMI® to VGA Video Converter with Audio Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,NL,NZ,SE,UK,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
