HDMIPATRN2EU

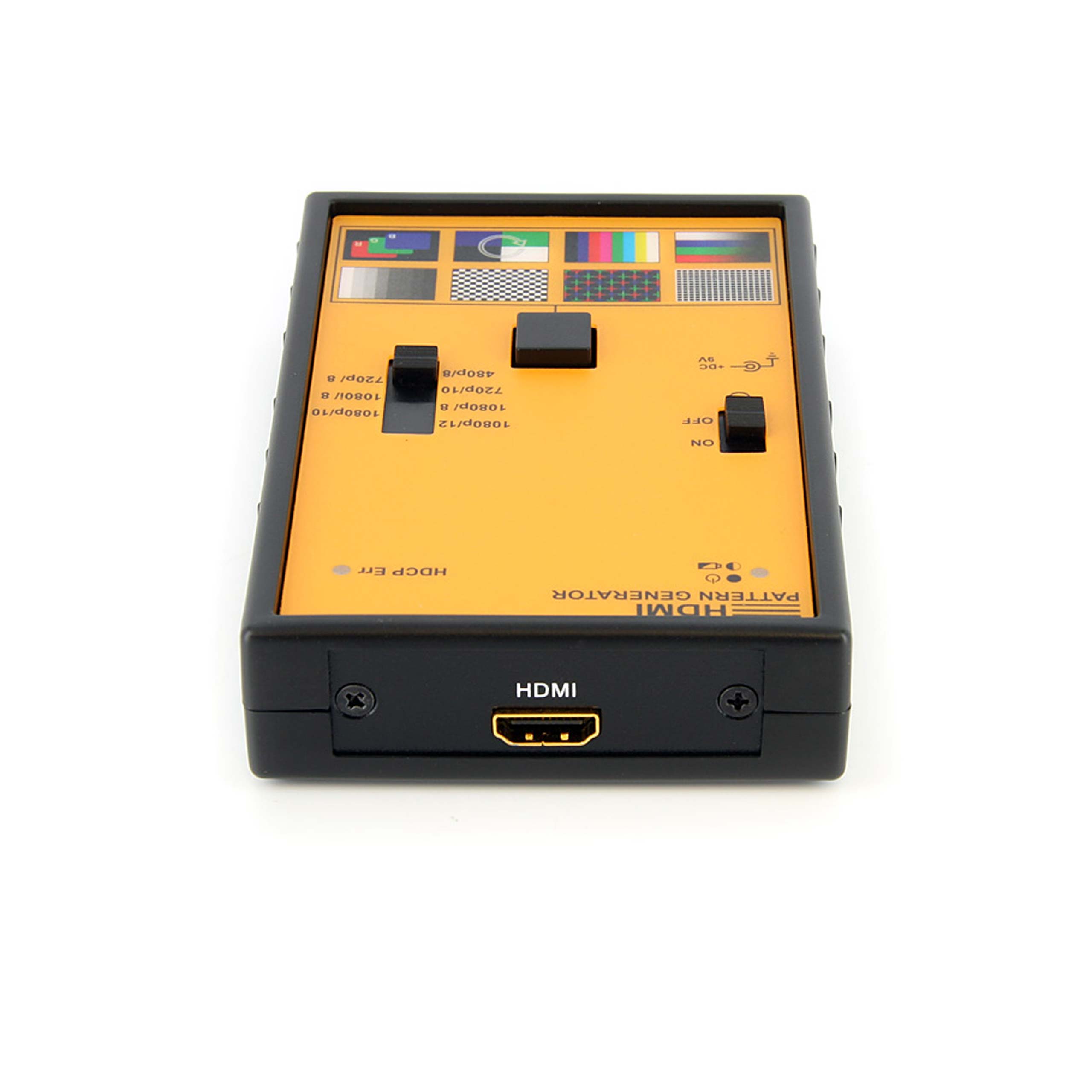

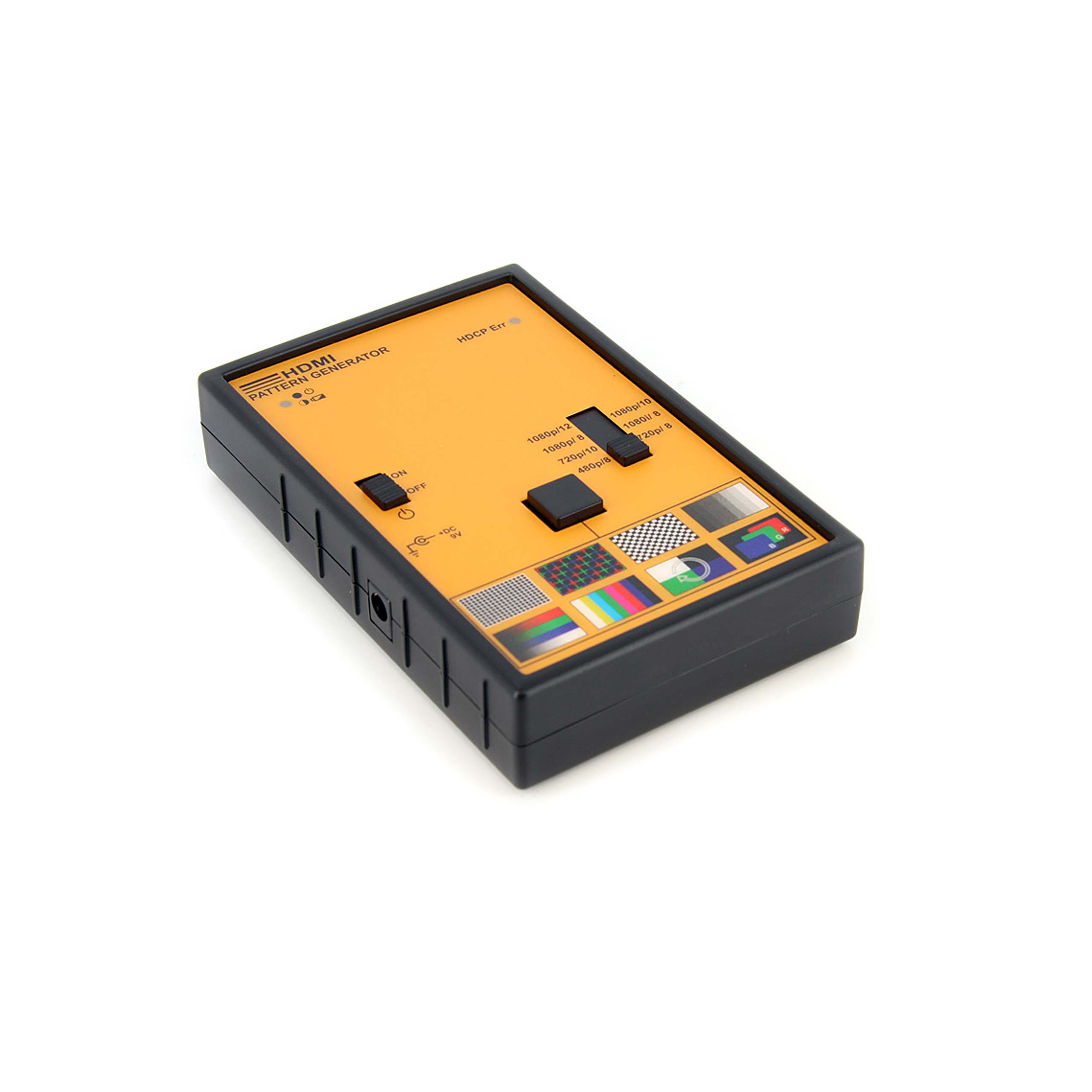

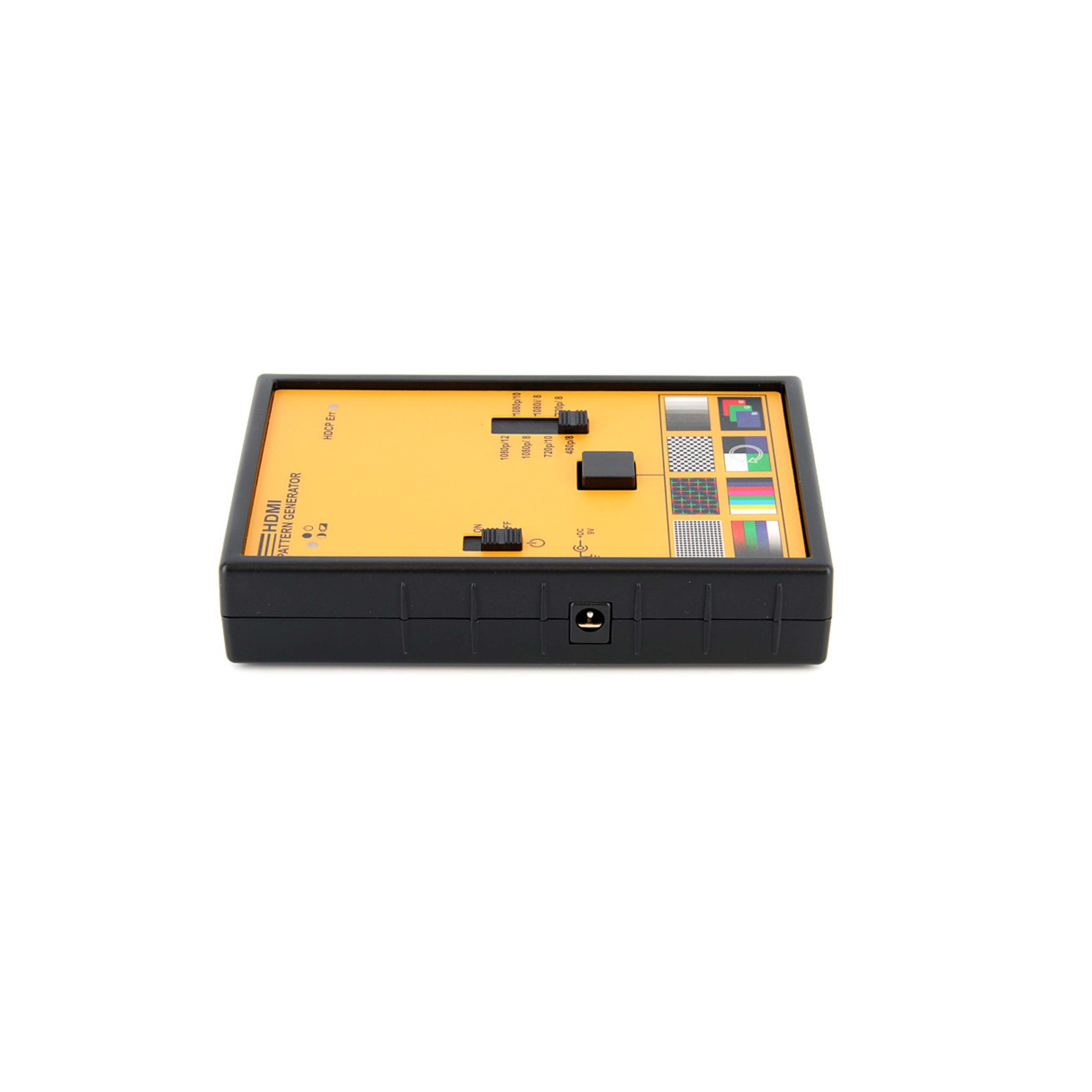

Video Signal Generator - HDMI / DVI
Test and calibrate your HDMI® or DVI displays and A/V equipment
Main Image
Product Images
Product Images
BOM Image
Product Name Video Signal Generator - HDMI / DVI Product Number HDMIPATRN2EU UPC 065030843232 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX011X Product Title (Short) HDMI/DVI Video Test Pattern Generator Product Title (Standard) HDMI / DVI Video Test Pattern Signal Generator Product Title (Long) HDMI / DVI Video Test Pattern Signal Generator Product Title (AMZ) HDMI® / DVI Video Test Pattern Signal Generator (HDMIPATRN2EU) Title Ingram (Part 1) HDMI / DVI Video Test Pattern Si Title Ingram (Part 2) gnal Generator Website Product Headline Test and calibrate your HDMI® or DVI displays and A/V equipment Bullet 1 8 built-in video test patterns Bullet 2 Easy to use resolution selector switch and pattern selection button Bullet 3 High Speed HDMI®, HDCP 1.2 compliant Bullet 4 Powered using the supplied AC adapter or a 9V battery Bullet 5 Supports resolutions up to 1080p @ 60Hz Marketing Copy Applications - As an educational tool, teachers can use this device to train their students about the latest DTV quality test technologies
- Can be used with both HDMI® and DVI displays using an HDMI to DVI cable
- Great for Digital Signage installers, TV engineers or technicians looking to test and calibrate a DTV display
- Perfect for an installer, integrator, or A/V enthusiast calibrating to get them most out of equipment
- Save time and money by quickly determining what may need to be corrected with an HDTV
- Use in a retail setting to show side-by-side comparisons of quality
- Use to test and maintain studio equipment such as HDTV displays, cabling, and recording equipment
Website Search Keyword - A/V Tester
- Calibrate
- Calibration
- HDMI DVI Video Test Pattern Signal Generator
- linearity
- signal generator
Accessory Products - HDMIDVIMM10
- HDMIDVIMM6
- HDMIMM10
- HDMIMM6
Related Products VGAPATTERN Input Current 15mA Input Voltage 110V-240V AC Output Current 0.6A Output Voltage (V) 9V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Humidity 0%~95% Material Plastic Operating Temperature 0°C to 70°C (32°F to 158°F) Product Length (mm) 160 Product Width (mm) 85 Product Height (mm) 30 Product Weight (g) 160 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant No General Specifications - HDCP Test Pattern: Yes
- Video Test Patterns: 8
Supported Resolutions 1080p (60Hz – 12 bit), 1080p (60Hz – 10 bit), 1080p (60Hz – 8 bit), 1080i (60Hz – 8 bit), 720p (60Hz – 10 bit), 720p (60Hz – 8 bit), and 480p (60Hz – 8 bit) AV Output - HDMI
- DVI
Industry Standards High Speed HDMI®, HDCP 1.2 LED Indicators - 1 - HDCP Error indicator (On indicates HDCP verification fail)
- 1 - Power indicator (Solid - power on, Flashing - low battery)

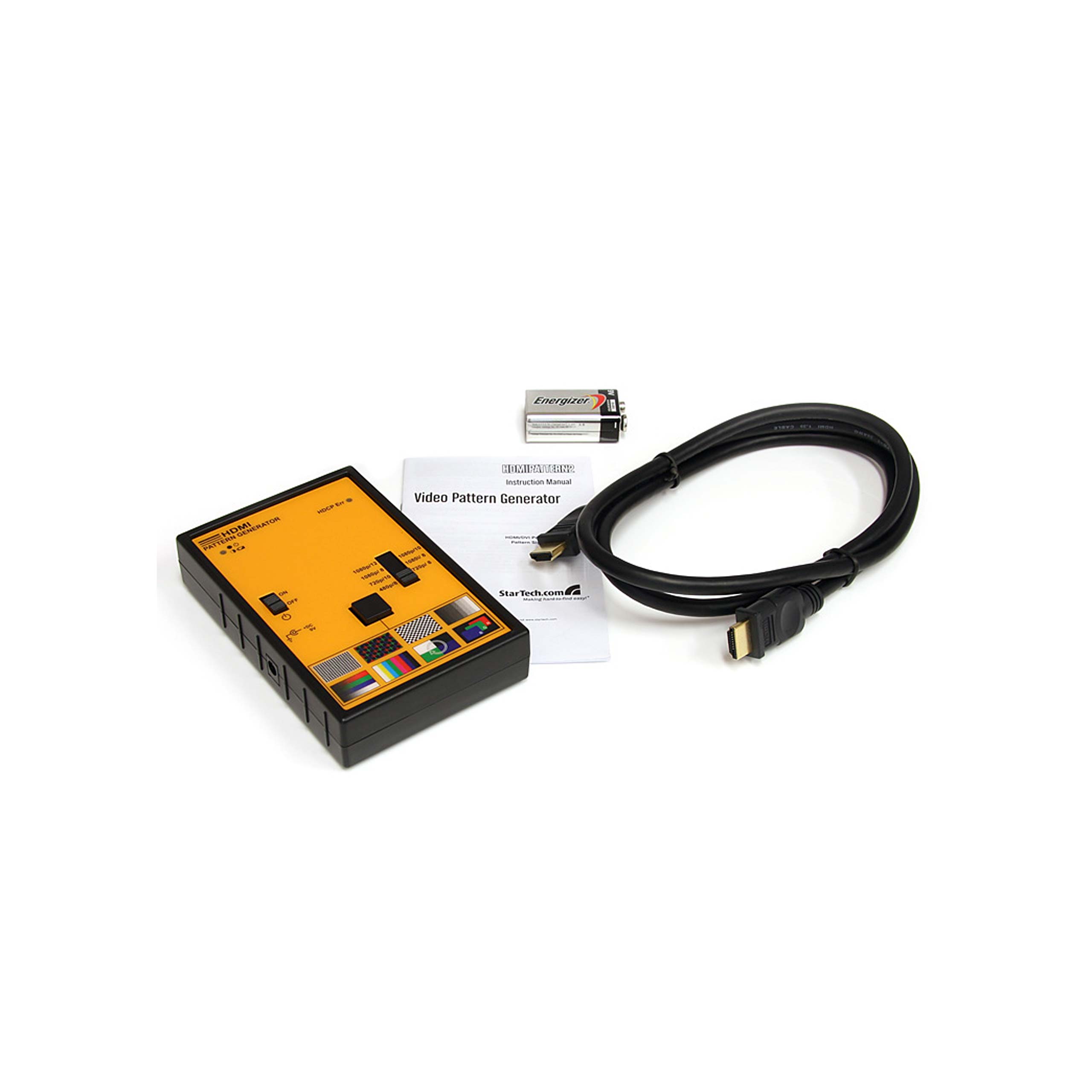

Carton Depth (mm) 490 Carton Height (mm) 450 Carton Quantity 15 Carton Weight Gross (g) 14600 Included in Package - 1 - HDMI Cable
- 1 - HDMI Test Pattern Generator
- 1 - Instruction Manual
- 1 - Power Adapter
- 1 - 9V Battery
Package Depth (mm) 210 Package Height (mm) 92 Package Width (mm) 225 Package Weight (g) 880 Packaging Description HDMI®/DVI Video Test Pattern Generator Packaging Description India HDMI®/DVI Video Test Pattern Generator Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager Eric Roth
