Main Image
HDMIPATTERN

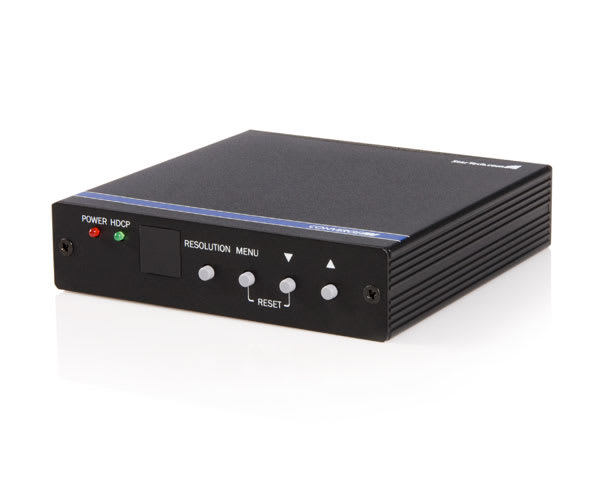

HDMI Pattern Generator
Converge A/V HDMI Test Pattern Generator
Main Image
Product Images
Product Images
Product Images
Product Name HDMI Pattern Generator Product Number HDMIPATTERN UPC 065030828246 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX017X Product Title (Short) DVI & HDMI Test Pattern Signal Generator Product Title (Standard) StarTech.com Video signal generator - DVI and HDMI - test pattern - Audio Product Title (Long) DVI and HDMI Video Test Pattern Signal Generator with Audio Title Ingram (Part 1) DVI and HDMI Video Test Pattern Title Ingram (Part 2) Signal Generator with Audio Website Product Headline Converge A/V HDMI Test Pattern Generator Bullet 1 Supports VGA and 720p resolutions for use with HDTV displays with DVI and HDMI ports Bullet 2 Test color, linear, and HDCP functionality Bullet 3 Auto detects if display is using DVI or HDMI signal Bullet 4 Built-in with 35 video test patterns, one 48KHz audio sine wave test pattern, and an on screen menu Marketing Copy Applications - Save time and money by quickly determining what may need to be corrected with an HDTV
- Ideal for A/V and IT installations. The HDMIPATTERN can also be used with DVI displays using an HDMI to DVI cable. This is the perfect product for an installer, integrator, or A/V enthusiast.
Accessory Products - HDMIMM6
- HDMIMM10
- HDMIDVIMM6
- HDMIDVIMM10
Color Black TAA Compliant No General Specifications - HDMI Compliant: HDMI 1.2
- DVI Compliant: DVI 1.0 (HDMI to DVI cable required)
- HDCP Compliant: HDCP 1.1
- HDMI/DVI Bandwidth: 1.65Gbps (single link)
- Supported Resolutions: 720p @ 60Hz
- : 720p @ 50Hz
- Supported Signals: DVI and HDMI with auto detect
- : VGA @ 60Hz
- EDID Compliant: VESA EDID v1.3 and EIA/CEA 861 version 3

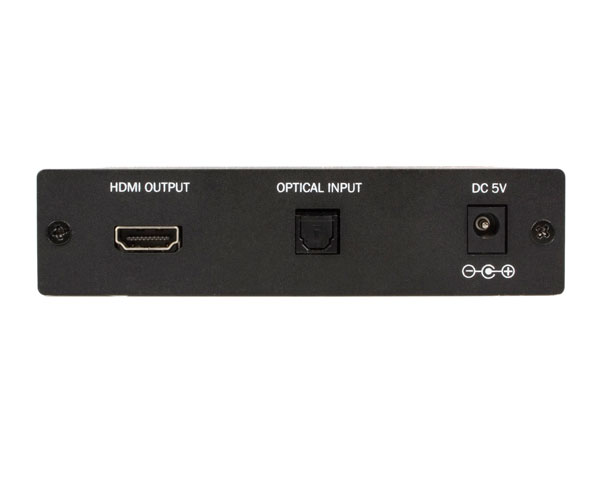

- Output Connector: 1 x HDMI
- Input Connector: 1 Tos-Link (Digital Audio)
- Audio Test Pattern: Yes, 1 KHz sine wave audio testing pattern at 48KHz
- Video Test Pattern: Yes, 35 video testing patterns
- HDCP Test Pattern: Yes
- Power Adapter: 5V DC, 2.6 Amps

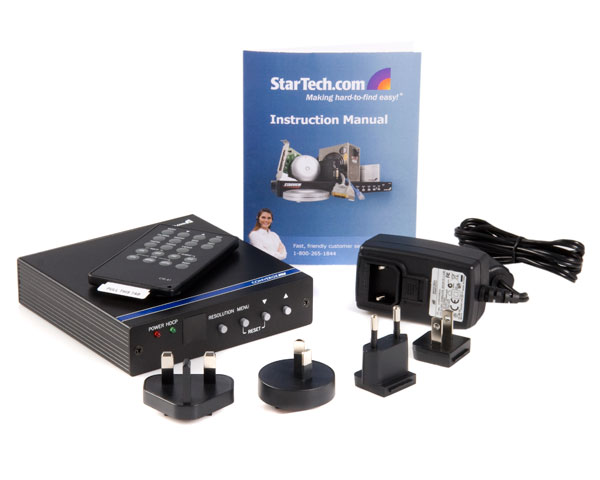

Carton Depth (mm) 430 Carton Height (mm) 270 Carton Quantity 15 Carton Weight Gross (g) 68400 Included in Package - 1 - HDMI Test Pattern Generator
- 1 - Instruction Manual
- 1 - Power Adapter
Package Depth (mm) 64 Package Height (mm) 139 Package Width (mm) 258 Package Weight (g) 4480 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 en-US Content Approved Yes Product Manager Eric Roth
