Hand Held HDMI Pattern Generator
Test and calibrate your HDMI® / DVI displays or A/V equipment

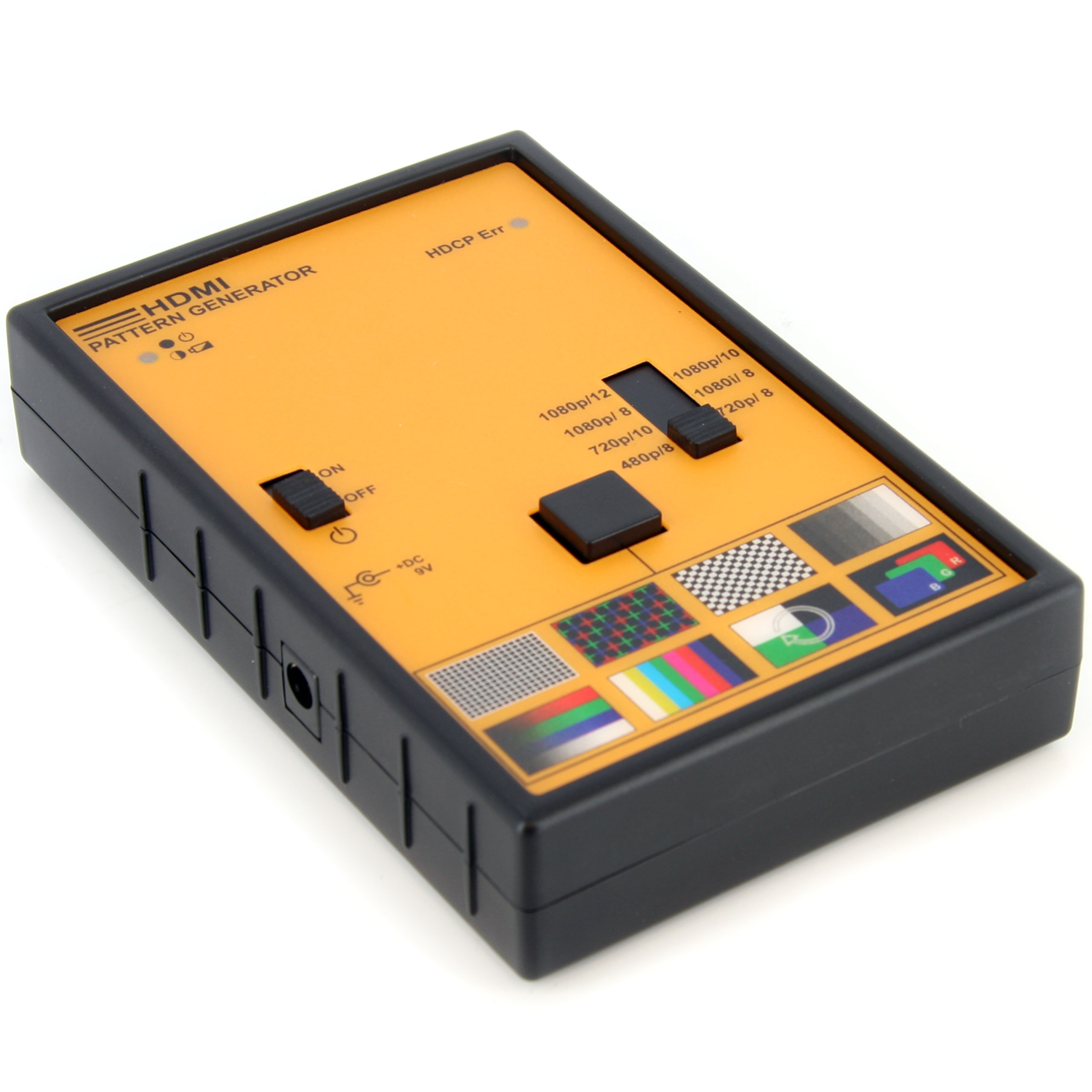

Main Image

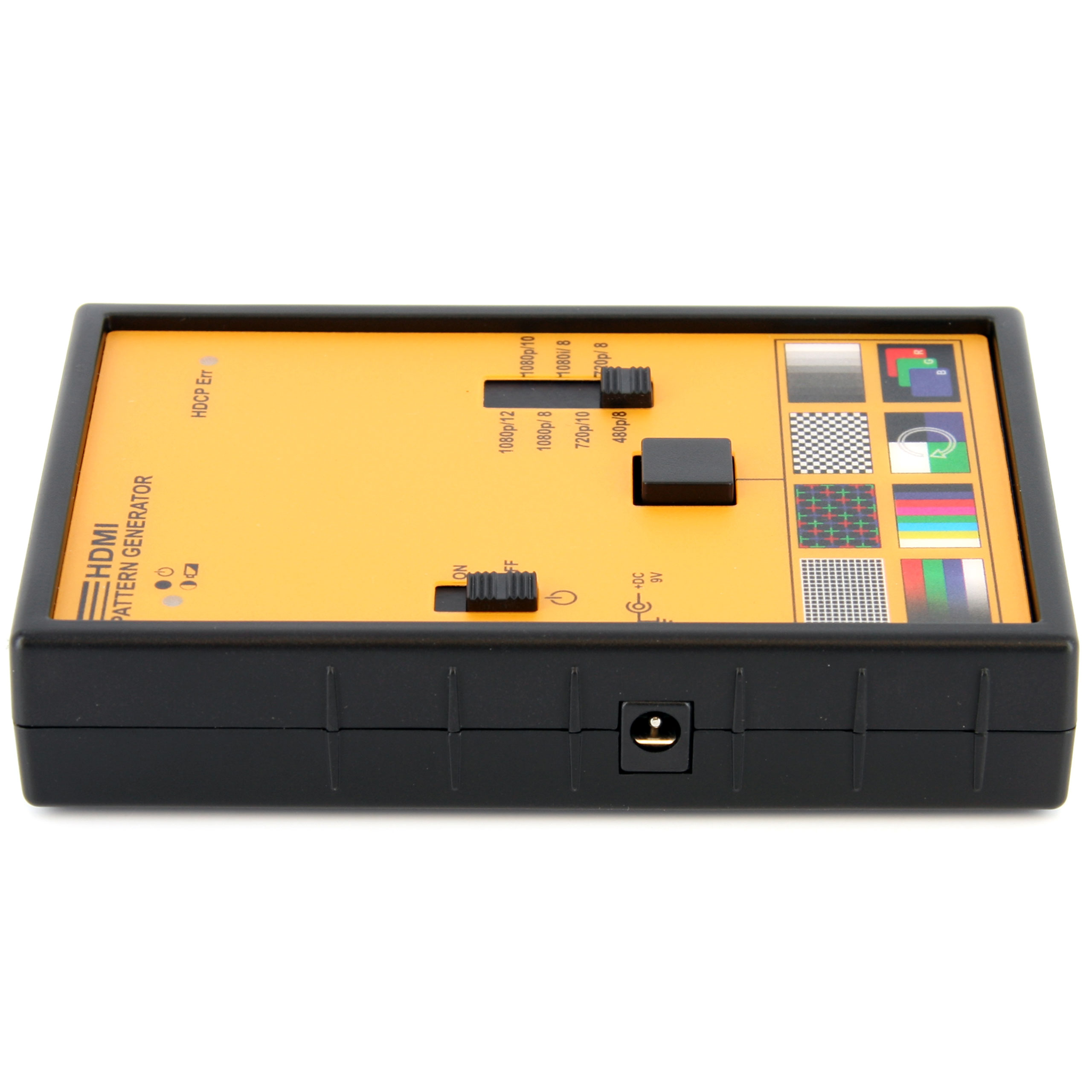

Product Images

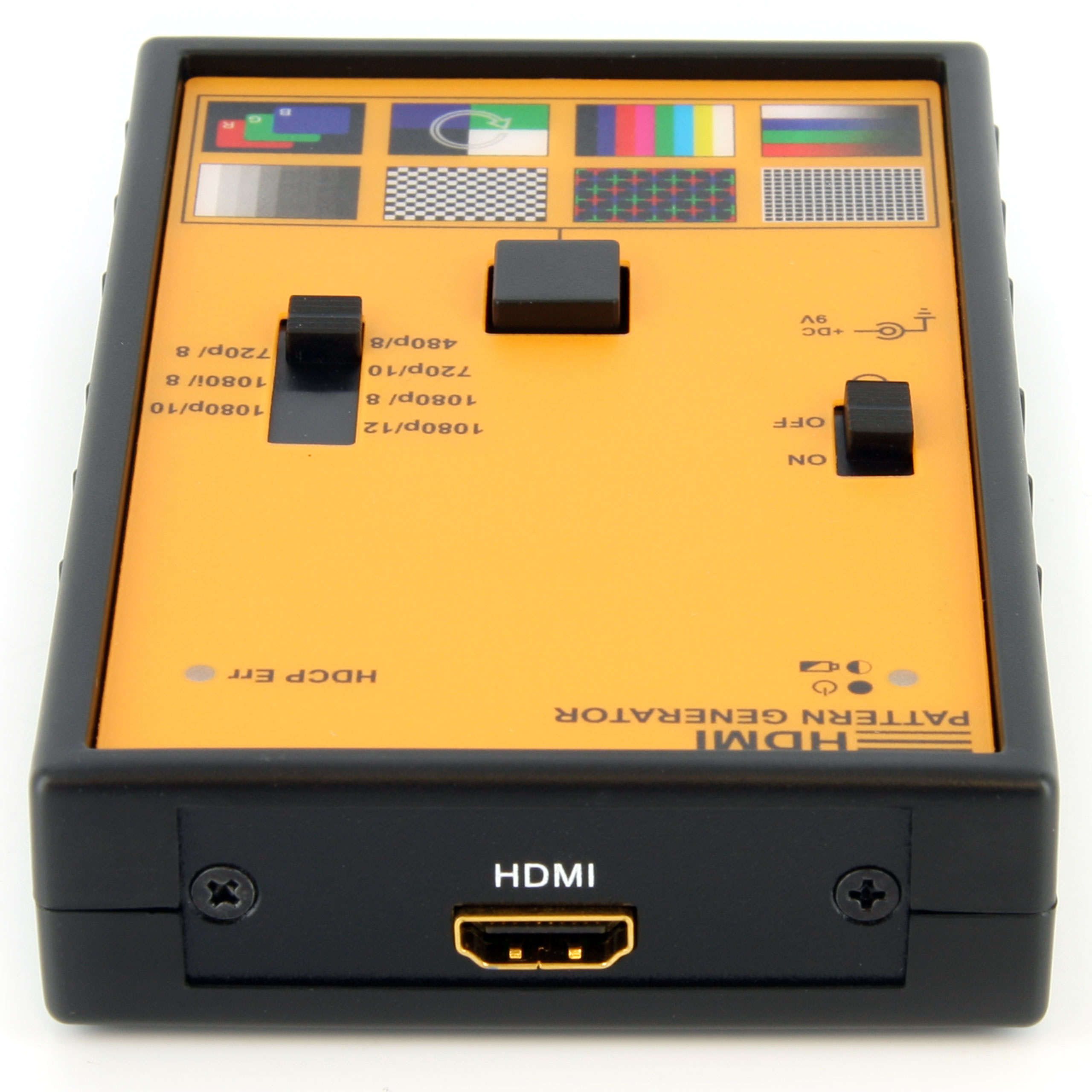

Product Images
BOM Image
Product Name Hand Held HDMI Pattern Generator Product Number HDMIPATTERN2 UPC 065030841894 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX005X Product Title (Short) HDMI/DVI Video Test Pattern Generator Product Title (Standard) HDMI / DVI Video Test Pattern Signal Generator Product Title (Long) HDMI / DVI Video Test Pattern Signal Generator Title Ingram (Part 1) HDMI / DVI Video Test Pattern Si Title Ingram (Part 2) gnal Generator Website Product Headline Test and calibrate your HDMI® / DVI displays or A/V equipment Bullet 1 8 built-in video test patterns Bullet 2 Supports resolutions up to 1080p @ 60Hz Bullet 3 Test color, linear, and HDCP functionality Bullet 4 High Speed HDMI®, HDCP 1.2 compliant Bullet 5 Easy to use resolution selector switch and pattern selection button Marketing Copy Applications - Can be used with both HDMI® and DVI displays using an HDMI to DVI cable
- Save time and money by quickly determining what may need to be corrected with an HDTV
- Perfect for an installer, integrator, or A/V enthusiast calibrating to get them most out of equipment
- Use to test and maintain studio equipment such as HDTV displays, cabling, and recording equipment
- Great for Digital Signage installers, TV engineers or technicians looking to test and calibrate a DTV display
- Use in a retail setting to show side-by-side comparisons of quality
- As an educational tool, teachers can use this device to train their students about the latest DTV quality test technologies
Website Search Keyword - Calibrate
- Calibration
- A/V Tester
- signal generator
- linearity
- HDMI DVI Video Test Pattern Signal Generator
Required Regulatory Compliance Marks FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference Accessory Products - HDMIDVIMM10
- HDMIDVIMM6
- HDMIMM10
- HDMIMM6
- SVA9M2NEUA
Related Products VGAPATTERN Equivalent Part Number in the EU HDMIPATRN2EU Equivalent Part Number in the UK HDMIPATRN2GB Input Current 15mA Input Voltage 115V AC Output Current 0.6A Output Voltage (V) 9V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Humidity 0%~95% Material Plastic Operating Temperature 0°C to 70°C (32°F to 158°F) Product Length (mm) 132 Product Width (mm) 87 Product Height (mm) 28 Product Weight (g) 150 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant No General Specifications - HDCP Test Pattern: Yes
- Video Test Patterns: 8
Supported Resolutions 1080p (60Hz – 12 bit), 1080p (60Hz – 10 bit), 1080p (60Hz – 8 bit), 1080i (60Hz – 8 bit), 720p (60Hz – 10 bit), 720p (60Hz – 8 bit), and 480p (60Hz – 8 bit) AV Output - HDMI
- DVI
Industry Standards High Speed HDMI®, HDCP 1.2 LED Indicators - 1 - Power indicator (Solid - power on, Flashing - low battery)
- 1 - HDCP Error indicator (On indicates HDCP verification fail)

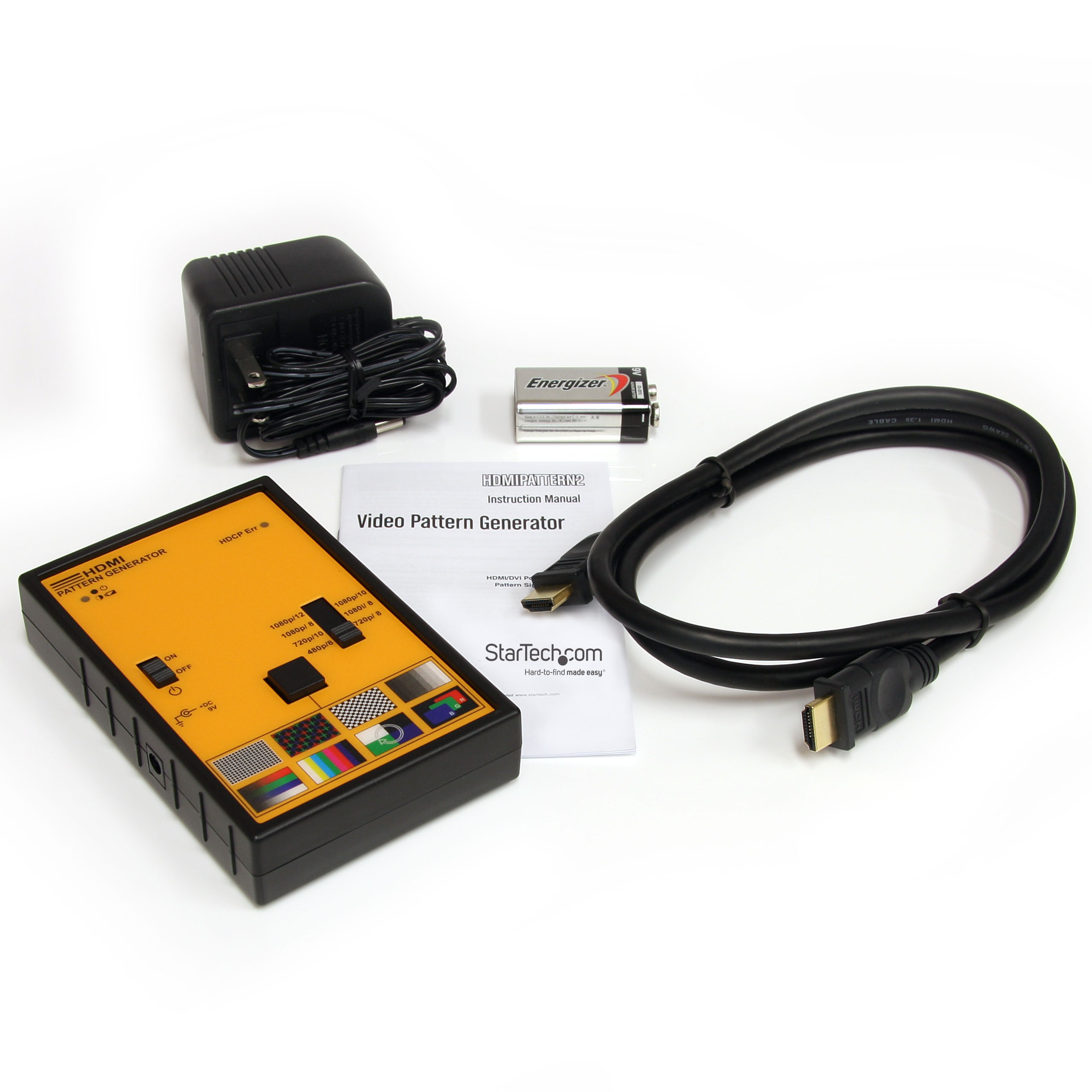

Carton Depth (mm) 478 Carton Height (mm) 452 Carton Quantity 20 Carton Weight Gross (g) 17300 Included in Package - 1 - HDMI Test Pattern Generator
- 1 - Instruction Manual
- 1 - Power Adapter
- 1 - HDMI Cable
- 1 - 9V Battery
