HDMIPNLFM3

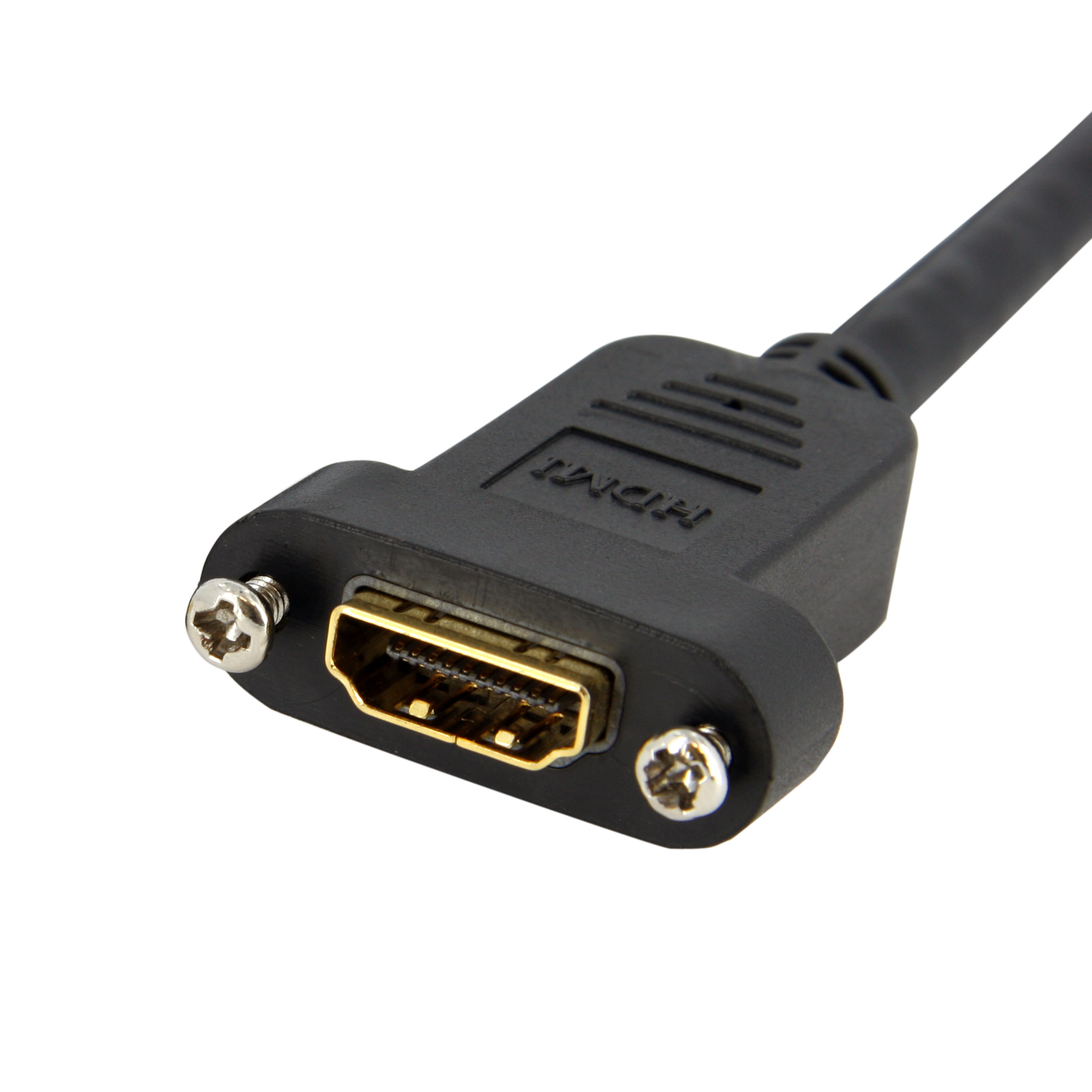

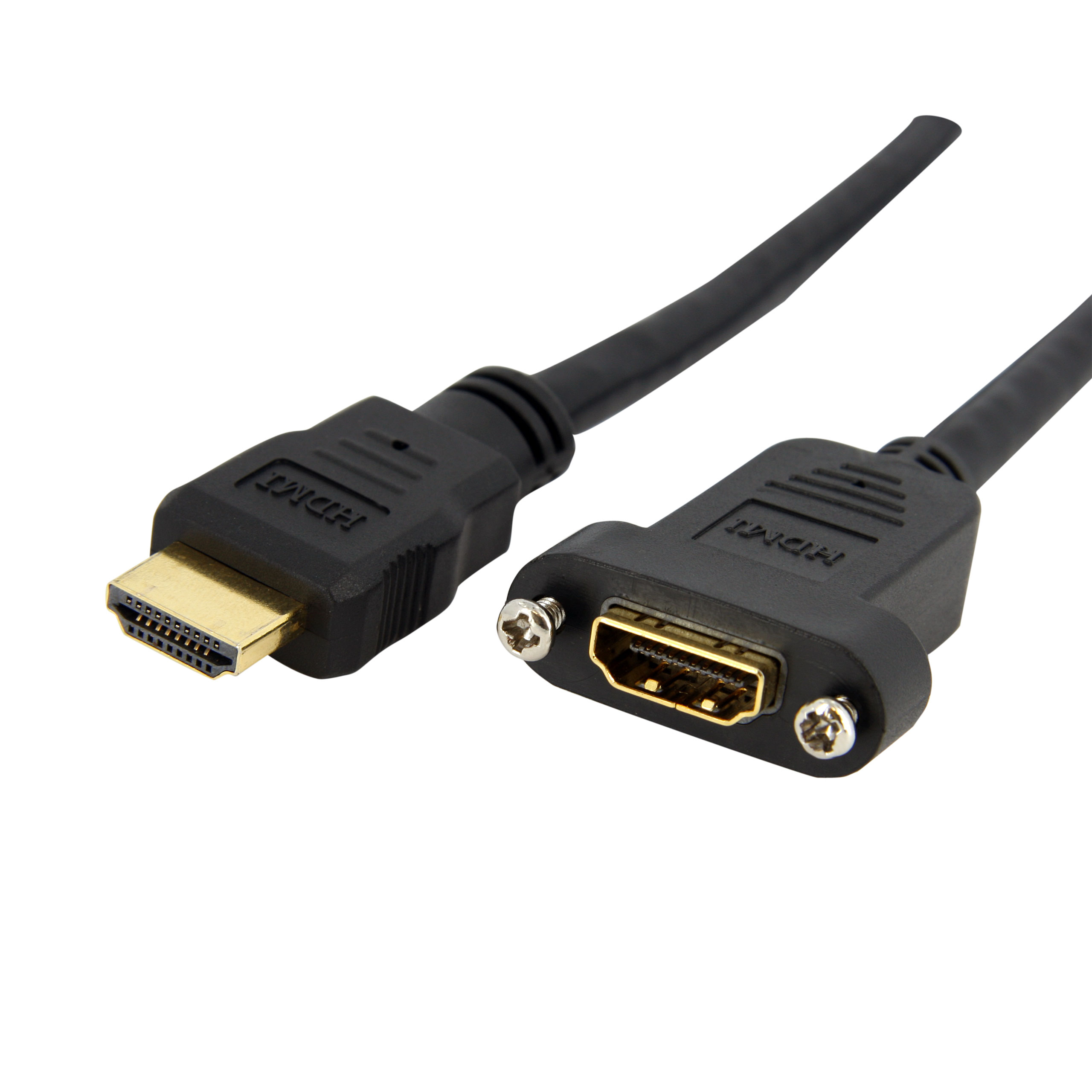

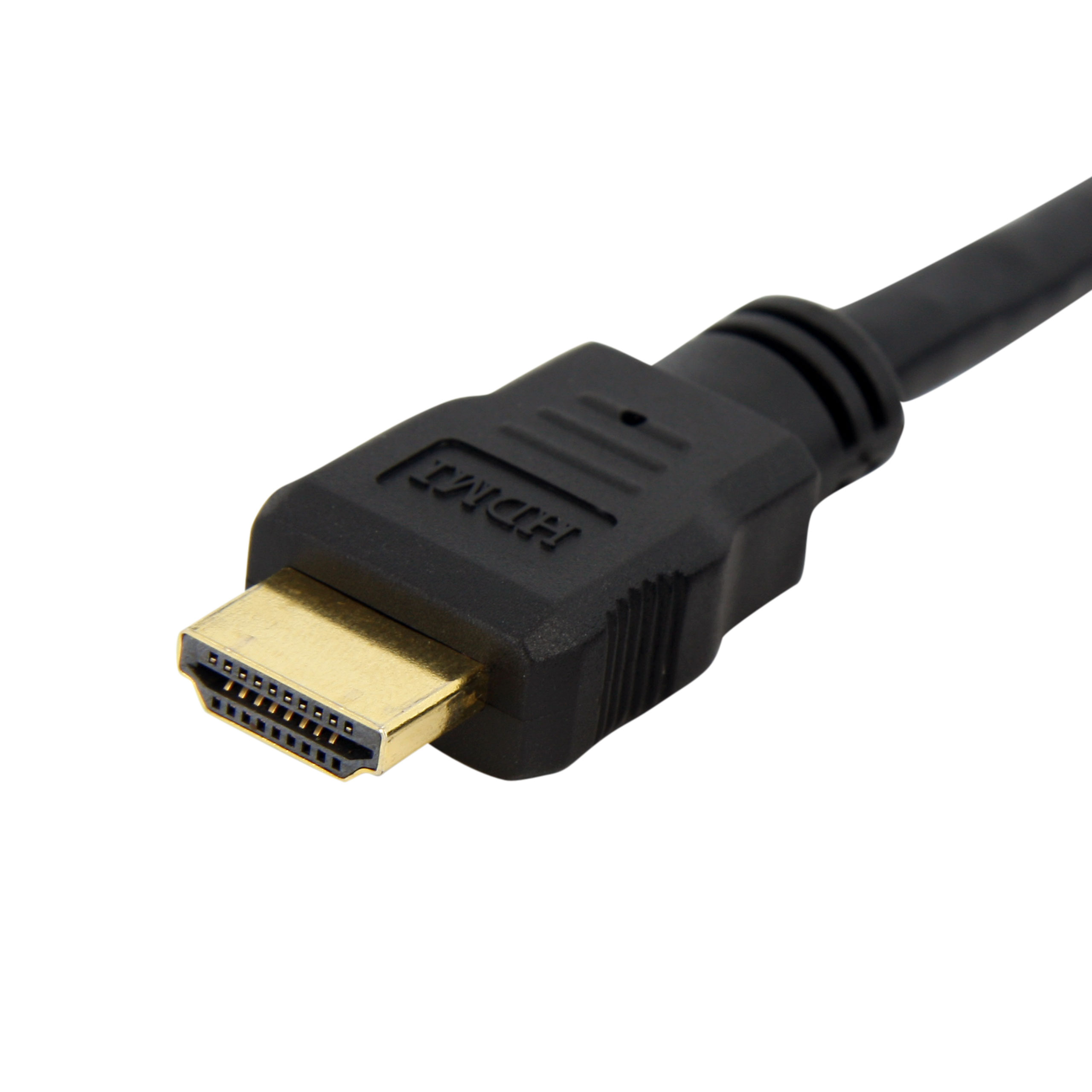

3ft Panel Mount HDMI Video Cable F M
Allows an HDMI® connection to be mounted on a secure and easily accessible panel.
Main Image
Product Images
Product Images
Product Name 3ft Panel Mount HDMI Video Cable F M Product Number HDMIPNLFM3 UPC 065030837033 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cables > Video Cables Category Level 1 Digital Display Cables Category Level 2 HDMI Cables Category Level 3 HDMI Cables - 1.x Family HDMI 1.4 Panel Mount Extension Cables, 4K30 Web Hierarchy Cables - Audio-Video Cables - HDMI Cables Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX045X Country of Origin History (2) China Country of Origin Revision (2) XXXXXX048X Country of Origin History (3) China Country of Origin Revision (3) XXXXXX048X Country of Origin History (4) Vietnam Country of Origin Revision (4) XXXXXX170X Product Title (Ultra-Short) . Product Title (Short) 3ft HDMI Female to Male Adapter Cable 4K Product Title (Medium) x Product Title (Standard) 3ft HDMI Female to Male Adapter, 4K High Speed Panel Mount HDMI Cable, HDMI Female to Male, HDMI Panel Mount Connector Cable Product Title (Long) 3ft (91cm) HDMI Female to Male Adapter, 4K High Speed Panel Mount HDMI Cable, 4K 30Hz UHD HDMI, 10.2 Gbps Bandwdith, 4K HDMI Female to HDMI Male, HDMI Panel Mount Connector Cable Product Title (AMZ) 3ft HDMI Female to Male Adapter, 4K High Speed Panel Mount HDMI Cable, 4K 30Hz UHD HDMI, 10.2 Gbps Bandwdith, 4K HDMI Female to HDMI Male, HDMI Panel Mount Connector Cable (HDMIPNLFM3) Title Ingram (Part 1) 3 ft High Speed HDMI® Cable for Pa Title Ingram (Part 2) nel Mount - F/M Website Product Headline Allows an HDMI® connection to be mounted on a secure and easily accessible panel. Bullet 1 HIGH SPEED PANEL MOUNT CABLE: 3 ft (91 cm) HDMI 1.4b cable supports 4K (3840x2160p, 24, 25, 30Hz | 4096x2160p, 24Hz), Full HD (1920x1080p, 120Hz), 10.2 Gbps bandwidth, wide aspect ratio, 8Ch Audio (5.1/7.1/DD+/Dolby TrueHD), 3D Video Bullet 2 DURABLE: HDMI Ultra HD cable with durable PVC jacket for high strength and reliability; Molded female connector with two 4-40 (0.31"/8mm long) screws to secure on to a machine faceplate/port; Ideal for Commercial environments Bullet 3 QUALITY CONSTRUCTION: 28AWG wire, corrosion resistant gold-plated connectors, and superior EMI shielding with Al-Mylar foil and copper braid improve signal integrity and reliability, providing higher quality video and audio Bullet 4 APPLICATIONS: Allows easy access to HDMI ports on your computer/laptop/desktop/workstation; Connect TV/monitor/display/projector; Ideal for use in retail kiosk/booth/lecture podium/embedded applications; Samsung/Sony/Apple TV/Dell/LG Bullet 5 SPECS: 3 ft (91 cm) | Black | HDMI 1.4 | HDMI Male to Female (panel mountable with two 4-40 screws) | 28 AWG | PVC Jacket | Shield: Al-Mylar foil with Braid | ARC, Deep Color, HDCP 1.4, CEC, YCC601 Color | Supports HDMI 1.4 and earlier Bullets (Compact) 3ft/91cm HDMI 1.4b cable; 4K (3840x2160p 30Hz)/Full HD 1080p/10.2 Gbps bandwidth/8Ch Audio - Molded connector; 2x 4-40 (0.31"/8mm long) screws - 28AWG/gold-plated connectors - Access HDMI port on computer/laptop/desktop; monitor/display/projector Bullets (Consolidated) 3ft/91cm HDMI 1.4b cable; 4K (3840x2160p 30Hz/4096x2160p 24Hz)/Full HD 1080p/10.2 Gbps bandwidth/8Ch Audio (5.1/7.1/DD+/Dolby TrueHD) - Molded connector w/ 2x 4-40 (0.31"/8mm long) screws to secure on to machine faceplate; for Commercial environments - 28AWG wire/gold-plated connectors/Al-Mylar foil w/ braid - Easy access to HDMI port on computer/laptop/desktop; Connect TV/monitor/display/projector; for retail kiosk/embedded applications; Samsung/Sony/Apple TV - StarTech.com Lifetime Warranty Marketing Copy Marketing Copy (No HTML) Applications Extend your HDMI® interface and screw mount it to a panel Website Search Keyword - HDMI Port
- HDMI
- Internal Cable
- Panel Mount
- Plate mount
- P569-003-MF-APM
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - HDMIACFM
- HDMIACMM6
- HDMIDVIFM
- HDMIDVIMF
- HDMIDVIMM30
- HDMIMM25
- HDMIMM3
- ZENDVIHDMI1
- ZENDVIHDMI2
- ZENDVIHDMI4
- ZENHDMI1
- ZENHDMI2
- ZENHDMI4
- GCHDMIFF
- HDMIDVIMM10
- HDMIDVIMM15
- HDMIDVIMM35
- HDMIDVIMM6
- HDMISPL1HH
Related Products - DPEXT6L
- GCDPMM
- USBPNLAFAM1
- USBPNLAFHD1
- USBPNLBFBM1
- DPPNLFM3
Cable Length (mm) 914.4 Cable OD 6.5 Color Black Humidity 0-85% Operating Temperature 5°C - 70°C Primary Material Plastic Product Length (mm) 914.400 Product Width (mm) 34 Product Height (mm) 12.3 Product Weight (g) 70 Storage Temperature -10°C - 80°C TAA Compliant No Wire Gauge 28 AWG HDMI Version High Speed HDMI 1.3/1.4 (10.2 Gbps) Cable Jacket Material PVC - Polyvinyl Chloride Connectors HDMI to HDMI Fire Rating CMG Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 384 Carton Height (mm) 302 Carton Quantity 150 Carton Weight Gross (g) 14790 Included in Package 1 - 3 ft Standard HDMI® Cable for Panel Mount - F/M Included In Package for Label 1 - 3 Ft Standard HDMI® Cable For Panel Mount - F/M Number of Sub-Cartons 15 Package Depth (mm) 198 Package Height (mm) 19 Package Width (mm) 183 Package Quantity 1 Package Weight (g) 88 Packaging Description 3ft (91cm) High Speed HDMI® Extension Cable for Panel Mount - F/M Packaging Description India 3ft (91cm) High Speed HDMI® Extension Cable for Panel Mount - F/M Sub-Carton Depth (mm) 457 Sub-Carton Height (mm) 58 Sub-Carton Width (mm) 249 Sub-Carton Quantity 10 Sub-Carton Weight (g) 924 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist David Bromley Product Information Creation Specialist (PICS) Brian Chan Product Manager David Muzinic Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
