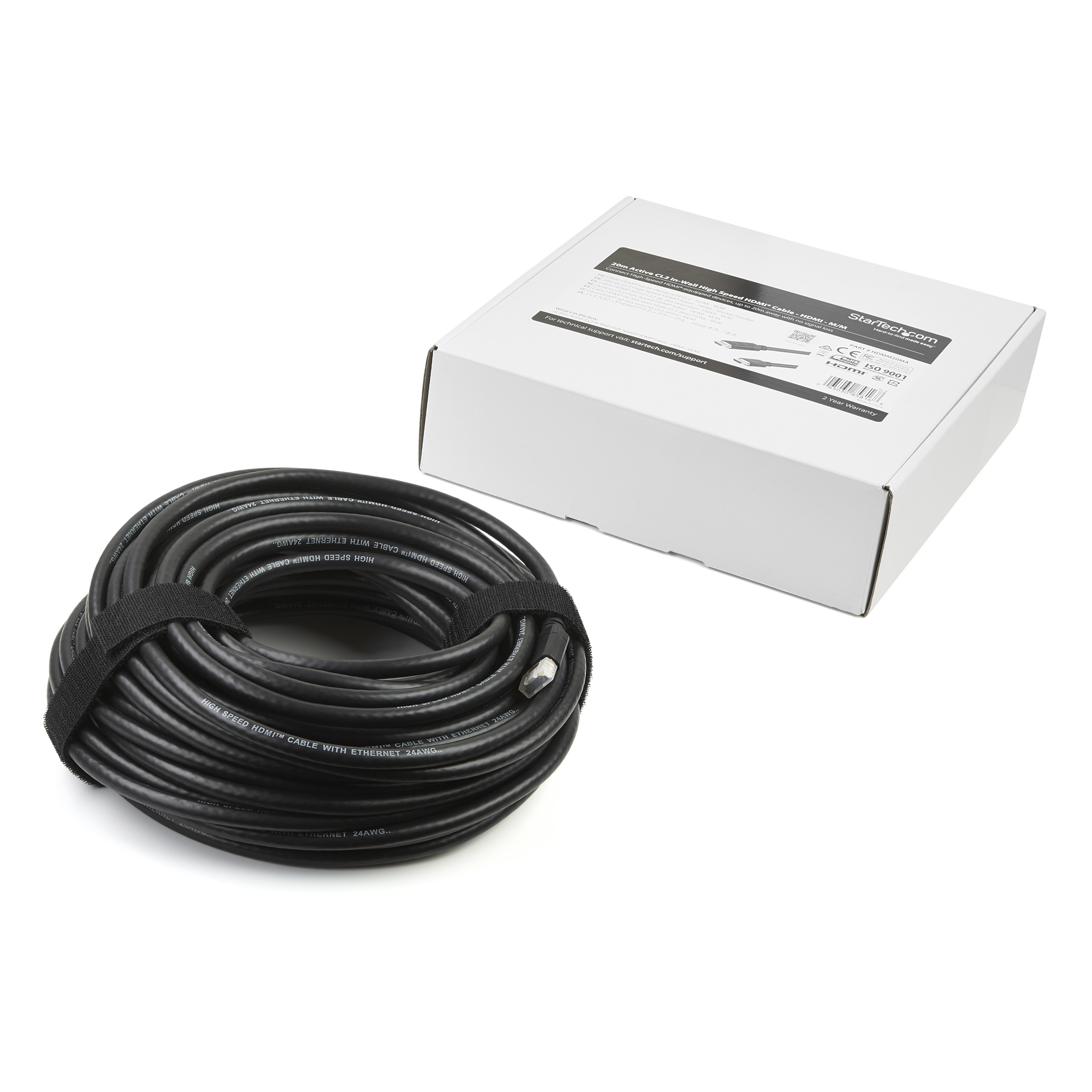

HDMM30MA
30m active HDMI cable - 24AWG
Connect your HDMI devices, up to 30m away with no signal loss
Main Image
Product Images
BOM Image
Product Name 30m active HDMI cable - 24AWG Product Number HDMM30MA UPC 065030863261 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cables > Video Cables Category Level 1 Digital Display Cables Category Level 2 HDMI Cables Category Level 3 HDMI Cables - Active Family Active HDMI 1.4 Cables, CL2 Rated, 4K30 Web Hierarchy Cables - Audio-Video Cables - HDMI Cables Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX170X Country of Origin History (2) China Country of Origin Revision (2) XXXXXX171X Product Title (Ultra-Short) 30m Active HDMI Cbl Product Title (Short) 100ft (30m) Active HDMI Cable, 4K 30Hz Product Title (Medium) 100ft (30m) Active High Speed HDMI Cable, 4K 30Hz, HDMI 1.4 Cord for TV/Monitor Product Title (Standard) 100ft (30m) Active High Speed HDMI Cable, 4K 30Hz / 1080p 120Hz, HDCP 1.4/ARC, UHD HDMI 1.4 Cord for TV / Monitor / Display Product Title (Long) 100ft (30m) Active High Speed HDMI Cable, 4K 30Hz / 1080p 120Hz, HDCP 1.4/ARC, Gold Plated Connectors, UHD HDMI 1.4 Cord for TV / Monitor / Display Product Title (AMZ) 100ft (30m) Active High Speed HDMI Cable, 4K 30Hz / 1080p 120Hz, HDCP 1.4/ARC, Gold Plated Connectors, UHD HDMI 1.4 Cord for TV / Monitor / Display Title Ingram (Part 1) 30m Active HDMI Cable - Title Ingram (Part 2) Cable - Ultra HD 4k x 2k HDMI Website Product Headline Connect your HDMI devices, up to 30m away with no signal loss Bullet 1 HIGH SPEED HDMI CABLE: Active HDMI Cable supports 4K Ultra HD video (3840x2160p @30Hz, 4096x2160p @24Hz), Full HD (1080p 120Hz); Works with your laptop/workstation/soundbar for presentations via UHD monitors, projectors/large HDTV displays Bullet 2 ACTIVE HDMI CABLE: Active amplifier boosts video signals over longer distances to extend HDMI signal up to 30m (98.4ft); Supports additional color spaces, such as Adobe RGB and YCC601 Color Bullet 3 HIGH PERFORMANCE: HDMI 1.4 Cable, 4K 30Hz (up to 3840 × 2160p), 8.16 Gbit/s bandwidth, HDR, 3D video, ARC, and multi-stream audio (5.1/Dolby TrueHD); Note: Cable is unidirectional with Source and Display labels Bullet 4 QUALITY CONSTRUCTION: Gold-plated connectors, and superior EMI shielding with Al-Mylar foil improve signal integrity and reliability; Deliver 4K x 2K @30 Hz over long distances; Ideal for conference room, offices, or classrooms Bullet 5 SPECS: 98.4 foot (30 meter); Color: Black; Version: HDMI 1.4b; Connectors: Male to Male; Wire Gauge: 24 AWG; OD: 8.5mm; Cable Jacket: PVC; Shield: Al-Mylar Foil Bullets (Compact) 100ft (30m) Active HDMI Cable; 4K Ultra HD video up to 3840x2160p @30Hz - Active amplifier signal boost - HDMI 1.4 Cable, HDR, 3D video, ARC, multi-stream audio - Gold-plated connectors; EMI shielding w/ Al-Mylar foil - Source / Display labels Bullets (Consolidated) 98.4ft (30m) Active HDMI Cable supports 4K Ultra HD video (3840x2160p @30Hz, 4096x2160p @24Hz), Full HD (1080p @120Hz) - Active amplifier boosts video signals over longer distances to extend HDMI signal - Supports additional color spaces, such as Adobe RGB and YCC601 Color; HDMI 1.4 Cable, HDR, 3D video, ARC, and multi-stream audio - Gold-plated connectors; EMI shielding with Al-Mylar foil for signal integrity and reliability - Cable is unidirectional with Source and Display labels Marketing Copy Marketing Copy (No HTML) Applications Connect your high-definition A/V devices such as streaming media players (Roku, Apple TV), game consoles (Xbox One, PS4), Blu-Ray Disc™ or DVD players over long distances, with no signal loss Website Search Keyword P568-100-ACT Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device

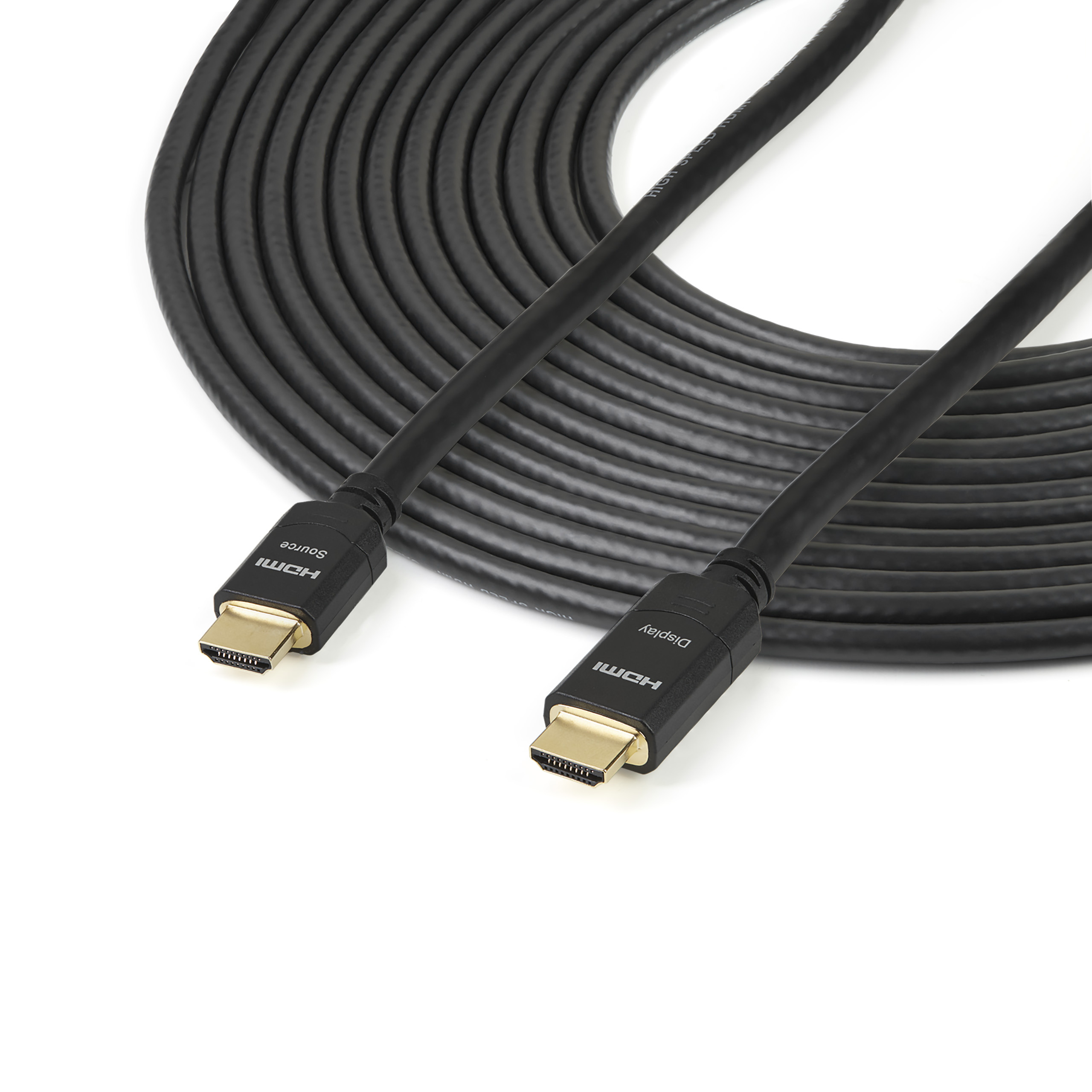

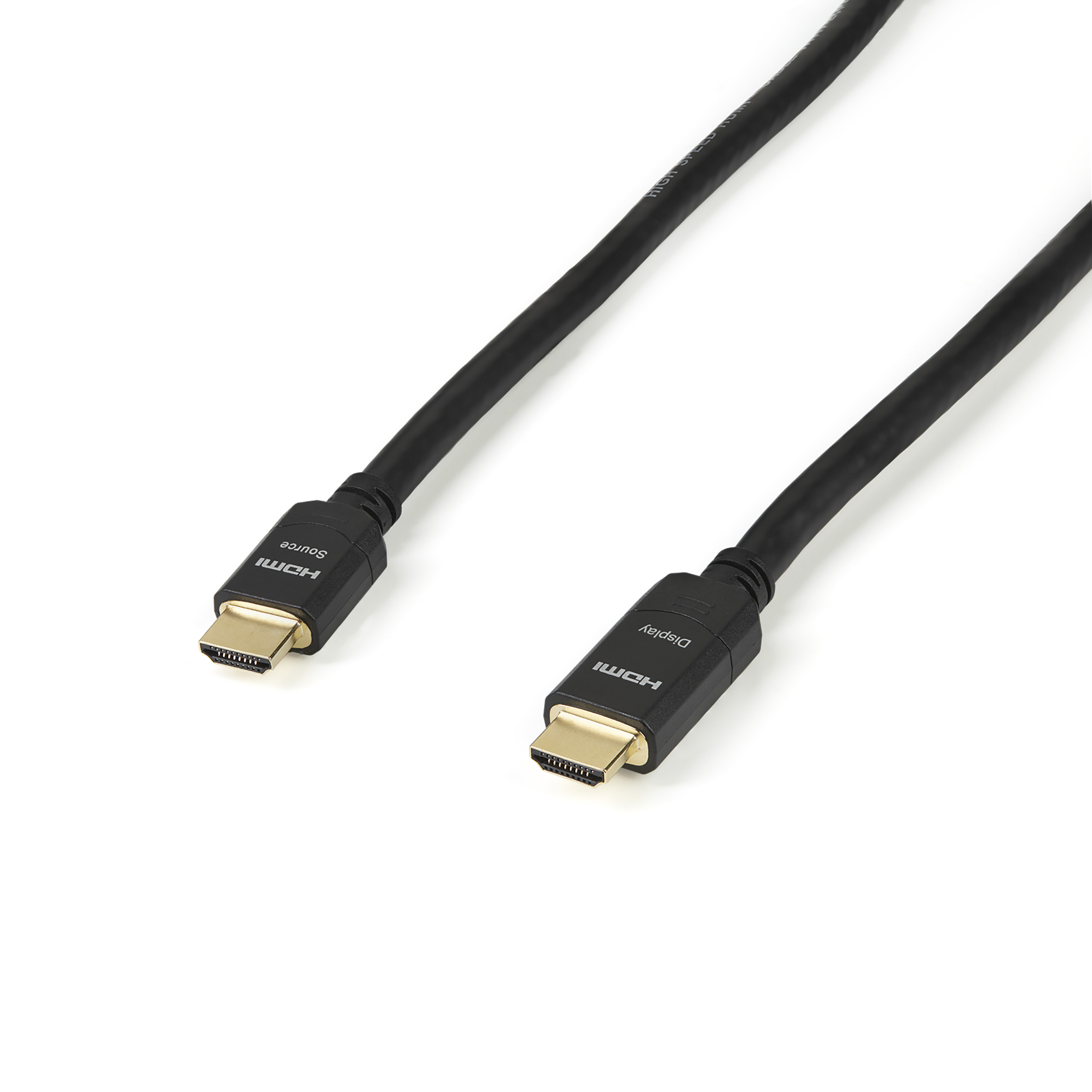

Special Notes This HDMI Cable is unidirectional with identified connectors for Source and Display. Please ensure that the HDMI connector labelled with "Display" is connected to the Display, TV, or Projector. Related Products - HDMM10MA
- HDMM15MA
- HDMM20MA
- HDMIMM80AC
Cable Length (mm) 30000 Cable OD 8.5 Color Black Connector Style Straight Primary Material Plastic Product Length (mm) 30000.000 Product Width (mm) 11.700 Product Height (mm) 19.800 Product Weight (g) 2268.000 TAA Compliant No Wire Gauge 24 AWG HDMI Version High Speed HDMI 1.3/1.4 (10.2 Gbps) Maximum Digital Resolutions 4K x 2K @ 30 Hz Cable Jacket Material PVC - Polyvinyl Chloride Cable Shield Material Aluminum-Mylar Foil with Braid Chipset ID Redmere - RM1691 Connector Plating Gold Connectors HDMI to HDMI Fire Rating CL2 Carton Depth (mm) 355 Carton Height (mm) 282 Carton Quantity 8 Carton Weight Gross (g) 21300 Included in Package 1 - 30m Active CL2 In-Wall High Speed HDMI® Cable - HDMI - M/M Included In Package for Label 1 - 30M ACtive Cl2 In-Wall High Speed HDMI® Cable - HDMI - M/M Package Depth (mm) 264 Package Height (mm) 88 Package Width (mm) 265 Package Quantity 1 Package Weight (g) 2516 Packaging Description 30m (98.4ft) Active High Speed HDMI® Cable - 4K 30Hz Packaging Description India Active CL2 High Speed HDMI® Cable HDMI - M/M Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2015-01-05 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager David Muzinic Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-08-15 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine
